ZZZM322GSM Mobile Phone

-1- Content 1 General Information...........................................................................................................................................4 1.1 Profile..............................................................................................................................................................4 1.2 Safety Information...........................................................................................................................................4 1.3 Safety warning and Attentions.........................................................................................................................4 2 Your phone..........................................................................................................................................................7 2.1 Phone overview................................................................................................................................................7 2.2 Functions of Keys............................................................................................................................................7 2.3 Technical specifications...................................................................................................................................9 3 Getting started....................................................................................................................................................9 3.1 Installing the SIM Cards and the Battery.........................................................................................................9 3.2 Installing T-Flash Card...................................................................................................................................11 3.3 Charging the Battery......................................................................................................................................12 3.4 Powering On/Off the Mobile Phone..............................................................................................................14 3.5 Linking to the Network..................................................................................................................................15 3.6 Dialing Calls..................................................................................................................................................15 3.7 Using the Headset..........................................................................................................................................16 -2- 4 Input method....................................................................................................................................................16 4.1 Icons for Input Methods.................................................................................................................................16 4.2 To Shift Entry Methods..................................................................................................................................17 4.3 Numeric Input................................................................................................................................................17 4.4 English input and numeric input:...................................................................................................................17 4.5 Inserting a Symbol.........................................................................................................................................18 5 Using the menu.................................................................................................................................................18 5.1 Messages........................................................................................................................................................18 5.2 Phonebook.....................................................................................................................................................21 5.3 Call center......................................................................................................................................................22 5.4 Services..........................................................................................................................................................25 5.5 Camera...........................................................................................................................................................26 5.6 Audio Player..................................................................................................................................................26 5.7 Mobile TV......................................................................................................................................................27 5.8 FM Radio.......................................................................................................................................................27 5.9 Multimedia.....................................................................................................................................................27 5.10 Applications...................................................................................................................................................29 5.11 User profile....................................................................................................................................................31 -3- 5.12 Settings..........................................................................................................................................................32 5.13 Bluetooth........................................................................................................................................................34 5.14 Calendar..................................................................................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 2011-11-2 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, XTREME TELECOM hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: GSM Mobile Phone model name: M322，XTV-322，THOR-2S，HV-M322 FCC ID: ZZZM322 We affirm that between SIEMIC and XTREME TELECOM, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature： Client’s name / title：Jaime.Wong / General Manager Contact information / address：Room 2202 International Science and Technology Building, Futian District, 3007 Shennan Road,Shenzhen,China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 2011-11-2 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: ZZZM322 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature： Client’s name / title：Jaime.Wong / General Manager Contact information / address：Room 2202 International Science and Technology Building, Futian District, 3007 Shennan Road,Shenzhen,China

To：SIEMIC ,2206 Ringwood Avenue,San Jose,C,USA Declaration letter Dear Sir， For our business issue and marketing requirement, we would like to list 4 model numbers on the FCC certificates and reports, as following: Model No.: M322，XTV-322，THOR-2S，HV-M322 We declare that there is no electrical change has been made to the equipment that alters the compliance characteristics. The difference of these four models is for different color.Please kindly handle on the project. Thank you! Signature: Printed name/title: Jaime.Wong /general manager Tel: 0755-83018553 Fax: 0755-83018553 Address: Room 2202 International Science and Technology Building, Futian District, 3007 Shennan Road,Shenzhen,China

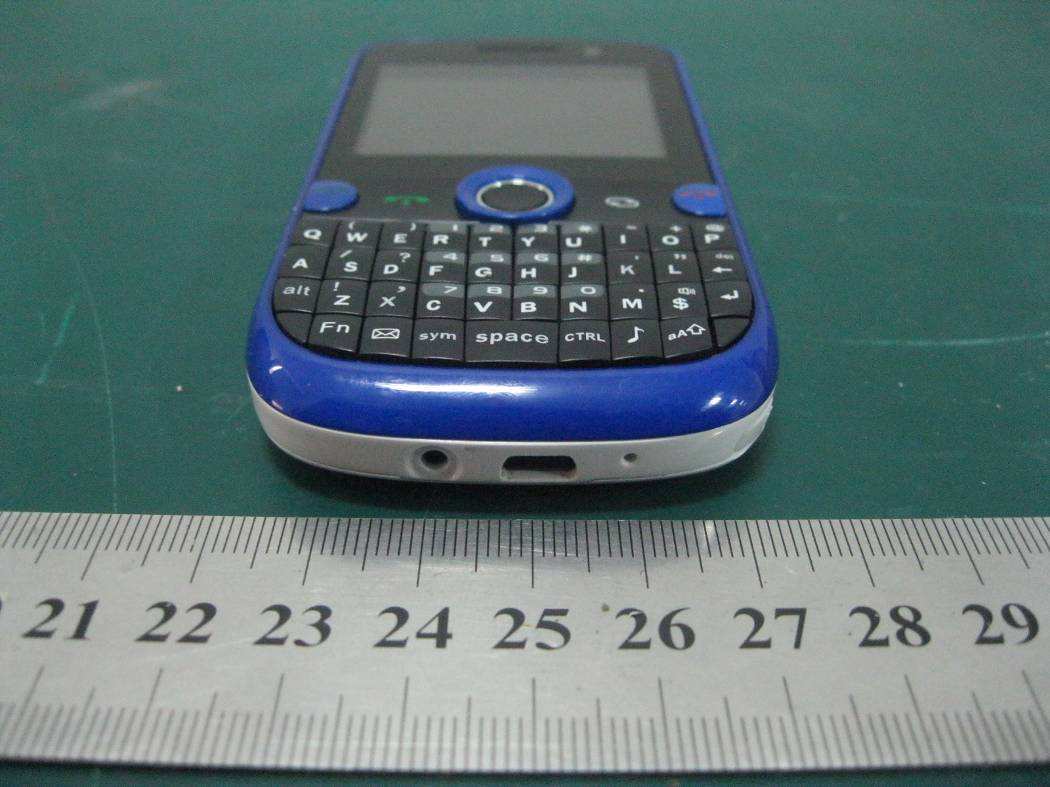

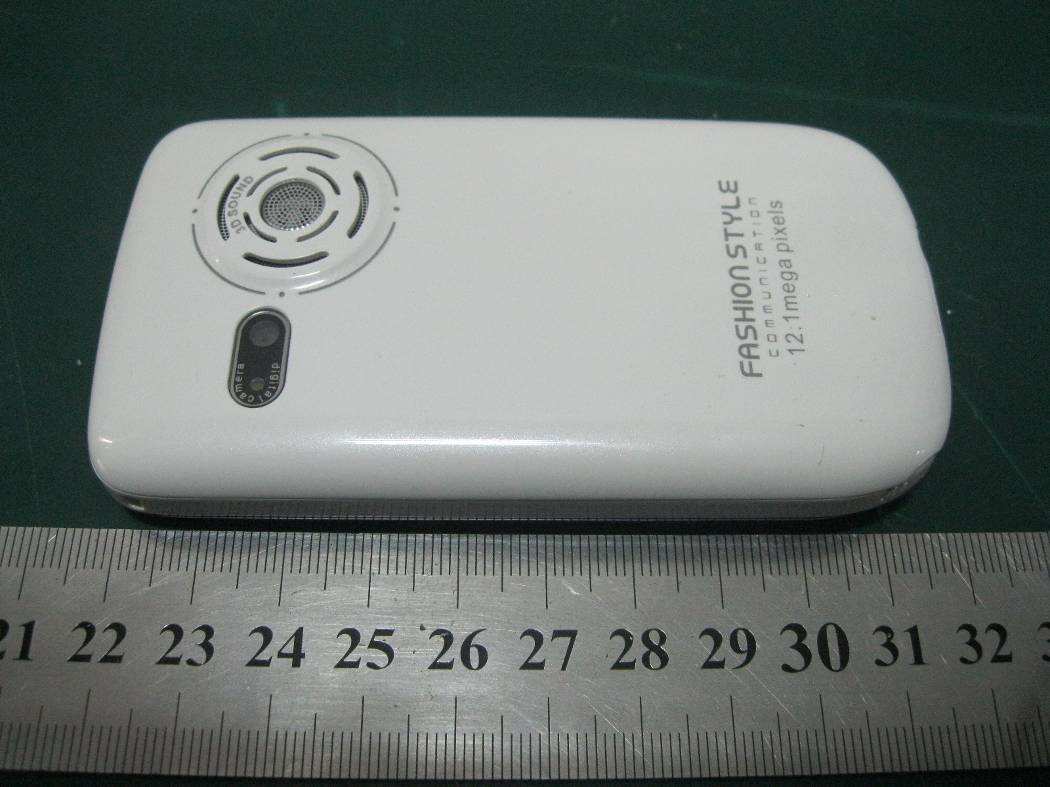

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Bottom View

Label Location

` EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Main Board Top View 1 GSM ANT EUT – Main Board Top View 2 EUT – Main Board Shielding off Top View Bluetooth ANT EUT – Main Board Bottom View EUT – Main Board Shielding off Bottom View EUT – LCD Top View EUT –LCD Bottom View EUT – Battery View

XTREME TELECOM GSM Mobile Phone Model: M322，XTV-322，THOR-2S，HV-M322 8 November, 2011 Report No.: 11070105-FCC Part 15B (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Andy Wang Compliance Engineer Peter Cai Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: EMC Test Report for GSM Mobile Phone Model: M322，XTV-322，THOR-2S，HV-M322 To: FCC Part 15B:2010 Serial#: 11070105-FCC Part 15B Issue Date: 3 November, 2011 Page: 2 of 25 www.siemic.com.cn Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Title: EMC Test Report for GSM Mobile Phone Model: M322，XTV-322，THOR-2S，HV-M322 To: FCC Part 15B:2010 Serial#: 11070105-FCC Part 15B Issue Date: 3 November, 2011 Page: 3 of 25 www.siemic.com.cn This page has been left blank intentionally. Title: EMC Test Report for GSM Mobile Phone Model: M322，XTV-322，THOR-2S，HV-M322 To: FCC Part 15B:2010 Serial#: 11070105-FCC Part 15B Issue Date: 3 November, 2011 Page: 4 of 25 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION........................................................................................................5 2 TECHNICAL DETAILS...........................................................................................................................................6 3 MODIFICATION....................................................................................................................................................7 4 TEST SUMMARY..................................................................................................................................................8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS....................................................................................9 ANNEX A. TEST INSTRUMENT & METHOD..................................................................................................................14 ANNEX B. TEST SETUP AND SUPPORTING EQUIPMENT..............................................................................................18 ANNEX C. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST...................................................................22 ANNEX D. SIEMIC ACCREDITATION CERTIFICATES....................................................................................................23 Title: EMC Test Report for GSM Mobile Phone Model: M322，XTV-322，THOR-2S，HV-M322 To: FCC Part 15B:2010 Serial#: 11070105-FCC Part 15B Issue Date: 3 November, 2011 Page: 5 of 25 www.siemic.com.cn 1 Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of the F.CELL,XTREME, MAXCOM, Hi, and model: M322，XTV-322，THOR-2S，HV-M322 against the current Stipulated Standards. The GSM Mobile Phone has demonstrated compliance with the FCC Part 15B:2010. EUT Information EUT Description : GSM Mobile Phone Model No : M322，XTV-322，THOR-2S，HV-M322 Serial No : N/A Input Power : Powered by Power Adapter: Trade Name :COURIER CHARGER Input: 100-240VAC, 50/60Hz, 150mA Output: 5.5V-500mA±50mA MODEL:CFD2010A Li-ion 900mAh 3.7V Classification Per Stipulated Test Standard : FCC Part 15B Title: EMC Test Report for GSM Mobile Phone Model: M322，XTV-322，THOR-2S，HV-M322 To: FCC Part 15B:2010 Serial#: 11070105-FCC Part 15B Issue Date: 3 November, 2011 Page: 6 of 25 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of GSM Mobile Phone model M322，XTV-322， THOR-2S，HV-M322 with stipulated standard Applicant / Client XTREME TELECOM Room 2202 International Science and Technology Building, Futian District, 3007 Shennan Road,Shenzhen,China Manufacturer XTREME TELECOM Room 2202 International Science and Technology Building, Futian District, 3007 Shennan Road,Shenzhen,China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 11070105-FCC Part 15B Date EUT received 26 October, 2011 Standard applied FCC Part 15B:2010 Dates of test 1 November,2011~8 November,2011 No of Units : 1 Equipment Category : Class B Emission Product Trade Name : F.CELL,XTREME, MAXCOM, Hi Model : M322，XTV-322，THOR-2S，HV-M322 RF Operating Frequency (ies) Bluetooth: 2402MHz-2480MHz GSM850 TX : 824.2 ~ 848.8 MHz RX :869.2 ~ 893.8 MHz PCS1900 TX : 1850.2 ~ 1909.8 MHz RX :1930.2 ~ 1989.8 MHz Number of Channels : Bluetooth:79 300 (PCS1900) and 125 (GSM850) Modulation : Bluetooth: GFSK GSM / GPRS : GMSK…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Below 1GHz: Radiated Emissions - Front View Below 1GHz: Radiated Emissions - Rear View
