2A22E-WWYLWRN300N300 Wireless Router,N300 Wi-Fi Router

User Guide N300 Wireless Router,N300 Wi-Fi Router T1 Pro •Specifications: WiFi Standard: IEEE802.11b/g/n Interface: 1 WAN 3 LAN •Environment: Rated Power Input: 12VDC, 0.5A Operating Temperature: 0-40°C Safety Instruction 1.WARNING: To reduce the risk of fire or electric shock, do not expose this device to rain or moisture. The device shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus. 2.WARNING: the power plug/direct plug-in adpater is used as disconnect device, the disconnect device shall remain readily operable. 3. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer or service operator where the product was purchased. They can take this product for environmental safe recycling. 4.Warning: to reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel. 5.The power adapter is used as the power interrupting d evice. Please pay attention to safety plug and pull and convenient operation. 6.Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel. 7.Use only the AC adapter which is included in the product package. Any other adapter may cause damage to the device. Such damage is not covered under warranty. 8.Please use and store the router and its accessories within the temperature range of 0°C~40°C. When the temperature is too high or too low, it may cause equipment failure. 9.WARNING: The direct plug-in adapter is used as disconnect device, the disconnect device shall remain readily operable. FCC Warning Statement FCC Radiation Exposure Statement: The antennas used for this transmitter must be installed to provide aseparation distance of at least 20cm from all persons and must not be co-located for operating in conjunction with any other antenna or transmitter. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1.Reorient or relocate the receiving antenna. 2.Increase the separation between the equipment and receiver. 3.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4.Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference. and (2) this device must accept any interference received, including interference that may cause undesired operation 1.The first step to start configuring your router is to plug it in and then connect a network cable（RJ45） to your WAN port, the other side of network cable (RJ45) must also be connected to your home Modem (xDSL/PON). 2.After plugging in the router and connecting it to the Modem, proceed to the next topic, which is the configuration step by step. Connect the router If your internet connection is through an Ethernet cable from the wall instead of through a DSL / Cable / Satellite modem, connect the Ethernet cable directly to the router’s Internet port 6 Switch on the router. And waiting for the LED turns into green. 4 Connect the power adapter cable to the router’s DC-IN and turn it on. 5 Plug the router and modem’s power adapter. 3 Connect the router's WAN port with the Ethernet cable 2 Connect the modem’s LAN port with the Ethernet cable 1 Power off or unplug your modem Indicator LED StatusDescription RedOnPower On GreenOnThe router has Internet available Connect your device to the router Wireless Activate the Wi-Fi on your smartphone or notebook, connect to the router’s wireless network with the same network name provided at the bottom of the router and enter the IP address 192.168.10.1 in any browser; •Find the network name(SSID) and wireless password printed on the label at the bottom of the router. •Click the network icon of your computer or go to WiFi settings of your smart device, and then select the SSID and input password to join the network. Wired Connect a network cable(RJ45) to the LAN port of the router and the other side of network cable(RJ45) connect to a notebook or desktop and enter the IP address 192.168.10.1 in the browser. Remember to turn off the device's Wi-Fi before performing this step. 3. Configure your router via Web Open the mobile phone or computer browser, visit the 192.168.10.1 website, enter the default Username and Password on the label at the bottom of the router, then you can enter the router management page. Select Internet Page, select WAN Type , normally “DHCP” Save the configuration , enjoy the Internet. Notice : For the Internet Type depend on ISP , you can consult the ISP for confirmation. If you want , …

Text truncated - open the document above for the full version.

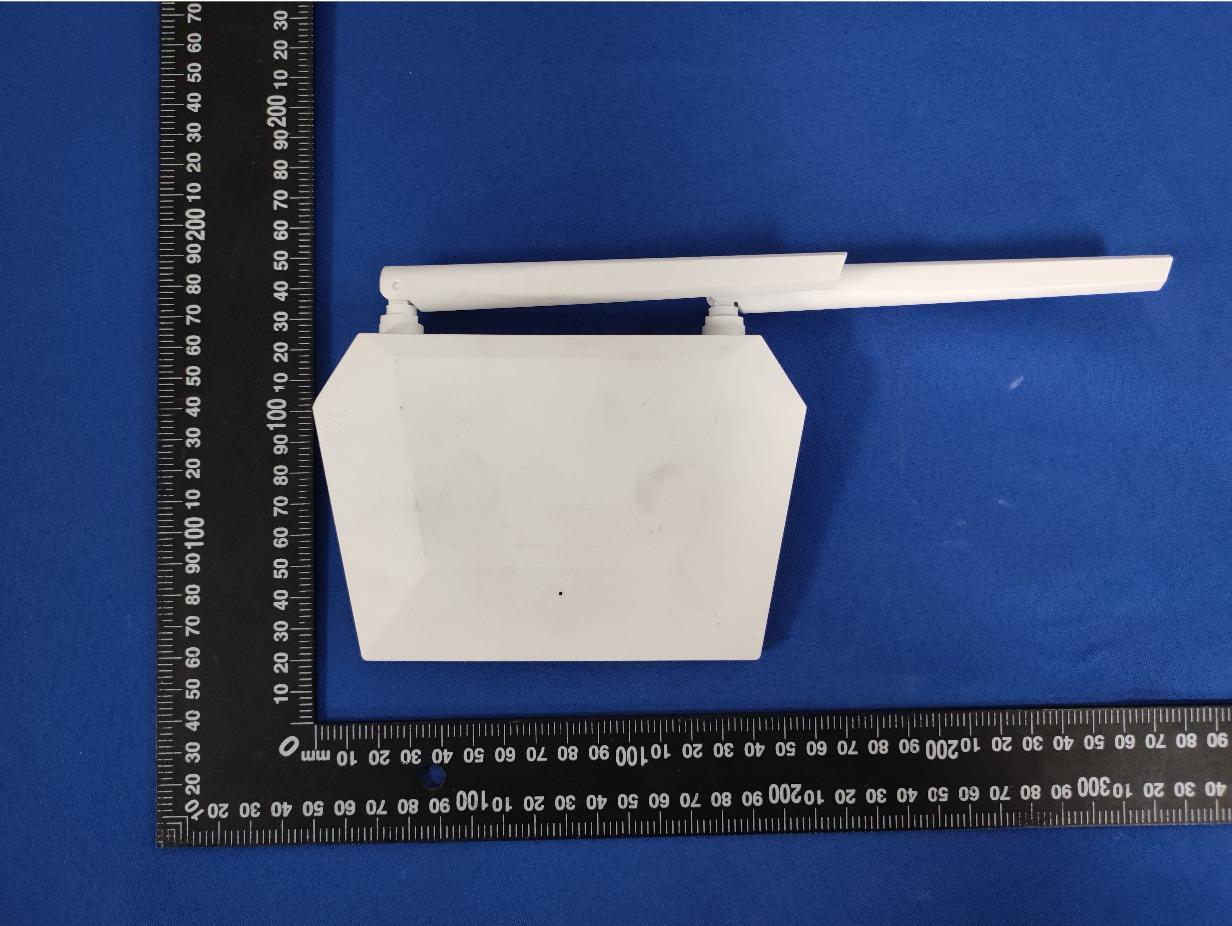

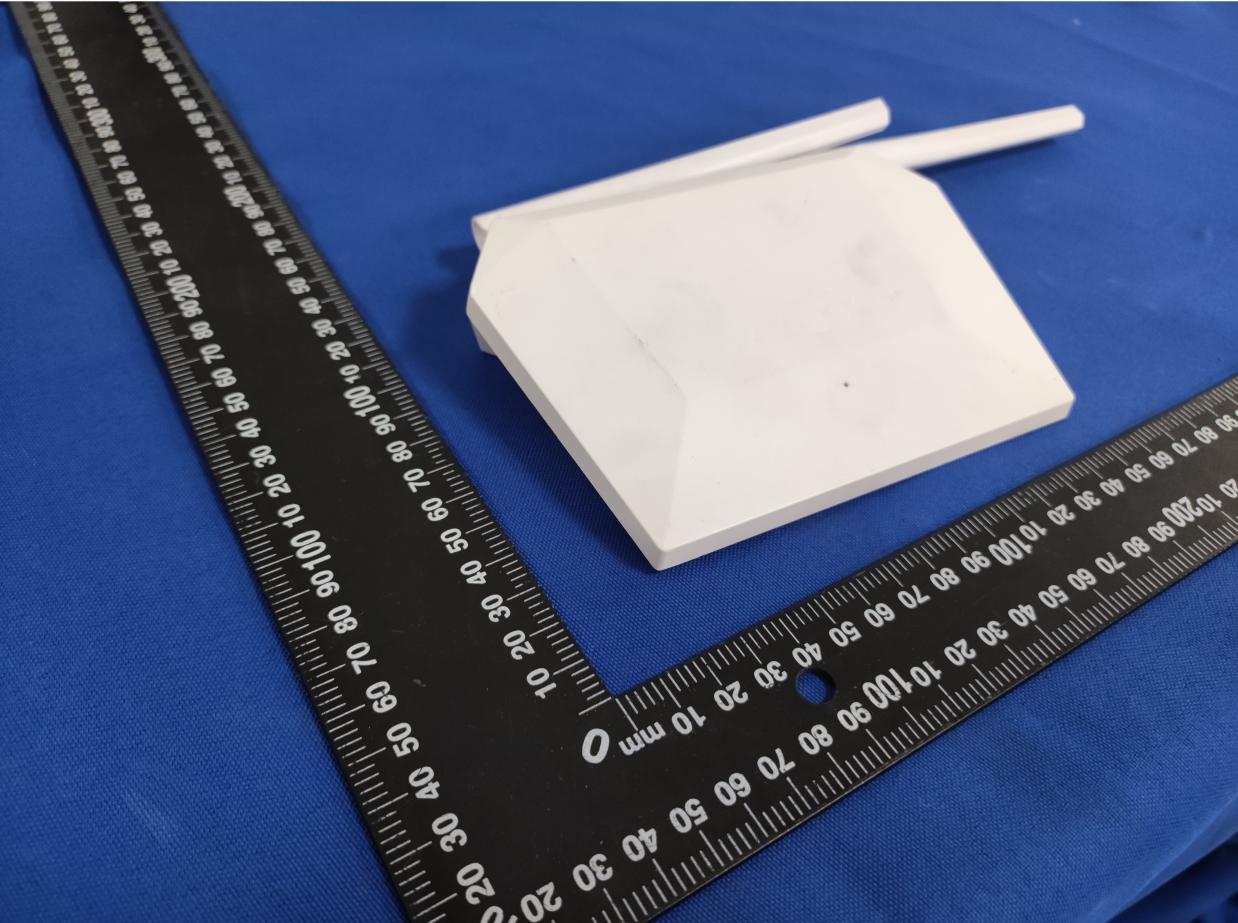

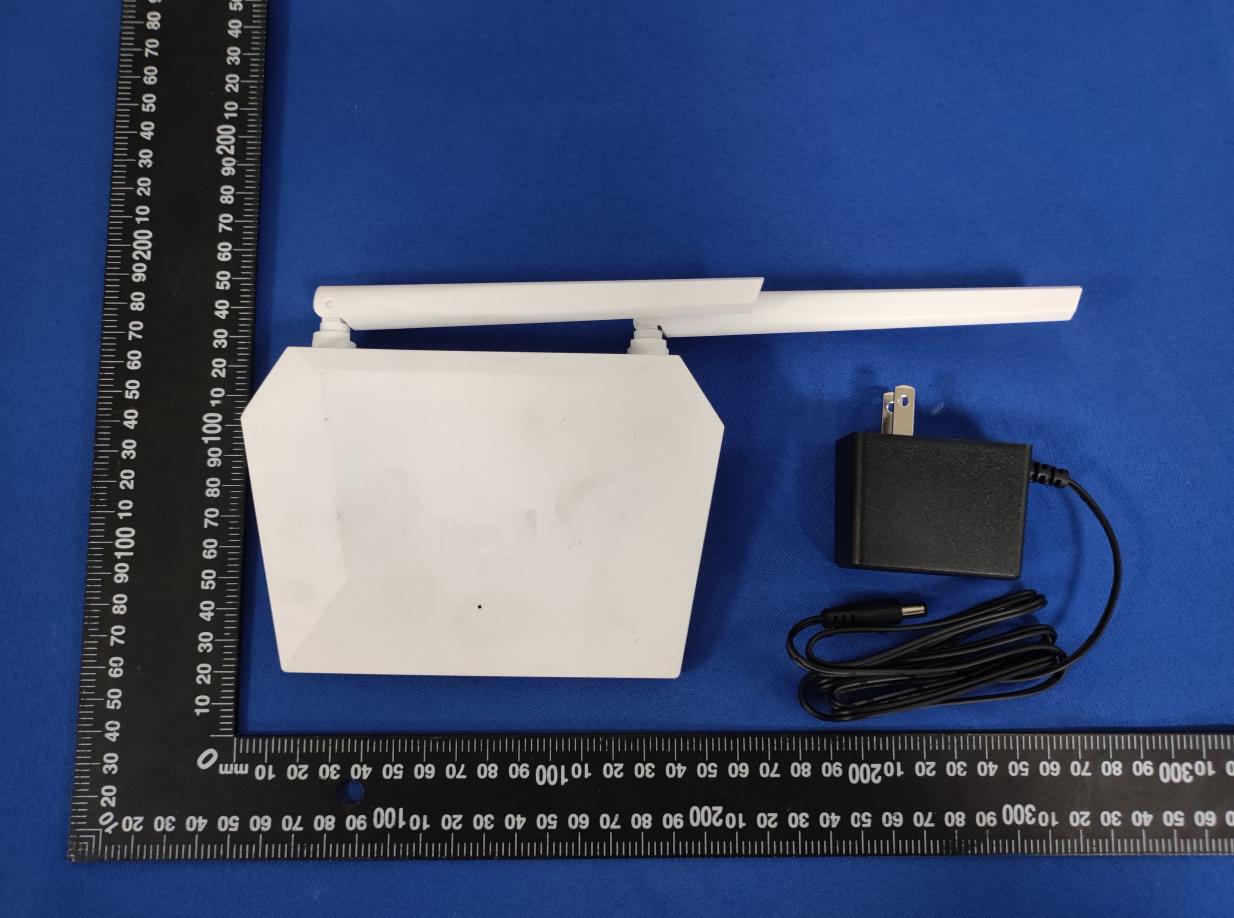

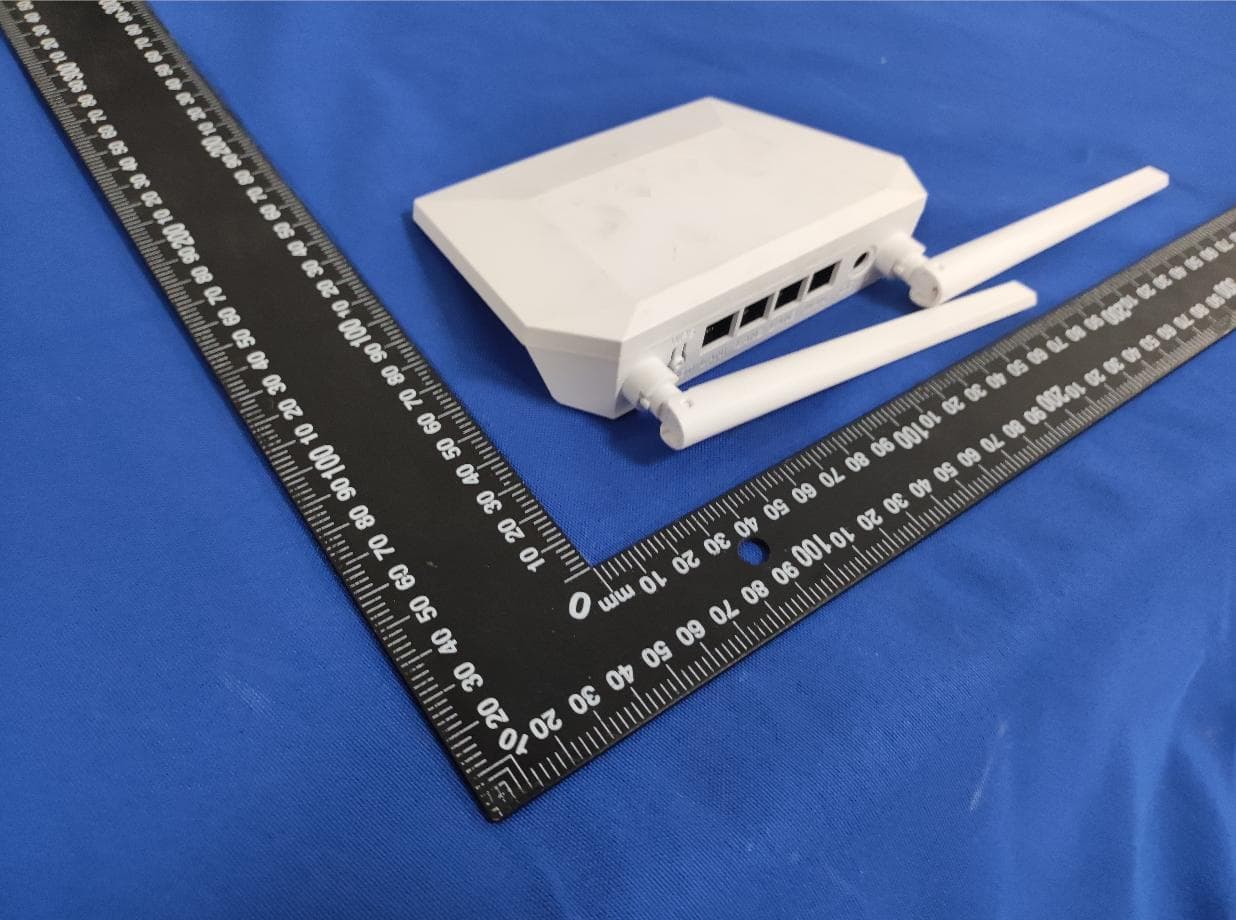

FCCID:2A22E-WWYLWRN300 ExternalPhotosoftheEUT Fig.1 Fig.2 FCCID:2A22E-WWYLWRN300 Fig.3 Fig.4 FCCID:2A22E-WWYLWRN300 Fig.5

FCCID:2A22E-WWYLWRN300 labelandlocation Fig.1

FCCID:2A22E-WWYLWRN300 InternalPhotosoftheEUT Fig.1 Fig.2 WIFI Antenna1 WIFI Antenna2 FCCID:2A22E-WWYLWRN300 Fig.3

RFExposureevaluation FCCID:2A22E-WWYLWRN300 1.Reference Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissection shallbeoperatedinamannerthatensuresthatthepublicisnotexposedtoradio frequencyenergylevelinexcessoftheCommission’sguidelines. Accordingto§1.1310and§2.1091RFexposureiscalculated. KDB447498D01:MobileandPortableDevicesRFExposureProceduresand EquipmentAuthorizationPolicies 2.Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) Averaging Time (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500– 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) Averaging Time (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500– 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 3.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropic radiator R=distancetothecenterofradiationoftheantenna 4.AntennaInformation T1Pro canonlyuseantennascertificatedasfollowsprovidedbymanufacturer; AntennaNo. ModelNo. ofantenna: Typeofantenna: Gainoftheantenna (Max.) Frequencyrange: 2.4GWIFI/Externalantenna Ant1:3.55dBifor2400-2500MHz Ant2:3.54dBifor2400-2500MHz 5.ManufacturingTolerance ForANT1 2.4GWIFI(Peak) 802.11b ChannelChannel01Channel6Channel11 Target(dBm)15.015.015.0 Tolerance±(dB)1.01.01.0 802.11g ChannelChannel01Channel6Channel11 Target(dBm)15.015.015.0 Tolerance±(dB)1.01.01.0 802.11n(HT20) ChannelChannel01Channel6Channel11 Target(dBm)15.015.015.0 Tolerance±(dB)1.01.01.0 802.11n(HT40) ChannelChannel01Channel6Channel11 Target(dBm)14.014.014.0 Tolerance±(dB)1.01.01.0 ForANT2 2.4GWIFI(Peak) 802.11b ChannelChannel01Channel6Channel11 Target(dBm)14.014.014.0 Tolerance±(dB)1.01.01.0 802.11g ChannelChannel01Channel6Channel11 Target(dBm)15.015.015.0 Tolerance±(dB)1.01.01.0 802.11n(HT20) ChannelChannel01Channel6Channel11 Target(dBm)15.015.015.0 Tolerance±(dB)1.01.01.0 802.11n(HT40) ChannelChannel01Channel6Channel11 Target(dBm)13.013.013.0 Tolerance±(dB)1.01.01.0 ForMIMO: 2.4GWIFI 802.11n(HT20) ChannelChannel01Channel6Channel11 Target(dBm)18.018.018.0 Tolerance±(dB)1.01.01.0 802.11n(HT40) ChannelChannel01Channel6Channel11 Target(dBm)17.017.017.0 Tolerance±(dB)1.01.01.0 6.StandaloneMPEResult AsdeclaredbytheApplicant,theEUTisawirelessdeviceusedinafixapplication,at least20cmfromanybodypartoftheuserornearbypersons;fromthemaximumEUT RFoutputpower,theminimumseparationdistance,r=20cm,aswellasthegainofthe usedantennarefertoantennainformation,theRFpowerdensitycanbeobtained. ModulationType OutputpowerAntenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBmmW 2.4GWIFIANT116.039.81073.552.26460.017941.0000 2.4GWIFIANT216.039.81073.542.25940.017891.0000 Remark: 1.Outputpower(Peak)includingturn-uptolerance; 2.MPEevaluatedistanceis20cmfromusermanualprovidebymanufacturer. SimultaneousEvaluation WIFIANT1MPE (mW/cm 2 ) WIFIANT2MPE (mW/cm 2 ) MPE MPE Limits 0.017940.017890.035831.0000 7.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1091forthe uncontrolledRFExposureofmobiledevice. ----------------THEENDOFREPORT---------------

SPECIFICATIONFORAPPROVAL Customername：MicronetUniontechnology(Chengdu)Co,LTD Productname：externalantenna（Black) EquipmentType：2.4GHz-2.5GHz/RF1.13GrayL=185mm+IPEX ModelNumber：51010093 Partnumberinthefactory：VW01-W020011 Companyaddress：Dongguanivytechnologyco,LTD Romm303,Unit2,Building8,scienceandTechnology SecondRoad,SongshanLakepark,Dongguan City,GuangdongProvince,China Companyconfirmation： examineauditratify MISSWuMr.XUMR.Wan CustomerConfirmation： inspectauditratify 1、Specificationtable： Maintechnicalspecifications FrequencyRange (MHz) 2400~2500 Impedance(Ω) 50 PeakGain(dBi) 3±0.5 VSWR Max2.0 AdmittedPower 2W Polarization LinearVertical Radiation Omni-directional ConnectorType IPEX PhysicalProperties Antennacable 1.13GrayCable OperatingTemp -40 °C ~+60 °C StorageTemp -40 °C ~+60 °C Productdrawing 三、ProductCharacteristics 2400-2500MHz Testphilosophy： Darkroominteriorpicture： 暗室2D、3DRadiationPattern RadiationPattern 2.4GHz 2.45GHz 2.5GHz 1.Gain&Patternstestresults 2Dpatterns Summary VSWR 3DPeakGain&Efficiency 2400MHz2450MHz2500MHz VSWR 1.531.211.52 Frequency Antenna Peak G ain (dBi)Efficiency(%) 2400MHz 3.5573.4 2450MHz 3.3775.4 2500MHz 3.4672.5 FR4 Ipex PC+PBT

SPECIFICATIONFORAPPROVAL Customername：MicronetUniontechnology(Chengdu)Co,LTD Productname：externalantenna（White) EquipmentType：2.4GHz-2.5GHz/RF1.13GrayL=185mm+IPEX ModelNumber：51010148 Partnumberinthefactory：VW01-W020064 Companyaddress：Dongguanivytechnologyco,LTD Romm303,Unit2,Building8,scienceandTechnology SecondRoad,SongshanLakepark,Dongguan City,GuangdongProvince,China Companyconfirmation： examineauditratify MISSWuMr.XUMR.Wan CustomerConfirmation： inspectauditratify 1、Specificationtable： Maintechnicalspecifications FrequencyRange (MHz) 2400~2500 Impedance(Ω) 50 PeakGain(dBi) 3±0.5 VSWR Max2.0 AdmittedPower 2W Polarization LinearVertical Radiation Omni-directional ConnectorType IPEX PhysicalProperties Antennacable 1.13GrayCable OperatingTemp -40 °C ~+60 °C StorageTemp -40 °C ~+60 °C Productdrawing 三、ProductCharacteristics 2400-2500MHz Testphilosophy： Darkroominteriorpicture： 暗室2D、3DRadiationPattern RadiationPattern 2.4GHz 2.45GHz 2.5GHz 1.Gain&Patternstestresults 2Dpatterns Summary VSWR 3DPeakGain&Efficiency 2400MHz2450MHz2500MHz VSWR 1.281.071.22 Frequency Antenna Peak G ain (dBi)Efficiency(%) 2400MHz 3.1272.64 2450MHz 3.5475.36 2500MHz 3.3672.41 FR4 Ipex PC+PBT

ShenzhenGUORENCertificationTechnologyServiceCo., Ltd. 101#,BuildingK & BuildingT, The SecondIndustrialZone,JiazitangCommunity, FenghuangStreet,GuangmingDistrict,Shenzhen, China FCC PART15 SUBPARTC TESTREPORT FCC PART15.247 ReportReferenceNo . ....................... : FCCID.................................................: GRCTR230602011-01 2A22E-WWYLWRN300 Compiled by ( position+printedname+signature)..: TestingEngineerJimmyWang Supervisedby ( position+printedname+signature) .. : ProjectEngineerKelleyZhang Approvedby ( position+printedname+signature)..: ManagerSamWang Dateof issue ......................................... :Jul. 10, 2023 TestingLaboratoryName ................ :ShenzhenGUORENCertificationTechnologyServiceCo., Ltd. Address.................................................: 101#,BuildingK & BuildingT, The SecondIndustrialZone,Jiazitang Community,FenghuangStreet,GuangmingDistrict,Shenzhen, China Applicant’s name...............................:MicronetUnionTechnology(Chengdu)Co., Ltd Address.................................................: Room502, Building5, N.O.528, YuefeiRoad,ShibantanStreet, XinduDistrict,Chengdu,Sichuan,China Testspecification..............................: Standard................................................:FCCPart 15.247 ShenzhenGUORENCertificationTechnologyServiceCo., Ltd.All rightsreserved. This publicationmay be reproducedin wholeor in part for non-commercialpurposesas long as the Shenzhen GUORENCertificationTechnologyServiceCo., Ltd. is acknowledgedas copyrightownerand sourceof the material.ShenzhenGUORENCertificationTechnologyServiceCo., Ltd. takesno responsibilityfor and will not assumeliabilityfor damagesresultingfrom the reader'sinterpretationof the reproducedmaterialdue to its placementand context. Testitemdescription........................:N300WirelessRouter,N300Wi-FiRouter TradeMark............................................: / Manufacturer.........................................: MicronetUnionTechnology(Chengdu)Co., Ltd Model/Typereference ......................... : T1 Pro ListedModels ...................................... : WRN300,T1, WRN3,WMN300 FirmwareVersion.................................:V 1.0 HardwareVersion................................:V 1.0 ModulationType..................................:DSSS/OFDM OperationFrequency..........................:From2412- 2462MHz Rating ..................................................... :DC 12V from externalcircuit Result ..................................................... :PASS ReportNo.: GRCTR230602011-01Page 2 of 54 T E S T R E P O R T EquipmentunderTest:N300WirelessRouter,N300Wi-FiRouter Model/Type:T1 Pro ListedModels:WRN300,T1, WRN3,WMN300 Applicant : MicronetUnionTechnology(Chengdu)Co., Ltd Address: Room502, Building5, N.O.528, YuefeiRoad,ShibantanStreet, XinduDistrict,Chengdu,Sichuan,China Manufacturer : MicronetUnionTechnology(Chengdu)Co., Ltd Address: Room502, Building5, N.O.528, YuefeiRoad,ShibantanStreet, XinduDistrict,Chengdu,Sichuan,China TestResult:PASS The test reportmerelycorrespondsto the test sample. It is not permittedto copyextractsof thesetest resultwithoutthe writtenpermissionof the test laboratory. ReportNo.: GRCTR230602011-01Page 3 of 54 Contents 1 T E S TS T A N D A R D S..............................................................................................................................4 2 S U M M A R Y.................................................................................................................................................5 2.1 GeneralRemarks..........................................................................................................................................5 2.2 ProductDescription.....................................................................................................................................5 2.3 Shortdescriptionof the EquipmentunderTest(E UT) .............................................................................5 2.4 EUT operationmode.....................................................................................................................................6 2.5 BlockDiagramof TestSetup.......................................................................................................................6 2.6 RelatedSubmittal(s)/ Grant(s) ...................................................................................................................6 2.7 Modifications.................................................................................................................................................6 3 T E S TE N V I R O N M E N T........................................................................................................................7 3.1 Addressof the test laboratory....................................................................................................................7 3.2 TestFacility...................................................................................................................................................7 3.3 Environmentalconditions............................................................................................................................7 3.4 TestDescription............................................................................................................................................8 3.5 Statementof the measurementuncertainty..............................................................................................8 3.6 EquipmentsUsedduringthe Test ..............................................................................................................9 4 T E S TC O N D I T I O N SA N DR E S U L T S.......................................................................................1 0 4.1 AC PowerConductedEmission................................................................................................................10 4.2 RadiatedEmission.................…

Text truncated - open the document above for the full version.

ReportNo.: GRCTR230602011-01Page 41 of 54 802.11b802.11g CH11CH01 30MHz-1GHz30MHz-1GHz 1GHz -25 GHz1GHz -25 GHz ReportNo.: GRCTR230602011-01Page 42 of 54 802.11g CH06CH11 30MHz-1GHz30MHz-1GHz 1GHz -25 GHz1GHz -25 GHz ReportNo.: GRCTR230602011-01Page 43 of 54 802.11n(HT20) CH01CH06 30MHz-1GHz30MHz-1GHz 1GHz -25 GHz1GHz -25 GHz ReportNo.: GRCTR230602011-01Page 44 of 54 802.11n(HT20)802.11n(HT40) CH11CH03 30MHz-1GHz30MHz-1GHz 1GHz -25 GHz1GHz -25 GHz ReportNo.: GRCTR230602011-01Page 45 of 54 802.11n(HT40) CH06CH09 30MHz-1GHz30MHz-1GHz 1GHz -25 GHz1GHz -25 GHz ReportNo.: GRCTR230602011-01Page 46 of 54 Band-edgeMeasurementsforRFConductedEmissions: Ant 1 802.11b Left bandedgeRightbandedge 802.11g Left bandedgeRightbandedge ReportNo.: GRCTR230602011-01Page 47 of 54 802.11n(HT20) Left bandedgeRightbandedge 802.11n(HT40) Left bandedgeRightbandedge ReportNo.: GRCTR230602011-01Page 48 of 54 Ant 2 802.11b Left bandedgeRightbandedge 802.11g Left bandedgeRightbandedge ReportNo.: GRCTR230602011-01Page 49 of 54 802.11n(HT20) Left bandedgeRightbandedge 802.11n(HT40) Left bandedgeRightbandedge ReportNo.: GRCTR230602011-01Page 50 of 54 4.7AntennaRequirement StandardApplicable For intentionaldevice,accordingto FCC47 CFRSection15.203: An intentionalradiatorshallbe designedto ensurethat no antennaotherthan that furnishedby the responsiblepartyshallbe usedwith the device.The use of a permanentlyattachedantennaor of an antenna that usesa uniquecouplingto the intentionalradiator,the manufacturermay designthe unit so that a broken antennacan be replacedby the user,but the use of a standardantennajack or electricalconnectoris prohibited. FCCCFRTitle47 Part 15 SubpartC Section15.247(c)(1) (I): (i) Systemsoperatingin the 2400-2483.5MHzbandthat is usedexclusivelyfor fixed.Point-to-pointoperations may employtransmittingantennaswith directionalgain greaterthan 6dBi providedthe maximumconducted outputpowerof the intentionalradiatoris reducedby 1 dB for every3 dB that the directionalgain of the antennaexceeds6dBi. TestResult: The maximumgain of antennawas 3.55 dBi for 2.4GHzWIFIAnt 1,themaximumgain of antennawas 3.54 dBi for 2.4GHzWIFIAnt 2. Remark:The antennagain is providedby the customer,if the data providedby the customeris not accurate, ShenzhenGUORENCertificationTechnologyServiceCo., Ltd. doesnot assumeany responsibility. ReportNo.: GRCTR230602011-01Page 51 of 54 5 T e s tS e t u pP h o t o so f t h eE U T ReportNo.: GRCTR230602011-01Page 52 of 54 6 P h o t o so f t h eE U T ReportNo.: GRCTR230602011-01Page 53 of 54 WIFI Antenna2 WIFI Antenna1 ReportNo.: GRCTR230602011-01Page 54 of 54 **********************End of Report**********************

FCCID:2A22E-WWYLWRN300 TestSetupPhotosoftheEUT TestSetupPhoto(s)ofRadiatedEmissionsMeasurement Fig.1 Fig.2 FCCID:2A22E-WWYLWRN300 TestSetupPhoto(s)ofConductedEmissionsMeasurement Fig.3
