2A25E-R01U1 CHARGING CASE

Unit 1 Gear, Inc.
U1 CHARGING CASE - FCC ID 2A25E-R01 - Unit 1 Gear, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Feb 04, 2024
Application Purpose
Original Equipment
Date of Application
Feb 04, 2024
Equipment Note
U1 CHARGING CASE
Frequency Range
2402.00000000 - 2480.00000000
Company
Unit 1 Gear, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗

Cover Letter(s)

↗
↗

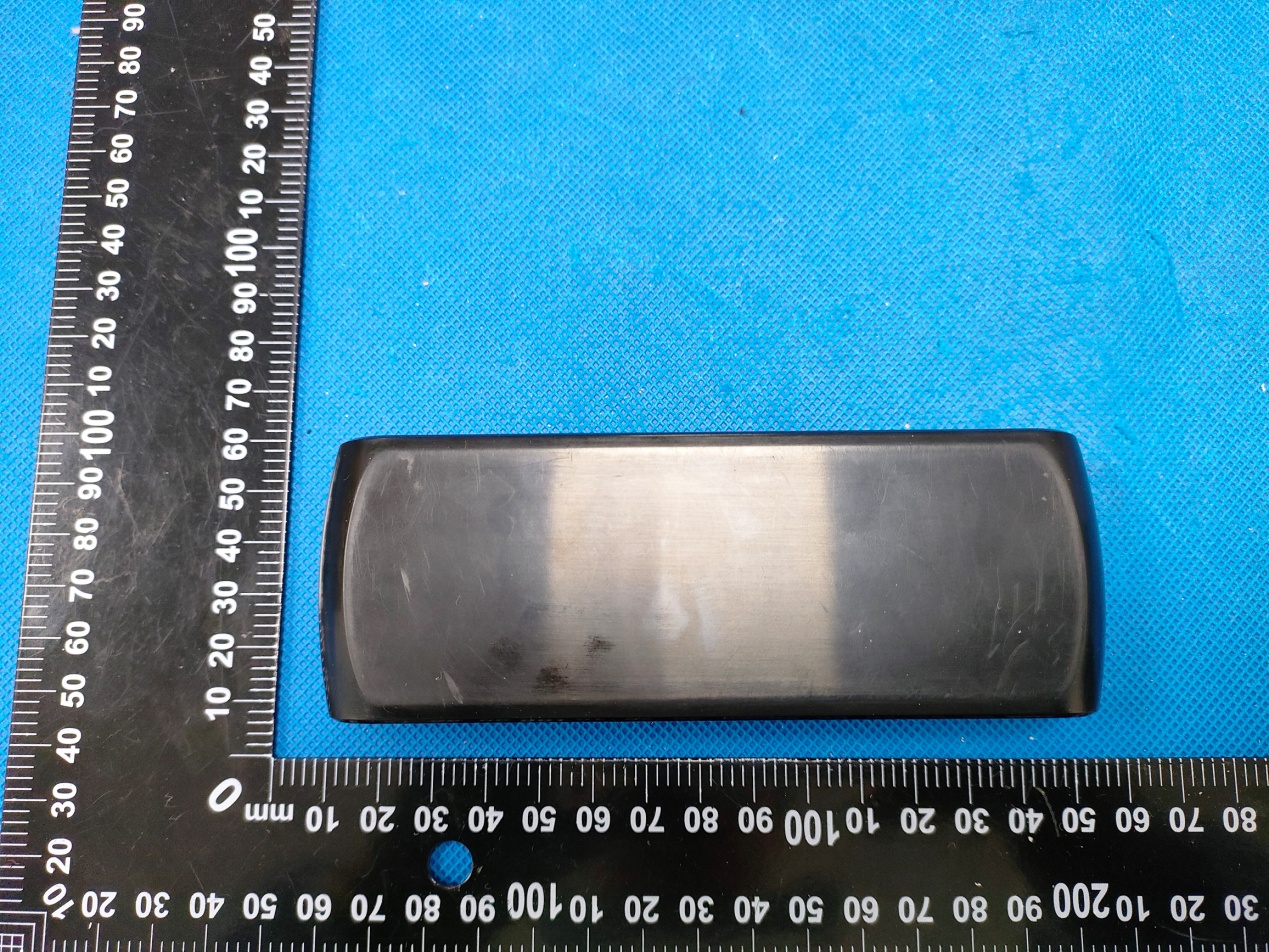

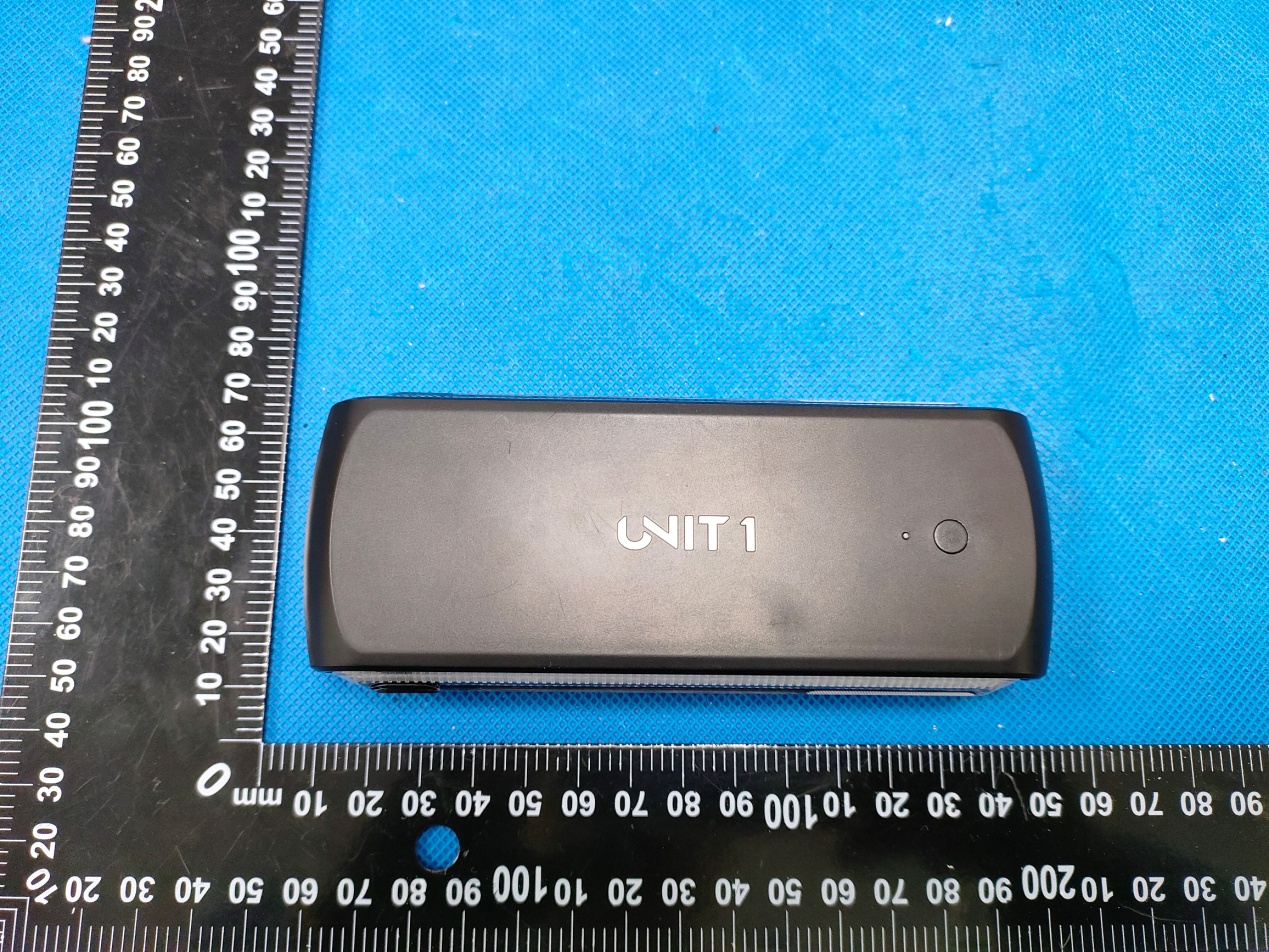

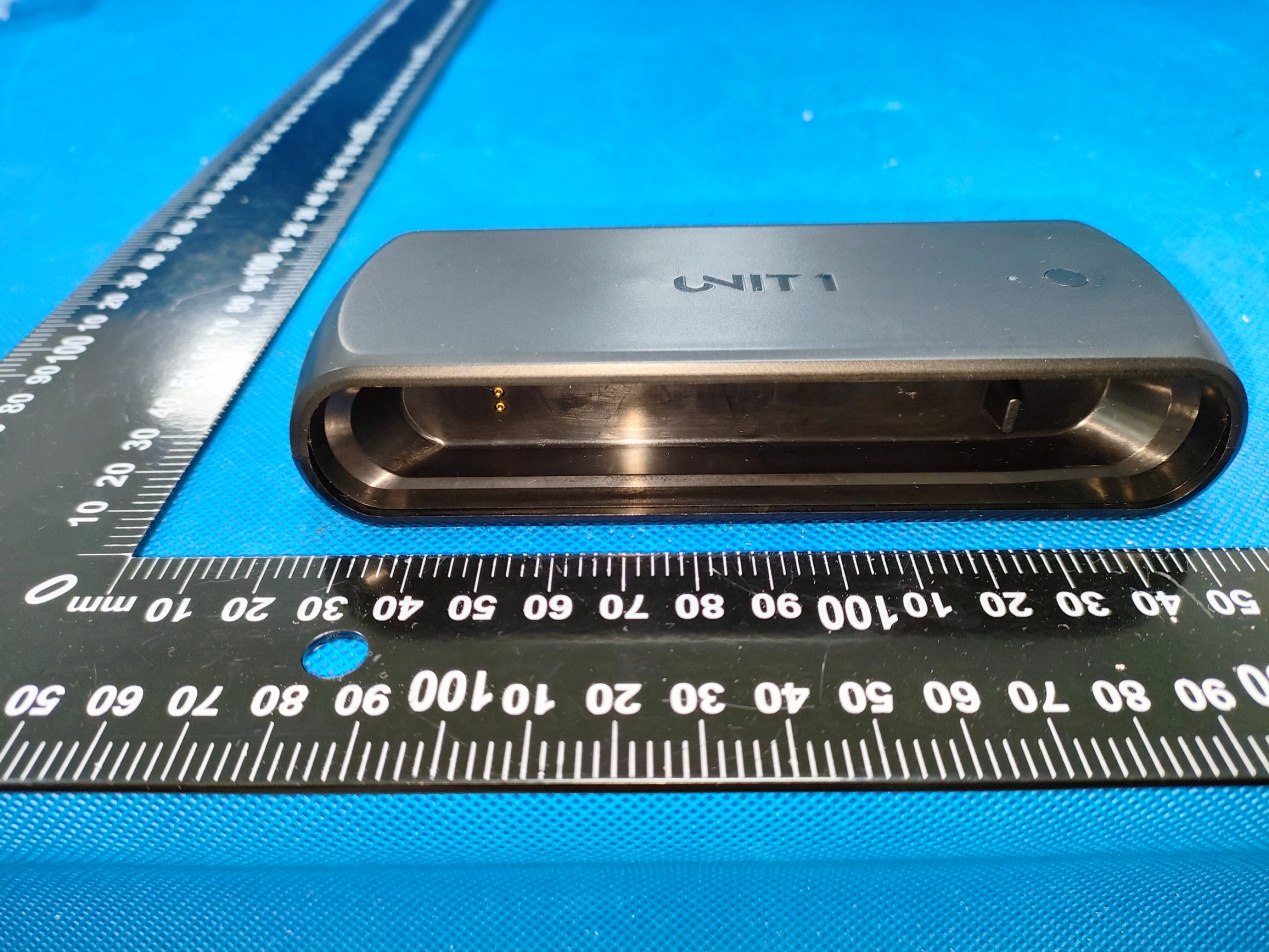

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

U1 CHARGING CASE USER MANUAL IMPORTANT! Please read this manual carefully before using your U1 Charging Case for the first time. INTRODUCTION The U1 Charging Case will allow you to keep your U1 Smart Lights always charged on the go. It can charge 1 or 2 Smart Lights at the same time. SPECS Input : DC 5V 1.5A. USB type C Battery Capacity : 2500mAh. Charging current for battery : 800mA Working Temperature : 0 +40°C. Maximum current for Smartligts docked: 475mA per Smartlight ( By poco pin) Protection for over temperature and short circuit on pogo pin. PACKAGE CONTENT 1. Charging Case 2. USB-C CABLE OVERVIEW 1. LIGHT INDICATOR 2. BUTTON 3. USB PORT 4. DOCKS HOW TO CHARGE THE Charging Case Plug in, using a Type C cable into the Charging Case. The charging current is about 600mA. While charging, the battery level is indicated: Breathing red . 10% Breathing yellow. 33% Breathing green. 66% Solid green. 100% (Charged ) HOW TO CHARGE 1 o 2 SMARTLIGHTS Dock 1 or 2 smartlight into the Charging Case.: The SmartLights will show the battery level only when: - Dock the Smartlight. - Undock the Smartlight. - When the Smartlight battery is deeply charged (100%) HOW TO CHARGE SMARTLIGHTS AND INTERNAL BATTERY Both actions can be performed at the same time: * Dock the Smartlight that you need to charge. * Plug in the type c cable into Charging Case While charging, the battery level is indicated: Breathing red . Internal battery at 10% Breathing yellow. Internal battery at 33% Breathing green. Internal battery at 66% Solid White. Internal battery at 100% and both Smartlight are 100% as well. CHECK THE BATTERY LEVEL AND SMARTLIGHT LEVEL. To check the battery level of the Charging Case, press the button (one touch). The led will show: Flash Red . 10% Flash Yellow. 33% Flash Green. 66% or more. To know the battery level of the Charging Case, and the Smartlight battery level, press the button (double touch). The led will indicate: Flash Red . 10% Flash Yellow. 33% Flash Green. 66% or more. If there are 1 or 2 Smartlight docked into Charging Case, they will show their own battery level. PRECAUTIONS REGARDING THE BUILT-IN BATTERY • Do not attempt to replace the battery in your U1 Charging Case. It is built-in and cannot be replaced. • Charge the battery in accordance with the instructions provided in this guide. • Charge your U1Charging Case using a computer, a powered docking station or certified power station. • Do not attempt to open the built-in battery. RECOMMENDATIONS FOR USE Do not try to replace the battery or open the case or take your U1 Charging Case apart. Each of theseactions will void the warranty and may pose safety risks. The substances contained in batteriesmay be harmful for the environment or cause injury if handled and disposed of inappropriately. • Do not expose your U1 Charging Case to extreme temperatures (The product is designed to operatewhen uncharged: -20°C to +60°C, and while charging: o°C to +45°C). • Do not use any abrasive products to clean your U1 Charging Case or the accessories. • Do not throw your U1 Charging Case onto a fire. The battery may explode. ATTENTION Risk of explosion if the battery is replaced with an incorrect battery. It must be recycled or disposed of separately from household waste as per the instructions. This product is not a toy. Do not let children or pets play with your U1 Charging Case. The product contains small parts which can be a choking hazard. INFORMATION ON WASTE DISPOSAL AND RECYCLING Make sure you dispose of your product at a recycling center. Each country and province has its own recycling centers for batteries and electronics. To find out where to dispose of your product, contact the waste management service in your area or the shop where you purchased the product. Do not throw your device into the household waste. The packaging and product must be disposed of according to local regulations. Batteries must not be disposed of with municipal waste and must be separated for collection. SPECIFICATION OF RADIO TRANSMISSION PRODUCT: U1 CHARGING CASE MODEL NUMBER: CC_1.0 OPERATING FREQUENCY: 2402-2480MHz POWER: DC 5V 1A FCC ID: 2A25E-R01 The above product is in conformity with the PPE Regulation (EU) 2016/425 and is identical to the PPE which is subject of EU certificate ( TBC ) issued by ITS Testing services UL Ltd. The above product is in conformity with the European Radio Equipment Directive (RED) (2015/53/EU) which is subject of EU certificate (TBC) issued by Telefication. Bluetooth LE Maximun Output Power: 0dBm EIRP Average ( Calculated) Maximun Antenna Gain: 1,5 dBi You can find the declaration of conformity by the following link: www.unit1gear.com/EU_DoC FCC STATEMENT This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equi…

Text truncated - open the document above for the full version.

Attestation Statements

Unit 1 Gear, Inc. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Unit 1 Gear, Inc. Address: 801 US Highway 1 North Palm Beach, Florida 33408 United States Product Name: U1 CHARGING CASE FCC ID: 2A25E-R01 Model(s): CC_1.0 2.911(d)(5)(i) Equipment Type We, [Unit 1 Gear, Inc.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Francisco Abelleira Blanco Date: Jan. 31, 2024 Title: COO Company name: Unit 1 Gear, Inc. Signature: NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Attestation Statements

Unit 1 Gear, Inc. 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Unit 1 Gear, Inc. Address: 801 US Highway 1 North Palm Beach, Florida 33408 United States Product Name: U1 CHARGING CASE FCC ID: 2A25E-R01 Model(s): CC_1.0 2.911(d)(5)(ii) Applicant filing We, [Unit 1 Gear, Inc.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Francisco Abelleira Blanco Date: Jan. 31, 2024 Title: COO Company name: Unit 1 Gear, Inc. Signature: NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Attestation Statements

Unit1Gear,Inc. 2.911(d)(7)USAAgentv1.3 Section2.911(d)(7)USAAgentforServiceofProcess Companyname:Unit1Gear,Inc. Address:801USHighway1NorthPalmBeach,Florida33408UnitedStates ProductName:U1CHARGINGCASE FCCID:2A25E-R01 Model(s):CC_1.0 2.911(d)(7)USADesignatedAgentforServiceofProcess We,[Unit1Gear,Inc.](“theapplicant”)designate[Unit1Gear,Inc.] NOTE1 forthe purposeofacceptingserviceofprocessonbehalfoftheapplicant. Applicantconsent:WeAcknowledgeourconsenttoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipment,andatthephysicalU.S. addressandemailaddressofthedesignatedagentandacknowledgeour acceptanceofourobligationtomaintainanagentforserviceofprocessintheUnited Statesfornolessthanoneyearaftereitherthegranteehaspermanentlyterminated allmarketingandimportationoftheapplicableequipmentwithintheU.S.,orthe conclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolving theequipment,whicheverislater. Agentobligation:WeAcknowledgeourobligationtoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipmentatourphysicalU.S. addressandemailaddressfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipment withintheU.S.,ortheconclusionofanyCommission-relatedadministrativeorjudicial proceedinginvolvingtheequipment,whicheverislater. Unit1Gear,Inc. 2.911(d)(7)USAAgentv1.3 USAAgent Companyname:Unit1Gear,Inc. Address:801USHighway1NorthPalm Beach,Florida33408UnitedStates FCCRegistrationNumber(FRN): 0031347446 ContactName:FranciscoAbelleiraBlanco TelephoneNo:+1(720)919-6245 Email:[email protected] Applicant Companyname:Unit1Gear,Inc. Address:801USHighway1NorthPalm Beach,Florida33408UnitedStates FCCRegistrationNumber(FRN): 0031347446 FCCGranteeCode:2A25E ContactName:FranciscoAbelleiraBlanco TelephoneNo:+1(720)919-6245 Email:[email protected] Signature: Title:COO Signature: Title:COO Date:Jan.22,2024Date:Jan.22,2024 NOTE1:AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforservice ofprocess. Reference;FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national- security-threats-to-the-communications-supply-chain-through-the

Cover Letter(s)

Unit 1 Gear, Inc. Agent Authorization Company: Unit 1 Gear, Inc. Address: 801 US Highway 1 North Palm Beach, Florida 33408 United States Product Name: U1 CHARGING CASE Model Number(s): CC_1.0 Product Description: U1 CHARGING CASE We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan. 31, 2024 Name: Francisco Abelleira Blanco Title: COO Company: Unit 1 Gear, Inc.

Cover Letter(s)

Unit 1 Gear, Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jan. 31, 2024 Subject; Request for Confidentiality FCC ID: 2A25E-R01 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Francisco Abelleira Blanco Title: COO

External Photos

Annex A External Photos Report No.:HK2401120229-E Page 1 of 4 Report No.:HK2401120229-E Page 2 of 4 Report No.:HK2401120229-E Page 3 of 4 Report No.:HK2401120229-E Page 4 of 4

ID Label/Location Info

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2A25E‐R01

Internal Photos

Annex B Internal Photo Report No.:HK2401120229-E Page 1 of 5 Report No.:HK2401120229-E Page 2 of 5 Antenna Report No.:HK2401120229-E Page 3 of 5 Report No.:HK2401120229-E Page 4 of 5 Report No.:HK2401120229-E Page 5 of 5

RF Exposure Info

FCC RF Exposure EUT Description: U1 CHARGING CASE Model No.: CC_1.0 FCC ID: 2A25E-R01 1. Limits According to KDB 447498 D04 General RF Exposure Guidance v01 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation Output power (dBm) Tune Up Power (dBm) Max Tune Up power dBm/mW Min test separati on distance mm Result Limit SAR Test Exclusion 2480 2.92 2±1(3) 1.995 5 0.6283.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2401120229-E, antenna gain=-13.53dBi Per KDB 447498 D04, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.628 which is<= 3, SAR testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm
