2A2BYHE-060ATWS wireless Bluetooth headset

HE-060A HE-060A 8 FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interferenc e received, including interference that may cause undesired operation. IMPORTANT NOTE: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection again st harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmf ul interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television re ception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. 7.P roduct operating temperature: -10°C~4 0 °C 8.T he storage temperature of the product is from -20 °C~ 6 0°C FCC ID: 2A2BYHE-060A

Dongguan Huien Electronic Technology Co., Ltd Address: Room 301, Building of 1, No. 429, Changdong Road, Changping Town, Dongguan city, Guangdong Province , China Tel.: 86-18123809176 E-mail: [email protected] Date: 2022-11-28 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, Our product TWS wireless Bluetooth headset, model: HE-060A, FCC ID: 2A2BYHE-060A, supports BDR (GFSK), EDR (π/4-DQPSK, 8DPSK), BLE 1M and BLE 2M functions. For use in America and this chip will not support/enable EDR(8DPSK)/BLE 1M/2M. The EDR(8DPSK)/BLE 1M/2M has been shielded by the manufacturer using the software. Signature: YanfengZhang Manager

Dongguan Huien Electronic Technology Co., Ltd Address: Room 301, Building of 1, No. 429, Changdong Road, Changping Town, Dongguan city, Guangdong Province , China Tel.: 86-18123809176 E-mail: [email protected] Declaration Date: 2022-11-28 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: Our product,TWS wireless Bluetooth headset, Model number:HE-060A, FCC ID: 2A2BYHE-060A, is a twins earphone that has a left earphone and a right earphone. We would like to declare that the left earphone and the right earphone are identical in the Antenna & RF circuits. So only choose the one of two earphones to test. Sincerely, Signature: YanfengZhang Manager

Dongguan Huien Electronic Technology Co., Ltd Address: Room 301, Building of 1, No. 429, Changdong Road, Changping Town, Dongguan city, Guangdong Province , China Tel.: 86-18123809176 E-mail: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2022-11-28 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Dongguan Huien Electronic Technology Co., Ltd, the undersigned, hereby authorizes Shenzhen Accurate Technology Co., Ltd. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co., Ltd. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Yanfeng Zhang Manager

Dongguan Huien Electronic Technology Co., Ltd Address: Room 301, Building of 1, No. 429, Changdong Road, Changping Town, Dongguan city, Guangdong Province , China Tel.: 86-18123809176 E-mail: [email protected] FCC Confidential Authorization Date: 2022-11-28 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2A2BYHE-060A In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Dongguan Huien Electronic Technology Co., Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Yanfeng Zhang Manager

Dongguan Huien Electronic Technology Co., Ltd Address: Room 301, Building of 1, No. 429, Changdong Road, Changping Town, Dongguan city, Guangdong Province , China Tel.: 86-18123809176 E-mail: [email protected] Date: 2022-11-28 FCC certification No. Cover Letter We, Dongguan Huien Electronic Technology Co., Ltd, hereby submit justification for placing the FCC certification No. in the associated charging case. According to the FCC regulation, the FCC certification No. should be printed on the earbuds, but as the earbuds are too small to print the label (FCC ID: 2A2BYHE-060A) , it will be moved to the charging case. The details are asbelow: A. Side surface (A): The side surfacedoesnot provide enough physical space to fit the printing of the FCC certification No. according tobelow reference picture. B. Top cover (B): The top coverdoes not provide enough physical space to fit the printing of the FCC certification No. according tobelow reference picture. Conclusion: Based on the above description of area A to B, we conclude that the device isunquestionably too small for enabling the FCC certification No. to be printed onto any surface. We thereforerequest to move the FCC certification No. to the charging case. Label: Best regards, Signature: YanfengZhang Manager

Dongguan Huien Electronic Technology Co., Ltd Address: Room 301, Building of 1, No. 429, Changdong Road, Changping Town, Dongguan city, Guangdong Province , China Tel.: 86-18123809176 E-mail: [email protected] Product Similarity Declaration 2022-11-21 Dear Sir/Madam, We,Dongguan Huien Electronic Technology Co., Ltd hereby declare that we have a product named as TWS wireless Bluetooth headset (Model: HE-060A, FCC ID: 2A2BYHE-060A) was tested by Shenzhen Accurate Technology Co., Ltd., Meanwhile, for our marketing purpose, we would like to list series (model :HE-060/HE-060B/HE-060C/HE-060D/HE-060E/HE-060F/HE-060G/W23 /T5/T6/T8 ) on reports and certificate. They have the same circuit the only difference is the product model name. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely Yours, Signature YanfengZhang Manager

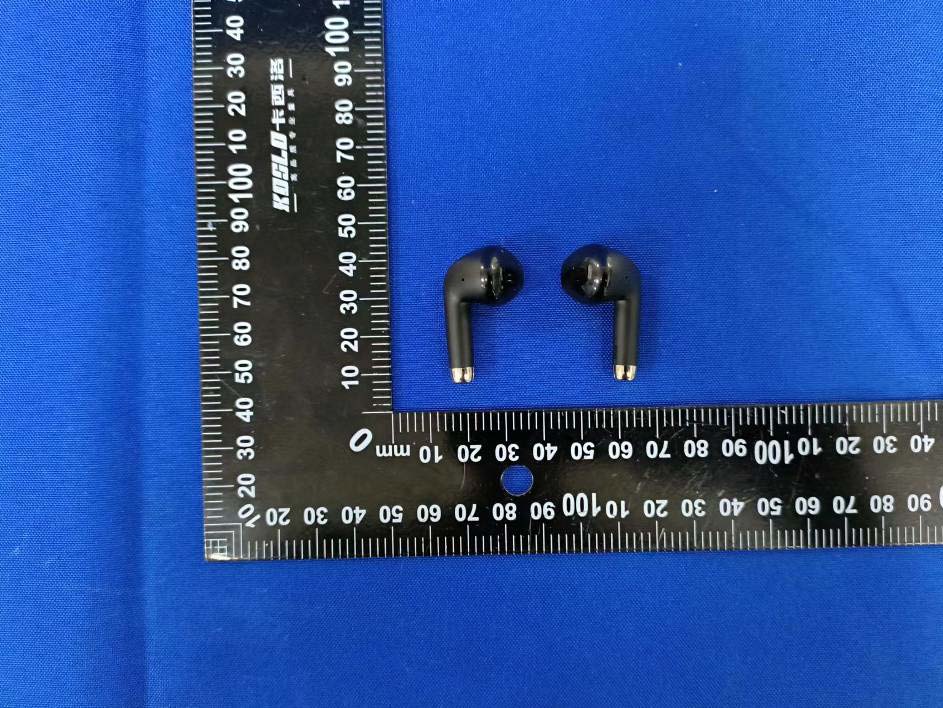

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221109-52715E External Photos Page 1 of 4 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA221109-52715E External Photos Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221109-52715E External Photos Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221109-52715E External Photos Page 4 of 4

20 Model Name: HE-060A Capacity: DC 3.7V/400mAh 1.48 Wh FCC ID: 2A2BYHE-060A Input: 5V 1A Made in China Dongguan Huien Electronic Technology Co., Ltd Room 301, Building of 1, No. 429, Changdong Road, Changping Town, Dongguan city, Guangdong Province , China Model Name: HE-060A Capacity: DC 3.7V/400mAh 1.48 Wh FCC ID: 2A2BYHE-060A Input: 5V 1A Made in China Dongguan Huien Electronic Technology Co., Ltd Room 301, Building of 1, No. 429, Changdong Road, Changping Town, Dongguan city, Guangdong Province , China

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221109-52715E Internal Photos Page 1 of 7 Internal Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA221109-52715E Internal Photos Page 2 of 7 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221109-52715E Internal Photos Page 3 of 7 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221109-52715E Internal Photos Page 4 of 7 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221109-52715E Internal Photos Page 5 of 7 ANT Shenzhen Accurate Technology Co., Ltd. Project No.: RA221109-52715E Internal Photos Page 6 of 7 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221109-52715E Internal Photos Page 7 of 7

Shenzhen Accurate Technology Co., Ltd. Report No.: RA221109-52715E-RF-00A Version 11: 2021-11-09 Page 10 of 46 FCC-BT FCC§15.247 (i), §1.1307 (b) – RF EXPOSURE Applicable Standard According to FCC §2.1093 and §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D04 Interim General RF Exposure Guidance v01, clause 2.1.3.1-SAR-Based Exemption: A more comprehensive exemption, considering a variable power threshold that depends on both the separation distance and power, is provided in § 1.1307(b)(3)(i)(B). This exemption is applicable to the frequency range between 300 MHz and 6 GHz, with test separation distances between 0.5 cm and 40 cm, and for all RF sources in fixed, mobile, and portable device exposure conditions. Accordingly, a RF source is considered an RF exempt device if its available maximum time-averaged (matched conducted) power or its effective radiated power (ERP), whichever is greater, are below a specified threshold. This exemption threshold was derived based on general population 1-g SAR requirements and is detailed in Appendix C. Test Result For worst case: Mode Frequency Maximum Tu n e-up Conducted Power Antenna Gain ERP Distance SAR-Based Exclusion Threshold SAR-Based Exclusion (MHz) (dBm) (dBi) (dBd) (dBm) (mm) (mW) (dBm) BDR/EDR 2402-2480 2.0 2.78 0.63 2.63 5 2.717 4.34 Yes Note 1: The tune-up power was declared by the applicant. Note 2: 0dBd=2.15dBi. Result: Compliant.

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 11: 2021-11-09 Page 1 of 46 FCC-BT TEST REPORT Applicant Name : Dongguan Huien Electronic Technology Co., Ltd Address : Room 301, Building of 1, No. 429, Changdong Road, Changping Town Dongguan city, Guangdong Province, China Report Number : RA221109-52715E-RF-00A FCC ID: 2A2BYHE-060A Test Standard (s) FCC PART 15.247 Sample Description Product Type: TWS wireless Bluetooth headset Model No.: HE-060A,HE-060,HE-060B,HE-060C,HE-060D,HE-060E,HE-060F, HE-060G,W23 ,T5,T6,T8 Date Received: 2022-11-09 Date of Test: 2022-11-12 to2022-11-15 Report Date: 2022-11-23 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Roger.Ling Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: RA221109-52715E-RF-00A Version 11: 2021-11-09 Page 2 of 46 FCC-BT TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC§15.247 (i), §1.1307 (b) – RF EXPOSURE ......................................................................................................... 10 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.205, §15.209 & §15.247(d) – RADIATED EMISSIONS ........................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 13 TEST PROCEDURE ...................................................................................................................................................... 13 FACTOR & MARGIN CALCULATION ........................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §15.247(a)…

Text truncated - open the document above for the full version.

SymbolsLWTA Dimensions 1.60±0.200.80±0.200.80±0.200.30±0.10 NumberTerminalName ① INPUT ② NC Dimensions(Unit: mm) w ①② ( Side View) ( Bottom View) ( Top View) A T L Shenzhen HanyangAntenna Design Co. Ltd. 1.Bluetooth 2.Dual-band WLAN 3.ISM and UWB 1.Surfacemountedelementwithasmalldimensionof1.6×0.8×0.8mmmeetfutureminiaturizationtrend. 2.EmbeddedandLTCC(lowtemperatureco-firedceramic)technologyisabletointegratewithsystemdesign aswellasbeatifyingthehousingoffinalproduct. 3.Miniaturization,wideband,highstability,lowESR,andlowtolerance. 4.Dual-bandresonancesinthedominantandharmonicmodesenablesmultibandoperations. 5.Novelground-radiationtechniqueenablesradiationfromboththeantennaandthegroundplane. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 Features: Applications: RF chip ANT chipANT pattern PCB ground Mode-2 Mode-1 P/N: HY160808 SRF09 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page1 Layout-1 (3.5mm×6.5mm) ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page2 1.5 1 3.5 2.5 0201 footprint (E1) 0201 footprint (E2) 0603 footprint (ANT) RF Input/Output 6.5 0.5 0.5 0.5 1.5 3.5 2.5 0201 footprint (E3) 6.5 Top layer: Bottom layer: 0.5 0.5 RF chip E1 E3 E2 ANT Equivalentcircuit: P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 2.5 0201 footprint 0603 footprint 10 0.5 1.5 0201 footprint 1.5 3 2.5 10 1.5 2 0.5 0201 footprint Layout-2 (1.5mm×10mm) Top layer: Bottom layer: P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page3 RF Input/Output ElectricalCharacteristics: CharacteristicCurves: FeatureSpecification 1 Centralfrequency2.45GHz 2 Bandwidth>150MHz 3 Peak gain2.78dBi 4 VSWR<2 5 PolarizationLinear 6 AzimuthbeamwidthOmnidirectional 7 Impedance50Ω P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page5 RadiationPattern: Y-ZPlaneX-ZPlane coordinates：   HanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthisreportand thisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanypersonorfirm withoutthepriorwrittenconsentofHanyangAntennaDesignCo.Ltd. Page5 RadiationPerformance: P/N: HY160808 SRF07, HY160808 SRF08,HY160808 SRF09 Shenzhen Hanyang Antenna Design Co. Ltd. X-YPlane Frequency 2400MHz2450MHz2500MHz Avg.gain-1.92-1.35-1.56 Peakgain1.792.782.66 Efficiency74.5580.2576.98 Shenzhen Baoan District Qianjin 2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 Temperature：40±2°C Humidity：90~95%RH Duration：500h Recovery conditions：Room temperature Recovery Time：24h (Class1) or 48h (Class2) Test Temperature Operating Temperature Temperature RelativeHumidity 25°C±5°C -25°C~+125°C 5~40°C 20~70% Notenoughsolder Weak holding forcemay cause bad connection between the chipandPCB. RecommendedSolderingAmounts The optimal solder fillet amounts forre-flowsoldering 天线厚度 以下 The optimal solder fillet amounts for wavesoldering DependabilityTest Too much solder Cracks tend to occur due to large stress. MoistureProof OptimumSolderAmount forReflowSoldering Solderability At least 95% of the terminal electrode is covered by newsolder. Preheating conditions:80 to 120°C;10~30s. Solder Tem p e r at u r e :2 3 5 ±5°CDuration:2 ±0.5s , Solder Tempe r ature:24 5±5°CDu rat ion:2±0.5s P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page6 10±1S AppliedForce:5NDuration:10±1S Preheating conditions: up-category temperature, 1h Recovery time:24±1h InitialMeasurement Cycling Times: 5 times, 1 cycle, 4steps: Preheating80to120°C;10~30s.SolderTemperature:235±5°C;Duration:2±0.5s;SolderTemperature:245±5°C Duration:2±0.5s;Preheating100to200°C;10±2min. SolderTemperature:265±5°C;Duration:10±1s Cleanthecapacitorwithsolventandexamineitwitha10X(min.)microscope. RecoveryTime:24±2h Recoverycondition:Roomtemperature Test Board: Al 2 O 3 orPCBWarp:1mm Speed:0.5mm/sec. Unit:mm Themeasurementshouldbemadewiththeboardinthe bendingposition. Resistance to Soldering Heat ResistancetoFlexureofSubstrate Temperature CycleTest P/N: HY160808 SRF09 Shenzhen HanyangAntenna Design Co. Ltd. Shenzhen BaoanDistrict Qianjin2 Road BaoYunda logistics information building 12A10 tel：0755-23069700 ShenzhenHanyangAntennaDesignCo.Ltd.haspossessionofproprietaryinformationprovidedinthis reportandthisproprietaryinformationshallbekeptinstrictconfidenceandnotdisclosedtoanyperson orfirmwithoutthepriorwrittenconsentofShenzhenHanyangAntennaDesignCo.Ltd. Page7 StageTemperatu…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221109-52715E Test Photos Page 1 of 1 Radiated Spurious Emissions Test View (Below 1GHz) Radiated Spurious Emissions Test View (Above 1GHz)
