2A2CZ-NP14IC-XNotebook PC

Acer One 14 Z3-4105 01.2021 64 I3--1005G1 325*220.8*19.9mm 1800 G I5--1035G1 I5--1035G4 I5--1035G7 I7--1065G7 Type-C 5.1 (19V/3.42A) ADAPTERS. keyboard group RJ- 45 LAN port SD card USB 3.0 Port DC port HDMI USB 2.0 Port *2 Type -C Headphone Jack 24 F6 4 5 6 Press this key combination(FN+F3) to Select the projection mode 27 Scr LK Press this key combination(FN+F10) to Screen scroll lock Press this key combination(FN+F9) to Suspend the execution of a program or order Press this key combination(FN+F11) to Switch input mode Press this key combination(FN+F12) to Capture screen image Press this key combination(FN+F7) to sleep 28 30 [ESC] [ESC] 34 FCC S tatement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. RF Exposure Information The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2022/02/15> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2A2CZ-NP14IC-X NP14IC-X(IC918) For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： haitao wu/manager Company: Emdoor digital technology Co.,Ltd Address: Meigu bld, Wonderful life wisdom Valley technology Park,No.83 Dabao road, Baoan district, Shenzhen China Phone: +86-13049856008 Fax: +86-755-83142771 E-Mail: [email protected]

Emdoor digital technology Co.,Ltd Meigu bld, Wonderful life wisdom Valley technology Park,No.83 Dabao road, Baoan district, Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2022/02/15 To whom it may concern: We, Emdoor digital technology Co.,Ltd the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2A2CZ-NP14IC-X including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： haitao wu/manager Company: Emdoor digital technology Co.,Ltd Address: Meigu bld, Wonderful life wisdom Valley technology Park,No.83 Dabao road, Baoan district, Shenzhen China Phone: +86-13049856008 Fax: +86-755-83142771 E-Mail: [email protected]

Emdoor digital technology Co.,Ltd Meigu bld, Wonderful life wisdom Valley technology Park,No.83 Dabao road, Baoan district, Shenzhen China UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: 2A2CZ-NP14IC-X (1) DFS Device: Master Client with Radar detection capability N/A Client without radar detection capability, (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 5180-5240 Yes No Yes No Yes No Yes No 5190-5230 Yes No Yes No Yes No Yes No 5210-5210 Yes No Yes No Yes No Yes No 5260-5320 Yes No Yes No Yes No Yes No 5270-5310 Yes No Yes No Yes No Yes No 5290-5290 Yes No Yes No Yes No Yes No 5500-5700 Yes No Yes No Yes No Yes No 5510-5690 Yes No Yes No Yes No Yes No 5530-5610 Yes No Yes No Yes No Yes No 5745-5825 Yes No Yes No Yes No Yes No 5755-5795 Yes No Yes No Yes No Yes No 5775-5775 Yes No Yes No Yes No Yes No (3) Country code selection ability Yes No If yes, pls explain how it was implemented: (4) Meet 15.202 requirement Yes No pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer. Apply Does not apply (If apply, pls help to provide explanation on it was implement, and how software was controlled) Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name/Title： haitao wu/manager Company: Emdoor digital technology Co.,Ltd Address: Meigu bld, Wonderful life wisdom Valley technology Park,No.83 Dabao road, Baoan district, Shenzhen China Phone: +86-13049856008 Fax: +86-755-83142771 E-Mail: [email protected]

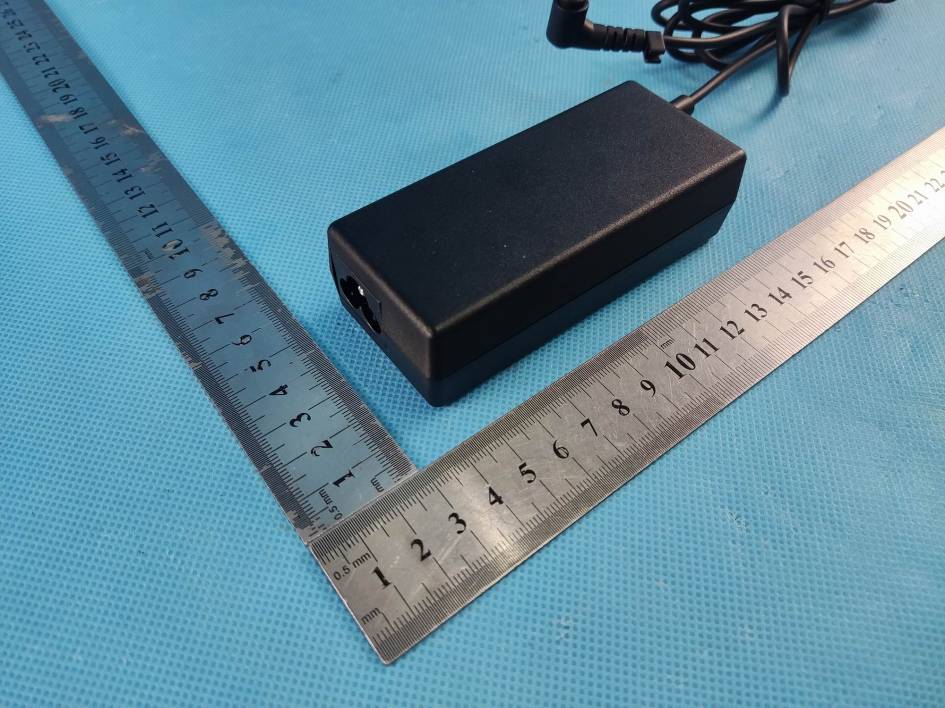

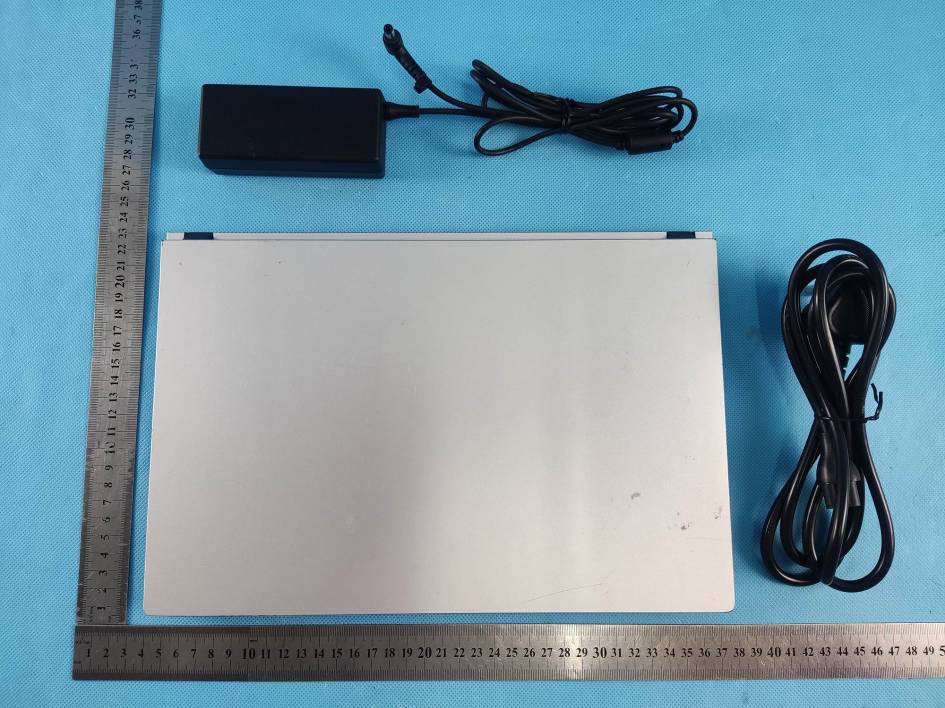

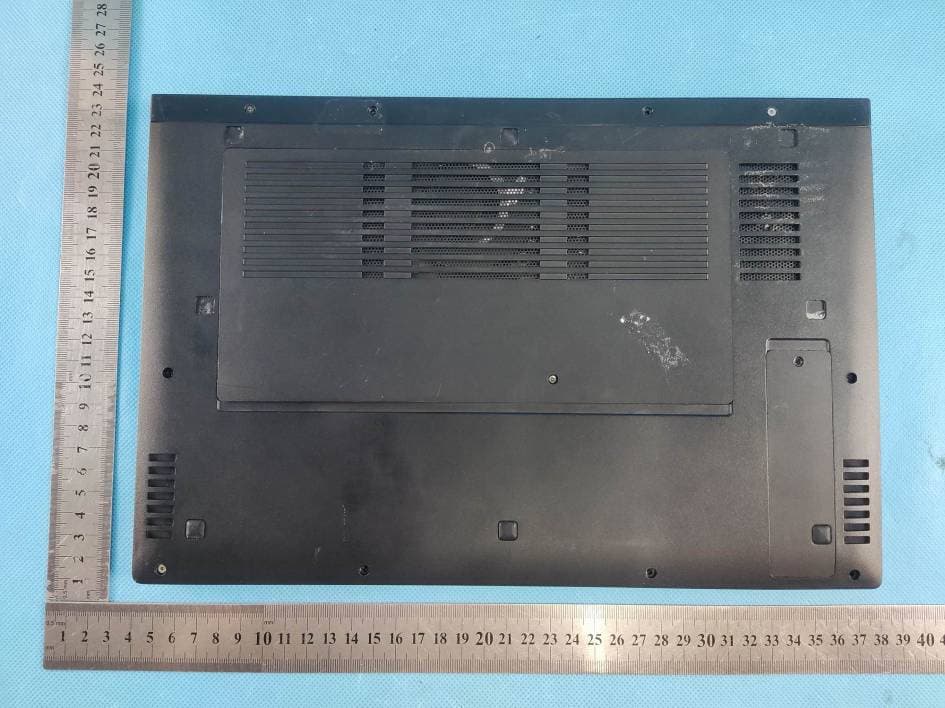

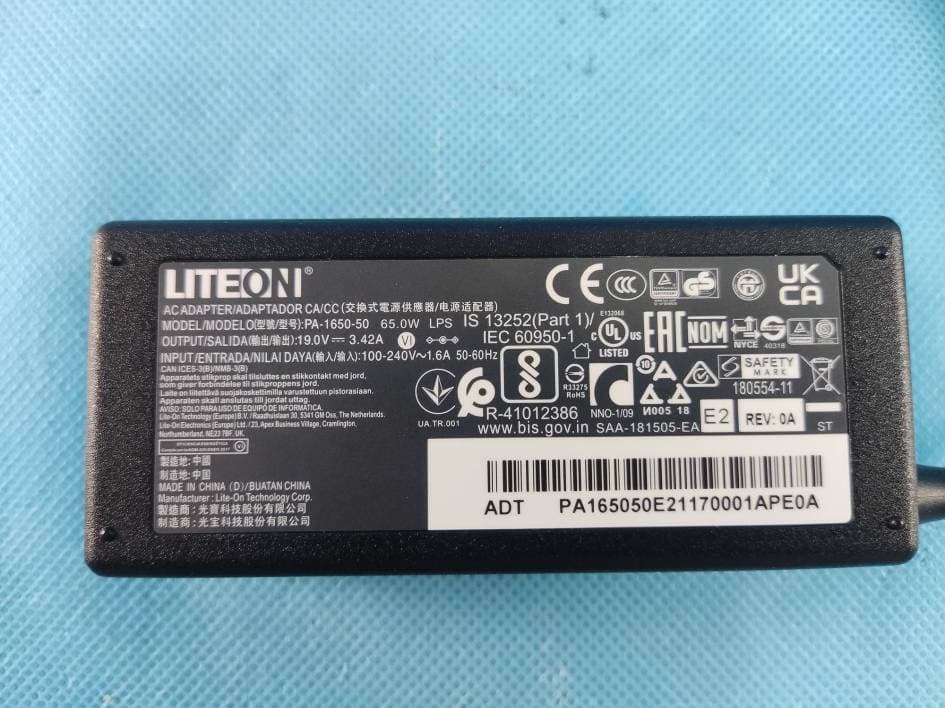

Page 1 of 6 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. FCC ID: 2A2CZ-NP14IC-X Product Name: Notebook PC Test Model No.: NP14IC-X(IC918) EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 6 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 6 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 6 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Page 5 of 6 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 Page 6 of 6 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 11 Photo 12 ------End------

Label

Page 1 of 15 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. FCC ID: 2A2CZ-NP14IC-X Product Name: Notebook PC Test Model No.: NP14IC-X(IC918) EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 15 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 15 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Antenna Page 4 of 15 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Page 5 of 15 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 Page 6 of 15 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 11 Photo 12 Page 7 of 15 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 13 Photo 14 Page 8 of 15 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 15 Photo 16 Antenna B AntennaA Page 9 of 15 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 17 Photo 18 Page 10 of 15 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 19 Photo 20 Page 11 of 15 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 21 Photo 22 Page 12 of 15 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 23 Photo 24 Page 13 of 15 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 25 Photo 26 Page 14 of 15 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 27 Photo 28 Page 15 of 15 Report No.: AIT20120202 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 29 ------End------

RF Exposure evaluation FCC ID: 2A2CZ-NP14IC-X 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK(Peak) BLE(1M) Channel Channel 00 Channel 19 Channel 39 Target (dBm) 5.0 5.0 5.0 Tolerance ±(dB) 1.0 1.0 1.0 GFSK(Peak) BLE(2M) Channel Channel 00 Channel 19 Channel 39 Target (dBm) 5.0 5.0 5.0 Tolerance ±(dB) 1.0 1.0 1.0 GFSK(Peak) BT Channel Channel 00 Channel 39 Channel 78 Target (dBm) 6.0 6.0 6.0 Tolerance ±(dB) 1.0 1.0 1.0 GFSK(Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 5.0 5.0 5.0 Tolerance ±(dB) 1.0 1.0 1.0 GFSK(Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) 5.0 5.0 5.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 5 2.4GWIFI(Peak) Frequency (MHz) 11b 2412 2437 2462 ANT 1 ANT 2 ANT 1 ANT 2 ANT 1 ANT 2 Target (dBm) 7.0 7.0 7.0 7.0 7.0 7.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 ANT 1 ANT 2 ANT 1 ANT 2 ANT 1 ANT 2 Target (dBm) 7.0 6.0 7.0 6.0 7.0 6.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11(HT20) 2412 2437 2462 ANT 1 ANT 2 ANT 1 ANT 2 ANT 1 ANT 2 Target (dBm) 7.0 6.0 7.0 6.0 7.0 6.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11(HT40) 2422 2437 2452 ANT 1 ANT 2 ANT 1 ANT 2 ANT 1 ANT 2 Target (dBm) 7.0 6.0 7.0 6.0 7.0 6.0 Tolerance ± (dB) 1.0 1.0 1.0 [5.2GHz WLAN] ANT 1 IEEE 802.11A (Average) Frequency (MHz) 5180 / 5240 ANT 1 ANT 2 / ANT 1 ANT 2 Target (dBm) 4.0 4.0 / 4.0 4.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11n20 (Average) Frequency (MHz) 5180 / 5240 ANT 1 ANT 2 / ANT 1 ANT 2 Target (dBm) 3.0 3.0 / 3.0 3.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac20 (Average) Frequency (MHz) 5180 / 5240 ANT 1 ANT 2 / ANT 1 ANT 2 Target (dBm) 3.0 3.0 / 3.0 3.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11n40 (Average) Frequency (MHz) / 5190 / / ANT 1 ANT 2 / Target (dBm) / 3.0 3.0 / Tolerance ± (dB) / 1.0 / IEEE 802.11ac40 (Average) Frequency (MHz) / 5190 / / ANT 1 ANT 2 / Target (dBm) / 3.0 3.0 / Tolerance ± (dB) / 1.0 / IEEE 802.11ac80 (Average) Frequency (MHz) / 5210 / / ANT 1 ANT 2 / Target (dBm) / 3.0 3.0 / Tolerance ± (dB) / 1.0 / Page 3 of 5 [5.2GHz-2A WLAN] IEEE 802.11A (Average) Frequency (MHz) 5280 / 5320 ANT 1 ANT 2 / ANT 1 ANT 2 Target (dBm) 4.0 4.0 / 4.0 4.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11n20 (Average) Frequency (MHz) 5280 / 5320 ANT 1 ANT 2 / ANT 1 ANT 2 Target (dBm) 3.0 3.0 / 3.0 3.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11ac20 (Average) Frequency (MHz) 5280 / 5320 ANT 1 ANT 2 / ANT 1 ANT 2 Target (dBm) 3.0 3.0 / 3.0 3.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11n40 (Average) Frequency (MHz) / 5310 / / ANT 1 ANT 2 / Target (dBm) / 3.0 3.0 / Tolerance ± (dB) / 1.0 / IEEE 802.11ac40 (Average) Frequency (MHz) / 5310 / / ANT 1 ANT 2 / Target (dBm) / 3.0 3.0 / Tolerance ± (dB) / 1.0 / IEEE 802.11ac80 (Average) Frequency (MHz) / 5290 / / ANT 1 ANT 2 / Target (dBm) / 3.0 3.0 / Tolerance ± (dB) / 1.0 / [5.2GHz-2C WLAN] IEEE 802.11A (Average) Frequency (MHz) 5500 / 5700 ANT 1 ANT 2 / ANT 1 ANT 2 Target (dBm) 4.0 4.0 / 4.0 4.0 Tolerance ± (dB) 1.0 / 1.0 IEEE 802.11n20 (Average) Frequency (MHz) 5500 / 5700 ANT 1 ANT 2 /…

Text truncated - open the document above for the full version.

Page 1 of 44 Report No.: AIT20120202W4 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. TEST REPORT Client Information: Applicant: Emdoor Digital Technology Co., Ltd. Applicant add.: Meigu Bld, Wonderful Life Wisdom Valley Technology Park, No.83 Dabao Road, Baoan District, 518049 Shenzhen, PEOPLE＇S REPUBLIC OF CHINA Manufacturer: Taiwan Emdoor Digital, Ltd. Manufacturer add.: 18-2F, NO. 97, Sec 1, XinTai 5th Rd, Xizhi Dist, 221 New Taipei City, TAIWAN Product Information: Product Name: Notebook PC Model No.: NP14IC-X(IC918) Brand Name: Emdoor FCC ID: 2A2CZ-NP14IC-X Applicable standards: FCC CFR Title 47 Part 15 Subpart E Section 15.407 Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang,Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: Sep. 02, 2021 Date of Test: Sep. 02, 2021~ Sep. 27, 2021 Date of Issue: Sep. 28, 2021 Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Simba Huang Seal.chen Page 2 of 44 Report No.: AIT20120202W4 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS.................................................................................................................................................................... 2 2 TEST SUMMARY.......................................................................................................................................................... 6 2.1 Statement of the Measurement Uncertainty ...................................................................................... 6 2.2 Measurement Uncertainty ................................................................................................................. 6 3 TEST FACILITY............................................................................................................................................................. 7 3.1 Deviation from standard.................................................................................................................... 7 3.2 Abnormalities from standard conditions ............................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Test Location..................................................................................................................................... 7 4 GENERAL INFORMATION......................................................................................................................................... 8 4.1 Test frequencies................................................................................................................................ 9 4.2 EUT Peripheral List ........................................................................................................................... 9 4.3 Test Peripheral List ........................................................................................................................... 9 4.4 TEST METHODOLOGY.................................................................................................................. 10 4.4.1 EUT Configuration............................................................................................................................... 10 4.4.2 EUT Exercise ...................................................................................................................................... 10 4.4.3 General Test Procedures..................................................................................................................... 10 4.5 Description of Test Modes................................................................................................................11 5 EQUIPMENT USED DURING TEST........................................................................................................................ 12 6 TEST RESULTS AND MEASUREMENT DATA.................................................................................................... 13 6.1 Antenna requirement ...................................................................................................................... 13 6.1.1 Standard requirement: ............................................................................................................ 13 6.1.2 EUT Antenna:......................................................................................................................... 13 6.2 On Time and Duty Cycle ................................................................................................................. 14 6.2.1 Standard requirement: ............................................................................................................ 14 6.2.2 Measuring Instruments and Setting: ....................................................................................... 14 6.2.3 Test Procedures...................................................................................................................... 14 6.2.4 Test Setup Layout .....................................................................................…

Text truncated - open the document above for the full version.

Page 1 of 40 Report No.: AIT20120202W5 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. TEST REPORT Client Information: Applicant: Emdoor Digital Technology Co., Ltd. Applicant add.: Meigu Bld, Wonderful Life Wisdom Valley Technology Park, No.83 Dabao Road, Baoan District, 518049 Shenzhen, PEOPLE＇S REPUBLIC OF CHINA Manufacturer: Taiwan Emdoor Digital, Ltd. Manufacturer add.: 18-2F, NO. 97, Sec 1, XinTai 5th Rd, Xizhi Dist, 221 New Taipei City, TAIWAN Product Information: Product Name: Notebook PC Model No.: NP14IC-X(IC918) Brand Name: Emdoor FCC ID: 2A2CZ-NP14IC-X Applicable standards: FCC CFR Title 47 Part 15 Subpart E Section 15.407 Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang,Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: Sep. 02, 2021 Date of Test: Sep. 02, 2021~ Sep. 27, 2021 Date of Issue: Sep. 28, 2021 Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Simba Huang Seal.chen Page 2 of 40 Report No.: AIT20120202W5 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS.................................................................................................................................................................... 2 2 TEST SUMMARY.......................................................................................................................................................... 6 2.1 Statement of the Measurement Uncertainty ...................................................................................... 6 2.2 Measurement Uncertainty ................................................................................................................. 6 3 TEST FACILITY............................................................................................................................................................. 7 3.1 Deviation from standard.................................................................................................................... 7 3.2 Abnormalities from standard conditions ............................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Test Location..................................................................................................................................... 7 4 GENERAL INFORMATION......................................................................................................................................... 8 4.1 Test frequencies................................................................................................................................ 9 4.2 EUT Peripheral List ........................................................................................................................... 9 4.3 Test Peripheral List ........................................................................................................................... 9 4.4 TEST METHODOLOGY.................................................................................................................. 10 4.4.1 EUT Configuration............................................................................................................................... 10 4.4.2 EUT Exercise ...................................................................................................................................... 10 4.4.3 General Test Procedures..................................................................................................................... 10 4.5 Description of Test Modes................................................................................................................11 5 EQUIPMENT USED DURING TEST........................................................................................................................ 12 6 TEST RESULTS AND MEASUREMENT DATA.................................................................................................... 13 6.1 Antenna requirement ...................................................................................................................... 13 6.1.1 Standard requirement: ............................................................................................................ 13 6.1.2 EUT Antenna:......................................................................................................................... 13 6.2 On Time and Duty Cycle ................................................................................................................. 14 6.2.1 Standard requirement: ............................................................................................................ 14 6.2.2 Measuring Instruments and Setting: ....................................................................................... 14 6.2.3 Test Procedures...................................................................................................................... 14 6.2.4 Test Setup Layout .....................................................................................…

Text truncated - open the document above for the full version.

Dongguan Yaxu(AiT) Technology Limited Report No.: AIT20120202W4 FCC ID: 2A2CZ-NP14IC-X Page 1 of 156 Appendix D RF Test Data for B1-B3WIFI(Conducted Measurement) Product Name: Notebook PC Trade Mark: Emdoor Test Model: NP14IC-X(IC918) Environmental Conditions Temperature: 24.6° C Relative Humidity: 52.4% ATM Pressure: 100.0 kPa Test Engine…

Text truncated - open the document above for the full version.
