DIGITAL THERMOMETER INSTRUCTION MANUAL Model：AOJ-25A Thank you for purchasing this Digital Thermometer. Please carefully read this instruction manual in any case before using. Probe Tip Mode Button ON/OFF Button Display Display screen Battery symbol Temperature value Memory mode Temperature unit Battery Cover To assure the correct use of the product basic safety, measures should always be followed including the precautions listed below. The patient is an intended operator, and all the functions can be safely used. 1 x Digital Thermometer (battery included) 1 x Instruction Manual • A high or prolonged fever requires medical attention, especially for children. Please contact your doctor. • Carefully read and follow the enclosed instructions to ensure accurate temperature readings. • Please keep still during measurement. • This thermometer is used for taking temperatures through oral, rectal or underarm. Do not attempt to take temperatures at other sites, such as in the ear, as it may result in false readings and may lead to injury. • Store the thermometer out of the reach of children. Do not allow children to take their temperatures unattended. Children may injure themselves when attempting to take temperatures without supervision. • Do not leave the battery, battery cover or probe cover where children can reach them. Children may swallow them. If a child accidentally swallows the battery, battery cover or probe cover, please contact a doctor immediately. • Do not attempt measurements when the thermometer is wet as inaccurate readings may result. • Please dispose of waste in accordance with national regulations on environmental protection. WARNING ! -1- Product Structure Package Include Important Safety Notes • Do not bite the thermometer. Doing so may lead to breakage and/or injury. • Do not share the thermometer among individuals. • Do not attempt to disassemble or repair the thermometer. Doing so may result in inaccurate readings. • Do not attempt to incinerate the battery. It may burst. • Pay attention to polarity (+ / ‒) when replacing the battery. Failure to do so may lead to fluid leakage, heat generation or bursting, resulting in damage to the unit. • Do not use the thermometer in places where strong static electricity or electromagnetic fields are present. Doing so may lead to inaccurate readings and may contribute to instrument failure. • Do not force the thermometer into the rectum. Stop insertion and abort the measurement when pain is present. Failure to do so may lead to injury. • Do not attempt rectal measurements on persons with rectal disorders. Doing so may aggravate or worsen the disorder. • Do not step on the unit or the hard case. • Do not attempt to disinfect the probe sensor of the thermometer by immersing in alcohol or in hot water (water over 50°C). • Failure to use a probe cover may lead to bacteria and viral infection. • The ME EQUIPMENT or ME SYSTEM is suitable for home healthcare environments. • Don't near active HF surgical equipment and the RF shielded room of an ME system for magnetic resonance imaging, where the intensity of EM disturbances is high. • Do not use the thermometer to measure anything other than human body temperatures. • Avoid taking the temperature until after 30 minutes has lapsed after exercise, bathing or eating/drinking. • Dispose of the thermometer when its service life is reached. Follow local regulations regarding the disposal of such product. • When the performance changes (such as: inaccurate temperature measurement, inaccurate temperature measurement or abnormal display), please stop using it immediately and contact the after-sales service personnel in time. • Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the this device, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result. CAUTION ! GENERAL SAFETY PRECAUTIONS ! -2- • If the product will not be used for a long time, please remove the battery and place it properly. • When ambient temperature is 40, The time from minimum storage temperature to use is at least 1 hour; The time from maximum storage temperature is at least 2 hour. -3- Symbol Definition 1. Press the measure button to turn on the thermometer (with a short beep). Three color backlight will be displayed, and 2. Place the thermometer in an appropriate position, oral, underarm or rectal. 3. The measurement takes about 10 seconds, after five times beeps, you can remove the thermometer from the site, and take the reading. displays for 1 second, and then shows the last temperature value for about 3 seconds（it will not be displayed if it’s for the first time use ）, and then " ---- " displays. Now you can start the measure. NOTES: 1) T indicates a temperature reading: 32°C≤T≤37.3°C(89.6°F≤T≤99.14°F):There will be 5 beeps and displayed in green. 37.3°C<T≤38.7°C(99.14°F<T≤101.66°F):There will be 5 beeps and displayed in orange, which is a warning that you may have a low fever. 38.7°C<T≤42.9°C(101.66<T≤109.22°F):There will be 5 beeps and displayed in red, which is a warning that you may have a high fever. Intended use Contraindication How to Use The Digital Thermometer is designed as reusable battery-operated electronic device, and intended for the measurement of oral, armpit and rectal temperature for people of all ages. It is forbidden for patients allergic to stainless steel and PC plastic. Comply with local regulations Warning information, refer to the attached document Manufacturer Type BF Applied PartThis way up Fragile, handle with care Authorized Representative In The European Community keep away from sunlight CE marking Keep dry Production Date Consult the instructions for use ! Ingress Protection Rating Indicates the entity importing the medical device intothe locale lndicates the item is a medical device -4- Turn the display so that it …

Text truncated - open the document above for the full version.

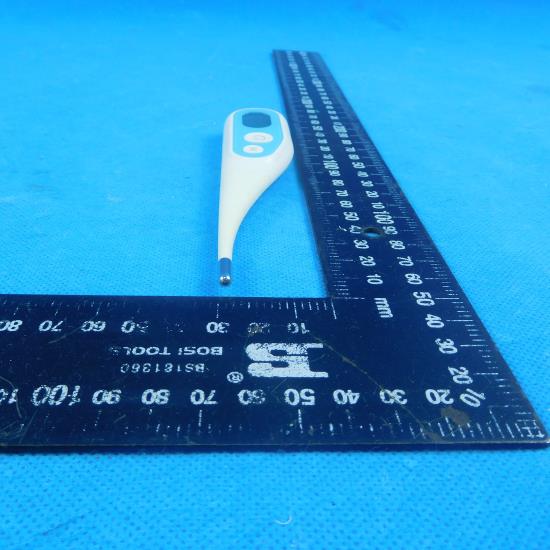

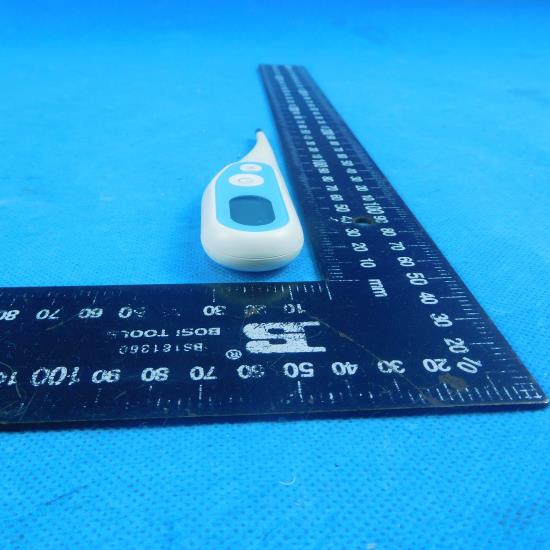

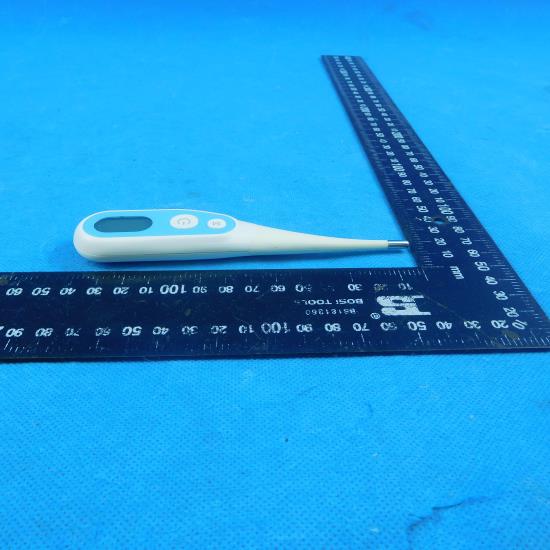

EXTERNAL PHOTOS

AOJ-25A 尺寸：19x19mm 材质：透明不干胶 颜色：彩印 修订版本 AO 修订日期 初次发布 修订内容 I 审核/日期 比 例 公司名称 视角 单位 零件名称 产品名称 颜 色 材 质版 本 型号规格 0123456789 H G F E D C B A 0123456789 A B C D E F G H I 页 次 生效日期 文件编号 mm 0-20 20-50 ±0.1 50-100 ±0.15 100-150 ±0.2 ±0.3 未注公差等级 批准/日期 制 表 1 : 1 1 / 1 xxx A/0 AOJ-25A 见图纸 见图纸 电子体温计 背标 深圳市奥极医疗科技有限公司 Model : AOJ-25A Shenzhen AOJ Medical Technology Co., Ltd. Room 301&4F, Block A, Building A, Jingfa Intelligent Manufacturing Park, Xiaweiyuan, Gushu Community, Xixiang Street, Bao'an District, 518126 Shenzhen, CHINA : 25A21050110000LOT FCC ID：2A2EL-AOJ-25A

INTERNAL PHOTOS

FCC ID: 2A2EL-AOJ-25A RF Exposure Evaluation REQUIREMENT KDB447498 D01 General RF Exposure Guidance v06, Clause 4.3.1(a) [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 Where -f(GHz) is the RF channel transmit frequency in GHz -Power and distance are rounded to the nearest mW and mm before calculation -The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. TEST RESULT Passed Not Applicable Radio Type Frequency range (MHz) Conducted Power (dBm) Maximum Tune-up (dBm) Calculating data Limit Result BLE 2402-2480 -2.07 -2.00 0.1972 3.00 Pass Note: 1) The maximum antenna gain is 0.2dBi 2) The exposure evaluation safety distance is 5mm.

Page: 1 of 32 TEST REPORT For Bluetooth-LE Report No. ...................................... : CHTEW22120121 Report Verification: Project No.................................： SHT2212019102EW FCC ID ............................................. : 2A2EL-AOJ-25A Applicant’s name ........................... : Shenzhen AOJ Medical Technology Co., Ltd. Address ............................................. : Room 301&4F, Block A, Building A, Jingfa Intelligent Manufacturing Park, Xiaweiyuan, Gushu Community, Xixiang Street, Bao'an District, 518126 Shenzhen, PEOPLE’S REPUBLIC OF CHINA Product Name ................................ : Digital Thermometer Trade Mark ....................................... : - Model No. ......................................... : AOJ-25A Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample..........: Dec. 13, 2022 Date of testing.............................: Dec. 14, 2022- Dec. 28, 2022 Date of issue...............................: Dec. 29, 2022 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Silvia Li Supervised by (Position+Printed name+Signature): Project Engineer Kiki Kong Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW22120121 Page: 2 of 32 Date of issue: 2022-12-29 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) Contents 1. TEST S T AN D AR D S A N D R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test sample information 7 4.4. Support unit used in test configuration and system 8 4.5. Testing environmental condition 8 4.6. Statement of the measurement uncertainty 8 4.7. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. Peak Output Power 13 5.4. Power Spectral Density 14 5.5. 6dB bandwidth 15 5.6. 99% Occupied Bandwidth 16 5.7. Duty Cycle 17 5.8. Conducted Band edge and Spurious Emission 18 5.9. Radiated Band edge Emission 19 5.10. Radiated Spurious Emission 21 6. TEST SETUP PHOTOS 26 7. EXTERNAL AND INTERNAL PHOTOS 28 8. APPENDIX REPORT 32 Report No.: CHTEW22120121 Page: 3 of 32 Date of issue: 2022-12-29 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 1. TEST STAND ARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2022-12-29 Original Report No.: CHTEW22120121 Page: 4 of 32 Date of issue: 2022-12-29 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result Test Engineer 5.1 Antenna Requirement 15.203/15.247(c) PASS Xiaoqin Li 5.2 AC Conducted Emission 15.207 N/A N/A 5.3 Peak Output Power 15.247(b)(3) PASS Xiaoqin Li 5.4 Power Spectral Density 15.247(e) PASS Xiaoqin Li 5.5 6dB Bandwidth 15.247(a)(2) PASS Xiaoqin Li 5.6 99% Occupied Bandwidth - PASS *1 Xiaoqin Li 5.7 Duty cycle - PASS *1 Xiaoqin Li 5.8 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS Xiaoqin Li 5.9 Radiated Band Edge Emission 15.205/15.209 PASS Yifan Wang 5.10 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Yifan Wang Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW22120121 Page: 5 of 32 Date of issue: 2022-12-29 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 3. SUMMARY 3.1. Client Information Applicant: Shenzhen AOJ Medical Technology Co., Ltd. Address: Room 301&4F, Block A, Building A, Jingfa Intelligent Manufacturing Park, Xiaweiyuan, Gushu Community, Xixiang Street, Bao'an District, 518126 Shenzhen, PEOPLE’S REPUBLIC OF CHINA Manufacturer: Shenzhen AOJ Medical Technology Co., Ltd. Address: Room 301&4F, Block A, Building A, Jingfa Intelligent Manufacturing Park, Xiaweiyuan, Gushu Community, Xixiang Street, Bao'an District, 518126 Shenzhen, PEOPLE’S REPUBLIC OF CHINA 3.2. Product Description Main unit information: Product Name: Digital Thermometer Trade Mark: - Model No.: AOJ-25A Listed Model(s): - Power supply: DC 3V from Battery H…

Text truncated - open the document above for the full version.

Project No.: SHT2212019102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 14 APPENDIX REPORT Project No. SHT2212019102EW Radio Specification Bluetooth BLE Test sample No. YPHT22120191003 Model No. AOJ-25A Start test date 2022-12-15 Finish date 2022-12-15 Temperature 23.3°C Humidity 45% Test Engineer Xiaoxiao Li Auditor Appendix clause Test item Result A Peak Output Power PASS B Power Spectral Density PASS C 6 dB Bandwidth PASS D 99% Occupied Bandwidth PASS E Duty cycle PASS F Band edge and Spurious Emissions (conducted) PASS Project No.: SHT2212019102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 14 Appendix A：Peak Output Power Type Channel Peak Output power (dBm) Average Output power (dBm) Limit (dBm) Result BT-BLE 00 -2.07 -2.22 ≤ 30.00 Pass 19 -2.56 -2.58 39 -3.23 -3.24 Project No.: SHT2212019102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 14 CH00 Date: 15.DEC.2022 12:51:27 CH19 Date: 15.DEC.2022 12:55:05 CH39 Date: 15.DEC.2022 12:57:31 Project No.: SHT2212019102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 14 Appendix B：Power Spectral Density Type Channel Power Spectral Density(dBm/3KHz) Limit (dBm/3KHz) Result BT-BLE 00 -12.12 ≤8.00 Pass 19 -12.97 39 -13.70 Project No.: SHT2212019102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 5 of 14 CH00 Date: 15.DEC.2022 12:52:13 CH19 Date: 15.DEC.2022 12:56:00 CH39 Date: 15.DEC.2022 12:58:40 Project No.: SHT2212019102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 6 of 14 Appendix C：6dB bandwidth Type Channel 6dB Bandwidth(kHz) Limit (kHz) Result BT-BLE 00 764.00 ≥500 Pass 19 782.00 39 762.00 Project No.: SHT2212019102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 7 of 14 CH00 Date: 15.DEC.2022 12:51:05 CH19 Date: 15.DEC.2022 12:54:47 CH39 Date: 15.DEC.2022 12:57:14 Project No.: SHT2212019102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 8 of 14 Appendix D：99% Occupied Bandwidth Type Channel 99% Occupied Bandwidth(MHz) Limit (kHz) Result BT-BLE 00 1.03 - Pass 19 1.03 39 1.03 Project No.: SHT2212019102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 9 of 14 CH00 Date: 15.DEC.2022 12:51:17 CH19 Date: 15.DEC.2022 12:54:56 CH39 Date: 15.DEC.2022 12:57:22 Project No.: SHT2212019102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 10 of 14 Appendix E：Duty cycle Test Frequency （MHz） T on time for single burst (ms) T period (ms) Duty cycle 1/T on time (kHz) 2440 1.00 1.00 100% 1 Project No.: SHT2212019102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 11 of 14 Appendix F：Band edge and Spurious Emissions (conducted) Test Item: Band edge CH00 Date: 15.DEC.2022 12:52:23 CH39 Date: 15.DEC.2022 12:58:50 Project No.: SHT2212019102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 12 of 14 Test Item: SE CH00 Reference level Date: 15.DEC.2022 12:52:32 CH00 30MHz~1000MHz Date: 15.DEC.2022 12:52:47 CH00 1GHz~26GHz Date: 15.DEC.2022 12:53:03 Project No.: SHT2212019102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 13 of 14 CH19 Reference level Date: 15.DEC.2022 12:56:06 CH19 30MHz~1000MHz Date: 15.DEC.2022 12:56:22 CH19 1GHz~26GHz Date: 15.DEC.2022 12:56:39 Project No.: SHT2212019102EW Radio Specification: Bluetooth BLE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 14 of 14 CH39 Reference level Date: 15.DEC.2022 12:58:56 CH39 30MHz~1000MHz Date: 15.DEC.2022 12:59:12 CH39 1GHz~26GHz Date: 15.DEC.2022 12:59:29 --------End of Report--------

Product Name: 8232 Antenna Type:PCB antenna Writer: He Lie Maximum Gain：0.2dBi Efficiency:36.98% 8232 PCB Antenna test report Version 1.0 Date：2022- 07-15 NO：0000000001 Manufacturer’s name: Shenzhen Guangchengda Circuit Technology Co., Ltd. ADD: 2F, Building A6, Pengjin Industrial Park, Yanchuan North, Songgang Town, Bao'an District, Shenzhen, CHINA Content 1. General Description .................................................................................3 2. Technical Information ............................................................................. 3 3. Test Standards ..........................................................................................3 4. Test Item .................................................................................................. 4 5. Test Photo ................................................................................................ 4 Appendix A S11/VSWR .............................................................................5 Appendix B Radiation Pattern(1D and 3D) ................................................5 Appendix C Test Setup Photo .....................................................................6 Appendix D EUT Photo ..............................................................................8 1. GeneralDescription EUT Name8232 Antenna WirelesstypeBluetooth AntennaTypePCB antenna DimensionsAppendixA 2. TechnicalInformation FrequencyRange2402MHz~2480MHz Test Frequency2400,2410......2500MHz 3. Test Standards IdentityDocumentTitle IEEE 149-1979IEEE StandardTest Procedures for Antennas 4. Test Item ReportSectionDescription AppendixBS11/VSWR AppendixCGain and Efficiency AppendixD RadiationPattern（1D and 3D） 5. Test Photo ReportSectionDescription AppendixETest SetupPhoto AppendixAAntenna Dimension Appendix B Gain and Efficiency Frequency (MHz)Efficiency(%) Gain（dBi） 240035.08%-0.23 241036.56%-0.01 242035.56%-0.1 243036.56%0.02 244036.98%0.2 245035.56%-0.05 246035.16%0.04 247035.16%0.17 248035.81%0.13 249034.75%0.15 250032.28%-0.31 Appendix C Radiation Pattern(1D and 3D) JOO, 2 7< 90 120 21/i 1so 180 Appendix D Test Setup Photo
