2A2EX-LBB21-01MOMWILIKE Baby Monitor S1

User Manual MOMWILIKE Baby Monitor S1 Indicator Camera Mic SD card Reset Bu�on LED Speaker Temperature & Humidity sensor Type-C Pr oduct Appearance Packing list Please check all accessories after opening Baby Monitor x 1 User Manual x 1SD Card x 1 USB Cable x 1Adaptor x 1 Android 5.0 and above IOS 10.0 and above Installation Guide 1. Check Wi-Fi connection2. Check Mobile Device OS Version Please check your Wi-Fi connection before setup, device supports 2.4GHz Wi-Fi only Please make sure your phone OS version is Android 5.0 and above or IOS 10.0 and above *Note: 1. Please plug in USB cable into adapter horizontally. 2. Please make sure your phone connected 2.4GHz Wi-Fi before using the APP. Installation Guide 3.Download APP4.Power on Scan following QR code to download Luxhome APP Plug in adapter, device successfully powers on after yellow LED light blinking Installation Guide 2.Add Device1.Sign up Click sign up and follow the instructions to complete Click Add device and follow the instruction to add device Welcome Add device Inviting family and friends +86： phone number Sign up Log in Get code Enter the verifi- cation code Please note following issues may lead to the failed Wi-Fi conne- ction Two ways to connect Wi-Fi: 3.Successfully adding device, start your AI life. 4.Installation • The device only support 2.4GHz, please make sure your Wi-Fi frequency is 2.4GHz. 1) Connected by QR code Click“Connected by QR code”, then follow the APP’s instruction. 2) Connected by Hotspot a. Follow APP’s instruction to connect your phone’s Wi-Fi to designated hotspot. Step 1: connect to the local WiFi network (wiFI2.4ghz only) as prompted by APP, select WiFi name, input WiFi password, and click "Next". Step 2: Click "Go To Connect", connect to the hotspot network of the device as prom- pted by the APP (WiFi name format: SmartLife-XXXX, password: 99999999), and click the back button on the page after the hotspot connection is successful (the position of the back button varies according to the mobile phone, generally in the up-per left corner of the wi-fi connection page). Step 3: After the device is successfully connected, click Start to add the device. • Incorrect Wi-Fi password. Ensure your baby monitor’s upright on a flat surface where you can get a complete view of baby. Installation Guide • Your Wi-Fi connection stops unknown device to connect. Product features Device will notify you on Luxhome APP when detect baby crying, and autom- atically play lullaby and turn on LED to conform baby. Baby Crying Detection Device will notify you on Luxhome APP when detect people in device‘s view. Human Detection You can set restriction area in the APP. Device will notify you on the Luxhome APP when detect baby moving out of the restriction area. Virtual Fence Device will notify you on Luxhome APP when detect baby face is covered. Covered Face Detection Device will automatically capture baby‘s smile and store the photos in baby’s album. Smile Capture Notice: Monwilike reserve the right to modify indicator color or status by upgrading SW in the future with advance notice to users. Notice: Please make sure your phone OS version is Android 5.0 and above or IOS 10.0 and above. Yellow light Power-onWi-Fi ConnectingWi-Fi ConnectedView on-line Video Product Model ResolutionColor Local Storage Monwilike Baby monitor S1Input Power Wifi FOVsize 5V/2A 802.11b/g/n 110 o 90x 86 x 114 mm LBB21-01 4MYellow/Pink 32G/64G SD card Blue light slowly flash Blue light Blue light fast flash Indicator Color Status Specification Substance Silicone CoverPlastics parts Components PCBAUSB cableAdapterLens Pb Hg Cd Cr(VI) PBB PBDE The harmful s ubstances contained in this product a re caused b y the cu rren t technica l limitations and n o alter native substances ca n b e f ound, and they are within the scope of ROHS exemption. S pecial consider ation h as b een made in the des ign of t he product . Ensure that exter ior componen ts are made of n on-tox ic and environmen tally f rien dly mater ials. Consumer s w ill not come into contact wit h harmful s ubstances under nor mal use and w ill not ca use harm to human body. Product hazardous substances Please place the device in area with good Wi-Fi connection. Please place the device away from electromagnetic interference area. Please do not use incompatible adapters, which may cause fire or explode. This device is not a toy, child use must be under adult supervision. Please do not allow unknown people to bundle and access your device. To get the best experiences of the device, please do not place camera towards or close to reflective object which may lead to white screen or unclear picture. Please do not expose the device in wet condition. Product Safety Caution To protect your personal information, please do not allow unknown people to bundle and access your device, Monwilike will also take action to protect your personal information. 1.Personal information Statement Gentle Reminders: Place the product out of reach by children, to prevent children from accidentally eating parts. a. b. c. d. e. Avoid use non-original power adapter, this could result in fire or explosion. Do not expose the product under wet condition, this could impact the normal use. For you and your family’s safety and privacy, please do not allow unknown people to bundle and access your device. The product can only be used as assistant to monitor baby, cannot fully replace human. This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed andoperated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunctionwith any other antenna or transmitter. This device complies with part 15 of the FCC rules and RSS-247 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any …

Text truncated - open the document above for the full version.

Luxshare Electronic Technology (KunShan) Ltd. Agent Authorization Company: Luxshare Electronic Technology (KunShan) Ltd. Address: No.158, Jinchang Road, Jinxi Town, Kunshan City, Jiangsu Province, China Product Name: MOMWILIKE Baby Monitor S1 Model Number(s): LBB21-01 Product Description: MOMWILIKE Baby Monitor S1 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-04-25 Name: Lisa Zeng Title: Engineer Company: Luxshare Electronic Technology (KunShan) Ltd.

Luxshare Electronic Technology(KunShan) Ltd. Date:Apr. 20 , 2022 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Luxshare Electronic Technology(KunShan) Ltd., the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen BALUN Technology Co., Ltd., to act on the behalf of the Luxshare Electronic Technology(KunShan) Ltd. solely in matters relating to the application for an FCC equipment authorization for FCC ID: 2A2EX-LBB21-01 including the signing of documents in connection with this Application. Necessary acts carried out by Shenzhen BALUN Technology Co., Ltd. in connection with the Application shall have the same effect as acts of the Luxshare Electronic Technology(KunShan) Ltd. The Luxshare Electronic Technology(KunShan) Ltd. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. Yours Sincerely, Print name: Lisa Zeng Title: Certification Engineer Luxshare Electronic Technology(KunShan) Ltd.

Luxshare Electronic Technology(KunShan) Ltd. Date: Apr. 20 , 2022 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 RE: Luxshare Electronic Technology(KunShan) Ltd. FCC ID: 2A2EX-LBB21-01 FCC Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Luxshare Electronic Technology(KunShan) Ltd. requests that the following documents regarding this submission for FCC ID : 2A2EX-LBB21-01 be kept Long-Term confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operational Description Operational Description.pdf And below exhibit kept short-term confidential (180 days): Exhibit Type File Name External Photos External Photo.pdf Internal Photos Internal Photo.pdf Test Setup Photos Test Setup Photos.pdf Users Manuals Users Manual.pdf Those documents contain detailed system and equipment description and related information about the product which Luxshare Electronic Technology(KunShan) Ltd. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve,Luxshare Electronic Technology(KunShan) Ltd. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Thank you for your attention to this matter. Yours Sincerely, Print name: Lisa Zeng Title: Certification Engineer Luxshare Electronic Technology(KunShan) Ltd.

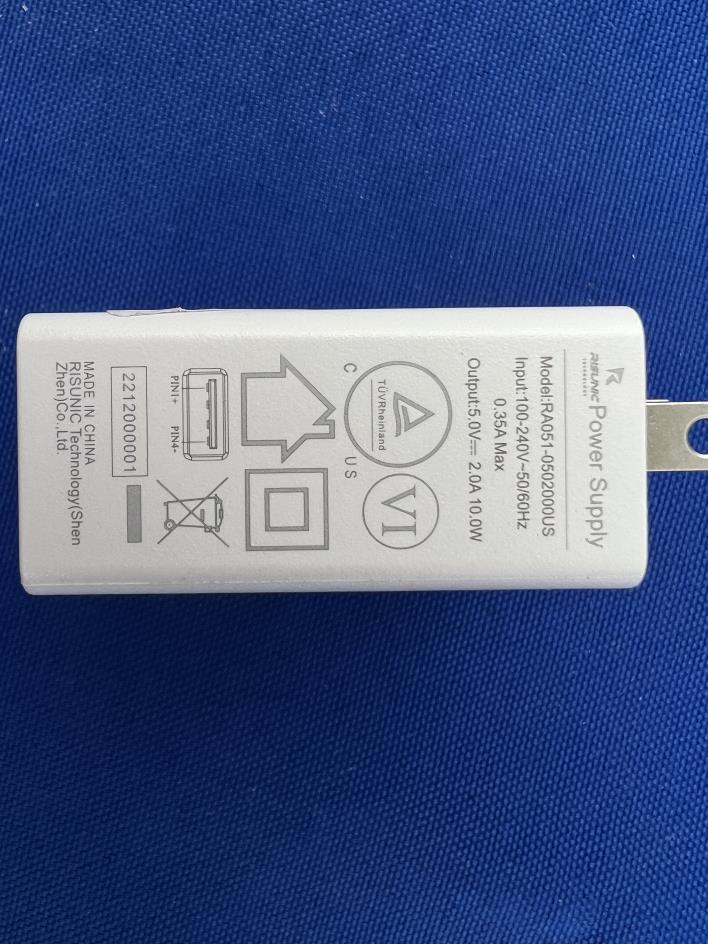

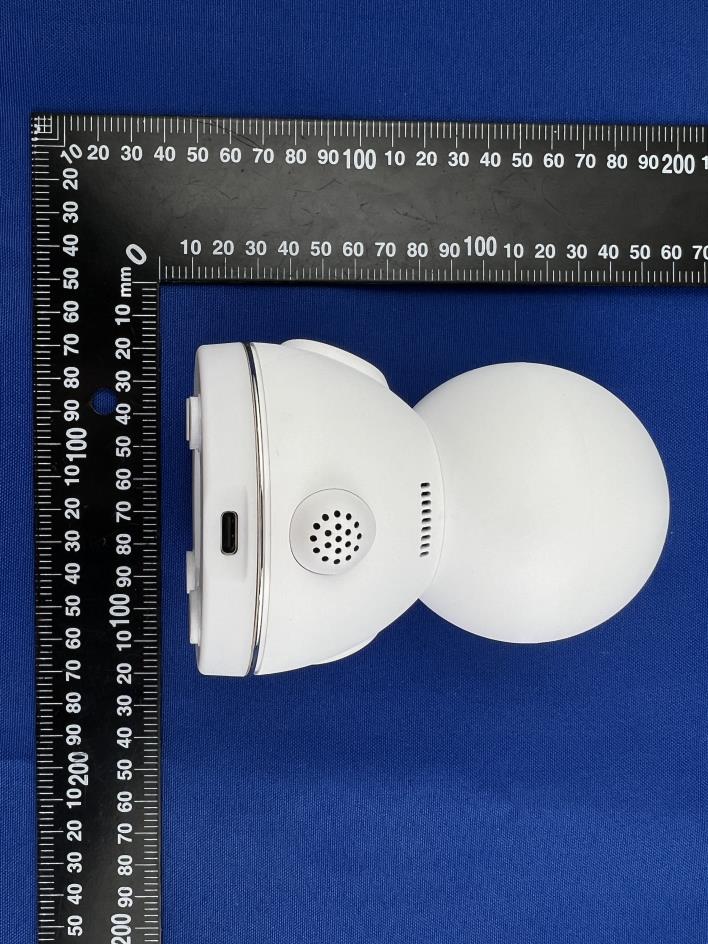

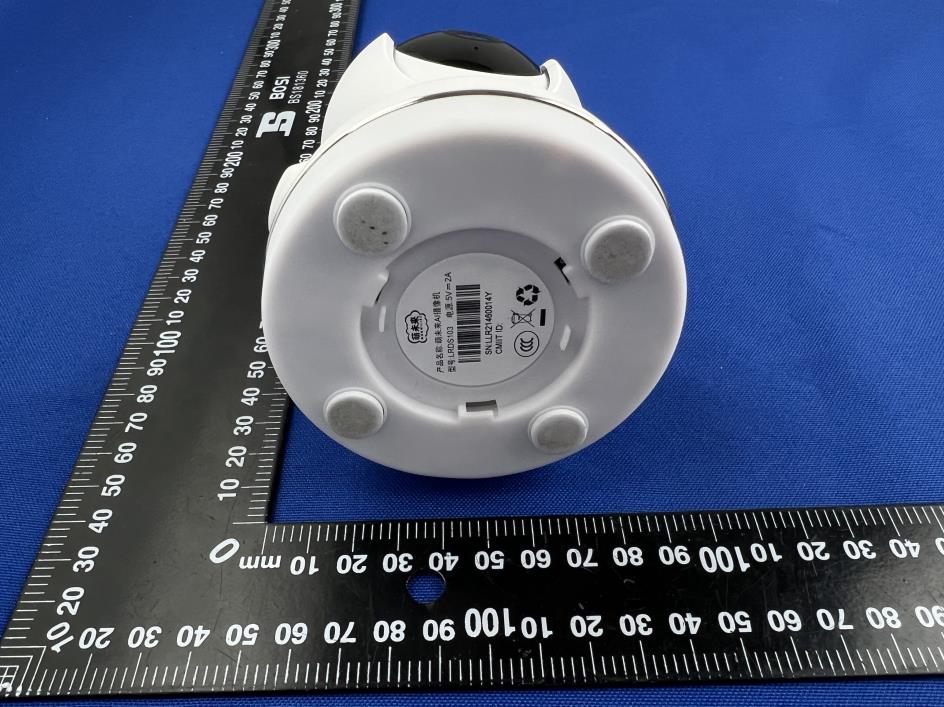

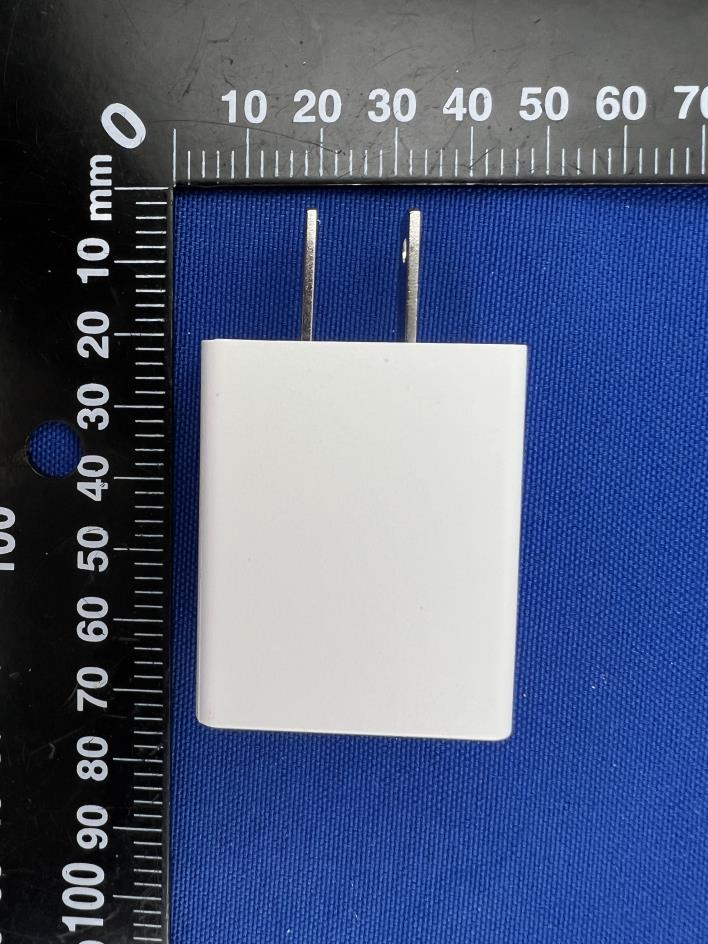

Report No.: BL-EC2240435-AW 1 / 5 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Report No.: BL-EC2240435-AW 2 / 5 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: BL-EC2240435-AW 3 / 5 TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: BL-EC2240435-AW 4 / 5 Accessory- TYPE-C Cable Accessory- Adapter Report No.: BL-EC2240435-AW 5 / 5 CLOSE-UP

Label： Location:

Report No.: BL-EC2240435-AI 1 / 6 EUT INTERNAL PHOTOS EUT UNCOVER VIEW 1 EUT UNCOVER VIEW 2 Report No.: BL-EC2240435-AI 2 / 6 EUT UNCOVER VIEW 3 EUT UNCOVER VIEW 4 Report No.: BL-EC2240435-AI 3 / 6 EUT UNCOVER VIEW 5 MAIN BOARD TOP VIEW RF Chip WIFI Antenna Report No.: BL-EC2240435-AI 4 / 6 MAIN BOARD REAR VIEW MAIN BOARD TOP VIEW Report No.: BL-EC2240435-AI 5 / 6 MAIN BOARD REAR VIEW MAIN BOARD TOP VIEW Report No.: BL-EC2240435-AI 6 / 6 MAIN BOARD REAR VIEW

Report No.: BL-EC2240435-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 10 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-04-06) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China TEST REPORT Applicant: Luxshare Electronic Technology (KunShan) Ltd. Address: No.158, Jinchang Road, Jinxi Town, Kunshan City, Jiangsu Province, China Equipment Type: MOMWILIKE Baby Monitor S1 Model Name: LBB21-01 Brand Name: MOMWILIKE FCC ID: 2A2EX-LBB21-01 Test Standard: 47 CFR Part 2.1091 (refer section 3.1) Test Date Apr. 15, 2022 - Apr. 19, 2022 Date of Issue: Apr. 24, 2022 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Julie Zhu Checked by: Liyao Zong Approved by: Wei Yanquan (Chief Engineer) _______________ _______________ _______________ Report No.: BL-EC2240435-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 10 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-04-06) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China Revision History Version Issue Date Revisions Content Rev. 01 Apr. 24, 2022 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................ 3 1.1 Identification of the Testing Laboratory ......................................................................... 3 1.2 Identification of the Responsible Testing Location ........................................................ 3 2 PRODUCT INFORMATION ....................................................................................................... 4 2.1 Applicant Information .................................................................................................... 4 2.2 Manufacturer Information .............................................................................................. 4 2.3 Factory Information ....................................................................................................... 4 2.4 General Description for Equipment under Test (EUT) ................................................... 4 2.5 Ancillary Equipment ...................................................................................................... 4 2.6 Technical Information ................................................................................................... 5 3 SUMMARY OF TEST RESULT ................................................................................................. 6 3.1 Test Standards ............................................................................................................. 6 4 DEVICE CATEGORY AND LEVELS LIMITS ............................................................................. 7 5 ASSESSMENT RESULT ........................................................................................................... 9 5.1 Output Power ............................................................................................................... 9 5.2 Turn-up power .............................................................................................................. 9 5.3 RF Exposure Evaluation Result .................................................................................... 9 5.4 Conclusion .................................................................................................................... 9 Report No.: BL-EC2240435-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 10 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-04-06) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China 1 GENERAL INFORMATION 1.1 Identification of the Testing Laboratory Company Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China Phone Number +86 755 6685 0100 1.2 Identification of the Responsible Testing Location Test Location Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China Accreditation Certificate The laboratory is a testing organization accredited by FCC as a accredited testing laboratory. The designation number is CN1196. Description All measurement facilities used to collect the measurement data are located at Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China Report No.: BL-EC2240435-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 10 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-04-06) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant Luxshare Electronic Technology (KunShan) Ltd. Address No.158, Jinchang Road, Jinxi Town, Kunshan City, Jiangsu Province, China 2.2 Manufacturer Information Manufacturer Luxshare Electronic Technology (KunShan) Ltd. Address No.158, Jinchang Road, Jinxi Town, Kunshan City, Jiangsu Province, China 2.3 Factory Information Factory Luxshare Electronic Technology (KunShan) Ltd. Address No.277, Baisheng Road, Jinxi Town, Kunshan City, PRC. 2.4 General Description for Equipment under Test (EUT) EUT Name MOMWILIKE Baby Monitor S1 Model Name Under Test LBB21-01 Series Model Name N/A Description of Model name differentiation N/A Hardware Version N/A Software Version N/A Dimensions (Approx.) N/A Weight (Approx.) N/A 2.5 Ancillary Equipment Note: Not Applicable. Report No.: BL-EC2240435-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 5 / 10 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-04-06) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District,…
