2A2H6MU01039LED PATTERN TWS BLU PPK

9 -1(One) -1(One) -1(One) Instruction Beam Light Up TWS Earbuds Beam Light Up TWS Earbuds /12 hours 1 hours/2 hours 200 TWS earbuds earbuds earbuds TWS earbuds earbuds TWS earbuds earbuds How to charge Earphone battery capacity: 30mAh Charging case battery capacity: 250mAh 2A2H6MU01039 CLASS 1 LED PRODUCT 1.Dust Net 2.Touch Button 3.LED Indicator 4.Charging Port 1.The earbud(s) will automatically power on and pair to each other when you open the charging case. 2.The earbuds will power off if they don’t connect to any device within 5 minutes. If the earbuds turn off. To turn the earbud(s) on again put the earbuds back into the charging case and then open the charging case. 3.To pair your earbuds, turn on the Bluetooth on your device and choose “BEAM BT TWS” on the list to connect. When the LED light turns off, they are paired successfully and you will hear a beep tone. 4.To answer a call, short press the earbud Multi-function button for once. To reject a call, long press the the earbud Multi-function button for two seconds. 5.Short press the earbud Multi-function button to stop the music; press it again to resume playing. 6.Long press the earbud Multi-function button 5s until the red light flashes, then the Bluetooth device is turned off. The earbuds turn off automatically when the earbuds are away from the Bluetooth device for a duration of over 5 minutes.To turn on the earbuds, press the earbud Multi-funtion button 5S until the blue light flashes. 1.Charging your case: Plug in the charging case using the USB Type-C cable included. While the case battery is charging, the case LED indicator will be flashing red. When the case is fully charged, the light will change to solid red. When the battery is low, there will be a beep tone. 2.Charging your earbuds: Place the earbuds inside of the charging case.The earbuds will automatically start charging once placed in the charging case. A solid red light on the earbuds will indicate that the earbuds are charging. Once fully charged, a blue light will turn on for 1 minute and then turn off. 3.The earbuds and case can be charged simultaneously, but the earbuds will not charge if there is no power in the case. The case needs to have at least a minimum charge to charge the earbuds. You must charge the TWS if it has not been used for more than 3 months. USB Type-C Charging Port LED Indicator Touch Button Dust Net LED Indicator

Shenzhen Bao Tianhua Technology Co., Ltd. Add: 301, Building Plant No.5 Anliang Road, Xi Keng Community, Longgang District,Shenzhen, Guangdong, China Tel: 0755‐28678596 E‐MAIL: [email protected] Date: 08/15/2022 To: FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Shenzhen Bao Tianhua Technology Co., Ltd. hereby declare that： Product Name: LED PATTERN TWS BLU*PPK Model No.: MU01039 FCC ID: 2A2H6MU01039 For BT Mode: BLE 1M/2M ; are disable by software For Below are activated: Bluetooth BDR(GFSK) , EDR(π/4‐DQPSK), EDR(8DPSK) Except for the manufacturer, the end user does not have any capability to modify/change the RF parameters. We acknowledge that it is the manufacturer’s responsibility to provide the radio configurations to ensure compliance with Commission’s rules. Sincerely Yours, Signature: Printed Name: Ray Lei Title: Manager

Antenna 2402-2480MHz AB5616A3 Crystal 26MHz 26M DC 3.7V Battery LED Audio output block Touch switch

Shenzhen Bao Tianhua Technology Co., Ltd. Add: 301, Building Plant No.5 Anliang Road, Xi Keng Community, Longgang District,Shenzhen, Guangdong, China Tel: 0755‐28678596 E‐MAIL: [email protected] FCC Authorization 08/15/2022 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We,Shenzhen Bao Tianhua Technology Co., Ltd.the undersigned, hereby authorize Shenzhen Accurate Technology Co., Ltd to act on its behalf in all matters relating t o application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Ray Lei Title: Manager Shenzhen Accurate Technology Co., Ltd

Shenzhen Bao Tianhua Technology Co., Ltd. Add: 301, Building Plant No.5 Anliang Road, Xi Keng Community, Longgang District,Shenzhen, Guangdong, China Tel: 0755‐28678596 E‐MAIL: [email protected] FCC Non-Confidential Authorization 2022/08/15 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Non‐Confidentiality Request regarding application for certification of FCC ID: 2A2H6MU01039 To: whom it may concern, We, Shenzhen Bao Tianhua Technology Co., Ltd.confirm that all the information accompanying this application is permitted to release to the public. Sincerely Yours, Signature: Printed Name: Ray Lei Title: Manager

Shenzhen Bao Tianhua Technology Co., Ltd. Add: 301, Building Plant No.5 Anliang Road, Xi Keng Community, Longgang District,Shenzhen, Guangdong, China Tel: 0755‐28678596 E‐MAIL: [email protected] 08/15/2022 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Declaration letter We, Shenzhen Bao Tianhua Technology Co., Ltd. hereby declare that we have a product named as LED PATTERN TWS BLU*PPK（FCC ID: 2A2H6MU01039; Model No.: MU01039）was tested by Shenzhen Accurate Technology Co., Ltd ,which has left earbud and right earbud. we would like to declare that the product has two units which are electrically identical.We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely Yours, Signature: Printed Name: Ray Lei Title: Manager

Shenzhen Bao Tianhua Technology Co., Ltd. Add: 301, Building Plant No.5 Anliang Road, Xi Keng Community, Longgang District,Shenzhen, Guangdong, China Tel: 0755‐28678596 E‐MAIL: [email protected] FCC ID Cover Letter Date:08/15/ 2022 The Shenzhen Bao Tianhua Technology Co., Ltd. here by submits justification for placing the FCC ID in the Associated User Manual. According to the FCC Regulation and Guidance (KDB Publication 784748 D01 v09r01) allows for the FCC ID to be moved to the User’s manual if the device is unquestionably too small for the FCC ID to be printed. Referring to the above quote, as the device is too small (FCC ID: 2A2H6MU01039 ) to be printed. The FCC ID will be moved to the last page of user’s manual and charging case. The details are as below: A. Side surface (A): The curvature shape of the silicone sleeve back cover is not flat, so it’s hard to affix thelabel on the surface of the earbuds. B. Top cover (B): The plastic logo of the top cover does not provide enough physical space to fit the printing of the FCC ID according to below reference picture. Conclusion： Based on the above description of area A to B, we conclude that the device is unquestionably too samll for enabling the FCC ID to be printed onto any surface, We therefore request to move the FCC ID to the User manual and charging case Sincerely Yours, Signature: Printed Name: Ray Lei Title: Manager

EX The rea d HIBITA-F label shown dily visible to FCC ID LA FCC I n shall be pe o the time pu ABEL AND FC ID Label rmanently af urchase (Labe D LOCATI CC ID Lab Location ffixed at a co eling require ION bel n Informa onspicuous l ements per 2. Project No. : SZ ation location on t .295) Z3220609-2544 the device an 42E-RF nd be

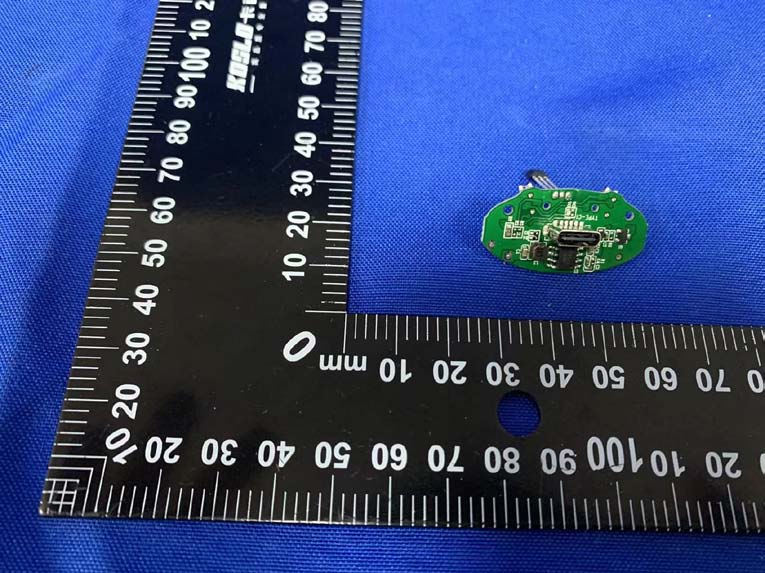

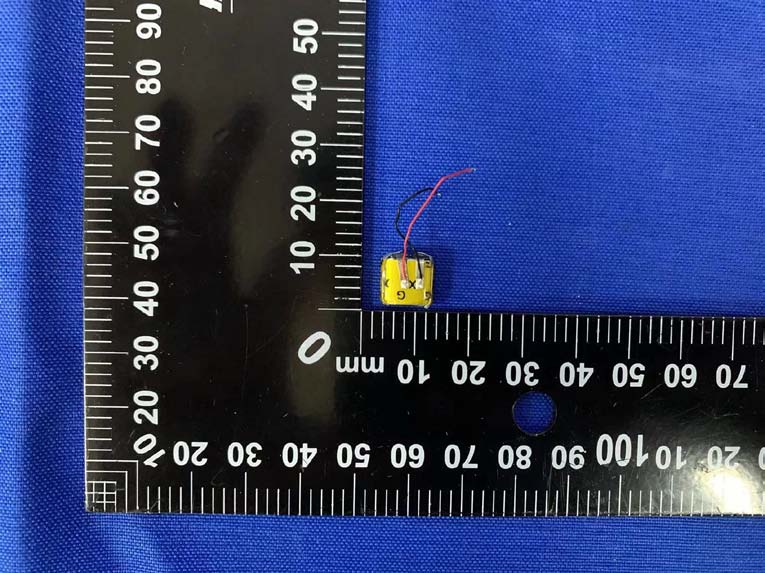

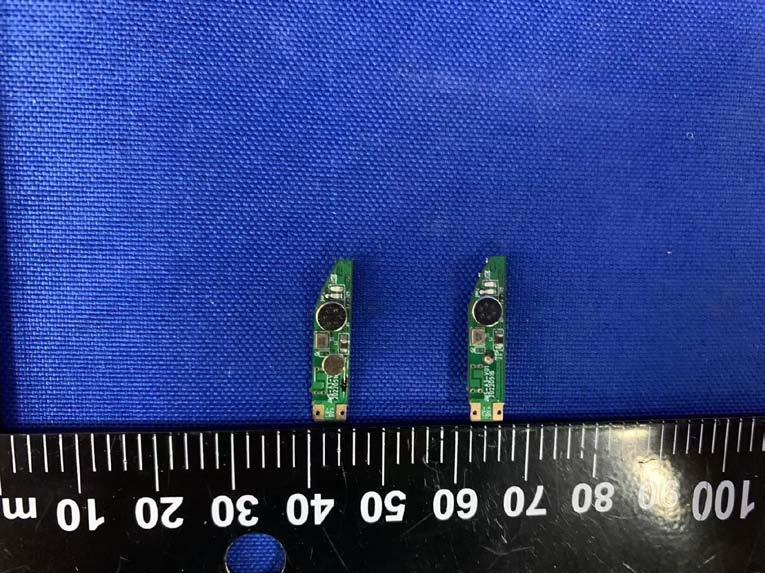

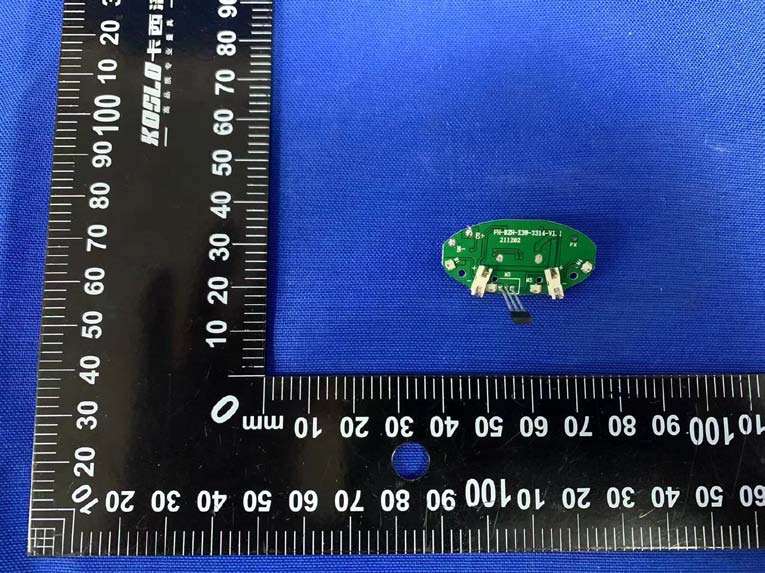

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220609-25442E-RF Page 1 of 4 Internal photos Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220609-25442E-RF Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220609-25442E-RF Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220609-25442E-RF Page 4 of 4 Antenna

Circuit Description Battery (DC 3.7V) provides energy for the Bluetooth chip (AB5616A3); Crystal oscillator (26MHz) provides the clock signal for the Bluetooth chip. Bluetooth signals get through a matching circuit, and then transmitted to the space through the antenna (2402-2480MHz). When the product is connected, the product can in two-way communication with other Bluetooth Devices, and then the device’s Bluetooth module sends Bluetooth signals into space, the product receives the Bluetooth signal through an antenna, transmission to the Bluetooth chip via matching circuit.

1 1 2 2 3 3 4 4 DD CC BB AA Y 1 2 6 MHZ GND OSCO OSCI u p D ate1 VD DD AC C6 1 0 5 DA CL#DA CLMICIN C4 10uF VD DBT GND P WRKEY L3 N C L2 1 .8 PF L4 N C GND C5 1 0 5 GND VUSB VDDIO VBAT C3225 C2105 GND L1 1 0 u H VD DBT BLUE_LED GND GND D 2RED D 1BLU E CHRG_LED BLUE_LED CHRG_LED SPK + SPK - DACL# DACL C8 N C C7 N C L5 0 R L6 0 R GND GND GND GND + M1 GND VD DBT 10 VD DBT 7 P WRKEY 8 LX 5 DG ND 6 VBAT 4 VUSB 2 DA CL 18 AD C10/MIC/P F 2 16 BT_OSCI 11 BT_OSCO 12 BT_AN T 9 VDDIO 3 VD DD AC 19 AGND 1 RFGND 0 VCMBUF 17 NC 20 ADC6/PB4 13 ADC5/PB3 14 ADC2/PA7 15 U1 AB5616A3 PWRKEY To u ch C9 N C GND VUSB Battery GND VBAT GND 2.4G Antenna GND R3 0R

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 11: 2021-11-09 Page 1 of 58 FCC-BT TEST REPORT Applicant Name : Shenzhen Bao Tianhua Technology Co., Ltd Address : 301,Building Plant No.5 Ailiang Road ,Xi Keng Community Yuanshan Sub-district, Longgang district, Shenzhen, Guangdong, China Report Number : SZ3220609-25442E-RF FCC ID: 2A2H6MU01039 Test Standard (s) FCC PART 15.247 Sample Description Product Type: LED PATTERN TWS BLU*PPK Test Model: MU01039 Trade Mark: N/A Date Received: 2022-06-09 Date of Test: 2022-07-01 to 2022-07-09 Report Date: 2022-07-12 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Roger Ling Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: SZ3220609-25442E-RF Version 11: 2021-11-09 Page 2 of 58 FCC-BT TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC§15.247 (i), §1.1307 (b) & §2.1093 – RF EXPOSURE ...................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST RESULT ............................................................................................................................................................. 10 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.205, §15.209 & §15.247(d) – RADIATED EMISSIONS ........................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 13 TEST PROCEDURE ...................................................................................................................................................... 13 FACTOR & MARGIN CALCULATION ......................................…

Text truncated - open the document above for the full version.

Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(dBm) 1.2 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) (2 Avg Gain XY-plane) Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. -0.68 Module Board -0.72 -0.5 -3.6 -0.71 -3.0 6 0.2 % Retum Loss The Environment of Antenna Radiation Pattem -0.68 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220609-25442E-RF Page 1 of 1 Photo of Radiated Emission Measurement Below 1GHz Photo of Radiated Emission Measurement Above 1GHz
