2A2MQ-BULLET14TIP CAMERA

QUICK GUIDE ORIGINALITY DESIGN SMART - AND BEAUTIFUL Bullet 14T Consult the checklist below for all components. 1 Camera USB cable Power adapter Screw package What's in the box Manual 2 Status light Speaker Reset Microphone SD card slot PowerDC 5V/1A Blinking red light: wait for network connection (slow) connecting the network (fast) Solid blue light on: camera is working correctly Solid red light on: camera is malfunctional Capture sound for your video Support local SD Card storage (Max.128 GB) Press and hold for 5 seconds to reset the camera (if you have modified settings, they will return to factory defaults) Microphone SD card slot Reset Description Micro USB Status light 3 Bracket Installation Installation Install the bracket to the wall with screws. (Optional) You can adjust the camera horizontally or vertically by manual. 4 Download Add device Download CloudEdge is available for both iOS and Android OS. Search the name "CloudEdge" in App Store or Google Play, or scan the QR-Code to download the App. You can select the App according to needs. Log in the CloudEdge, select "Add Device", and add the smart camera to the App according to the screen tips(Make the smart camera close to the router when configuring). NOTE: If you need to re-select the WiFi network, please press and hold the "RESET" button for 5 seconds, the device will restart, and the indicator will be flashing red. iPadAndroidiOS ·Support Download App(iOS&Android) 5 FAQ Q: The device cannot be previewed properly? A: Check whether the network is normal, you can place the camera close to the router, and if not, it is recommended to reset the device and add it again. Q: Why is it still in the list of devices after reseting? A: The reset device only resets the network configuration of the camera, but cannot change the configuration on the App, remove the camera, and must be deleted by the App. Q: How to cut the camera network to another router? A: First remove and reset the device on the App and then configure the device again by the App. Q: Why doesn't the device identify the SD card? A: It is recommended to plug in SD card after power cut. Confirm whether the SD card is normally available and the format is FAT32. And the TF card can't be identified when the Internet environment is not good. Q: Why I can't get the notifications with my cell phone App? A: Please confirm that the App has been running on the phone, and the relevant reminder function has been opened;Message notification and authority confirmation in the mobile phone system have been opened. Functions 6 DaytimeNight Video flip Flip your video stream up or down for maximum flexibility. Motion detection Support smart motion detection. The camera will detect movements, and then send you push notifications and app alerts. Record Support 24H continuous recording with high capacity SD storage or Cloud storage. Day & Night Never miss a moment, even in complete darkness, with powerful night-vision technology. 7 Functions FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and consider removing the no- collocation statement. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

ModelDeclarationLetter We, the undersigning company Company Name: Hangzhou Arenti Technology Co., Ltd. Address: Room 1010,10th Floor, Building 1 ,No.768 Jianghong Road, Changhe street, Binjiang District, Hangzhou, zhejiang, China Hereby confirm that the following products: Product description:IP CAMERA Type designation:Bullet 14T,Bullet 14Q, Bullet 14S, O2, O2Q, OPT1, OPT2 That Date: 2022-11-16 Name: Zhiyang Chai Telephone: +86-571-56565100 E-mail: [email protected] PCB board, structure and internal of these model(s) are the same, Only the model name different , So no additional models were tested. All modes are available in two versions (version A without sensor, version B with sensor on the mainbaord which do not affect RF board), with evaluation tests in the EMC part. Signature: FCC ID: 2A2MQ-BULLET14T

Confidentiality Request Letter For Certification Service in the USA FederalCommunicationCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoParagraphs§0.457and0.459oftheCommission’sRules(47C.F.R.)andSection §552(b)(4)oftheFreedomofInformationAct,werequestconfidentialityforthe documentationofthefollowingproducts: Model name Bullet 14T,Bullet 14Q, Bullet 14S, O2, O2Q, FCC ID 2A2MQ- BULLET14T OPT1, OPT2 Fortheproductslistedabove,werequestpermanentconfidentialityforallapplicable exhibitsasthereare:  theOperationalDescription  theBlockDiagram theSchematics Theabovelistedexhibitscontaintradesecretsandproprietaryinformationthatcouldbeof benefittoourcompetitors. Ifyouhaveanyquestions,pleasefeelfreetocontactusattheaddressshownbelow. Sincerely, Signature Printed Name of Signee: Company:Hangzhou Arenti Technology Co., Ltd 2022-11-16 . Date Address: Room 1010,10th Floor, Building 1 ,No.768 Jianghong Road, Changhe street, Binjiang District, Hangzhou, zhejiang, China Phone:+86-571-56565100 Email:[email protected]

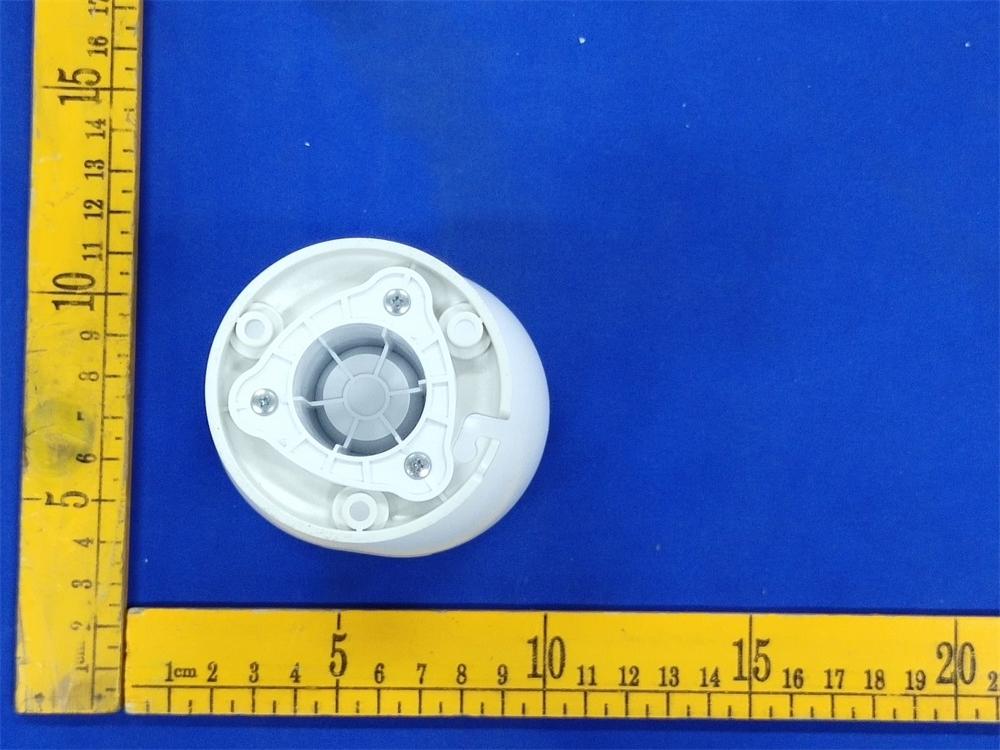

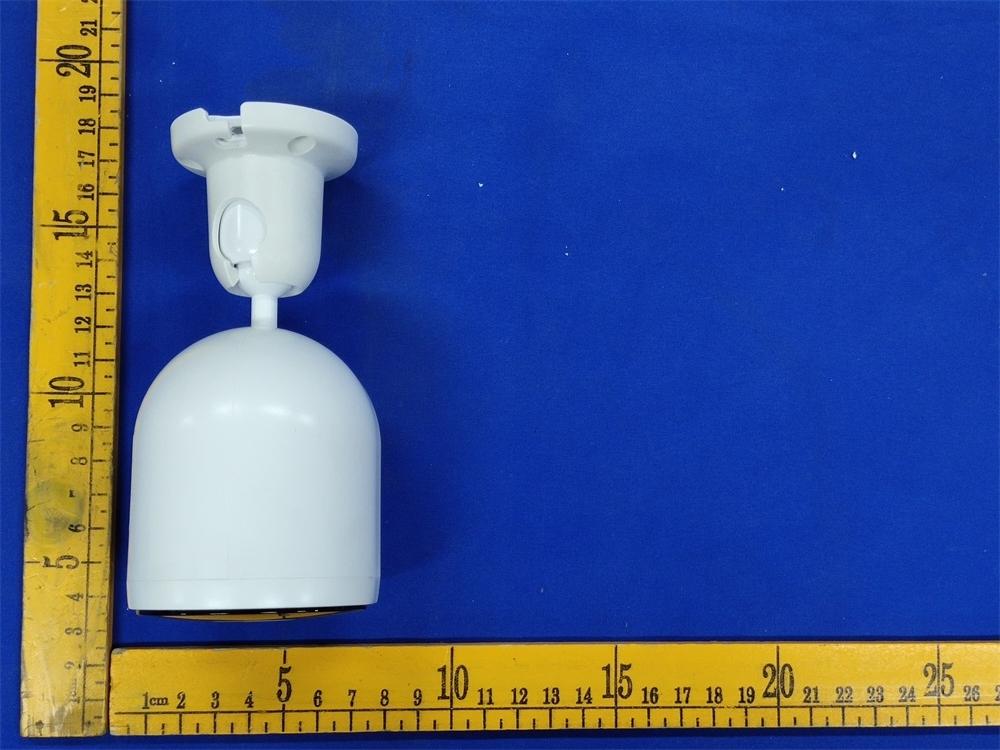

Report No.: GTS20220930008-1-17 Page 37 of 46 6. E X T E R N A L A N D I N T E R N A L P H O T O S O F T H E EUT Fig. 1 Fig. 2 Report No.: GTS20220930008-1-17 Page 38 of 46 Fig. 3 Fig. 4 Report No.: GTS20220930008-1-17 Page 39 of 46 Fig. 5 Fig. 6 Report No.: GTS20220930008-1-17 Page 40 of 46 Fig. 7 Fig. 8 Report No.: GTS20220930008-1-17 Page 41 of 46 Fig. 9 Fig. 10

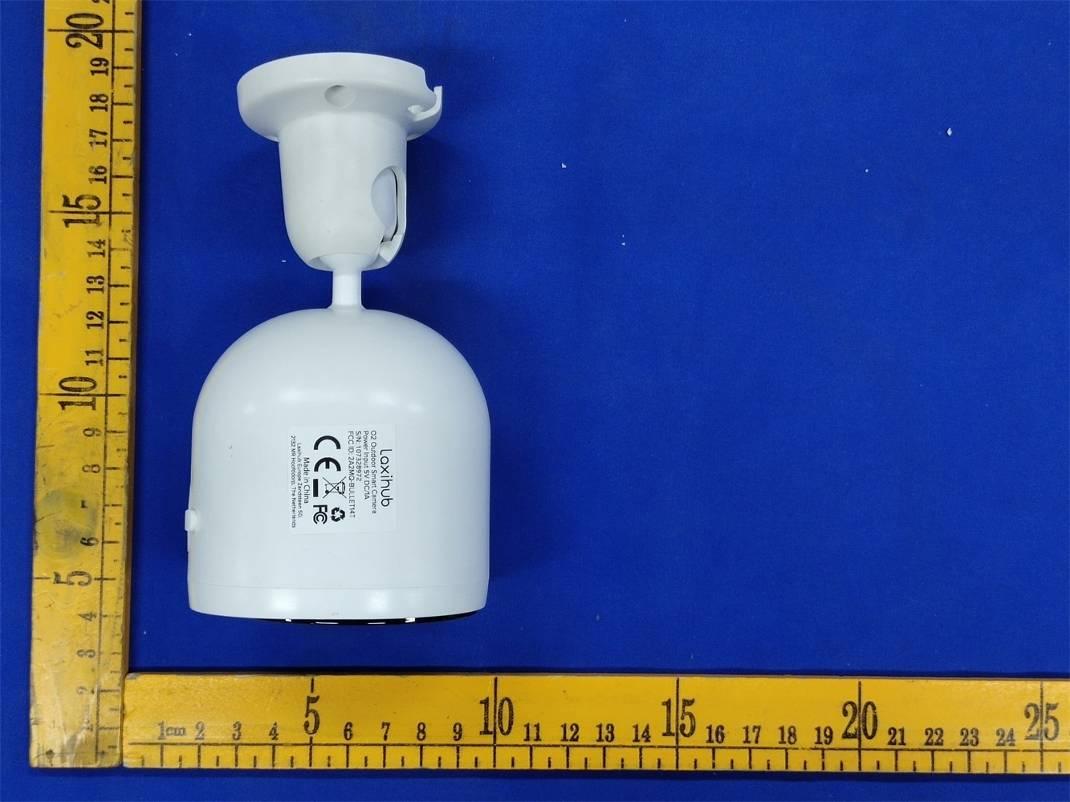

Labellocation

Report No.: GTS20220930008-1-17 Page 42 of 46 Fig. 11 Fig. 12 Report No.: GTS20220930008-1-17 Page 43 of 46 Fig. 13 Fig. 14 Version A Antenna Report No.: GTS20220930008-1-17 Page 44 of 46 Fig. 15 Fig. 16 Report No.: GTS20220930008-1-17 Page 45 of 46 Fig. 17 Fig. 18 Report No.: GTS20220930008-1-17 Page 46 of 46 Fig. 19 Fig. 20 .......................End of Report........................ Version B

ShenzhenGlobalTestServiceCo.,Ltd. No.7-101and8A-104,Building7and8,DCCCulturalandCreativeGarden,No.98,PingxinNorthRoad, ShangmuguCommunity,PinghuStreet,LonggangDistrict,Shenzhen,Guangdong RFExposureevaluation ReportReferenceNo........................: FCCID..................................................: GTS20220930008-1-18 2A2MQ-BULLET14T Compiledby (position+printedname+signature) .. :FileadministratorsPeterXiao Supervisedby (position+printedname+signature)..:TestEngineerJennyZeng Approvedby (position+printedname+signature) .. : ManagerJasonHu Dateofissue ......................................... :Nov.14,2022 RepresentativeLaboratoryName . :ShenzhenGlobalTestServiceCo.,Ltd. Address ................................................. : No.7-101and8A-104,Building7and8,DCCCulturalandCreative Garden,No.98,PingxinNorthRoad,ShangmuguCommunity, PinghuStreet,LonggangDistrict,Shenzhen,Guangdong Applicant’sname...............................:HangzhouArentiTechnologyCo.,Ltd. Address.................................................: Room1010,10thFloor,Building1,No.768JianghongRoad, Changhestreet,BinjiangDistrict,Hangzhou,zhejiang,China Testspecification..............................: Standard................................................: 47CFR§1.1310 47CFR§2.1091 KDB447498D01GeneralRFExposureGuidancev06 TRFOriginator ...................................... :ShenzhenGlobalTestServiceCo.,Ltd. MasterTRF ........................................... :Dated2014-12 ShenzhenGlobalTestServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenGlobalTestServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthematerial. ShenzhenGlobalTestServiceCo.,Ltd.takesnoresponsibilityforandwillnotassumeliabilityfordamages resultingfromthereader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. Testitemdescription ........................ :IPCAMERA TradeMark ............................................ :N/A Manufacturer.........................................:HangzhouArentiTechnologyCo.,Ltd. Model/Typereference.........................:Bullet14T ListedModels......................................:Bullet14Q,Bullet14S,O2,O2Q,OPT1,OPT2 HardwareVersion ............................... :BULLET14S-T4MB-MIS3REV1_0 SoftwareVersion .................................. :ppstrong-c95-m_general-5.3 Rating ..................................................... :DC5.0V/1.0AbyAdapter Result.....................................................:PASS ReportNo.:GTS20220930008-1-18Page 2 of 11 TESTREPORT TestReportNo.: GTS20220930008-1-18 Nov.14,2022 ______________________________________________________________________________________________ Dateofissue EquipmentunderTest:IPCAMERA Model/Type:Bullet14T Listedmodel:Bullet14Q,Bullet14S,O2,O2Q,OPT1,OPT2 Applicant : HangzhouArentiTechnologyCo.,Ltd. Address : Room1010,10thFloor,Building1,No.768JianghongRoad,Changhe street,BinjiangDistrict,Hangzhou,zhejiang,China Manufacturer : HangzhouArentiTechnologyCo.,Ltd. Address: Room1010,10thFloor,Building1,No.768JianghongRoad,Changhe street,BinjiangDistrict,Hangzhou,zhejiang,China TestResult:PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:GTS20220930008-1-18Page 3 of 11 Contents 1.SUMMARY...................................................................................................................................................................4 1.1EUTCONFIGURATION........................................................................................................................................................4 1.2PRODUCTDESCRIPTION......................................................................................................................................................4 2.TESTENVIRONMENT....................................................................................................................................................5 2.1ADDRESSOFTHETESTLABORATORY.....................................................................................................................................5 2.2TESTFACILITY...................................................................................................................................................................5 2.3ENVIRONMENTALCONDITIONS.............................................................................................................................................5 2.4STATEMENTOFTHEMEASUREMENTUNCERTAINTY..................................................................................................................5 3.METHODOFMEASUREMENT......................................................................................................................................6 3.1APPLICABLESTANDARD......................................................................................................................................................6 3.2REQUIREMENT..................................................................................................................................................................6 3.3LIMIT..............................................................................................................................................................................6 3.4MPECALCULATIONMETHOD.............................................................................................................................................7 3.5ANTENNAINFORMATION....................................................................................................................................................7 4.CONDUCTEDPOWERRESULTS.....................................................................................................................................8 5.MANUFACTURINGTOLERANCE........................................................................…

Text truncated - open the document above for the full version.

Case No. : GTS20220930008-1-17 Ambient Condition: 26 °C, 49 %RH, Atmos100.1Kpa, Test Date: 2022.10.29 Test Engineer: Jenny zeng Appendix A.1: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.000 2407.000 2417.000 0.5 PASS 2437 9.560 2431.960 2441.520 0.5 PASS 2462 10.080 2456.960 2467.040 0.5 PASS 11G Ant1 2412 16.400 2403.760 2420.160 0.5 PASS 2437 16.320 2428.840 2445.160 0.5 PASS 2462 16.320 2453.840 2470.160 0.5 PASS 11N20SISO Ant1 2412 17.080 2403.440 2420.520 0.5 PASS 2437 17.240 2428.480 2445.720 0.5 PASS 2462 16.600 2453.560 2470.160 0.5 PASS 11N40SISO Ant1 2422 35.040 2404.480 2439.520 0.5 PASS 2437 35.120 2419.400 2454.520 0.5 PASS 2452 35.280 2434.240 2469.520 0.5 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix A.2: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.629 2405.221 2418.850 --- --- 2437 13.755 2430.193 2443.948 --- --- 2462 13.566 2455.233 2468.799 --- --- 11G Ant1 2412 17.038 2403.498 2420.536 --- --- 2437 17.381 2428.429 2445.810 --- --- 2462 17.122 2453.459 2470.581 --- --- 11N20SISO Ant1 2412 18.195 2402.972 2421.167 --- --- 2437 18.176 2427.988 2446.164 --- --- 2462 17.908 2453.070 2470.978 --- --- 11N40SISO Ant1 2422 35.984 2403.996 2439.980 --- --- 2437 35.970 2419.042 2455.012 --- --- 2452 35.906 2434.051 2469.957 --- --- Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix A.3: Maximum conducted output power Test Result Peak TestMode Antenna Frequency[MHz] Peak Powert[dBm] Conducted Limit[dBm] Verdict 11B Ant1 2412 20.71 ≤30.00 PASS 2437 20.59 ≤30.00 PASS 2462 20.37 ≤30.00 PASS 11G Ant1 2412 21.57 ≤30.00 PASS 2437 21.81 ≤30.00 PASS 2462 21.36 ≤30.00 PASS 11N20SISO Ant1 2412 21.16 ≤30.00 PASS 2437 21.78 ≤30.00 PASS 2462 21.27 ≤30.00 PASS 11N40SISO Ant1 2422 21.02 ≤30.00 PASS 2437 21.18 ≤30.00 PASS 2452 21.29 ≤30.00 PASS Appendix A.4: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -9.29 ≤8.00 PASS 2437 -9.23 ≤8.00 PASS 2462 -7.92 ≤8.00 PASS 11G Ant1 2412 -13.73 ≤8.00 PASS 2437 -12.72 ≤8.00 PASS 2462 -11.87 ≤8.00 PASS 11N20SISO Ant1 2412 -13.41 ≤8.00 PASS 2437 -12.58 ≤8.00 PASS 2462 -12.99 ≤8.00 PASS 11N40SISO Ant1 2422 -15.99 ≤8.00 PASS 2437 -17.48 ≤8.00 PASS 2452 -16.45 ≤8.00 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462

11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix A.5: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 2.71 -38.86 ≤-17.3 PASS High 2462 3.37 -48.45 ≤-16.63 PASS 11G Ant1 Low 2412 -0.37 -28.79 ≤-20.37 PASS High 2462 1.21 -34.86 ≤-18.79 PASS 11N20SISO Ant1 Low 2412 1.41 -23.84 ≤-18.6 PASS High 2462 1.34 -32.6 ≤-18.66 PASS 11N40SISO Ant1 Low 2422 -3.31 -42.21 ≤-23.31 PASS High 2452 -2.90 -47.34 ≤-22.9 PASS Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 Appendix A.6: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 0.87 0.87 --- PASS 30~1000 0.87 -60.62 ≤-19.13 PASS 1000~26500 0.87 -44.26 ≤-19.13 PASS 2437 Reference 1.19 1.19 --- PASS 30~1000 1.19 -60.49 ≤-18.81 PASS 1000~26500 1.19 -28.31 ≤-18.81 PASS 2462 Reference 2.10 2.10 --- PASS 30~1000 2.10 -60.24 ≤-17.9 PASS 1000~26500 2.10 -40.07 ≤-17.9 PASS 11G Ant1 2412 Reference -2.78 -2.78 --- PASS 30~1000 -2.78 -59.61 ≤-22.78 PASS 1000~26500 -2.78 -47.46 ≤-22.78 PASS 2437 Reference 2.05 2.05 --- PASS 30~1000 2.05 -60.22 ≤-17.95 PASS 1000~26500 2.05 -47.05 ≤-17.95 PASS 2462 Reference -0.63 -0.63 --- PASS 30~1000 -0.63 -60.5 ≤-20.63 PASS 1000~26500 -0.63 -26.84 ≤-20.63 PASS 11N20SISO Ant1 2412 Reference 0.46 0.46 --- PASS 30~1000 0.46 -59.88 ≤-19.54 PASS 1000~26500 0.46 -34.43 ≤-19.54 PASS 2437 Reference -0.82 -0.82 --- PASS 30~1000 -0.82 -59.86 ≤-20.82 PASS 1000~26500 -0.82 -47.8 ≤-20.82 PASS 2462 Reference 0.45 0.45 --- PASS 30~1000 0.45 -53.02 ≤-19.55 PASS 1000~26500 0.45 -35.45 ≤-19.55 PASS 11N40SISO Ant1 2422 Reference -3.15 -3.15 --- PASS 30~1000 -3.15 -60.51 ≤-23.15 PASS 1000~26500 -3.15 -47.02 ≤-23.15 PASS 2437 Reference -3.22 -3.22 --- PASS 30~1000 -3.22 -60.29 ≤-23.22 PASS 1000~26500 -3.22 -47.56 ≤-23.22 PASS 2452 Reference -3.09 -3.09 --- PASS 30~1000 -3.09 -59.77 ≤-23.09 PASS 1000~26500 -3.09 -47.38 ≤-23.09 PASS Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 11N40SISO_Ant1_2452_1000~26500

ShenzhenGlobalTestServiceCo.,Ltd. No.7-101and8A-104,Building7and8,DCCCulturalandCreativeGarden,No.98,PingxinNorthRoad, ShangmuguCommunity,PinghuStreet,LonggangDistrict,Shenzhen,Guangdong FCCPART15SUBPARTCTESTREPORT FCCPART15.247 ReportReferenceNo........................: FCCID.................................................: GTS20220930008-1-17 2A2MQ-BULLET14T Compiledby (position+printedname+signature)..:FileadministratorsPeterXiao Supervisedby (position+printedname+signature)..:TestEngineerJennyZeng Approvedby (position+printedname+signature)..: ManagerJasonHu Dateofissue ......................................... :Nov.14,2022 RepresentativeLaboratoryName . :ShenzhenGlobalTestServiceCo.,Ltd. Address.................................................: No.7-101and8A-104,Building7and8,DCCCulturalandCreative Garden,No.98,PingxinNorthRoad,ShangmuguCommunity,Pinghu Street,LonggangDistrict,Shenzhen,Guangdong,China Applicant’sname...............................:HangzhouArentiTechnologyCo.,Ltd. Address ................................................. : Room1010,10thFloor,Building1,No.768JianghongRoad,Changhe street,BinjiangDistrict,Hangzhou,zhejiang,China Testspecification..............................: Standard................................................: FCCPart15.247:Operationwithinthebands902-928MHz,2400- 2483.5MHzand5725-5850MHz ANSIC63.10-2013 TRFOriginator......................................:ShenzhenGlobalTestServiceCo.,Ltd. MasterTRF...........................................:Dated2014-12 ShenzhenGlobalTestServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongastheShenzhen GlobalTestServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthematerial.ShenzhenGlobal TestServiceCo.,Ltd.takesnoresponsibilityforandwillnotassumeliabilityfordamagesresultingfromthe reader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. Testitemdescription........................:IPCAMERA TradeMark............................................: N/A Manufacturer.........................................:HangzhouArentiTechnologyCo.,Ltd. Model/Typereference ......................... : Bullet14T ListedModels ...................................... : Bullet14Q,Bullet14S,O2,O2Q,OPT1,OPT2 OperationFrequency .......................... :From2412MHzto2462MHz HardwareVersion ............................... :BULLET14S-T4MB-MIS3REV1_0 SoftwareVersion .................................. :ppstrong-c95-m_general-5.3 Rating ..................................................... :DC5.0V/1.0AbyAdapter Result ..................................................... :PASS ReportNo.:GTS20220930008-1-17Page 2 of 46 TESTREPORT TestReportNo.: GTS20220930008-1-17 Nov.14,2022 ____________________________________________________________________________________ Dateofissue EquipmentunderTest : IPCAMERA Model/Type : Bullet14T Listedmodel : Bullet14Q,Bullet14S,O2,O2Q,OPT1,OPT2 Applicant : HangzhouArentiTechnologyCo.,Ltd. Address: Room1010,10thFloor,Building1,No.768JianghongRoad,Changhe street,BinjiangDistrict,Hangzhou,zhejiang,China Manufacturer : HangzhouArentiTechnologyCo.,Ltd. Address: Room1010,10thFloor,Building1,No.768JianghongRoad,Changhe street,BinjiangDistrict,Hangzhou,zhejiang,China TestResult : PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:GTS20220930008-1-17Page 3 of 46 Contents 1.TESTSTANDARDS.........................................................................................................................................4 2.SUMMARY.......................................................................................................................................................5 2.1.GeneralRemarks...................................................................................................................................5 2.2.ProductDescription................................................................................................................................5 2.3.EquipmentUnderTest............................................................................................................................6 2.4.ShortdescriptionoftheEquipmentunderTest(EUT)...........................................................................6 2.5.EUToperationmode..............................................................................................................................6 2.6.BlockDiagramofTestSetup..................................................................................................................6 2.7.RelatedSubmittal(s)/Grant(s)..............................................................................................................7 2.8.EUTExerciseSoftware..........................................................................................................................7 2.9.SpecialAccessories...............................................................................................................................7 2.10.ExternalI/OCable................................................................................................................................7 2.11.Modifications.........................................................................................................................................7 3.TESTENVIRONMENT.....................................................................................................................................8 3.1.Addressofthetestlaboratory................................................................................................................8 3.2.TestFacility.............................................................................................................................................8 3.3.Environmentalconditions...........................................................................................................…

Text truncated - open the document above for the full version.

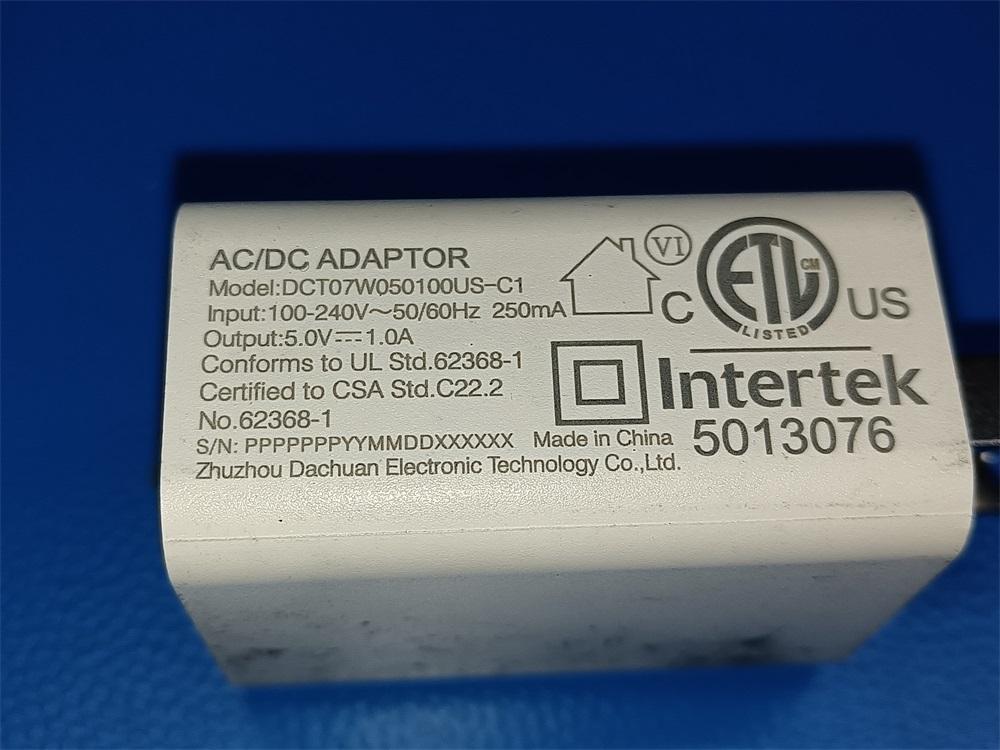

Report No.: GTS20220930008-1-17 Page 34 of 46 5. T E S T S E T U P P H O T O S O F T H E E U T Adapter: TPA-46B050100UU Radiated Emission Report No.: GTS20220930008-1-17 Page 35 of 46 Conducted Emission Adapter:DCT07W050100US-C1 Radiated Emission Report No.: GTS20220930008-1-17 Page 36 of 46 Conducted Emission
