2A2NS-GY-L9Foldable wireless charging station 3 in 1

德语 德语 法语法语 西班牙语 西班牙语 意大利语 意大利语 Foldable wireless charging station 3 in 1 Product appearance IInstructions for use Foldable Operating instructions Aussehen des Produkts Gebrauchsanweisungen Apparence du produit Instructions d'utilisation Apariencia del producto Aspetto del prodotto Instrucciones de uso 2024-07-11 Note: In order to charge 3 smart devices atthe same time, please use 9V/2A adapter (QC 2.0 or QC 3.0)and quick charge cable. Otherwise, you may not charge smart phones or 3 smart devices at the same time, also it may damage the wireless charger. LIGHT INSTRUCTIONS COMPATIBLE DEVICES 1.iPhone iPhone 15,15 Pro, 15 Pro Max, 15 Plus iPhone 15 Series Case with MagSafe iPhone 14,14 Pro,14 Pro Max, 14 Plus iPhone 14 Series Case with MagSafe iPhone 13,13 Pro, 13 Pro Max, 14 mini iPhone 13 Series Case with MagSafe iPhone 12,12 Pro, 12 Pro Max, 12 mini iPhone 12 Series Case with MagSafe iPhone Leather Wallet with Magnetic 2.Apple Watch Apple iWatch s9/s8/SE2/S7/6/SE 5/4/3/2/Ultra 2/ultra/Hermès. 3.Earbuds Apple AirPods 2/ AirPods 3/ AirPods Pro/ AirPods Pro 2. And more TWS(others Oi enable earbuds) PRODUCT SPECIFICATION Input: 5V⎓3A/9V⎓2A Input Port: Type-C Output(Phone):15W(Max)/10W/7.5W/5W Conversion Rate:≥73%(Phone) Output(iWatch): 2.5W(Max) Product Size: Output(Earbuds): 3.0W(Max) 121.5x92.08x31.1MM(Fold) PACKING LIST 1. Magnetic wireless charging X1 2.User manual X1 3. Type-C quick charging cable X 1 Power On Standby The green light stays on for 30 seconds and then automatically goes out Alternating fast flashing of blue and green lights Flashing blue and green lights alternately Charging The blue light breathes for 30 and then automatically goes out INDICATEURS LUMINEUX Démarrez la machine Articles de rechange Le feu vert s'allume normalement pendant 30 secondes puis s'éteint automatiquement Chargement Flash alternatif bleu - Vert Lumière bleue Breath 30 puis s'éteint automatiquement Le Feu bleu - Vert clignote alternativement LUZ INDICADORA ISTRUZIONI DI LUCE Encendido Artículos de repuesto La luz verde a menudo se enciende durante 30 segundos y luego se apaga automáticamente Carga Luces azules y verdes alternadas flash La luz azul respira 30 y luego se apaga automáticamente Las luces azules y verdes parpadean alternativamente Accensione standby La luce verde rimane accesa per 30 secondi e poi si spegne automaticamente Ricarica Alternare lampeggio rapido di luci blu e verdi La luce blu respira per 30 e poi si spegne automaticamente Luci blu e verdi lampeggianti alternativamente L9 常规说明书 L9 常规说明书 尹 Phone Charging Area Earbuds Charging Area iWatch Charging Area Earbuds Charging Area Heat dissipation hole Indicate Light 1.please use 9V/2A adapter (QC 2.0 or QC 3.0)and quick charge cable. 2. Put the phone in the mobile phone charging area and the mobile phone can be charged 3.Place the watch in the watch charging area to charge the watch 4.Put the wireless charging Bluetooth earphone box in the earphone charging area to charge the earphone Kontrollleuchte für Kopfhörer Wärmeable-itungsloch Mobile Ladefläche Ladebereich beobachten Ladebereich für Kopfhörer Port Typ C 1. Bitte verwenden Sie einen 9V/2A Adapter (QC 2.0 oder QC 3.0) und ein Schnellladekabel. 2. Legen Sie das Telefon in den Ladebereich des Telefons Mobiltelefone können aufgeladen werden 3. Legen Sie die Uhr in den Ladebereich der Uhr, um die Uhr aufzuladen 4. Legen Sie die drahtlose Aufladung Bluetooth Kopfhörer Hülle in die Kopfhörer Ladebereich zum Aufladen von Kopfhörern LICHTINSTRUKTIONEN Das grüne Licht bleibt 30 Sekunden lang an und erlischt dann automatisch Wechselndes schnelles Blinken von blauen und grünen Lichtern Blinkende blaue und grüne Lichter abwechselnd Das blaue Licht atmet 30-mal und erlischt dann automatisch 1. Diese drei in einer drahtlosen Ladestation unterstützt nur die Apple Watch S8/s7/S6/SE/S5/S4/S3/S2 Ultra/Herm è s. (Hinweis: Apple Watch Series 1 wird nicht unterstützt) 2. Laden Sie die Ladestation von Apple-Produkten nicht über eine USB-S chnittstelle des Computers oder andere Mittel auf Stromwandler. 3. Legen Sie beim Aufladen die aktivierten Geräte in die Mitte jedes drahtlosen Ladebereichs. 4. Stellen Sie sicher, dass sich Ihr Gerät in der Mitte des Akkuladebereichs befindet. 5. Silikongehäuse von iWatch und AirPods kann zu anormalem Laden führen. Es ist das Beste, es zu akzeptieren Vor dem Laden. PROMPT Einschalten Standby Aufladung Zone de charge du téléphone Indicateurs lumineux Trous de dissipation de chaleur Zone de charge de la montre Zone de charge du casque Port de type C 1. Veuillez utiliser un adaptateur 9V / 2A (QC 2.0 ou QC 3.0) et un câble de charge rapide. 2. Placez le téléphone dans la zone de charge du téléphone Le téléphone peut être chargé 3. Mettez la montre dans la zone de charge de la montre pour charger la montre 4. Mettez la boîte de casque Bluetooth rechargeable sans fil dans le casque Zone de charge pour charger les écouteurs 1. Cette station de charge sans fil 3 - en - 1 prend en charge uniquement Apple Watch s8 / S7 / s6 / se / s5 / S4 / S3 / s2/ ultra / Hermès. (Remarque: l’apple Watch Series 1 n’est pas prise en charge) 2. Ne chargez pas le convertisseur de puissance de la station de charge des produits Apple via l'interface USB de l'ordinateur ou d'autres moyens. 3. Lors de la charge, placez l'appareil activé au centre de chaque zone de charge sans fil. 4. Assurez - vous que votre appareil se trouve au milieu de la zone du chargeur sans fil. 5. Le boîtier en silicone de votre iwatch et de vos airpods peut provoquer une charge anormale. Il est préférable de l'accepter avant de le charger. CONSEILS Área de carga del teléfono móvil Luz indicadora Agujero de disipación de calor Área de carga de relojes Área de carga de auriculares Puerto tipo C Area di ricarica mobile Indicatore luminoso LED Foro di dissipazione del calore Area di ricarica Area di ricarica delle cuffie Porta di tipo C 1. use un conector 9V / 2A (qc 2.0 o QC 3.0) y un cable de carga rápida. 2. coloque e…

Text truncated - open the document above for the full version.

- Guanyu(Dongguan) Intelligent Technology Co.,Ltd - Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 10/9/2024 U.S. Agent Designation Guanyu(Dongguan) Intelligent Technology Co.,Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A2NS-GY-L9): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of Guanyu(Dongguan) Intelligent Technology Co.,Ltd. Guanyu(Dongguan) Intelligent Technology Co.,Ltd with the FRN 0031164734 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature ManFang Wu Manager Guanyu(Dongguan) Intelligent Technology Co.,Ltd Signature Jack Fu Manager UUX GROUP INC 48_[model] US_Agen t_2.911(d)(7) - U, V05

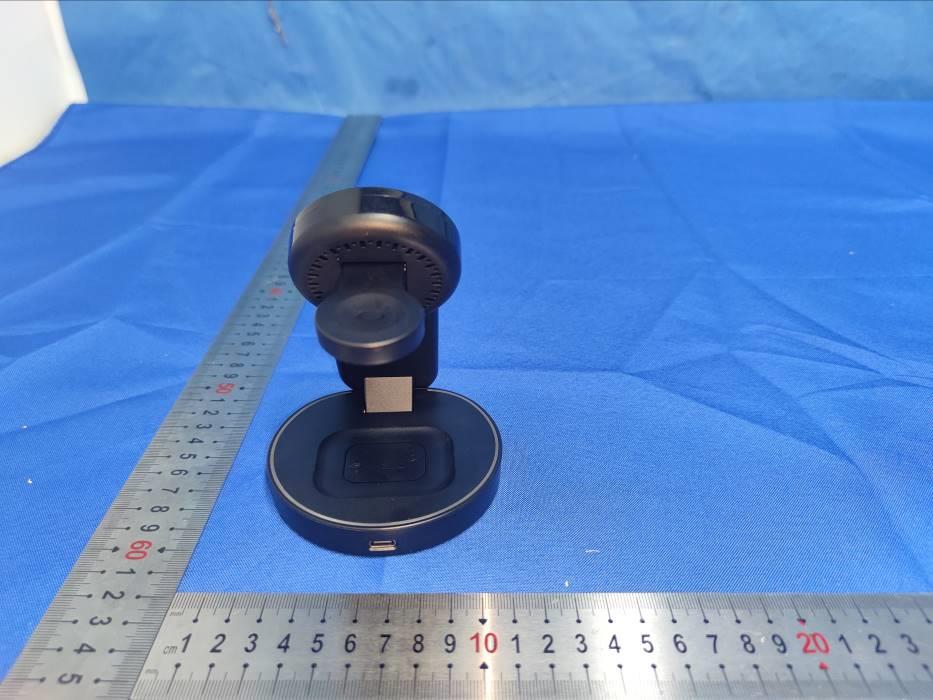

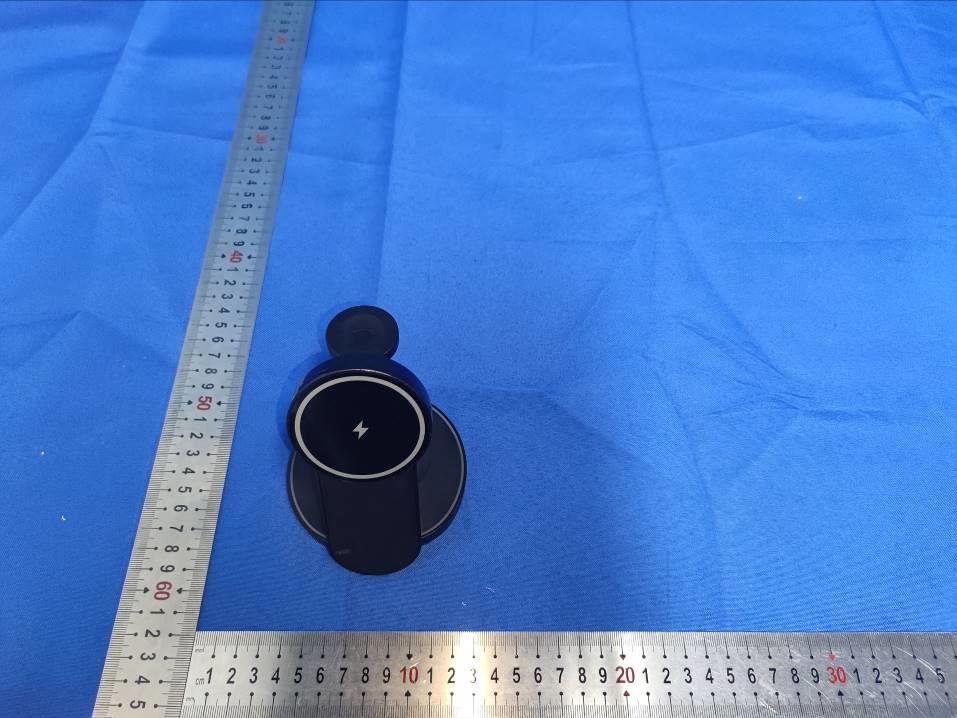

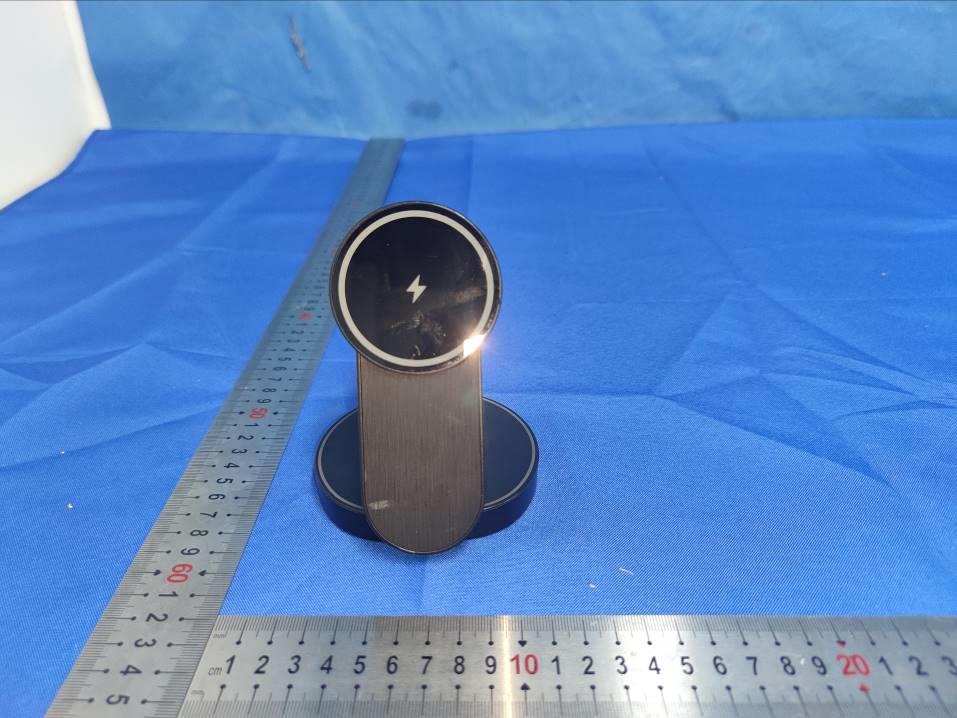

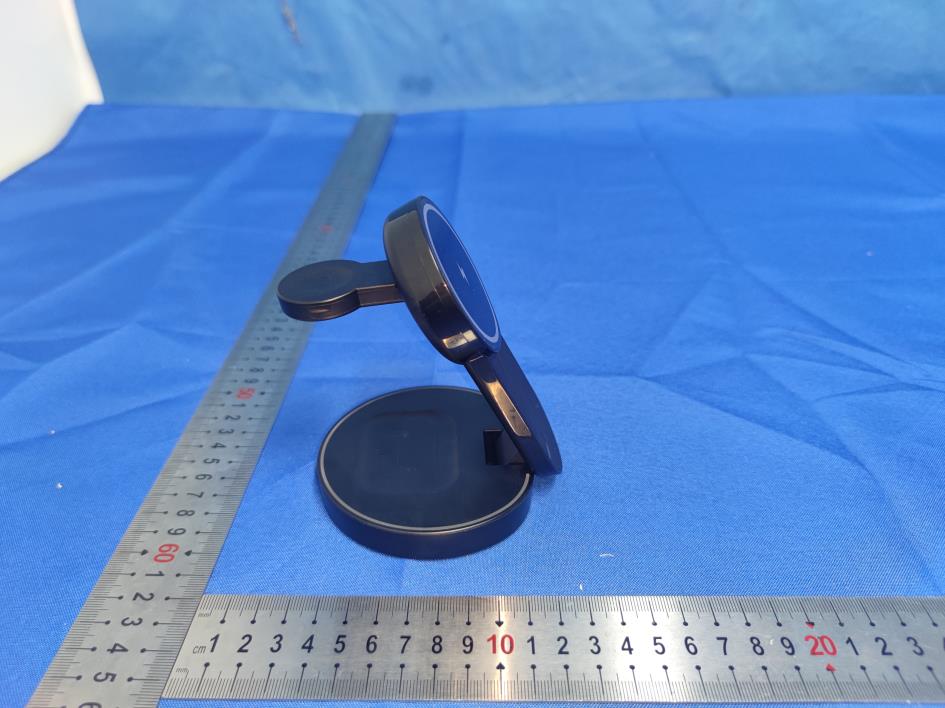

Page 1 of 3 FCC ID: 2A2NS-GY-L9 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 3 FCC ID: 2A2NS-GY-L9 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 3 FCC ID: 2A2NS-GY-L9 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 ---The End---

Label Size: L40mm * W20mm 1. The label is silk-screen on the sample Foldable wireless charging station 3 in 1 Model Name: GY-L9 FCC ID: 2A2NS-GY-L9 L W

Page 1 of 11 FCC ID: 2A2NS-GY-L9 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 11 FCC ID: 2A2NS-GY-L9 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 11 FCC ID: 2A2NS-GY-L9 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 11 FCC ID: 2A2NS-GY-L9 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Earphone Coil Page 5 of 11 FCC ID: 2A2NS-GY-L9 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 Photo 10 Page 6 of 11 FCC ID: 2A2NS-GY-L9 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 11 Photo 12 Phone Coil Page 7 of 11 FCC ID: 2A2NS-GY-L9 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 13 Photo 14 Watch Coil Page 8 of 11 FCC ID: 2A2NS-GY-L9 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 15 Photo 16 Page 9 of 11 FCC ID: 2A2NS-GY-L9 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 17 Photo 18 Page 10 of 11 FCC ID: 2A2NS-GY-L9 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 19 Photo 20 Page 11 of 11 FCC ID: 2A2NS-GY-L9 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 21 Photo 22 ------End------

Page 1 of 14 Report No.: AiTSZ-240909007FW4 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : Foldable wireless charging station 3 in 1 Brand Name : N/A Model : GY-L9 Series Model : L9,GY-L9S,L9S,GY-L9-1,GY-L9-1S FCC ID : 2A2NS-GY-L9 Applicant : Guanyu(Dongguan) Intelligent Technology Co.,Ltd. Address : 402 Room, NO#801 Building, Zhen'an Middle Road, Changan Town, Dongguan City, Guangdong, China Manufacturer : Guanyu(Dongguan) Intelligent Technology Co.,Ltd. Address : 402 Room, NO#801 Building, Zhen'an Middle Road, Changan Town, Dongguan City, Guangdong, China Standard(s) : FCC CFR 47 PART 1, § 1.1310 KDB 680106 D01 Wireless Power Transfer v04 Date of Receipt : Sept.09, 2024 Date of Test : Sept.09, 2024~ Sept.23, 2024 Issued Date : Sept.23, 2024 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Leon.yi Sean She Page 2 of 14 Report No.: AiTSZ-240909007FW4 Report Revise Record Report Version Issued Date Notes M1 Sept.23, 2024 Initial Release Page 3 of 14 Report No.: AiTSZ-240909007FW4 Contents 1 GENGENERAL INFORMATION ................................................................................................................................... 4 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 4 1.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2.1 DESCRIPTION OF THE TEST MODE ..................................................................................................................................... 6 2.2 SPECIAL ACCESSORIES ................................................................................................................................................... 6 2.3 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 6 3 TEST CONDITIONS AND RESULTS .............................................................................................................................. 7 3.1 APPLICABLE STANDARD .................................................................................................................................................. 7 3.2 LIMIT ......................................................................................................................................................................... 7 3.3 TEST SETUP ................................................................................................................................................................. 7 3.4 MEASUREMENT PROCEDURE .......................................................................................................................................... 8 3.5 TEST RESULT OF E AND H FIELD STRENGTH ........................................................................................................................ 8 3.6 EQUIPMENT APPROVAL CONSIDERATIONS ....................................................................................................................... 11 3.7 CONCLUSION ............................................................................................................................................................. 11 4 TEST SETUP PHOTOGRAPHS OF EUT ....................................................................................................................... 12 Page 4 of 14 Report No.: AiTSZ-240909007FW4 1 GENGENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 25°C Relative Humidity: 55 % Air Pressure: 101 kPa 1.2 General Description of EUT Product Name: Foldable wireless charging station 3 in 1 Model/Type reference: GY-L9 Power Supply: Input:5V⎓3A,9V⎓2A Qutput(Phone): 15W(Max)/10W/7.5W/5W Qutput(Watch): 2.5W(Max) Qutput(Earbuds): 3.0W(Max) Hardware version: N/A Software version: N/A Sample(s) Status: AiTSZ-240909007-01(Normal sample) AiTSZ-240909007-02(Engineer sample) Wireless Charger: Operation frequency: Coil1: For Phone: 113kHz-205kHz Coil2: For Earphone: 113kHz-205kHz Coil3: Watch: 300kHz-350kHz Modulation Technology: ASK Antenna Type: Loop coil Antenna Antenna gain: 0dBi Remark: The above DUT's information was declared by manufacturer. For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 5 of 14 Report No.: AiTSZ-240909007FW4 1.3 Test Facility Test Laboratory: Guang…

Text truncated - open the document above for the full version.

Page 1 of 21 Report No.: AiTSZ-240909007FW3 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : Foldable wireless charging station 3 in 1 Brand Name : N/A Model : GY-L9 Series Model : L9,GY-L9S,L9S,GY-L9-1,GY-L9-1S FCC ID : 2A2NS-GY-L9 Applicant : Guanyu(Dongguan) Intelligent Technology Co.,Ltd. Address : 402 Room, NO#801 Building, Zhen'an Middle Road, Changan Town, Dongguan City, Guangdong, China Manufacturer : Guanyu(Dongguan) Intelligent Technology Co.,Ltd. Address : 402 Room, NO#801 Building, Zhen'an Middle Road, Changan Town, Dongguan City, Guangdong, China Standard(s) : FCC CFR Title 47 Part 15 Subpart C Date of Receipt : Sept.09, 2024 Date of Test : Sept.09, 2024~ Sept.23, 2024 Issued Date : Sept.23, 2024 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Leon.yi Sean She Page 2 of 21 Report No.: AiTSZ-240909007FW3 Report Revise Record Report Version Issued Date Notes M1 Sept.23, 2024 Initial Release Page 3 of 21 Report No.: AiTSZ-240909007FW3 Contents 1 TEST SUMMARY ....................................................................................................................................................... 4 1.1 TEST STANDARDS.......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENGENERAL INFORMATION ................................................................................................................................... 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF THE TEST MODE ..................................................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 7 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 7 3 TEST CONDITIONS AND RESULTS .............................................................................................................................. 9 3.1 CONDUCTED EMISSIONS TEST ......................................................................................................................................... 9 3.2 RADIATED EMISSIONS .................................................................................................................................................. 12 3.3 20DB BANDWIDTH ..................................................................................................................................................... 18 3.4 ANTENNA REQUIREMENT ............................................................................................................................................. 20 4 TEST SETUP PHOTOGRAPHS OF EUT ....................................................................................................................... 21 5 EXTERNAL PHOTOGRAPHS OF EUT ......................................................................................................................... 21 6 INTERNAL PHOTOGRAPHS OF EUT .......................................................................................................................... 21 Page 4 of 21 Report No.: AiTSZ-240909007FW3 1 TEST SUMMARY 1.1 Test Standards The tests were performed according to following standards: FCC Rules Part 15.207,15.209, 15.215(c) ANSI C63.10: 2013: American National Standard for Testing Unlicensed Wireless Devices 1.2 Test Summary Test Item Section in CFR 47 Test Result Electric Field Radiated Emissions FCC Part 15 C (Section15.209) PASS 20dB Bandwidth/99% Bandwidth FCC Part 15 C (Section15.215(c)) PASS AC Power Line Conducted Emission FCC Part 15 C (Section15.207) PASS Antenna Requirement FCC Part 15 C (Section15.203 PASS Page 5 of 21 Report No.: AiTSZ-240909007FW3 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhe…

Text truncated - open the document above for the full version.

Note: 1.The coil is hard magnetic, the magnetic disc has holes with double slots and the thickness of the magnetic disc is between 0.8-0.89, and the coil position is centered 2.White double-sided tape with ears on the back of the magnetic disc 3.Wrap 5mm high-temperature tape around the cable outlet 4.Do not loosen the coil

Note: 1.The coil is hard magnetic, the magnetic disc has holes with double slots and the thickness of the magnetic disc is between 0.7-0.90, and the coil position is centered 2. White double-sided tape with ears on the back of the magnetic disc 3. Wrap 8mm high-temperature tape around the outlet position of the coil 4. Do not loosen the coil

1. The back glue is 3mm 2. Coil 1.05H 3. Magnet size: 2.2*7.5 (magnetic field 2900-3200GS) 4. Open cable slots at the soft magnetic outlet

Page 1 of 2 FCC ID: 2A2NS-GY-L9 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo DCD Conduction Radiation (9KHz-30MHz) Page 2 of 2 FCC ID: 2A2NS-GY-L9 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Radiation (30MHz-1000MHz) ------End------
