2A2NS-GY-Q10CWireless Charger

30 30 30                 Specification earphone earphone FCC Warning This device complies with part 15 of the FCC Rules.Operation is subject to thefollowing two conditions: (1)This device may not cause harmful interference,and (2)this device mustaccept any interference received,including interference that may cause undesiredoperation. Any Changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment. Note:This equipment has been tested and found to comply with the limits for aClass B digital device,pursuant to part 15 of the FCC Rules.These limits aredesigned to provide reasonable protection against harmful interference in aresidential installation.This equipment generates uses and can radiate radiofrequency energy and,if not installed and used in accordance with the instructions,may cause harmful interference to radio communications.However,there is noguarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,whichcan be determined by turning the equipment off and on,the user is encouraged totry to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The FCC certification of this device refers to RF exposure testing perfomed in typical operating conditions,where a person is no closer than 20 centimeters from the device surface at all times,except for non-repetitivepatterns with transient time intervals in the order of a second.Only in the stated conditions,the device is shownto fully comply with the FCC RF Exposure requirements of KDB 447498. IC Warning This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The equipment meets the ISED radiation exposure limits set for an uncontrolled environment. During the operation of the device, a distance of 10cm should be kept around the device and above the top surface of the device. Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son fonctionnement est soumis aux deux conditions suivantes : ( 1 ) Ce dispositif ne peut causer d'interférences ; et ( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil. L’équipement respecte les limites d’exposition aux rayonnements ionisants fixées pour un environnement non contr?lé. Pendant le fonctionnement du dispositif, une distance de 10cm devrait être maintenue autour du dispositif et au-dessus de la surface supérieure du dispositif.

-Guanyu(Dongguan)IntelligentTechnologyCo.,Ltd- FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 4/3/24 U.S.AgentDesignation Guanyu(Dongguan)IntelligentTechnologyCo.,Ltdacknowledgestheirconsentforthefollowingcontact locatedintheUnitedStatestoactastheiragentforserviceofprocessfortheequipmentforwhichauthorization issought(FCCID:2A2NS-GY-Q10C): NameandcompanyofU.S.agent: REPAmericaLLC PhysicalU.S.addressofagent:BenXU,6510SAcademyBlvd,SteA#523,ColoradoSprings,CO 80906 FRNofU.S.agent: 0034192500 EmailaddressofU.S.agent: [email protected] REPAmericaLLCacknowledgestheirobligationtoacceptserviceofprocessonbehalfof Guanyu(Dongguan)IntelligentTechnologyCo.,Ltd. Guanyu(Dongguan)IntelligentTechnologyCo.,LtdwiththeFRN0031164734acceptsitsobligation tomaintainanagentforserviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegrantee haspermanentlyterminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,orthe conclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingtheequipment,whicheveris later. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirementslistedunder§ 2.911(d)(7). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB 986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotify theFCCwithin30daysviathegrantingTCB. Sincerely, Signature ManFangWu generalmanager Guanyu(Dongguan)IntelligentTechnologyCo.,Ltd Signature BenXU Manager REPAmericaLLC 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 5

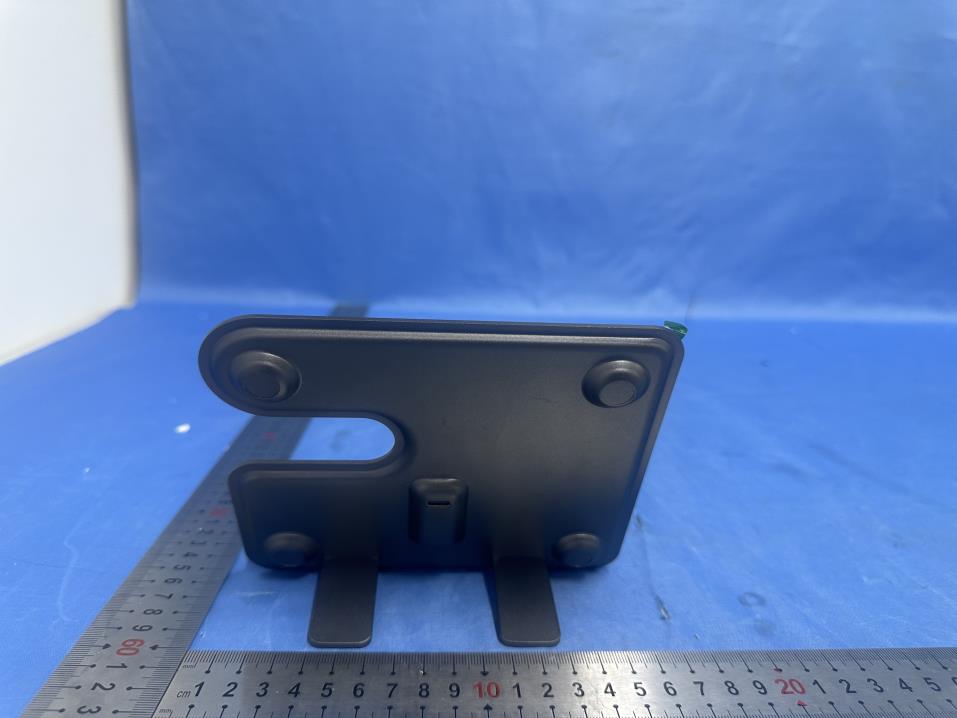

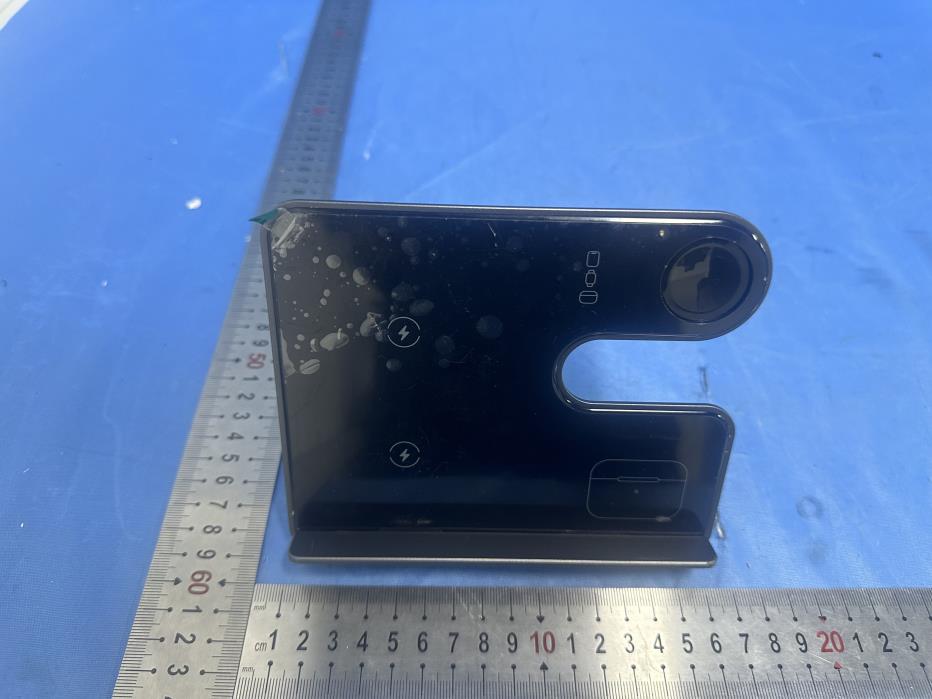

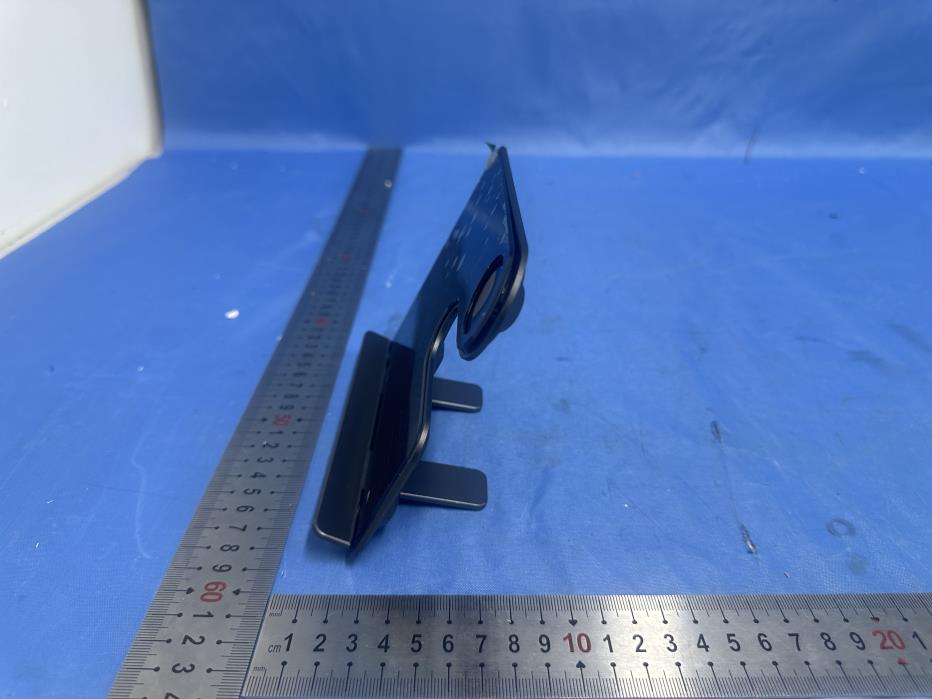

Page 1 of 4 FCC ID: 2A2NS-GY-Q10C Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 4 FCC ID: 2A2NS-GY-Q10C Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 4 FCC ID: 2A2NS-GY-Q10C Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 4 FCC ID: 2A2NS-GY-Q10C Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 ---The End---

Label Size: L30mm * W15mm 1. The label is silk-screen on the sample Wireless Charger Model Name: GY-Q10C FCC ID: 2A2NS-GY-Q10C L W

Page 1 of 2 FCC ID: 2A2NS-GY-Q10C Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Earphone Antenna Phone Antenna Page 2 of 2 FCC ID: 2A2NS-GY-Q10C Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 ------End------ Watch Antenna

Page 1 of 11 Report No.: AITSZ24031503W2 RF Exposure Evaluation FCC ID: 2A2NS-GY-Q10C 1 Measuring Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. According KDB680106 D01: KDB 680106 D01 Wireless Power Transfer v04. 2 Requirements According to the item 3 of KDB 680106 D01v04: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Mobile Device and Portable Device Configurations (2) Equipment Authorization Procedures for Devices Operating at Frequencies Below 4 MHz (3) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the top surface. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Page 2 of 11 Report No.: AITSZ24031503W2 3 Test Setup 4 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E,F) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01 Wireless Power Transfer v04. Remark：The EUT’s test position A, B, C, D,E and F is valid for the E and H field measurements. Page 3 of 11 Report No.: AITSZ24031503W2 5 Equipment Approval Considerations The EUT does comply with KDB 680106 D01 as follow table. Requirements of section 5 of KDB 680106 D01 Yes / No Description Mobile Device and Portable Device Configurations Yes Mobile Device Equipment Authorization Procedures for Devices Operating at Frequencies Below 4 MHz Yes The device operate in the frequency range113-205KHz(for mobile phone & earphone) and 300-350KHz(for watch). RF Exposure compliance may be ensured only for a minimum separation distance that is greater than 20 cm, while use conditions at smaller distances can still be considered unlikely. Yes The EUT H-field strengths at 15 cm surrounding the device and 20 cm above the top surface. Page 4 of 11 Report No.: AITSZ24031503W2 6 Description of the test mode Equipment under test was operated during the measurement under the following conditions: Test Mode Description Mode 1 AC Adapter + EUT + Wireless charger receiver + Earphone + Watch Record Mode 2 AC Adapter + EUT + Wireless charger receiver + Earphone Pre-tested Mode 3 AC Adapter + EUT + Wireless charger receiver + Watch Pre-tested Mode 4 AC Adapter + EUT + Wireless charger receiver Pre-tested Mode 5 AC Adapter + EUT + Earphone + Watch Pre-tested Mode 6 AC Adapter + EUT + Earphone Pre-tested Mode 7 AC Adapter + EUT + Watch Pre-tested Mode 8 Test the EUT in idle mode. Pre-tested Note: All test modes were pre-tested, but we only recorded the worst case in this report. 7 Peripheral List 8 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Magnetic Amplitude and Gradient Probe System SPEAG MAGPy-8H3D+E3D V2& MAGPy-DAS V2 SZ186-06 & 3061 04.13.2023 04.12.2024 No. Equipment Manufacturer Model No. Serial No. Power cord signal cable 1 Wireless charger receiver YBZ 15W N/A N/A N/A 2 Earphone PocBuds K6 N/A N/A N/A 3 Watch Apple S6 N/A N/A N/A Page 5 of 11 Report No.: AITSZ24031503W2 9 Test Result Test Mode 1_MPE_Coil 1_Phone MPE Test distance Battery levels Probe from EUT Side E-field (V/m) H-field (A/m) 20cm ＜ 1% Top 15.44 0.52 15cm ＜ 1% Top 15.76 0.45 15cm ＜ 1% Left 15.05 0.43 15cm ＜ 1% Right 15.49 0.44 15cm ＜ 1% Front 15.60 0.46 15cm ＜ 1% Rear 15.70 0.38 Limit 614 1.63 Margin Limit (%) 2.57% 31.90% MPE Test distance Battery levels Probe from EUT Side E-field (V/m) H-field (A/m) 20cm ＜ 50% Top 14.90 0.43 15cm ＜ 50% Top 13.85 0.34 15cm ＜ 50% Left 14.41 0.42 15cm ＜ 50% Right 14.26 0.48 15cm ＜ 50% Front 14.25 0.41 15cm ＜ 50% Rear 14.04 0.46 Limit 614 1.63 Margin Limit (%) 2.43% 29.45% MPE Test distance Battery levels Probe from EUT Side E-field (V/m) H-field (A/m) 20cm ＜ 99% Top 14.27 0.41 15cm ＜ 99% Top 12.99 0.47 15cm ＜ 99% Left 13.93 0.43 15cm ＜ 99% Right 13.93 0.58 15cm ＜ 99% Front 13.39 0.38 15cm ＜ 99% Rear 13.88 0.32 Limit 614 1.63 Margin Limit (%) 2.32% 35.58% Page 6 of 11 Report No.: AITSZ24031503W2 Test Mode 1_MPE_Coil 2_ Earphone MPE Test distance Battery levels Probe from EUT Side E-field (V/m) H-field (A/m) 20cm ＜ 1% Top 12.61 0.24 15cm ＜ 1% Bottom 12.49 0.14 15cm ＜ 1% Left 12.38 0.17 15cm ＜ 1% Right 12.58 0.20 15cm ＜ 1% Front 12.68 0.37 15cm ＜ 1% Rear 12.49 0.08 Limit 614 1.63 Margin Limit (%) 2.07% 22.70% MPE Test distance Battery levels Probe from EUT Side E-field (V/m) H-field (A/m) 20cm ＜ 50% Top 11.92 0.17 15cm ＜ 50% Bottom 10.77 0.13 15cm ＜ 50% Left 11.38 0.07 15cm ＜ 50% Right 11.57 0.14 15cm ＜ 50% Front 11.53 0.06 15cm ＜ 50% Rear 11.56 0.09 Limit 614 1.63 Margin Limit (%) 1.94% 10.43% MPE Test distance Battery levels Probe from EUT Side E-field (V/m) H-field (A/m) 20cm ＜ 99% Top 11.52 0.17 15cm ＜ 99% Bottom 10.69 0.14 15cm ＜ 99% Left 10.76 0.15 15cm ＜ 99% Right 11.23 0.19 15cm ＜ 99% Front 11.04 0.06 15cm ＜ 99% Rear 11.12 0.04 Limit 614 1.63 Margin Limit (%) 1.88% 11.66% Page 7 of 11 Report No.: AITSZ24031503W2 Test Mode 1_MPE_Coil 3_ Watch MPE Test distance Battery levels Probe from EUT Side E-field (V/m) H-field (A/m) 20cm ＜ 1% Top 11.97 0.21 15cm ＜ 1% Bottom 11.55 0.24 15cm ＜ 1% Left 11.89 0.28 15cm ＜ 1% Right 11.91 0.29 15cm ＜ 1% Front 11.84 0.29 15cm ＜ 1% Rear 11.87 0.29 Limit 614 1.63 Margin Limit (%) 1.95% 17.79% MPE Test distance Battery levels Probe from …

Text truncated - open the document above for the full version.

Page 1 of 25 Report No.: AITSZ24031503W1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. FCC TEST REPORT Client Information: Applicant: Guanyu(Dongguan) Intelligent Technology Co.,Ltd Applicant add.: 402 Room, NO#801 Building, Zhen'an Middle Road, Changan Town, Dongguan City Guangdong, China Manufacturer: Guanyu(Dongguan) Intelligent Technology Co.,Ltd Manufacturer add.: 402 Room, NO#801 Building, Zhen'an Middle Road, Changan Town, Dongguan City Guangdong, China Product Information: Product Name: Wireless Charger Model No.: GY-Q10C Brand Name: N/A FCC ID: 2A2NS-GY-Q10C Applicable standards: FCC CFR Title 47 Part 15 Subpart C Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: Mar. 15, 2024 Date of Test: Mar. 15, 2024~Apr. 08, 2024 Date of Issue: Apr. 08, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Sean She Eder Zhan Page 2 of 25 Report No.: AITSZ24031503W1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS .................................................................................................................................................... 2 2 TEST SUMMARY ............................................................................................................................................ 5 2.1 STATEMENT OF THE MEASUREMENT UNCERTAINTY ......................................................................................... 5 2.2 MEASUREMENT UNCERTAINTY ...................................................................................................................... 5 3 TEST FACILITY .............................................................................................................................................. 6 3.1 DEVIATION FROM STANDARD ......................................................................................................................... 6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS ............................................................................................... 6 3.3 TEST LOCATION .......................................................................................................................................... 6 4 GENERAL INFORMATION ............................................................................................................................. 7 4.1 EUT TEST MODE ........................................................................................................................................ 8 4.2 DESCRIPTION OF TEST SETUP ....................................................................................................................... 8 4.3 PERIPHERAL LIST ........................................................................................................................................ 9 4.4 EUT PERIPHERAL LIST ................................................................................................................................ 9 5 EQUIPMENTS LIST FOR ALL TEST ITEMS ................................................................................................. 10 6 CONDUCTED EMISSION TEST.................................................................................................................... 11 6.1 CONDUCTED EMISSION MEASUREMENT............................................................................................ 11 6.2 POWER LINE CONDUCTED EMISSION LIMITS ....................................................................................... 11 6.3 TEST PROCEDURE ............................................................................................................................... 11 6.4 DEVIATION FROM TEST STANDARD .................................................................................................... 11 6.5 TEST SETUP .......................................................................................................................................... 12 6.6 EUT OPERATING CONDITIONS ............................................................................................................ 12 6.7 TEST RESULT ........................................................................................................................................... 13 7 RADIATED EMISSION MEASUREMENT ..................................................................................................... 15 7.1 RADIATED EMISSION LIMITS ........................................................................................................................ 15 7.2 ANECHOIC CHAMBER TEST SETUP DIAGRAM ................................................................................................ 16 7.3 TEST PROCEDURE ..................................................................................................................................... 16 7.4 DEVIATION FROM TEST STANDARD ...........................…

Text truncated - open the document above for the full version.

深圳市三盛创电子科技有限公司 承 認 書 客 戶： CUSTOMER: 中立冠达【深圳】智能科技有限公司 客 戶 料 號： CUST P/N: ZLGD-A1-0295 三盛创料 號： FINE P/N: I40-6.5uH unicoil 0.07*70P*12TS 産 品 型 號： DESC: Φ40MMX5.3MMX0.8MM straight flute 日 期： DATE: 2024.02.28 版 本： Version: A.0 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY 客戶承認 CUSTOMER APPROVE 郭柳 安帅印 安帅印 工廠地址： 深圳市光明区玉塘街道玉律社区大洋一路19号2楼 Operation frequency: Antenna gain: 113kHz-205kHz 0dBi 版本變更履歷 Version Change History 版本 Rev. 變 更 前 Before Change 變 更 後 After Change 更 改 日 期 Change Date 批 准 Approved By A.0 新发行 ---- 2024.02.28 安帅印 SPECIFICATION 産 品 型 號： DESC Φ11*15-6.5uH-0.07x70P-40mm 版本 Rev：A.0 客戶CUST: 中立冠达 客户料号CUST P/N: ZLGD-A1-0295 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATIC DIAGRAM: A 37±1.0 B 32±1.0 C 15±0.5 D 11±0.5 Y 5.0±0.5 R 40±1.0 G 0.8±0.1 H 3 ±1.0 Note: 1. Cross cables. 2. Wrap 8mm(ref) width high-temperature adhesive paper 1-2TS. 3. The coil is attached to a circular hard magnetic disc with a groove, the magnetic disc size is 50+1mm, the inner hole is 5.3mm, and the thickness is 0.8±0.1mm 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F silk-covered wire 0.07*100P 12Ts CCW 四、电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25±10°C, 湿度RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 IND. S-F 4.0uH ±0.3 Individual coil 100KHz/1.0V LCZ METER 1062B 2 IND. S-F 6.5uH ±0.3 Magnetized sheet 100KHz/1.0V LCZ METER 1062B 3 DCR S-F ≤58mΩ 100KHz/1.0V LCZ METER 502B 4 Q S-F ≧67 100KHz/1.0V LCZ METER 502B 擬制/日期PREPARED BY/DATE 審核/日期CHECKED BY/DATE 郭柳2024.02.28 安帅印2024.02.28

深圳市三盛创电子科技有限公司 承 認 書 客 戶： CUSTOMER: 中立冠达【深圳】智能科技有限公司 客 戶 料 號： CUST P/N: ZLGD-A1-0293 三盛创料 號： FINE P/N: G511-6.5uH unicoil 0.07*100P*9TS 産 品 型 號： DESC: Φ50MMX5.3MMX0.8MM open slot 日 期： DATE: 2024.02.28 版 本： Version: A.0 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY 客戶承認 CUSTOMER APPROVE 郭柳 安帅印 安帅印 工廠地址： 深圳市光明区玉塘街道玉律社区大洋一路19号2楼 Operation frequency: Antenna gain: 113kHz-205kHz 0dBi 版本變更履歷 Version Change History 版本 Rev. 變 更 前 Before Change 變 更 後 After Change 更 改 日 期 Change Date 批 准 Approved By A.0 new issue ---- 2024.02.28 安帅印 SPECIFICATION 産 品 型 號： DESC Φ17*24-6.5uH-0.07x100P-35mm 版本 Rev：A.0 客戶CUST: 中立冠达 客户料号CUST P/N: ZLGD-A1-0293 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATIC DIAGRAM: A 43±1.0 B 36±1.0 C 24±1.0 D 17±1.0 Y 5.0±0.5 R 50±1.0 G 0.8±0.1 H 3 ±1.0 Note: 1. Cross cables. 2. Wrap 8mm(ref) width high-temperature adhesive paper 1-2TS. 3. The coil is attached to a circular hard magnetic disc with a groove, the magnetic disc size is 50+1mm, the inner hole is 5.3mm, and the thickness is 0.8±0.1mm. 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F silk-covered wire 0.07*100P 9Ts CCW 四、电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25±10°C, 湿度RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 IND. S-F 4.0uH ±0.3 Individual coil 100KHz/1.0V LCZ METER 1062B 2 IND. S-F 6.5uH ±0.3 Magnetized sheet 100KHz/1.0V LCZ METER 1062B 3 DCR S-F ≤55mΩ 100KHz/1.0V LCZ METER 502B 4 Q S-F ≧70 100KHz/1.0V LCZ METER 502B 擬制/日期PREPARED BY/DATE 審核/日期CHECKED BY/DATE 郭柳2024.02.28 安帅印2024.02.28

深圳市三盛创电子科技有限公司 承 認 書 客 戶： CUSTOMER: 中立冠达【深圳】智能科技有限公司 客 戶 料 號： CUST P/N: ZLGD-A1-0294 三盛创料 號： FINE P/N: G511-6.5uH unicoil 0.07*100P*9TS 産 品 型 號： DESC: Φ50MMX5.3MMX0.8MM open slot 日 期： DATE: 2024.02.28 版 本： Version: A.0 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY 客戶承認 CUSTOMER APPROVE 郭柳 安帅印 安帅印 工廠地址： 深圳市光明区玉塘街道玉律社区大洋一路19号2楼 Operation frequency: Antenna gain: 113kHz-205kHz 0dBi 版本變更履歷 Version Change History 版本 Rev. 變 更 前 Before Change 變 更 後 After Change 更 改 日 期 Change Date 批 准 Approved By A.0 new issue ---- 2024.02.28 安帅印 SPECIFICATION 産 品 型 號： DESC Φ17*24-6.5uH-0.07x100P-35mm 版本 Rev：A.0 客戶CUST: 中立冠达 客户料号CUST P/N: ZLGD-A1-0294 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATIC DIAGRAM: A 43±1.0 B 36±1.0 C 24±1.0 D 17±1.0 Y 5.0±0.5 R 50±1.0 G 0.8±0.1 H 3 ±1.0 Note: 1. Cross cables. 2. Wrap 8mm(ref) width high-temperature adhesive paper 1-2TS. 3. The coil is attached to a circular hard magnetic disc with a groove, the magnetic disc size is 50+1mm, the inner hole is 5.3mm, and the thickness is 0.8±0.1mm 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F silk-covered wire 0.07*100P 9Ts CCW 四、电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25±10°C, 湿度RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 IND. S-F 4.0uH ±0.3 Individual coil 100KHz/1.0V LCZ METER 1062B 2 IND. S-F 6.5uH ±0.3 Magnetized sheet 100KHz/1.0V LCZ METER 1062B 3 DCR S-F ≤55mΩ 100KHz/1.0V LCZ METER 502B 4 Q S-F ≧70 100KHz/1.0V LCZ METER 502B 擬制/日期PREPARED BY/DATE 審核/日期CHECKED BY/DATE 郭柳2024.02.28 安帅印2024.02.28

惠州启泰电子科技有限公司 HuizhouQitaiElectronicTechnologyCo.,LTD SPECIFICATIONSSHEET CUSTOMER: 客户 DESCRIPTION: 品名描述 CUSTOMERP/N: 客户品名 PARTNUMBER: 制造商料号 DATEOFAPPLICATION: 提出日期 中利冠达 ZLGD-A1-0285 2024-2-28 CLASSIFICATIONOFSPEC.PRESENTATION.(Ticktherelevantbox"√") oNewapplication新规格 √Newpartisaddedtoacceptedspecification新产品规格追加记录 oRevisionofacceptedspecification既存规格图面变更 ACCEPTANCESTAMP( ) APPROVALBY 承认 CHECKBY 审查 PREPAREBY 制作 ADDRESS:3rdFloor,No.181,Mingyue2ndRoad,ShiwanTown,BoluoCounty,Huizhoucity TELPHONE:0752-6668681 E-MAIL:[email protected] Watch coil Operation frequency: Antenna gain: 300kHz-350kHz 0dBi 惠州启泰电子科技有限公司 HuizhouQitaiElectronicTechnologyCo.,LTD HistoryForRevisedSpecification CUSTOMERP/N: 客户品名 中利冠达 PARTNUMBER: 制造商料号 ZLGD-A1-0285 Item 项次 DESCRIPTION(ContentOrReasonForChanged) 变更内容 Rev. 版本 CustRev. 客户版本 Date 日期 Revisor 修订者 1 InitialRelease(初版发行) A0 2024-2-28 冯欣 APPROVEDBY 承认 CHECKEDBY 审查 PREPAREDBY 制作 DATE 日期 PAGE 页码 晁子奇 冯欣 2024-2-28 1of3 惠州启泰电子科技有限公司 HuizhouQitaiElectronicTechnologyCo.,LTD Specification 规格内容 CUSTOMERP/N: 客户品名 中利冠达 PARTNUMBER: 制造商料号 ZLGD-A1-0285 1.DIMENSIONS( ):(Unit:mm) 单位（Unit）：毫米（mm） ABCDEFG 21Max 14.5±0.57.5±0.531±12±1 2.2Max 2.8±Max APPROVEDBY 承认 CHECKEDBY 审查 PREPAREDBY 制作 DATE 日期 PAGE 页码 2024-2-28 2of3 1. The back adhesive is white. 2. Magnetic field 2900-3200GS. 3. Open cable slots at the soft magnetic outlet. 惠州启泰电子科技有限公司 HuizhouQitaiElectronicTechnologyCo.,LTD Specification 规格内容 CUSTOMERP/N: 客户品名 中利冠达 PARTNUMBER: 制造商料号 ZLGD-A1-0285 2.WINDINGDETAILS(绕线详细说明) Coil1 圈数 Turns 线径 WireDia 绕线方式疏/密 Wdg.Type Spred/Close 绕线方向 Wdg.Direction 相交是/否 Intersect Yes/Not 13TS 0.08*24P热风绞线(HotAir strandedWire) 密绕（Close） 逆绕 是（Yes） 3.电气特性（ELECTRICALCHARACTERISTICS）: 温度TEMPERATURE:25±10 ,RELATIVEHUMIDITY:6510% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS Coil1 1.INDS-F 7.5uh-8.0uh 100kHz/VUC2906A 2. QS-F 20Min 100kHz/VUC2906A 3.DCRS-F 135Max 100kHz/VUC2906A APPROVEDBY 承认 CHECKEDBY 审查 PREPAREDBY 制作 DATE 日期 PAGE 页码 2024-2-28 3of3 backwind （ ）

Page 1 of 2 FCC ID: 2A2NS-GY-Q10C Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo DCD Conduction Radiation (9KHz-30MHz) Page 2 of 2 FCC ID: 2A2NS-GY-Q10C Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Radiation (30MHz-1000MHz) ------End------
