2A2NS-GY-Z18-33 IN 1 WIRELESS CHARGER

德语 德语 法语法语 西班牙语 西班牙语 意大利语 意大利语 Z18-3 苹果款常规五国说明书 2024-07-05 Note: In order to charge 3 smart devices atthe same time, please use 9V/2A adapter (QC 2.0 or QC 3.0)and quick charge cable. Otherwise, you may not charge smart phones or 3 smart devices at the same time, also it may damage the wireless charger. LIGHT INSTRUCTIONS COMPATIBLE DEVICES 1.iPhone iPhone 15,15 Pro, 15 Pro Max, 15 Plus iPhone 15 Series Case with MagSafe iPhone 14,14 Pro,14 Pro Max, 14 Plus iPhone 14 Series Case with MagSafe iPhone 13,13 Pro, 13 Pro Max, 14 mini iPhone 13 Series Case with MagSafe iPhone 12,12 Pro, 12 Pro Max, 12 mini iPhone 12 Series Case with MagSafe iPhone Leather Wallet with Magnetic 2.Apple Watch Apple iWatch s9/s8/SE2/S7/6/SE 5/4/3/2/Ultra 2/ultra/Hermès. 3.Earbuds Apple AirPods 2/ AirPods 3/ AirPods Pro/ AirPods Pro 2. And more TWS(others Oi enable earbuds) PRODUCT SPECIFICATION Input: 5V⎓2A/9V⎓2A Input Port: Type-C Output(Phone):15W(Max)/10W/7.5W/5W Conversion Rate:≥73%(Phone) Output(iWatch): 2.5W(Max) Product Size: Output(Earbuds): 3.0W(Max) 125*125*103mm(Fold) PACKING LIST 1. Magnetic wireless charging X1 2.User manual X1 3. Type-C quick charging cable X 1 Power On Standby Green light comes on 30 seconds and Then close Charging Blue green flashing, restored to normal after troubleshooting Blue light breathing, light on for 30 seconds and then off Green- Blue Blue and green alternate lighting once LICHTINSTRUKTIONEN Einschalten Standby Grünes Licht geht 30 an Sekunden und dann schließen Aufladung Blaugrüne Fashing, restauriert auf normal nach Fehlerbehebung Blaues Licht atmen, Licht an für 30 Sekunden und dann aus Grün- Blau Blau und Grün Altemate-Beleuchtung einmal INDICATEURS LUMINEUX Démarrez la machine Articles de rechange Feu vert allumé 30 Secondes, puis fermer Chargement Bleu vert clignotant, restauré à Normal après le dépannage Lumière bleue respirant, lumineux 30 Secondes, puis fermer Vert - bleu - bleu et vert Éclairage alternatif une fois LUZ INDICADORA ISTRUZIONI DI LUCE Encendido Artículos de repuesto Luz verde encendida 30 Segundos y luego cerrar Carga Borde azul y verde, recuperado a Normal después de la resolución de problemas Respiración azul, 30 brillante Segundos y luego cerrarf Verde - Azul - Azul y verde Iluminación alterna una vez Accensione standby Il semaforo verde arriva a 30 secondi e poi chiudere Ricarica Fashing verde blu, ripristinato a normale dopo la risoluzione dei problemi Respirazione a luce blu, luce accesa per 30 secondi e poi spento Verde- Blu Blu e verde altemate lighting once PRODUKTEINFÜHRUNG ERZEUGNIS Das 3-in-1 Wireless Ladegerät ist Multifunktions-Ladestation, können Sie Laden Sie drei Smart-Geräte (Smartphone, iWatch und Ohrhörer) auf unserem Produkt zur gleichen Zeit. Es ist kompatibel mit enable smart phone. iWatch, AirPods. Es ist ein einzigartiges Design mit elegantem Aussehen und perfekt, um im Büro oder bei nach Hause. Es ist sehr bequem, Ihre intelligenten Geräte auf unserem Produkt aufzuladen speziell für Apple Benutzer. PRÉSENTATION DU PRODUIT APPARENCE DU PRODUIT Le chargeur sans fil 3 en 1 est une station de charge multifonctionnelle, vous pouvez Rechargez nos trois appareils intelligents (smartphones, iwatch et écouteurs) Fournir des produits en même temps. Il est compatible avec les smartphones enable. Iwatch, airpods. Il a un design unique et un aspect élégant, idéal pour une utilisation au bureau ou au Bureau Maison Très pratique pour charger vos appareils intelligents sur nos produits Surtout pour les utilisateurs d’apple. INTRODUCCIÓN DEL PRODUCTO APARIENCIA DEL PRODUCTO El cargador inalámbrico de tres en uno es una estación de carga multifuncional puede Cargar nuestros tres dispositivos inteligentes (teléfonos inteligentes, iWatch y tapones para los oídos) Al mismo tiempo, se proporcionan productos. Es compatible con teléfonos inteligentes habilitables.Iwatch, airpods. Tiene un diseño único, un aspecto elegante y es muy adecuado para su uso en oficinas o oficinas. Casa Es muy conveniente cargar sus dispositivos inteligentes en nuestros productos.Especialmente los usuarios de apple. INTRODUZIONE DEL PRODOTTO ASPETTO DEL PRODOTTO Il caricatore wireless 3 in 1 è stazione di ricarica multifunzione, è possibile Carica tre dispositivi intelligenti (smartphone, iWatch e auricolari) sul nostro prodotto allo stesso tempo. È compatibile con lo smartphone abilitato. iWatch, AirPods. È design unico con aspetto elegante e perfetto da usare in ufficio o in ufficio a casa. È molto conveniente caricare i tuoi dispositivi intelligenti sul nostro prodotto specialmente per gli utenti Apple. WIE IST EINZUWENDEN? COMMENT UTILISER CÓMO USAR COME USARE Phone Charging Area Earbuds Charging Area Bracket shell Base lens iWatch Charging Area LED Indicate Light Z18-3 Ladebereich des Telefons Ladebereich für Ohrhörer Halterschale Basislinse iWatch Ladebereich LED Anzeige Licht Zone de charge pour téléphone portable Zone de charge pour écouteurs Boîtier de support Lentilles de base Zone de charge iwatch Indicateur LED Zona de carga de teléfonos móviles Zona de carga de auriculares Carcasa de soporte Lente básica Zona de carga iWatch Indicador LED Area di ricarica del telefono Area di ricarica delle cuffie Guscio della staffa Lente base Area di ricarica iWatch Indicatore LED FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This eq…

Text truncated - open the document above for the full version.

- Guanyu(Dongguan) Intelligent Technology Co.,Ltd - Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 9/4/2024 U.S. Agent Designation Guanyu(Dongguan) Intelligent Technology Co.,Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A2NS-GY-Z18-3): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of Guanyu(Dongguan) Intelligent Technology Co.,Ltd. Guanyu(Dongguan) Intelligent Technology Co.,Ltd with the FRN 0031164734 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature ManFang Wu Manager Guanyu(Dongguan) Intelligent Technology Co.,Ltd Signature Jack Fu Manager UUX GROUP INC 48_[model] US_Agent_2 .911(d)(7) - U, V05

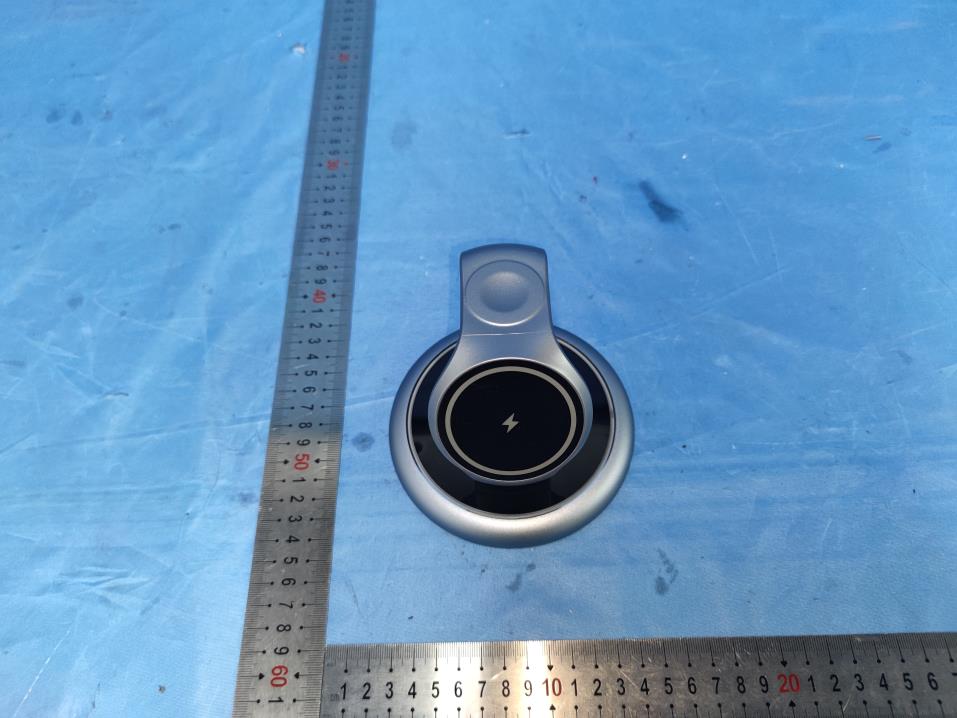

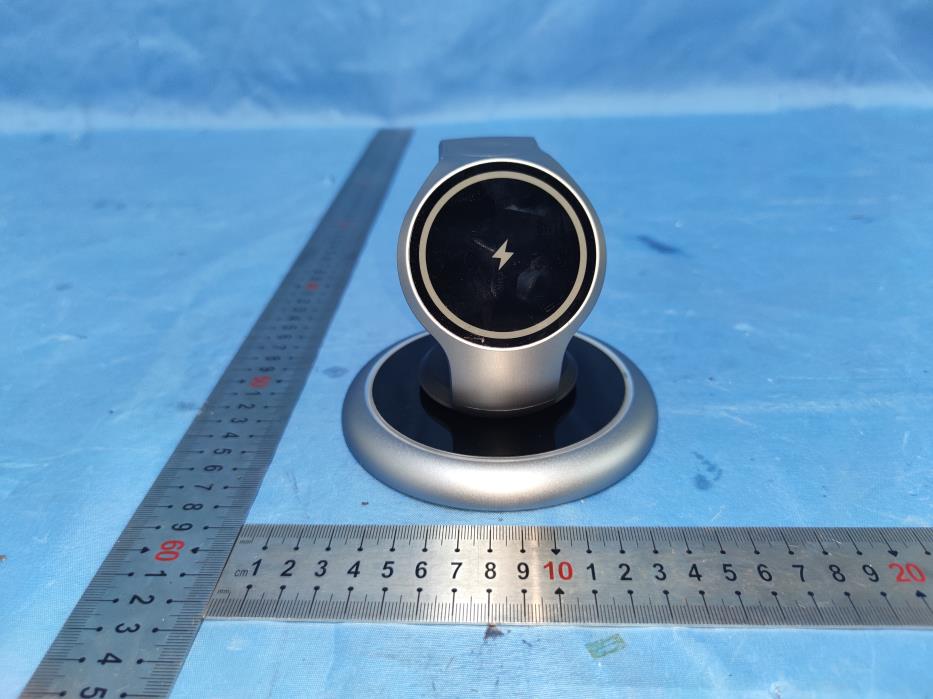

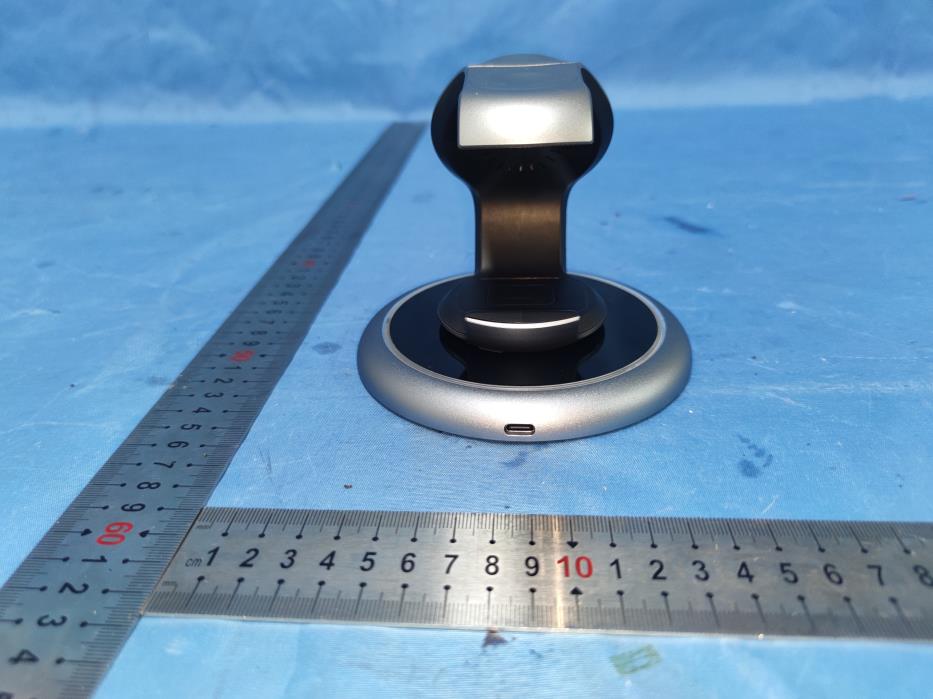

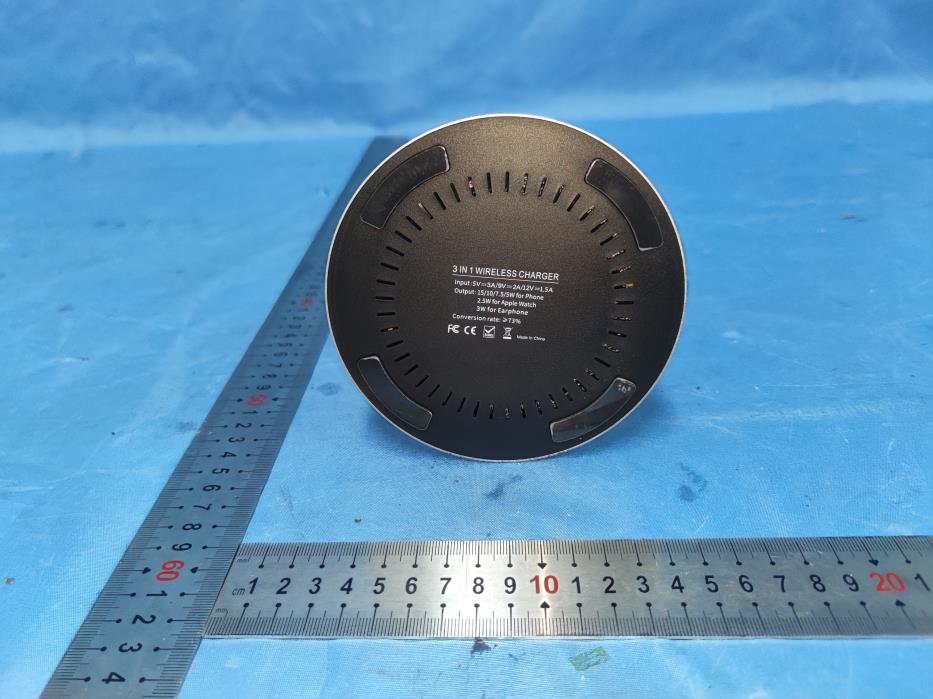

Page 1 of 4 FCC ID: 2A2NS-GY-Z18-3 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 4 FCC ID: 2A2NS-GY-Z18-3 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 4 FCC ID: 2A2NS-GY-Z18-3 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 4 FCC ID: 2A2NS-GY-Z18-3 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 ---The End---

Label Size: L45mm * W20mm 1. The label is silk-screen on the sample 3 IN 1 WIRELESS CHARGER Model Name: GY-Z18-3 FCC ID: 2A2NS-GY-Z18-3 L W

Page 1 of 7 FCC ID: 2A2NS-GY-Z18-3 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 7 FCC ID: 2A2NS-GY-Z18-3 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 7 FCC ID: 2A2NS-GY-Z18-3 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 7 FCC ID: 2A2NS-GY-Z18-3 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Watch Coil Page 5 of 7 FCC ID: 2A2NS-GY-Z18-3 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 Photo 10 Earphone Coil Page 6 of 7 FCC ID: 2A2NS-GY-Z18-3 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 11 Photo 12 Phone Coil Page 7 of 7 FCC ID: 2A2NS-GY-Z18-3 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 13 ------End------

Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : 3 IN 1 WIRELESS CHARGER Brand Name : N/A Model : GY-Z18-3 Series Model : Z18-3, Z18-3S, GY-Z18-3S FCC ID : 2A2NS-GY-Z18-3 Applicant : Guanyu(Dongguan) Intelligent Technology Co.,Ltd Address : 402 Room, NO#801 Building, Zhen'an Middle Road, Changan Town, Dongguan City, Guangdong, China Manufacturer : Guanyu(Dongguan) Intelligent Technology Co.,Ltd Address : 402 Room, NO#801 Building, Zhen'an Middle Road, Changan Town, Dongguan City, Guangdong, China Standard(s) : FCC CFR 47 PART 1, § 1.1310 KDB 680106 D01 Wireless Power Transfer v04 Date of Receipt : July 05, 2024 Date of Test : July 05, 2024~ Aug.29, 2024 Issued Date : Aug.29, 2024 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Leon.yi Sean She Page 2 of 14 Report No.: AiTDG-240705006W4 Report Revise Record Report Version Issued Date Notes M1 Aug.29, 2024 Initial Release Page 3 of 14 Report No.: AiTDG-240705006W4 Contents 1 GENGENERAL INFORMATION ................................................................................................................................... 4 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 4 1.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2.1 DESCRIPTION OF THE TEST MODE ..................................................................................................................................... 6 2.2 SPECIAL ACCESSORIES ................................................................................................................................................... 6 2.3 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 6 3 TEST CONDITIONS AND RESULTS .............................................................................................................................. 7 3.1 APPLICABLE STANDARD .................................................................................................................................................. 7 3.2 LIMIT ......................................................................................................................................................................... 7 3.3 TEST SETUP ................................................................................................................................................................. 7 3.4 MEASUREMENT PROCEDURE .......................................................................................................................................... 8 3.5 TEST RESULT OF E AND H FIELD STRENGTH ........................................................................................................................ 8 3.6 EQUIPMENT APPROVAL CONSIDERATIONS ....................................................................................................................... 11 3.7 CONCLUSION ............................................................................................................................................................. 11 4 TEST SETUP PHOTOGRAPHS OF EUT ....................................................................................................................... 12 Page 4 of 14 Report No.: AiTDG-240705006W4 1 GENGENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 25°C Relative Humidity: 55 % Air Pressure: 101 kPa 1.2 General Description of EUT Product Name: 3 IN 1 WIRELESS CHARGER Model/Type reference: GY-Z18-3 Power Supply: Input: 5V⎓3A/9V⎓2A/12V⎓1.5A Output: 15/10/7.5/5W for Phone 2.5W for Apple Watch 3W for Earphone Hardware version: N/A Software version: N/A Sample(s) Status: AiTDG-240705006-01(Normal sample) AiTDG-240705006-02(Engineer sample) Wireless Charger: Operation frequency: Coil1: For Phone: 113kHz-205kHz Coil2: For Earphone: 113kHz-205kHz Coil3: Watch: 300kHz-350kHz Modulation Technology: ASK Antenna Type: Loop coil Antenna Antenna gain: 0dBi Remark: The above DUT's information was declared by manufacturer. For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 5 of 14 Report No.: AiTDG-240705006W4 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing R…

Text truncated - open the document above for the full version.

Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : 3 IN 1 WIRELESS CHARGER Brand Name : N/A Model : GY-Z18-3 Series Model : Z18-3, Z18-3S, GY-Z18-3S FCC ID : 2A2NS-GY-Z18-3 Applicant : Guanyu(Dongguan) Intelligent Technology Co.,Ltd Address : 402 Room, NO#801 Building, Zhen'an Middle Road, Changan Town, Dongguan City, Guangdong, China Manufacturer : Guanyu(Dongguan) Intelligent Technology Co.,Ltd Address : 402 Room, NO#801 Building, Zhen'an Middle Road, Changan Town, Dongguan City, Guangdong, China Standard(s) : FCC CFR Title 47 Part 15 Subpart C Date of Receipt : July 05, 2024 Date of Test : July 05, 2024~ Aug.29, 2024 Issued Date : Aug.29, 2024 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Leon.yi Sean She Page 2 of 21 Report No.: AiTDG-240705006W3 Report Revise Record Report Version Issued Date Notes M1 Aug.29, 2024 Initial Release Page 3 of 21 Report No.: AiTDG-240705006W3 Contents 1 TEST SUMMARY ....................................................................................................................................................... 4 1.1 TEST STANDARDS.......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENGENERAL INFORMATION ................................................................................................................................... 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF THE TEST MODE ..................................................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 7 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 7 3 TEST CONDITIONS AND RESULTS .............................................................................................................................. 9 3.1 CONDUCTED EMISSIONS TEST ......................................................................................................................................... 9 3.2 RADIATED EMISSIONS .................................................................................................................................................. 12 3.3 20DB BANDWIDTH ..................................................................................................................................................... 18 3.4 ANTENNA REQUIREMENT ............................................................................................................................................. 20 4 TEST SETUP PHOTOGRAPHS OF EUT ....................................................................................................................... 21 5 EXTERNAL PHOTOGRAPHS OF EUT ......................................................................................................................... 21 6 INTERNAL PHOTOGRAPHS OF EUT .......................................................................................................................... 21 Page 4 of 21 Report No.: AiTDG-240705006W3 1 TEST SUMMARY 1.1 Test Standards The tests were performed according to following standards: FCC Rules Part 15.207,15.209, 15.215(c) ANSI C63.10: 2013: American National Standard for Testing Unlicensed Wireless Devices 1.2 Test Summary Test Item Section in CFR 47 Test Result Electric Field Radiated Emissions FCC Part 15 C (Section15.209) PASS 20dB Bandwidth/99% Bandwidth FCC Part 15 C (Section15.215(c)) PASS AC Power Line Conducted Emission FCC Part 15 C (Section15.207) PASS Antenna Requirement FCC Part 15 C (Section15.203 PASS Page 5 of 21 Report No.: AiTDG-240705006W3 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China The test facility is recognized, certified or accre…

Text truncated - open the document above for the full version.

Fine Page 1 of 3 承 認 書 客 戶： CUSTOMER: 深圳市中利冠达科技有限公司 客 戶 料 號： CUST P/N: 三盛创 料 號： FINE P/N: A4011-6.5UH unicoil 0.07*100P*12TS 産 品 型 號： DESC: Φ44MMX5.0MMX0.8MM 日 期： DATE: 2021/04/27 版 本： Version: A.0 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY 客戶承認 CUSTOMER APPROVE 林素玲 安帅印 安帅印 深圳市三盛创电子科技有限公司 工廠地址：深圳市光明新区光明玉律玉泉东路9号3502 Fine Page 2 of 3 版本變更履歷 Version Change History 版本 Rev. 變 更 前 Before Change 變 更 後 After Change 更 改 日 期 Change Date 批 准 Approved By A.0 新发行 ---- 2021/04/27 安帅印 Fine Page 3 of 3 SPECIFICATION 産 品 型 號： DESC Φ13.5x39.5-6.5uH-0.07x100P-20mm 版本 Rev：A.0 客戶CUST: XXX 客户料号CUST P/N: 一、尺寸DIMENSION:(mm) 天线增益Antenna gain: Operation frequency: 113kHz-205kHz Antenna Type: Loop coil Antenna Antenna gain: 0dBi 二、原理图SCHEMATIC DIAGRAM: A 44.0±0.5 B 41.0±0.5 C 13.5±0.5 D 5±0.3 E 3±1 F 20±2 G 1±0.2 H 2.2±1 Note: 1. Cross out wire; 2. Wrap 5mm(ref) width high-temperature adhesive paper 1-2Ts around the cable outlet position. 3. The coil is attached to the circular hard magnetic disc with groove, the magnetic disc size is 40±0.5mm, the inner hole is 5.3mm, and the thickness is 1.0±0.2mm. 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F silk-covered wire 0.07*100P 12Ts CCW 四、电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25±10°C, 湿度RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 IND. S-F 3.8 uH ±10% Individual coil 100KHz/1.0V LCZ METER 1062B 2 IND. S-F 6.5uH ±10% Magnetized sheet 100KHz/1.0V LCZ METER 1062B 3 DCR S-F ≤50mΩ 100KHz/1.0V LCZ METER 502B 4 Q S-F ≤70 100KHz/1.0V LCZ METER 502B 擬制/日期PREPARED BY/DATE 審核/日期CHECKED BY/DATE 林素玲 2021/04/27 安帅印2021/04/27

承 認 書 客 戶： CUSTOMER: 深圳中利冠达电子有限公司 客 戶 料 號： CUST P/N: 三盛创 料 號： FINE P/N: Watch transmitting coil 8.1UH 0.08*24P*14TS 産 品 型 號： DESC: 日 期： DATE: 2021.04.13 版 本： Version: A.0 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY 客戶承認 CUSTOMER APPROVE 林素玲 安帅印 安帅印 深圳市三盛创电子科技有限公司 工廠地址：深圳市光明新区玉律社区玉泉东路9号 版本變更履歷 Version Change History 版本 Rev. 變 更 前 Before Change 變 更 後 After Change 更 改 日 期 Change Date 批 准 Approved By A.0 新发行 ---- 2021.04.13 安帅印 SPECIFICATION 産 品 型 號： DESC 苹果发射线圈15*21.5-8.1UH 版本 Rev：A.0 客戶CUST: XXX 客户料号CUST P/N: 一、尺寸DIMENSION:(mm) 天线增益Antenna gain: Operation frequency: 300kHz-350kHz Antenna Type: Loop coil Antenna Antenna gain: 0dBi 二、原理图SCHEMATIC DIAGRAM: A 25±1 B 23.6±0.5 C 21.5±0.5 D 14.5±0.3 E 7.7±0.05 F 3±2 H 55±1 Thickness 2.7 Max Note: 1. Cross out wire; 2. Wrap high temperature adhesive paper Ts with mm(ref) width at the outlet position; 3. The coil is attached to the circular hard magnetic disc with notches at both ends, the magnetic disc size is 25±1mm, the inner hole is 7.7mm, and the thickness is 2.8±0.2mm. 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F Enameled wire 0.08*24P 14Ts CCW 四、电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25±10°C, 湿度RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 IND. S-F 3.1uH ±10% Individual coil 100KHz/1.0V LCZ METER 1062B 2 IND. S-F 8.1 uH ±10% Individual coil 100KHz/1.0V LCZ METER 1062B 3 DCR S-F ≤32mΩ 100KHz/1.0V LCZ METER 502B 4 Q S-F ≤111 100KHz/1.0V LCZ METER 502B 擬制/日期PREPARED BY/DATE 審核/日期CHECKED BY/DATE 林素玲2021.04.13 安帅印2021.04.13

Fine Page 1 of 3 承 認 書 客 戶： CUSTOMER: 深圳市中利冠达科技有限公司 客 戶 料 號： CUST P/N: 三盛创 料 號： FINE P/N: A4011-6.5UH unicoil 0.07*100P*12TS 産 品 型 號： DESC: Φ44MMX5.0MMX0.8MM 日 期： DATE: 2021/04/27 版 本： Version: A.0 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY 客戶承認 CUSTOMER APPROVE 林素玲 安帅印 安帅印 深圳市三盛创电子科技有限公司 工廠地址：深圳市光明新区光明玉律玉泉东路9号3502 Fine Page 2 of 3 版本變更履歷 Version Change History 版本 Rev. 變 更 前 Before Change 變 更 後 After Change 更 改 日 期 Change Date 批 准 Approved By A.0 新发行 ---- 2021/04/27 安帅印 Fine Page 3 of 3 SPECIFICATION 産 品 型 號： DESC Φ13.5x39.5-6.5uH-0.07x100P-20mm 版本 Rev：A.0 客戶CUST: XXX 客户料号CUST P/N: 一、尺寸DIMENSION:(mm) 天线增益Antenna gain: Operation frequency: 113kHz-205kHz Antenna Type: Loop coil Antenna Antenna gain: 0dBi 二、原理图SCHEMATIC DIAGRAM: A 44.0±0.5 B 41.0±0.5 C 13.5±0.5 D 5±0.3 E 3±1 F 20±2 G 1±0.2 H 2.2±1 Note: 1. Cross out wire; 2. Wrap 5mm(ref) width high-temperature adhesive paper 1-2Ts around the cable outlet position. 3. The coil is attached to the circular hard magnetic disc with groove, the magnetic disc size is 40±0.5mm, the inner hole is 5.3mm, and the thickness is 1.0±0.2mm. 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F silk-covered wire 0.07*100P 12Ts CCW 四、电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25±10°C, 湿度RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 IND. S-F 3.8 uH ±10% Individual coil 100KHz/1.0V LCZ METER 1062B 2 IND. S-F 6.5uH ±10% Magnetized sheet 100KHz/1.0V LCZ METER 1062B 3 DCR S-F ≤50mΩ 100KHz/1.0V LCZ METER 502B 4 Q S-F ≤70 100KHz/1.0V LCZ METER 502B 擬制/日期PREPARED BY/DATE 審核/日期CHECKED BY/DATE 林素玲 2021/04/27 安帅印2021/04/27

Page 1 of 2 FCC ID: 2A2NS-GY-Z18-3 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo DCD Conduction Radiation (9KHz-30MHz) Page 2 of 2 FCC ID: 2A2NS-GY-Z18-3 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Radiation (30MHz-1000MHz) ------End------
