2A2NS-GY-Z5F-13 in1 Fast Wireless Charger

PDF created with pdfFactory Pro trial version www.pdffactory.com

- Guanyu(Dongguan) Intelligent Technology Co.,Ltd - Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/5/2024 U.S. Agent Designation Guanyu(Dongguan) Intelligent Technology Co.,Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A2NS-GY-Z5F-1): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of Guanyu(Dongguan) Intelligent Technology Co.,Ltd. Guanyu(Dongguan) Intelligent Technology Co.,Ltd with the FRN 0031164734 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature ManFang Wu Manager Guanyu(Dongguan) Intelligent Technology Co.,Ltd Signature Jack Fu Manager UUX GROUP INC 48_[model] US_Agent_2.911(d)(7) - U, V05

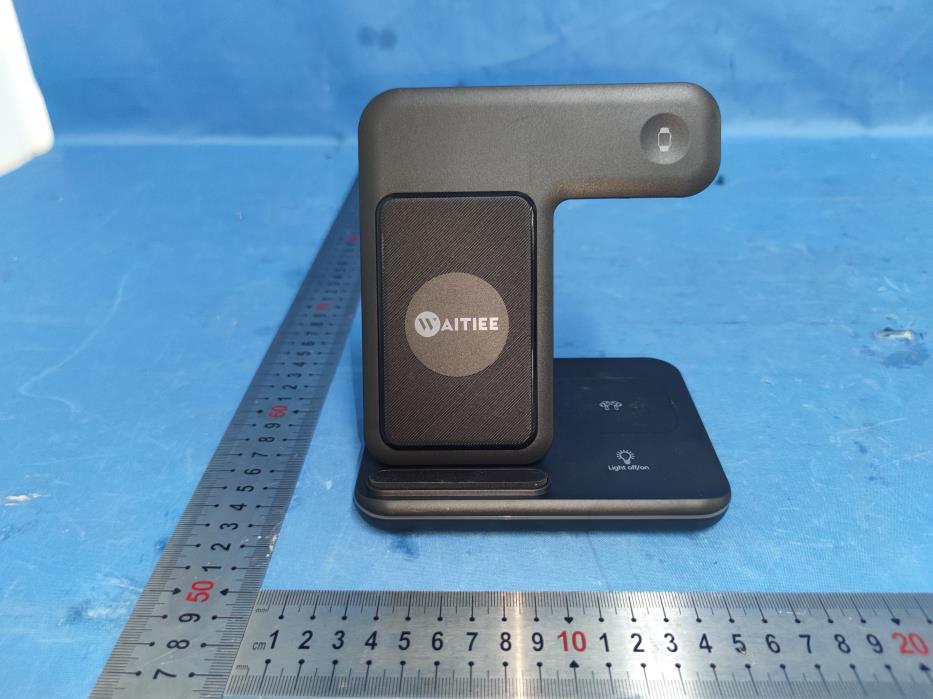

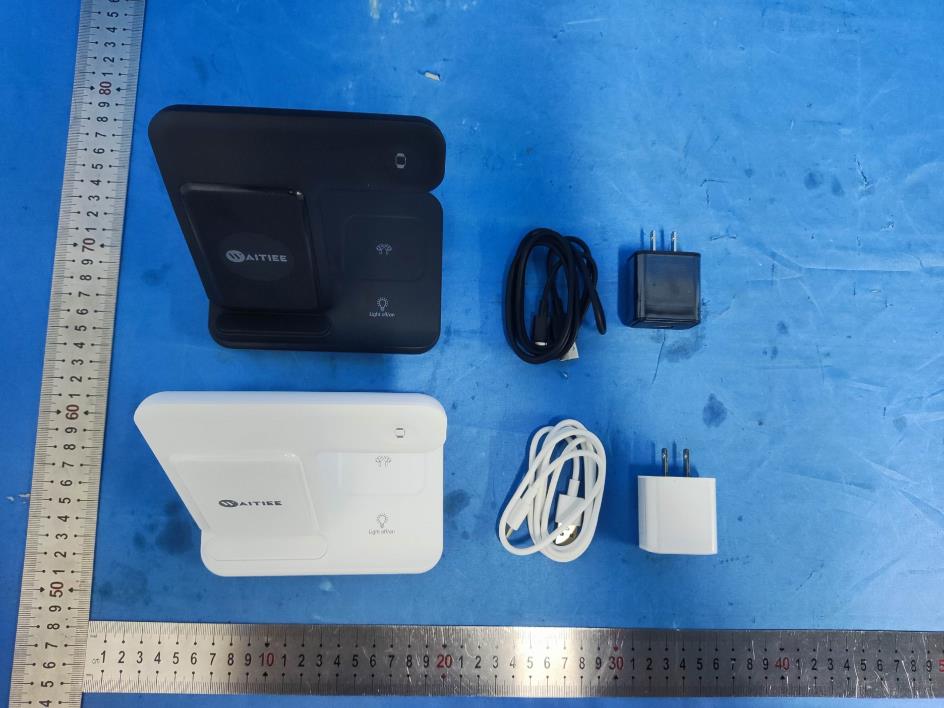

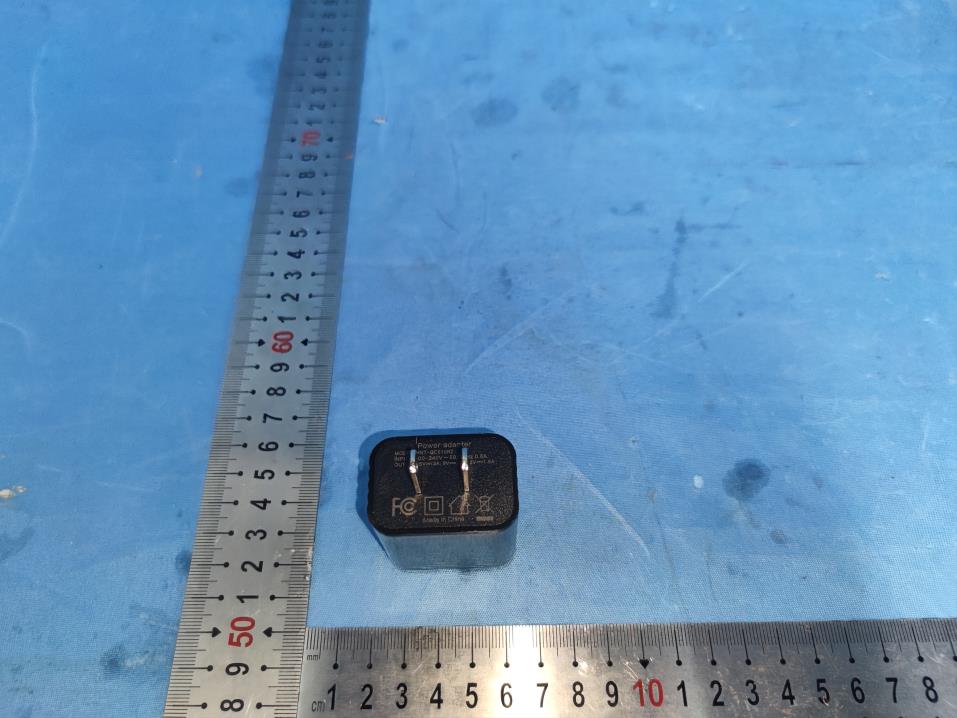

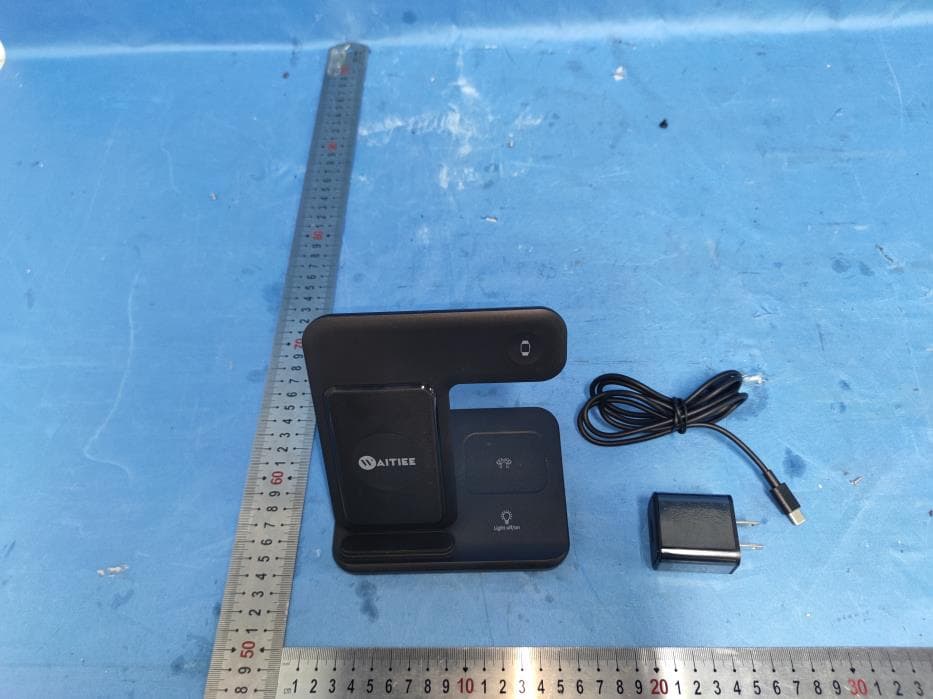

Page 1 of 5 FCC ID: 2A2NS-GY-Z5F-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 5 FCC ID: 2A2NS-GY-Z5F-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 5 FCC ID: 2A2NS-GY-Z5F-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 5 FCC ID: 2A2NS-GY-Z5F-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Page 5 of 5 FCC ID: 2A2NS-GY-Z5F-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 ---The End---

Label Size: L35mm * W30mm 1. The label is silk-screen on the sample 3 in1 Fast Wireless Charger Model Name: GY-Z5F-1 FCC ID: 2A2NS-GY-Z5F-1 L W

Page 1 of 7 FCC ID: 2A2NS-GY-Z5F-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 7 FCC ID: 2A2NS-GY-Z5F-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Earphone Coil Page 3 of 7 FCC ID: 2A2NS-GY-Z5F-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Watch Coil Phone Coil Page 4 of 7 FCC ID: 2A2NS-GY-Z5F-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Page 5 of 7 FCC ID: 2A2NS-GY-Z5F-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 Photo 10 Page 6 of 7 FCC ID: 2A2NS-GY-Z5F-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 11 Photo 12 Page 7 of 7 FCC ID: 2A2NS-GY-Z5F-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 13 ------End------

Page 1 of 18 Report No.: AiTDG-240620011W2 RF Exposure Evaluation Client Information: Applicant: Guanyu(Dongguan) Intelligent Technology Co.,Ltd Applicant add.: 402 Room, NO#801 Building, Zhen'an Middle Road, Changan Town, Dongguan City, Guangdong, China Manufacturer: Guanyu(Dongguan) Intelligent Technology Co.,Ltd Manufacturer add.: 402 Room, NO#801 Building, Zhen'an Middle Road, Changan Town, Dongguan City, Guangdong, China Product Information: Product Name: 3 in1 Fast Wireless Charger Model No.: GY-Z5F-1 Brand Name: N/A FCC ID: 2A2NS-GY-Z5F-1 Applicable standards: FCC CFR 47 PART 1, § 1.1310 KDB 680106 D01 Wireless Power Transfer v04 Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: Jun. 20, 2024 Date of Test: Jun. 20, 2024 ~ July 01, 2024 Date of Issue: July 01, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Leon.yi Sean She Page 2 of 18 Report No.: AiTDG-240620011W2 1 CONTENTS COVER PAGE Page 1 CONTENTS 2 2 TEST FACILITY 4 2.1 Deviation from standard 4 2.2 Abnormalities from standard conditions 4 2.3 Test Location 4 3 GENERAL INFORMATION 5 4 TEST METHODOLOGY 6 4.1 Measuring Standard 6 4.2 Requirements 6 4.3 Limits 6 4.4 Test Setup 7 4.5 Test Procedure 7 5 Equipment Approval Considerations 8 5.1 Description of the test mode 9 5.2 Peripheral List 9 5.3 Test Instruments list 9 5.4 Duty Cycle 10 5.5 Test Result 12 5.6 Test Setup photo 16 Page 3 of 18 Report No.: AiTDG-240620011W2 Revision History Revision Issue Date Revisions Revised By 00 July 01, 2024 Initial Issue Sean She Page 4 of 18 Report No.: AiTDG-240620011W2 2 TEST FACILITY The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements for the Competence of Testing and Calibration Laboratories and any additional program requirements in the identified field of testing. 2.1 Deviation from standard None 2.2 Abnormalities from standard conditions None 2.3 Test Location Guangdong Asia Hongke Test Technology Limited Address: B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Page 5 of 18 Report No.: AiTDG-240620011W2 3 GENERAL INFORMATION EUT Name: 3 in1 Fast Wireless Charger Model No: GY-Z5F-1 Serial Model: Z5F-1,GY-Z5F-S Test sample(s) ID: AiTDG-240620011-1 Sample(s) Status: Engineer sample Operation frequency: Coil1: For Phone: 113kHz-205kHz Coil2: For Earphone: 113kHz-205kHz Coil3: Watch: 300kHz-350kHz Modulation Technology: ASK Antenna Type: Coil1/Coil2/Coil3: Loop coil Antenna Antenna gain: 0dBi Hardware version.: N/A Software version.: N/A Power supply: Input: 9V/2A iPhoneOutput:15W/10W/7.5W/5W iWatch Output:2.5W AirPods Output: 5W Model different: Different models and colors Note: For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 6 of 18 Report No.: AiTDG-240620011W2 4 TEST METHODOLOGY 4.1 Measuring Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. According KDB680106 D01: KDB 680106 D01 Wireless Power Transfer v04. 4.2 Requirements According to the item 3 of KDB 680106 D01v04: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Mobile Device and Portable Device Configurations (2) Equipment Authorization Procedures for Devices Operating at Frequencies Below 4 MHz (3) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the top surface. 4.3 Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Page 7 of 18 Report No.: AiTDG-240620011W2 4.4 Test Setup 4.5 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was record…

Text truncated - open the document above for the full version.

Page 1 of 25 Report No.: AiTDG-240620011W1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. FCC TEST REPORT Client Information: Applicant: Guanyu(Dongguan) Intelligent Technology Co.,Ltd Applicant add.: 402 Room, NO#801 Building, Zhen'an Middle Road, Changan Town, Dongguan City, Guangdong, China Manufacturer: Guanyu(Dongguan) Intelligent Technology Co.,Ltd Manufacturer add.: 402 Room, NO#801 Building, Zhen'an Middle Road, Changan Town, Dongguan City, Guangdong, China Product Information: Product Name: 3 in1 Fast Wireless Charger Model No.: GY-Z5F-1 Brand Name: N/A FCC ID: 2A2NS-GY-Z5F-1 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: Jun. 20, 2024 Date of Test: Jun. 20, 2024 ~ July 01, 2024 Date of Issue: July 01, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Leon.yi Sean She Page 2 of 25 Report No.: AiTDG-240620011W1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS .................................................................................................................................................... 2 2 TEST SUMMARY ............................................................................................................................................ 5 2.1 STATEMENT OF THE MEASUREMENT UNCERTAINTY ......................................................................................... 5 2.2 MEASUREMENT UNCERTAINTY ...................................................................................................................... 5 3 TEST FACILITY .............................................................................................................................................. 6 3.1 DEVIATION FROM STANDARD ......................................................................................................................... 6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS ............................................................................................... 6 3.3 TEST LOCATION .......................................................................................................................................... 6 4 GENERAL INFORMATION ............................................................................................................................. 7 4.1 EUT TEST MODE ........................................................................................................................................ 8 4.2 DESCRIPTION OF TEST SETUP ....................................................................................................................... 8 4.3 PERIPHERAL LIST ........................................................................................................................................ 9 4.4 EUT PERIPHERAL LIST ................................................................................................................................ 9 5 EQUIPMENTS LIST FOR ALL TEST ITEMS ................................................................................................. 10 6 CONDUCTED EMISSION TEST.................................................................................................................... 11 6.1 CONDUCTED EMISSION MEASUREMENT............................................................................................ 11 6.2 POWER LINE CONDUCTED EMISSION LIMITS ....................................................................................... 11 6.3 TEST PROCEDURE ............................................................................................................................... 11 6.4 DEVIATION FROM TEST STANDARD .................................................................................................... 11 6.5 TEST SETUP .......................................................................................................................................... 12 6.6 EUT OPERATING CONDITIONS ............................................................................................................ 12 6.7 TEST RESULT ........................................................................................................................................... 13 7 RADIATED EMISSION MEASUREMENT ..................................................................................................... 15 7.1 RADIATED EMISSION LIMITS ........................................................................................................................ 15 7.2 ANECHOIC CHAMBER TEST SETUP DIAGRAM ................................................................................................ 16 7.3 TEST PROCEDURE ..................................................................................................................................... 16 7.4 DEVIATION FROM TEST STANDARD ........…

Text truncated - open the document above for the full version.

Fine Page 1 of 3 承 認 書 客 戶： CUSTOMER: 深圳市中利冠达科技有限公司 客 戶 料 號： CUST P/N: 三盛创 料 號： FINE P/N: A4011-6.5UH 单线圈 unicoil 0.07*100P*12TS 産 品 型 號： DESC: Φ44MMX5.0MMX0.8MM 日 期： DATE: 2021/04/27 版 本： Version: A.0 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY 客戶承認 CUSTOMER APPROVE 林素玲 安帅印 安帅印 Fine Page 2 of 3 版本變更履歷 Version Change History 版本 Rev. 變 更 前 Before Change 變 更 後 After Change 更 改 日 期 Change Date 批 准 Approved By A.0 新发行 ---- 2021/04/27 安帅印 Fine Page 3 of 3 SPECIFICATION 産 品 型 號： DESC Φ13.5x39.5-6.5uH-0.07x100P-20mm 版本 Rev：A.0 客戶CUST: XXX 客户料号CUST P/N: 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATIC DIAGRAM: A 44.0±0.5 B 41.0±0.5 C 13.5±0.5 D 5±0.3 E 3±1 F 20±2 G 1±0.2 H 2.2±1 Note: 1. Cross out wire; 2. Wrap 5mm(ref) width high-temperature adhesive paper 1-2Ts around the cable outlet position. 3. The coil is attached to the circular hard magnetic disc with groove, the magnetic disc size is 40±0.5mm, the inner hole is 5.3mm, and the thickness is 1.0±0.2mm. 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F silk-covered wire 0.07*100P 12Ts CCW 四、电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25±10°C, 湿度RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 IND. S-F 3.8 uH ±10% Individual coil 100KHz/1.0V LCZ METER 1062B 2 IND. S-F 6.5uH ±10% Magnetized sheet 100KHz/1.0V LCZ METER 1062B 3 DCR S-F ≤50mΩ 100KHz/1.0V LCZ METER 502B 4 Q S-F ≤70 100KHz/1.0V LCZ METER 502B 擬制/日期PREPARED BY/DATE 審核/日期CHECKED BY/DATE 林素玲 2021/04/27 安帅印2021/04/27

ZheJiangDONGYANGDMEGCChenjiElectronicsCO.,LTD 产品规格书 PRODUCTSPECIFICATION 客户信息 Customer Information 客户名称/Customer 机型/Model 客户料号/PartNO. 客户承认/CustomerApproved 地址：中国浙江省东阳市横店工业区 Address:HengdianindustrialArea,DongYangCity,ZhejiangProvinceChina 邮编/P.C：322118 电话/TEL：+0086-0579-86588315（86588791） 传真/FAX：+0086-0579-86553611 产品信息 Product Information 品名/Description双线圈模组 规格型号/PartNo. DM-TS9352B-15 文件编号/DN 设计 /Designed 审核 /Checked 批准 /Approved RoHSH/F 浙江省东阳市东磁诚基电子有限公司 重要提示ImportantNotes： 1.如对发射/接收线圈模组的性能和（或）寿命有任何争议，仅基于此规格书作出判断。 IfthereisanyargumentonTX/RxCoilUnitperformanceand/orlife,judgmentistobemadebase onthisspecificationonly。 2.客户方有责任确认该发射/接收线圈模组能满足您的使用要求。 CustomerhastheresponsibilitytoensurethatTX/RxCoilUnitcansatisfytherequirementofyour application。 3.如果公司未提供技术规格，该文件将详细叙述与贵公司商定的技术规格。 Intheeventthatanofficialspecificationisnotpresentbycustomer,thisdocumentwillspecifythe agreedtechnicalspecification。 4.在满足规格的条件下，我司可以改变零件材料、尺寸及形状来改善品质（或）性能（或）生产效率。 Withinthelimitationtosatisfythisspecification,DMEGChastheconveniencetochangethematerials, sizeandshapesofcomponentsofthemotorforthepurposeofimprovingquality,and/orperformance, and/orproductionefficiency。 5．收到此规格书后，贵司应于下订单之前将规格书副本签回以示贵司已确认。如贵司未能在规定时间内 签回副本，我司将认为贵司已收到并承认该规格书。 Afterthereceiptofthisspecification,customershouldsendasignedcopytoDMEGC,beforeyou issuedpurchaseorderfortheconfirmationonacknowledgement.DMEGC,regarditasthereceiptof thisspecificationacknowledgedifcustomerfailstoreturntheconfirmationtouswithinthedescribed period. 产品规格书 PRODUCTSPECIFICATION DM-TS9352B-15 NO.2/5 更改履历 RevisedHistory 产品规格书 PRODUCTSPECIFICATION DM-TS9352B-15 NO.3/5 版号 Issue 日期 Date 变更原因、变更内容 ReasonForChange 变更页 Page 拟制 Designed 审核 Checked 批准 Approved A02022.4.23产品颁布 A12022.8.12尺寸调整 Product promulgation Size adjustment 1. 尺寸 DIMENSION(mm) 2. 原理图 SCHEMATICDIAGRAM 3. 绕线参数 序号线规格 圈 数 是否交叉 19Ts是 3.电气特性ELECTRICALCHARACTERISTICS: 100KHz/1Vrms,温度TEMPERATURE:25±10°C,湿度RELATIVEHUMIDITY:65±20% 序号上线圈下线圈 1Ls7.0±0.3uH7.1±0.3uH 2RDC60mΩMAX60mΩMAX 产品规格书 PRODUCTSPECIFICATION DM-TS9352B-15 NO.4/5 Line size Number of turns Cross or not NO YES silk-covered wire 0.08*105P NO Upper coil Lower coil 4.材料清单 BOM表 序号物料名称物料规格ULFILENO 1锡头高温锡条/ 2胶带E483388 3线圈0.08*105P/ 4磁片锰锌铁氧体/ 5胶水/ 6背胶0.08mm/ 5.材料符合RoHS及无卤标准要求。 产品规格书 PRODUCTSPECIFICATION DM-TS9352B-15 NO.5/5 NO Material name Material specification Tin head High temperature tin bar Adhesive tape 8mm and 5mm high temperature tape coil Silk-covered wire Magnetic sheet Manganese zinc ferrite glue Strong structural adhesive Rubber backing double faced adhesive tape Materials comply with RoHS and halogen-free standards

承 認 書 客 戶： CUSTOMER: 深圳中利冠达电子有限公司 客 戶 料 號： CUST P/N: 三盛创 料 號： FINE P/N: Watch transmitting coil 8.1UH 0.08*24P*14TS 産 品 型 號： DESC: 日 期： DATE: 2021.04.13 版 本： Version: A.0 擬制 PREPARED BY 審核 CHECKED BY 批准 APPROVED BY 客戶承認 CUSTOMER APPROVE 林素玲 安帅印 安帅印 版本變更履歷 Version Change History 版本 Rev. 變 更 前 Before Change 變 更 後 After Change 更 改 日 期 Change Date 批 准 Approved By A.0 新发行 ---- 2021.04.13 安帅印 SPECIFICATION 産 品 型 號： DESC Apple transmitting coil 15*21.5-8.1UH 版本 Rev：A.0 客戶CUST: XXX 客户料号CUST P/N: 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATIC DIAGRAM: A 25±1 B 23.6±0.5 C 21.5±0.5 D 14.5±0.3 E 7.7±0.05 F 3±2 H 55±1 thickness 2.7 Max Note: 1. Cross out wire; 2. Wrap high temperature adhesive paper Ts with mm(ref) width at the outlet position; 3. The coil is attached to the circular hard magnetic disc with notches at both ends, the magnetic disc size is 25±1mm, the inner hole is 7.7mm, and the thickness is 2.8±0.2mm. 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F varnished wire 0.08*24P 14Ts CCW 四、电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25±10°C, 湿度RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 IND. S-F 3.1uH ±10% Individual coil 100KHz/1.0V LCZ METER 1062B 2 IND. S-F 8.1 uH ±10% Individual coil 100KHz/1.0V LCZ METER 1062B 3 DCR S-F ≤32mΩ 100KHz/1.0V LCZ METER 502B 4 Q S-F ≤111 100KHz/1.0V LCZ METER 502B 擬制/日期PREPARED BY/DATE 審核/日期CHECKED BY/DATE 林素玲2021.04.13 安帅印2021.04.13

Page 1 of 2 FCC ID: 2A2NS-GY-Z5F-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo DCD Conduction Radiation (9KHz-30MHz) Page 2 of 2 FCC ID: 2A2NS-GY-Z5F-1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Radiation (30MHz-1000MHz) ------End------
