2A2NS-GY-Z5GWireless Charger

产品包材图档 产品包材标准 产品型号 尺寸 物料编码 制图审核 工艺说明/印刷要求 使用单位 材质 版本 比例 时间 产品名称 Z5G常规五国说明书 105g铜版纸 1:1 A0 2022-11-02 孔 90*100mm（合起来尺寸） GY-Z5G 四色印刷，双面彩印，7折页 mm Z5G-B002 小娟 说明书 注：以产品实际签样为准 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interferen- ce that may cause undesired operation.Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. FCC WARNING

Guanyu(Dongguan)IntelligentTechnologyCo.,Ltd ModelDifference Productdescription:WirelessCharger Modelname:GY-Z5G GY-Z5G-1、GY-Z5G-2、GY-Z5G-3 TradeName:Guany FCCID:2A2NS-GY-Z5G AllthemodelarethesamecircuitandRFmodule,onlyformodelname. Regards Sincerely Client’ssignature: Client’sname/title:ManFangWU(N/A) Contactinformation/address:1001Room,No#3building,No#36Fuxingroad,Chang’an town,DongguanCity,GuangdongChina

C5266091_X8_Ed.1 1/1 LetterofAuthorization <Guanyu(Dongguan)IntelligentTechnologyCo.,Ltd> Company:Guanyu(Dongguan)IntelligentTechnologyCo.,Ltd Address:1001Room,No#3building,No#36Fuxingroad,Chang’an town,DongguanCity,GuangdongChina ProductName:WirelessCharger ModelNumber:GY-Z5G GY-Z5G-1 、 GY-Z5G-2 、 GY-Z5G-3 FCCIdentifier:2A2NS-GY-Z5G WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:ManFangWUDate:2022-11-07 Title:N/A Signatureofapplicant:

C5266091_X10_Ed.1 1/1 <Guanyu(Dongguan)IntelligentTechnologyCo.,Ltd> OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:2022-11-07 Subject:RequestforConfidentiality FCCID:2A2NS-GY-Z5G ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo BlockDiagram Schematics TestReportNoNo TestSetupPhotosNo User’sManual InternalPhotos PartsList/TuneUp RFExposureInfo OperationalDescription CoverLetter(s)NoNo SDRSoftware/SecurityInfoNo Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. Sincerely, Signature: Name:ManFangWU Title:N/A

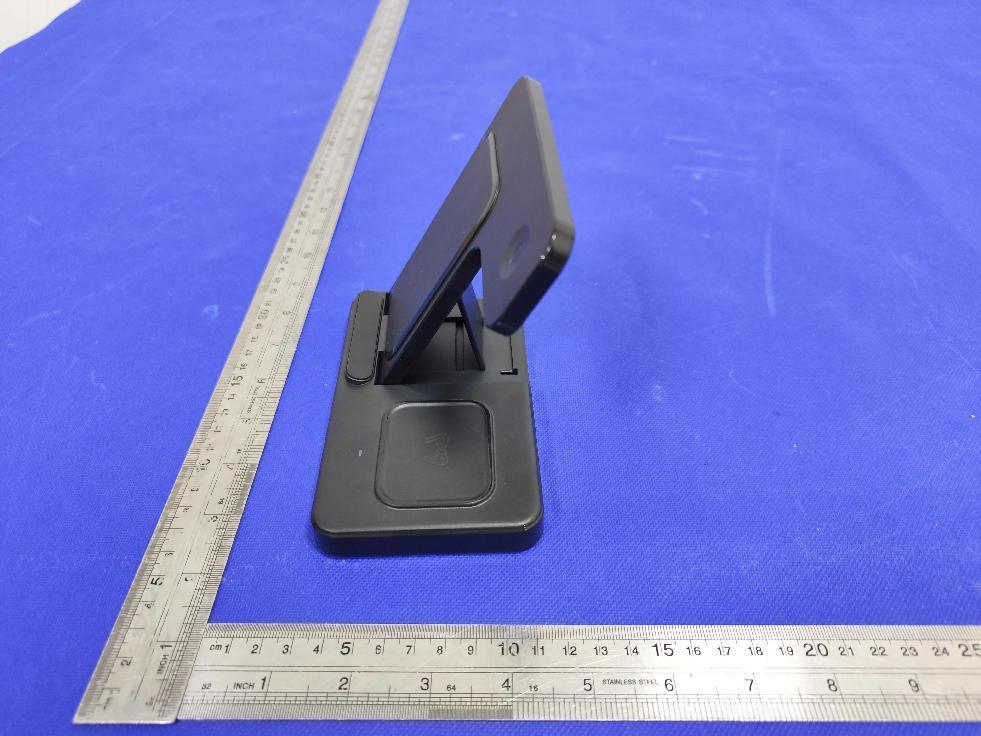

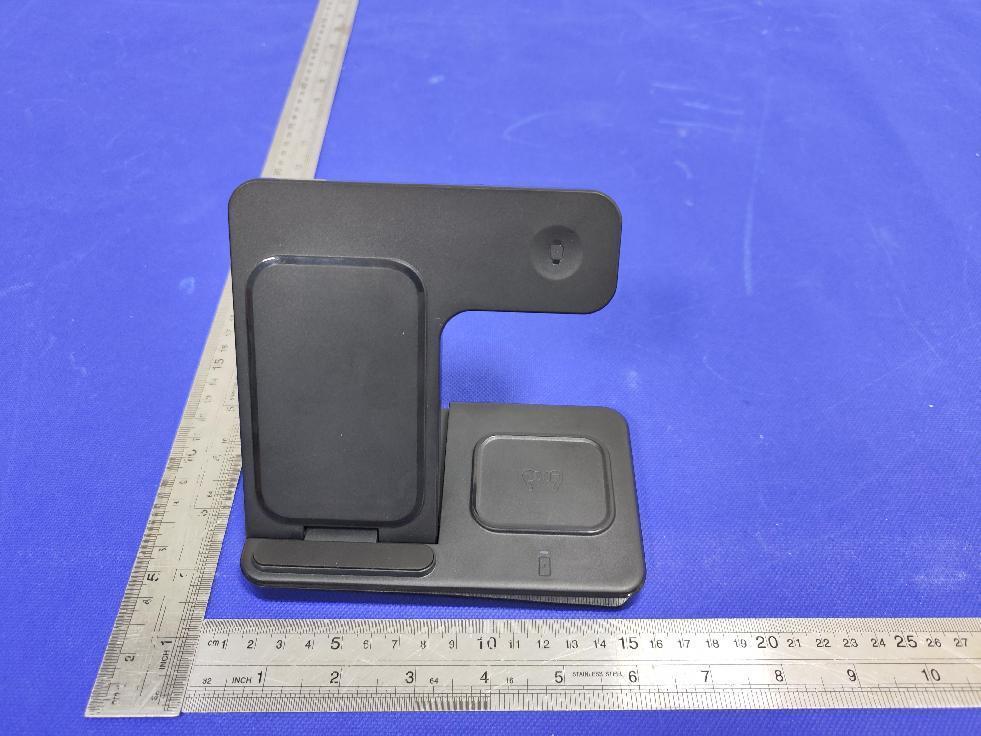

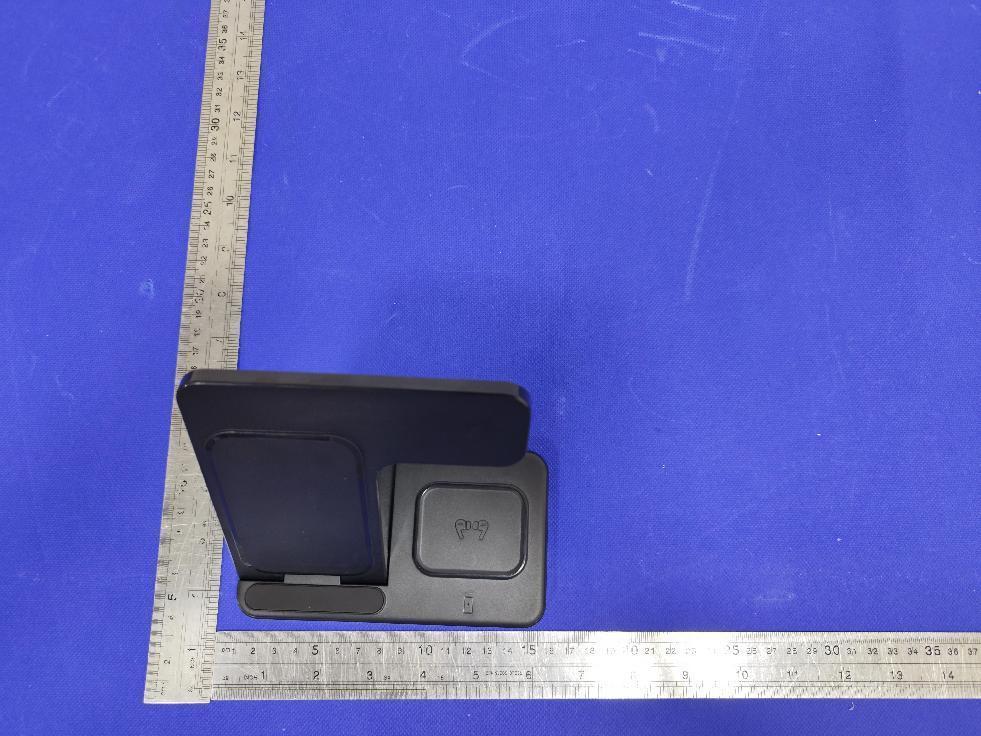

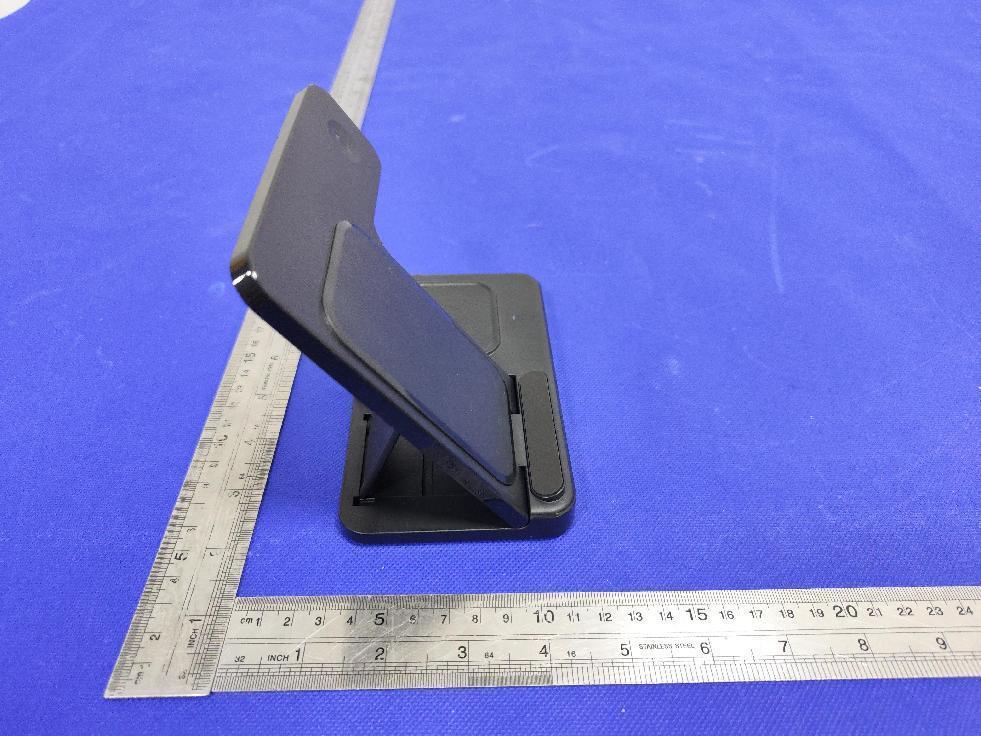

EUTPHOTO(ExternalPhotos)

Labelandlabellocation Guanyu(Dongguan)IntelligentTechnologyCo.,Ltd FCCID:2A2NS-GY-Z5G

EUTPHOTO(InternalPhotos) Coil1 Coil2 Coil3 ※※※※※ENDOFREPORT※※※※※

FCCID:2A2NS-GY-Z5G ProductName:WirelessCharger ProductModelNo.:GY-Z5G TestAuxiliary:Phone,Earbuds,Watch,Adapter ModelNo.:DL01,DL02,DL03,DL04 TransmittingmodeKeeptheEUTincontinuouslywirelesschargingmode Powersupply:Input:DC9V2A/DC9V2.7A/DC12V2A WirelessOutputPhone:15WMax WirelessOutputEarbuds:3WMax WirelessOutputWatch:2.5WMax TestDescription:PhoneandEarphoneandWatchBattery>98%,=50%and<1%aretested, andtheworstis<1%. TestModes: Mode1AC/DCAdapter(9V/2A)+EUT+MobilePhone(15W) Mode2AC/DCAdapter(9V/2A)+EUT+MobilePhone(10W) Mode3AC/DCAdapter(9V/2A)+EUT+MobilePhone(7.5W) Mode4AC/DCAdapter(9V/2A)+EUT+MobilePhone(5W) Mode5AC/DCAdapter(9V/2A)+EUT+Earbuds(3W) Mode6AC/DCAdapter(9V/2A)+EUT+Watch(2.5W) Mode8AC/DCAdapter(9V/2A)+EUT+MobilePhone(10W)+Earbuds(3W)+Watch(2.5W) Mode9AC/DCAdapter(9V/2A)+EUT+MobilePhone(7.5W)+Earbuds(3W)+Watch(2.5W) Mode10AC/DCAdapter(9V/2A)+EUT+MobilePhone(5W)+Earbuds(3W)+Watch(2.5W) Mode11AC/DCAdapter(9V/2A)+EUT+MobilePhone(15W)+Earbuds(3W) Mode12AC/DCAdapter(9V/2A)+EUT+MobilePhone(10W)+Earbuds(3W) Mode13AC/DCAdapter(9V/2A)+EUT+MobilePhone(7.5W)+Earbuds(3W) Mode14AC/DCAdapter(9V/2A)+EUT+MobilePhone(5W)+Earbuds(3W) Mode15AC/DCAdapter(9V/2A)+EUT+MobilePhone(15W)+Watch(2.5W) Mode16AC/DCAdapter(9V/2A)+EUT+MobilePhone(10W)+Watch(2.5W) Mode17AC/DCAdapter(9V/2A)+EUT+MobilePhone(7.5W)+Watch(2.5W) Mode18AC/DCAdapter(9V/2A)+EUT+MobilePhone(5W)+Watch(2.5W) Mode19AC/DCAdapter(9V/2A)+EUT+Earbuds(5W)+Watch(2.5W) Mode20AC/DCAdapter(9V/2.7A)+EUT+MobilePhone(15W) Mode21AC/DCAdapter(9V/2.7A)+EUT+MobilePhone(10W) Mode22AC/DCAdapter(9V/2.7A)+EUT+MobilePhone(7.5W) Mode23AC/DCAdapter(9V/2.7A)+EUT+MobilePhone(5W) Mode24AC/DCAdapter(9V/2.7A)+EUT+Earbuds(3W) Mode25AC/DCAdapter(9V/2.7A)+EUT+Watch(2.5W) Mode26AC/DCAdapter(9V/2.7A)+EUT+MobilePhone(15W)+Earbuds(3W)+Watch(2.5W) Mode27AC/DCAdapter(9V/2.7A)+EUT+MobilePhone(10W)+Earbuds(3W)+Watch(2.5W) Mode28AC/DCAdapter(9V/2.7A)+EUT+MobilePhone(7.5W)+Earbuds(3W)+Watch(2.5W) Mode29AC/DCAdapter(9V/2.7A)+EUT+MobilePhone(5W)+Earbuds(3W)+Watch(2.5W) Mode30AC/DCAdapter(9V/2.7A)+EUT+MobilePhone(15W)+Earbuds(3W) Mode31AC/DCAdapter(9V/2.7A)+EUT+MobilePhone(10W)+Earbuds(3W) Mode32AC/DCAdapter(9V/2.7A)+EUT+MobilePhone(7.5W)+Earbuds(3W) Mode33AC/DCAdapter(9V/2.7A)+EUT+MobilePhone(5W)+Earbuds(3W) Mode34AC/DCAdapter(9V/2.7A)+EUT+MobilePhone(15W)+Watch(2.5W) Mode35AC/DCAdapter(9V/2.7A)+EUT+MobilePhone(10W)+Watch(2.5W) Mode36AC/DCAdapter(9V/2.7A)+EUT+MobilePhone(7.5W)+Watch(2.5W) Mode37AC/DCAdapter(9V/2.7A)+EUT+MobilePhone(5W)+Watch(2.5W) Mode38AC/DCAdapter(9V/2.7A)+EUT+Earbuds(5W)+Watch(2.5W) Mode39AC/DCAdapter(12V/2A)+EUT+MobilePhone(15W) Mode40AC/DCAdapter(12V/2A)+EUT+MobilePhone(10W) Mode41AC/DCAdapter(12V/2A)+EUT+MobilePhone(7.5W) Mode42AC/DCAdapter(12V/2A)+EUT+MobilePhone(5W) Mode43AC/DCAdapter(12V/2A)+EUT+Earbuds(3W) Mode44AC/DCAdapter(12V/2A)+EUT+Watch(2.5W) Mode45AC/DCAdapter(12V/2A)+EUT+MobilePhone(15W)+Earbuds(3W)+Watch(2.5W)Record Mode46AC/DCAdapter(12V/2A)+EUT+MobilePhone(10W)+Earbuds(3W)+Watch(2.5W) Mode47AC/DCAdapter(12V/2A)+EUT+MobilePhone(7.5W)+Earbuds(3W)+Watch(2.5W) Mode48AC/DCAdapter(12V/2A)+EUT+MobilePhone(5W)+Earbuds(3W)+Watch(2.5W) Mode49AC/DCAdapter(12V/2A)+EUT+MobilePhone(15W)+Earbuds(3W) Mode50AC/DCAdapter(12V/2A)+EUT+MobilePhone(10W)+Earbuds(3W) Mode51AC/DCAdapter(12V/2A)+EUT+MobilePhone(7.5W)+Earbuds(3W) Mode52AC/DCAdapter(12V/2A)+EUT+MobilePhone(5W)+Earbuds(3W) Mode53AC/DCAdapter(12V/2A)+EUT+MobilePhone(15W)+Watch(2.5W) Mode54AC/DCAdapter(12V/2A)+EUT+MobilePhone(10W)+Watch(2.5W) Mode55AC/DCAdapter(12V/2A)+EUT+MobilePhone(7.5W)+Watch(2.5W) Mode56AC/DCAdapter(12V/2A)+EUT+MobilePhone(5W)+Watch(2.5W) Mode57AC/DCAdapter(12V/2A)+EUT+Earbuds(5W)+Watch(2.5W) Note:Alltestmodeswerepre-tested,butweonlyrecordedtheworstcaseinthisreport. RFExposureEvaluation 1MeasuringStandard KDB680106RFExposureWirelessChargingAppsv03r01 2Requirements Accordingtotheitem5ofKDB680106v03r01: Inductivewirelesspowertransferapplicationsthatmeetallofthefollowingrequirementsareexcludedfrom submittinganRFexposureevaluation. (1)Powertransferfrequencyislessthan1MHz. (2)Outputpowerfromeachprimarycoilislessthanorequalto15watts. (3)Thesystemmayconsistofmorethanonesourceprimarycoils,chargingoneormoreclients.Ifmorethan oneprimarycoilispresent,thecoilpairsmaybepoweredonatthesametime. (4)Clientdeviceisplaceddirectlyincontactwiththetransmitter. (5)Mobileexposureconditionsonly(portableexposureconditionsarenotcoveredbythisexclusion). (6)TheaggregateH-fieldstrengthsanywhereatorbeyond15cmsurroundingthedevice,and20cmaway fromthesurfacefromallcoilsthatbydesigncansimultaneouslytransmit,andwhilethosecoilsare simultaneouslyenergized,aredemonstratedtobelessthan50%oftheapplicableMPElimit. Remark:Meetalltheaboverequirements. Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhumanexposure toradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE) 3TestSetup 4TestProcedure 1)TheRFexposuretestwasperformedinanechoicchamber. 2)Themeasurementprobewasplacedattestdistance(15cmfromallsidesand20cmfromthetop)whichis betweentheedgeofthechargerandthegeometriccenterofprobe. 3)Thehighestemissionlevelwasrecordedandcomparedwithlimitassoonasmeasurementofeachpoints (A,B,C,D,E)werecompleted. 4)TheEUTwasmeasuredaccordingtothedictatesofKDB680106v03r01. Remark：TheEUT’stestpositionA,B,C,DandEisvalidfortheEandHfieldmeasurements. 5TestInstrumentslist TestEquipmentManufacturerModelNo.SN. Cal.Date (mm-dd-yy) Cal.Duedate (mm-dd-yy) ExposureLevelTesterNardaELT-400N-0231June.262022June.252023 Magneticfieldprobe 100cm 2 NardaELTprobe100cm 2 M0675June.262022June.252023 IsotropicElectricfield probe NardaEP-601611WX70332June.262022June.252023 6TestResult E-FiledStrengthat15cmfromtheedgessurroundingtheEUT(V/m) FrequencyRange (MHz) Test PositionA Test PositionB Test PositionC Test PositionD Limits (V/m) 0.12970.760.740.750.74614 E-FiledStrengthat20cmfromthetopoftheEUT(V/m) FrequencyRange (MHz) Test PositionE Limits (V/m) 0.12970.75614 H-FiledStrengthat15cmfromtheedgessurrou…

Text truncated - open the document above for the full version.

ProjectNo.:ZKT-2210177648E Page 1 of 23 FCCTESTREPORT FCCID:2A2NS-GY-Z5G ReportNumber. .................................. :ZKT-2210177648E DateofTest ....................................................... : Oct.17,2022toOct.21,2022 Dateofissue.........................................: Oct.21,2022 Totalnumberofpages..........................23 TestResult .......................................... : PASS TestingLaboratory............................: ShenzhenZKTTechnologyCo.,Ltd. Address ............................................... : 1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrial Avenue,FuhaiStreet,Bao'anDistrict,Shenzhen,China Applicant'sname.............................:Guanyu(Dongguan)IntelligentTechnologyCo.,Ltd Address...............................................: 1001Room,No#3building,No#36Fuxingroad,Chang’an town,DongguanCity,GuangdongChina Manufacturer'sname......................:Guanyu(Dongguan)IntelligentTechnologyCo.,Ltd Address...............................................: 1001Room,No#3building,No#36Fuxingroad,Chang’an town,DongguanCity,GuangdongChina Testspecification: Standard................................................:FCCCFRTitle47Part15SubpartC Testprocedure.....................................: / Non-standardtestmethod................:N/A TestReportFormNo........................: TRF-EL-107_V0 TestReportForm(s)Originator.....: ZKTTesting MasterTRF ........................................ : Dated:2020-01-06 ThisdevicedescribedabovehasbeentestedbyZKT,andthetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZKT,thisdocumentmay bealteredorrevisedbyZKT,personalonly,andshallbenotedintherevisionofthedocument. Productname.....................................:WirelessCharger Trademark...........................................: Guany Model/Typereference.........................:GY-Z5G GY-Z5G-1、GY-Z5G-2、GY-Z5G-3 Ratings .................................................. : Input:DC9V2A/DC9V2.7A/DC12V2A WirelessOutputPhone:15WMax WirelessOutputEarbuds:3WMax WirelessOutputWatch:2.5WMax ProjectNo.:ZKT-2210177648E Page 2 of 23 Testingprocedureandtestinglocation: TestingLaboratory.......................................:ShenzhenZKTTechnologyCo.,Ltd. Address ............................................................ :1/F,No.101,BuildingB,No.6,TangweiCommunity IndustrialAvenue,FuhaiStreet,Bao'anDistrict, Shenzhen,China TomZou Testedby(name+signature).......................: JacksonFang Reviewer(name+signature).......................: LakeXie Approved(name+signature).......................: ProjectNo.:ZKT-2210177648E Page 3 of 23 TABLEOFCONTENTS 1.VERSION.......................................................................................................................................4 2.TESTSUMMARY........................................................................................................................5 2.1TESTFACILITY....................................................................................................................................6 2.2MEASUREMENTUNCERTAINTY....................................................................................................6 3.GENERALINFORMATION......................................................................................................7 3.1GENERALDESCRIPTIONOFEUT..................................................................................................7 3.2Testmode..............................................................................................................................................7 3.3BlockDiagramofEUTConfiguration................................................................................................8 3.4TestConditions.....................................................................................................................................9 3.5DescriptionOfSupportUnits(ConductedMode)............................................................................9 3.6EQUIPMENTSLISTFORALLTESTITEMS................................................................................10 4.CONDUCTEDEMISSIONTEST............................................................................................11 4.1CONDUCTEDEMISSIONMEASUREMENT................................................................................11 4.1.1POWERLINECONDUCTEDEMISSIONLimits........................................................................11 4.1.2TESTPROCEDURE.......................................................................................................................11 4.1.3DEVIATIONFROMTESTSTANDARD.......................................................................................12 4.1.4TESTSETUP...................................................................................................................................12 4.1.5EUTOPERATINGCONDITIONS.................................................................................................12 4.1.6TestResult.......................................................................................................................................12 5.RADIATEDEMISSIONMEASUREMENT............................................................................15 5.1RadiatedEmissionLimits..................................................................................................................15 5.2AnechoicChamberTestSetupDiagram........................................................................................16 5.3TestProcedure....................................................................................................................................16 5.4DEVIATIONFROMTESTSTANDARD..........................................................................................16 5.5TestResult.......................................................…

Text truncated - open the document above for the full version.

SPECIFICATIONFORAPPROVAL 东莞市聚源精密科技有限公司 A28双线圈 166730250337 A28 双线圈发射模组 上下线圈内径19.5*27.5，电感7.2μH±10%，，带背 胶，出线长度120mm A0 符合ROHS、REACH标准 2022.10.10 广东东莞市石碣镇石碣村委中心工业区B栋 / 0769-82297538/0769-82297548 / http://chinesecoil.com APPROVEDBY RD/ /ID PM/ 业务 ChangeChangeTheDetail Version1.0.0part1of5 更改目录 更改事项修改前修改后修改日期修改人员 SpecificationsReferenceDesigns Version1.0.0part2of5 产品型号： ModelNumber A28 双线圈模组 客户料号： CustomerP/N 166730250337 供应商料号： SupplierP/N 一，外观与尺寸（AppearanceSize）：（单位/mm） A19.5±1 B27.5±1 C40±1.5 D47.5±1.5 E19.5±1 F27.5±1 G48.5±1.5 H51.5±1 I93±1 J3.5±1.5 K120±5 L3.5±1 M5.5±1 N1.0±0.2 O4.5MAX P Q R S T U V W X Y Z SpecificationsReferenceDesigns Version1.0.0part3of5 二，原理图（SchematicDiagram）： 三，绕线参数（WindingParameters）： 绕组 Winding 开始 Start 结束 Finish 圈数 Turns 线径 LineDiameter 绕线方式 WindingWay 绕线方向 WindingDirection 层数&圈数 Layer&Circle L1SF9TS 0.08*105P密绕逆时针1层/9TS L2SF9TS0.08*105P密绕逆时针1层/9TS 四，电气特性（ElectricalCharacteristics）： 项目 Item 端子 Terminal 测试条件 TestConditions 测试仪器 TestInstrument 参数 Parameter 单位 Unit 数值 NumericalValue 电感 S-F100KHz/1.00V/100Ω 1062电桥 Inductance @100KHz/1V μH7.2μH±10% Q值S-F100KHz/1.00V/100Ω1062电桥@100KHz/1V75MIN 电阻 S-F100KHz/1.00V/100Ω 1062电桥 @100KHz/1VmΩ60MAX EncascmentBillOfMaterials Version1.0.0part4of5 产品 Product 单层数量 Singlelayerquantity 层数/箱 Layer/Box 总数/箱 Total/Box 重量 Weigh A2880pcs3层240pcs 1 、每层珍珠棉可装 80pcs 产品； 2 、每箱可装 3 层珍珠棉，即可装 240 产品 MaterielBillOfMaterials Version1.0.0part5of5 材料清单 MaterialList 客户料号 : CustomerP/N 166730250337 制造商料号 : SupplierP/N 序号 No. 材料名称 MaterialName 材料规格 MaterialSpecification 材料代号 MaterialCode 制作商 Manufacturer 1 自粘丝包线0.08*105P01.00092 2 无铅锡条高温05.00058 3 胶水树脂胶05.00001 4 双面胶92*50*0.08mm 05.00005 5 双拼磁片46.5*51.5*1mm（*2）02.00045 6 珍珠棉380*280*62mm04.00014 7 纸箱400*300*210mm04.00024 8 高温胶带 5mm05.00027 9 10 11

SPECIFICATIONFORAPPROVAL 东莞市聚源精密科技有限公司 A11 166730250338 A11-G44双槽带孔模组 6.3uH±10%,丝包线0.08*105P，线圈出线长度50mm A0 符合ROHS、REACH标准 2022.10.10 广东东莞市石碣镇石碣村委中心工业区B栋 / 0769-82297538/0769-82297548 / http://chinesecoil.com APPROVEDBY RD/ /ID PM/ 业务 ChangeChangeTheDetail Version1.0.0part1of5 更改目录 更改事项修改前修改后修改日期修改人员 SpecificationsReferenceDesigns Version1.0.0part2of5 产品型号： ModelNumber A11-G44 客户料号： CustomerP/N 166730250338 供应商料号： SupplierP/N 一，外观与尺寸（AppearanceSize）：（单位/mm） A5.3±0.5 B14±0.5 C39±1.5 D44±1 E3.5±1.5 F50±2 G1.0±0.2 H2.8MAX I J K L M N O P Q R S T U V W X Y Z SpecificationsReferenceDesigns Version1.0.0part3of5 二，原理图（SchematicDiagram）： 三，绕线参数（WindingParameters）： 绕组 Winding 开始 Start 结束 Finish 圈数 Turns 线径 LineDiameter 绕线方式 WindingWay 绕线方向 WindingDirection 层数&圈数 Layer&Circle SF12TS 0.08*105P 小线径 单层密绕逆时针1层/12TS 四，电气特性（ElectricalCharacteristics）： 项目 Item 端子 Terminal 测试条件 TestConditions 测试仪器 TestInstrument 参数 Parameter 单位 Unit 数值 NumericalValue 电感S-F100KHz/1.00V/100Ω1062电桥 Inductance @100KHz/1V μH6.5μH±10% 电阻S-F100KHz/1.00V/100Ω1062电桥@100KHz/1VmΩ60MAX Q值 S-F100KHz/1.00V/100Ω 1062电桥 @100KHz/1V70MIN EncascmentThepackingway Version1.0.0part4of5 产品 Product 单层数量 Singlelayerquantity 层数/箱 Layer/Box 总数/箱 Total/Box 重量 Weigh A11-G44270pcs 4层 1080pcs 1、每层珍珠棉可装270pcs产品； 2、每箱可装4层珍珠棉，即可装1080产品 MaterielBillOfMaterials Version1.0.0part5of5 材料清单 MaterialList 客户料号 : CustomerP/N 166730250338 制造商料号 : SupplierP/N 序号 No. 材料名称 MaterialName 材料规格 MaterialSpecification 材料代号 MaterialCode 制作商 Manufacturer 1自粘丝包线0.08*105P小线径01.00000 2 无铅锡条高温 05.00058 3胶水树脂胶05.00001 4 高温胶带 5mm05.00027 5 圆形双槽带孔硬磁 片 G44*5.3*1mm02.00095 6 双面胶 43*5*0.08mm05.00020 7包装盒390*280*47mm04.00029 8 纸箱400*300*210mm 04.00024 9 10 11 12 13 14

SPECIFICATIONFORAPPROVAL 东莞市聚源精密科技有限公司 手表线圈 166730250339 苹果手表软磁线圈 7.6μH-8.0μH，漆包线0.08*28P，线圈出线长度220mm A0 符合ROHS、REACH标准 2022.10.10 广东东莞市石碣镇石碣村委中心工业区B栋 / 0769-82297538/0769-82297548 / http://chinesecoil.com APPROVEDBY RD/ /ID PM/ 业务 ChangeChangeTheDetail Version1.0.0part1of5 更改目录 更改事项修改前修改后修改日期修改人员 SpecificationsReferenceDesigns Version1.0.0part2of5 产品型号： ModelNumber 手表线圈 客户料号： CustomerP/N 166730250339 供应商料号： SupplierP/N 一，外观与尺寸（AppearanceSize）：（单位/mm） A 14±1 B 18.5±1 C 220±5 D 3.5±1.5 E Ø7.8 F 2.0±0.2 G H I J K L M N O P Q R S T U V W X Y Z SpecificationsReferenceDesigns Version1.0.0part3of5 二，原理图（SchematicDiagram）： 三，绕线参数（WindingParameters）： 绕组 Winding 开始 Start 结束 Finish 圈数 Turns 线径 LineDiameter 绕线方式 WindingWay 绕线方向 WindingDirection 层数&圈数 Layer&Circle SF14TS0.08*28P 密绕逆时针多层 /14TS 四，电气特性（ElectricalCharacteristics）： 项目 Item 端子 Terminal 测试条件 TestConditions 测试仪器 TestInstrument 参数 Parameter 单位 Unit 数值 NumericalValue 电感S-F100KHz/1.00V/100Ω1062电桥 Inductance @100KHz/1V μH 7.6-8.0μH Q值 S-F100KHz/1.00V/100Ω 1062电桥 Q@100KHz/1V20MIN 电阻 S-F100KHz/1.00V/100Ω 1062电桥 DCR@100KHz/ 1V mΩ180MAX EncascmentThepackingway Version1.0.0part4of5 产品 Product 单层数量 Singlelayerquantity 层数/箱 Layer/Box 总数/箱 Total/Box 重量 Weigh 手表线圈 132pcs 3层 792pcs 1、每层珍珠棉可装132pcs产品； 2、每箱可装6层珍珠棉，即可装792产品 MaterielBillOfMaterials Version1.0.0part5of5 材料清单 MaterialList 客户料号 : CustomerP/N 166730250339 制造商料号 : SupplierP/N 序号 No. 材料名称 MaterialName 材料规格 MaterialSpecification 材料代号 MaterialCode 制作商 Manufacturer 1 自粘漆包线 0.08 * 28P 01.00001 2 无铅锡条高温05.00058 3 胶水树脂胶05.00170 4 双面胶19*0.08mm（3M）05.00160 5 小磁铁 7.8 * 2.0mm 02.00164 6 罐形磁片 23.5*2.5mm 带孔 02.00159 7纸隔板378*270mm04.00020 8 包装盒380*270*30mm132格 04.00087 9纸箱400*300*190mm04.00008

EUTTESTPHOTO
