⥛㠘⟝⤥㵝⭖ ⥛㠘⟝⤥⢋䓝⥛㠘㾮子⨀⫈㹐㑰⢁㕌䐧㵝 㪔屮 ⹅䄶㯖㘘䇂㯃䄋㤔㬚䇤⭆㸜 ⤥䐫⟇⡟⡩㏞㬒ヅ⥛㠘㘜⧧ =(Ⰹ䐧䇃㸥㯖㘘㭊J㵎⟇䐞$㋸㑯  PP᷉己㡑㎕⨀⫈᷊*<=(㯥㩌䇂㯃᷍㯌㘇⤫䇂᷍䍼䄔PP *<=$'=%$㾂⧣ 㯖㘘㭊䓃ᷛ䄵⥛㠘㬖カ㣊䂚㸋䓝 FCC Warning StatementChanges or modifications not expressly approved by the party responsible for compliance couldvoid the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Theselimits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try tocorrect the interference by one or more of the following measures:‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the followingtwo conditions: (1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.RF Exposure: A distance of 20 cm shall be maintained between the antenna and users, and the transmitter may not be co ‐ located with any other transmitter or antenna.

Guanyu(Dongguan) Intelligent Technology Co.,Ltd Agent Authorization Company: Guanyu(Dongguan) Intelligent Technology Co.,Ltd Address: 1001 Room, No#3 building, No#36 Fuxing road, Chang’an town, Dongguan City, Guangdong, China Product Name: Wireless Charger Model Number(s): GY-Z8E, GY-Z8A Product Description: Wireless Charger We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Apr. 11, 2022 Name: ManFang Wu Title: Manager Company: Guanyu(Dongguan) Intelligent Technology Co.,Ltd

Guanyu(Dongguan) Intelligent Technology Co.,Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Apr. 11, 2022 Subject; Request for Confidentiality FCC ID: 2A2NS-GY-Z8E To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: ManFang Wu Title: Manager

Model Difference Declaration To Whom It May Concern, We, Guanyu(Dongguan) Intelligent Technology Co.,Ltd(Wireless Charger) Trademark:Guany; Model Number:GY-Z8E, GY-Z8A;All model’s the function, software and electric circuit are the same, only with a product color, appearance and model named different for commercial purpose. Test sample model: GY-Z8E. Please contact me if you have any question. Name:ManFang Wu Date:Apr. 11, 2022 Title: Manager Signature of applicant:

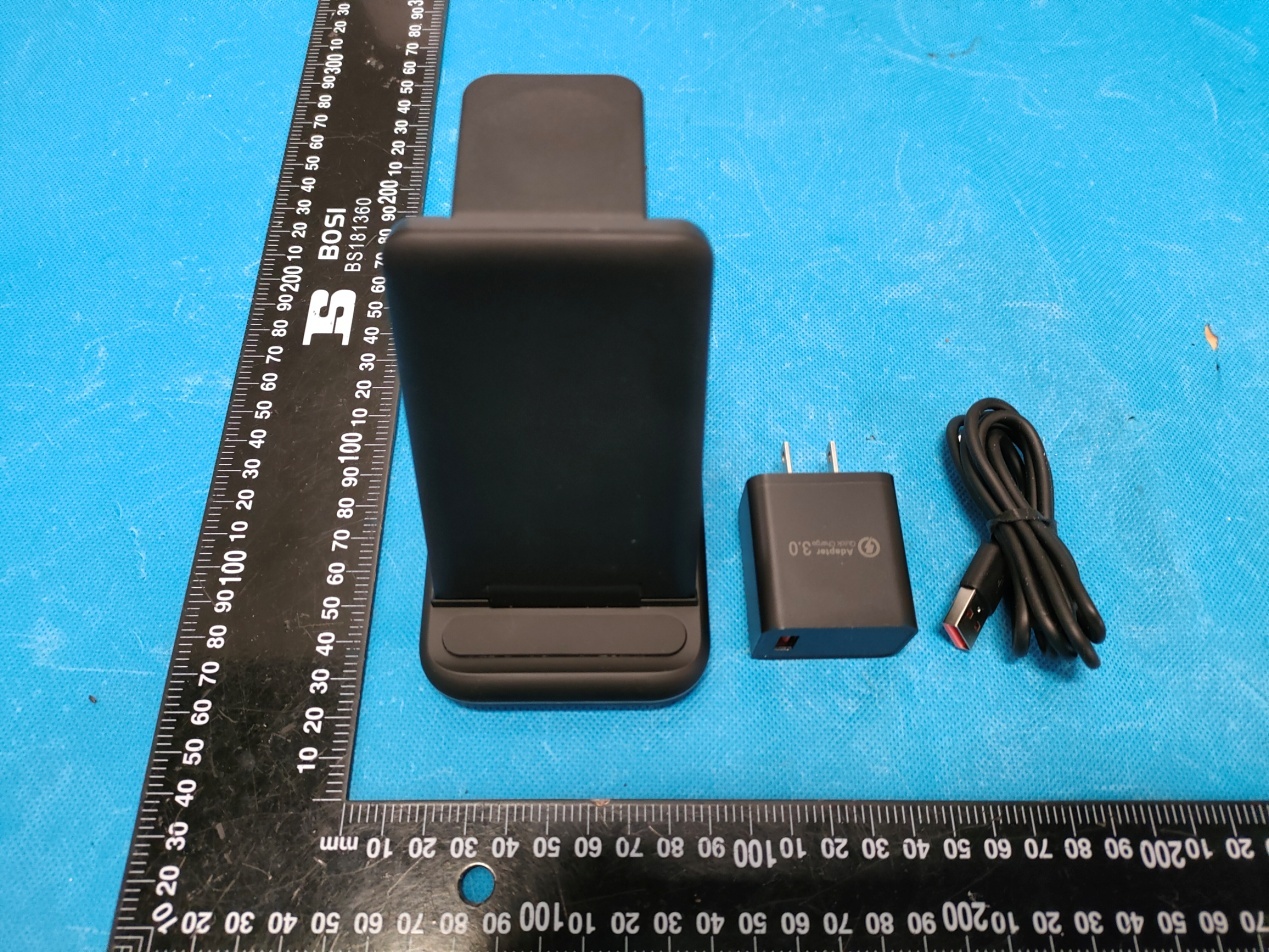

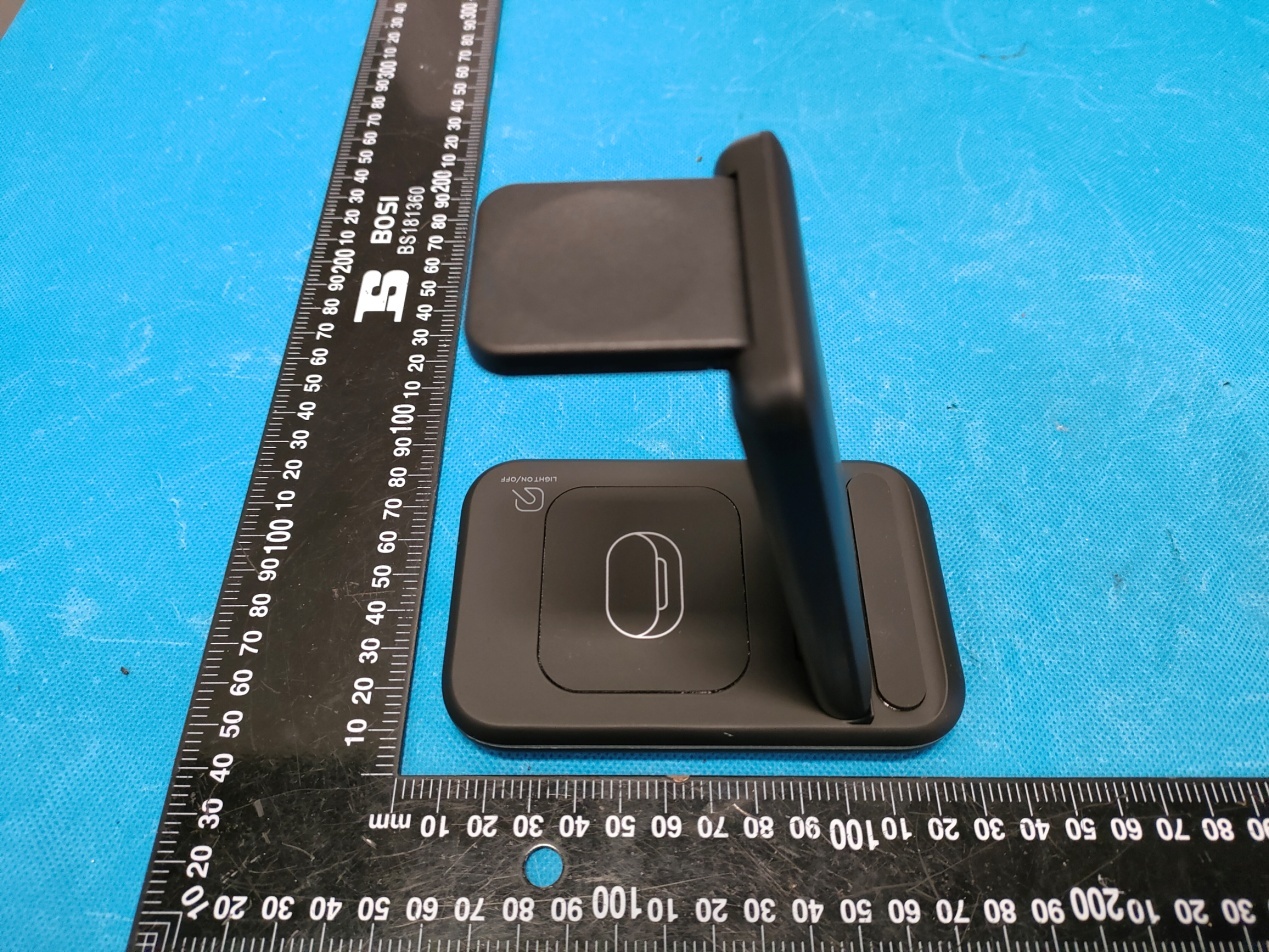

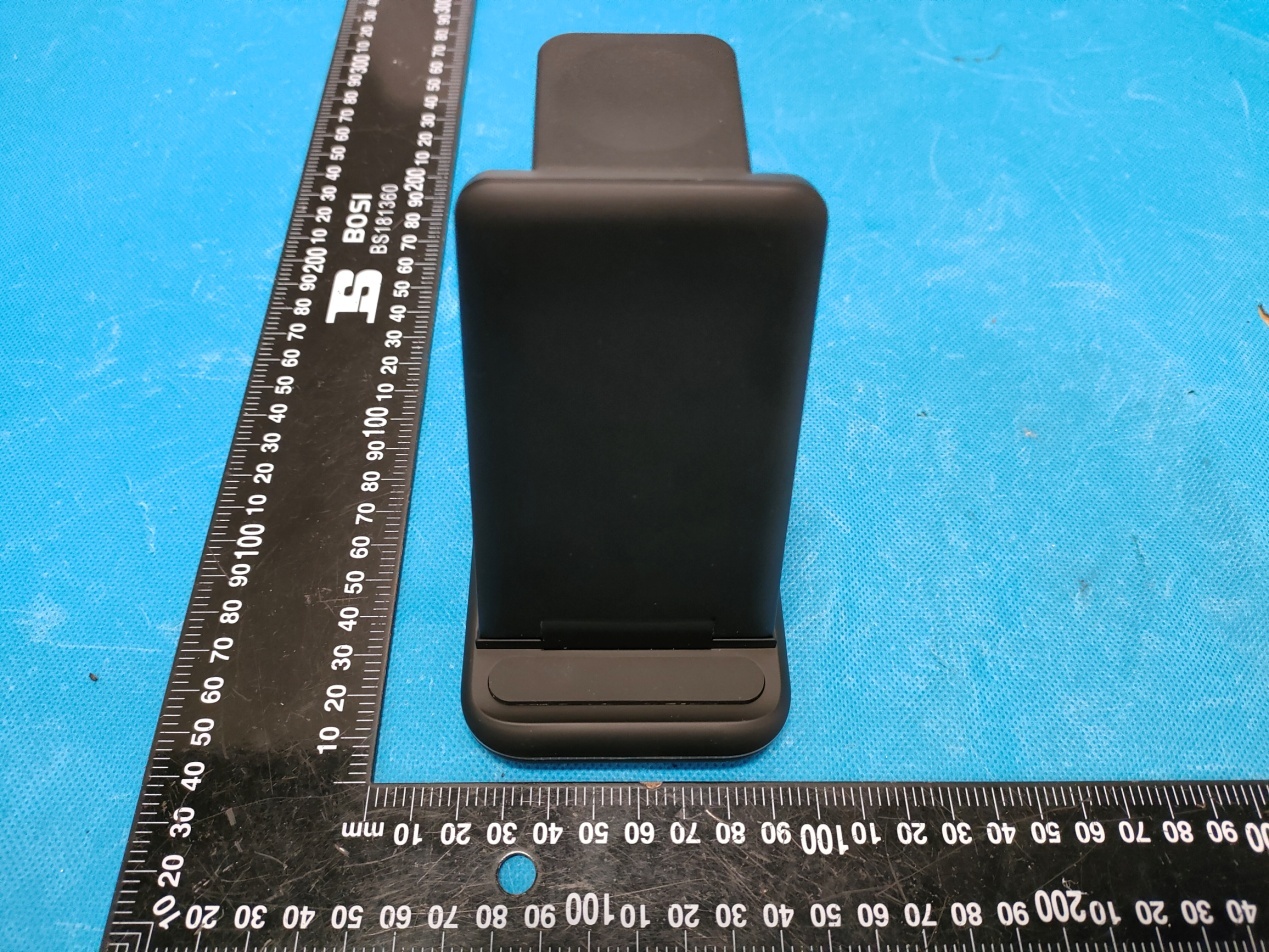

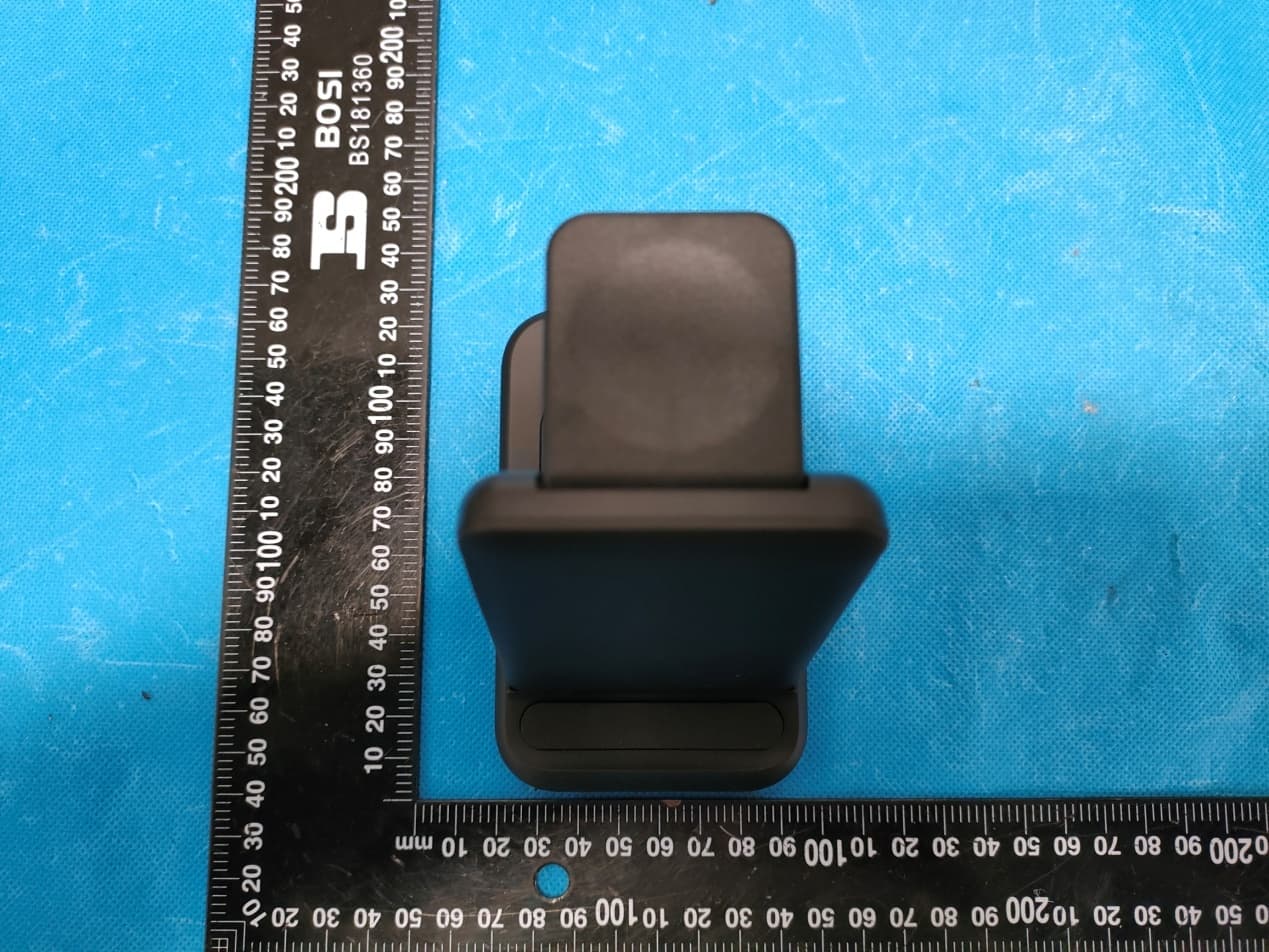

Annex A External Photos Report No.: HK2203241191‐1E/2E Page 1 of 4 Report No.: HK2203241191‐1E/2E Page 2 of 4 Report No.: HK2203241191‐1E/2E Page 3 of 4 Report No.: HK2203241191‐1E/2E Page 4 of 4

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2A2NS-GY-Z8E

Annex B Internal Photos Report No.: HK2203241191‐1E/2E Page 1 of 5 Antenna Report No.: HK2203241191‐1E/2E Page 2 of 5 Report No.: HK2203241191‐1E/2E Page 3 of 5 Report No.: HK2203241191‐1E/2E Page 4 of 5 Report No.: HK2203241191‐1E/2E Page 5 of 5

Page 1 of 10 Report No.: HK2203241191-2E FCC TEST REPORT Test report On Behalf of Guanyu(Dongguan) Intelligent Technology Co.,Ltd For Wireless Charger Model No.: GY-Z8E, GY-Z8A FCC ID: 2A2NS-GY-Z8E Prepared For : Guanyu(Dongguan) Intelligent Technology Co.,Ltd 1001 Room, No#3 building, No#36 Fuxing road, Chang’an town, Dongguan City, Guangdong, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Mar. 24, 2022 ~ Mar. 31, 2022 Date of Report: Mar. 31, 2022 Report Number: HK2203241191-2E Page 2 of 10 Report No.: HK2203241191-2E Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Channel List Channel Frequency (KHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 01 123 The EUT antenna is Coil Antenna. No antenna other than that furnished by the responsible party shall be used with the device. 2. SUMMARY OF TEST RESULTS 2.1. Test procedures according to the technical standards: FCC KDB680106 D01 RF Exposure Wireless Charging Apps v03r01 FCC CFR 47 Standard Section Test Item Judgment Remark FCC CFR 47 part1, 1.1310 KDB680106 D01v03r01 (3)(3) Electric Field Strength (E) (V/m) PASS Magnetic Field Strength (H) (A/m) PASS 2.2. Measurement Uncertainty The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 All emissions, radiated(<30M)(9KHz-30MHz) ±3.90dB 2 Temperature ±0.5°C 3 Humidity ±2% Page 3 of 10 Report No.: HK2203241191-2E 2.3. Test Mode EUT Mode Description Charging ANT 1 Cell phone setting 15W Cell phone setting 10W Cell phone setting 7.5W Cell phone setting 5W ANT 2 Cell watch setting 3W ANT 3 Cell earphone setting 2.5W ANT 1+ANT 2 Cell phone setting 15W+ Cell watch setting 3W ANT 1+ANT 3 Cell phone setting 15W+ Cell earphone setting 2.5W ANT 2+ANT 3 Cell watch setting 3W+ Cell earphone setting 2.5W ANT1+ANT2+ANT3 Cell phone setting 15W+ Cell watch setting 3W+ Cell earphone setting 2.5W 2.4. Test Instruments Description Brand Model No. Frequency Range Calibrated Date Calibrated Until Exposure Level Te s t e r narda ELT-400 N-0231 Feb. 18, 2022 Feb. 17, 2023 Magnetic field probe 100cm 2 narda ELT probe 100cm2 M0675 Feb. 18, 2022 Feb. 17, 2023 NOTE: 1. The calibration interval of the above test instruments is 12 months. Page 4 of 10 Report No.: HK2203241191-2E 3. MAXIMUM PERMISSIBLE EXPOSURE Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180 / f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density. Note 2: For the applicable limit, see FCC 1.1310, 680106 D01 RF Exposure Wireless Charging Apps v03r01. Note 3: Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. Page 5 of 10 Report No.: HK2203241191-2E 4. TEST PROCEDURE a. For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of (H-field & E- field strengths for all sides is 15cm, H-field strengths of top side is 20cm). E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. 4.1 Test Setup 4.2 Result Of Maximum Permissible Exposure Page 6 of 10 Report No.: HK2203241191-2E All test modes are tested, and the report shows only the worst mode: ANT1+ANT2+ANT3 For Full load mode: H-Field Strength at 15 cm (E top side: 20cm) from the edges surrounding the EUT (A/m) Field strength Test Position A Test Position B Test Position C Test Position D Test Position E Limits (A/m) uT 0.451 0.337 0.519 0.458 0.527 / A/m 0.36 0.27 0.42 0.37 0.42 1.63 Note. Calculation: A/m=uT/1.25 For Half Load mode: H-Field Strength at 15 cm (E top side: 20cm) from the edges surrounding the EUT (A/m) Field strength Test Position A Test Position B Test Position C Test Position D Test Position E Limits (A/m) uT 0.422 0.367 0.609 0.334 0.429 / A/m 0.34 0.29 0.49 0.27 0.34 1.63 Note. Calculation: A/m=uT/1.25 For No load mode: H-Field Strength at 15 cm (E top side: 20cm) from the edges surrounding the EUT (A/m) Field strength Test Position A Test Position B Test Position C Test Position D Test Position E Limits (A/m) uT 0.485 0.336 0.366 0.423 0.541 / A/m 0.39 0.27 0.29 0.34 0.43 1.63 Note. Calculation: A/m=uT/1.25 Page 7 of 10 Report No.: HK2203241191-2E Remark: According KDB 680106 D01 RF Exposure Wireless Charging App v03r01, section 5, b). The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. The E- field evaluation conducted assuming a user separation distance of 15 cm according to the KDB 680106 D01 RF Exposure Wireless Charging App v03r01 section 3, c). Result: The device comply with the RF expos…

Text truncated - open the document above for the full version.

Page 1 of 23 Report No.: HK2203241191-1E FCC TEST REPORT Test report On Behalf of Guanyu(Dongguan) Intelligent Technology Co.,Ltd For Wireless Charger Model No.: GY-Z8E, GY-Z8A FCC ID: 2A2NS-GY-Z8E Prepared For : Guanyu(Dongguan) Intelligent Technology Co.,Ltd 1001 Room, No#3 building, No#36 Fuxing road, Chang’an town, Dongguan City, Guangdong, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Mar. 24, 2022 ~ Mar. 31, 2022 Date of Report: Mar. 31, 2022 Report Number: HK2203241191-1E Page 2 of 23 Report No.: HK2203241191-1E TEST RESULT CERTIFICATION Applicant’s name ................. : Guanyu(Dongguan) Intelligent Technology Co.,Ltd Address.................................. : 1001 Room, No#3 building, No#36 Fuxing road, Chang’an town, Dongguan City, Guangdong, China Manufacture's Name ............ : Guanyu(Dongguan) Intelligent Technology Co.,Ltd Address.................................. : 1001 Room, No#3 building, No#36 Fuxing road, Chang’an town, Dongguan City, Guangdong, China Product description Trade Mark: Guany Product name ............................ : Wireless Charger Model and/or type reference : GY-Z8E, GY-Z8A Standards ............................. : FCC Rules and Regulations Part 15 Subpart C (Section 15.209), ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Mar. 24, 2022 ~ Mar. 31, 2022 Date of Issue ........................................... : Mar. 31, 2022 Test Result ............................................... : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 23 Report No.: HK2203241191-1E Table of Contents Page 1 . TEST SUMMARY 5 1.1 . Test Procedures And Results 5 1.2 . Information of the Test Laboratory 5 1.3 . Measurement Uncertainty 5 2. GENERAL INFORMATION 6 2.1. General Description of EUT 6 2.2. Carrier Frequency of Channels 7 2.3. Operation of EUT during testing 7 2.4. Test Mode 7 2.5. Description of Test Setup 8 2.6. Measurement Instruments List 9 3. CONDUCTED EMISSION TEST 10 3.1. Block Diagram of Test Setup 10 3.2. Conducted Power Line Emission Limit 10 3.3. Test Procedure 10 4. RADIATED EMISSIONS 13 4.1. Block Diagram of Test Setup 13 4.2. Rules and specifications 14 4.3. Test Procedure 15 4.4. Test Result 15 5. ANTENNA REQUIREMENT 20 6. PHOTOGRAPH OF TEST 21 7. PHOTOS OF THE EUT 23 Page 4 of 23 Report No.: HK2203241191-1E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Mar. 31, 2022 Jason Zhou Page 5 of 23 Report No.: HK2203241191-1E 1. TEST SUMMARY 1.1. Test Procedures And Results DESCRIPTION OF TEST SECTION NUMBERRESULT CONDUCTED EMISSIONS TEST 15.207 COMPLIANT RADIATED EMISSION TEST 15.209 COMPLIANT ANTENNA REQUIREMENT 15.203 COMPLIANT Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. 1.2. Information of the Test Laboratory Shenzhen HUAK Testing Technology Co., Ltd. Add.: 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Testing Laboratory Authorization： A2LA Accreditation Code is 4781.01. FCC Designation Number is CN1229. Canada IC CAB identifier is CN0045. CNAS Registration Number is L9589. 1.3. Measurement Uncertainty Measurement Uncertainty Conducted Emission Expanded Uncertainty =2.71dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 3.90dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz)= 3.90dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.28dB, k=2 Page 6 of 23 Report No.: HK2203241191-1E 2. GENERAL INFORMATION 2.1. General Description of EUT Equipment: Wireless Charger Model Name: GY-Z8E Series Models: GY-Z8A Model Difference: All model’s the function, software and electric circuit are the same, only with a product color, appearance and model named different. Test sample model: GY-Z8E. Trade Mark: Guany FCC ID: 2A2NS-GY-Z8E Antenna Type: Coil Antenna Antenna Gain: 0dBi Operation frequency: 111.5KHz~205KHz Test frequency: 123KHz Number of Channels: 1 Modulation Type: ASK Power Source: Input: 9V/2A, 9V/2.7A, 12V/2A Phone Output:15W/10W/7.5W/5W Watch Output:3W Earphone Output:2.5W Power Rating: Input: 9V/2A, 9V/2.7A, 12V/2A Phone Output:15W/10W/7.5W/5W Watch Output:3W Earphone Output:2.5W Note: The transfer system includes three coils, 3 coils can work individually or can work at the same time. All the situation(full load, half load and empty load) has been tested, only the worst situation (ANT1+ANT2+ANT3 full load 15W) was recorded in the report. Page 7 of 23 Report No.: HK2203241191-1E 2.2. Carrier Frequency of Channels Operation Frequency each of channel Channel Frequency 1 123KHz 2.3. Operation of EUT during testing Operating Mode The mode is used: Transmitting mode 2.4. Test Mode EUT Mode Description Charging ANT 1 Cell phone setting 15W Cell phone setting 10W Cell phone setting 7.5W Cell phone setting 5W ANT 2 Cell watch setting 3W ANT 3 Cell earphone setting 2.5W ANT 1+ANT 2 Cell phone setting 15W+ Cell watch setting 3W ANT 1+ANT 3 Cell phone setting 15W+ Cell earphone setting 2.5W ANT 2+ANT 3 Cell watch setting 3W+ Cell earphone setting 2.5W ANT1+ANT2+ANT3 Cell phone setting 15W+ Cell watch settin…

Text truncated - open the document above for the full version.

Conducted Emission Radiated Emissions
