2A2NS-W61Wireless Charger

100*80mm 单铜 单黑印刷 Bracket Introduction J*＇ 英文 4 IN 1 WIRELESS CHARGER Support models 1.Phone: 1Phone 13,13 Pro,13 Pro Max,13,12,12 Pro,12 Pro Max,12,SE,11, 11 Pro,Pro Max,XS,Xs Max,XR,x,8,8 Plus Samsung Gala对S21 SG,21 + SG,21 Ultra 5G,FE SG,20 SG,20 + 5G, 20 Ultra SG,10, 10 + toe,9,9 +,8,8 +,7,7 edge,6,6 edge,6 edge +,6 G9209, 6Active,Gala双Note10,10e,10+ 9,8,7,6,5 Other: All mobile phones that comply with the QI standard support wireless cha「gers 2. Watch: Apple watch S2,S3,S4,S5,S6,S7,SE 3. Earbuds: Airpods 2,AirPods 3,Airpods Pro 4. Pencil·Apple Pencil 1 Product Appearance Rod泊tocholo· 一 一 l -- Typo -C lop,t port ' ' 60 ° gold bevel angle, the tilt angle is just right ／ Lighting Mode FOD I Too中 ,w ,忙h Noa心 l lp -- , - . Ea,b,d, '"'心,.,,, 中,,.,,,,函 LED Status I Standby Mode I Phone Charging LED Light G'8BO Ught oa Blue light """''"'"" Blue aad G'88n Flashmg Directions for use Use Instructions 1.Please connect this wireless charger to a 5V/3A,9V/3A o『 12V/2Aadap ter via a Type-C fast charging cable and connect to the power supply. 2.Place the phone in the charging area to charge. 3.Hang the original watch in the watch charging position to charge the watch. 4.Put the wireless bluetooth headset box on it to charge. 5.lnsert the capacitive pen into the corresponding charging position to charge the capacitive pen Product Parameter Product name Four-in-one wireless charger Input 5V=3A,9V=3A, 12V=2A(Max ) Size 180 2" 125.9• 94 2mm Conversion rate >70%(Mobile charging ) DC output 15W/10W/7 5W/5W Walch output 2W(M ax ) Earbuds output 3W(M ax ) Capacitor pen output 2W( Max ) To ensure charging 4 devices safely and efficien 廿 y, pis. use the QC3.0- adapter and Type-C charging cable included the product package Packing List 1. 4 in 1 Wireless charge「X1 3 Instruction X 1 2. Data line X 1 4. QC3.0 adapter X1 ' R,d,atochol, Unterstutzte Modelle 德语 意大利 法语 西班牙 j 4 IN 1 KABELLOS LADEGE卧T 1.Phone: ,Phone 13, 13 Pro,13 Pro Max,13,12, 12 Pro, 12 Pro Max,12,SE,11, 11 Pro,Pro Max,XS,Xs Max,XR,x,8,8 Plus Samsung Galaxy. S21 5G,21 + 5G,21 Ultra 5G,FE 5G,20 5G,20 + 5G, 20 Ultra 5G,10, 10 + 10e,9,9 +,8,8 +,7,7 edge,6,6 edge,6 edge +,6 G9209, 6Active,Galaxy Note10,10e,10 + 9,8,7,6,5 Other: All mobile phones that comply with the QI standard support wireless chargers. 2. Watch: Apple watch S2,S3,S4,S5,S6,S7,SE 3. Earbuds: Airpods 2,AirPods 3,Airpods Pro 4. Pencil: Apple Pencil 1 Aussehen des Produkts 氐,ech fu , -- ' 尥belb笠,Ladeo, 尸一一 Plat,虹""''''面中H金饭,pe,-Lo中 , ro,uhrao - ---一一一一 l - - TYJ心-El句a闻,., ' ' 玩"'"" Einfuhrung der Halterung 」 : �==·.. oo, �'"""-兰· Beleuchtung_smodus Gebrauchsanweisung ' ""岱,hto,te, - ' 眩Uh,uog 邸 ohalloc - ' Ko 妇 沺 , _ smkon -P ad H,1,,0,,, 「-Loch Ladobe氏lci, LED-Anze;ge Staadby-Modos I Haady-Ladevo屯aagI FOD LED-Farbe Griln Licht - konstant I Blaues Licht - Blaues und Grun pulsierend IL�ht - blinkend Hinweise zu「Anwendung 1.B讯eve中ndenSle dle,e, 归bellose Ladege戊tube「e,nTyp-C-Schoellladekebel m,t e,nem5V/3A-, fN/3A-oder 12V/2A-Adapte, und schl论Oen s,e es an das Stromnetz an 2.Ben,h心ns,e dten Schalte,, um den Ne区中alto, emzuschalten, und d,e blauen und grunen Lichter blinken abwechselnd. 3.Legen Sie das Telefon in den Ladebereich, um es zu laden 4.H台ngenSie die Originaluhr in d记Uhrenladep伪Uion,um die Uhr zu laden 5.Legen Sie d,e drahUose Bluetooth-Head,et-Box zum Laden auf. 6.Setzen s,e den胆paz,bvenStill ,n d芘en饬p"'chendeI a, le1"'、，心nem, um den 尥区江twen Stift w lad的 ProduktsQ_ezifikationen Product name Kabelloses Vier-in-Eins-Ladegerat Eingabe 5V=3A, 识：：：3A , 12V== 2A(Max) G心Be 180.2 * 125 9 * 94 2mm Kon versions rate 习70%{McbilesLaden) Ausgangsleistung zum Telefon 15W/1 OW/7 5W/5W Ausgangsleistung zur Uhr 2W(M ax) Ausgangsleistung zu Oh巾Orem 3W(Max) Kondensator Stiftausgang 2W(Max ) Um 4 Gerilte sicher und eflizient aufzuladen, verwenden Sie bitte den QC3.0-Adapter und das Typ-C-Ladekabel, die in der Produktverpackung enthalten sind 1. 4 in 1 Drahtloses Ladegerat X 1 3. Anleitung X 1 2. Datenleitung X 1 4. QC3.0 Adapter X 1 十 WIRELESS 4 IN 1 CARICABATTERIE lstruzioni d'utente Modelli di supporto 1.Phone: ,Phone 13, 13 Pro,13 Pro Max,13,12, 12 Pro, 12 Pro Max,12,SE,11, 11 Pro.Pro Max,XS,Xs Max,XR,x,8,8 Plus Samsung Galaxy: S21 5G,21 + 5G,21 Ultra 5G,FE 5G,20 5G,20 + 5G, 20 Ultra 5G,10, 10 + tOe,9,9 +,8,8 +,7,7 edge,6,6 edge,6 edge +,6 G9209, 6A ctive,Galaxy Note10,10e,10 + 9,8,7,6,5 Other: All mobile phones that comply with the QI standard support wireless chargers 2. Watch: Apple watch S2,S3,S4,S5,S6,S7,SE 3. Earbuds: A1rpods 2,A,rPods 3,Airpods Pro 4. Pencil Apple Pencil 1 Aspetto del prodotto A啦di'''"'''矿 ' w,�,, 岱 ' l iotem』tto,eta比le- '' A,ea ,, """心 d'a,,cola,e Foro dal radlatoo, __ Porta d i logra蕊O ' 'Tipo-C ' CUsclootto la - ,m心心 """心,010 ' Forodelradlatora 7 nera di p 。。 a _ _ g n a ' e d 勹60 en d ro g sto 。 ._ g g zu sm ne d di .10 。r t olo az ng g n _ A.In Modalita di illuminazione Luce LED Modal胎standby Zona d1 ncanca del telefono FOD Colore del LED Lampada verde accesa con luce Spia di colo『e blu Blu e verde lampegg,ante lstruzioni per l'uso 1.Collega ii oarioabatterie wireless a un adattatore 5V/3A, 9V/3Ao 12V/2Atramite un cavo di ricarica rapida di tipo-C e collegalo all'alimentazione 2.Toooa l 'interruttore per accendere l' interruttore di alimentazione e le luci blu e verde lampeggiano altemativamente 3.Posiziona ii oellulare nell area d1 rioarioa pe『lanoarioa 4. Appendi ii watch originals nella posizione di canoa di watch per la rioanca 5. Metti la scatola dell ' auricolare bluetooth wireless su di esso per la rioarica 6.lnserisoi la penna condensatore nella posizione di rioarioa cornspondente per la ricarica Pa「ametrodel prodotto Nome del prodotto Four-in-one wireless charger Potenza d'ingresso 5V =3A, 9V:::3A, 12V== 2A(f. 怕劝 Dimensioni del prodotto 180.2 * 125 9 * 94 2mm Tasso di conversione 习70%{Ricaricacellulare} Potenza in uscita (Phone) 15W/1 OW/7 5W/5W Potenza ;n usc;ta (;watch) 2W(M ax) Potenza in uscita (知ricolari) 3W(Ma x) Capacitor pen output 2W(Max ) Per ga『antirel…

Text truncated - open the document above for the full version.

Guanyu(Dongguan) Intelligent Technology Co.,Ltd Agent Authorization Company: Guanyu(Dongguan) Intelligent Technology Co.,Ltd Address: 1001 Room ,No#3 building ,No#36 Fuxing road, Chang’an town ,Dongguan City ,Guangdong China Product Name: Wireless Charger Trade Mark: Guany Model Number(s): W61, GY-W61 FCC ID: 2A2NS-W61 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-02-20 Name: manfang wu Title: Manager Company: Guanyu(Dongguan) Intelligent Technology Co.,Ltd

Guanyu(Dongguan) Intelligent Technology Co.,Ltd Address: 1001 Room ,No#3 building ,No#36 Fuxing road, Chang’an town ,Dongguan City ,Guangdong China Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Dear Sir/Madam, We, Guanyu(Dongguan) Intelligent Technology Co.,Ltd Hereby declares the following statement: PCB board, structure and internal of these model(s) are the same, Only models name is different for these models: Product Name: Wireless Charger Trade Mark: Guany Model Number(s): W61,GY-W61 FCC ID: 2A2NS-W61 Signature: Date: 2022-02-20 Name: manfang wu Title: Manager Company: Guanyu(Dongguan) Intelligent Technology Co.,Ltd

Guanyu(Dongguan) Intelligent Technology Co.,Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022-02-20 Subject; Request for Confidentiality FCC ID: 2A2NS-W61 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: manfang wu Title: Manager

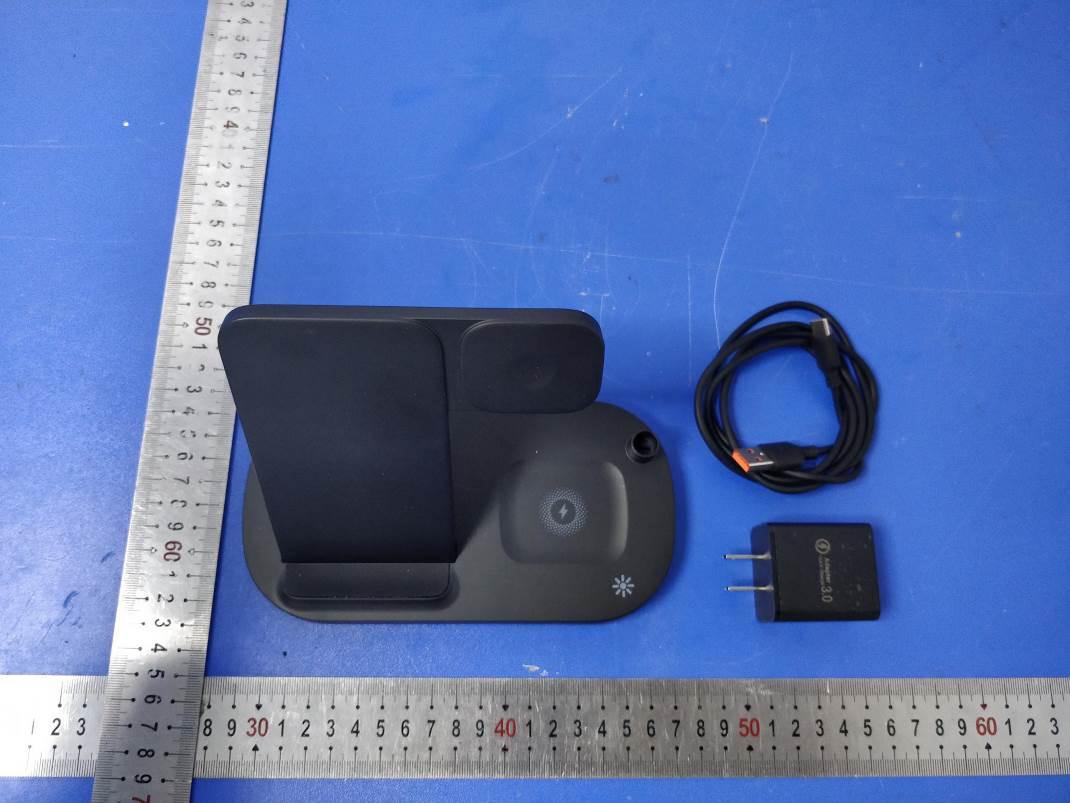

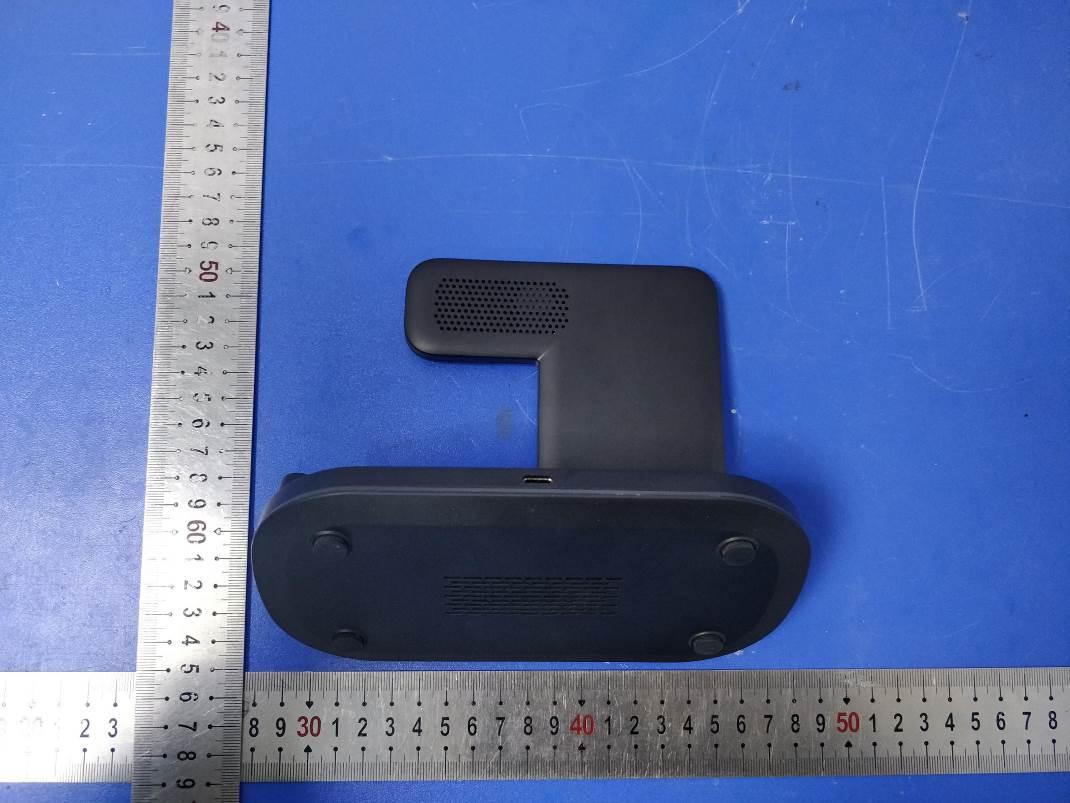

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 Fig. 3 Fig. 4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 Fig. 5 Fig. 6 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 Fig. 7 Fig. 8 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 5 Fig. 9

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L3.5cm*W2.0cm Label Location Wireless Charger Test Model: W61 FCC ID: 2A2NS-W61

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 Coil Antenna Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 Fig. 3 Fig. 4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 Fig. 5 Fig. 6 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 Fig. 7 Fig. 8 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 5 Fig. 9 Coil Antenna Coil Antenna

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 12 RF Exposure Evaluation Report 1. Product Information FCC ID: 2A2NS-W61 Number of tested samples 2 Sample number 220211064A-1(Engineer sample), 220211064A-2(Normal sample) Product Name Wireless Charger Model Number W61 Additional Model No. GY-W61 Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power Supply Input: 5V3A,9V3A,12V2A Output: 15/10/7.5/5W for Phone, 2.0W for iWatch, 3.0W for Earbuds,2.0W for Pen Modulation Type Continuous Wave Frequency Range 110.3~205.0KHz Antenna Type Coil Antenna Hardware version / Software version / Accessories / Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Per KDB 680106 D01 Section 3. RF Exposure Requirements; 1) Consumer wireless power transfer devices approved under Part 18 in some cases have to demonstrate compliance with RF exposure requirements. The potential for exposure must be assessed according to the operating configurations of the wireless system and the exposure conditions of users and bystanders. RF exposure must be evaluated with the client device(s) being charged by the primary at maximum output power. The RF exposure requirements must be determined in conjunction with the device operating characteristics, according to the mobile and portable exposure requirements in Section 2.1091 and Section 2.1093 of the rules. SAR and MPE limits do not cover the frequency range for wireless power transfer applications which operate below 100 kHz and 300 kHz respectively; therefore, RF exposure compliance needs to be determined with respect to 1.1307 (c) and (d) of the FCC rules. 2) Based on the design and implementation of the power transfer application, it must be clearly identified if mobile or portable RF exposure conditions apply. Devices that are installed to provide separation of at least 20 cm from users and bystanders may qualify for mobile exposure conditions. For some conditions where users and bystanders may be exposed at closer than 20 cm, section 2.1091(d) (4) of the rules may apply. 3) For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 12 the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. 4) Portable exposure conditions from 100 kHz to 6 GHz are determined with respect to SAR requirements. Existing SAR systems and test procedures are generally intended for measurements above 100 MHz. While numerical modeling can be an alternative, the constraints of substantial computational resources at low frequencies could introduce further limitations. Under these circumstances, including operations below 100 kHz, the Commission may consider a combination of analytical analysis, field strength, radiated and conducted power measurements, in conjunction with some limited numerical modeling to assess compliance. 5) Depending on the operating frequency, existing SAR and MPE measurement procedures may be adapted to evaluate wireless power transfer devices for compliance with respect to mobile or portable exposure conditions. If the grantee or its test lab have any questions regarding RF exposure evaluation they should contact the FCC Laboratory with sufficient system operating configuration details to determine if RF exposure evaluation is necessary and, if required, how to apply specific test procedures. Below 100 MHz, when SAR testing is required and the device is operating at close proximity to persons, information on device design, implementation, operating configurations, exposure conditions of users and bystanders are needed to determine the evaluation and testing requirements. In addition, the influence of nearby objects may also need consideration according to the wireless power transfer system implementation; for example, the effects of placing the device, its coils or radiating elements on or near metallic surfaces 3. Evaluation Limit 3.1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 680106 D01 RF Exposure Wireless Charging Apps v03: RF Exposure Considerations for Low Power Consumer Wireless Power Transfer Applications FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices FCC CFR 47 part 18.107:Indusial, Scientific, and Medical Equipment Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 12 3.2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnet…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 Report No.: LCS220211064AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 22 FCC TEST REPORT For Guanyu(Dongguan) Intelligent Technology Co.,Ltd Wireless Charger Test Model: W61 Additional Model No.: GY-W61 Prepared for : Guanyu(Dongguan) Intelligent Technology Co.,Ltd Address : 1001 Room ,No#3 building ,No#36 Fuxing road, Chang’an town ,Dongguan City ,Guangdong China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : February 14, 2022 Number of tested samples : 2 Serial number : 220211064A-1(Engineer sample), 220211064A-2(Normal sample) Date of Test : February 14, 2022 ~ February 17, 2022 Date of Report : February 18, 2022 Scan code to check authenticity Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 Report No.: LCS220211064AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 22 FCC TEST REPORT FCC CFR 47 PART 15C Report Reference No. ...................... : LCS220211064AEA Date Of Issue ....................................... : February 18, 2022 Testing Laboratory Name ................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ................................................ : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ................ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .............................. : Guanyu(Dongguan) Intelligent Technology Co.,Ltd Address ................................................ : 1001 Room ,No#3 building ,No#36 Fuxing road, Chang’an town ,Dongguan City ,Guangdong China Test Specification Standard ............................................... : FCC CFR 47 PART 15C Test Report Form No. .......................... : LCSEMC-1.0 TRF Originator .................................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .......................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ....................... : Wireless Charger Trade Mark .......................................... : Guany Test Model ........................................... : W61 Power Supply ...................................... : Input: 5V3A,9V3A,12V2A Output: 15/10/7.5/5W for Phone, 2.0W for iWatch, 3.0W for Earbuds,2.0W for Pen Result ................................................ : Positive Compiled by: Supervised by: Approved by: Jack Liu/ Administrator Jin Wang/ Technique principal Gavin Liang/ Manager Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 Report No.: LCS220211064AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 22 FCC TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS220211064AEA February 18, 2022 Date of issue Test Model.............................. : W61 EUT......................................... : Wireless Charger Applicant............................... : Guanyu(Dongguan) Intelligent Technology Co.,Ltd Address.................................. : 1001 Room ,No#3 building ,No#36 Fuxing road, Chang’an town ,Dongguan City ,Guangdong China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Guanyu(Dongguan) Intelligent Technology Co.,Ltd Address................................... : 1001 Room ,No#3 building ,No#36 Fuxing road, Chang’an town ,Dongguan City ,Guangdong China Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 Report No.: LCS220211064AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 22 Revision History Revision Issue Date Revision Content Revised By 000 February 18, 2022 Initial Issue Gavin Liang Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 Report No.: LCS220211064AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 22 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................... 6 1.1 Description of Device (EUT) .................................................................................................................. 6 1.2 Support equipment List .........................................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Photographs of Test Setup Conducted Emission-AC adapter charge mode Radiated Emission below 30MHz-AC adapter charge mode Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2A2NS-W61 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Radiated Emission below 1GHz-AC adapter charge mode
