2A2OH-S4930L2x3W Speaker

ENGLISH - Instruction Manual SCX Design® Speaker Sound Mini 2x3W Please read this intruction manual carefully before using the product. Product specifications: Output Power: 2x3W Battery capacity: 500mAh Charging time: 2.5 hours Play time: 6 hours Main functions: 1. Start-up and wireless pairing Press one time the power button at the back of the product. Once the product is on, connect with «S49» in your device wireless settings. Once paired, your device will automatically connect to the speaker. After 10 minutes of inactivity, the speaker will automatically turn off. To turn off the speaker, press the power button for 5 seconds. 2. Charging the battery Your speaker is equipped with a battery and can be used wirelessly. When the battery is running low, you can charge it with the included USB-C cable. 3. Handsfree calls With the integrated microphone, this speaker can be used for conference calls. 4. Stereo pairing of two speakers - Press the power button on each speaker to power them on. - Long press one of the speaker power button for 1 second. A short sound will confirm that the speakers are paired together. - Select «S49» in your device wireless settings. To disconnect the stereo speakers, double click on any speaker power button. Warning! Do not place or use this product near a source of high temperature or in a humid environment. Keep the speaker out of reach of children. Never Store or use this product in temperatures below 32°F (0°C) or above 115°F (45°C). Material: ABS + soft-touch finish Weight: 70g Dimensions: 75 x 41 mm Includes a USB-C charging cable. Matières : ABS + revêtement soft-touch Poids : 70g Dimensions : 75 x 41 mm Comprend un câble de chargement USB-C. SCX Design® Speaker Sound Mini 2x3W Avant toute utilisation, veuillez lire attentivement le manuel d’instruction. Spécifications du produit Puissance de sortie : 2x3W Capacité de la batterie : 500 mAh Temps de charge : 2,5 heures Temps de jeu : 6 heures Fonctions principales 1. Mise en marche et connexion sans fil Appuyez une fois sur le bouton d’alimentation à l’arrière du produit. Sélectionnez alors «S49» dans les paramètres de connexion sans fil de votre appareil. Votre appareil se connectera ensuite automatiquement à votre enceinte. Après 10 minutes d’inactivité, l’enceinte s’éteint automatique. Pour éteindre l’enceinte manuellement, appuyez sur le bouton d’alimentation durant 5 secondes. 2. Charge de la batterie Votre enceinte est équipée d’une batterie pour être utilisée sans fil. Vous pouvez recharger la batterie à l’aide du câble de chargement USB-C inclus. 3. Appel main-libre Votre enceinte est équipée d’un microphone, elle peut ainsi être utilisée pour répondre à des appels téléphoniques. 4. Jumelage stéréo de deux enceintes - Appuyez sur le bouton d'alimentation de chaque enceinte pour les allumer. - Appuyez longuement sur l'un des boutons d'alimentation de l’enceinte. Un son court confirmera que les haut-parleurs sont jumelés. - Sélectionnez « S49 » dans les paramètres de connexion de votre appareil. Pour déconnecter les enceintes stéréo, double-cliquez sur n'importe quel bouton d'alimentation d’une enceinte. Avertissement! Ne placez pas et n’utilisez pas ce produit près d’une source de forte chaleur ou dans un environnement humide. Garder le produit hors de portée des enfants. Ne jamais stocker ou utiliser ce produit à des températures inférieures à 32 °F (0 °C) ou au-dessus de 115 °F (45 °C). Model No.: S49/32497 Model No.: S49/32497 FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one ormore of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfere…

Text truncated - open the document above for the full version.

SCX DESIGN Date: 12/27/2021 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2A2OH-S4930L To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou Branch and Kobe Jian in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with SCX DESIGN This authorization is valid until further written notice from the applicant. Sincerely, Print Name: Caroline Vanderschooten Title: purchasing and marketing manager Signature: On behalf of Company: SCX DESIGN Telephone: +33.1.86.95.99.88 E-mail: [email protected]

SCX DESIGN To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States Regarding: Confidentiality Request regarding application for FCC ID: 2A2OH-S4930L LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed or 0 days from the grant date, whichever is less. If the device is marketed within aforementioned days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Print Name: Caroline Vanderschooten Title: purchasing and marketing manager Signature: On behalf of Company: SCX DESIGN Telephone: +33.1.86.95.99.88 E-mail: [email protected]

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name SCX DESIGN Address 68 bis Boulevard Pereire, Paris 75017, France Grantee Code 2A2OH FCC ID 2A2OH-S4930L Authorized Contact Name Caroline Vanderschooten Contact Email [email protected] Contact Phone +33.1.86.95.99.88 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 12/27/2021 Print Name: Caroline Vanderschooten Title: purchasing and marketing manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

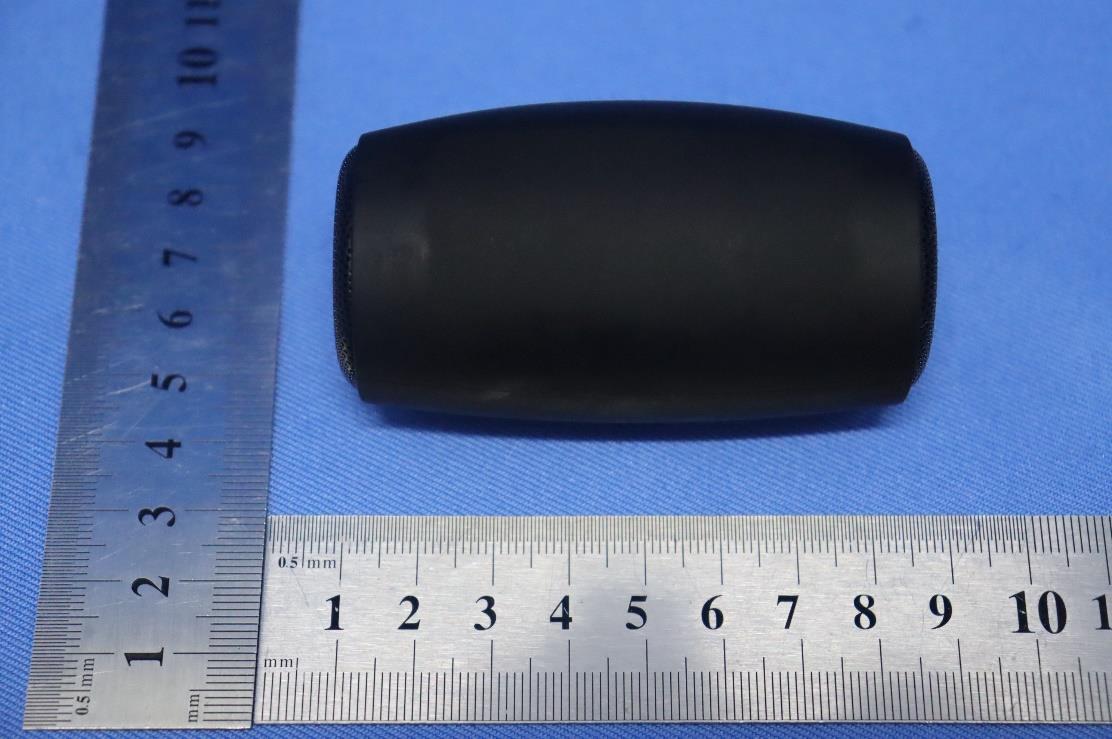

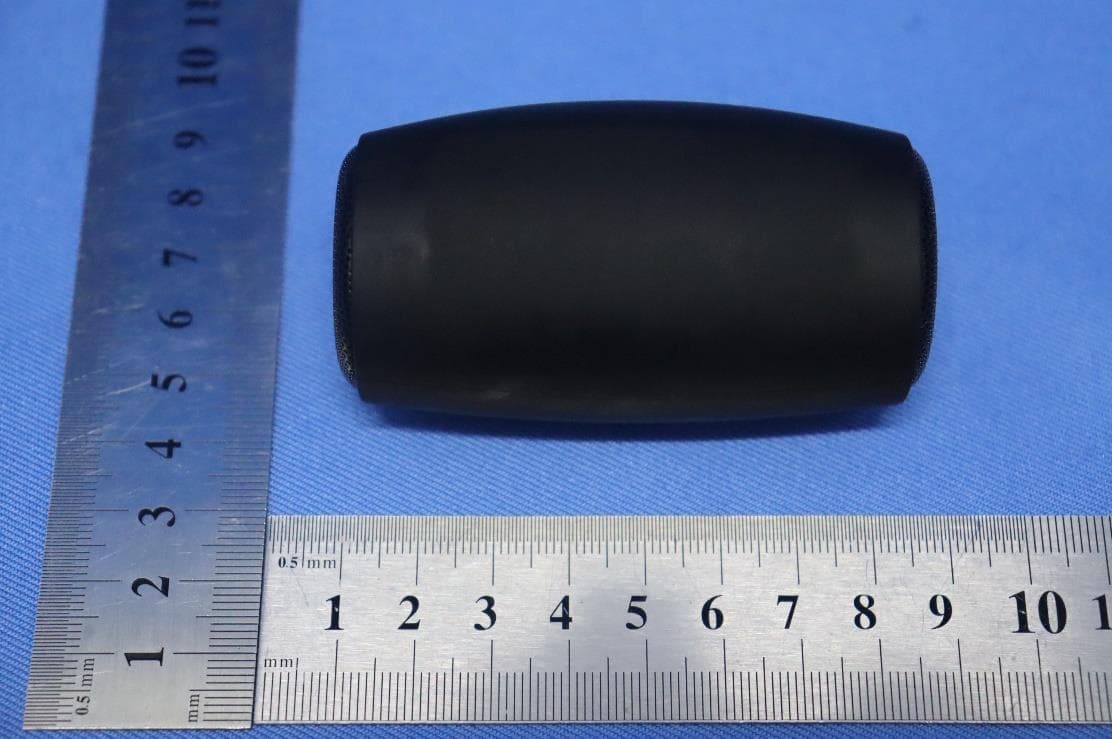

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.0 Page: 1 of 4 Appendix External Photos for GZCR2111021428AT SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.0 Page: 2 of 4 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.0 Page: 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.0 Page: 4 of 4

Item S49.30L / 32497 – LOT: 2021/10/29 Output: 2x3W / Input: DC 5V / 500mA Ba�ery: 1.85Wh, 3.7V / 500mAh Item S49/32497 Output: 2x3W / Input: DC 5V / 500mA Ba�ery: 1.85Wh, 3.7V / 500mAh FCC ID:2A2OH-S4930L This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.0 Page: 1 of 6 Appendix Internal Photos for GZCR2111021428AT SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.0 Page: 2 of 6 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.0 Page: 3 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.0 Page: 4 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.0 Page: 5 of 6 ANT SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.0 Page: 6 of 6

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 1.0 Report No.: GZCR211102142802 Page: 1 of 8 FCC ID: 2A2OH-S4930L Kobe Jian EMC Laboratory Manager RF EXPOSURE EVALUATION REPORT Application No.: GZCR2111021428AT (SGS SZ No.: T52110310131EM) Applicant: SCX DESIGN Address of Applicant: 68 bis Boulevard Pereire 75017 Paris, France Manufacturer: SCX DESIGN Address of Manufacturer: 68 bis Boulevard Pereire 75017 Paris, France Equipment Under Test (EUT): EUT Name: 2x3W Speaker Model No.: S49/32497 Standard(s) : 47 CFR PART 1, Subpart I, Section 1.1310 47 CFR PART 2, Subpart J, Section 2.1093 KDB447498D01 General RF Exposure Guidance v06 Date of Receipt: 2021-11-10 Date of Evaluation: 2021-11-24 to 2021-12-08 Date of Issue: 2021-12-15 Evaluation Result: Pass* * In the configuration evaluated, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR211102142802 EMC-TRF-03 Rev 1.0 Page: 2 of 8 Revision Record Version Chapter Date Modifier Remark 01 2021-12-15 Original Authorized for issue by: Tested By Curry Wu/Project Engineer Reviewed By Ricky Liu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR211102142802 EMC-TRF-03 Rev 1.0 Page: 3 of 8 2 Evaluation Summary Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR211102142802 EMC-TRF-03 Rev 1.0 Page: 4 of 8 3 Contents Page 1 Cover Page ................................................................................................................................................ 1 2 Evaluation Summary ................................................................................................................................ 3 3 Contents .................................................................................................................................................... 4 4 General Information .................................................................................................................................. 5 4.1 Details of E.U.T. ................................................................................................................................. 5 4.2 Evaluating Location ............................................................................................................................ 5 4.3 Facility ................................................................................................................................................ 6 4.4 Deviation from Standards ................................................................................................................... 6 4.5 Abnormalities from Standard Conditions ........................................................................................... 6 5 Technical Requirements Specification ................................................................................................... 7 5.1 RF Exposure Evaluation .................................................................................................................... 7 5.1.1 Limit & Test Method ....................................................................................................................... 7 5.1.2 Conclusion ..................................................................................................................................... 7 6 EUT Constructional Details (EUT Photos) ............................................................................................. 8 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR211102142802 EMC-TRF-03 Rev 1.0 Page: 5 of 8 4 General Information 4.1 Details of E.U.T. Power supply: Input 5Vdc via USB port Battery inside 3.7Vdc, 500mAh Operation Frequency: 2402MHz to 2480MHz Bluetooth Version: V5.0 Classic Modulation Type: GFSK, pi/4DQPSK Number of Channels: 79 Channel Spacing: 1MHz Spectrum Spread Technology: Frequency Hopping Spread Spectrum(FHSS) Antenna Type: PCB Antenna Antenna Gain: 0 dBi 4.2 Evaluating Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou Branch EMC Laboratory, 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, China 510663 Tel: +86 20 82155555 Fax: +86 20 82075059 No tests were sub-contracted. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR211102142802 EMC-TRF-03 Rev 1.0 Page: 6 of 8 4.3 Facility The facility is recognized, certified, or accredited by the following organizations: ● NVLAP (Lab Code: 200611-0) SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou EMC Laboratory is accredited by the National Voluntary Laboratory Accreditation Program (NVLAP/NIST). NVLAP Code: 200611-0. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. ● ACMA SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory can also perform testing for the Australian/New Zealand Regulatory Compliance Mark (RCM). ● SGS UK(Certificate No.: 32), SGS-TUV SAARLAND and SGS-FIMKO Have approved SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory as a supplier of EMC TESTING SERVICES and SAFETY TESTING SERVICES. ● CNAS (Lab Code: L0167) SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory has been assessed and in compliance with CNAS-CL01:2018 accreditation criteria for testing laboratories (identical to ISO/IEC 17025:2017 General Requirements) for the Competence of Testing Laboratories. ● FCC Recognized Accredited Test Firm(Registration No.: 486818) SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory has been accredited and fully described in a report…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 1.0 Report No.: GZCR211102142802 Page: 1 of 8 FCC ID: 2A2OH-S4930L Kobe Jian EMC Laboratory Manager RF EXPOSURE EVALUATION REPORT Application No.: GZCR2111021428AT (SGS SZ No.: T52110310131EM) Applicant: SCX DESIGN Address of Applicant: 68 bis Boulevard Pereire 75017 Paris, France Manufacturer: SCX DESIGN Address of Manufacturer: 68 bis Boulevard Pereire 75017 Paris, France Equipment Under Test (EUT): EUT Name: 2x3W Speaker Model No.: S49/32497 Standard(s) : 47 CFR PART 1, Subpart I, Section 1.1310 47 CFR PART 2, Subpart J, Section 2.1093 KDB447498D01 General RF Exposure Guidance v06 Date of Receipt: 2021-11-10 Date of Evaluation: 2021-11-24 to 2021-12-08 Date of Issue: 2021-12-15 Evaluation Result: Pass* * In the configuration evaluated, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR211102142802 EMC-TRF-03 Rev 1.0 Page: 2 of 8 Revision Record Version Chapter Date Modifier Remark 01 2021-12-15 Original Authorized for issue by: Tested By Curry Wu/Project Engineer Reviewed By Ricky Liu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR211102142802 EMC-TRF-03 Rev 1.0 Page: 3 of 8 2 Evaluation Summary Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR211102142802 EMC-TRF-03 Rev 1.0 Page: 4 of 8 3 Contents Page 1 Cover Page ................................................................................................................................................ 1 2 Evaluation Summary ................................................................................................................................ 3 3 Contents .................................................................................................................................................... 4 4 General Information .................................................................................................................................. 5 4.1 Details of E.U.T. ................................................................................................................................. 5 4.2 Evaluating Location ............................................................................................................................ 5 4.3 Facility ................................................................................................................................................ 6 4.4 Deviation from Standards ................................................................................................................... 6 4.5 Abnormalities from Standard Conditions ........................................................................................... 6 5 Technical Requirements Specification ................................................................................................... 7 5.1 RF Exposure Evaluation .................................................................................................................... 7 5.1.1 Limit & Test Method ....................................................................................................................... 7 5.1.2 Conclusion ..................................................................................................................................... 7 6 EUT Constructional Details (EUT Photos) ............................................................................................. 8 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR211102142802 EMC-TRF-03 Rev 1.0 Page: 5 of 8 4 General Information 4.1 Details of E.U.T. Power supply: Input 5Vdc via USB port Battery inside 3.7Vdc, 500mAh Operation Frequency: 2402MHz to 2480MHz Bluetooth Version: V5.0 Classic Modulation Type: GFSK, pi/4DQPSK Number of Channels: 79 Channel Spacing: 1MHz Spectrum Spread Technology: Frequency Hopping Spread Spectrum(FHSS) Antenna Type: PCB Antenna Antenna Gain: 0 dBi 4.2 Evaluating Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou Branch EMC Laboratory, 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, China 510663 Tel: +86 20 82155555 Fax: +86 20 82075059 No tests were sub-contracted. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR211102142802 EMC-TRF-03 Rev 1.0 Page: 6 of 8 4.3 Facility The facility is recognized, certified, or accredited by the following organizations: ● NVLAP (Lab Code: 200611-0) SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou EMC Laboratory is accredited by the National Voluntary Laboratory Accreditation Program (NVLAP/NIST). NVLAP Code: 200611-0. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. ● ACMA SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory can also perform testing for the Australian/New Zealand Regulatory Compliance Mark (RCM). ● SGS UK(Certificate No.: 32), SGS-TUV SAARLAND and SGS-FIMKO Have approved SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory as a supplier of EMC TESTING SERVICES and SAFETY TESTING SERVICES. ● CNAS (Lab Code: L0167) SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory has been assessed and in compliance with CNAS-CL01:2018 accreditation criteria for testing laboratories (identical to ISO/IEC 17025:2017 General Requirements) for the Competence of Testing Laboratories. ● FCC Recognized Accredited Test Firm(Registration No.: 486818) SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory has been accredited and fully described in a report…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 1.0 Report No.: GZCR211102142801 Page: 1 of 93 FCC ID: 2A2OH-S4930L Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZCR2111021428AT (SGS SZ No.: T52110310131EM) Applicant: SCX DESIGN Address of Applicant: 68 bis Boulevard Pereire 75017 Paris, France Manufacturer: SCX DESIGN Address of Manufacturer: 68 bis Boulevard Pereire 75017 Paris, France Equipment Under Test (EUT): EUT Name: 2x3W Speaker Model No.: S49/32497 Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2021-11-10 Date of Test: 2021-11-24 to 2021-12-08 Date of Issue: 2021-12-15 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR211102142801 Page: 2 of 93 Revision Record Version Chapter Date Modifier Remark 01 2021-12-15 Original Authorized for issue by: Tested By Curry Wu/Project Engineer Reviewed By Ricky Liu/Reviewer EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR211102142801 Page: 3 of 93 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence N/A 47 CFR Part 15, Subpart C 15.247(a)(1),(g),(h) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Conducted Peak Output Power ANSI C63.10 (2013) Section 7.8.5 47 CFR Part 15, Subpart C 15.247(b)(1) Pass 20dB Bandwidth ANSI C63.10 (2013) Section 7.8.7 47 CFR Part 15, Subpart C 15.247(a)(1) Pass Carrier Frequencies Separation ANSI C63.10 (2013) Section 7.8.2 47 CFR Part 15, Subpart C 15.247a(1) Pass Hopping Channel Number ANSI C63.10 (2013) Section 7.8.3 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Dwell Time ANSI C63.10 (2013) Section 7.8.4 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Conducted Band Edges Measurement ANSI C63.10 (2013) Section 7.8.6 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions ANSI C63.10 (2013) Section 7.8.8 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions (Below 1GHz) ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions (Above 1GHz) ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. EMC-TRF-01 Rev 1.0 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR211102142801 Page: 4 of 93 3 Contents Page 1 Cover Page ................................................................................................................................ 1 2 Test Summary ........................................................................................................................................... 3 3 Contents ..................................................................................................…

Text truncated - open the document above for the full version.
