2A2RJ-P4Snambol

EN 3. Go to Settings-Accessibility -Touch then Turn Off AssistiveTouch 2. Go to settings-Accessibility-Zoom, then Turn On Zoom Turn off Note: with Zoom enabled, double-tap with three fingers to exit Go to Settings-Accessibility -Touch then Turn Off AssistiveTouch Go to settings-Accessibility-Zoom, then Turn On Zoom Turn off Note: with Zoom enabled, double-tap with three fingers to exit . . CN 2025-08-15 A-5

Shenzhen ZO Video Technology Co., Ltd. Covered Equipment Certification Attestation Letter 12/10/2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2A2RJ-P4 Shenzhen ZO Video Technology Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen ZO Video Technology Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Shenzhen ZO Video Technology Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Andrew Zhang Title: Manager Company Name: Shenzhen ZO Video Technology Co., Ltd. Date: 12/10/2025

Shenzhen ZO Video Technology Co., Ltd. U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: December 10, 2025 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2A2RJ-P4 Shenzhen ZO Video Technology Co., Ltd.(“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Shenzhen ZO Video Technology Co., Ltd. FRN: 0031213051 Address: 2C, 2/F, Building 6, Longbi Industrial Zone, 27 Dafa Road, Longgang District, Shenzhen, Guangdong, 518129, China Signature: Contact Person: Andrew Zhang Tel: +86-755-21004986 Email: andrew.zhang@zeroone- video.com

DATE: December 10, 2025 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A2RJ-P4 Product Name: Snambol Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Andrew Zhang Title: Manager Company: Shenzhen ZO Video Technology Co., Ltd.

Date: December 10, 2025 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Andrew Zhang Title: Manager Company: Shenzhen ZO Video Technology Co., Ltd.

DATE: December 10, 2025 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen CCUT Quality Technology Co., Ltd. (1F, Building 35, Changxing Technology Indstrl Park Changzhen Community, Yutang Street,Shenzhen,China) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen ZO Video Technology Co., Ltd. (2C, 2/F, Building 6, Longbi Industrial Zone, 27 Dafa Road, Longgang District, Shenzhen, Guangdong, 518129, China). <Signature> Name: Andrew Zhang Title: Manager Applicant Company: Shenzhen ZO Video Technology Co., Ltd.

Shenzhen ZO Video Technology Co., Ltd. Model Difference Statement Dear Sir/Madam, Added models P4 MIX, P4 NEO, P4 Air, P4 Plus, P4 Pro, P4 Max, P4 Ultra, P4 Pro Max, P4 T, P4 RS, Powr4, P4 Turbo, P4 GT, CP5 Ultra, CP5 Plus, CP5 PRO, CP5 Elite, CP5 Ace, CP5 Air, CP5 SE basis of the original product P4 The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: Andrew Zhang Company name: Shenzhen ZO Video Technology Co., Ltd. Address: 2C, 2/F, Building 6, Longbi Industrial Zone, 27 Dafa Road, Longgang District, Shenzhen, Guangdong, 518129, China

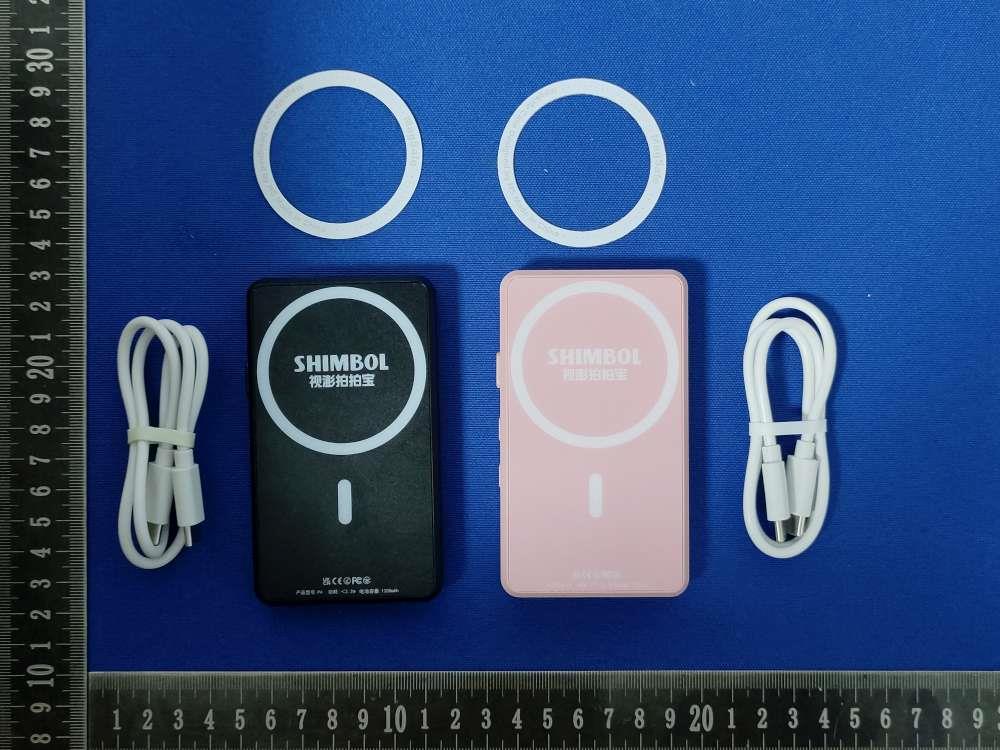

Report No: DSP25111163-1&2E FCC ID: 2A2RJ-P4 Annex of Test Report Annex A. EUT External Photos Model: P4 EUT View 1 EUT View 2 Report No: DSP25111163-1&2E FCC ID: 2A2RJ-P4 Annex of Test Report EUT View 3 EUT View 4 Report No: DSP25111163-1&2E FCC ID: 2A2RJ-P4 Annex of Test Report EUT View 5 EUT View 6 Report No: DSP25111163-1&2E FCC ID: 2A2RJ-P4 Annex of Test Report EUT View 7

Report No: DSP25111163-1&2E FCC ID: 2A2RJ-P4 Annex of Test Report Annex D. Label and Information FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

Report No: DSP25111163-1&2E FCC ID: 2A2RJ-P4 Annex of Test Report Annex B. EUT Internal Photos Model: P4 EUT Internal View 1 EUT Internal View 2 SMD Antenna (BT) SMD Antenna (WiFi) Report No: DSP25111163-1&2E FCC ID: 2A2RJ-P4 Annex of Test Report EUT Internal View 3 EUT Internal View 4

FCC ID: 2A2RJ-P4 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BR+EDR Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit -4.02 -4(±1) -3 0.501 2440 5 0.1565 3.0 For 5.2GWiFi Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 5.07 5(±1) 6 3.981 5180 5 1.8121 3.0 For 5.8GWiFi Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 3.7 3(±1) 4 2.512 5745 5 1.2041 3.0 Remark: antenna gain= BT:4.3dBi, 5GWiFi:0.2dBi The device cannot transmit 5.2G WI-FI and 5.8G WI-FI at the same time, but can transmit both WI-FI and Bluetooth. Calculations for simultaneously transmit Mode Ratios Result Limit Result BR+EDR 0.0521 0.6561 1 PASS 5.2G Wi-Fi 0.6040 Mode Ratios Result Limit Result BR+EDR 0.0521 0.4534 1 PASS 5.8G Wi-Fi 0.4013 Ratios = Power Density / Power density Limit So a SAR test is not required

CA-C01 Specification document Guangzhou Cambrian Electronic Technology Co., Ltd. CA-C01_V02 1 SMD Antenna Specification Document CrossAir TM SMD Antenna series PN: CA-C01 5GHz ISM band antenna CA-C01_V02 2 Characteristics 1.A small-sized SMD surface mount antenna with a size of only 3.2 x 1.6 x 0.4 mm³. 2.Low energy loss, high antenna efficiency. 3.It has high stability under conditions of temperature and humidity changes.
Application 1.Application of antennas in the 5GHz ISM frequency band.。 2.Bluetooth, wireless, and smart home applications

Structure 1. Antenna feed end 2. Antenna welding fixation end 3. Feed identification mark Size Three-view drawing Symbol Size(mm) L 3.2±0.1 w 1.6±0.1 T 0.4±0.05 a 0.6±0.1 CA-C01 Specification document Guangzhou Cambrian Electronic Technology Co., Ltd. CA-C01_V02 3 Electrical characteristics CA-C01 Specification 工作频率范围Working Frequency 5150-5850MHz 带宽Band Width >100MHz 阻抗Impedance 50Ω 增益Gain(dBi) 0.2 驻波比VSWR <2 工作温度Operation Temperature -40°C~+85°C 可承受功率Power Capacity 3W Antenna pads and trace design PCB schematic reference design CA-C01 Specification document Guangzhou Cambrian Electronic Technology Co., Ltd. Radio frequency signal CA-C01_V02 4 Match the device values Series 1 Resistor 0Ω Shunt 1 Vacant NC Series 2 High-frequency inductor 3nh Shunt 2 Vacant NCC CA-C01 Specification document Guangzhou Cambrian Electronic Technology Co., Ltd. CA-C01_V02 5 Antenna test on the test board (board thickness 1.0mm) Antenna S11 characteristics Antenna VSWR characteristics CA-C01 Specification document Guangzhou Cambrian Electronic Technology Co., Ltd. CA-C01_V02 6 Efficiency and radiation patterns The efficiency, radiation patterns, gain and other performance parameters were obtained based on the design of the test board. The specification and characteristic test data of the CA-C01 antenna was derived from the size of the test PCB board and the test direction as shown in the figure below. The following data were obtained after the completion of the ETS 3D microwave anechoic chamber test. + Gain and efficiency 5GHz 峰值增益Peak Gain 0.2dBi 带内平均增益 Average Gain across the band 0.06dBi 带内增益范围 Gain Range across the band -0.17dBi~0.2dBi 峰值效率Peak Efficiency 41.3% 带内平均效率 Average Efficiency across the band 40.1% Z Y X CA-C01 Specification document Guangzhou Cambrian Electronic Technology Co., Ltd. CA-C01_V02 7 带内效率范围 Efficiency Range across the band 37.8%~41.3% Theta @5.50 GHz Phi @5.50 GHz Total @5.50 GHz Welding conditions The typical welding specifications for reliable and undamaged results are shown in the following figure: CA-C01 Specification document Guangzhou Cambrian Electronic Technology Co., Ltd. CA-C01_V02 8 包装 CA-C01 Specification document Guangzhou Cambrian Electronic Technology Co., Ltd. CA-C01_V02 9 Plastic tape specification (Organization:mm) Index Ao Bo ΦD T W Dimension (mm) 2.0±0.1 3.6±0.1 1.55±0.05 0.9±0.1 8.2±0.1 Index E F Po P1 P2 Dimension (mm) 1.75±0.1 3.2±0.1 4.0±0.1 4.0±0.1 2.0±0.1 Roll diameter Index A B C Dimension(mm) 178 60 13.5 Standard quantity: 3000 PCS per tray Storage environment The product should be stored under the following conditions: Temperature: -10°C to +40°C Humidity: 30% to 70% relative humidity The product should not be placed in areas exposed to corrosive gases such as sulfur. Chlorine or acid may cause the product's electrodes to oxidize, resulting in reduced weldability. The product should be placed in a toolbox and protected from moisture and dust. The product should be stored in a warehouse and protected from heat, vibration, and direct sunlight. The product should be stored in a sealed environment. CA-C01 Specification document Guangzhou Cambrian Electronic Technology Co., Ltd.

Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Test Data Appendix of Test Report 1. Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5180 Ant1 77.23 1.12 5.78 NVNT a 5200 Ant1 76.79 1.15 5.81 NVNT a 5240 Ant1 76.79 1.15 5.81 NVNT n20 5180 Ant1 75.47 1.22 6.25 NVNT n20 5200 Ant1 75.47 1.22 6.25 NVNT n20 5240 Ant1 75.47 1.22 6.25 NVNT n40 5190 Ant1 65.54 1.83 10.31 NVNT n40 5230 Ant1 65.1 1.86 10.31 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Duty Cycle NVNT a 5180MHz Ant1 Duty Cycle NVNT a 5200MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Duty Cycle NVNT a 5240MHz Ant1 Duty Cycle NVNT n20 5180MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Duty Cycle NVNT n20 5200MHz Ant1 Duty Cycle NVNT n20 5240MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Duty Cycle NVNT n40 5190MHz Ant1 Duty Cycle NVNT n40 5230MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 2. Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 2.94 1.12 4.06 24 Pass NVNT a 5200 Ant1 1.27 1.15 2.42 24 Pass NVNT a 5240 Ant1 3.21 1.15 4.36 24 Pass NVNT n20 5180 Ant1 3.85 1.22 5.07 24 Pass NVNT n20 5200 Ant1 2.66 1.22 3.88 24 Pass NVNT n20 5240 Ant1 3.36 1.22 4.58 24 Pass NVNT n40 5190 Ant1 2.63 1.83 4.46 24 Pass NVNT n40 5230 Ant1 2.55 1.86 4.41 24 Pass Note: Total power=Conducted power + Duty factor Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Power NVNT a 5180MHz Ant1 Power NVNT a 5200MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Power NVNT a 5240MHz Ant1 Power NVNT n20 5180MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Power NVNT n20 5200MHz Ant1 Power NVNT n20 5240MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Power NVNT n40 5190MHz Ant1 Power NVNT n40 5230MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 3. -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Verdict NVNT a 5180 Ant1 19.62 Pass NVNT a 5200 Ant1 19.87 Pass NVNT a 5240 Ant1 19.59 Pass NVNT n20 5180 Ant1 21.46 Pass NVNT n20 5200 Ant1 21.47 Pass NVNT n20 5240 Ant1 21.49 Pass NVNT n40 5190 Ant1 37.88 Pass NVNT n40 5230 Ant1 37.90 Pass Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 -26dB Bandwidth NVNT a 5180MHz Ant1 -26dB Bandwidth NVNT a 5200MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 -26dB Bandwidth NVNT a 5240MHz Ant1 -26dB Bandwidth NVNT n20 5180MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 -26dB Bandwidth NVNT n20 5200MHz Ant1 -26dB Bandwidth NVNT n20 5240MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 -26dB Bandwidth NVNT n40 5190MHz Ant1 -26dB Bandwidth NVNT n40 5230MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 4. Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5180 Ant1 16.375 NVNT a 5200 Ant1 16.406 NVNT a 5240 Ant1 16.388 NVNT n20 5180 Ant1 17.624 NVNT n20 5200 Ant1 17.654 NVNT n20 5240 Ant1 17.631 NVNT n40 5190 Ant1 35.866 NVNT n40 5230 Ant1 35.863 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 OBW NVNT a 5180MHz Ant1 OBW NVNT a 5200MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 OBW NVNT a 5240MHz Ant1 OBW NVNT n20 5180MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 OBW NVNT n20 5200MHz Ant1 OBW NVNT n20 5240MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 OBW NVNT n40 5190MHz Ant1 OBW NVNT n40 5230MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 5. Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm) Duty Factor (dB) Total PSD (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 -7.18 1.12 -6.06 11 Pass NVNT a 5200 Ant1 -8.58 1.15 -7.43 11 Pass NVNT a 5240 Ant1 -6.9 1.15 -5.75 11 Pass NVNT n20 5180 Ant1 -6.34 1.22 -5.12 11 Pass NVNT n20 5200 Ant1 -7.58 1.22 -6.36 11 Pass NVNT n20 5240 Ant1 -6.77 1.22 -5.55 11 Pass NVNT n40 5190 Ant1 -9.73 1.83 -7.9 11 Pass NVNT n40 5230 Ant1 -10.34 1.86 -8.48 11 Pass Note : Total PSD=Conducted PSD + Duty factor Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 PSD NVNT a 5180MHz Ant1 PSD NVNT a 5200MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 PSD NVNT a 5240MHz Ant1 PSD NVNT n20 5180MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 PSD NVNT n20 5200MHz Ant1 PSD NVNT n20 5240MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 PSD NVNT n40 5190MHz Ant1 PSD NVNT n40 5230MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 6. Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5180 Ant1 -46.24 -27 Pass NVNT a 5240 Ant1 -46.45 -27 Pass NVNT n20 5180 Ant1 -46.95 -27 Pass NVNT n20 5240 Ant1 -46.23 -27 Pass NVNT n40 5190 Ant1 -46.07 -27 Pass NVNT n40 5230 Ant1 -46.22 -27 Pass Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Band Edge NVNT a 5180MHz Low Ant1 Band Edge NVNT a 5240MHz High Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Band Edge NVNT n20 5180MHz Low Ant1 Band Edge NVNT n20 5240MHz High Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Band Edge NVNT n40 5190MHz Low Ant1 Band Edge NVNT n40 5230MHz High Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 7. Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5180 Ant1 -34.55 -27 Pass NVNT a 5200 Ant1 -34.27 -27 Pass NVNT a 5240 Ant1 -33.53 -27 Pass NVNT n20 5180 Ant1 -34.77 -27 Pass NVNT n20 5200 Ant1 -34.94 -27 Pass NVNT n20 5240 Ant1 -34.04 -27 Pass NVNT n40 5190 Ant1 -33.86 -27 Pass NVNT n40 5230 Ant1 -35.02 -27 Pass Note: Testing is carried out with frequency rang 30MHz to the 40GHz, above 27GHz not recorded for no spurious point have a margin of less than 20 dB with respect to the limits Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Tx. Spurious NVNT a 5180MHz Ant1 Emission Tx. Spurious NVNT a 5200MHz Ant1 Emission Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Tx. Spurious NVNT a 5240MHz Ant1 Emission Tx. Spurious NVNT n20 5180MHz Ant1 Emission Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Tx. Spurious NVNT n20 5200MHz Ant1 Emission Tx. Spurious NVNT n20 5240MHz Ant…

Text truncated - open the document above for the full version.

Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Test Data Appendix of Test Report 1. Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5745 Ant1 73.35 1.35 4.08 NVNT a 5785 Ant1 68.54 1.64 4.1 NVNT a 5825 Ant1 51.59 2.87 4.1 NVNT n20 5745 Ant1 57.44 2.41 4.46 NVNT n20 5785 Ant1 67.47 1.71 4.46 NVNT n20 5825 Ant1 66.67 1.76 4.46 NVNT n40 5755 Ant1 64.32 1.92 7.81 NVNT n40 5795 Ant1 64.5 1.9 7.75 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Duty Cycle NVNT a 5745MHz Ant1 Duty Cycle NVNT a 5785MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Duty Cycle NVNT a 5825MHz Ant1 Duty Cycle NVNT n20 5745MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Duty Cycle NVNT n20 5785MHz Ant1 Duty Cycle NVNT n20 5825MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Duty Cycle NVNT n40 5755MHz Ant1 Duty Cycle NVNT n40 5795MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 2. Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 1.51 1.35 2.86 30 Pass NVNT a 5785 Ant1 -0.02 1.64 1.62 30 Pass NVNT a 5825 Ant1 -0.87 2.87 2 30 Pass NVNT n20 5745 Ant1 1.29 2.41 3.7 30 Pass NVNT n20 5785 Ant1 -0.48 1.71 1.23 30 Pass NVNT n20 5825 Ant1 -1.02 1.76 0.74 30 Pass NVNT n40 5755 Ant1 -0.85 1.92 1.07 30 Pass NVNT n40 5795 Ant1 -1.73 1.9 0.17 30 Pass Note: Total power=Conducted power + Duty factor Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Power NVNT a 5745MHz Ant1 Power NVNT a 5785MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Power NVNT a 5825MHz Ant1 Power NVNT n20 5745MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Power NVNT n20 5785MHz Ant1 Power NVNT n20 5825MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Power NVNT n40 5755MHz Ant1 Power NVNT n40 5795MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 3. -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT a 5745 Ant1 16.48 0.5 Pass NVNT a 5785 Ant1 16.46 0.5 Pass NVNT a 5825 Ant1 16.57 0.5 Pass NVNT n20 5745 Ant1 17.70 0.5 Pass NVNT n20 5785 Ant1 17.80 0.5 Pass NVNT n20 5825 Ant1 17.64 0.5 Pass NVNT n40 5755 Ant1 36.43 0.5 Pass NVNT n40 5795 Ant1 36.47 0.5 Pass Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 -6dB Bandwidth NVNT a 5745MHz Ant1 -6dB Bandwidth NVNT a 5785MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 -6dB Bandwidth NVNT a 5825MHz Ant1 -6dB Bandwidth NVNT n20 5745MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 -6dB Bandwidth NVNT n20 5785MHz Ant1 -6dB Bandwidth NVNT n20 5825MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 -6dB Bandwidth NVNT n40 5755MHz Ant1 -6dB Bandwidth NVNT n40 5795MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 4. Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5745 Ant1 16.603 NVNT a 5785 Ant1 16.612 NVNT a 5825 Ant1 16.555 NVNT n20 5745 Ant1 17.787 NVNT n20 5785 Ant1 17.796 NVNT n20 5825 Ant1 17.819 NVNT n40 5755 Ant1 36.591 NVNT n40 5795 Ant1 36.422 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 OBW NVNT a 5745MHz Ant1 OBW NVNT a 5785MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 OBW NVNT a 5825MHz Ant1 OBW NVNT n20 5745MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 OBW NVNT n20 5785MHz Ant1 OBW NVNT n20 5825MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 OBW NVNT n40 5755MHz Ant1 OBW NVNT n40 5795MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 5. Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/510kHz) Duty Factor (dB) 10log (510/500) Total PSD dBm/500kHz) Limit (dBm/500KHz) Verdict NVNT a 5745 Ant1 -11.55 1.35 0.086 -10.114 30 Pass NVNT a 5785 Ant1 -13 1.64 0.086 -11.274 30 Pass NVNT a 5825 Ant1 -13.83 2.87 0.086 -10.874 30 Pass NVNT n20 5745 Ant1 -11.67 2.41 0.086 -9.174 30 Pass NVNT n20 5785 Ant1 -13.7 1.71 0.086 -11.904 30 Pass NVNT n20 5825 Ant1 -14.06 1.76 0.086 -12.214 30 Pass NVNT n40 5755 Ant1 -17.35 1.92 0.086 -15.344 30 Pass NVNT n40 5795 Ant1 -18 1.9 0.086 -16.014 30 Pass Note: Total PSD=Conducted PSD + Duty factor+(10log(Test RBW/ Limit RBW) Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 PSD NVNT a 5745MHz Ant1 PSD NVNT a 5785MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 PSD NVNT a 5825MHz Ant1 PSD NVNT n20 5745MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 PSD NVNT n20 5785MHz Ant1 PSD NVNT n20 5825MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 PSD NVNT n40 5755MHz Ant1 PSD NVNT n40 5795MHz Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 6. Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBm) Verdict NVNT a 5745 Ant1 -34.95 Pass NVNT a 5825 Ant1 -43.34 Pass NVNT n20 5745 Ant1 -34.22 Pass NVNT n20 5825 Ant1 -43.64 Pass NVNT n40 5755 Ant1 -36.65 Pass NVNT n40 5795 Ant1 -43.74 Pass Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Band Edge NVNT a 5745MHz Low Ant1 Band Edge NVNT a 5825MHz High Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Band Edge NVNT n20 5745MHz Low Ant1 Band Edge NVNT n20 5825MHz High Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Band Edge NVNT n40 5755MHz Low Ant1 Band Edge NVNT n40 5795MHz High Ant1 Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 7. Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5745 Ant1 -31.81 -27 Pass NVNT a 5785 Ant1 -31.95 -27 Pass NVNT a 5825 Ant1 -31.28 -27 Pass NVNT n20 5745 Ant1 -32.18 -27 Pass NVNT n20 5785 Ant1 -31.75 -27 Pass NVNT n20 5825 Ant1 -31.95 -27 Pass NVNT n40 5755 Ant1 -31.95 -27 Pass NVNT n40 5795 Ant1 -31.85 -27 Pass Note: Testing is carried out with frequency rang 30MHz to the 40GHz, above 27GHz not recorded for no spurious point have a margin of less than 20dB with respect to the limits. Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Tx. Spurious NVNT a 5745MHz Ant1 Emission Tx. Spurious NVNT a 5785MHz Ant1 Emission Report No: DSP25111163-2E FCC ID: 2A2RJ-P4 Tx. Spurious NVNT a 5825MHz Ant1 Emission Tx. Spurious NVNT n20 5745M…

Text truncated - open the document above for the full version.

Report No: DSP25111163-2E FCC Test Report Page 1 of 33 FCC TEST REPORT FCC ID: 2A2RJ-P4 Report No. : DSP25111163-2E Applicant : Shenzhen ZO Video Technology Co., Ltd. Product Name : Snambol Model Name : P4 Test Standard : FCC Part 15 Subpart E Date of Issue : 2025-12-03 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: DSP25111163-2E FCC Test Report Page 2 of 33 Test Report Basic Information Applicant..................................: Shenzhen ZO Video Technology Co., Ltd. Address of Applicant...............: 2C, 2/F, Building 6, Longbi Industrial Zone, 27 Dafa Road, Longgang District, Shenzhen, Guangdong, 518129, China Manufacturer..........................: Shenzhen ZO Video Technology Co., Ltd. Address of Manufacturer........: 2C, 2/F, Building 6, Longbi Industrial Zone, 27 Dafa Road, Longgang District, Shenzhen, Guangdong, 518129, China Product Name.........................: Snambol Brand Name.............................: SHIMBOL Main Model..............................: P4 Series Models..........................: See section 1.1 (Page 5) Test Standard..........................: FCC Part 15 Subpart E KDB 789033 D02 v02r01 ANSI C63.4-2014 ANSI C63.10-2020 Date of Test .............................: 2025-11-13 to 2025-12-03 Test Result...............................: PASS Tested By ................................: (Coke Huang) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: DSP25111163-2E FCC Test Report Page 3 of 33 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................7 1.3 Compliance Standards ...........................................................................................................................................8 1.4 Test Facilities ........................................................................................................................................................8 1.5 List of Measurement Instruments ..........................................................................................................................9 1.6 Measurement Uncertainty ................................................................................................................................... 10 2. Summary of Test Results .................................................................................…

Text truncated - open the document above for the full version.
