2A2RJ-TPMINITXWireless video system

1 Wireless VideoTransmission System ITEM MODEL:TP Mini TX Instruction Manual Shenzhen ZO Video TechnologyCo.Ltd. 2 01 /Features Transmit Range Built-inAntenna Latency Utra-low-Power Multiple Power Supply LED Display Status Light 02/Packinglist Transmitter*1 User Manual*1 USB Power Cable*1 Sticker 3 03/Product Description 1. LED Display Status Light 5. HDMI Output(TX) 2. Electric Quantity Button 6. HDMI input(TX) 3. Pairing Button 7. USB Port 4. Power Switch 8. Battery Plate A. Press the 2 button to check the battery level, 4 green lights indicate the battery level. When connected to USB, the green light is on. B. The pairing button is production mode, and the client does not need to pair. 4 04/Technical Parameters Transmitter Interface HDMI Input /HDMI Output Power Supply Method USB 5V/NP-F Battery Power Consumption (2.5W HDMI Input 720P@50/60Hz 1080PO24/25/30/50/60Hz HDMIOutput 720PO50/60Hz 1080P@24/25/30/50/60Hz Weight 113g Size 103*63.5*16mm Transmission Frequency Band U-NII-1:5180MHz-5240MHz U-NII-3:5745MHz-5825MHz Transmit Power 7mW/MHz Transmission Delay 70ms Receiving Sensitivity -85dBm The TP Mini TX 's WIFI module working as A WIFI AP . When startup, The AP will waiting for the TP Mini RX WIFI module [has been paired with TP Mini TX in factory ]connecting. When the connection established ,the TP Mini TX will send the video stream to the TP Mini RX. 5 Tel:+860755-21004986 URL:www.zeroone-video.com Address:2C,2nd Floor,Building 6,Longbi Industrial Park No.27 Dafa Road,Bantian Street,Longgang District,Shenzhen Shenzhen ZO Video Technology Co.,Ltd. 6 FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, Human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation。

1/1 US Agent for Service of ProcessLETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: CLF Import and Export Limited Contact Name:David Chen FRN: 0033489683 Address: 1312 17th Street #692,Denver,CO 80202,Unite States Telephone No: (949)254-2565 Email: [email protected] EIN: 98-1720547 Applicant: Company name: Shenzhen ZO Video Technology Co., Ltd. Product Description: Wireless video system Grantee code: 2A2RJ FCC ID: 2A2RJ-TPMINITX FRN: 0031213051 Contact Name:Andrewzhang Address:2c, 2 / F, building 6, longbi Industrial Zone, 27 Dafa Road, Bantian street, Longgang District,Shenzhen Telephone No:+86-755-21004986 Fax No:+86-755-21004986 Email:[email protected] [Shenzhen ZO Video Technology Co., Ltd.] certifies that, as of the date of this filing of the application with the TCB, [CLF Import and Export Limited] is our designated US agent for service of process for the above referenced FCC ID. [Shenzhen ZO Video Technology Co., Ltd. ] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [ CLF Import and Export Limited] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicantis aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2024/7/11 Applicant’s Name:Andrew zhang US Agent’s Name: Title:Manager Title: Signature Signature 1/1

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Shenzhen ZO Video Technology Co., Ltd. Product Description: Wireless video system Grantee code: 2A2RJ FCC ID: 2A2RJ-TPMINITX FRN: 0031213051 Contact Name: Andrew zhang Address: 2c, 2 / F, building 6, longbi Industrial Zone, 27 Dafa Road, Bantian street, Longgang District, Shenzhen Telephone No: +86-755-21004986 Fax No: +86-755-21004986 Email: [email protected] i. [Shenzhen ZO Video Technology Co., Ltd. ] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Shenzhen ZO Video Technology Co., Ltd. ] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Shenzhen ZO Video Technology Co., Ltd. ] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment . Date: 2024/7/11 Applicant’s Name: Andrew zhang Title: Manager Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Shenzhen ZO Video Technology Co., Ltd. Product Similarity Declaration Product name: Wireless video system Model name: TP Mini TX, TP Max TX, TP Max Pro TX, TP Mini 2 TX, TP Max 2 TX， TP Max Pro 2 TX, TP One , TP Multi FCC ID: 2A2RJ-TPMINITX We (Shenzhen ZO Video Technology Co., Ltd.) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name are different. Signature: Name: Hong chen Title: Purchasing manager Address: 2c, 2 / F, building 6, longbi Industrial Zone, 27 Dafa Road, Bantian street, Longgang District, Shenzhen Date: 2024-7-10

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: Shenzhen ZO Video Technology Co., Ltd. Address: 2c, 2 / F, building 6, longbi Industrial Zone, 27 Dafa Road, Bantian street, Longgang District, Shenzhen Product Name: Wireless video system Model Number: TP Mini TX, TP Max TX, TP Max Pro TX, TP Mini 2 TX, TP Max 2 TX, TP Max Pro 2 TX, TP One, TP Multi FCC Identifier: 2A2RJ-TPMINITX We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Andrew zhang 2024-7-11 Title: Manager Signature of applicant:

C5266091_X13_Ed.1 Shenzhen ZO Video Technology Co., Ltd. FCC Software Configuration Control Declaration Date: 2024-7-11 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product/ Model Number: Wireless video system/TP Mini TX, TP Max TX, TP Max Pro TX, TP Mini 2 TX, TP Max 2 TX, TP Max Pro 2 TX, TP One, TP Multi Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Signature of applicant: Name: Andrew zhang Title: Manager 1/1

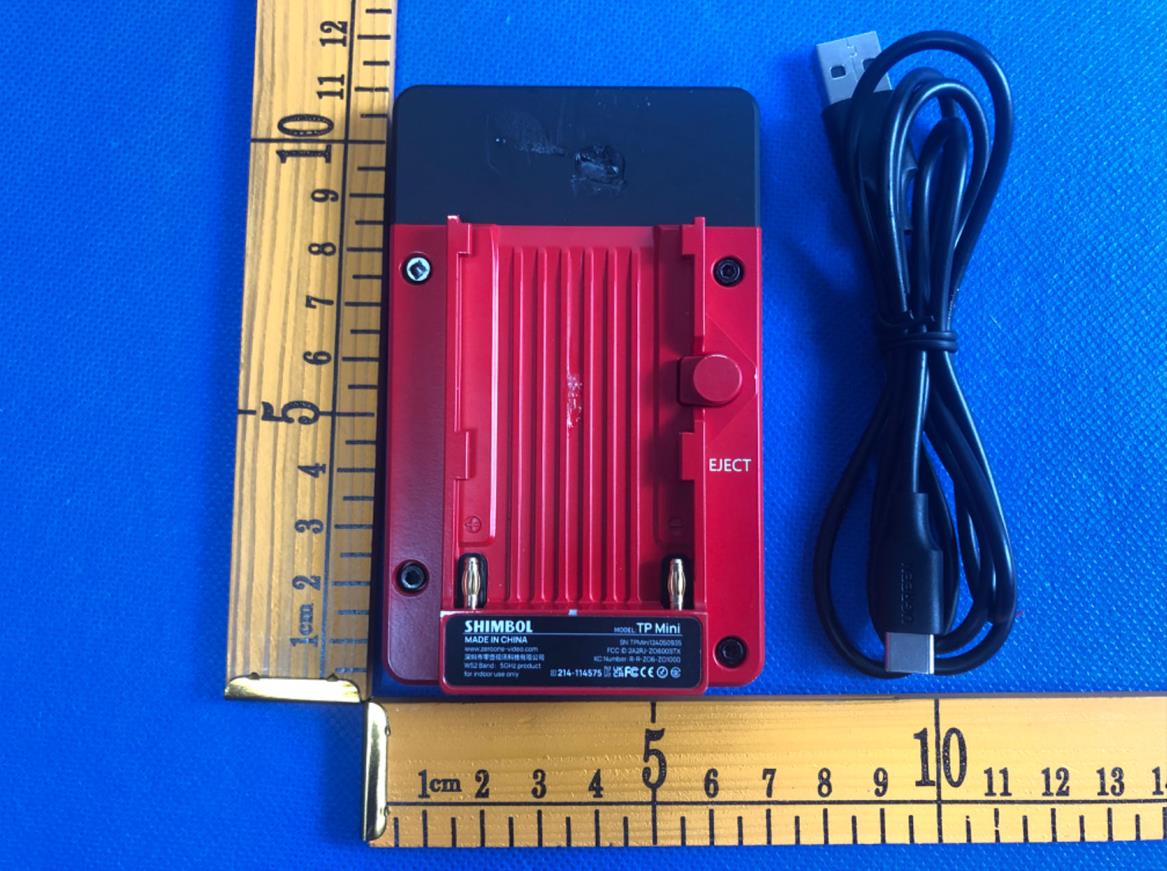

Shenzhen QC Testing Laboratory Co., Ltd. Page 1 of4 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 www.qctest.com.cn Product Name: Wireless video system Test Model No.: TP Mini TX EUT Constructional Details Shenzhen QC Testing Laboratory Co., Ltd. Page 2 of4 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 www.qctest.com.cn Shenzhen QC Testing Laboratory Co., Ltd. Page 3 of4 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 www.qctest.com.cn Shenzhen QC Testing Laboratory Co., Ltd. Page 4 of4 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 www.qctest.com.cn ------End------

Shenzhen QC Testing Laboratory Co., Ltd. Page 1 of2 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 www.qctest.com.cn Product Name: Wireless video system Test Model No.: TP Mini TX EUT Constructional Details Antenna Shenzhen QC Testing Laboratory Co., Ltd. Page 2 of2 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 www.qctest.com.cn -----End------

Shenzhen QC Testing Laboratory Co., Ltd. Page 1 of 2 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 www.qctest.com.cn FCC ID: 2A2RJ-TPMINITX RF Exposure Evaluation FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, and highest channel individually. Shenzhen QC Testing Laboratory Co., Ltd. Page 2 of 2 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 www.qctest.com.cn Test Result of RF Exposure Evaluation For 5G Wi-Fi Antenna gain=2.5dBi Test Frequency （MHz） Minimum Separation Distance (cm) Output Power (dBm) Target power (dBm) Target power (mW) Antenna Gain (Numeric) Power Density Limit (mW/cm 2 ) Power Density At 20 cm (mW/cm 2 ) Test Results 5180 20.00 15.53 15±1 39.81 1.78 1 0.0141 Pass 5200 20.00 14.99 14±1 31.62 1.78 1 0.0112 Pass 5240 20.00 13.64 13±1 25.12 1.78 1 0.0089 Pass 5745 20.00 16.67 16±1 50.12 1.78 1 0.0177 Pass 5785 20.00 14.88 14±1 31.62 1.78 1 0.0112 Pass 5825 20.00 14.82 14±1 31.62 1.78 1 0.0112 Pass

Shenzhen QC Testing Laboratory Co., Ltd. Report No.: QCT24FR-1704E-01 Page 1 of 40 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 www.qctest.com.cn FCC PART 15.407 TEST REPORT On Behalf of Shenzhen ZO Video Technology Co., Ltd. 2c, 2 / F, building 6, longbi Industrial Zone, 27 Dafa Road, Bantian street, Longgang District, Shenzhen July 9, 2024 T his Repo rt Co nc erns: Origina l Report Equip men t T ype: Wireless video system Test Engineer: LBi Li / Report Number: QCT24FR-1704E-01 Test Date: June 12,2024 ~ July 5, 2024 Reviewed By: Gordon Tan/ Approved By: Kendy Wang / Prepared By: Shenzhen QC Testing Laboratory Co., Ltd. East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 FCC ID: 2A2RJ-TPMINITX Model: TP Mini TX, TP Max TX, TP Max Pro TX, TP Mini 2 TX, TP Max 2 TX, TP Max Pro 2 TX, TP One, TP Multi Shenzhen QC Testing Laboratory Co., Ltd. Report No.: QCT24FR-1704E-01 Page 2 of 40 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 www.qctest.com.cn Table of Contents 1. GENERAL INFORMATION ................................................................................................. 5 1.1 Product Description for Equipment under Test (EUT) ............................................................5 1.2 System Test Configuration .....................................................................................................6 1.3 Test Facility ............................................................................................................................7 1.4 Measurement Uncertainty ......................................................................................................7 2. SUMMARY OF TEST RESULTS ........................................................................................ 8 3. LIST OF TEST AND MEASUREMENT INSTRUMENTS .................................................... 9 3.1 Conducted Emission Test ......................................................................................................9 3.2 Radiated Emission Test .........................................................................................................9 3.3 RF Conducted test ............................................................................................................... 10 4. ANTENNA REQUIREMENT .............................................................................................. 11 5. CONDUCTED EMISSIONS ............................................................................................... 12 5.1 Applicable Standard ............................................................................................................. 12 5.2 Limit ..................................................................................................................................... 12 5.3 Test setup ............................................................................................................................ 12 5.4 EMI Test Receiver Setup ..................................................................................................... 12 5.5 Test procedure ..................................................................................................................... 12 5.6 Test Data ............................................................................................................................. 12 6. BANDWIDTH .................................................................................................................... 15 6.1 Applicable Standard ............................................................................................................. 15 6.2 Limit ..................................................................................................................................... 15 6.3 Test setup ............................................................................................................................ 15 6.4 Test Procedure .................................................................................................................... 15 6.5 Test Data ............................................................................................................................. 15 7. CONDUCTED TRANSMITTER OUTPUT POWER ........................................................... 23 7.1 Applicable Standard ............................................................................................................. 23 7.2 Limit ..................................................................................................................................... 23 7.3 Test setup ............................................................................................................................ 23 7.4 Test Procedure .................................................................................................................... 23 7.5 Test Data ............................................................................................................................. 23 8. POWER SPECTRAL DENSITY ........................................................................................ 28 8.1 Applicable Standard ............................................................................................................. 28 8.2 Limit ..................................................................................................................................... 28 8.3 Test setup ............................................................................................................................ 28 8.4 Test Procedure ...............................…

Text truncated - open the document above for the full version.

Shenzhen QC Testing Laboratory Co., Ltd. Report No.: QCT24FR-1704E-02 Page 1 of 46 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 www.qctest.com.cn FCC PART 15.407 TEST REPORT On Behalf of Shenzhen ZO Video Technology Co., Ltd. 2c, 2 / F, building 6, longbi Industrial Zone, 27 Dafa Road, Bantian street, Longgang District, Shenzhen July 9, 2024 T his Repo rt Co nc erns: Origina l Report Equip men t T ype: Wireless video system Test Engineer: LBi Li / Report Number: QCT24FR-1704E-02 Test Date: June 12,2024 ~ July 5, 2024 Reviewed By: Gordon Tan/ Approved By: Kendy Wang / Prepared By: Shenzhen QC Testing Laboratory Co., Ltd. East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 FCC ID: 2A2RJ-TPMINITX Model: TP Mini TX, TP Max TX, TP Max Pro TX, TP Mini 2 TX, TP Max 2 TX, TP Max Pro 2 TX, TP One, TP Multi Shenzhen QC Testing Laboratory Co., Ltd. Report No.: QCT24FR-1704E-02 Page 2 of 46 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 www.qctest.com.cn Table of Contents 1. GENERAL INFORMATION ................................................................................................. 5 1.1 Product Description for Equipment under Test (EUT) ............................................................5 1.2 System Test Configuration .....................................................................................................6 1.3 Test Facility ............................................................................................................................7 1.4 Measurement Uncertainty ......................................................................................................7 2. SUMMARY OF TEST RESULTS ........................................................................................ 8 3. LIST OF TEST AND MEASUREMENT INSTRUMENTS .................................................... 9 3.1 Conducted Emission Test ......................................................................................................9 3.2 Radiated Emission Test .........................................................................................................9 3.3 RF Conducted test ............................................................................................................... 10 4. ANTENNA REQUIREMENT .............................................................................................. 11 5. CONDUCTED EMISSIONS ............................................................................................... 12 5.1 Applicable Standard ............................................................................................................. 12 5.2 Limit ..................................................................................................................................... 12 5.3 Test setup ............................................................................................................................ 12 5.4 EMI Test Receiver Setup ..................................................................................................... 12 5.5 Test procedure ..................................................................................................................... 12 5.6 Test Data ............................................................................................................................. 12 6. CHANNEL BANDWIDTH .................................................................................................. 15 6.1 Applicable Standard ............................................................................................................. 15 6.2 Limit ..................................................................................................................................... 15 6.3 Test setup ............................................................................................................................ 15 6.4 Test Procedure .................................................................................................................... 15 6.5 Test Data ............................................................................................................................. 15 7. CONDUCTED TRANSMITTER OUTPUT POWER ........................................................... 22 7.1 Applicable Standard ............................................................................................................. 22 7.2 Limit ..................................................................................................................................... 22 7.3 Test setup ............................................................................................................................ 22 7.4 Test Procedure .................................................................................................................... 22 7.5 Test Data ............................................................................................................................. 22 8. POWER SPECTRAL DENSITY ........................................................................................ 27 8.1 Applicable Standard ............................................................................................................. 27 8.2 Limit ..................................................................................................................................... 27 8.3 Test setup ............................................................................................................................ 27 8.4 Test Procedure .........................................…

Text truncated - open the document above for the full version.

Sample Approved Sheet P/N： KS088-10058-A Part type：4.95~5.85 G dipole Ant with IPEX Con. Lenth5CMgain 2.5dBi，S WR<2.3 customer： Shenzhen Zeroone-video Tech P/N： QC ENG. SALES Lifang.Li Haibing.Li CUSTOM 确认 审核 批准 Gimmy .chen Bruce.zhao 结果： 接受 拒绝 意见：PASS Catalog Item Page 1. COVER 1 2. CATALOG 2 3. SPEC 3 4. PHOTO 4 5.Test result : return loss 5 6.Test result : Radiation 6-17 Specification ● ElectricalPerformance: 1. Frepuency Range: 4.95-5.85GHz 2. Lmpedance: 50 Ohms nominal 3. VSWR :≦1.92 4. Gain:2.5dBi 5. Admitted power radlation:1W 6. Radation of Radlation:Toroidal 7. Radiation:Omni 8. Polarization:Vertical 9. ConnctorType:i-PEX ● Mechanicalproperties: 1. Cable: 1.37Cable Black,50Ohm 2. Operationtemperaturerange: -2 0°C ~+70 °C 3. Storage temperature range : -30°C ~+80 °C 4. Color:Black 4.95-5.75G 2.5dBi Ant. P/N: KS088-10083-A Return Los/VSWR Range:4.95~5.85G Test Spec:Return Loss/VSWR 3D Antenna Pattern Report Frequency(MHz) Effi % Ver 5150 MHz 75.50 -62.90 5250 MHz 75.10 -62.70 5450 MHz 77.92 -59.96 5825 MHz 72.34 -62.80 Manufacturer - Model Name 5.8G Tester Name W_ Test Date 2019/09/15 9:47 IF BW 100Hz Port Power 20dBm Meas Step 5 ` 3D Antenna Pattern Report Max Max Position Gain Hor Sum Theta / Pie dBi -71.43 -62.84 95.00 / 0.00 2.50 -70.42 -62.68 90.00 / 0.00 2.37 -69.60 -59.94 75.00 / 180.00 2.34 -71.86 -62.78 80.00 / 180.00 2.35 Gain Directivity dBi 4.50 dB 7 4.35dB 4 5.25 dB 5 5.15 dB Unit=dBm Result= Gain+Port Power Standard spec. 1、RF Spec. RF range 4.95~5.85 G S.W.R ≤1.92 Gain 2.5 dBi Connector IPEX Impedance 50 Ohm

Shenzhen QC Testing Laboratory Co., Ltd. Page 1 of 2 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 www.qctest.com.cn Product Name: Wireless video system Test Model No.: TP Mini TX Photograph of Test Setup Conducted Emissions Radiated Emissions (30 MHz - 1 GHz) Shenzhen QC Testing Laboratory Co., Ltd. Page 2 of 2 Address: East of 1/F., Building E, Xinghong Science Park, No.111, Shuiku Road, Fenghuanggang, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Tel: 0755-23008269 Fax: 0755-23726780 www.qctest.com.cn Radiated Emissions (Above 1 GHz)
