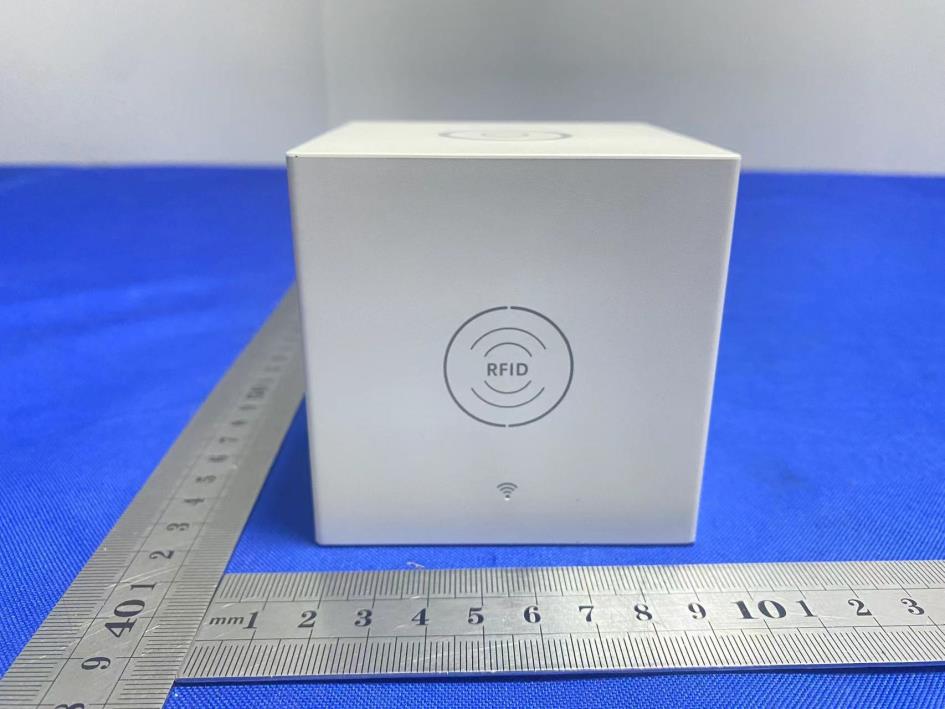

2A2T4-H320SecCube 3

SecCube 3 Alarm Kit User Manual CONTENT I. Introduction ............................................................................................................................................... 1 1.1 What’s in the Package .............................................................................................................. 1 1.2 Home Installation Diagram .................................................................................................... 3 II. Learn to use the Base Station ............................................................................................................ 4 III. Set up the Alarm Devices ............................................................................................................ 5 3.1 Entry Sensor ................................................................................................................................ 5 3.2 Controller ...................................................................................................................................... 7 3.3 RFID ................................................................................................................................................ 8 3.4 Other Accessories ....................................................................................................................... 8 IV. Learn to Use the System ............................................................................................................. 9 V. Troubleshooting ..................................................................................................................................... 10 VI. Hazardous Substance Declaration ......................................................................................... 10 VII. Warranty Rules ............................................................................................................................ 11 VIII. FCC Declares.................................................................................................................................. 11 1 / 12 I. Introduction 1.1 What’s in the Package Base Station Entry Sensor The central hub of the alarm system. It connects all the devices, so you can stay in control of your home from anywhere. Alerts you when a door or window is opened. 2 / 12 Controller RFID Allows you to remotely control the alarm system to quickly enter Home, Away, Disarm, and SOS modes. Allows you to quickly arm/disarm the system. 3 / 12 1.2 Home Installation Diagram 4 / 12 II. Learn to use the Base Station Security button function: Note: When the system enters the Power Saving Mode (Security light off),a short press is required to wake up the device.  When the 'Long Press Alarm' is enabled in the settings, and the system is in a non- alarm state, long press 2s to trigger an alarm.  When the 'Long Press Silence' is enabled in the settings, and the system is alarming, long press 2s to silence the alarm. Red light flashes every 10 seconds: Base station low battery Yellow/Red light flashing: Door/window not closed during delay arming Security light off: Device enters power saving mode 5 / 12 III. Set up the Alarm Devices 3.1 Entry Sensor (1) Installation The entry sensor should be installed on the door or window (see image). A. First, clean the area on the door or window and apply double-sided tape to the bottom. B. The door sensor transmitter (large) and the door sensor magnet (small) should be installed separately. The triangle marks on the transmitter and the magnet should be facing each other, and the distance between the two is less than 0.6”. C. When the door or window is opened after installation, the indicator light will be on for 2 seconds to indicate that the installation is complete. 6 / 12 (2) Appearance Design 7 / 12 3.2 Controller (1) Appearance Introduction Press 1.5s to trigger SOS 8 / 12 3.3 RFID 3.4 Other Accessories Urgent sensor: Emergency detectors such as gas detectors, smoke detectors, or SOS buttons, please add them here. Once triggered, the base station will alarm, no matter what state the device is in. Secret sensor: Once triggered, the base station will not alarm, General sensor: Other sensors or detectors, please add them here. Note: 1) The security system supports the accessories with 433MHz, ev1527. 2) For the Entry sensors from another brand, please add it to “General” 3) Support up to 68 Sensors, 6 Controllers, 6 Doorbells, 6 Keypads, 10 RFID Cards. 9 / 12 IV. Learn to Use the System 5.1Alarm Modes A. Base station Alarm Modes a. Away: The base station is in a monitoring state, when the accessories are triggered, the base station will alarm. b. Home: When the user is at home, in this mode, some areas can be monitored and alarms. c. Disarm: The base station cancels the monitoring state, and only the SOS button or the accessories set to "Always" mode can trigger the alarm. B. Accessories Modes： a. Away/Home： When the base station is in the "Away" or "Home" state, the panel will alarm after the sensor is triggered. It is recommended that the outdoor sensor can be set to this mode. b. Away： When the base station is in the "Away" state, the panel will alarm after the sensor is triggered. It is recommended that the outdoor detector can be set to this mode. c. Always： Regardless of the state of the base station, any time the sensor is triggered, the panel will alarm. It is recommended to set this mode for gas leaks, smoke detectors, etc. d. Disabled： The base station will not respond to the alarm request of the sensor set in this mode. Note: You can choose which sensors are armed in Home and Away mode, or both, or always active. For example, if you want to avoid triggering the alarm when you are at home, you can set the specific sensor in Away mode. Then when you set the panel in “Home” state, the alarm will not be triggered, only in “Away” state, the alarm will be triggered. 10 / 12 V. Troubleshooting Q1. The base station is connected to the char…
