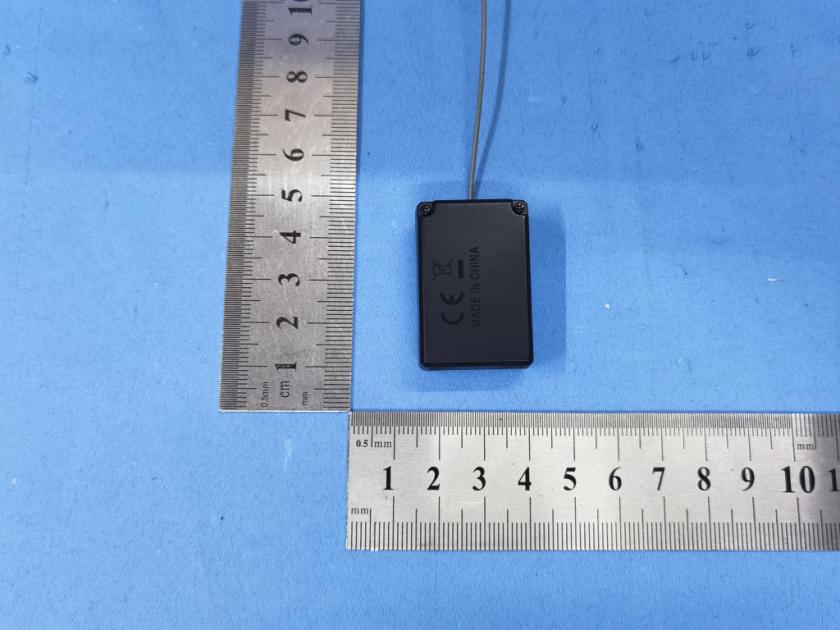

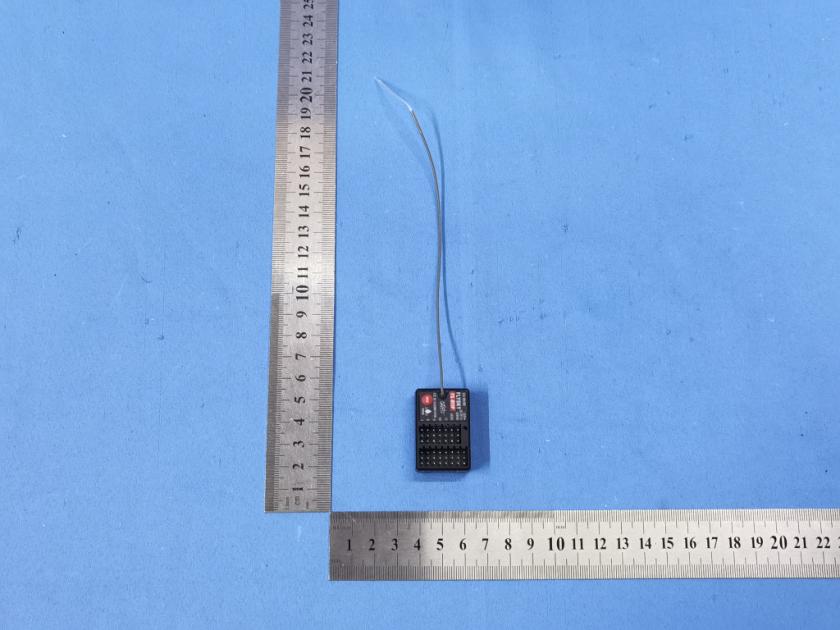

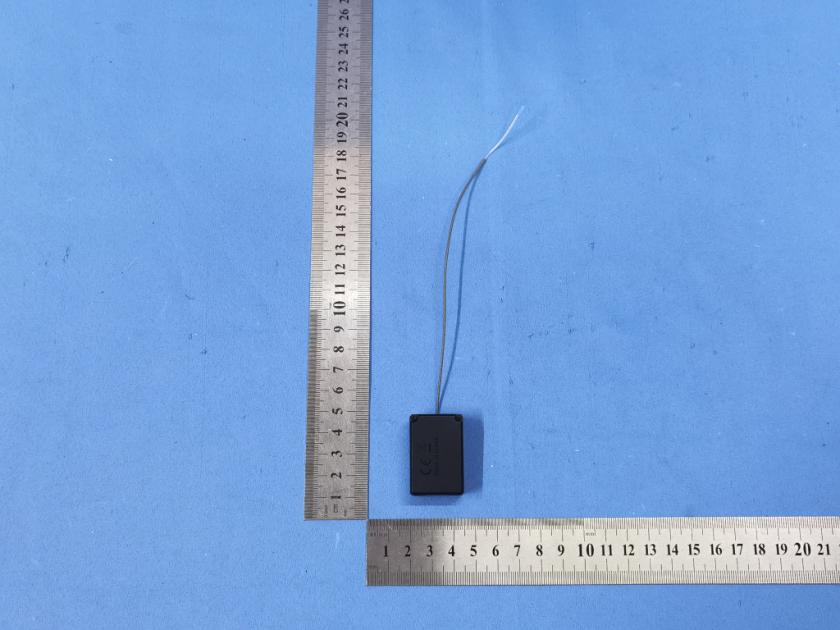

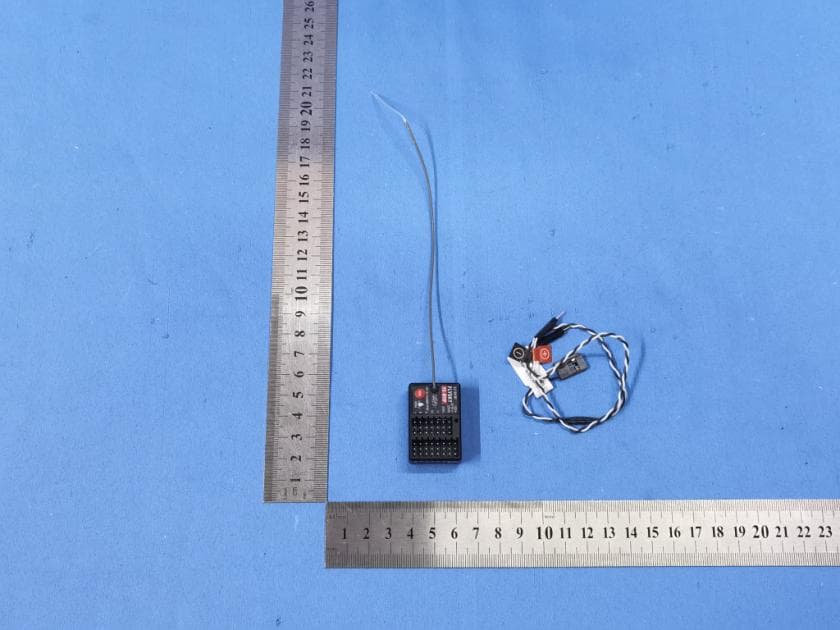

2A2UNR11P0011-Channel Receiver

FS-R11P 接收机 Receiver Http://www.flysky-cn.com Copyright ©2022 Flysky Technology Co., Ltd. • 产品型号：FS-R11P • 适配发射机：FS-G11P（支持 ANT 协议的发射机 ) • 适配模型：车、船 • PWM 通道数：11 • 无线频率：2.4GHz ISM • 发射功率：<20dBm • 天线类型：外置单天线（同轴） • 遥控距离： ≥ 300 米 ( 空旷无干扰地面距离 ) • 无线标准：ANT（蚂蚁版自动跳频数字系统） • 通道分辨率：4096 级 • 数据输出：PWM/PPM/i-BUS/S.BUS • 输入电源：3.5 ~ 9V/DC • 工作电流：66mA/5V • 在线更新：支持 • 温度范围：-10°C ~ +60°C • 湿度范围：20% ~ 95％ • 防水等级：PPX4 • 外形尺寸：37.0mm*25mm*13.3mm • 机身重量：10g • 认证：CE，FCC ID: 2A2UNR11P00 FS-R11P 是一款采用 ANT 通信协议，提供 11 通道的双 向接收机，外置单天线，输出PWM、PPM、i-BUS或S.BUS 信号，设计小巧紧凑，可适配多种模型车和模型船使用。 FS-R11P based on ANT protocol is a receiver which provides 11-channel and bidirectional transmission, feturing external single antenna and PWM, PPM, i-BUS or S.BUS signal output, and a compact design. It can adapted to a variety of model cars or boats. 产品介绍 Introduction 接收机概览 Overview 产品规格 Specifications [1] CH1/P [2] CH2 [3] CH3 [4] CH4 [5] CH5 [6] CH6 [7] 对码接口 [8] VCC/BVD(供电接口 /电池电压检测 ) [9] CH7 [10] CH8 [11] CH9 [12] CH10 [13] CH11 [14] 传感器接口 [15] SERVO [16] LED 对码 Binding [1] CH1/P (PWM/PPM) [2] CH2 [3] CH3 [4] CH4 [5] CH5 [6] CH6 [7] BIND Interface [8] VCC/BVD(Power Supply /Battery Voltage detection Interface) [9] CH7 [10] CH8 [11] CH9 [12] CH10 [13] CH11 [14] SENS Interface [15] SERVO [16] LED [17] Antenna [18] BIND Button [19] Signal Pin [20] + (Power Anode) [21] - (Power Cathode) [22] BVD Harness [23] Connect to Battery Anode [24] Connect to Battery Cathode • Product Name: FS-R11P • Adaptive Transmittes: FS-G11P( Adapts transmitters with ANT protocol) • Adaptive Models: Cars or boats • PWM Channels: 11 • RF: 2.4GHz ISM • Maximum Power: <20dBm (e.i.r.p.) （EU） • Antenna: External single antenna • Distance: ≥ 300m (Ground distance without interference) • 2.4G Protocol: ANT • Resolution: 4096 • Data Output: PWM/PPM/i-BUS/S.BUS • Input Power: 3.5 ~ 9V/DC • Working Current: 66mA/5V • Online Update: Yes • Temperature Range: -10°C ~ +60°C • Humidity Limit: 20% ~ 95% • WaterProof: PPX4 • Dimensions: 37.0mm*25mm*13.3mm • Weight: 10g • Certifications: CE, FCC ID: 2A2UNR11P00 [22] [23] [24] 注：BVD 电压检测范围： 0~70V / Note: BVD voltage detection range is from 0 to 70V. 本款接收机支持双向对码和单向对码 ( 发射机端设置）, 双向对码完成后发射机将显示接收机回传的信息。 双向对码步骤： 1. 发射机选择双向通信，然后进入对码状态； 2. 本接收机支持三种方式进入对码状态：按键对码、对码线对码和通电后按键对码 • 按键对码：按住接收机对码按键同时上电，接收机 LED 灯快闪表示进入对码状态，松开对码键； • 对码线对码：BIND 接口连接对码线后上电，接收机 LED 灯快闪，进入对码状态。注意对码成功后需取下对码线； • 通电后按键对码：接收机上电后未与发射机通信过，长按对码键 3 秒，接收机指示灯快闪表示进入对码状态，松开对码键。 3. 接收机 LED 灯常亮，即对码成功。发射机对码成功后自动退出对码状态，对码完成； 4. 检查发射机、接收机是否正常工作。如需重新对码，请重复以上步骤。 [1] [2] [3] [4] [5] [6] [7] [9] [10] [11] [12] [13] [14] [15] [17] [18] [16] [8] [17]天线 [18] 对码按键 [19] 信号端 [20] 电源正极 [21] 电源负极 [22] BVD 功能配件 [23] 接电池正极 [24] 接电池负极 [19][20][21] FS-R11P 接收机 Receiver Http://www.flysky-cn.com Copyright ©2022 Flysky Technology Co., Ltd. 对码 Binding The firmware of this receiver can be updated via the FlyskyAssistant (Only version 3.0 or later is supported. The firmware of FlyskyAssistant is available on the Flysky official website). This receiver can be updated through the following two ways: 1. After the binding between the transmitter and the receiver (the LED of the receiver is solid on), connect the transmitter to the computer, then open the FlyskyAssistant on the computer to update the firmware. 2. Connect the transmitter to the computer. Then put the receiver to enter the forced update mode by referring to the following three ways (The LED of the receiver works in three-flash-one-off mode repeatedly). Afterwards, open the FlyskyAssistant on the computer to update the firmware. • Power on the receiver while pressing and holding the BIND button for more than ten seconds, until the LED of the receiver works in three- flash-one-off mode repeatedly, then release the BIND button. • Power on the receiver first, then press and hold the BIND button for more than ten seconds, when the LED of the receiver works in three- flash-one-off mode repeatedly, then release the BIND button. • Connect the bind cable to the signnal pins of the CH5 and BIND interface, then power on the receiver. 固件更新 Firmware update 单向对码步骤： 1. 发射机选择单向通信，然后进入对码状态； 2. 接收机进入对码状态（进入对码状态的方式请参考双向对码时描述）； 3. 接收机 LED 灯变为慢闪后将发射机退出对码状态，此时接收机 LED 灯常亮，表示对码成功； 4. 检查发射机、接收机是否正常工作。如需重新对码，请重复以上步骤。 The receiver supports two -way binding and one-way binding, and can be set at the transmitter side. The transmitter will display the information returned from the receiver after the two-way binding is completed. Follow the steps below to bind in two-way binding: 1. Select [ANT 2 WAY] for RF standard of the transmitter, then put the transmitter in bind mode. 2. The receiver supports three ways to enter bind mode: BIND button binding, bind cable binding and BIND button binding after power-on. • BIND button binding: Press and hold the BIND button of the receiver while powering on the receiver, tthe LED of the receiver should be flashing, indicating that the receiver is in bind mode. Then release the BIND button. • Bind cable binding: Insert the bind cable to the BIND interface of the receiver, then power on the receiver. The LED of the receiver should be flashing, indicating that the receiver is in bind mode. Note that you need to remove the bind cable from the receiver after the binding process is finished. • BIND button binding after power-on: The receiver has not been connected to the transmitter when it is powered on. Press and hold the BIND button for 3 seconds, the LED of the receiver should be flashing, indicating that the receiver is in bind mode. Then release the BIND button. 3. When the LED of the receiver is solid on, the binding process should be finished. The transmitter exits the bind mode automaticlly. 4. Check to make sure the transmitter and receiver functions are working correctly, repeat steps 1 to 3 (binding process) if any problems arise. Follow the steps below to bind in one-way binding: 1. Select [ANT 1 WAY] for RF standard of the transmitter, then put the transmitter in bind mode. 2. Put the receiver in bind mode ( Refer to the descriptio…

Text truncated - open the document above for the full version.

ShenZhen FLYSKY Technology Co.,Ltd * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 3/22/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2A2UNR11P00 Per section 2.911(d)(7) of the FCC rules, ShenZhen FLYSKY Technology Co.,Ltd certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Baihetian Innovative Solutions Physical U.S. Company Address: 6837 Chase Rd, Dearborn, MI 48126, USA Contact Person: Kenneth Young Agent Email Address: [email protected] FRN: 0033401605 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: Printed name: Kyle Li Title: RD Manager Company Name: ShenZhen FLYSKY Technology Co.,Ltd Date: 3/22/2023 Agent Signed (if different to Applicant): Signed: Printed name: Kenneth Young Title: Manager Company Name: Baihetian Innovative Solutions Date: 3/22/2023

ShenZhen FLYSKY Technology Co.,Ltd Covered Equipment Certification Attestation Letter 3/22/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2A2UNR11P00 ShenZhen FLYSKY Technology Co.,Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. ShenZhen FLYSKY Technology Co.,Ltd certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Kyle Li Title: RD Manager Company Name: ShenZhen FLYSKY Technology Co.,Ltd Date: 3/22/2023

DATE : 2023-03-22 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Jason Wu of Global United Technology Services Co., Ltd.and No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with ShenZhen FLYSKY Technology Co.,Ltd and 16F, Huafeng Building, No. 6006 Shennan Road, Futian District, Shenzhen, Guangdong, China Signature: Name: Kyle Li Title: RD Manager Company: ShenZhen FLYSKY Technology Co.,Ltd

ShenZhen FLYSKY Technology Co.,Ltd DATE : 2023-03-22 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A2UNR11P00 Product Name: 11-Channel Receiver Request for Confidentiality To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Signature: Name: Kyle Li Title: RD Manager

20221024 0.175磨砂PC+3M467胶 21.13*13.26mm 01 彩色印刷 FS-R11P接收机 FS-R11P 接收机贴纸 B-TFSR11P-01 Adobe Illustrator CC 2016 李德平 PANTONE 485 C PANTONE Black C White 产品经理确认

FCC ID: 2A2UNR11P00 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: 2A2UNR11P00 Test Result of RF Exposure Evaluation Channel Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm2) Limit (mW/cm2) Result Lowest 12.59 18.16 0.0029 1.0 PASS Middle 13.18 20.80 0.0034 1.0 PASS Highest 13.04 20.14 0.0033 1.0 PASS Remark: antenna gain=-0.9dBi

Global United Technology Services Co., Ltd. Report No.: GTS2023030180F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 39 TEST REPORT Applicant: ShenZhen FLYSKY Technology Co.,Ltd Address of Applicant: 16F, Huafeng Building, No. 6006 Shennan Road, Futian District, Shenzhen, Guangdong, China Manufacturer: ShenZhen FLYSKY Technology Co.,Ltd Address of Manufacturer: 16F, Huafeng Building, No. 6006 Shennan Road, Futian District, Shenzhen, Guangdong, China Factory: Dongguan Flysky RC Model technology Co.,Ltd Address of Factory: West building 3, HuangjinyuanInd Park, Qiaoli North Gate, Changping Town, Dongguan, China Equipment Under Test (EUT) Product Name: 11-Channel Receiver Model No.: FS-R11P Trade Mark: FLYSKY FCC ID: 2A2UNR11P00 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: March 16, 2023 Date of Test: March 17-22, 2023 Date of report issued: March 22, 2023 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS2023030180F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 39 2 Version Version No. Date Description 00 March 22, 2023 Original Prepared By: Date: March 22, 2023 Project Engineer Check By: Date: March 22, 2023 Reviewer Report No.: GTS2023030180F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 39 3 Contents Page 1 COVER PAGE ................................................................................................................................................ 1 2 VERSION ........................................................................................................................................................ 2 3 CONTENTS .................................................................................................................................................... 3 4 TEST SUMMARY ........................................................................................................................................... 4 4.1 MEASUREMENT UNCERTAINTY .................................................................................................................. 4 5 GENERAL INFORMATION ............................................................................................................................ 5 5.1 GENERAL DESCRIPTION OF EUT ............................................................................................................... 5 5.2 TEST MODE .............................................................................................................................................. 7 5.3 TEST FACILITY .......................................................................................................................................... 7 5.4 TEST LOCATION ....................................................................................................................................... 7 5.5 DESCRIPTION OF SUPPORT UNITS ............................................................................................................. 7 5.6 DEVIATION FROM STANDARDS ................................................................................................................... 7 5.7 ABNORMALITIES FROM STANDARD CONDITIONS ......................................................................................... 7 5.8 ADDITIONAL INSTRUCTIONS ....................................................................................................................... 7 6 TEST INSTRUMENTS LIST ........................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .......................................................................................... 10 7.1 ANTENNA REQUIREMENT ......................................................................................................................... 10 7.2 CONDUCTED EMISSIONS ......................................................................................................................... 11 7.3 CONDUCTED PEAK OUTPUT POWER ........................................................................................................ 14 7.4 20DB EMISSION BANDWIDTH .................................................................................................................. 15 7.5 CARRIER FREQUENCIES SEPARATION ...................................................................................................... 16 7.6 HOPPING CHANNEL NUMBER .................................................................................................................. 17 7.7 DWELL TIME ........................................................................................................................................... 18 7.8 SPURIOUS EMISSION IN NON-RESTRICTED & RESTRICTED BANDS ............................................................. 19 7.8.1 Conducted Emission Method ........................................................................................................... 19 7.8.2 Radiated Emission Method .............................................................................................................. 20 8 TEST SETUP PHOTO .......................................…

Text truncated - open the document above for the full version.

Report No.: GTS2023030180F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 21 Appendix for 15.247 1. Bandwidth 1.1 OBW 1.1.1 Test Result Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result GMSK SISO 2406 1 2.053 Pass 2440 1 2.068 Pass 2472 1 2.163 Pass Report No.: GTS2023030180F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 21 1.1.2 Test Graph GMSK_LCH_2406MHz_Ant1_NTNV GMSK_MCH_2440MHz_Ant1_NTNV Report No.: GTS2023030180F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 21 GMSK_HCH_2472MHz_Ant1_NTNV Report No.: GTS2023030180F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 21 1.2 20dB BW 1.2.1 Test Result Mode TX Type Frequency (MHz) ANT 20dB Bandwidth (MHz) Verdict Result GMSK SISO 2406 1 2.156 Pass 2440 1 2.158 Pass 2472 1 2.287 Pass Report No.: GTS2023030180F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 5 of 21 1.2.2 Test Graph GMSK_LCH_2406MHz_Ant1_NTNV GMSK_MCH_2440MHz_Ant1_NTNV Report No.: GTS2023030180F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 6 of 21 GMSK_HCH_2472MHz_Ant1_NTNV Report No.: GTS2023030180F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 7 of 21 2. Maximum Conducted Output Power 2.1 Test Result Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GMSK SISO 2406 12.59 <=20.97 Pass 2440 13.18 <=20.97 Pass 2472 13.04 <=20.97 Pass Report No.: GTS2023030180F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 8 of 21 2.2 Test Graph GMSK_LCH_2406MHz_Ant1_NTNV GMSK_MCH_2440MHz_Ant1_NTNV Report No.: GTS2023030180F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 9 of 21 GMSK_HCH_2472MHz_Ant1_NTNV Report No.: GTS2023030180F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 10 of 21 3. Carrier Frequency Separation 3.1 Test Result Ant1 Mode TX Type Frequency (MHz) Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GMSK SISO HOPP 4.000 2.287 >=1.525 Pass 3.2 Test Graph GMSK_HOPP_Ant1_NTNV Report No.: GTS2023030180F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 11 of 21 4. Number of Hopping Frequencies 4.1 Test Result Mode TX Type Frequency (MHz) Num of Hopping Frequencies Verdict ANT1 Limit GMSK SISO HOPP 20 >=15 Pass 4.2 Test Graph GMSK_HOPP_Ant1_NTNV Report No.: GTS2023030180F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 12 of 21 5. Time of Occupancy (Dwell Time) 5.1 Test Result Ant1 Mode TX Type Frequency (MHz) Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GMSK SISO HOPP 1.154 8.000 50 57.700 <=400 Pass Report No.: GTS2023030180F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 13 of 21 5.2 Test Graph GMSK_HOPP_Ant1_NTNV GMSK_HOPP_Ant1_NTNV Report No.: GTS2023030180F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 14 of 21 6. Unwanted Emissions In Non-restricted Frequency Bands 6.1 Ref 6.1.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) GMSK SISO 2406 1 12.48 2440 1 13.06 2472 1 12.91 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. Repor…

Text truncated - open the document above for the full version.

深圳市维力谷无线技术股份有限公司 ShenZhenVLGWirelessTechnology Co,.Ltd 天线测试报告 Antenna Test Report 客户案号/ Customer No. : 日期/Date：2021年10月11日 项目负责人: WIFI天线2.4GHz天线效率、增益： 2.4 GHz Antenna Efficiency Gain of WIFI Antenna: 频率(MHz)效率(%)增益(dBi) 240015%-2.37 241018%-1.47 242018%-1.46 243016%-1.88 244014%-2.48 245013%-2.70 246014%-2.26 247015%-2.02 248015%-2.19 249015%-2.08 250020%-0.90 天线增益Antenna gain：2400~2500MHz：-1.7±1dBi 2.4GHz天线方向图（2.4 GHz antenna pattern） Phi=0Phi=90 Theta=90 S11 VSWR 实物图 角 度 公 差 ANGULAR 线 性 材 料 LINEAR MATERIAL: TOLERANCE DATE 日 期 审 图 CHECKING UNLESS OTHERWISE SPECIFIED 零 件 编 号 PART/NO.:名 称 TITLE: DATE 日 期 比 例 DRWING 制 图 单 位 SCALE: UNIT IN 2 3 4 5 6 日 期 1 D 签 字 C 标 记 处 数 更 改 内 容 BA 1 2 3 4 5 6 DCB A FINISH: 表 面 处 理 REV 版 次 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

Radiated Emission Conducted Emission
