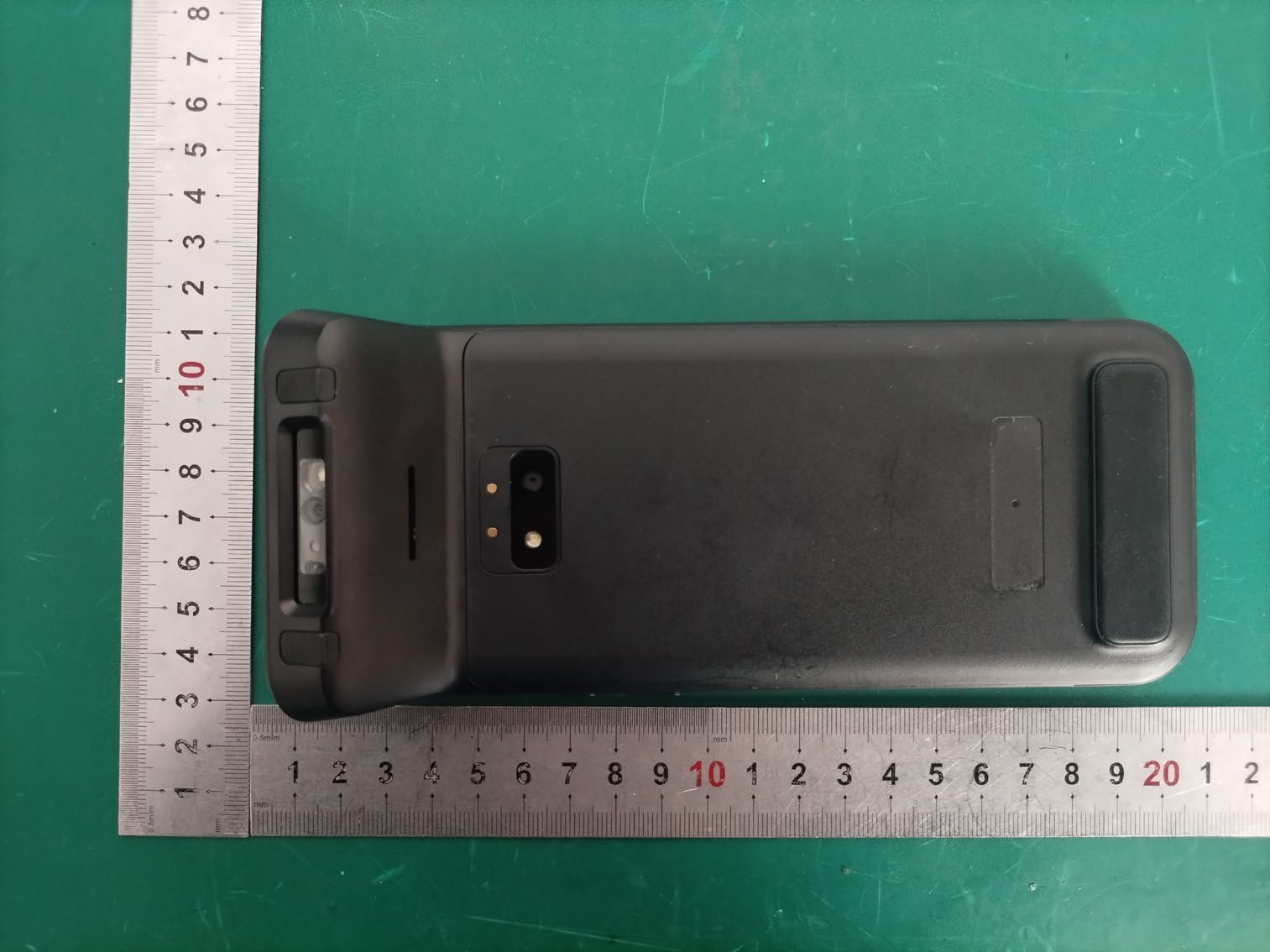

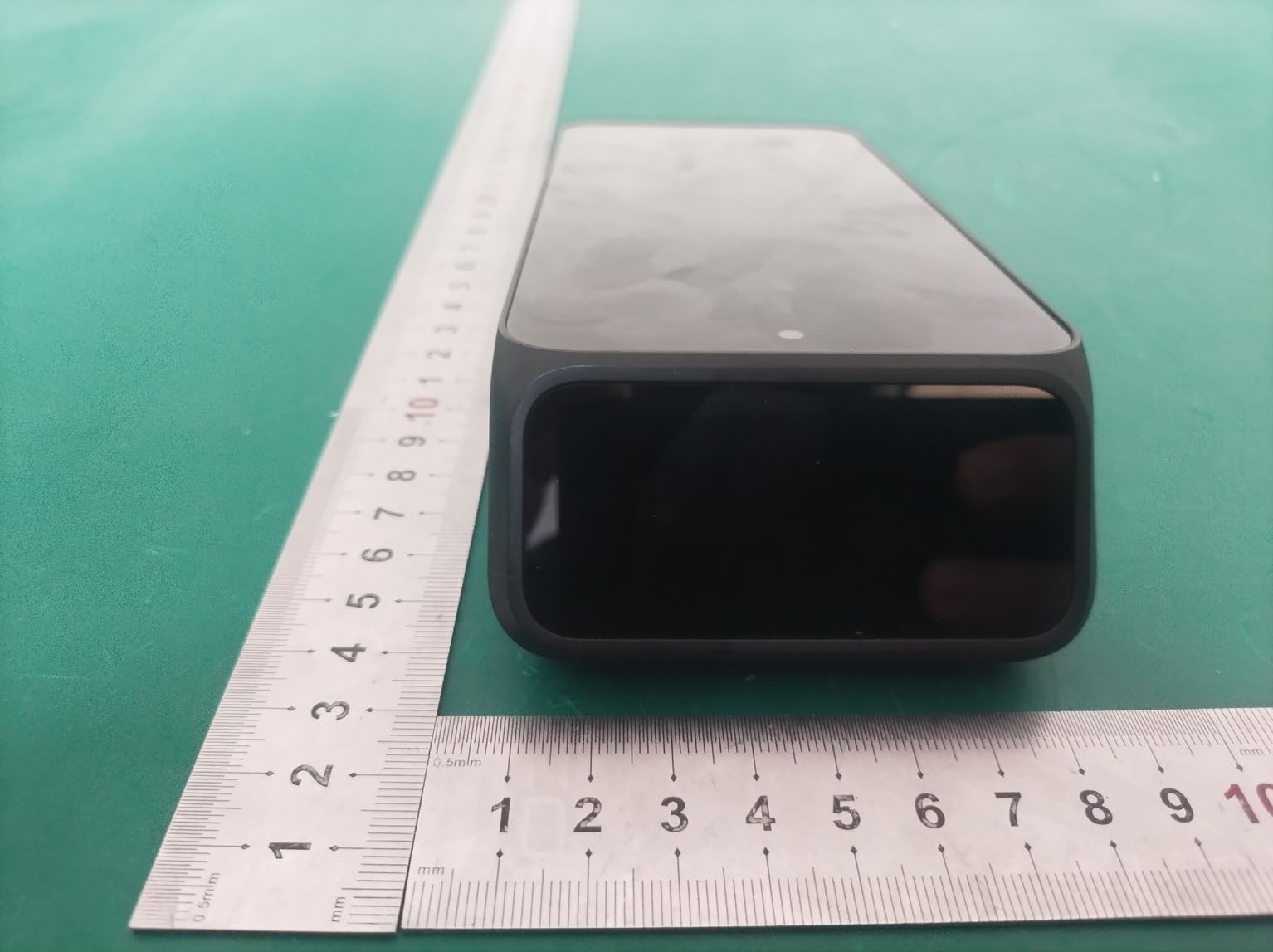

2A2UU-K1362P8 Go Smart Payment Terminal

Shanghai Xiangcheng Communication Technology Co.,Ltd

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Nov 17, 2025
Application Purpose: Original Equipment
Equipment Note: P8 Go Smart Payment Terminal
Frequency Range: 2402.00000000 - 2480.00000000
Company: Shanghai Xiangcheng Communication Technology Co.,Ltd
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Product Diagram NFC Card Reader NFC antenna locates at the bottom of the screen and on the printer cover. It’s used to sense chip and acquire data through contactless way. IC Card Reader Used for inserting the bank chip card and getting information securely. Magnetic Stripe Card Reader Used for reading encrypt information stored in corresponding cards. Camera Used for taking photos, unlock the device by face recognition and complete intelligent recognition base on it. Shanghai Xiangcheng Communication Technology Co.,Ltd 6th Floor, Building 10, No.3000 Longdong Avenue, Pudong New District, Shanghai, China P8 Go_QuickGuide Scanner Used to capture and identify 1D and 2D code. Display Used for APP functions or price display, etc. Power Button Used for change the running states of device, such as pressing 2~3 seconds to power on/off or screen capture and pressing 10 seconds to restart automatically when device is crashed. Function Button Used for adjusting the volume or serving as the shortcut of scan. The function can be customized. Pogo pin The POGO-Pins expanded interface is severed as the channel to connect the charging cradle for better power supply or finish data transmission between different devices. ATTENTION Warning ●Read all instructions and safety information before use to avoid injury. ●The limit operating ambient temperature of the device declared by the manufacturer is -10~45°C. Battery safety ●Charge battery only at ambient temperatures ranging from 0~40°C. ● Dispose of used batteries according to manufacturer’s instructions. ●Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type of battery recommended by the manufacturer. Statement ●The equipment damage caused by natural disasters, falling, self disassembly and non-compliance with the operation specifications is not covered by the free warranty. ●Some details of this document may be inconsistent with the real object due to the update iteration of the product. Please take the real object as the standard, and our company reserves the right to interpret this document. FCC Statement Any Changes or modifications not expressly approved by the party responsibl e for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference (2)This device must accept any interference received, including interference that may cause undesired operation. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. RF Exposure Information (SAR) : This device meets the government's requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg for body and 4.0W/kg for Limbs. *Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the poser required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. The highest SAR value for the device as reported to the FCC when worn on the body, as described in this user guide, is 0.78W/kg Body SAR (Body-worn measurements differ among devices, depending upon available enhancements and FCC requirements.) The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this device is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID: 2A2UU-K1362 For body worn operation, this device has been tested and meets the FCC RF exposure guidelines for use with an accessory that contains no metal and the positions the device minimum of 10 mm from the body . Use of other enhancements may not ensure compliance with FCC RF exposure guidelines.

RF Exposure Info

Report No.: RKSA250728002-20B APPENDIX E DIPOLE INTERMEDIATE CHECK Dipole antenna information： Dipole： D750V3 Serial Number: 1166 Manufacturer: Speag Calibration Date: 2025/06/14 Calibrated by: Reciewed by: Note： All Calibration have been conducted in the closed laboratory facility: Lab Temperature 18°C-25°C and humidity < 70% Calibration Equipment used: Equipment Model S/N Calibration Date Calibration Due Date Twin-SAM Phantom QD 000 P41 Ax 1963 N/A N/A Simulated Tissue LiquidHead HBBL600-6000V6 180611-3 Each Time Network Analyzer E5071B SG42400155 2025/04/08 2026/04/07 Network Analyzer Calibration Kit 50Ω N/A N/A N/A Test Data: Frequency (MHz) Simulated Liquid Parameter Measured Va l u e Target Va l u e Deviation 750 Head Return Loss -27.232 dB -26.546 dB 2.584% Real Impedance 53.708 Ω 50.953 Ω 2.755 Ω Imaginary Impedance -2.5298 Ω -4.6599 Ω 2.1301 Ω Note: The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Report No.: RKSA250728002-20B D750V3 - SN: 1166 (Date of Measurement: 2025/06/14) Report No.: RKSA250728002-20B Dipole antenna information： Dipole： D1750V2 Serial Number: 1140 Manufacturer: Speag Calibration Date: 2025/06/14 Calibrated by: Reciewed by: Note： All Calibration have been conducted in the closed laboratory facility: Lab Temperature 18°C-25°C and humidity < 70% Calibration Equipment used: Equipment Model S/N Calibration Date Calibration Due Date Twin-SAM Phantom QD 000 P41 Ax 1963 N/A N/A Simulated Tissue LiquidHead HBBL600-6000V6 180611-3 Each Time Network Analyzer E5071B SG42400155 2025/04/08 2026/04/07 Network Analyzer Calibration Kit 50Ω N/A N/A N/A Test Data: Frequency (MHz) Simulated Liquid Parameter Measured Va l u e Target Va l u e Deviation 1750 Head Return Loss -30.936 dB -30.748 dB 0.611% Real Impedance 49.208 Ω 47.181 Ω 2.027 Ω Imaginary Impedance 2.7025 Ω -0.0631Ω 2.7656 Ω Note: The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Report No.: RKSA250728002-20B D1750V2 - SN: 1140 (Date of Measurement: 2025/06/14) Report No.: RKSA250728002-20B Dipole antenna information： Dipole： D1900V2 Serial Number: 5d206 Manufacturer: Speag Calibration Date: 2025/06/14 Calibrated by: Reciewed by: Note： All Calibration have been conducted in the closed laboratory facility: Lab Temperature 18°C-25°C and humidity < 70% Calibration Equipment used: Equipment Model S/N Calibration Date Calibration Due Date Twin-SAM Phantom QD 000 P41 Ax 1963 N/A N/A Simulated Tissue LiquidHead HBBL600-6000V6 180611-3 Each Time Network Analyzer E5071B SG42400155 2025/04/08 2026/04/07 Network Analyzer Calibration Kit 50Ω N/A N/A N/A Test Data: Frequency (MHz) Simulated Liquid Parameter Measured Va l u e Target Va l u e Deviation 1900 Head Return Loss -23.335 dB -24.081 dB 3.098% Real Impedance 50.010 Ω 51.081 Ω 1.071 Ω Imaginary Impedance 6.8279 Ω 6.2373 Ω 0.5906 Ω Note: The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Report No.: RKSA250728002-20B D1900V2 - SN: 5d206 (Date of Measurement: 2025/06/14) Report No.: RKSA250728002-20B Dipole antenna information： Dipole： D2450V2 Serial Number: 970 Manufacturer: Speag Calibration Date: 2025/06/14 Calibrated by: Reciewed by: Note： All Calibration have been conducted in the closed laboratory facility: Lab Temperature 18°C-25°C and humidity < 70% Calibration Equipment used: Equipment Model S/N Calibration Date Calibration Due Date Twin-SAM Phantom QD 000 P41 Ax 1963 N/A N/A Simulated Tissue LiquidHead HBBL600-6000V6 180611-3 Each Time Network Analyzer E5071B SG42400155 2025/04/08 2026/04/07 Network Analyzer Calibration Kit 50Ω N/A N/A N/A Test Data: Frequency (MHz) Simulated Liquid Parameter Measured Va l u e Target Va l u e Deviation 2450 Head Return Loss -24.586 dB -24.353 dB 0.957% Real Impedance 50.902 Ω 53.832 Ω 2.93 Ω Imaginary Impedance 6.8736 Ω 4.9974 Ω 1.8762 Ω Note: The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Report No.: RKSA250728002-20B D2450V2 - SN: 970 (Date of Measurement: 2025/06/14)

Test Setup Photos

Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA250728002 1 / 4 EXHIBIT C - TEST SETUP PHOTOGRAPHS Conducted Emissions (Front View) Conducted Emissions (Left View) Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA250728002 2 / 4 Radiated Emissions-Ground-parallel View (Below 30 MHz) Radiated Emissions-Perpendicular View (Below 30 MHz) Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA250728002 3 / 4 Radiated Emissions-Parallel View (Below 30 MHz) Radiated Emissions (30MHz-1GHz) Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA250728002 4 / 4 Radiated Spurious Emissions (1-18 GHz) Radiated Spurious Emissions (18-25 GHz)

Test Report

基本信息 General information 主天线规格书 Main Antenna Datasheet 制造商 Manufacturer Shanghai Dezi Zai Integrated Circuit Co., Ltd；地址 103B, No. 10, Lane 198, Zhangheng Road, Zhangjiang, Pudong New Area, Shanghai 天线型号 Model Name R1151-main ant 日期 Date 2025-07-16 版本 Version 1.0 ...... ...... 天线外观 Antenna Appearance 技术规格 Technical Specifications 频率范围 Frequency Range 700MHZ-960MHZ+1710MHZ-2690MHZ 天线类型 Antenna Type PIFA 尺寸 Dimensions 44.63*16.65mm 阻抗 Impedance 50 ohm 最大增益 Maximum Gain 5.12dBi 驻波比 VSWR ≤5 ...... ...... passive Freq Effi Gain (MHz) (%) (dBi) 700 14.25 -3.53 710 15.26 -3.11 720 16.53 -3.05 730 16.44 -2.89 740 17.06 -2.27 750 17.12 -2.03 760 16.65 -2.09 770 15.95 -2.71 780 15.04 -3.11 790 14.62 -3.27 800 14.13 -3.58 Freq Effi Gain (MHz) (%) (dBi) 790 22.59 -2.04 800 25.22 -1.56 810 26.14 -1.16 820 26.76 -1.04 830 26.02 -1.37 840 25.75 -1.34 850 26.52 -0.61 860 27.25 -0.67 870 28.44 -0.32 880 29.35 -0.16 890 28.03 -0.34 900 26.67 -0.63 Freq Effi Gain (MHz) (%) (dBi) 880 22.43 -1.17 890 24.91 -1 900 26.73 -0.33 910 27.93 -0.25 920 29.52 0.07 930 30.72 0.05 940 29.65 0.09 950 28.85 -0.2 960 27.75 -0.79 1710 28.28 1.98 1720 29.27 2.14 1730 30.31 2.52 1740 32.02 2.66 1750 31.95 2.51 1760 32.25 2.64 1770 33.02 2.58 1780 33.05 2.72 1790 31.31 2.6 1800 32.77 2.62 1810 31.03 2.44 1820 31.67 2.69 1830 32.52 2.85 1840 31.34 2.67 1850 31.43 2.74 1860 32.89 2.55 1870 33.33 2.84 1880 36.05 3.27 1890 37.7 3.53 1900 38.14 3.64 1910 41.12 4.04 1920 44.19 4.63 1930 43.32 4.64 1940 43.05 4.6 1950 42.23 4.57 1960 43.26 4.63 1970 45.51 4.78 1980 44.18 4.63 1990 43.61 4.53 2000 40.62 4.13 2010 40.65 4.18 2020 43.32 4.36 2030 47.71 4.76 2040 45.17 4.81 2050 41.57 4.41 2060 40.94 4.67 2070 41.63 4.78 2080 40.26 4.69 2090 40.85 4.96 2100 41.1 5.12 2110 39.14 4.79 2120 39.13 5 2130 34.91 4.69 2140 35.4 4.78 2150 35.31 4.6 2160 36.97 4.97 2170 36.62 4.8 2300 30.63 3.2 2310 31.25 2.62 2320 32.41 2.65 2330 32.05 3.01 2340 32.12 2.87 2350 32.05 2.89 2360 31.3 3.24 2370 31.52 2.89 2380 32.35 3.01 2390 32.41 2.62 2400 33.05 2.39 2410 32.25 2.51 2420 32.67 2.57 2430 31.14 2.14 2440 31.28 1.84 2450 31.85 2.32 2460 31.62 2.3 2470 30.15 2 2480 30.71 2.01 2490 31.45 1.87 2500 33.07 1.84 2510 32.23 0.98 2520 31.53 0.54 2530 31.43 0.84 2540 30.06 0.28 2550 32.02 -0.34 2560 31.25 -0.67 2570 31.05 -0.5 2580 31 -0.39 2590 31.42 -0.21 2600 31.1 -0.84 2610 32.05 -1 2620 31.04 -1.12 2630 30.41 -0.97 2640 30.05 -1.43 2650 31.21 -1.39 2660 30.89 -0.96 2670 29.57 -0.68 2680 28.89 -0.97 2690 27.61 -1.17 pattens

Test Report

基本信息 General information 三合一天线规格书 3&1 Antenna Datasheet 制造商 Manufacturer Shanghai Dezi Zai Integrated Circuit Co., Ltd；地址 ADDRESS 103B, No. 10, Lane 198, Zhangheng Road, Zhangjiang, Pudong New Area, Shanghai 天线型号 Model Name R1151-3&1 ant 日期 Date 2025-07-16 版本 Version 1.0 ...... ...... 天线外观 Antenna Appearance 技术规格 Technical Specifications 频率范围 Frequency Range 1575.42MHZ+2400MHZ-2500MHZ+5100MHZ-5900MHZ 天线类型 Antenna Type IFA 尺寸 Dimensions 44.35*15.31mm 阻抗 Impedance 50 ohm 最大增益 Maximum Gain 3.59dBi 驻波比 VSWR ≤3 ...... ...... Passive Freq Effi Gain (MHz) (%) (dBi) 1520 29.66 1.87 1530 30.41 1.98 1540 31.71 2.14 1550 32.25 2.08 1560 32.10 2.15 1570 32.35 2.09 1580 31.85 2.02 1590 32.02 2.01 1600 31.96 2.05 2400 40.01 2.37 2410 40.62 2.24 2420 40.81 2.41 2430 40.67 2.84 2440 41.08 3.28 2450 40.83 3.59 2460 41.86 3.42 2470 41.71 3.32 2480 41.10 3.25 2490 41.05 3.16 2500 39.44 3.05 5100 30.64 1.77 5200 32.25 1.76 5300 31.54 1.65 5400 32.26 1.71 5500 31.47 1.72 5600 32.72 1.62 5700 32.14 1.85 5800 31.95 1.67 5900 31.98 1.71 Pattens

Test Report

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA250728002-00B Page 85 of 98 For Wi-Fi Mode: 802.11b Mode Left Side 802.11b Mode Right Side 802.11g Mode Left Side 802.11g Mode Right Side 802.11n-HT20 Mode Left Side 802.11n-HT20 Mode Right Side Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA250728002-00B Page 86 of 98 802.11n-HT40 Mode Left Side 802.11n-HT40 Mode Right Side For BLE Mode: BLE (1 Mbps) Left Side Right Side BLE (2 Mbps) Left Side Right Side Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA250728002-00B Page 87 of 98 CONDUCTED SPURIOUS EMISSION Environmental Conditions & Test Information Test Date: 2025-08-28 to 2025-08-29 Temperature: 25-27.6 °C Relative Humidity: 50-54 % ATM Pressure: 101.1-101.5 kPa Test Result: Pass Test Engineer: Neil Zhou Mode Channel Frequency (MHz) Result (dB) Limit (dB) 802.11b Low 2412 49.21 20 Middle 2437 49.56 20 High 2462 49.71 20 802.11g Low 2412 41.62 20 Middle 2437 40.42 20 High 2462 41.62 20 802.11n20 Low 2412 42.13 20 Middle 2437 41.96 20 High 2462 41.38 20 802.11n40 Low 2422 35.90 20 Middle 2437 36.38 20 High 2452 36.51 20 Mode Channel Frequency (MHz) Result (dB) Limit (dB) BLE (1 Mbps) Low 2402 38.12 20 Middle 2440 37.47 20 High 2480 37.66 20 BLE (2 Mbps) Low 2404 37.60 20 Middle 2440 37.49 20 High 2478 37.95 20 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA250728002-00B Page 88 of 98 Note：the maximum path attenuation of 30MHz~25GHz was added into the offset For Wi-Fi Mode: 802.11b_2412MHz 802.11b_2437MHz 802.11b_2462MHz 802.11g_2412MHz 802.11g_2437MHz 802.11g_2462MHz Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA250728002-00B Page 89 of 98 802.11n20_2412MHz 802.11n20_2437MHz 802.11n20_2462MHz 802.11n40_2422MHz 802.11n40_2437MHz 802.11n40_2452MHz Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA250728002-00B Page 90 of 98 For BLE Mode: BLE (1 Mbps) Low Channel Middle Channel BLE (2 Mbps) High Channel Low Channel Middle Channel High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA250728002-00B Page 91 of 98 POWER SPECTRAL DENSITY Environmental Conditions & Test Information Test Date: 2025-08-28 to 2025-08-29 Temperature: 25-27.6 °C Relative Humidity: 50-54 % ATM Pressure: 101.1-101.5 kPa Test Result: Pass Test Engineer: Neil Zhou Test Result: Compliant. EUT operation mode: Transmitting For Wi-Fi Mode: Channel Frequency (MHz) PSD (dBm/3kHz) Limit (dBm/3kHz) Result 802.11b Mode Low 2412 -3.43 ≤8 Pass Middle 2437 -3.70 ≤8 Pass High 2462 -3.35 ≤8 Pass 802.11g Mode Low 2412 -11.59 ≤8 Pass Middle 2437 -11.78 ≤8 Pass High 2462 -11.85 ≤8 Pass 802.11n-HT20 Mode Low 2412 -10.23 ≤8 Pass Middle 2437 -12.06 ≤8 Pass High 2462 -11.50 ≤8 Pass 802.11n-HT40 Mode Low 2422 -17.09 ≤8 Pass Middle 2437 -16.37 ≤8 Pass High 2452 -17.64 ≤8 Pass Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA250728002-00B Page 92 of 98 For BLE Mode: Mode Channel Frequency (MHz) PSD (dBm/3kHz) Limit (dBm/3kHz) Result BLE (1 Mbps) Low 2402 -17.84 ≤8 Pass Middle 2440 -17.98 ≤8 Pass High 2480 -17.83 ≤8 Pass BLE (2 Mbps) Low 2404 -20.04 ≤8 Pass Middle 2440 -20.31 ≤8 Pass High 2478 -20.24 ≤8 Pass Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA250728002-00B Page 93 of 98 For Wi-Fi Mode: 802.11b_2412MHz 802.11b_2437MHz 802.11b_2462MHz 802.11g_2412MHz 802.11g_2437MHz 802.11g_2462MHz Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA250728002-00B Page 94 of 98 802.11n20_2412MHz 802.11n20_2437MHz 802.11n20_2462MHz 802.11n40_2422MHz 802.11n40_2437MHz 802.11n40_2452MHz Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA250728002-00B Page 95 of 98 For BLE Mode: BLE (1 Mbps) Low Channel Middle Channel BLE (2 Mbps) High Channel Low Channel Middle Channel High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA250728002-00B Page 96 of 98 EUT PHOTOGRAPHS Please refer to the attachment EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS and EXHIBIT B - EUT INTERNAL PHOTOGRAPHS. Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA250728002-00B Page 97 of 98 TEST SETUP PHOTOGRAPHS Please refer to the attachment EXHIBIT C - TEST SETUP PHOTOGRAPHS. Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA250728002-00B Page 98 of 98 Declarations 1. The laboratory is not responsible for the authenticity of any information provided by the applicant. Information from the applicant that may affect test results is marked with “★”. 2. The test data was only valid for the test sample(s). 3. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. 4. Otherwise required by the applicant or Product Regulations, Decision Rule in this report did not consider the uncertainty. 5. The extended uncertainty given in this report is obtained by combining the standard uncertainty times the coverage factor k=2 with the 95.45% confidence interval. ***** END OF REPORT *****

Test Report

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Kunshan). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, or any agency of the U.S. Government. FCC PART 15.247 TEST REPORT For Shanghai Xiangcheng Communication Technology Co.,Ltd 6th Floor, Building 10, No.3000 Longdong Avenue, Pudong New District, Shanghai, China FCC ID: 2A2UU-K1362 Report Type: Original Report Product Name: P8 Go Smart Payment Terminal Report Number: RKSA250728002-00B Report Date: 2025-10-09 Reviewed By: Bard Liu Approved By: Kyle Xu Test Laboratory: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road, Kunshan, Jiangsu Province, China Tel: +86-512-86175000 Fax: +86-512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA250728002-00B Page 2 of 98 TABLE OF CONTENTS REPORT REVISION HISTORY .......................................................................................................................... 4 GENERAL INFORMATION ................................................................................................................................ 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ................................................................................. 5 OBJECTIVE ........................................................................................................................................................... 5 TEST METHODOLOGY ........................................................................................................................................... 6 MEASUREMENT UNCERTAINTY.............................................................................................................................. 6 TEST FACILITY ..................................................................................................................................................... 6 SYSTEM TEST CONFIGURATION .................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ................................................................................................................. 7 EQUIPMENT MODIFICATIONS ................................................................................................................................. 7 EUT EXERCISE SOFTWARE.................................................................................................................................... 8 SUPPORT EQUIPMENT LIST AND DETAILS ............................................................................................................. 11 EXTERNAL I/O CABLE ......................................................................................................................................... 11 BLOCK DIAGRAM OF TEST SETUP ........................................................................................................................ 11 SUMMARY OF TEST RESULTS ....................................................................................................................... 13 TEST EQUIPMENT LIST ................................................................................................................................... 14 FCC §1.1307(b) & §2.1093 - RF EXPOSURE ..................................................................................................... 16 APPLICABLE ST ANDARD...................................................................................................................................... 16 FCC §15.203 - ANTENNA REQUIREMENT ..................................................................................................... 17 APPLICABLE ST ANDARD...................................................................................................................................... 17 ANTENNA CONNECTOR CONSTRUCTION .............................................................................................................. 17 FCC §15.207 (a) - AC LINE CONDUCTED EMISSIONS .................................................................................. 18 APPLICABLE ST ANDARD...................................................................................................................................... 18 TEST SYSTEM SETUP ........................................................................................................................................... 18 EMI TEST RECEIVER SET UP ................................................................................................................................ 18 TEST PROCEDURE ............................................................................................................................................... 19 TEST RESULTS SUMMARY ................................................................................................................................... 19 TEST DAT A: SEE APPENDIX ................................................................................................................................. 19 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ......................................................................... 20 APPLICABLE ST ANDARD...................................................................................................................................... 20 TEST SYSTEM SETUP ........................................................................................................................................... 20 EMI TEST RECEIVER SET UP ................................................................................................................................ 21 TEST PROCEDURE ..................................................................…

Text truncated - open the document above for the full version.

RF Exposure Info

Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B

RF Exposure Info

Report No.:RKSA250728002-20B APPENDIX D CALIBRATION CERTIFICATES Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B Report No.:RKSA250728002-20B

RF Exposure Info

Text truncated - open the document above for the full version.

Contact Information

Applicant

Susan Zhao

[email protected]Fax: N/A

Test Firm

Bay Area Compliance Laboratories Corp. (Kunshan)John Chan

[email protected]

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	129.00 mW
2	15C	2.40 GHz - 2.48 GHz	1.00 mW

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. The antenna(s) used for this transmitter must not be co-located with any other transmitters, except in accordance with FCC multi-transmitter product procedures. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 10 mm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for body-worn accessory, simultaneous transmission and extremity (hand) exposure conditions are 0.22 W/kg, 1.00 W/kg and 0.63 W/kg, respectively. This device supports 20 MHz and 40 MHz bandwidth modes.
