2A2UU-MF-T1621Intelligent Mobile Data Capture Terminal with BT, WIFI, GSM, WCDMA, LTE and NFC

①Front Camera ② Function Button Setup shortcut function in [Setting]---[Key Map] ③ ⑦⑧Scan Button Press the button to scan the 1D/2D Barcode Caution: Bright Light, Do not Aim or Align the scanner with eyes! ④ Scanner Window Caution: Bright Light, Do not Aim or Align the scanner with eyes! ⑤ Earpiece ⑥ Screen ⑨ Keyboard Power Button Short Press: Wake up/Lock the device Long Press: Device is Off: Press and Hold 2-3 seconds to Turen On the device When Device is On: Press and Hold 2-3 Seconds to open the page of select Restart or Restart Forced Reboot: Press and Hold 9 seconds to Reboot the Device when system crashes ⑩ Extension PIN (8 Pins) For related accessories connection ⑪ Battery Case ⑫ Back Cover Lock ⑬ Rear Camera For Photo taking and 1D/2D Barcode scanning ⑭ 2 Pin Bottom Connection ⑮ USB-Type C ⑯ NFC ⑰ Sim Cards Slot (Support 2 Sim Cards) ⑱ Flashlight ⑲ TF Card Slot Function Quick Guide Product Feature SectionsIconFunctions Regular Section Direction Key: Left\Right\Up\Down Numeric Key: 1\2\3\4\5\6\7\8\9\0\. Function Section Direction Key: Screen brightness up/down \ Volume up/down Numeric Key: F1/F2/F3/F4/F5/F6/F7/F8/F9/#/* Case Switching Direction Key: Left\Right\Up\Down Numeric Key: Upper Case: Punctuation \ ABC\ DEF\ GHI\ JKL\ MNO\ PQRS\ TUV\ WXYZ\ Space\ Punctuation Lower Case: punctuation(@ : /) \ abc\ def\ ghi\ jkl\ mno\ pqrs\ tuv\ wxyz\ Space\ punctuation(. , ; : ? + -) MovFast itemParameters Dimensions159mm x 68.5 mm x 17 mm Weight~260g Operating Temperature-20°C~ +50°C Humidity5%~95% Non-condensing Drop Resistance6 side * 30times droups for 1.5m Ingress ProtectionIP67 Sensors Acceleration sensor, light sensor, and proximity sensor, E-Compass, Gyroscope. Runtimemore than 10 hours,Support continuous scanning more than 24,000 times Processor MTK high-performance 8 cores 4*[email protected]+4*[email protected] OSAndroid 13 Wi-FiIEEE 802.11 a/b/g/n/ac Resolution480*800 Barcode Utility The application of scanning and decoding. Effectively recognizing, outputting the corresponding code, verification information MovStage MovStage helps users easily batch configure multiple PDA devices, with installing applications, configuring setting and Kiosk application .etc functions. This tool increases efficiency, reduces repeat work and errors in manual operations. Kiosk Provide the user with a dedicated, functionally limited single application mode. Limit PDA devices to workstations dedicated to a specific application. Provide the user with a tool that provides security, privacy and ensures that the user is focused on a specific application. Keyboard Feature Software Safety *Charging Connect the device with the plug or the socket corresponding to the marked input of the power adapter; To avoid injury, unauthorized person shall not open the power adapter; This product may cause radio interference in living environments. In that case, the user may be required to take adequate measures against interference. Significant Safety Instructions * Do not install or use the device during lightning storms to avoid the potential risks of lightnings hock; * To avoid the damages of eyes and safety, Do not Aim or Align Scanner with eyes ； * Please turn off the power immediately if you notice abnormal odor, heat, or smoke; Suggestions • Do not use the device near water or moisture to prevent liquid from falling into the device; • Do not use the device in extremely cold or hot environments, such as near flames or lit cigarettes; • Do not drop, throw or bend the device; • Use the device in a clean and dust-free environment if possible to prevent small items from fall ing into the device; • Please do not use the device near medical equipment without permission; • The operating temperature should be-20°C~50°C. Notice m PRODUCT SAFETY WARNINGS To prevent possible injury, please read all instructions and safety information before you use the product. Operating temperature: -20°C ~ 50°C Storage temperature: -40°C ~ 70°C Battery & Safety • Charge battery only at ambient temperatures ranging from 0°C to 40°C. • Please do not attempt to repair, disassemble or modify the battery. Do not place or use battery near fires, heaters, direct sunlight, or other heat sources. Prolonged exposure to heat may cause bat tery leakage, explosions, or fires. • Please do not place pressure on or pierce the battery with hard objects.Damaging the battery could cause battery leakage, overheating, or fires. • Battery liquid may cause damage to skin or clothes. If exposed, immediately wash skin with water and seek medical attention. • If you experience any battery abnormalities, such as high temperature, discoloration, distortion, or leakage, immediately discontinue usage of the device and contact customer support. • If the battery’s internal liquid comes in contact with your eyes, rinse thoroughly and immediately seek medical attention. • Do not connect your device to a high-voltage power supply or the battery could become damaged. • All batteries have a li ited lifespan and will begin to lose capacity after several hundred charges/discharges. • Do not dispose of the battery as household waste. Please refer to local regulations. The equipment meets the requirements of the relevant regulations and standards of the European Economic Area.CE marking is a harmonized certification system set up by the European Union in order to ensure that products meet the basic requirements for safety, health and the environment during their free circulation and sale in the European market. The device has been tested and evaluated by the Federal Communications Commission (FCC) and complies with the relevant radio spectrum and electromagnetic compatibility requirements in the U.S. FCC certification ensures that the device is legal for sale and use in the U.S. PRODUCT SAFETY WARNINGS PRODUCT SAFETY WARNINGS Statements Movfast does not assume responsibility for the following actions: • Damages caused by use and maintenance without complying with the conditions specified in th…

Text truncated - open the document above for the full version.

Shanghai Xiangcheng Communication Technology c。.，Ltd Attention: Application Examiner Re: Certification designating a U.S. agent for service of process pursuant to section 2.91 l(d ) ( 7) of the FCC rules To whom it may concern, This le忧巳r is to confirm both [Baihetian Innovative Solutions] （ “ Agent ” ） and [Shanghai Xiangcheng Communication T巳chnologyCo.,Ltd ] （ “ Applicant ” ） acknowledge consent to obligations of each party pursuant to 47 CFR part §2.91 l ( d)(7) of the FCC rules in regard to the agent for service of process. I [Claudia Chen] HEREBY CERTIFY THAT I am authorized to make the representations abov巳on behalf of the Applicant. I further acknowledge th巳requirementto maintain an agent extends for no less than one y巳ar after the termination of all marketing and importation or the conclusion of and commission ” related proce巳ding involving the equipment and agree to immediately notify the FCC if there is any change in the status identified above. A皿监且I Company Name . Shanghai Xiangch巳ng Communication Technology Co.,Ltd Contact Name : Claudia Chen Address : 6th Floor, Building 10, No.3000 Longdong Avenue, Pudong New District, Shanghai, China Telephone No Email Signature: Date: 06/08/2023 13564843693 [email protected] ｛为�Dta协 I, Kenneth Young, HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Agent. I consent to the obligation to accept service of process on behalf of th巳applicantin regard to all c巳rtificationapplications to th巳FCCsubmitted by above applicant during the period of this agreement which ends at the specified date below. I agree to immediately notify the FCC if ther巳is change in this representation. This current agreement tenn is one year. A缸里I Company Name FRN Contact Name Address Telephone No Email Signature: Baihetian Innovative Solutions 0033401605 Kenneth Young 683 7 Chase Rd, Dearbor刀 ， MI 48126 313町395”3113 [email protected] Issue Date: June 05, 2023 Expiry Date: June 05, 2024 Gra ntee Code : 2A2UU

UNII Declaration Letter We have declared below featured for FCC equipment authorization, device FCC ID: 2A2UU-MF-T1621 (1) DFS Device --Master, Client with Radar detection capability , Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 – 2462 MHz Yes, No Yes, No Yes, No Yes, No 2422 – 2452 MHz Yes, No Yes, No Yes, No Yes, No 5745 – 5825 MHz Yes, No Yes, No Yes, No Yes, No 5755 – 5795 MHz Yes, No Yes, No Yes, No Yes, No 5180 – 5240 MHz Yes, No Yes, No Yes, No Yes, No 5190 – 5230 MHz Yes, No Yes, No Yes, No Yes, No 5260 – 5320 MHz Yes, No Yes, No Yes, No Yes, No 5270 – 5310 MHz Yes, No Yes, No Yes, No Yes, No 5500 – 5700 MHzYes, No Yes, No Yes, No Yes, No 5510 – 5670 MHz Yes, No Yes, No Yes, No Yes, No (3) Country code selection ability - Yes , No If no, pls explain how was implemented : use Microsoft network utility (4) Meet 15.202 requirement -Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Printed Name: Claudia Chen Position: Manager (J�'v� 队队协


     «Ý B ?u`¤Ûu`¤ -G5ÝC`Su¥¬¬pØÝ
.ÇYÝ !%/<D*96Ý9(Ý*"&7D*DIÝ )a¾aPÙÝÖaÝ @vJ¦qvJ|ÝH}J¦rTvb¦rÝ­žžÏ¦~UJÈ
¦ DcUw¦­‘­rÚÝ ­Ý0ÈZÝ Ü5OŸ`ݬiÝ2O¤ÐlOVÉÑ·`·
Ý KÀWÝ3
[d’ 8Ò Qd ̧Ý E Ý KÁWݹK§\Ý8K¡dÝ Aeº‚K“Ý ®\e”Ý E  Ý=L ̈sfÁ,Ý KÊWÝ:º®\ÒWÊÝ8K dÝ + ̈Ëf–•ƒsf ̈ËÝ4 ̄R„•fÝ#LËLÝL ́ËÓ»fÝFf¼¢… ̈L–Ý $aX™M½aÝÌxNÌÝÌya¾a
ÄÝ©°ÝXxMªtaÄÝ°jÝ ÌxaÝ; Ý1MÙ°ÔÌÝ'—aXÌ¿†XM˜Ý;M¾ÌÄÝ°jÝÌxaÝ £M‡©ÝP°M¾]ÝÌ°ÝÌxaÝPMċXÝμ¾°^ÕXÌÝ;™aMÄgÝmŒ©]ÝPg›™°ÖÝ]gÌMˆ˜Ý
 >e KÃÝ œÝ±kÝÍzfÝ¢²_h•ÅݍÓÆËÝׅÎ{Ý_‰nfÀf ̈ËÝ¢ ̄_fšÝ ̈L¢fÝoÁÝ¢LÁŽf˅ ̈sݶÓÁ¶³Åf Ý


(J�'v� 队队 Claudia Chen 协

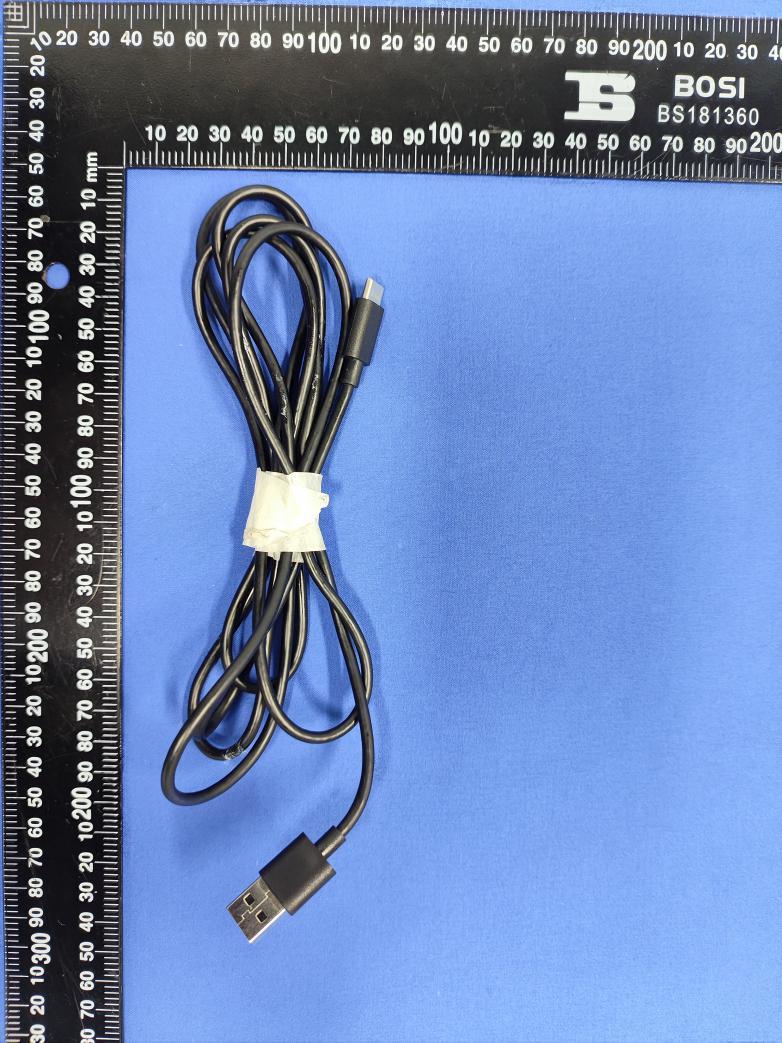

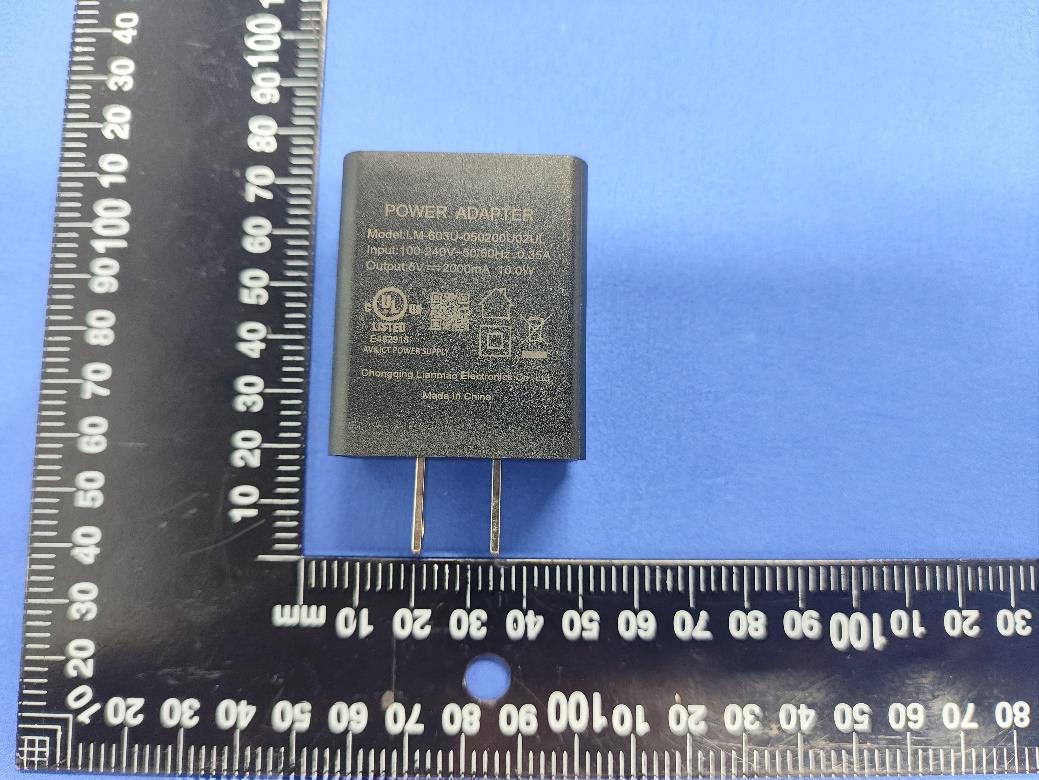

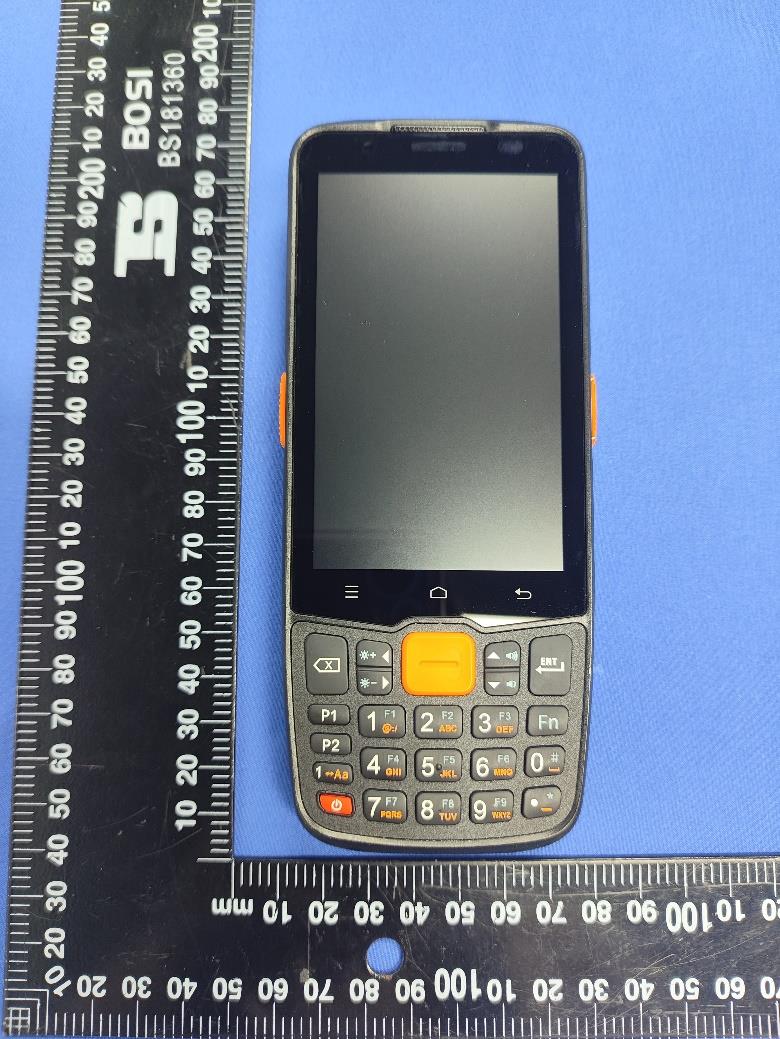

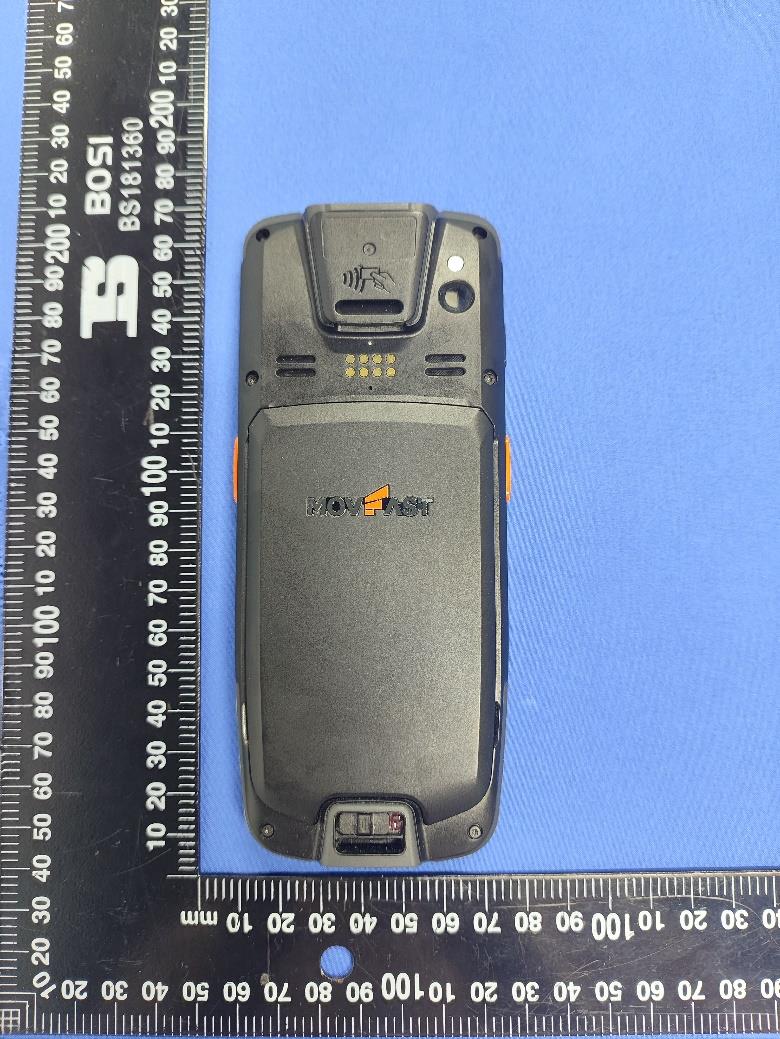

Report No.: BL-SZ2390677-AW 1 / 5 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Report No.: BL-SZ2390677-AW 2 / 5 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: BL-SZ2390677-AW 3 / 5 TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: BL-SZ2390677-AW 4 / 5 Accessory-Adapter Report No.: BL-SZ2390677-AW 5 / 5 Accessory-Adapter --BLANK BELOW--

Model:Ranger2K SN: XXXXXXXXXXXXX FCC ID: 2A2UU-MF-T1621 IMEI 1: XXXXXXXXXXXXXX IMEI 2: XXXXXXXXXXXXXX connecting all to move fast www.movfast.com Made in China Manufacturer: Shanghai Xiangcheng Communication Technology Co.,Ltd Input:5V 2A SIM 1 SIM 2 Model:T1621 SN: XXXXXXXXXXXXX FCC ID: 2A2UU-MF-T1621 IMEI 1: XXXXXXXXXXXXXX IMEI 2: XXXXXXXXXXXXXX connecting all to move fast www.movfast.com Made in China Manufacturer: Shanghai Xiangcheng Communication Technology Co.,Ltd Input:5V 2A SIM 1 SIM 2 Model:T16 SN: XXXXXXXXXXXXX FCC ID: 2A2UU-MF-T1621 IMEI 1: XXXXXXXXXXXXXX IMEI 2: XXXXXXXXXXXXXX connecting all to move fast www.movfast.com Made in China Manufacturer: Shanghai Xiangcheng Communication Technology Co.,Ltd Input:5V 2A SIM 1 SIM 2 SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX Model:Ranger2K QTY:24PCS N.W.:X.XX KG G.W.:X.XX KG Carton ID: R2KYYMMDDXXXX DATE: DD/MM/YY Made in China SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX Model:T1621 QTY:24PCS N.W.:X.XX KG G.W.:X.XX KG Carton ID: T16YYMMDDXXXX DATE: DD/MM/YY Made in China SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX SN: XXXXXXXXXXXXSN: XXXXXXXXXXXXSN: XXXXXXXXXXXX Model:T16 QTY:24PCS N.W.:X.XX KG G.W.:X.XX KG Carton ID: T16YYMMDDXXXX DATE: DD/MM/YY Made in China SN:XXXXXXXXXXXXXXX IMEI 1:XXXXXXXXXXXXXXX Model:Ranger2K Made in China IMEI 2:XXXXXXXXXXXXXXX www.movfast.com DATE:DD/MM/YY connecting all to move fast FCC ID: 2A2UU-MF-T1621 SN:XXXXXXXXXXXXXXX IMEI 1:XXXXXXXXXXXXXXX Model:T1621 Made in China IMEI 2:XXXXXXXXXXXXXXX www.movfast.com DATE:DD/MM/YY connecting all to move fast FCC ID: 2A2UU-MF-T1621 SN:XXXXXXXXXXXXXXX IMEI 1:XXXXXXXXXXXXXXX Model:T16 Made in China IMEI 2:XXXXXXXXXXXXXXX www.movfast.com DATE:DD/MM/YY connecting all to move fast FCC ID: 2A2UU-MF-T1621 Labellocation

ReportNo.: BL-SZ2390677-AI 1 / 8 EUTINTERNALPHOTOS EUTUNCOVERVIEW1 EUTUNCOVERVIEW2 WLAN/Bluetoothantenna WWANantenna WWANantenna_RX ReportNo.: BL-SZ2390677-AI 2 / 8 EUTUNCOVERVIEW3 EUTUNCOVERVIEW4 ReportNo.: BL-SZ2390677-AI 3 / 8 MAINBOARDTOPVIEW(WITHSHIELDING) MAINBOARDTOPVIEW(WITHOUTSHIELDING) ReportNo.: BL-SZ2390677-AI 4 / 8 MAINBOARDBACKSIDEVIEW(WITHSHIELDING) MAINBOARDBACKSIDEVIEW(WITHOUTSHIELDING) ReportNo.: BL-SZ2390677-AI 5 / 8 SUBBOARDTOPVIEW SUBBOARDBACKSIDEVIEW ReportNo.: BL-SZ2390677-AI 6 / 8 BATTERYTOPVIEW BATTERYBACKSIDEVIEW ReportNo.: BL-SZ2390677-AI 7 / 8 BATTERYTOPVIEW BATTERYBACKSIDEVIEW ReportNo.: BL-SZ2390677-AI 8 / 8 ANTENNA ANTENNA --BLANKBELOW-- NFCANTENNA WLAN/Bluetooth antenna WWANantenna_AUX RXonly

Report No.: BL-SZ2390677-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 195 Web: www.titcgroup.com Template No.: TRP-FCC DASY-Phone (2022-12-05) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Shanghai Xiangcheng Communication Technology Co., Ltd Address: 6th Floor, Building 10, No.3000, Longdong Avenue, Pudong New District, Shanghai Equipment Type: Intelligent Mobile Data Capture Terminal Model Name: T16 (refer to section 2.3) Brand Name: N/A FCC ID: 2A2UU-MF-T1621 Test Standard: FCC 47 CFR Part 2.1093 (refer section 3.1) Maximum SAR: Head (1 g@0mm): 0.53 W/kg Body-worn (1 g@10mm): 0.79 W/kg Hotspot (1 g@10mm): 0.90 W/kg Specific (10 g@0mm): 0.22 W/kg Sample Arrival Date: Sep. 18, 2023 Test Date Sep. 18, 2023 - Dec. 11, 2023 Date of Issue: Dec. 13, 2023 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Xiong Lining Checked by: Xu Rui Approved by: Tolan Tu (Testing Director) _______________ _______________ _______________ Report No.: BL-SZ2390677-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 195 Web: www.titcgroup.com Template No.: TRP-FCC DASY-Phone (2022-12-05) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Content Rev. 01 Dec. 13, 2023 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................ 5 1.1 Test Laboratory ............................................................................................................ 5 1.2 Test Location ................................................................................................................ 5 1.3 Test Environment Condition .......................................................................................... 5 2 PRODUCT INFORMATION ....................................................................................................... 6 2.1 Applicant Information .................................................................................................... 6 2.2 Manufacturer Information .............................................................................................. 6 2.3 General Description for Equipment under Test (EUT) ................................................... 6 2.4 Ancillary Equipment ...................................................................................................... 7 2.5 Technical Information ................................................................................................... 8 3 SUMMARY OF TEST RESULT ............................................................................................... 10 3.1 Test Standards ........................................................................................................... 10 3.2 Device Category and SAR Limit ................................................................................. 11 3.3 Test Result Summary ................................................................................................. 12 3.4 Test Uncertainty ......................................................................................................... 13 4 MEASUREMENT SYSTEM ..................................................................................................... 14 4.1 Specific Absorption Rate (SAR) Definition .................................................................. 14 4.2 DASY SAR System .................................................................................................... 15 5 SYSTEM VERIFICATION ........................................................................................................ 22 5.1 Purpose of System Check .......................................................................................... 22 5.2 System Check Setup .................................................................................................. 22 6 TEST POSITION CONFIGURATIONS .................................................................................... 23 6.1 Head Exposure Conditions ......................................................................................... 23 6.2 Body-worn Position Conditions ................................................................................... 25 Report No.: BL-SZ2390677-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 195 Web: www.titcgroup.com Template No.: TRP-FCC DASY-Phone (2022-12-05) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 6.3 Hotspot Mode Exposure Position Conditions .............................................................. 26 6.4 Product Specific 10g Exposure Consideration ............................................................ 26 7 MEASUREMENT PROCEDURE ............................................................................................. 27 7.1 Measurement Process Diagram ................................................................................. 27 7.2 SAR Scan General Requirement ................................................................................ 28 7.3 Measurement Procedure ............................................................................................ 29 7.4 Area & Zoom Scan Procedure .................................................................................... 29 8 CONDUCTED RF OUPUT POWER ........................................................................................ 30 8.1 GSM ........................................................................................................................... 30 8.2 WCDMA ..................................................................................................................... 30 8.3 LTE .................................…

Text truncated - open the document above for the full version.

8 CONDUCTED RF OUPUT POWER 8.1 GSM Output Power 8.2 WCDMA Output Power 8.3 LTE Output Power 8.3.1 LTE Band2 Output Power 8.3.2 LTE Band4 Output Power 8.3.3 LTE Band5 Output Power 8.3.4 LTE Band7 Output Power 8.3.5 LTE Band12 Output Power 8.3.6 LTE Band17 Output Power 8.3.7 LTE Band25 Output Power 8.3.8 LTE Band26 Output Power 8.3.9 LTE Band28 Output Power 8.3.10 LTE Band66 Output Power 8.3.11 LTE Band38 Output Power 8.3.12 LTE Band41 Output Power BL-SZ2390677-701 1 8.1GSM Output Power GSM-Full Power GSM850 Band Burst Average Power(dBm)Tune-up Power(dBm) Division Factors Frame-Averaged power Tune-up Power(dBm） Channel128190251128190251 GSM (GMSK, 1-Slot) 32.09 32.00 32.10 32.50 9.19 22.90 22.81 22.91 23.31 GPRS (GMSK, 1-Slot) 31.86 31.94 32.01 32.50 9.19 22.67 22.75 22.82 23.31 GPRS (GMSK, 2-Slots) 31.00 31.06 31.16 31.50 6.13 24.87 24.93 25.03 25.37 GPRS (GMSK, 3-Slots) 29.25 29.30 29.42 30.00 4.42 24.83 24.88 25.00 25.58 GPRS (GMSK, 4-Slots) 28.13 28.18 28.30 29.00 3.18 24.95 25.00 25.12 25.82 EGPRS (8PSK, 1-Slot) 25.18 24.79 24.79 26.00 9.19 15.99 15.60 15.60 16.81 EGPRS (8PSK, 2-Slots) 23.59 23.36 23.34 24.00 6.13 17.46 17.23 17.21 17.87 EGPRS (8PSK, 3-Slots) 21.18 21.09 21.12 22.00 4.42 16.76 16.67 16.70 17.58 EGPRS (8PSK, 4-Slots) 19.88 19.75 20.05 21.00 3.18 16.70 16.57 16.87 17.82 GSM1900 Band Burst Average Power(dBm)Tune-up Power(dBm) Division Factors Frame-Averaged Tune-up Power(dBm） Channel512661810512661810 GSM (GMSK, 1-Slot) 28.76 28.88 28.86 29.00 9.19 19.57 19.69 19.67 19.81 GPRS (GMSK, 1-Slot) 28.70 28.82 28.77 29.00 9.19 19.51 19.63 19.58 19.81 GPRS (GMSK, 2-Slots) 28.11 28.24 28.20 28.50 6.13 21.98 22.11 22.07 22.37 GPRS (GMSK, 3-Slots) 26.63 26.70 26.68 27.00 4.42 22.21 22.28 22.26 22.58 GPRS (GMSK, 4-Slots) 25.53 25.62 25.61 26.00 3.18 22.35 22.44 22.43 22.82 EGPRS (8PSK, 1-Slot) 25.61 25.70 25.74 26.00 9.19 16.42 16.51 16.55 16.81 EGPRS (8PSK, 2-Slots) 24.52 24.65 24.79 25.00 6.13 18.39 18.52 18.66 18.87 EGPRS (8PSK, 3-Slots) 22.21 22.42 22.46 23.00 4.42 17.79 18.00 18.04 18.58 EGPRS (8PSK, 4-Slots) 20.94 21.12 21.13 22.00 3.18 17.76 17.94 17.95 18.82 BL-SZ2390677-701 2 8.2WCDMA Output Power WCDMA-Full Power BandBand 2 Tune-up Limit Power(dBm) Channel926294009538 Frequency1852.40 1880.00 1907.60 AMR 12.2Kbps21.89 21.95 22.02 22.50 RMC 12.2Kbps21.92 22.08 22.17 22.50 HSDPA Subtest-1 21.00 21.10 21.19 22.00 HSDPA Subtest-2 21.28 21.11 20.94 22.00 HSDPA Subtest-3 20.56 20.59 20.72 21.00 HSDPA Subtest-4 20.49 20.58 20.43 21.00 HSUPA Subtest-1 18.94 18.81 18.71 20.00 HSUPA Subtest-2 19.17 19.11 18.93 20.00 HSUPA Subtest-3 19.92 20.09 19.95 21.00 HSUPA Subtest-4 18.56 18.62 18.74 20.00 HSUPA Subtest-5 20.21 20.08 20.21 21.00 BandBand 4 Tune-up Limit Power(dBm) Channel131214121513 Frequency1712.40 1732.40 1752.60 AMR 12.2Kbps22.04 21.82 21.87 23.00 RMC 12.2Kbps 22.0421.9421.99 23.00 HSDPA Subtest-1 21.15 21.24 21.39 22.00 HSDPA Subtest-2 21.20 21.22 21.24 22.00 HSDPA Subtest-3 20.83 20.71 20.68 21.00 HSDPA Subtest-4 20.58 20.72 20.74 21.00 HSUPA Subtest-1 18.83 18.99 18.96 20.00 HSUPA Subtest-2 19.40 19.24 19.26 20.00 HSUPA Subtest-3 20.21 20.27 20.37 21.00 HSUPA Subtest-4 18.92 18.84 18.96 20.00 HSUPA Subtest-5 20.09 20.26 20.36 21.00 BandBand 5 Tune-up Limit Power(dBm) Channel413241824233 Frequency826.40 836.40 846.60 AMR 12.2Kbps22.18 22.13 22.21 23.00 RMC 12.2Kbps 22.2222.2722.25 23.00 HSDPA Subtest-1 21.38 21.28 21.13 22.00 HSDPA Subtest-2 21.27 21.29 21.49 22.00 HSDPA Subtest-3 20.70 20.77 20.80 21.00 HSDPA Subtest-4 20.85 20.78 20.66 21.00 HSUPA Subtest-1 18.87 19.05 19.08 20.00 HSUPA Subtest-2 19.38 19.32 19.23 20.00 HSUPA Subtest-3 20.21 20.28 20.42 21.00 HSUPA Subtest-4 18.80 18.86 18.74 20.00 HSUPA Subtest-5 20.43 20.25 20.08 21.00 BL-SZ2390677-701 3 8.3.1LTE Band2 Output Power LTE B2-Full Power Bandwidth (MHRB SizeRB offestRB offestModulation186071890019193 Tune-up power(dBm) 1.4 1 LOW0QPSK22.61 22.68 22.68 23.50 MID12QPSK22.76 22.83 22.89 23.50 HIGH24QPSK22.59 22.66 22.71 23.50 3 LOW0QPSK22.64 22.71 22.78 23.50 MID7QPSK22.72 22.74 22.84 23.50 HIGH13QPSK22.62 22.71 22.82 23.50 6LOW0QPSK21.66 21.74 21.76 22.50 1.4 1 LOW0Q1621.56 22.00 21.65 22.50 MID12Q1621.77 22.12 21.81 22.50 HIGH24Q1621.59 21.97 21.65 22.50 3 LOW0Q1621.69 21.85 21.86 22.50 MID7Q1621.65 21.86 21.92 22.50 HIGH13Q1621.63 21.90 21.87 22.50 6LOW0Q1620.74 20.59 20.90 21.50 1.4 1 LOW064QAM20.87 21.02 20.70 21.50 MID1264QAM21.23 21.41 21.27 21.50 HIGH2464QAM20.75 20.79 21.00 21.50 3 LOW064QAM21.01 21.08 20.69 21.50 MID764QAM21.06 21.15 21.25 21.50 HIGH1364QAM20.69 20.62 20.80 21.50 6LOW064QAM19.61 19.73 19.62 20.50 Bandwidth (MHRB SizeRB offestRB offestModulation186151890019185 Tune-up power(dBm) 3 1 LOW0QPSK22.28 22.53 22.41 23.50 MID25QPSK22.78 22.78 22.80 23.50 HIGH49QPSK22.46 22.41 22.44 23.50 8 LOW0QPSK21.72 21.60 21.83 22.50 MID12QPSK21.62 21.84 21.61 22.50 HIGH25QPSK21.70 21.53 21.57 22.50 15LOW0QPSK21.46 21.64 21.52 22.50 3 1 LOW0Q1621.82 21.77 21.75 22.50 MID25Q1622.37 22.07 21.99 22.50 HIGH49Q1621.97 21.91 21.73 22.50 8 LOW0Q1620.54 20.71 20.57 21.50 MID12Q1620.69 20.54 20.67 21.50 HIGH25Q1620.77 20.72 20.52 21.50 15LOW0Q1620.61 20.59 20.75 21.50 3 1 LOW064QAM21.01 21.06 20.90 21.50 MID2564QAM21.06 21.22 21.29 21.50 HIGH4964QAM20.80 20.63 20.98 21.50 8 LOW064QAM19.70 19.84 19.83 20.50 MID1264QAM19.52 19.72 19.53 20.50 HIGH2564QAM19.61 19.74 19.49 20.50 15LOW064QAM19.82 19.63 19.56 20.50 Bandwidth (MHRB SizeRB offestRB offestModulation186251890019175 Tune-up power(dBm) 5 1 LOW0QPSK22.34 22.43 22.46 23.50 MID37QPSK22.63 22.83 22.83 23.50 HIGH74QPSK22.38 22.42 22.52 23.50 12 LOW0QPSK21.61 21.73 21.73 22.50 MID20QPSK21.68 21.76 21.67 22.50 HIGH39QPSK21.72 21.63 21.41 22.50 25LOW0QPSK21.65 21.61 21.73 22.50 5 1 LOW0Q1621.73 21.79 21.80 22.50 MID37Q1622.19 22.01 22.19 22.50 HIGH74Q1621.83 21.69 21.86 22.50 12 LOW0Q1620.66 20.59 20.71 21.50 MID20Q1620.68 20.55 20.50 21.50 HIGH39Q1620.78 20.76 20.41 21.50 25LOW0Q1620.73 20.60 20.57 21.50 5 1 LOW064QAM20.90 21.07 20.76 21.50 MID3764QAM21.21 21.29 21.2…
