2A2UU-P14Smart POS Terminal

Technical Specs ATTENTION Warning Read all instructions and safety information before use to avoid injury. The limit operating ambient temperature of the device declared by the manufacturer is -10~35°C. Battery safety Charge battery only at ambient temperatures ranging from 0~40°C. Dispose of used batteries according to manufacturer’s instructions. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type of battery recommended by the manufacturer. Statement The equipment damage caused by natural disasters, falling, self disassembly and non-compliance with the operation specifications is not covered by the free warranty. Some details of this document may be inconsistent with the real object due to the update iteration of the product. Please take the real object as the standard, and our company reserves the right to interpret this document. P14 Quick Guide Items Specification Operating System Android 11.0 go CPU [email protected] Memory 2GB RAM + 8GB ROM Display 5” , 480*854 Camera 2M FF(rear) Scanner N/A Printer 2 inch thermal printer Cellular Network Support 2g/3g/4g WIFI IEEE 802.11a/b/g/n/ac（2.4G/5G） Bluetooth Version 4.0, support BLE Payment Magnetic Stripe/NFC/IC Card Interface USB type-c、Pogo pin(2 pin) Battery 5000mAh/3.8V Product Diagram NFC Card Reader NFC antenna locates at the bottom of the screen and on the printer cover. It’s used to sense chip and acquire data through contactless way. IC Card Reader Used for inserting the bank chip card and getting information securely. Magnetic Stripe Card Reader Used for reading encrypt information stored in corresponding cards. Camera Used for taking photos and scanning 1D/2D code. Power Button Used for change the running states of device, such as pressing 2~3 seconds to power on/off or screen capture and pressing 10 seconds to restart automatically when device is crashed. Volume Button Used for adjusting the volume. Audio Jack Used for connecting earphone to play audio. Pogo pin The 2-pins expanded interface is severed as the channel to connect the charging cradle for better power supply or finish data transmission between different devices. Card Selection Instruction Printer instructions 1) Support 2 inch thermal paper roll with specification of 57*40mm (w*φ) 2) Feed the paper correctly into the paper container in the direction as shown, and pull some paper outside the cutter; Note: If the printed paper is blank, please check whether the pap-er roll has been installed in the correct direction. Package List NO. Items list Description 1 Device Default 2 Battery 1pcs,5000mAh/3.8V 3 USB cable 1pcs,1m/2A/type-c 4 User manual Neutral FCC Statement Any Changes or modifications not expressly approved by the party responsibl e for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. RF Exposure Information (SAR) : This device meets the government's requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. *Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the poser required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. The highest SAR value for the device as reported to the FCC when worn on the body, as described in this user guide, is 1.27 W/kg (Body-worn measurements differ among devices, depending upon available enhancements and FCC requirements.) The highest SAR value for the device as reported to the FCC when worn on the handheld, as described in this user guide, is 1.26W/ kg While there may be differences between the SAR levels of various devices and at various positions, they all meet the government requirement. The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this device is on file with the FCC and can be found under the Display Grant section of http://www.fcc…

Text truncated - open the document above for the full version.

(Shanghai Xiangcheng Communication Technology Co.,Ltd) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date:2023/11/20 FCC ID: 2A2UU-P14 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing (Shanghai Xiangcheng Communication Technology Co.,Ltd) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing (Shanghai Xiangcheng Communication Technology Co.,Ltd) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates)as an entity producing “covered” equipment. Applicant: Shanghai Xiangcheng Communication Technology Co.,Ltd Address: 6th Floor, Building 10, No.3000 Longdong Avenue, Pudong New District, Shanghai, China Contact Person: Claudia Chen Tel.: 13564843693 Email: [email protected] Sincerely, Signature:

Attestation Letter Date: 2023-11-20 To Whom It May Concern, O ur product Smart POS Terminal (model name: P14, FCC ID:2A2UU-P14), only activates NFC, Bluetooth, BLE, 2.4G WiFi(2412~2462 MHz (802.11b/g/n20), 2422~2452 MHz (802.11n40)), 5G WiFi Band1(5150~5250 MHz),Band4(5725~5850 MHz), GSM850, PCS1900, WCDMA Band2 & Band4& Band5, LTE Band2/4/5/7/12/17/25/26/38/41 functions. The other bands and function are disabled by using the software，end users cannot activate it. Please contact me if there is need for any additional clarification or information. Best Regards, Sincerely Yours, Signature: Typed or Printed Name: Claudia Chen Title : Manager Company name: Shanghai Xiangcheng Communication Technology Co.,Ltd ADD: 6th Floor, Building 10, No.3000 Longdong Avenue, Pudong New District, Shanghai, China TEL: +86 13564843693 FAX: N/A E-mail: [email protected]

Shanghai Xiangcheng Communication Technology Co.,Ltd Address：6th Floor, Building 10, No.3000 Longdong Avenue, Pudong New District, Shanghai, China Date: 2023/11/20 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(7) Filing SUBJECT: FCC Application for FCC ID: 2A2UU-P14 (Shanghai Xiangcheng Communication Technology Co.,Ltd) certifies that, as of the date of the filing of the application, Baihetian Innovative Solutions is our designated U.S. agent for service of process for the above referenced FCC ID. (Shanghai Xiangcheng Communication Technology Co.,Ltd) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Baihetian Innovative Solutions accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Baihetian Innovative Solutions Address: 6837 Chase Rd, Dearborn,MI 48126 FRN ：0031252091 Contact Person: Kenneth Young Tel.: (313) 395-3113 Email: [email protected] Sincerely, Signed on behalf of （ Shanghai Xiangcheng Communication Technology Co.,Ltd） Signed on behalf of Baihetian Innovative Solutions Name: Claudia Chen Name: Kenneth Young Title: Manager Title: Manager Date: 2023/11/20 Date: 2023/11/20

Shanghai Xiangcheng Communication Technology Co.,Ltd Date：2023/11/20 Product Model Number: FCC ID: 2A2UU-P14 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: Testing Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION. on our behalf shall have the same effect as acts of our own. By: Claudia Chen Title: Manager Email: [email protected] Telephone: 13564843693 On behalf of: Shanghai Xiangcheng Communication Technology Co.,Ltd

Shanghai Xiangcheng Communication Technology Co.,Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023/11/20 Subject; Request for Confidentiality FCC ID: 2A2UU-P14 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Claudia Chen Title: Manager

China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-EXP Page 1 of 5 EUT EXTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-EXP Page 2 of 5 China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-EXP Page 3 of 5 China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-EXP Page 4 of 5 China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-EXP Page 5 of 5

Made in China Smart POS Terminal Model: P14 Manufacturer: Shanghai Xiangcheng Communication Technology Co.,Ltd KOBlLE SN:XXXXXXXXXXXXXXX IMEI 1:XXXXXXXXXXXXXXXIMEI 2:XXXXXXXXXXXXXXX FCC ID: 2A2UU-P14

Made in China Smart POS Terminal Model: P14 Manufacturer: Shanghai Xiangcheng Communication Technology Co.,Ltd SN:XXXXXXXXXXXXXXX IMEI 1:XXXXXXXXXXXXXXX IMEI 2:XXXXXXXXXXXXXXX FCC ID: 2A2UU-P14

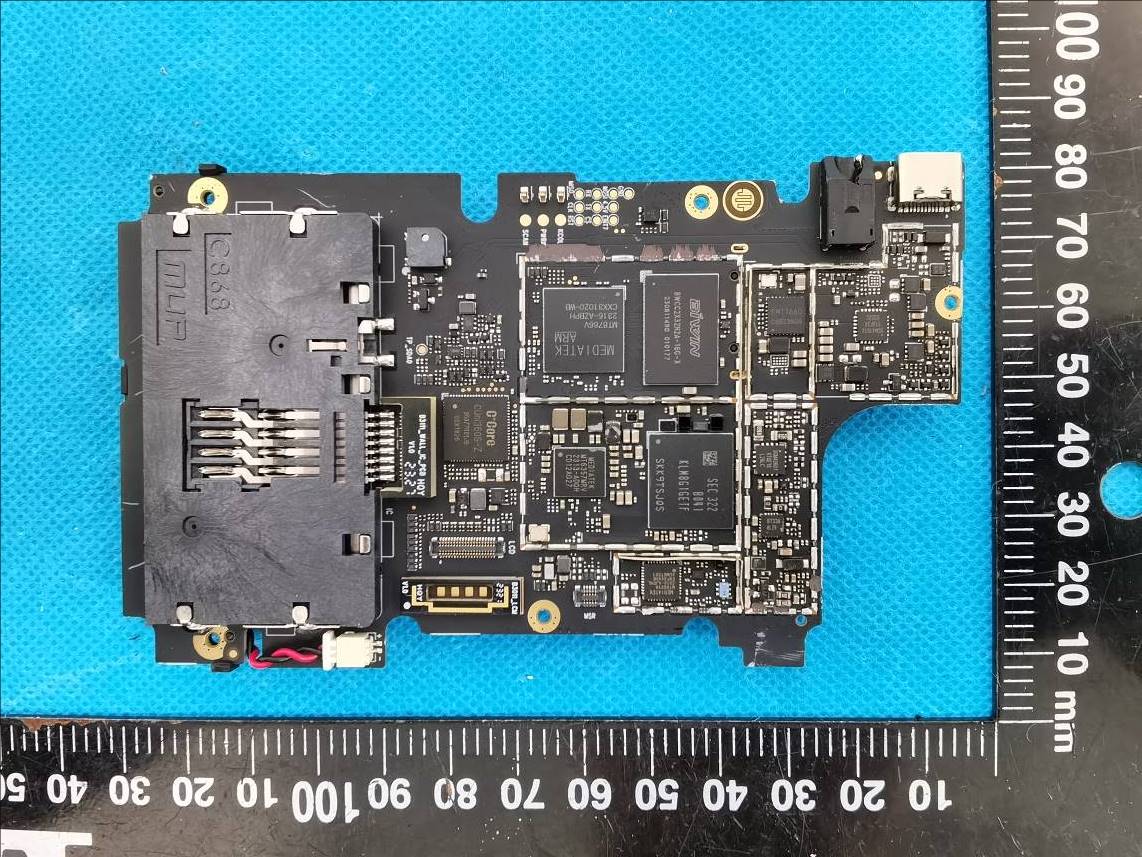

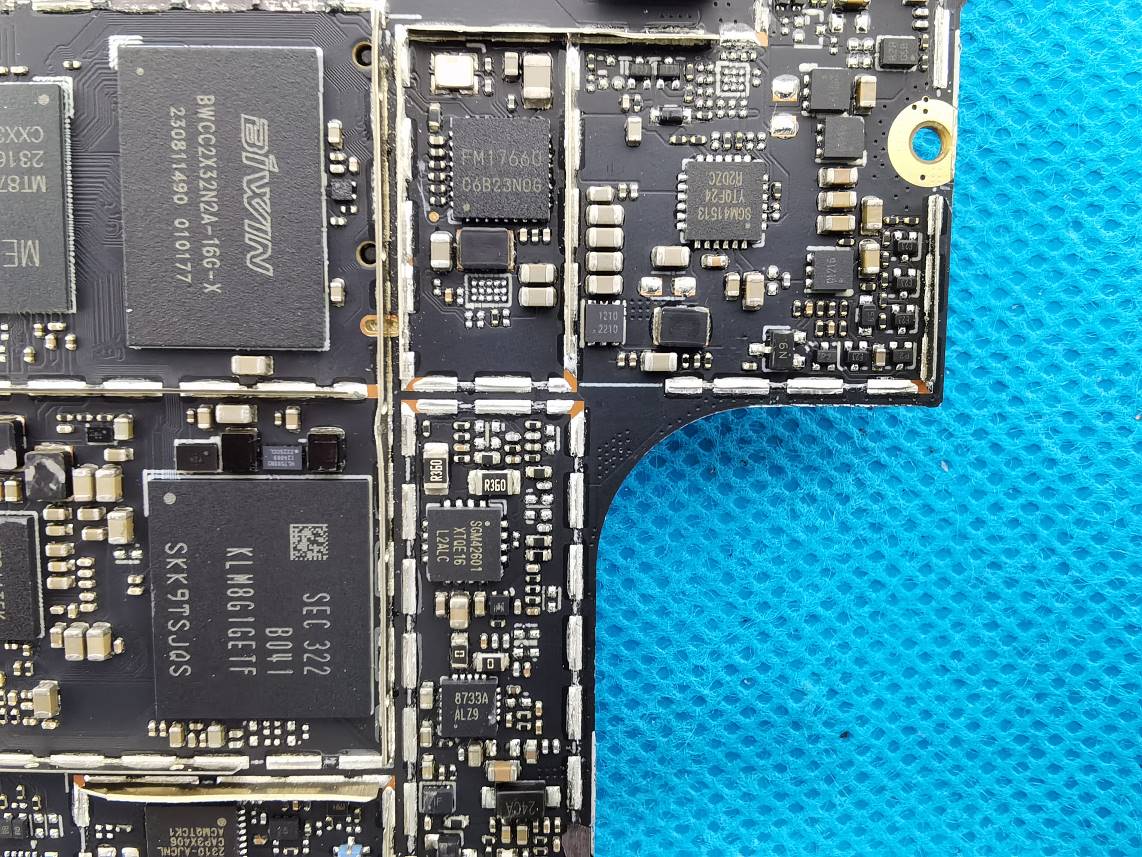

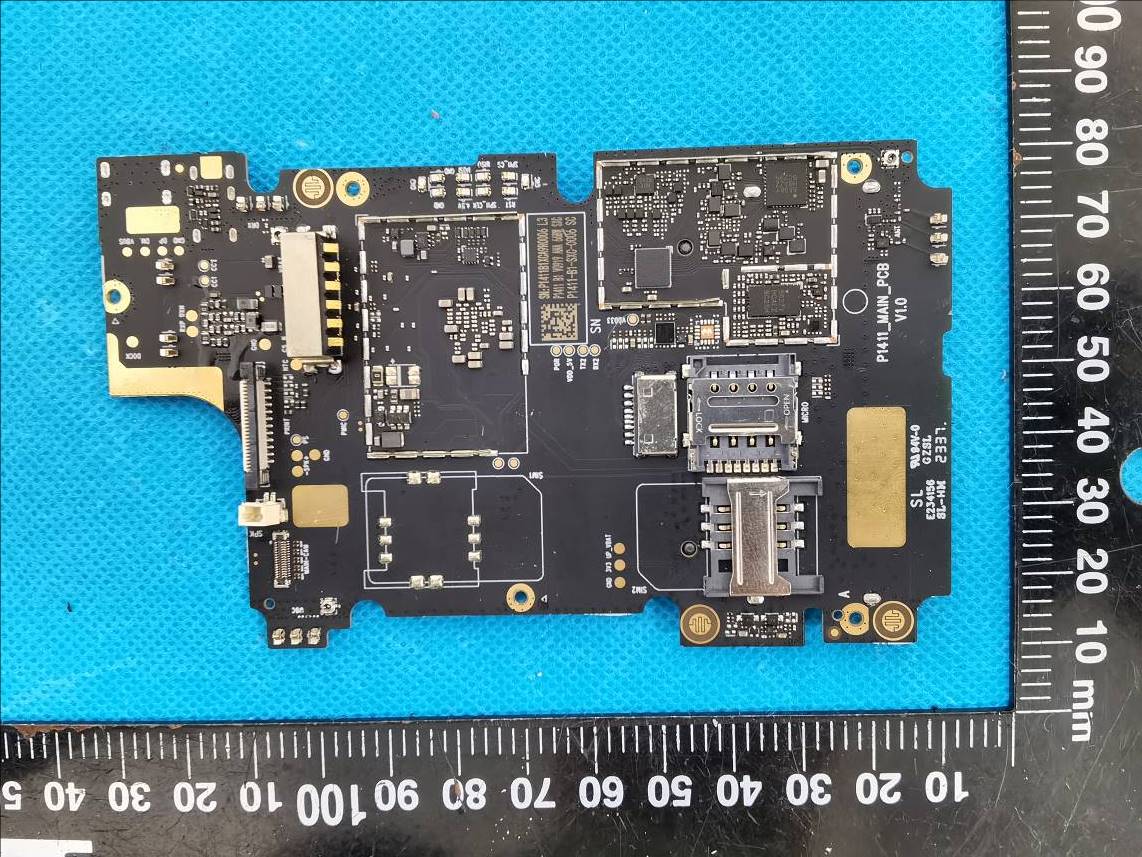

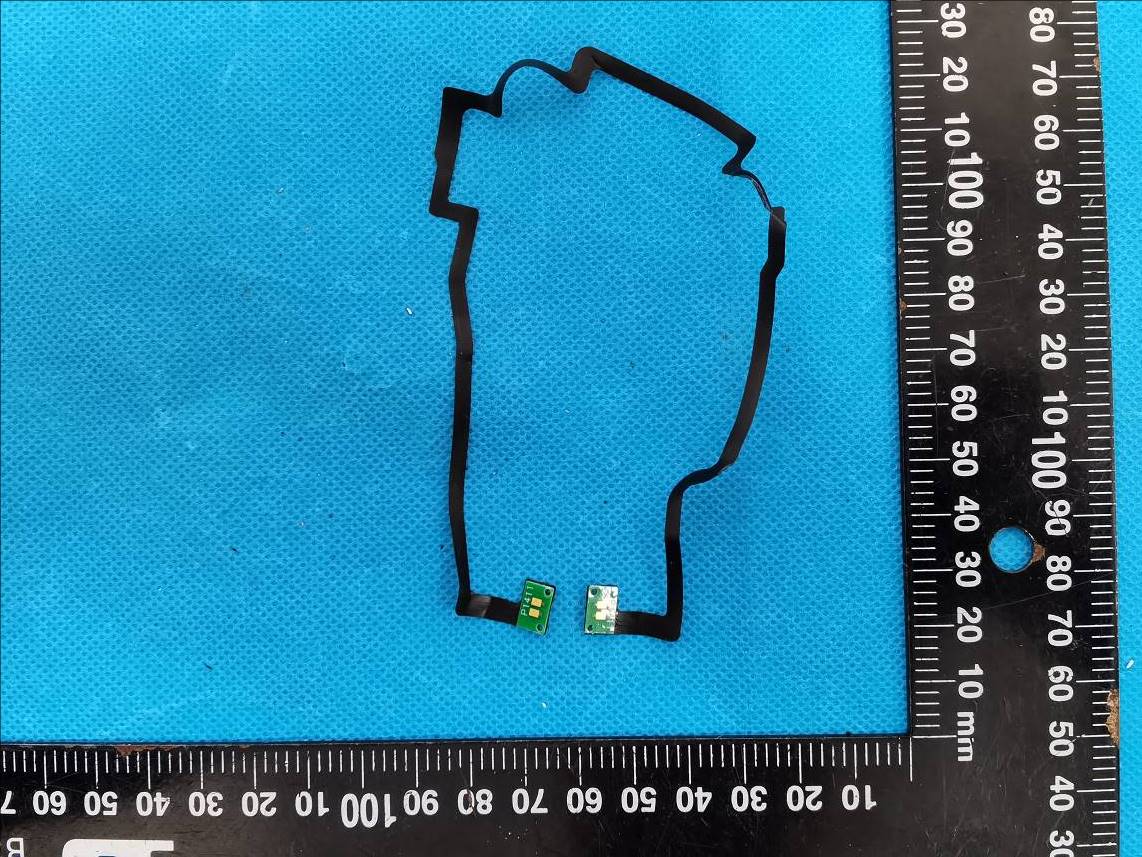

China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-INP Page 1 of 13 EUT INTERNAL PHOTOGRAPHS Battery China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-INP Page 2 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-INP Page 3 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-INP Page 4 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-INP Page 5 of 13 BT/Wi-Fi Antenna China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-INP Page 6 of 13 NFC Antenna China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-INP Page 7 of 13 LTE DIV Antenna China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-INP Page 8 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-INP Page 9 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-INP Page 10 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-INP Page 11 of 13 GSM/WCDMA/LTE Main Antenna China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-INP Page 12 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-INP Page 13 of 13

China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-00G Page 39 of 41 5. RF EXPOSURE EVALUATION Applicable Standard According to KDB447498 D01 General RF Exposure Guidance v06: 4.3. General SAR test exclusion guidance c) For frequencies below 100 MHz, the following may be considered for SAR test exclusion (also illustrated in Appendix C): 1) For test separation distances > 50 mm and < 200 mm, the power threshold at the corresponding test separation distance at 100 MHz in step b) is multiplied by [1 + log(100/f (MHz))] 2) For test separation distances ≤ 50 mm, the power threshold determined by the equation in c) 1) for 50 mm and 100 MHz is multiplied by ½ 3) SAR measurement procedures are not established below 100 MHz Measurement Result: For NFC, the power of EUT: E Field@3m is 73.34dBuV/m =-21.86 dBm(0.007mW) Note: E[dBμV/m] = EIRP[dBm] + 95.2 for d = 3 m. SAR test exclusion threshold for NFC(13.56MHz) separation distance < 50mm =[474*(1 + log(100/f (MHz)))]/2 = 443mW >0.007mW Result: Compliant.

TEST REPORT Applicant: Shanghai Xiangcheng Communication Technology Co.,Ltd Address: 6th Floor, Building 10, No.3000 Longdong Avenue, Pudong New District, Shanghai, China FCC ID: 2A2UU-P14 Product Name: Smart POS Terminal Standard(s): 47 CFR Part 15, Subpart C(15.225) ANSI C63.10-2013 The above device has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR231168756-00G Date Of Issue: 2024/3/11 Reviewed By: Calvin Chen Title:RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-00G Page 2 of 41 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-00G Page 3 of 41 CONTENTS DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.1 EUT Operation Condition: ............................................................................................................................. 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 8 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup.................................................................................................................................................... 12 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 12 3.1.4 Test Procedure ............................................................................................................................................. 13 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 3.2 RADIATED EMISSIONS ....................................................................................................................... 14 3.2.1 Applicable Standard ..................................................................................................................................... 14 3.2.2 EUT Setup.................................................................................................................................................... 14 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 14 3.2.4 Corrected Amplitude & Margin Calculation ................................................................................................ 15 3.3 20 DB EMISSION BANDWIDTH ........................................................................................................... 16 3.3.1 Applicable Standard ..................................................................................................................................... 16 3.3.2 EUT Setup.................................................................................................................................................... 16 3.3.3 Test Procedure ................................................................................................…

Text truncated - open the document above for the full version.

NFC天线规格书 NFC antenna specification 基本 信息 General information 制造 商 Manufacturer 天线型号 Model Name P1411- NFC 日期 Da t e 2 024.1.22 版本 Versio n 1.0 制造 商地址 Vendor address 天线外观 Antenna Appearance 技术规格 Technical Specifications 频率 范围 Frequency Range 13.56MHz 天线 类型 Antenna Type NFC 尺寸 Di mension s 234.31*79.40mm ... ......... Sunnyway Technology Co.,Ltd 1F, Building 4, No. 99, Lane 215, Gaoguang Road, Qingpu District, Shanghai La=0.36μH @13.56MHz Network analyzer Test fixture Bit number Original matching Debug matching C4215/C421633pFNC C4221/C422410pF100pF C4218/C4219220270 C4228/C4227150pF560pF Zload=7.9Ω@13.56MHz Zload=37.3Ω@13.96MHz Fr=13.95MHz 2 3 一. 1-------·· 牛＾＇�,""' 户•r•,, 版 5 － 本 6 歹 容 修改人 日 期 E 234.31( reference) Gum: 3M9471LSE 0~．0100.C D B A Gold plating镜黄金 上1,25土0, 12 』 畏!,2Si0,12 l， 的 O. 她 Sunnyway Techno l o g y Co.,Ltd 令 亡 千 DATE: 2024.1.12 DRAWN: TOLERANCE X. X土0. 25 , XX土0. 20 、XXX土0.05 ANGU LAR乙：士0 5 ° Tel: 18912557732 Tel: 15921558333 队TERIAL: CHECKED: E FINISHING: APPROVED: UNIT:mm COLOUR: SCALE: l: l REV:TEST:A DI'，I'l ,'，＇户�，G;｀，、 B A 2 3 5 6 7

China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-00G-TSP Page 1 of 3 TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-00G-TSP Page 2 of 3 Radiated Emission 9kHz~30MHz Parallel View Radiated Emission 9kHz~30MHz Perpendicular View China Certification ICT Co., Ltd (Dongguan) Report No.: CR231168756-00G-TSP Page 3 of 3 Radiated Emission 9kHz~30MHz Ground-Parallel View Radiated Emission 30MHz~1GHz View
