2A2XQ-YL-98ZAElectronic Lock

If you have any questions, please contact our customer service Website:http://www.fitnate.com/ email:[email protected] Passage Indicator Light YL-98ZA Passage Indicator Light Electronic Lock FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: The equipment complies with FCC Radiation exposure limits set forth for uncontrolled enviroment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. . ISED Statement English:This device contains licence‐exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence‐exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES‐3 (B)/NMB‐3(B). French: Cet appareil contient des émetteurs/récepteurs exempts de licence qui sont conformes aux RSS exemptés de licence d'Innovation, Sciences et Développement économique Canada. L'exploitation est soumise aux deux conditions suivantes : (1) Cet appareil ne doit pas provoquer d'interférences. (2) Cet appareil doit accepter toute interférence, y compris les interférences susceptibles de provoquer un fonctionnement indésirable de l'appareil. l'appareil numérique du ciem conforme canadien peut ‐ 3 (b) / nmb ‐ 3 (b). This device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS 102 RF exposure, users can obtain Canadian information on RF exposure and compliance. cet appareil est conforme à l'exemption des limites d'évaluation courante dans la section 2.5 du cnr ‐ 102 et conformité avec rss 102 de l'exposition aux rf, les utilisateurs peuvent obtenir des données canadiennes sur l'exposition aux champs rf et la conformité. This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. Cet équipement est conforme aux limites d'exposition aux rayonnements du Canada établies pour un environnement non contrôlé. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et votre corps.

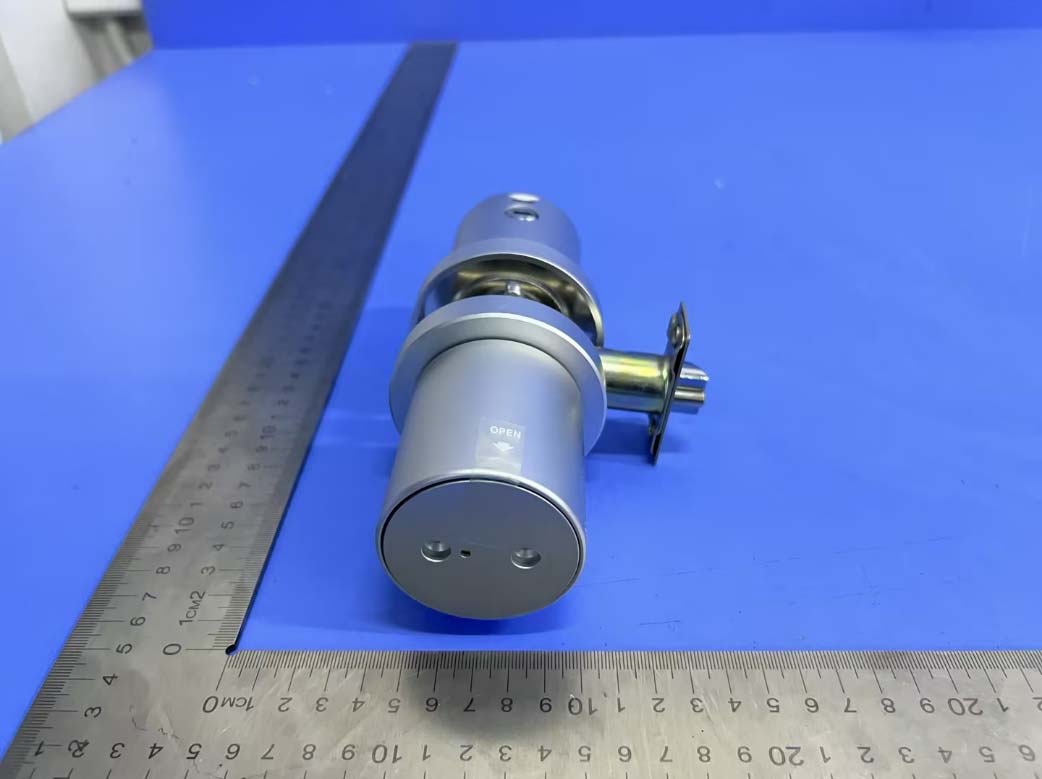

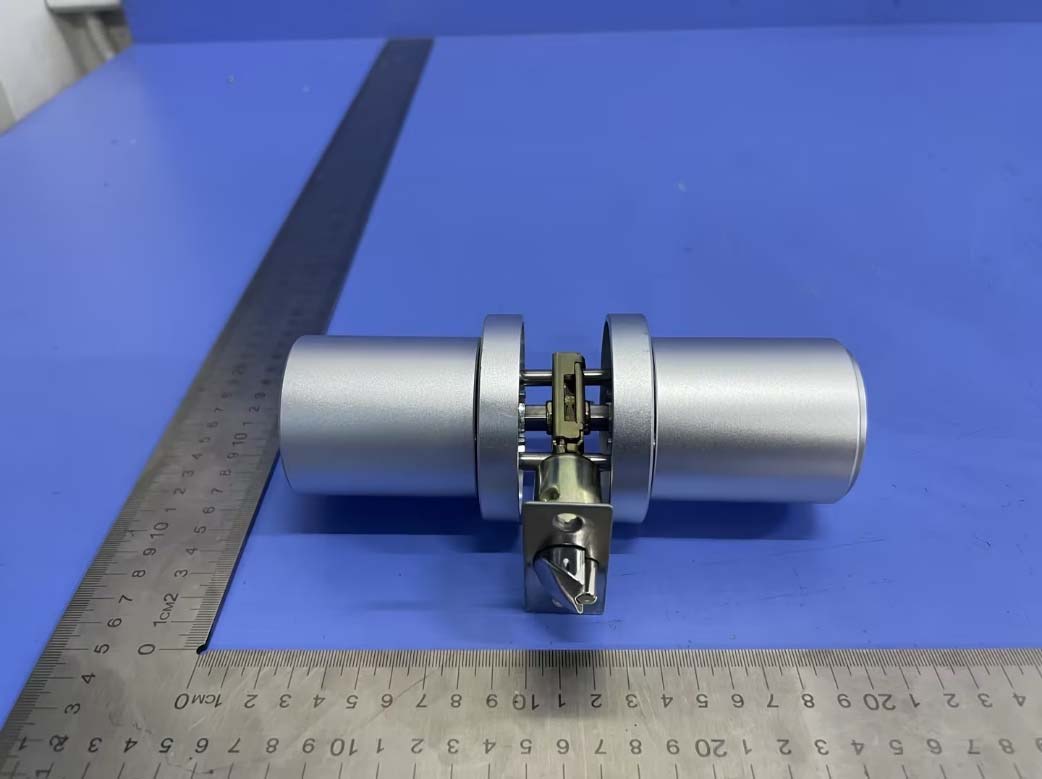

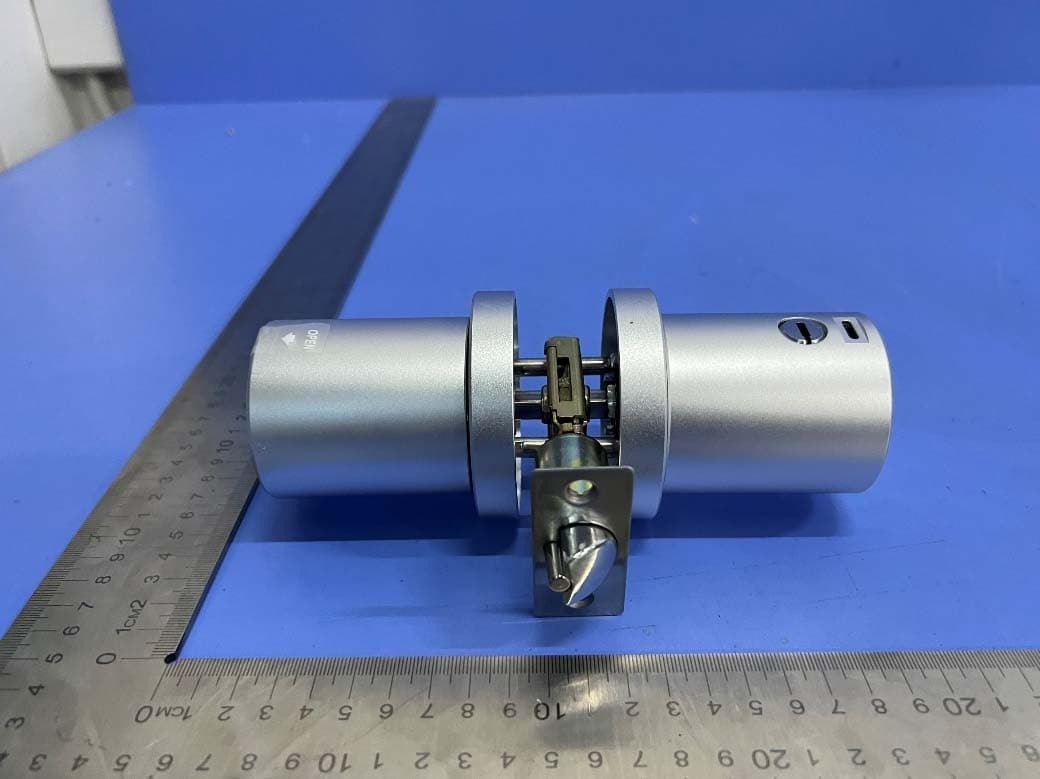

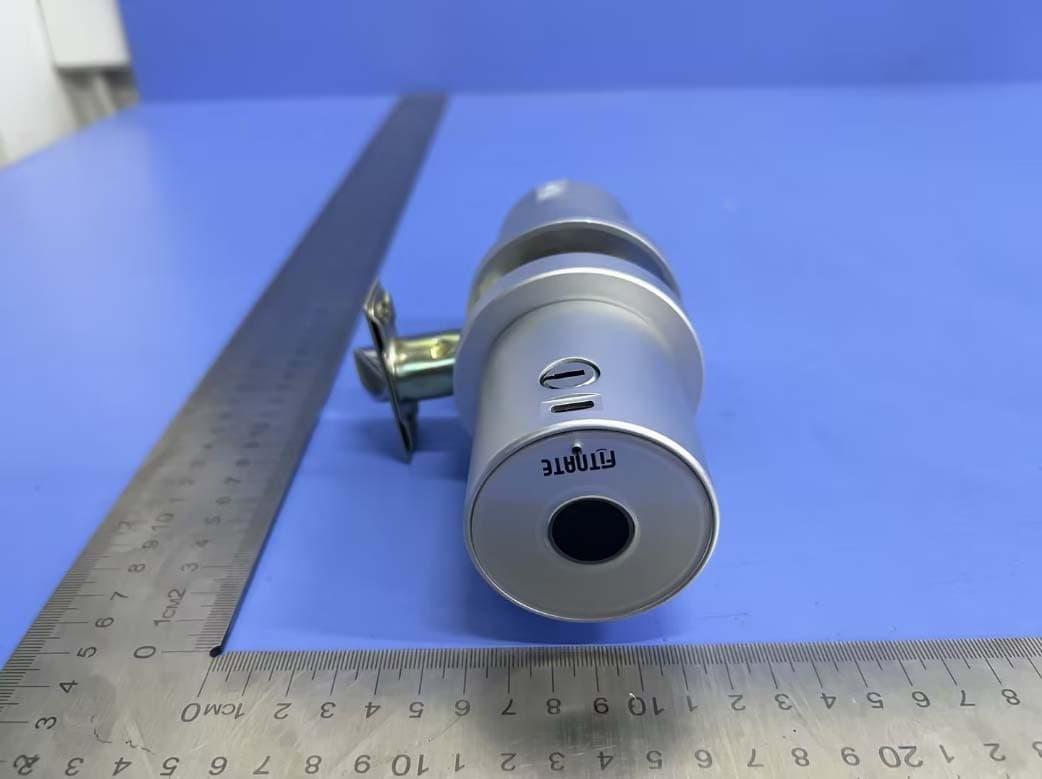

FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 Photo 5 Appearance of EUT

FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 AppendixI Label Electronic Lock FCC ID: 2A2XQ-YL-98ZA Model: YL-98ZA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 Appendix II Label Location

FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 6 Internal of EUT Photo 7 Internal of EUT FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 Photo 8 Internal of EUT Photo 9 Internal of EUT FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 Photo 10 Internal of EUT Photo 11 Appearance of PCB Ceramic Antenna

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202306-0156-13 Page: 1 of 3 TB-RF-074-1.0 1 A/F., Building.6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao’an, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Maximum Permissible Exposure Evaluation FCC ID: 2A2XQ-YL-98ZA 1. Client Information Applicant : Wenzhou Jinbao Electronic Lock Co., Ltd. Address : Room 302, 2 Bldg., Wenchang Road 159, Puzhou Street, Longwan District, Wenzhou, Zhejiang Province, China Manufacturer : Wenzhou Jinbao Electronic Lock Co., Ltd. Address : Room 302, 2 Bldg., Wenchang Road 159, Puzhou Street, Longwan District, Wenzhou, Zhejiang Province, China 2. General Description of EUT EUT Name : Electronic Lock Models No. : YL-98ZA, YL-98JA, YL-98BA, YL-98ZAM, YL-98JAM, YL-98BAM Model Different : All PCB boards and circuit diagrams are the same, the only difference is that model names. Product Description : Operation Frequency: Bluetooth 5.1(BLE): 2402MHz~2480MHz Number of Channel: Bluetooth 5.1(BLE): 40 channels Antenna Gain: 2.12dBi Ceramic antenna Power Rating : Input: DC 6V, 1A DC 1.5V by AAA battery*4 Software Version : V103 Hardware Version : V1.0.6 Connecting I/O Port(S) : : Please refer to the User's Manual Remark : the evaluation report used the EUT(202306-0156-6-2#). Report No.: TBR-C-202306-0156-13 Page: 2 of 3 TB-RF-074-1.0 MPE Calculations for WIFI 1. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 2. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 3. Simultaneous transmission MPE Considerations According to KDB447498: All transmitters and antennas in the host must be either evaluated for MPE compliance, by measurement or computational modeling, or qualify for the standalone MPE test exclusion in section 7.1. Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modeled or measured field strengths or power density, is ≤ 1.0. This means that: ∑ of MPE ratios ≤ 1.0 4. Test Result: Bluetooth LE worst reported. Mode Frequency (MHz) Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] Limit of Power Density (mW/ cm 2 ) (S) BLE 1Mbps 2402 -0.17 0±1 1 2.12 20 0.0004 1 2440 0.031 0±1 1 2.12 20 0.0004 1 2480 0.339 0±1 1 2.12 20 0.0004 1 BLE 2Mbps 2402 -0.166 0±1 1 2.12 20 0.0004 1 2440 0.049 0±1 1 2.12 20 0.0004 1 2480 0.343 0±1 1 2.12 20 0.0004 1 Report No.: TBR-C-202306-0156-13 Page: 3 of 3 TB-RF-074-1.0 5. Conclusion: As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure (MPE), Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 For Bluetooth LE MPE limit S: 1mW/ cm 2 The MPE is calculated as 0.0004 < limit 1mW / cm 2 . So, RF exposure limit warning or SAR test are not required. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47 CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference. Note For a more detailed features description, please refer to the RF Test Report. 6. Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. -----END OF REPORT-----

Approval sheet Page 1 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 MULTILAYER CERAMIC ANTENNA RFANT Series – RoHS Compliance 2 .4 GHz ISM Band Working Frequency P/N: RFANT3216120A5T Series *Contents in this sheet are subject to change without prior notice. Approval sheet Page 2 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 FEATURES 1. Surface Mounted Devices with a small dimension of 3.2 X 1.6 X1.2 mm 3 meet future miniaturization trend. 2. LTCC process 3. High stability in Temperature / Humidity Change APPLICATIONS 1 . 2.4GHz ISM band RF applications 2.Bluetooth, Wireless, HomeRF CONSTRUCTION DIMENSIONS Figure Symbol Dimension (mm) L 3.20 ± 0.20 W 1.60 ± 0.10 T 1.20 ± 0.10 a 0.25 ± 0.15 1. Feeding 2. Identification Mark 3.Soldering terminal W T E a a Approval sheet Page 3 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 Ground Soldering Pad 50 ΩTransmission Line Unit : mm 19.4 Empty Area 6x6 mm 50Ω ΩΩ ΩFeed line 45mm 20mm Series 1 Series 2 Ground Soldering Pad 50 ΩTransmission Line Unit : mm 19.4 Empty Area 6x6 mm 50Ω ΩΩ ΩFeed line 45mm 20mm Series 1 Series 2 ELECTRICAL CHARACTERISTICS RFANT3216120A5T Specification Working Frequency Range 2450 ± 50 MHz Fc (GHz) 2.9 Gain (dBi) 2.12 (Typical) VSWR 2 max. Series 1 6.8nH Matching component value Series 2 - Operation Temperature -40 ̊C ~ +85 ̊C * This frequency must be adjusted to 2.45GHz with matching circuit. SOLDER LAND PATTERN DESIGN Figure 1.66 0.8 2.3 1.63 6 3.43 1.6 6 1.36 0.36 0.88 0.34 1.88 1.83 0.8 0.54 1.66 0.8 2.3 1.63 6 3.43 1.6 6 1.36 0.36 0.88 0.34 1.88 1.83 0.8 0.54 Approval sheet Page 4 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 Antenna on Test Board ( Thickness 1.2mm) Antenna S11 on Test Board Antenna VSWR on Test Board E 0.8mm 1.6mm 19.4mm Empty Area 6x6 mm 50Ω ΩΩ ΩFeed line 1.66mm GROUND 0.8mm 1.6mm 19.4mm Empty Area 6x6 mm 50Ω ΩΩ ΩFeed line 1.66mm GROUND 0.8mm 1.6mm 19.4mm Empty Area 6x6 mm 50Ω ΩΩ ΩFeed line 1.66mm GROUND 0.8mm 1.6mm 19.4mm Empty Area 6x6 mm 50Ω ΩΩ ΩFeed line 1.66mm GROUND E Approval sheet Page 5 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 RADIATION PATTERN Radiation Pattern and Gain were dependent on measurement board design. The specification of RFANT3216120A5T antenna was measured based on the PCB size and installation position as shown in the below figure Test Board Vertical Horizontal Y - Z Plane Average Gain= 0.891 dBi Peak Gain = 2.12dBi Average Gain = 0.64 dBi Peak Gain= -6.07dBi Average Gain=-11.62dBi X - Z Plane Average Gain= -1.846 dBi Peak Gain= -7.78 dBi Average Gain= -11.97dBi Peak Gain= 0.96 dBi Average Gain= -2.29 dBi X - Y Plane Average Gain= -2.556 dBi Peak Gain= -9.41 dBi Average Gain= -15.54dBi Peak Gain= 1.40 dBi Average Gain= -2.78 dBi GROUND X Y Z GROUND X Y Z X Y Z Approval sheet Page 6 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 RELIABILITY TEST Test item Test condition / Test method Specification Solderability JIS C 0050-4.6 JESD22-B102D *Solder bath temperature：235 ± 5°C *Immersion time：2 ± 0.5 sec *Solder：Sn3Ag0.5Cu for lead-free At least 95% of a surface of each terminal electrode must be covered by fresh solder. Leaching (Resistance to dissolution of metallization) IEC 60068-2-58 *Solder bath temperature：260 ± 5°C *Leaching immersion time：30 ± 0.5 sec *Solder : SN63A Loss of metallization on the edges of each electrode shall not exceed 25%. Resistance to soldering heat JIS C 0050-5.4 *Preheating temperature：120~150°C, 1 minute. *Solder temperature：270±5°C *Immersion time：10±1 sec *Solder：Sn3Ag0.5Cu for lead-free Measurement to be made after keeping at room temperature for 24±2 hrs No mechanical damage. Samples shall satisfy electrical specification after test. Loss of metallization on the edges of each electrode shall not exceed 25%. Drop Test JIS C 0044 *Height：75 cm *Test Surface：Rigid surface of concrete or steel. *Times：6 surfaces for each units；2 times for each side. No mechanical damage. Samples shall satisfy electrical specification after test. Adhesive Strength of Termination JIS C 0051- 7.4.3 *Pressurizing force： 5N(≦0603)；10N(>0603) *Test time：10±1 sec No remarkable damage or removal of the termination. Bending test JIS C 0051- 7.4.1 The middle part of substrate shall be pressurized by means of the pressurizing rod at a rate of about 1 mm/s per second until the deflection becomes 1mm/s and then pressure shall be maintained for 5±1 sec. Measurement to be made after keeping at room temperature for 24±2 hours No mechanical damage. Samples shall satisfy electrical specification after test. Approval sheet Page 7 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 Temperature cycle JIS C 0025 1. 30±3 minutes at -40°C±3°C, 2. 10~15 minutes at room temperature, 3. 30±3 minutes at +85°C±3°C, 4. 10~15 minutes at room temperature, Total 100 continuous cycles Measurement to be made after keeping at room temperature for 24±2 hrs No mechanical damage. Samples shall satisfy electrical specification after test. Vibration JIS C 0040 *Frequency：10Hz~55Hz~10Hz(1min) *Total amplitude：1.5mm *Test times：6hrs.(Two hrs each in three mutually perpendicular directions) No mechanical damage. Samples shall satisfy electrical specification after test. High temperature JIS C 0021 *Temperature：85°C±2°C *Test duration：1000+24/-0 hours Measurement to be made after keeping at room temperature for 24±2 hrs No mechanical damage. Samples shall satisfy electrical specification after test. Humidity (steady conditions) JIS C 0022 *Humidity：90% to 95% R.H. *Temperature：40±2°C *Time：1000+24/-0 hrs. Measurement to be made after keeping at room temperature for 24±2 hrs ※ 500hrs measuring the first data then 1000hrs data No mechanical damage. Samples shall satisfy electrical specification after test. Low temperature JIS C 0020 *Temperature：-40°C±2°C *Test duration：1000+24/-0 hours Measurement to be made after keeping at room temperature for 24±2 hrs No mechanical damage. Samples shall satisfy electrical specification after test. Approval sheet Page 8 of 9 ASC_RFANT3216120A5T_V05 Apr. 2010 SOLDERING CONDITION Typical examples of soldering processes that provi…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202306-0156-9 Page: 1 of 39 FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 RF Test Data for Bluetooth LE (Conducted Measurements) General Description of EUT Product Name: Electronic Lock Test Model: YL-98ZA Sample ID: 202306-0156-6-2# Environmental Conditions Temperature: 25°C Relative Humidity: 55% Test Voltage: DC 6V Test Engineer: Huang jian ping Note: For a more detailed features description, please refer to the report TBR-C-202306-0156-9 The report only show the worst case data. Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202306-0156-9 Page: 2 of 39 FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 Contents 1. Duty Cycle ............................................................................................................................................................................................... 3 2. Maximum Conducted Output Power ..................................................................................................................................................... 7 3. -6dB Bandwidth ..................................................................................................................................................................................... 11 4. Occupied Channel Bandwidth ............................................................................................................................................................. 15 5. Maximum Power Spectral Density Level ............................................................................................................................................ 19 6. Band Edge ............................................................................................................................................................................................. 23 7. Conducted RF Spurious Emission ...................................................................................................................................................... 28 8. Restrict Band ......................................................................................................................................................................................... 35 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202306-0156-9 Page: 3 of 39 FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 1. Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1Mbps 2402 Ant1 66.13 1.8 2.44 NVNT BLE 1Mbps 2440 Ant1 67.74 1.69 2.38 NVNT BLE 1Mbps 2480 Ant1 66.13 1.8 2.44 NVNT BLE 2Mbps 2402 Ant1 37.1 4.31 4.35 NVNT BLE 2Mbps 2440 Ant1 37.1 4.31 4.35 NVNT BLE 2Mbps 2480 Ant1 38.71 4.12 4.17 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202306-0156-9 Page: 4 of 39 FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 Test Graphs Duty Cycle NVNT BLE 1Mbps 2402MHz Ant1 Duty Cycle NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202306-0156-9 Page: 5 of 39 FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 Duty Cycle NVNT BLE 1Mbps 2480MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202306-0156-9 Page: 6 of 39 FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 Duty Cycle NVNT BLE 2Mbps 2440MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202306-0156-9 Page: 7 of 39 FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 2. Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 1Mbps 2402 Ant1 -0.17 30 Pass NVNT BLE 1Mbps 2440 Ant1 0.031 30 Pass NVNT BLE 1Mbps 2480 Ant1 0.339 30 Pass NVNT BLE 2Mbps 2402 Ant1 -0.166 30 Pass NVNT BLE 2Mbps 2440 Ant1 0.049 30 Pass NVNT BLE 2Mbps 2480 Ant1 0.343 30 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202306-0156-9 Page: 8 of 39 FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 Test Graphs Power NVNT BLE 1Mbps 2402MHz Ant1 Power NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202306-0156-9 Page: 9 of 39 FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 Power NVNT BLE 1Mbps 2480MHz Ant1 Power NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202306-0156-9 Page: 10 of 39 FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 Power NVNT BLE 2Mbps 2440MHz Ant1 Power NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202306-0156-9 Page: 11 of 39 FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 3. -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Ba…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202306-0156-9 Page: 1 of 38 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Radio Test Report FCC ID: 2A2XQ-YL-98ZA Report No. : TBR-C-202306-0156-9 Applicant : Wenzhou Jinbao Electronic Lock Co., Ltd. Equipment Under Test (EUT) EUT Name : Electronic Lock Model No. : YL-98ZA Series Model No. : YL-98JA, YL-98BA, YL-98ZAM, YL-98JAM, YL-98BAM Brand Name : ---- Sample ID : 202306-0156-6-1# & 202306-0156-6-2# Receipt Date : 2023-06-27 Test Date : 2023-06-27 to 2023-07-11 Issue Date : 2023-07-11 Standards : FCC Part 15 Subpart C 15.247 Test Method : ANSI C63.10: 2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above. Witness Engineer : Seven Wu Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TBR-C-202306-0156-9 Page: 2 of 38 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 9 2. TEST SUMMARY ..................................................................................................................... 10 3. TEST SOFTWARE ................................................................................................................... 10 4. TEST EQUIPMENT .................................................................................................................. 11 5. CONDUCTED EMISSION ....................................................................................................... 13 5.1 Test Standard and Limit .................................................................................................... 13 5.2 Test Setup ........................................................................................................................... 13 5.3 Test Procedure ................................................................................................................... 13 5.4 Deviation From Test Standard ......................................................................................... 14 5.5 EUT Operating Mode ........................................................................................................ 14 5.6 Test Data ............................................................................................................................. 14 6. RADIATED AND CONDUCTED UNWANTED EMISSIONS ............................................ 15 6.1 Test Standard and Limit .................................................................................................... 15 6.2 Test Setup ........................................................................................................................... 16 6.3 Test Procedure ................................................................................................................... 17 6.4 Deviation From Test Standard ......................................................................................... 19 6.5 EUT Operating Mode ........................................................................................................ 19 6.6 Test Data ............................................................................................................................. 19 7. RESTRICTED BANDS REQUIREMENT ............................................................................. 20 7.1 Test Standard and Limit .................................................................................................... 20 7.2 Test Setup ........................................................................................................................... 20 7.3 Test Procedure ................................................................................................................... 21 7.4 Deviation From Test Standard ......................................................................................... 23 7.5 EUT Operating Mode ........................................................................................................ 23 Report No.: TBR-C-202306-0156-9 Page: 3 of 38 TB-RF-074-1.0 7.6 Test Data ............................................................................................................................. 23 8. BANDWIDTH TEST ................................................................................................................. 24 8.1 Test Standard and Limit .................................................................................................... 24 8.2 Test Se…

Text truncated - open the document above for the full version.

FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (30MHz~1GHz) Photo of Setup for Radiated Emission (Above 1 GHz) FCC ID: 2A2XQ-YL-98ZA TB-RF-074-1.0 Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Conducted Emission -----END OF REPORT-----
