2A2YU-DS0-SEDLAD00Advanced Data Logger

ADVData Logger & Advanced Sensor Node User Manual (Eng.) Version 1.0 1/ 12 Theindustrialdataloggersupports4channelsandsupportsupto12 AdvancedSensorNodesforeachchannel.(Upto28sensornodesare supported.) 1. Introduction 1-1. Features 1-2. System configuration Data Logger SensorNodeDataGathering SensorNodeControl DataTransmission 4CH/48NodeSupport(12Node/PerChannel) Advanced Sensor Node SensorNodeInterface(RS-485WithPower) ExternalSensorInterface:TerminalBlock8Pin SensorInputPower:5or24V ADC_SingleEnded:24bitSigma-Delta(-10V~+10V) ADC_Differential:24bitSigma-Delta(-10V~+10V) ADC_Current::0~20mA 2/ 12 1-3. System Specification DataLogger / Hardware Specification Ports Ethernet:1port SystemConsole:1port(RS232DB9) SerialInterface:RS485,4CH/48Node(12Node/CH) Physical feature Speed and Duplex Auto sensing and crossover cable Auto detection Status DisplayPower, System Status, RS-485 Link/Act LED Memory Core:DualARMCortex-A9,1GHz Flash:1Gbytes DDR3:2Gbytes Power SupplyDC 24V Size135mm(150mm) x 115mm x 25mm (With fixing guide 150mm) Weight570g Operation Environment Temperature0∼50°C Humidity0∼90%,noncondensation Advanced Sensor Node / Hardware Specification Ports DataLoggerInterface:RS-485(WithPower) SensorNodeInterface:RS-485(WithPower) ExternalSensorInterface:TerminalBlock8Pin Main Resource Core:32bit-Coretex-M7,280MHz RAM: 1.4M Bytes Flash:2MB Status DisplayPower, Network, System Status LED ADC Single Ended: 24 bit Sigma-Delta (-10V ~ +10V) Differential: 24 bit Sigma-Delta (-10V ~ +10V) Current Sensing : 0 ~ 20mA PowerRS-485 / 24V Size65.0 x 45.2 x 23.3mm(Not including power bracket) Weight130g (Not including power bracket) Operation Environment Temperature0∼60°C Humidity0∼90%,noncondensation 3/ 12 1-4. Port&LED Data Logger Sensor Node [TOP] [SIDE] [Front] [Rear] Power LED (PWR) : PowerOn (LED On) / PowerOFF( LED Off) System Status LED (SYS) : System OperatingLED / Blink CH STATUS LED : SYS (Port Enable : ON / Port Disable : OFF) ACT(Data Communication LED / Blink) 4/ 12 1-5. Sensor Node Setting Sensor Node DIP Switch Operating ItemCaseDescription DIPSwitch ON : 1(High) 1RS-485 TX Line termination resistor setting 2Unspecified 3High: Single-Ended, Low : Differential 4High : Current, Low : Voltage 5Sensor Node ID : Bit 3 6Sensor Node ID : Bit 2 7Sensor Node ID : Bit 1 8Sensor Node ID : Bit 0 LED Status Red Power On : LED On Green RS-485 Data Flow Status: LED Blinking Blue MCUStatus: LED Blinking 1-6. Sensor Interface 5/ 12 Single Channel 1-6. Node connection CH1CH2CH3CH4 .................. Sensor Node 1 -Sensor ID 1 Setting Sensor Node 2 -Sensor ID 2 Setting Sensor Node 8 -Sensor ID 8Setting -Termination resistorSetting 6/ 12 Multi Channel 1-6. Node connection(Cont’d) CH1CH2CH3CH4 .................. Sensor Node 1 -Sensor ID1 Setting Sensor Node 2 -Sensor ID 2 Setting Sensor Node 8 -Sensor ID 8Setting -Termination resistorSetting .................. ............ 7/ 12 2-2. Connection of Management Console 2.2.1Console cable provided by the product is to be connected to Console Port (RJ-45) at the front panel of TEK-SYRX as well as PC & laptop computer which terminal emulation software is installed. *. Terminal emulation Download (Free software) Tera Term Home Page http://ttssh2.sourceforge.jp/ 2.2.2 Configuration of terminal communication is as follows: *. Protocol : Serial *. Port : It is to check through Device Manager (Port) of PC or laptop computer *. Baud rate : 115200 *. Data bits : 8 *. Parity : None *. Stop bits : 1 *. Flow Control : None 8/ 12 3. CLI (Command Line Interface) 3-1. Login Use the 'root' account when logging in. (No password) The login directory is / home / root. Other commands are the same as for Linux. 3-2. Hostname Configuration The Hostname of the Data Logger can be changed by editing the / etc/ hostname file. Changes to Hostname will be reflected after Reboot. 3-3. Time Configuration Set the time using the ‘Date’ command. You must update the current time on the RTC to save time after shutdown. login as: root root@TEL:~# root@TEL:~# pwd /home/root root@TEL:~# < Examples > < Examples > root@TEL:~# vi /etc/hostname Data_Logger##. ‘Change to 'Data_Logger' root@TEL:~# reboot ##. Reboot for the modification to take effect.. root@TEL:/# date 041915432022 ##. TimeSetting Tue Apr 19 15:43:00 UTC 2022 root@TEL:/# hwclock–w ##. Save set time to RTC root@TEL:/# hwclock –r ##. RTCTime Cheeck Tue Apr 19 15:44:27 2022 0.000000 seconds root@Data_Logger:~# < Examples > 9/ 12 3-4. Configure Network Network settings can be changed by editing the /etc/default/ipconfig.conffile. IP Assignment Mode (StaticorDHCP), IP Address, Netmask, Default Gateway can be set. 3-5. Configure Channel Supports Each channel operation (On / Off) setting. When the power of Datalogger is turned on, all channels are enabled. The corresponding channel (#) is disabled when '485 _ # _ off.sh' is operated, and the corresponding channel (#) is enabled when '485 _ # _ on.sh' is operated. root@Data_Logger:~# ./485_1_off.sh root@Data_Logger:~# ./485_1_on.sh < Examples > root@TEL:~# vi /etc/network/interfaces # /etc/network/interfaces --configuration file for ifup(8), ifdown(8) # The loopback interface auto lo ifacelo inetloopback # Wired or wireless interfaces auto eth0 ifaceeth0 inetstatic ##. Static Setting address 192.168.0.101 ##. IP Address netmask 255.255.255.0 ##. Netmask network 192.168.0.0 ##. Netmask gateway 192.168.0.1 ##. Default Gateway root@TEL:~# ifdowneth0 ##. eth0 Disable(Down) root@TEL:~# ifupeth0 ##. eth0 Enable(UP) fec2188000.ethernet eth0: Freescale FEC PHY driver [Generic PHY] (mii_bus:phy_addr=2188000.ethernet:01, irq=-1) root@TEL:~# libphy: 2188000.ethernet:01 -Link is Up -100/Full < Examples > 3-6. Configure External Sensor Node Sensor node's impact measurement range and sampling period setting can be set by editing the /home/root/kslogger/cmdfile_#.txt file. • '#' in the file name means Channel number. Create and manage configuration file for 4 channels (1 ~ 4 channels, 16 IDs for eac…

Text truncated - open the document above for the full version.

TOKYO ELECTRON KOREA LIMITED Date: June 29, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL Verification Services Inc . (formerly UL CCS) Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it ma y concern: I, th e undersigned, hereby authorize UL-Korea an d hereafter referred to as ULK, to ac t on our behalf in al l manners relating to application fo r equipment authorization, including signing of all documents relating to these matters. An y an d al l act s carried ou t by UL-Korea on ou r behalf shall have th e same effect as act s of ou r own. I, th e undersigned, hereby certify tha t we ar e no t subject to a denial of federal benefits, tha t includes FC C benefits, pursuant to Section 5301 of the Anti-Drug Abuse Ac t of 1988, 21 U.S.C. 853(a). In authorizing UL K as ou r agent, we stil l recognize tha t we ar e responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, JUNGWOON LEE / Senior Specialist TOKYO ELECTRON KOREA LIMITED REMARK: 1.This authorization letter will be sent along with your application when filing with the Certification Division. 2.Please follow the format and type it on company letterhead and send original to us. 3.Authorized signature must be in agreement with grantee code contact in FCC database.

CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 June 29, 2022 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, TOKYO ELECTRON KOREA LIMITED requests confidentiality for the following products: FCC ID Number Product Title/Model 2A2YU-DS0-SEDLAD00 DS0-SEDLAD00 The following exhibits contain trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our product. This material is not customarily available to the general public and we request that it be withheld from public inspection. We request that the following information submitted be held permanent confidential treatment. Permanent Confidential Request - Block diagram If you have any questions, please feel free to contact me at the address shown below. Best regards, Name: JUNGWOON LEE Title: Senior Specialist Company name: TOKYO ELECTRON KOREA LIMITED

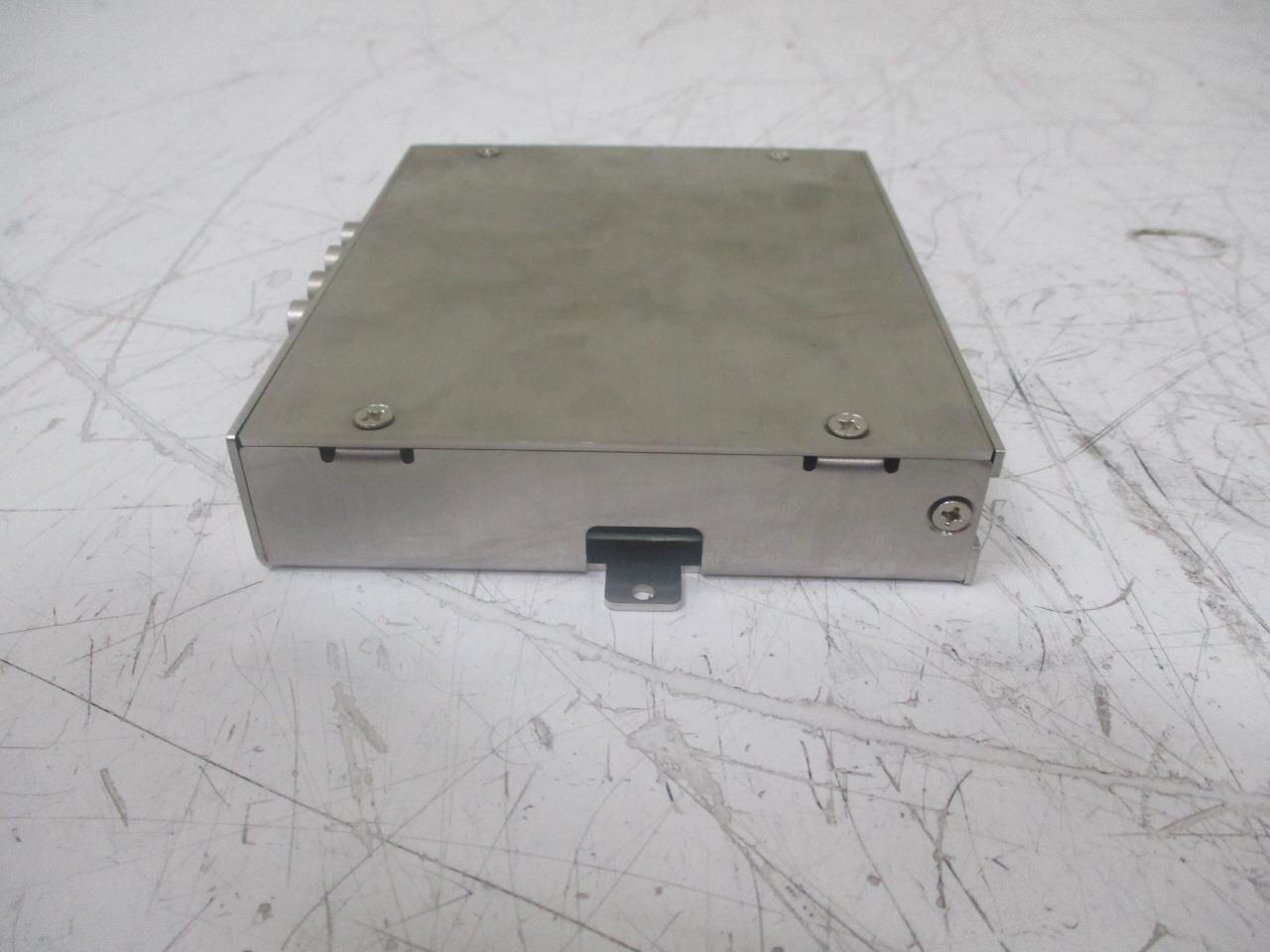

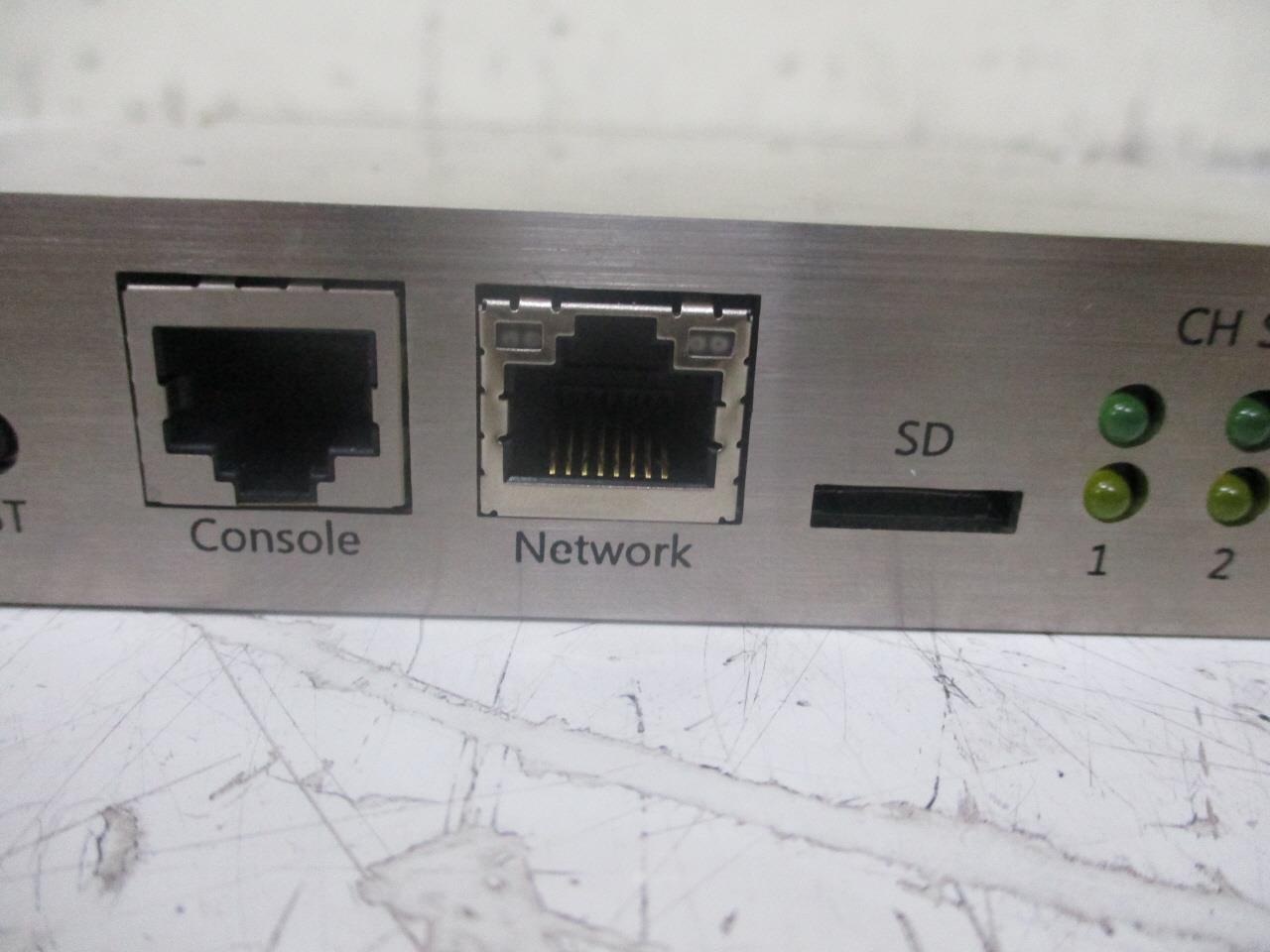

External Photo Front (with Adaptor) Rear (with Adaptor) Front Rear Right Left Top Bottom Port 1 Port 2 Label

[TOP] [Front] [Rear]

Internal Photo Inside Main Board Front Main Board Rear Adaptor Front Adaptor Rear Adaptor Label

Report No. : KST-FCC-220012 KST-FCC-EMC-Rev.0.7 Page: 2 / 21 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. Revision History of Test Report Rev. Revisions Effect page Reviewed Date - Initial issue All Seok-Jin, Jung Jun. 15, 2022 Report No. : KST-FCC-220012 KST-FCC-EMC-Rev.0.7 Page: 3 / 21 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. Contents 1. General Information ······································································································· 4 1.1 Information of EUT ········································································································· 4 1.2 Applicants Information ···································································································· 4 2. Information of Testing Laboratory ······················································································ 5 3. Test System Configuration ······························································································· 6 3.1 Operation Environment ··································································································· 6 3.2 Measurement Uncertainty ································································································ 6 3.3 Sample calculation ········································································································· 6 4. Condition and Procedure for Test activities ·········································································· 7 4.1 Configuration of EUT ······································································································ 7 4.2 Used Peripherals ··········································································································· 7 4.3 Used cables ················································································································· 8 4.4 EUT Test Configuration ··································································································· 9 5. Summary of Test Results ······························································································· 10 5.1 Modification to the EUT ································································································· 10 5.2 Summary of Test Results ······························································································· 10 6. Test Results ···················································································································· 11 6.1 Conducted Emission ···································································································· 11 6.2 Radiated Emission ······································································································ 15 Report No. : KST-FCC-220012 KST-FCC-EMC-Rev.0.7 Page: 4 / 21 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. 1. General Information 1.1 Information of EUT Product Name Advanced Data Logger Model Name DS0-SEDLAD00 FCC ID 2A2YU-DS0-SEDLAD00 Serial No. None Type of Sample Tested Pre-production Supplied Power for Test AC 120 V / 60 ㎐ Port DC In, RJ-45 x 2 (RS232, LAN), RS485 (6 Pin Connector) x 4, Micro SD Card Slot Whether or not ground With-ground This information was provided by the applicants Clock used 32.768 ㎑, 24 ㎒, 25 ㎒ High Frequency Used 800 ㎒ H/W Version 2.0.0 S/W Version 0.9.6 F/W Version 1.0.0 Model differences Model name Difference Tested (checked) DS0-SEDLAD00 Basic Model (the basic model that was fully tested) - Variant Models - 1.2 Applicants Information Applicant TOKYO ELECTRON KOREA LIMITED Address 51, Jangangongdan 6-gil, Jangan-myeon, Hwaseong-si,Gyeonggi-do, 18579 Korea Telephone No. +82-31-831-6189 Facsimile No. +82-31-260-5290 Contact person Jeong Woon Lee ([email protected]) Report No. : KST-FCC-220012 KST-FCC-EMC-Rev.0.7 Page: 5 / 21 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. 2. Information of Testing Laboratory Test laboratory and address KOSTEC Co., Ltd. 28(175-20,Annyeong-dong)406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Telephone Number: 82-31-222-4251 Facsimile Number: 82-31-222-4252 Registration information KOLAS No.: KT232 RRA(National Radio Research Agency): KR0041 FCC Designation No.: KR0041 IC Designation No.: KR0041 VCCI Membership No. : 2005 VCCI Registration No. of EMI site: R-14202 / C-14685 / G-10834 / T-12225 Route Map of Measurement Facility KOSTEC Co., Ltd. Report No. : KST-FCC-220012 KST-FCC-EMC-Rev.0.7 Page: 6 / 21 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. 3. Test System Configuration 3.1 Operation Environment Test Items Test date Temp (°C) Humidity (%R.H.) Conducted Emissions Jun. 09 19 40 Radiated Emission (Below 1 ㎓) Jun. 09 23 41 ~ 42 Radiated Emission (Above 1 ㎓) Jun. 09 21 ~ 22 41 3.2 Measurement Uncertainty Test Items k p Expanded Uncertainty Note Conducted Emissions 2 ±3.44 ㏈ - Radiated Emission (Below 1 ㎓) 2 ±4.26 ㏈ - Radiated Emission (Above 1 ㎓) 2 ±3.70 ㏈ - 3.3 Sample calculation Conducted Emission The field strength is calculated by adding the LISN factor, cable loss from the measured reading. The sample calculation is as follows: FS = MR + Factor MR = Meter Reading Factor = Ant. Factor, Cable Loss, etc If MR is 30 ㏈, LISN Factor 1 ㏈, CL 1 ㏈ The result (MR) is 30 + 1 + 1 = 32 ㏈㎶ Report No. : KST-FCC-220012 KST-FCC-EMC-Rev.0.7 Page: 7 / 21 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. 4. Condition and Procedure for Test activities 4.1 Configuration of EUT Description Model or Part No. Serial No. Manufacturer Advanced Data Logger DS0-SEDLAD00 None TOKYO ELECTRON KOREA LIMITED Adaptor 1 (for EUT) RH-240250ZZM3 None DongGuan RulHong Elecronic Technology CO.,LTD 4.2 Used Peripher…

Text truncated - open the document above for the full version.

Test Setup and EUT Photographs Conducted Emission (Front) Conducted Emission (Rear) Radiated Emission (Below 1 ㎓) (Front) Radiated Emission (Below 1 ㎓) (Rear) Radiated Emission (Front)_Above 1 ㎓ Radiated Emission (Rear)_Above 1 ㎓
