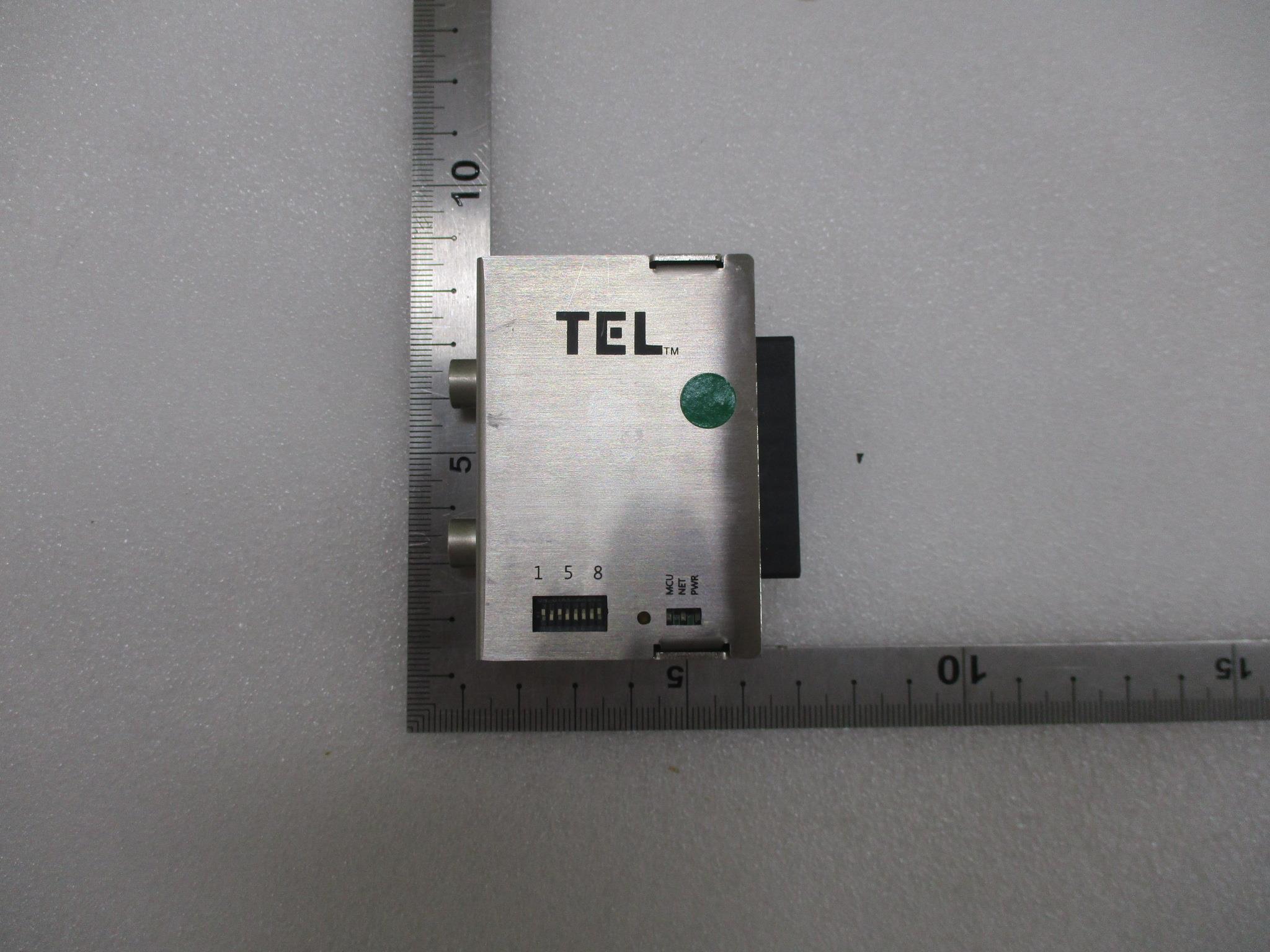

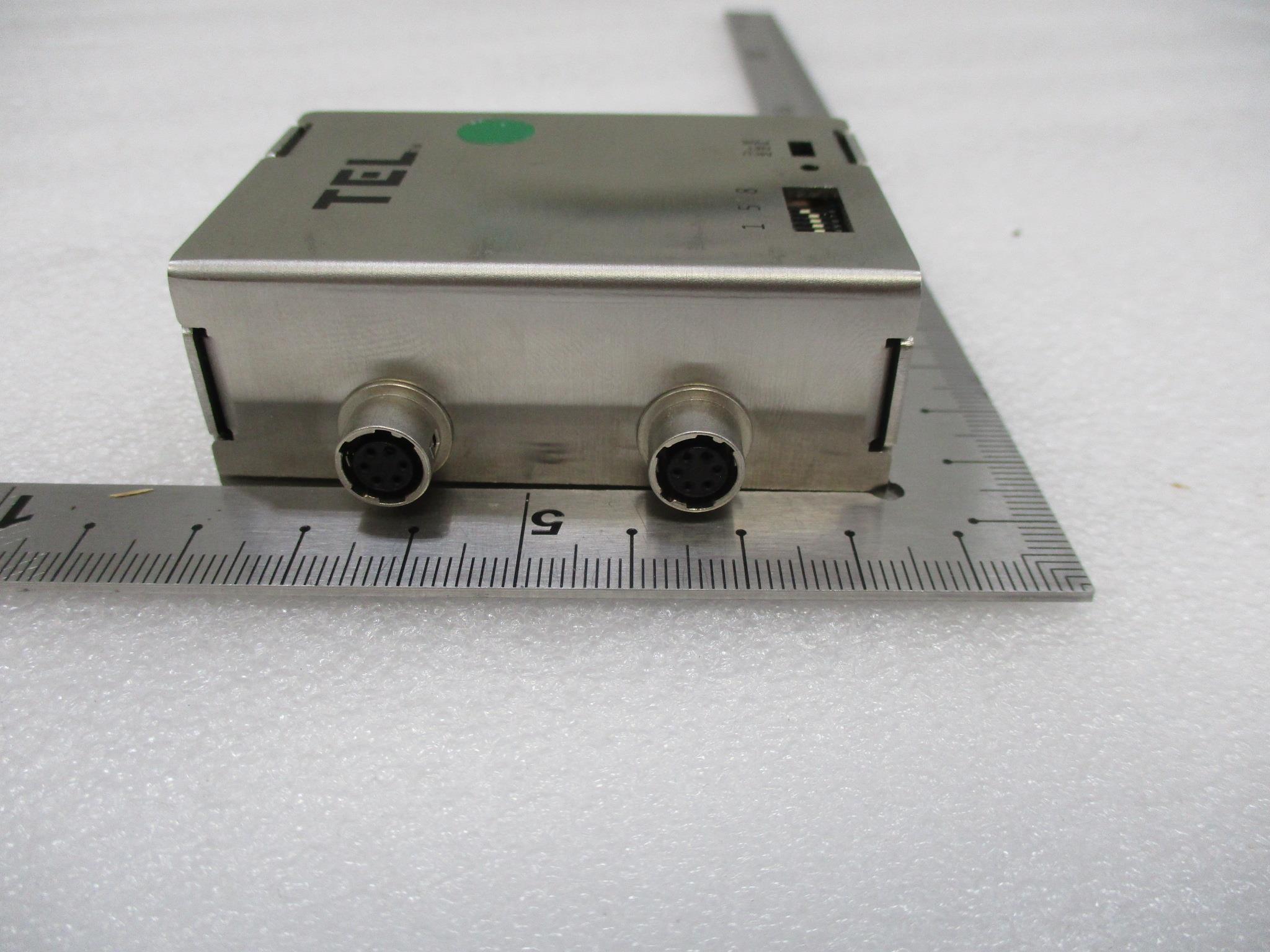

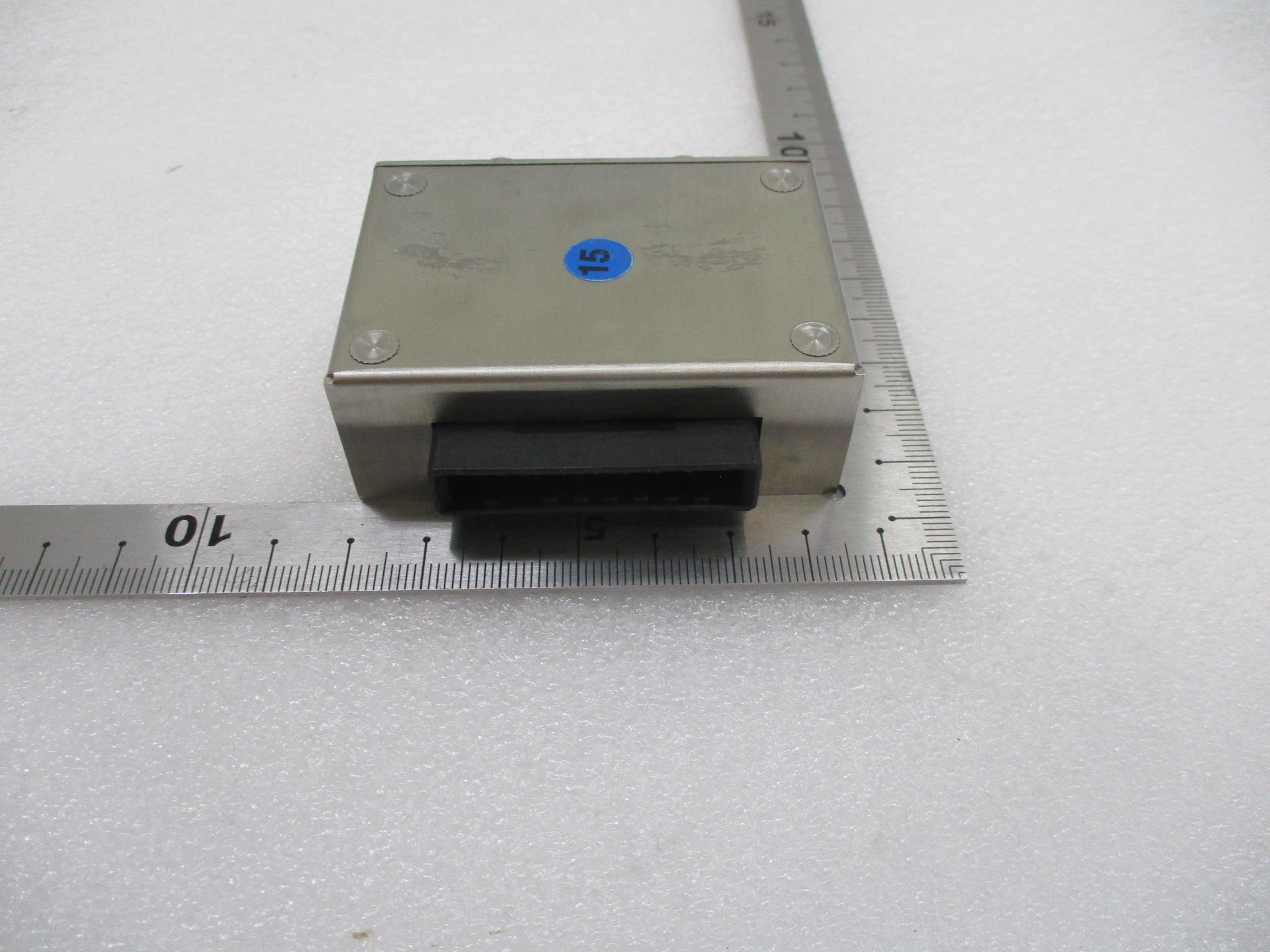

2A2YU-DS0-SEENSES-EN (Sensor Extend Solution For Extend Node)

IndustrialData Logger & Advanced Sensor Node User Manual (Eng.) Version 1.0 1/ 14 NOTE:Thisequipmenthasbeentestedandfoundtocomplywiththe limitsforaClassAdigitaldevice,pursuanttopart15oftheFCCRules. Theselimitsaredesignedtoprovidereasonableprotectionagainst harmfulinterferencewhentheequipmentisoperatedinacommercial environment.Thisequipmentgenerates,uses,andcanradiateradio frequencyenergyand,ifnotinstalledandusedinaccordancewiththe instructionmanual,maycauseharmfulinterferencetoradio communications.Operationofthisequipmentinaresidentialareais likelytocauseharmfulinterferenceinwhichcasetheuserwillbe requiredtocorrecttheinterferenceathisownexpense. Userinformation This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Warning : Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2/ 14 Theindustrialdataloggersupports4channelsandsupportsupto8 AdvancedSensorNodesforeachchannel.(Upto32sensornodesare supported.) 1. Introduction 1-1. Features 1-2. System configuration Data Logger ❖SensorNodeDataGathering ❖SensorNodeControl ❖DataTransmission ❖4CH/32NodeSupport(8Node/PerChannel) Advanced Sensor Node ❖SensorNodeInterface(RS-485WithPower) ❖ExternalSensorInterface:TerminalBlock8Pin ❖SensorInputPower:5or24V ❖ADC_SingleEnded:24bitSigma-Delta(-10V~+10V) ❖ADC_Differential:24bitSigma-Delta(-10V~+10V) ❖ADC_Current::0~20mA 3/ 14 1-3. System Specification DataLogger / Hardware Specification Ports Ethernet&PoE:1port SystemConsole:1port(RS232DB9) SerialInterface:RS485,4CH/64Node(16Node/CH) Physical feature Speed and Duplex Auto sensing and crossover cable Auto detection Status DisplayPower, System Status, RS-485 Link/Act LED Memory Flash:1Gbytes DDR3:1Gbytes SDMemory:32GByte Power SupplyDC 24V SizeWidth: 210, Height:43, Depth:150 (mm) Weight525g (Not including power adapter, bracket) Operation Environment Temperature0∼60°C Humidity0∼90%,noncondensation Advanced Sensor Node / Hardware Specification Ports DataLoggerInterface:RS-485(WithPower) SensorNodeInterface:RS-485(WithPower) ExternalSensorInterface:TerminalBlock8Pin Main Resource Core:32bit-Coretex-M7,280MHz RAM: 1.4M Bytes Flash:2MB Status DisplayPower, Network, System Status LED ADC Single Ended: 24 bit Sigma-Delta (-10V ~ +10V) Differential: 24 bit Sigma-Delta (-10V ~ +10V) Current Sensing : 0 ~ 20mA PowerRS-485 / 24V Size65.0 x 45.2 x 23.3mm(Not including power bracket) Weight130g (Not including power bracket) Operation Environment Temperature0∼60°C Humidity0∼90%,noncondensation 4/ 14 1-4. Port&LED Data Logger Sensor Node [TOP] [SIDE] 5/ 14 1-5. Sensor Node Setting Sensor Node DIP Switch Operating ItemCaseDescription DIPSwitch ON : 1(High) 1RS-485 TX Line termination resistor setting 2RS-485 RX Line termination resistor setting 3High: Single-Ended, Low : Differential 4High : Current, Low : Voltage 5Sensor Node ID : Bit 3 6Sensor Node ID : Bit 2 7Sensor Node ID : Bit 1 8Sensor Node ID : Bit 0 LED Status Red Power On : LED On Green RS-485 Data Flow Status: LED Blinking Blue MCUStatus: LED Blinking 1-6. Sensor Interface 6/ 14 Single Channel 1-6. Node connection CH1CH2CH3CH4 .................. Sensor Node 1 -Sensor ID 1 Setting Sensor Node 2 -Sensor ID 2 Setting Sensor Node 8 -Sensor ID 8 Setting -Termination resistorSetting 7/ 14 Multi Channel 1-6. Node connection(Cont’d) CH1CH2CH3CH4 .................. Sensor Node 1 -Sensor ID1 Setting Sensor Node 2 -Sensor ID 2 Setting Sensor Node 8 -Sensor ID 8 Setting -Termination resistorSetting .................. ............ 8/ 14 2-2. Connection of Management Console 2.2.1Console cable provided by the product is to be connected to Console Port (RJ-45) at the front panel of TEK-SYRX as well as PC & laptop computer which terminal emulation software is installed. *. Terminal emulation Download (Free software) Tera Term Home Page →http://ttssh2.sourceforge.jp/ 2.2.2 Configuration of terminal communication is as follows: *. Protocol : Serial *. Port : It is to check through Device Manager (Port) of PC or laptop computer *. Baud rate : 115200 *. Data bits : 8 *. Parity : None *. Stop bits : 1 *. Flow Control : None 9/ 14 3. CLI (Command Line Interface) 3-1. Login login as: root Last login: Fri Mar 24 12:50:33 2017 from 192.168.0.50 root@root@100:~# root@root@100:~# pwd /home/root Use the 'root' account when logging in. (No password) The login directory is / home / root. Other commands are the same as for Linux. < Examples > 3-2. Hostname Configuration The Hostname of the Data Logger can be changed by editing the / etc/ hostname file. Changes to Hostname will be reflected after Reboot. < Examples > root@100:~# vi /etc/hostname Data_Logger##. Change to 'Data_Logger' root@100:~# reboot ##. Reboot for the modification to take effect.. root@Data_Logger:~# date 032413072017 ##. Time setting Fri Mar 24 13:07:00 UTC 2017 root@100:/etc# rtcw ##. Save set time to RTC status: 0 after year: 17 month: 3 day: 24 wday: 5 hours: 13 mins: 6 secs: 58 2017-3-24 13:7:5:5 root@Data_Logger:~# 3-3. Time Configuration Set the time using the ‘Date’ command. You must update the current time on the RTC to save time after shutdown. < Examples > 10/ 14 3-4. Configure Network root@Data_Logger:~# vi /etc/default/ipconfig.conf mode=static ##. Static Setting ipaddr=192.168.0.101 ##. IP Address Setting netmask=255.255.255.0 ##. Netmask Setting gateway=192.168.0.1 ##. Default G/W Setting root@Data_Logger:~# < Examples > Network settings can be changed by editing the /etc/default/ipconfig.conffile. IP Assignment Mode (StaticorDHCP), IP Address, Netmask, Default Gateway can be set. 3-5. Configure Channel Supports Each channel operation (On / Off) setting. When the power of Datalogger is turned on, all channels are enabled. The corresponding chan…
