2A33N-AP16Tablet with Bluetooth and 2.4G WiFi

DT10 Hot Pepper 8 10 10 11 1 2 3 4 13 14 9" 2 A133P 802.11 b/g/n/ax, BT 5.0 FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: Tablet,DT10 (FCC ID: 2A33N-AP16) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use properly worn on the body is 0.622W/kg. This device was tested for typical body-worn operations with the back of the Tablet kept 0mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 0mm separation distance between the user's body and the back of the Tablet. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a m inimum separation distance of 0mm must be maintained between the user’s body and the Tablet, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.

1/1 Hot Pepper Mobile Inc. US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: Hot Pepper Mobile Inc. Physical U.S. Company Address: 350 10th Ave 1000 Ste San Diego California United States 92101-8705 Agent contact name/Title : Shawn Sun / CEO Agent Email Address: [email protected] Tel No.: +619-341-9501 FRN No.: 0031763733 This letter is to confirm that the US Agent for Service of Process accepts responsibility to act as a local representative on behalf of (Shortcut Labs AB). The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Applicant: Company name: Hot Pepper Mobile Inc. Product Description: Tablet with Bluetooth and 2.4G WiFi Grantee code: 2A33N FCC ID: 2A33N-AP16 Contact Name: Shawn Sun Address: 350 10th Ave 1000 Ste San Diego California United States 92101-8705 Telephone No: +619-341-9501 Email: [email protected] The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2023/06/01 Applicant’s Name: Shawn Sun US Agent for Service of Process’s Name: Shawn Sun Title: CEO Title: CEO Signature Signature

C5266091_X24_Ed.2 1/1 Hot Pepper Mobile Inc. “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Hot Pepper Mobile Inc. Grantee code: 2A33N FCC ID: 2A33N-AP16 Contact Name: Shawn Sun Address: 350 10th Ave 1000 Ste San Diego California United States 92101-8705 Telephone No: +619-341-9501 Fax No: +619-341-9501 Email: [email protected] i. [Hot Pepper Mobile Inc.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Hot Pepper Mobile Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Hot Pepper Mobile Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment. Date: 2023/06/01 Applicant’s Name: Hot Pepper Mobile Inc. Title: CEO Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

C5266091_X8_Ed.1 1/1 Hot Pepper Mobile Inc. Letter of Authorization Company: Address: 92101-8705 Product Name: Model Number: FCC Identifier: Hot Pepper Mobile Inc. 350 10th Ave 1000 Ste San Diego California United States Tablet DT10 2A33N-AP16 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Shawn Sun Date: 2023/06/19 Title: CEO Signature of applicant:

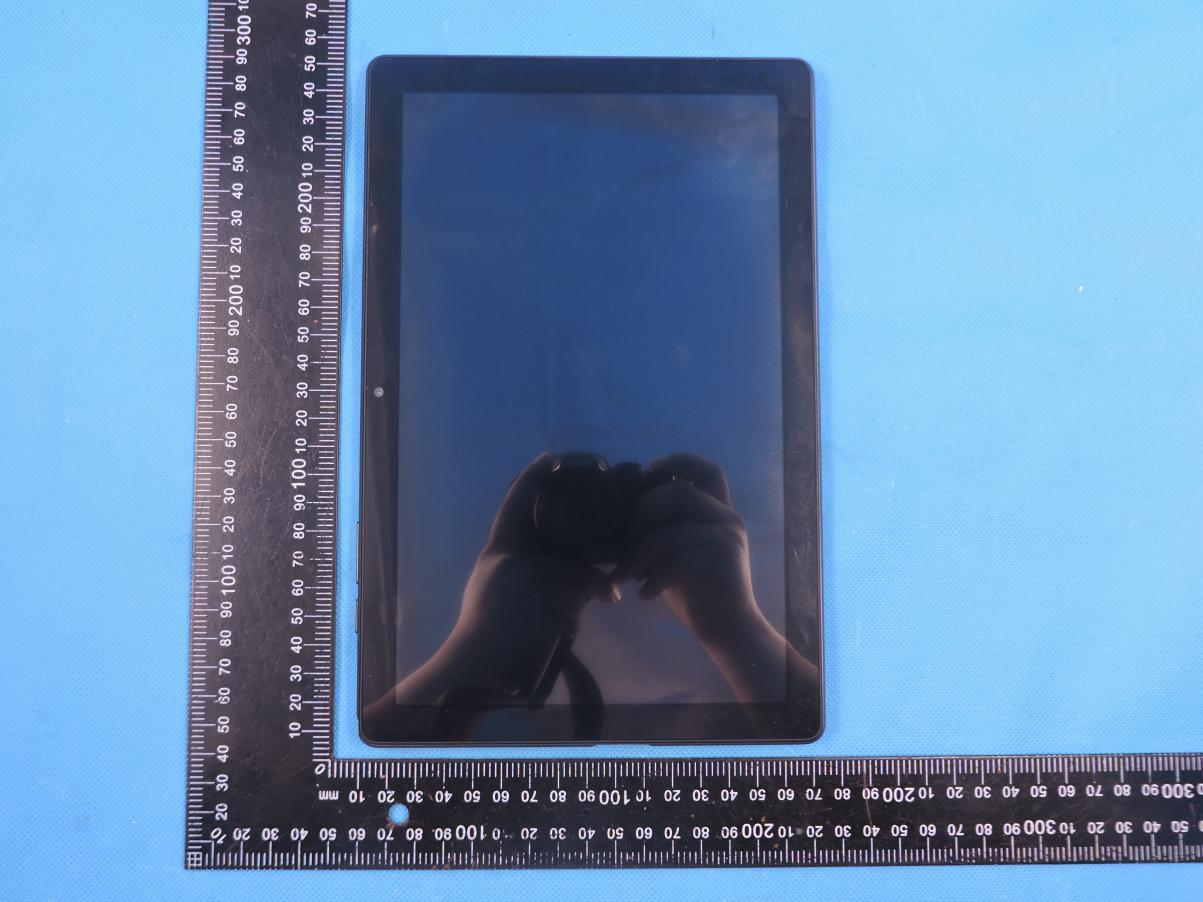

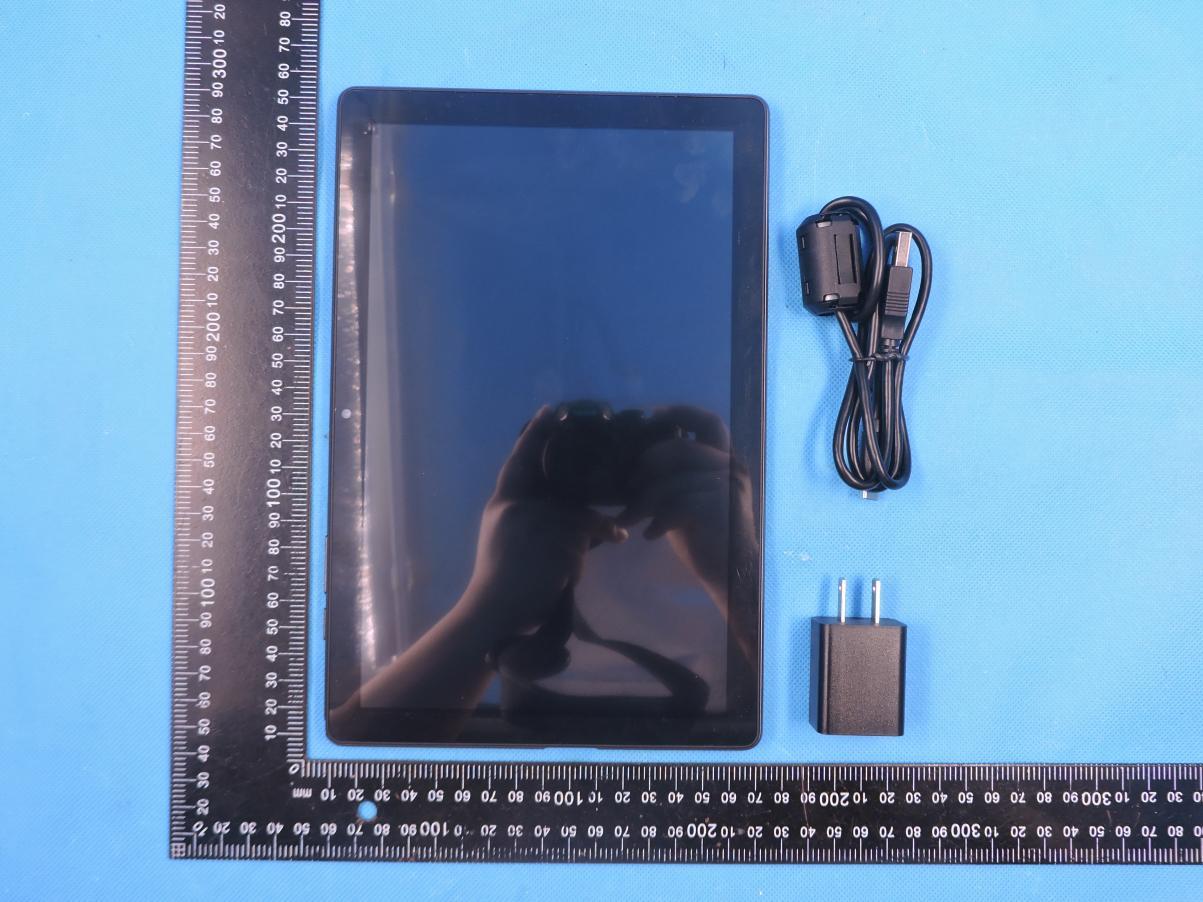

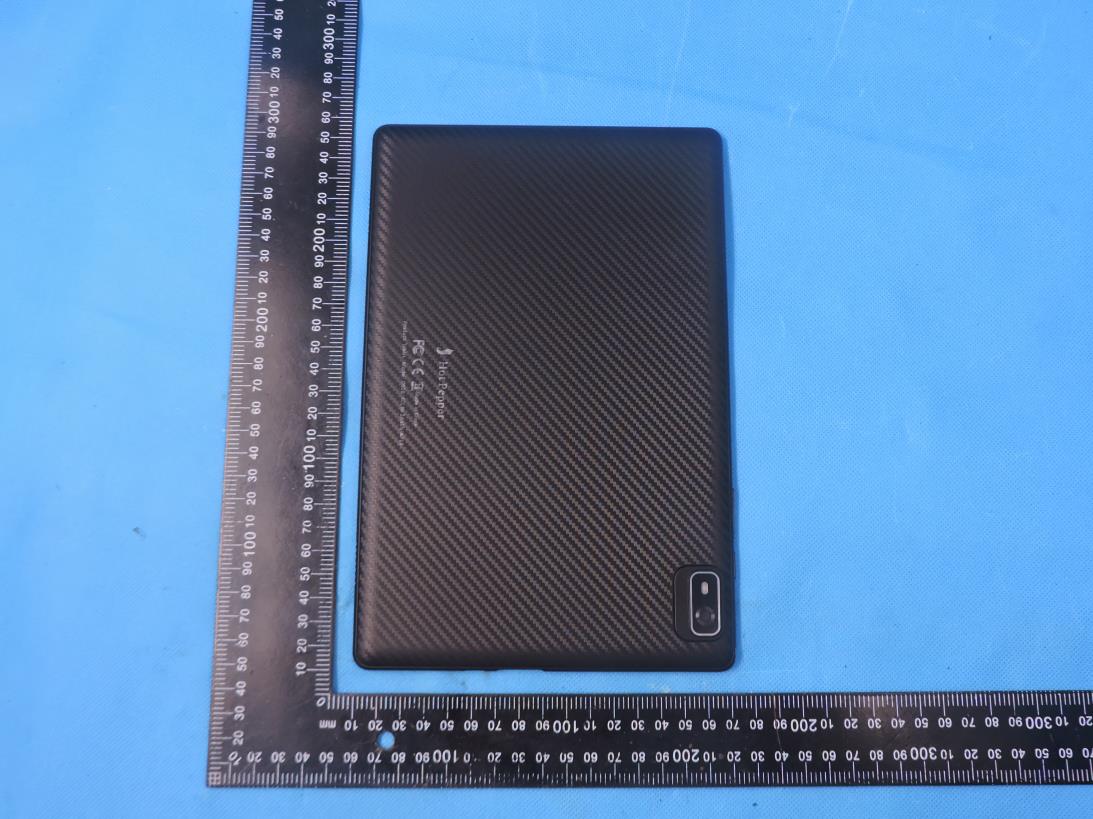

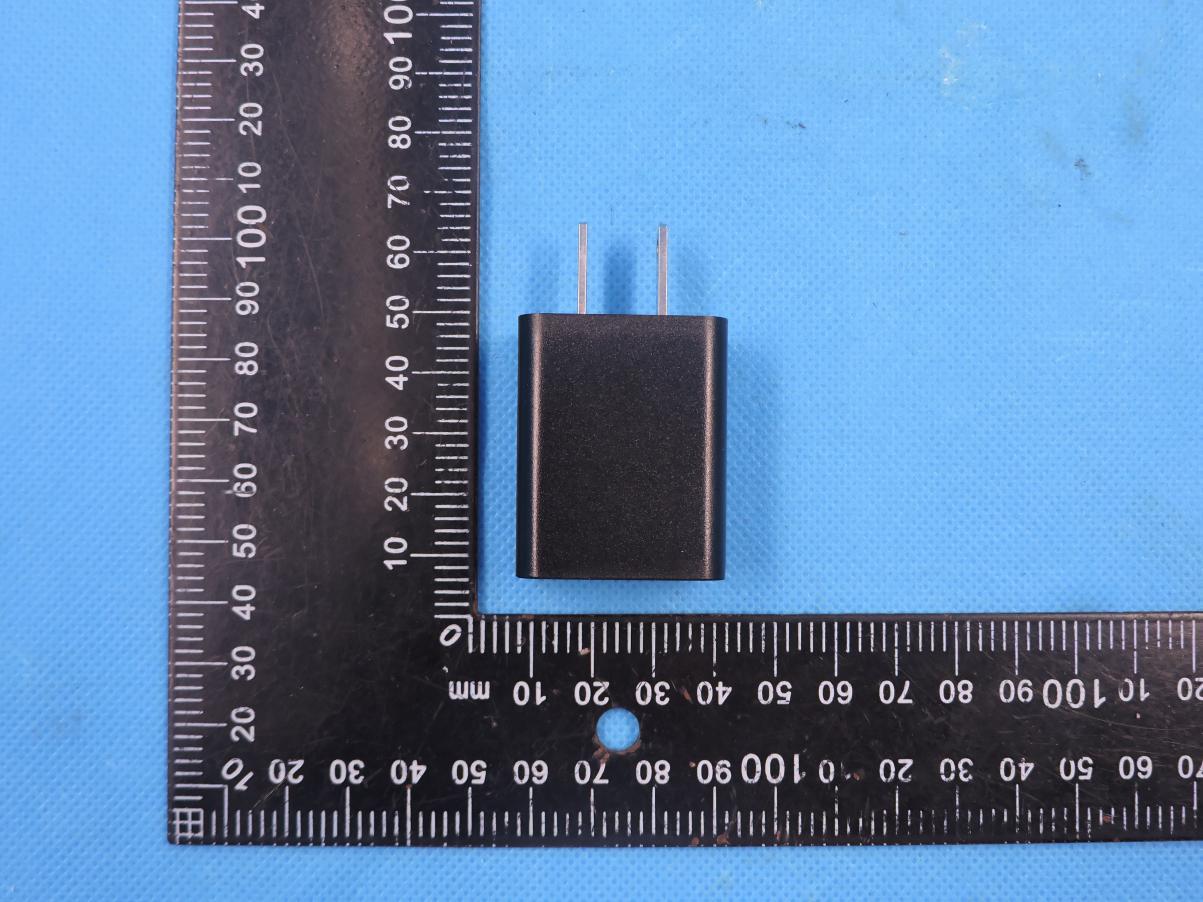

Page 1 of 5 Report No.: STS2305161 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: DT10 Photo 1 Photo 2 Page 2 of 5 Report No.: STS2305161 Photo 3 Photo 4 Page 3 of 5 Report No.: STS2305161 Photo 5 Photo 6 Page 4 of 5 Report No.: STS2305161 Photo 7 Photo 8 Page 5 of 5 Report No.: STS2305161 Photo 9 Photo 10

Label Size:10*20mm The label is printed on the shell FCC ID: 2A33N-AP16 .

Page 1 of 6 Report No.: STS2305161 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: DT10 Photo 1 Photo 2 BT/WIFI Antenna Page 2 of 6 Report No.: STS2305161 Photo 3 Photo 4 Page 3 of 6 Report No.: STS2305161 Photo 5 Photo 6 Page 4 of 6 Report No.: STS2305161 Photo 7 Photo 8 Page 5 of 6 Report No.: STS2305161 Photo 9 Photo 10 Page 6 of 6 Report No.: STS2305161 Photo 11 Photo 12

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC SAR TEST REPORT Report No.: STS2305161H01 Issued for Hot Pepper Mobile Inc. 350 10th Ave 1000 Ste San Diego California United States 92101-8705 Product Name: Tablet Brand: Hot Pepper Model Number: DT10 Series Model(s): N/A FCC ID: 2A33N-AP16 Test Standard: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 ( 2.1093) IEC/IEEE 62209-1528 Max. Report SAR (1g): Body: 0.622 W/kg S T L A B S Page 2 of 33 Report No.: STS2305161H01 Test Report Certification Applicant’s name ................. : Hot Pepper Mobile Inc. Address ................................. : 350 10th Ave 1000 Ste San Diego California United States 92101-8705 Manufacture's Name ............ : Shenzhen Mediafly Technology CO., LTD Address ................................. : 1/F, Building A, WeiXing Science And Technology Park, No. 268-3, BaoShi East Rd, ShuiTian Community, ShiYan Street, BaoAn District, ShenZhen, China Product description Product name ........................ : Tablet Brand name ......................... : Hot Pepper Model name ......................... : DT10 Series Model .......................... : N/A Standards ............................. : ANSI/IEEE Std. C95.1-1992 FCC 47 CFR Part 2 ( 2.1093) IEC/IEEE 62209-1528 The device was tested by Shenzhen STS Test Services Co., Ltd. in accordance with the measurement methods and procedures specified in KDB 865664 The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of Test Date (s) of performance of tests ............. : 09 Jun. 2023 Date of Issue .......................................... : 12 Jun. 2023 Test Result .............................................. : Pass Testing Engineer : (Shifan. Long) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) Page 3 of 33 Report No.: STS2305161H01 Table of Contents 1. General Information 5 1.1 EUT Description 5 1.2 Test Environment 6 1.3 Test Factory 6 2. Test Standards and Limits 7 3. SAR Measurement System 8 3.1 Definition of Specific Absorption Rate (SAR) 8 3.2 SAR System 8 4. Tissue Simulating Liquids 11 4.1 Simulating Liquids Parameter Check 11 5. SAR System Validation 13 5.1 Validation System 13 5.2 Validation Result 13 6. SAR Evaluation Procedures 14 7. EUT Antenna Location Sketch 15 7.1 SAR test exclusion consider table 16 8. EUT Test Position 18 8.1 Body-worn Position Conditions 18 9. Measurement Uncertainty 19 10. Conducted Power Measurement 20 10.1 Test Result 20 11. EUT And Test Setup Photo 22 11.1 EUT Photo 22 11.2 Setup Photo 25 12. SAR Result Summary 27 12.1 Body-worn SAR 27 13. Equipment List 28 Appendix A. System Validation Plots 29 Appendix B. SAR Test Plots 31 Appendix C. Probe Calibration And Dipole Calibration Report 33 Page 4 of 33 Report No.: STS2305161H01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 12 Jun. 2023 STS2305161H01 ALL Initial Issue Page 5 of 33 Report No.: STS2305161H01 1. General Information Environmental evaluation measurements of specific absorption rate (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 1.1 EUT Description Product Name Tablet Brand Name Hot Pepper Model Name DT10 Series Model N/A Model Difference N/A Battery Rated Voltage: 3.7V Charge Limit Voltage: 4.2V Capacity: 5000mAh Device Category Portable Product stage Production unit RF Exposure Environment General Population / Uncontrolled Hardware Version A863T-20T5FA-220924 Software Version HotPepper_DT10_20230301 Frequency Range 802.11b/g/n/ax (20MHz): 2412~2462 MHz 802.11n/ax (40MHz):2422~2452MHz Bluetooth: 2402 to 2480 MHz Max. Reported SAR(1g): (Limit:1.6W/kg) Mode Body (W/Kg) 2.4GHz WLAN 0.622 BLE 0.068 FCC Equipment Class Part 15 Spread Spectrum Transmitter (DSS) Digital Transmission System (DTS) Operating Mode WLAN: 802.11 a/b/g/n20/n40/ac20/ac40 Bluetooth: GFSK +π/4DQPSK+8DPSK BLE: GFSK Antenna Specification PIFA Antenna Hotspot Mode Not Support DTM Mode Not Support Note: 1. The EUT battery must be fully charged and checked periodically during the test to ascertain uniform power 2. The Bluetooth and WLAN can’t simultaneous transmission at the same time. Page 6 of 33 Report No.: STS2305161H01 1.2 Test Environment Ambient conditions in the SAR laboratory: Items Required Temperature (°C) 18-25 Humidity (%RH) 30-70 1.3 Test Factory ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration No.: 625569 IC Registration No.: 12108A A2LA Certificate No.: 4338.01 Page 7 of 33 Report No.: STS2305161H01 2. Test Standards and Limits No. Identity Document Title 1 47 CFR Part 2 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 ANSI/IEEE Std. C95.1-1992 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz 3 IEC/IEEE 62209-1528 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices - Part 1528: Human models, instrumentation, and procedures (Frequency range of 4 MHz to 10 GHz) 4 FCC KDB 447498 D01 v06 Mobile and Portable Devic…

Text truncated - open the document above for the full version.

Page: 1/10 Ref : ACR.60.17.23.MVGB.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F, BUILDING 2, ZHUOKE SCIENCE PARK, CHONGQING ROAD FUYONG, BAO’ AN DISTRICT, SHENZHEN,CHINA MVG COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 07/21 EPGO352 Calibrated at MVG Z.I. de la pointe du diable Technopôle Brest Iroise – 295 avenue Alexis de Rochon 29280 PLOUZANE - FRANCE Calibration date: 02/24/2023 Accreditations #2-6789 and #2-6814 Scope available on www.cofrac.fr Summary: This document presents the method and results from an accredited COMOSAR E-Field Probe calibration performed at MVG, using the CALIPROBE test bench, for use with a MVG COMOSAR system only. The test results covered by accreditation are traceable to the International System of Units (SI). COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Page: 3/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vH This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.1 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty .......................................................................................... 6 5 Calibration Measurement Results .............................................................................. 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 8 5.4 Isotropy _________________________________________________________________ 9 6 List of Equipment .................................................................................................... 10 Ref: ACR.60.17.23.MVGB.A COMOSAR E-FIELD PROBE CALIBRATION REPORT Page: 4/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vH This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer MVG Model SSE2 Serial Number SN 07/21 EPGO352 Product Condition (new / used) Used Frequency Range of Probe 0.15 GHz-6GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.227 M Dipole 2: R2=0.203 M Dipole 3: R3=0.195 M 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION MVG’s COMOSAR E field Probes are built in accordance to the IEEE 1528, FCC KDB865664 D01, CENELEC EN62209 and CEI/IEC 62209 standards. Figure 1 – MVG COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 2 mm Maximum external diameter 8 mm Probe Tip External Diameter 2.5 mm Distance between dipoles / probe extremity 1 mm 3 MEASUREMENT METHOD The IEEE 1528, FCC KDB865664 D01, CENELEC EN62209 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. Ref: ACR.60.17.23.MVGB.A COMOSAR E-FIELD PROBE CALIBRATION REPORT Page: 5/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vH This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg. 3.4 ISOTROPY The axial isotropy was evaluated by exposing the probe to a reference wave from a standard dipole with the dipole mounted under the flat phantom in the test configuration suggested for system validations and checks. The probe was rotated along its main axis from 0 to 360 degrees in 15- degree steps. The hemispherical isotropy is determined by inserting the probe in a thin plastic box filled with tissue-equivalent liquid, with the plastic box illuminated with the fields from a half wave dipole. The dipole is rotated about its axis (0°–180°) in 15° increments. At each step the probe is rotated about its axis (0°–360°). 3.1 BOUNDARY EFFECT The boundary effect is defined as the deviation between the SAR measured data and the expected exponential decay in the liquid when the probe is oriented normal to the interface. To evaluate this effect, the liquid …

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] S T L A B S Testing Engineer : ((Shifan. Long) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) SAR Dipole Performance Measurement Report EUT Type： SAR Validation Dipole and Waveguide Model Name： DIP2G450 Brand Name: SATIMO Test Conclusion： Pass Test Date： 08 July 2022 Date of Issue： 11 July 2022 ISSUED BY Shenzhen STS Test Services Co., Ltd. 1. Equipment List Kind of Equipment Manufacturer Type No. Serial No. Last Calibration Calibrated Until PC Acer N/A N/A N/A N/A E-Field Probe MVG SSE2 SN 07/21 EPGO352 2022.02.28 2023.02.27 Dielectric Probe Kit MVG SCLMP SN 32/14 OCPG67 2021.11.23 2022.11.22 Phantom1 MVG SAM SN 32/14 SAM115 N/A N/A Phantom3 MVG SAM SN 21/21 ELLI48 N/A N/A Attenuator Agilent 99899 DC-18GHz N/A N/A Directional coupler Narda 4226-20 3305 N/A N/A Network Analyzer Agilent 8753ES US38432810 2022.09.28 2023.09.27 Multi Meter Keithley Multi Meter 2000 4050073 2022.09.29 2023.09.28 Signal Generator Agilent N5182A MY50140530 2022.09.28 2023.09.27 Power Amplifier DESAY ZHL-42W 9638 2022.10.08 2023.10.07 Power Meter R&S NRP 100510 2022.09.28 2023.09.27 Power Sensor R&S NRP-Z11 101919 2022.09.28 2023.09.27 Temperature hygrometer SuWei SW-108 N/A 2022.09.30 2023.09.29 Thermograph Elitech RC-4 S/N EF7176501537 2022.09.30 2023.09.29 ISSUED BY Shenzhen STS Test Services Co., Ltd. 2. <Justification of the extended calibration> Referring to KDB 865664 D01, if dipoles are verified in return loss<-20dB, (within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Head 2450 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2020.07.14 -26.03 - 46.3 - 2021.07.11 -26.42 1.50 47.25 0.95 2022.07.08 -26.91 3.38 47.40 1.1 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 2450 MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Body 2450 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2020.07.14 -32.76 - 48.7 - 2021.07.11 -32.55 -0.64 47.25 -1.45 2022.07.08 -33.75 3.02 49.28 0.58 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 2450 MHz

SHENZHEN XingyuanchuangTECHNOLOGY CO.,LTD Antenna Test Report MN：DT10 MP：19918388579 Date：2023.2.20 REV :V1.0 1 2 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD Test information Main ANT Antenna bandAntenna state Antenna form Matchc hanges Note 2G NO3G 4G AUX ANT BT/WIFI2.4GFPCPIFANO GPSFPCPIFANO DIVNO 3 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD Test environment 测试项目测试设备 （S-parameter) 1. (VSWR) 2. （RrtunLoss) Agilent8753ES 2.(Active) 1. （TRP) 2. （TIS） 1. 5*3*3m（3D）Chamber 2. Agilent8960 CMW500 3.（Passive) 1. (Gain) 2天线效率（Efficiency) 1.5*3*3m（3D）Chamber 2.Agilent 8753ES CMW500 4 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD Antenna position 5 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD Matching circuit （PF）（NH） E1(0402) E2(0402) E3(0402) E4(0402) 6 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD 802.11b FrequencyTRPTIS 2412 CH1 11Mbps17.88CH1 11Mbps-80.97 2437 CH6 11Mbps18.28CH6 11Mbps-82.63 2467 CH11 11Mbps17.65CH11 11Mbps-83.77 802.11a TRPTIS 5180 CH36 6MbpsCH36 54Mbps 5300 CH60 6MbpsCH60 54Mbps 5805 CH161 6MbpsCH161 54Mbps Active test data 7 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD Throughput test 2.4G wifi UL88M DL99.7M Note 8 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD WifiAntenna test WIFI Wifi Analytical Assistant 10m 2.4G :-40dBm BT 10m 9 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD Environmental treatment 10 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD Passive test data ANT1 S11-VSWR&Return Loss Frequency(MHZ)2400245024831575 VSWR 1.281.231.41 ReturnLoss(DB) -19.10-19.51-15.27 11 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD Passive test data ANT1 GAIN&Efficiency-WIFI2.4G/BT 12 SHENZHEN Xingyuanchuang TECHNOLOGY CO.,LTD ANT1 Direction of figure(2.4/BT) Passive test data

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.: STS2305161W01 Issued for Hot Pepper Mobile Inc. 350 10th Ave 1000 Ste San Diego California United States 92101-8705 Product Name: Tablet Brand: Hot Pepper Model Number: DT10 Series Model(s): N/A FCC ID: 2A33N-AP16 Test Standard: FCC Part 15.247 S T L A B S Page 2 of 100 Report No.: STS2305161W01 TEST RESULT CERTIFICATION Applicant’s Name ................... : Hot Pepper Mobile Inc. Address .................................. : 350 10th Ave 1000 Ste San Diego California United States 92101-8705 Manufacturer's Name ............. : Shenzhen Mediafly Technology CO., LTD Address .................................. : 1/F, Building A, WeiXing Science And Technology Park, No. 268-3, BaoShi East Rd, ShuiTian Community, ShiYan Street, BaoAn District, ShenZhen, China Product Description Product Name ........................ : Tablet Brand ...................................... : Hot Pepper Model Number ........................ : DT10 Series Model(s) ...................... : N/A Test Standards ...................... : FCC Part15.247 Test Procedure ....................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ................................ : Date of receipt of test item .......... : 25 May 2023 Date (s) of performance of tests . : 25 May 2023 ~ 30 May 2023 Date of Issue .............................. : 30 May 2023 Test Result .................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) Page 3 of 100 Report No.: STS2305161W01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10 2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 2.6 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 13 2.7 EQUIPMENTS LIST 14 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 19 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 31 4.1 LIMIT 31 4.2 TEST PROCEDURE 31 4.3 TEST SETUP 32 4.4 EUT OPERATION CONDITIONS 32 4.5 TEST RESULTS 32 5. NUMBER OF HOPPING CHANNEL 33 5.1 LIMIT 33 5.2 TEST PROCEDURE 33 5.3 TEST SETUP 33 5.4 EUT OPERATION CONDITIONS 33 5.5 TEST RESULTS 33 6. AVERAGE TIME OF OCCUPANCY 34 6.1 LIMIT 34 6.2 TEST PROCEDURE 34 6.3 TEST SETUP 34 6.4 EUT OPERATION CONDITIONS 34 6.5 TEST RESULTS 34 7. HOPPING CHANNEL SEPARATION MEASUREMEN 35 Page 4 of 100 Report No.: STS2305161W01 Table of Contents Page 7.1 LIMIT 35 7.2 TEST PROCEDURE 35 7.3 TEST SETUP 35 7.4 EUT OPERATION CONDITIONS 35 7.5 TEST RESULTS 35 8. BANDWIDTH TEST 36 8.1 LIMIT 36 8.2 TEST PROCEDURE 36 8.3 TEST SETUP 36 8.4 EUT OPERATION CONDITIONS 36 8.5 TEST RESULTS 36 9. OUTPUT POWER TEST 37 9.1 LIMIT 37 9.2 TEST PROCEDURE 37 9.3 TEST SETUP 37 9.4 EUT OPERATION CONDITIONS 37 9.5 TEST RESULTS 37 10. ANTENNA REQUIREMENT 38 10.1 STANDARD REQUIREMENT 38 10.2 EUT ANTENNA 38 APPENDIX 1-TEST DATA 39 1. DWELL TIME 39 2. MAXIMUM AVERAGE CONDUCTED OUTPUT POWER 49 3. MAXIMUM PEAK CONDUCTED OUTPUT POWER 50 4. -20DB BANDWIDTH 61 5. CARRIER FREQUENCIES SEPARATION 67 6. NUMBER OF HOPPING CHANNEL 73 7. BAND EDGE 76 8. BAND EDGE(HOPPING) 83 9. CONDUCTED RF SPURIOUS EMISSION 90 APPENDIX 2-PHOTOS OF TEST SETUP 100 Page 5 of 100 Report No.: STS2305161W01 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 30 May 2023 STS2305161W01 ALL Initial Issue Page 6 of 100 Report No.: STS2305161W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(1)(iii) Number of Hopping Frequency PASS -- 15.247(a)(1)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 100 Report No.: STS2305161W01 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±1.197dB 2 Unwanted Emissions, conducted ±2.896dB 3 All emissions, radiated 9K-30MHz ±3.84dB 4…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2A33N-AP16 DSS&DTS Setup photo Model Number: DT10 DSS&DTS conduction DSS&DTS radiation L Page 2 of 2 FCC ID: 2A33N-AP16 DSS&DTS radiation H

2A33N-AP16_SAR Setup photos Body Back Side (separation distance is 0mm) Body Top Side (separation distance is 0mm)
