Hot Pepper Mobile Inc. To: Federal Communications Commis sion Date: 2023/10/16 7435 Oakland Mills Ro ad Colu mbia, MD 21046 USA Attestation Section 2.911(d)(5)(i) and Section 2.911(d)(5) (ii) (KDB 986446 D01 Covered Equipment) Section 2.911(d)(5)(i) Hot Pepper Mobile Inc. (“the applicant”) certifies that the equipment for which authoriz ation is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Section 2.911(d)(5)(ii) Hot Pepper Mobile Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Type of Equipment subject to FCC Certification: Feature Phone FCC ID: 2A33N-L60C If you have any questions, please feel free to contact me Contact Person: Shawn Sun Position in the Company: CEO Date of Signature: 2023.10.11 __________________________ _ Signatory (signature of the applicant)

Hot Pepper Mobile Inc. To: Federal Communications Commis sion Date: 2023/10/16 7435 Oakland Mills Ro ad Colu mbia, MD 21046 USA Attestation Certification designating a U.S. Agent for Service of Process Section 2.911(d)(7) (KDB 986446 D01 Covered Equipment) Hot Pepper Mobile Inc. (“the applicant”) as required by section 2.911(d)(7), designate below contact located in the United States for purposes of acting as the applicant’s agent for service of proc ess. The applicant also acceptance to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Type of Equipment subject to FCC Certification: Feature Phone FCC ID: 2A33N-L60C Sincerely yours, Applicant/Grantee FRN: 0031763733 US Agent FRN: 0031763733 _________________ (Signature) Hot Pepper Mobile Inc. Shawn Sun CEO [email protected] 350 10th Ave 1000 Ste San Diego CA 92101-8705 _________________ (Signature) Hot Pepper Mobile Inc. Shawn Sun CEO [email protected] 350 10th Ave 1000 Ste San Diego CA 92101-8705

Hot Pepper Mobile Inc. Date: 2023-10-16 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Hot Pepper Mobile Inc. the undersigned, hereby authorizes Mrs. Wendy Zhan from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Hot Pepper Mobile Inc. solely in matters relating to the application for an FCC equipment authorization for FCC ID: 2A33N-L60C including the signing of documents in connection with this Application. Necessary acts carried out Shenzhen Morlab Communications Technology Co., Ltd. on our behalf of the Hot Pepper Mobile Inc. in connection with the Application shall have the same effect as acts of the Hot Pepper Mobile Inc. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Thank you for your attention to this matter. Yours Sincerely, Signatory: Contact name: Shawn Sun Tel: (619) 341-9501 Email: [email protected] Company name: Hot Pepper Mobile Inc. Address: 350 10th Ave 1000 Ste San Diego CA 92101-8705

Hot Pepper Mobile Inc. Date:2023/10/16 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Request of Confidentiality for FCC ID: 2A33N-L60C To Whom it may concern: Pursuant to sections 0.457 and 0.459 of Commission’s Rules(CFR 47), and Section 552(b)(4) of the Freedom of Information Act, Sonim Technologies, Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA04-1705. This provision will give Sonim Technologies, Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHOR T-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 BOM 5 Tune up procedure SHORT-TERM 6 External Photos 7 Internal Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Signatory： Contact name: Shawn Sun Title: CEO Tel: 619-341-9501 Email: [email protected] Company name : Hot Pepper Mobile Inc.

Date: 2023/10/16 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Attn: Office of Engineering and Technology FCC ID: 2A33N‐L60C To whom it may concern: Hot Pepper Mobile Inc. hereby declares that the MIF values detailed below are based on worst case operating modes for all air interfaces for which the HAC M‐rating is provided based on the current methodology ANSI C63.19 2011withpre‐determined MIF values which provided by Speag. UID Communication System Name MIF(dB) 10021 GSM-FDD(TDMA,GMSK) 3.63 10025 EDGE-FDD (TDMA, 8PSK, TN 0) 3.75 10460 UMTS-FDD(WCDMA, AMR) -25.43 10225 UMTS-FDD (HSPA+) -20.39 10081 CDMA2000 (1xRTT, RC3 Full Rate) -19.71 10295 CDMA2000 (1xRTT, RC1 SO3, 1/8th Rate 25 fr.) 3.26 10403 CDMA2000 (1xEV-DO) -17.67 10169 LTE-FDD(SC-FDMA,1RB,20MHz,QPSK) -15.63 10170 LTE-FDD(SC-FDMA,1RB,20MHz,16-QAM) -9.76 10179 LTE-FDD(SC-FDMA,1RB,20MHz,64-QAM) -9.93 10181 LTE-FDD(SC-FDMA,1RB,15MHz,QPSK) -15.63 10175 LTE-FDD(SC-FDMA,1RB,10MHz,QPSK) -15.63 10177 LTE-FDD(SC-FDMA,1RB,5MHz,QPSK) -15.63 10184 LTE-FDD(SC-FDMA,1RB,3MHz,QPSK) -15.62 10187 LTE-FDD(SC-FDMA,1RB,1.4MHz,QPSK) -15.62 UID Communication System Name MIF(dB) 10172 LTE-TDD (SC-FDMA, 1 RB, 20 MHz, QPSK) -1.62 10173 LTE-TDD (SC-FDMA, 1 RB, 20 MHz, 16-QAM) -1.44 10174 LTE-TDD (SC-FDMA, 1 RB, 20 MHz, 64-QAM) -1.54 10240 LTE-TDD (SC-FDMA, 1 RB, 15 MHz, QPSK) -1.62 10237 LTE-TDD (SC-FDMA, 1 RB, 10 MHz, QPSK) -1.62 10234 LTE-TDD (SC-FDMA, 1 RB, 5 MHz, QPSK) -1.62 10231 LTE-TDD (SC-FDMA, 1 RB, 3 MHz, QPSK) -1.62 10228 LTE-TDD (SC-FDMA, 1 RB, 1.4 MHz, QPSK) -1.62 10061 IEEE 802.11b WiFi 2.4 GHz (DSSS, 11 Mbps) -2.02 10077 IEEE 802.11g WiFi 2.4 GHz (DSSS/OFDM, 54 Mbps) 0.12 10427 IEEE 802.11n (HT Greeneld, 150 Mbps, 64-QAM) -13.44 10069 IEEE 802.11a/n WiFi 5 GHz (OFDM, 54 Mbps) -3.15 10616 IEEE 802.11ac WiFi (40MHz, MCS0, 90pc duty cycle) -5.57 Sincerely, Signature _________________________ Date: 2023/10/16

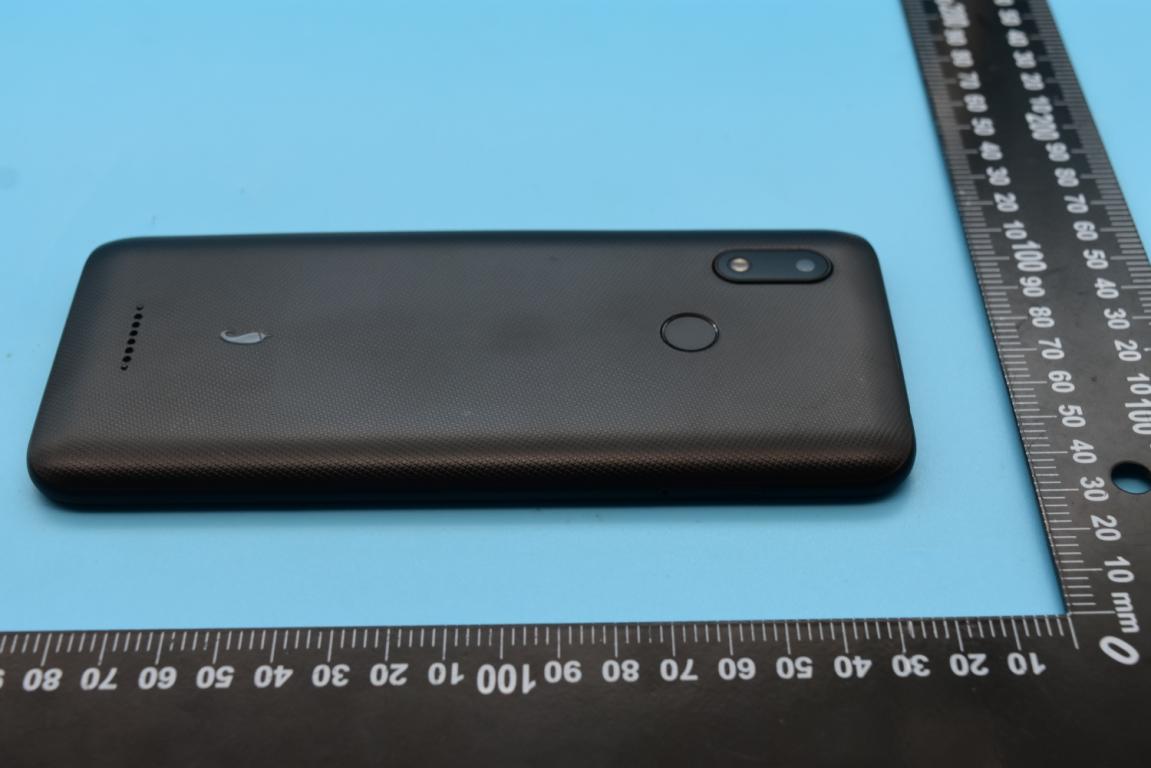

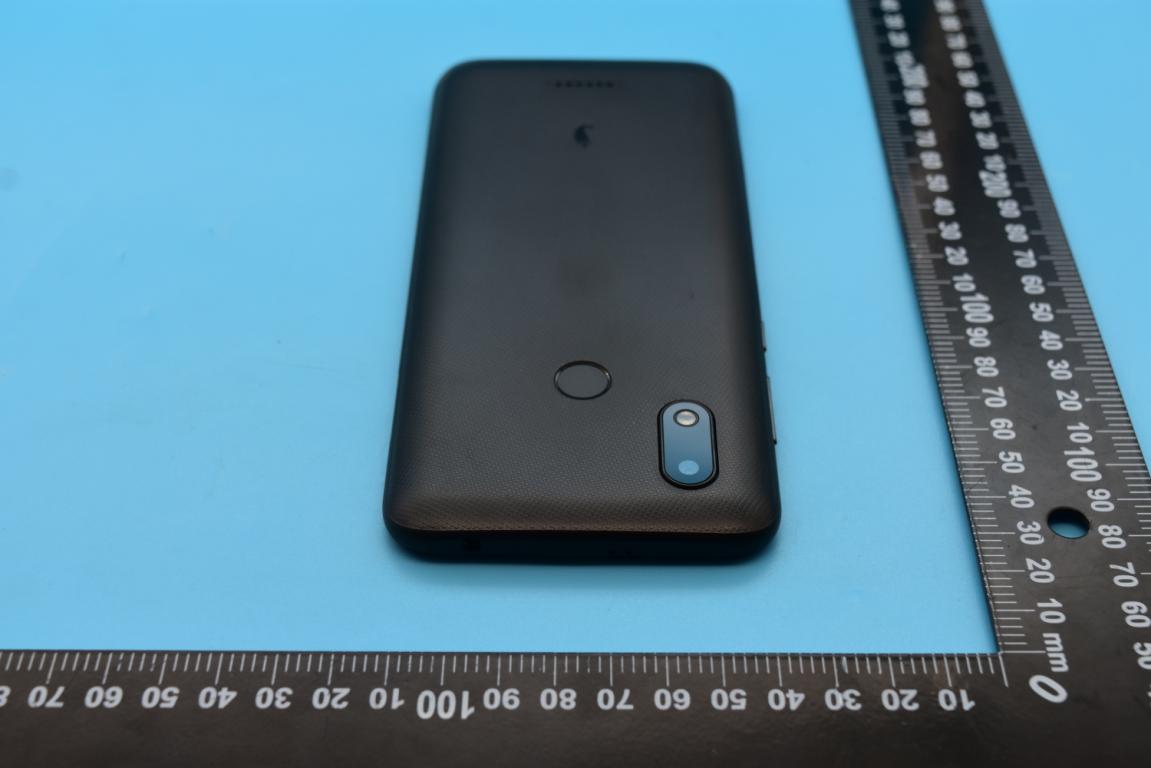

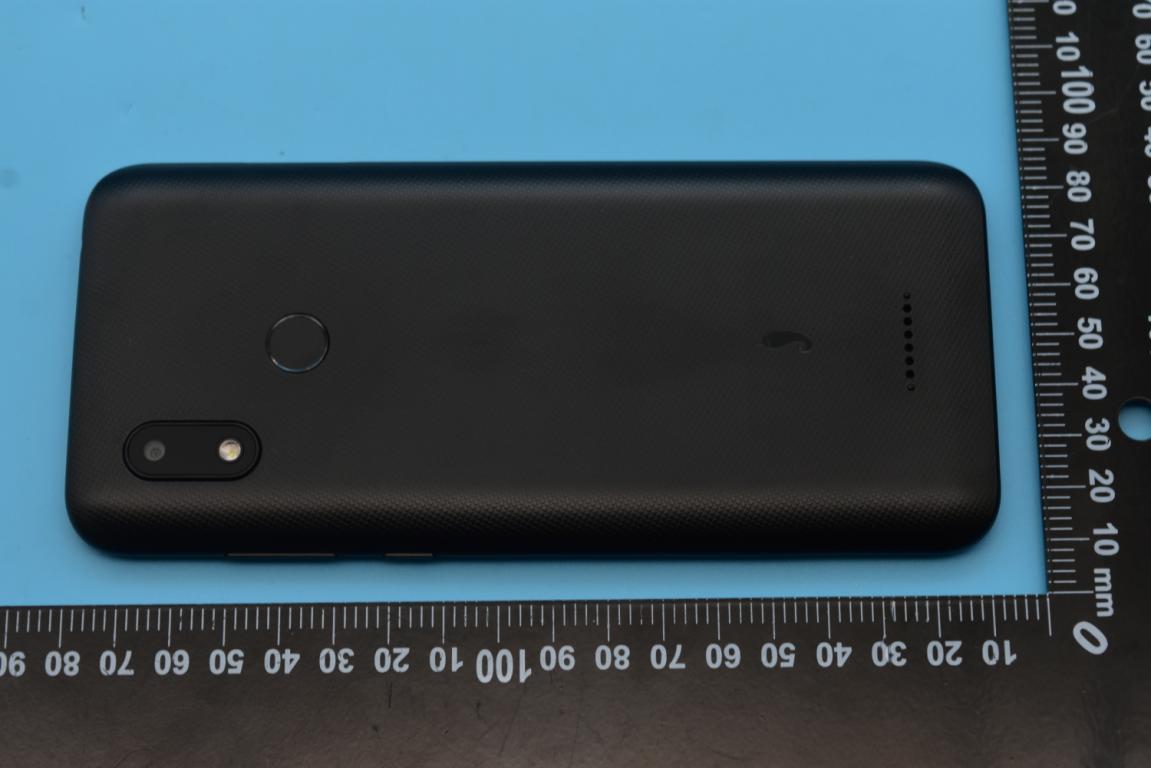

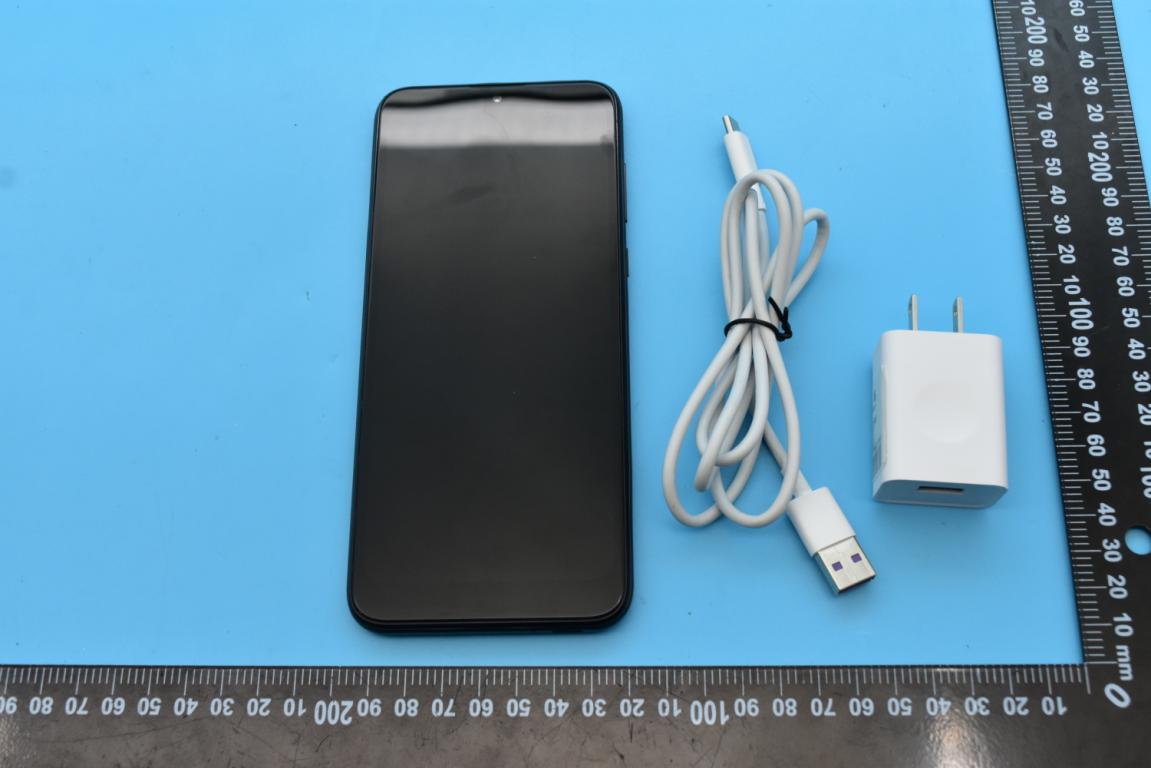

FCC ID: 2A33N-L60C External Photos 1.EUT front view 2.EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

1、 Label 2、 Label location(back view)

FCC ID: 2A33N-L60C Internal Photos 1.EUT uncover view 2. Antenna view First ANT Bluetooth/Wi-Fi/GPS ANT Second ANT

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23080104S01 Annex C Plots of System Performance Check Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.03.03 System Check_750MHz Communication System: UID 0, CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 75 0 MHz; σ = 0.902 S/m; ε r = 40.752; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(10.2, 10.2, 10.2) @ 750 MHz; Calibrated: 2022.0 1.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2021.06.22 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.14 (7483) CW 750/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.31 W/kg CW 750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 51.98 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.12 W/kg SAR(1 g) = 2.09 W/kg; SAR(10 g) = 1.37 W/kg Smallest distance from peaks to all points 3 dB below: Larger than measurement grid Ratio of SAR at M2 to SAR at M1 = 69% Maximum value of SAR (measured) = 2.30 W/kg 0 dB = 2.30 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23080104S01 Date: 2023.09.06 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. System Check_900MHz_Head Communication System: UID 0, CW (0); Frequency: 900 MHz;Duty Cycle: 1:1 Medium: HSL_900 Medium parameters used: f = 900 MHz; σ = 0.983 S/m; ε r = 40.363; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN7380; ConvF(9.62, 9.62, 9.62) @ 900 MHz; Calibrated: 2023.06.21 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn373; Calibrated: 2022.12.28 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW900/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 6.82 W/kg CW900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 74.42 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 8.16 W/kg SAR(1 g) = 2.74 W/kg; SAR(10 g) = 1.66 W/kg Maximum value of SAR (measured) = 6.73 W/kg 0 dB = 6.82 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23080104S01 Date: 2023.09.07 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. System Check_1800MHz_Head Communication System: UID 0, CW (0); Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL_1800 Medium parameters used: f = 1800 MHz; σ = 1.418 S/m; ε r = 38.577; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22. 6 °C DASY5 Configuration: - Probe: EX3DV4 - SN7380; ConvF(8.35, 8.35, 8.35) @ 1800 MHz; Calibrated: 2023.06.21 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn373; Calibrated: 2022.12.28 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW1800/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 23.77 W/kg CW1800/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.5 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 28.2 W/kg SAR(1 g) = 9.26 W/kg; SAR(10 g) = 4.93 W/kg Maximum value of SAR (measured) = 23.4 W/kg 0 dB = 23.77 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23080104S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.09.12 System Check_2000MHz_Head Communication System: UID 0, CW (0); Frequency: 2000 MHz;Duty Cycle: 1:1 Medium: HSL_2000 Medium parameters used: f = 2000 MHz; σ = 1.439 S/m; ε r = 39.681; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.13, 8.13, 8.13) @ 2000 MHz; Calibrated: 2023.3.15 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2023.2.22 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) CW2000/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 12.8 W/kg CW2000/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 83.41 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 18.4 W/kg SAR(1 g) = 11.2 W/kg; SAR(10 g) = 5.58 W/kg Maximum value of SAR (measured) = 12.3 W/kg 0 dB = 12.3 MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23080104S01 Date: 2023.09.07 Test Laboratory: Shenzhen Morlab Communications Techn…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23080104S01 Annex D Plots of Maximum SAR Test Results Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.03.03 LTE Band 13_10MHz_QPSK_1RB_0Offset_Left Cheek_Ch23230 Communication System: UID 0, LTE (0); Frequency: 782 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 782 MHz; σ = 0.938 S/m; ε r = 42.016; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(10.2, 10.2, 10.2) @ 782 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2021.06.22 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch23230/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.165 W/kg Ch23230/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.727 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.178 W/kg SAR(1 g) = 0.135 W/kg; SAR(10 g) = 0.105 W/kg Smallest distance from peaks to all points 3 dB below: Larger than measurement grid Ratio of SAR at M2 to SAR at M1 = 76.6% Maximum value of SAR (measured) = 0.163 W/kg 0 dB = 0.163 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23080104S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.03.03 LTE Band 13_10MHz_QPSK_1RB_0Offset_Back Side_10mm_Ch23230 Communication System: UID 0, LTE (0); Frequency: 782 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 782 MHz; σ = 0.938 S/m; ε r = 42.016; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(10.2, 10.2, 10.2) @ 782 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2021.06.22 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch23230/Area Scan (71x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.284 W/kg Ch23230/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.51 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.382 W/kg SAR(1 g) = 0.383 W/kg; SAR(10 g) = 0.224 W/kg Smallest distance from peaks to all points 3 dB below = 15.1 mm Ratio of SAR at M2 to SAR at M1 = 58% Maximum value of SAR (measured) = 0.306 W/kg 0 dB = 0.306 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23080104S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.09.06 GSM850_GPRS(4 TX slots)_Left Cheek_Ch189 Communication System: UID 0, GSM850(class 12) (0); Frequency: 836.4 MHz;Duty Cycle: 1:2.0 8 Medium: HSL_900 Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.916 S/m; ε r = 43.014; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN7380; ConvF(9.62, 9.62, 9.62) @ 836.4 MHz; Calibrated: 2023.06.21 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn373; Calibrated: 2022.12.28 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch189/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.448 W/kg Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.782 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.483 W/kg SAR(1 g) = 0.393 W/kg; SAR(10 g) = 0.305 W/kg Maximum value of SAR (measured) = 0.444 W/kg 0 dB = 0.448 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23080104S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.9.12 WCDMA Band II_RMC 12.2Kbps_Left Tilt_Ch9538 Communication System: UID 0, UMTS-FDD (0); Frequency: 1907.6 MHz;Duty Cycle: 1:1 Medium: HSL_1900 Medium parameters used: f = 1908 MHz; σ = 1.408 S/m; ε r = 40.058; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.11, 8.11, 8.11) @ 1907.6 MHz; Calibrated: 2023.3.15 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2023.2.22 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Ch9538/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.60 W/kg Ch9538/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.29 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 1.93 W/kg SAR(1 g) = 0.964 W/kg; SAR(10 g) = 0.466 W/kg Maximum value of SAR (measured) = 1.49 W/kg 0 dB = 1.49 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, …

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23080104S01 Annex E Conducted Power Note: Conducted power unit: dBm. The target power was recorded in the manufacture document. BW [MHz] ModulationRB SizeRB Offset Low Channel Middle Channel High Channel 10QPSK1023.75 10QPSK12523.72 10QPSK14923.65 10QPSK25022.63 10QPSK251222.51 10QPSK252522.57 10QPSK50022.52 1016QAM1022.72 1016QAM12522.67 1016QAM14922.54 1016QAM25021.61 1016QAM251221.60 1016QAM252521.64 1016QAM50021.70 1064QAM1021.88 1064QAM12521.82 1064QAM14921.64 1064QAM25020.53 1064QAM251220.61 1064QAM252520.54 1064QAM50020.64 232052323023255 779.5782784.5 5QPSK1023.6023.6823.63 5QPSK11223.5423.5923.57 5QPSK12423.5123.5323.50 5QPSK12022.5922.6122.52 5QPSK12722.4522.5522.58 5QPSK121322.5922.5122.52 5QPSK25022.5422.5022.58 516QAM1022.6422.6022.57 516QAM11222.5922.5522.52 516QAM12422.5622.5222.49 516QAM12021.6321.5921.56 516QAM12721.6221.5821.55 516QAM121321.6621.6221.59 516QAM25021.6221.5821.55 564QAM1021.8021.7621.73 564QAM11221.7421.7021.67 564QAM12421.5621.5221.49 564QAM12020.5520.5120.48 564QAM12720.6320.5920.56 564QAM121320.5620.5220.49 564QAM25020.6620.6220.59 Full Power Band 13(700MHz Band) Part 27F Tune-up limit (dBm) 24.5 23.5 23.5 22.5 22.5 21.5 Tune-up limit (dBm) 24.5 23.5 23.5 22.5 22.5 21.5 23230 Frequency (MHz) Channel Channel Frequency (MHz)782 MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23080104S01

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23080104S01 Annex F DASY Calibration Certificate

Annual validation for test lab. Appendix Annual validation for Test Lab. General calibration information Date 2022.12.15 Test Laboratory ShenZhen Morlab Communications Technology Co., Ltd. Antenna serial No. D900V2-SN: 1d064 Antenna Parameters with Head TSL Impedance, transformed to feed point 48.406Ω-1.16jΩ Return Loss -33.947dB General Antenna Parameters and Design Electrical Delay (one direction) 1.276 ns After long term use with 100W radiated power，only a slight warming of the dipole near the feed point can be measured The dipole is made of standard semirigid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC-signals. On some of the dipoles, small end caps are added to the dipole arms in order to improve matching when loaded according to the position as explained in the "Measurement Conditions" paragraph. The SAR data are not affected by this change. The overall dipole length is still according to the Standard No excessive force must be applied to the dipole arm， because they might bend or the soldered connections near the feed point may be damaged . Annual validation for test lab. Annual validation for test lab. Appendix Impedance Measurement Plot for Head TSL

Annual validation for test lab. Appendix Annual validation for Test Lab. General calibration information Date 2022.12.15 Test Laboratory ShenZhen Morlab Communications Technology Co., Ltd. Antenna serial No. D1800V2-SN: 2d158 Antenna Parameters with Head TSL Impedance, transformed to feed point 52.134Ω-1.04jΩ Return Loss -32.673dB General Antenna Parameters and Design Electrical Delay (one direction) 1.276 ns After long term use with 100W radiated power，only a slight warming of the dipole near the feed point can be measured The dipole is made of standard semirigid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC-signals. On some of the dipoles, small end caps are added to the dipole arms in order to improve matching when loaded according to the position as explained in the "Measurement Conditions" paragraph. The SAR data are not affected by this change. The overall dipole length is still according to the Standard No excessive force must be applied to the dipole arm， because they might bend or the soldered connections near the feed point may be damag…
