2A348SPARKLIVEGuitar Speaker

 WHAT’S IN THE BOX? Spark LIVE Quick Start Guide Safety Instructions AC Power Cord USB-C® to USB-A Cable  Pairing Spark LIVE and the Spark app Get Started • Download the Spark app using the QR code above or search for “Spark amp" in the App Store or Google Play Store. • Turn on Spark LIVE by holding the Power button. • Open the Spark app on your mobile device and in the app, tap the connect button, the Spark app will search for your Spark LIVE. Select yours from the list to connect. Update Spark LIVE Firmware • It’s important that you update Spark LIVE to the latest firmware. Spark LIVE can be easily connected to your Wi-Fi network, allowing you to receive official firmware updates directly from Positive Grid. These updates frequently introduce new gear, features, and optimizations, all designed to make your jam sessions better than ever before. Firmware Download  To select an input channel To select a preset • Each input channel supports 3 to 4 different modes. The factory default settings for the 1/4" jack sockets of CH1, CH2, and CH3/4 are for general guitar or bass. The XLR socket for CH2 is for a dynamic microphone. • More input mode options can be found in the settings of the Spark app and are detailed on page 5 and 7. • Select presets for CH1 and CH2 by turning the Preset Knob. • Each channel has 8 default presets. Press the Preset Knob to switch between the 4 red and 4 green presets. • You can see a list of the default presets for each channel on page 16 CH4 / R STEREO INPUT CH3 / L CH3/4  Front Panel A B CDEF G H I  A - Power Switch Hold to turn on/off Spark LIVE. B - Input Channel 1 (1/4") CH1 supports 3 modes: • Standard Instrument Mode (Factory Default) For general electric guitars, acoustic guitars, or basses • Hi-Z Instrument Mode For electric guitars or basses that have high gain/output pickups or a built-in preamp • Line In Mode For instruments with an output line level signal, such as keyboards, DI boxes or a line output from an external effects unit C - Preset Selector for Channel 1 Customize up to 8 presets for CH1. Use the knob to switch between presets, and press the knob to choose between the 4 red and 4 green presets. See page 16 for more details on the default presets and how to customize them. D - Amp Control Controls the gain and EQ of the amp model in the current preset. E - Channel 1 Volume Control Controls the overall volume of CH1. F - Music Volume Control Controls the volume of Bluetooth music playback and USB audio. G - Power Indicator Indicates power and battery status. Without Battery Loaded: • Solid Red: Powered on With Battery Loaded: • Solid Green: Powered on / Battery 50-100% • Solid Yellow: Powered on / Battery 10-50% • Solid Orange: Powered on / Battery under 10% • Flashing Green/Yellow/Orange: Charging H - Wireless Indicators Indicates the status of the Bluetooth and Wi-Fi connection. • Solid Blue/Green: Connected • Flashing Blue/Green: Pairing I - Speaker Stand Mount Spark LIVE can be mounted on any 35mm standard speaker stand.  Rear Panel CH4 / R STEREO INPUT CH3 / L CH3/4 JK L M N O P Q W X Y Z AA AB AC  J - Input Channel 2 (XLR / 1/4" Combo) CH2 features a combo socket that supports both standard XLR or 1/4" TS line inputs. Each port supports multiple modes: XLR • Microphone Mode (Factory Default) For standard dynamic microphones • Line In Mode For instruments with an output line level signal, such as keyboards, DI boxes or a line output from an external effects unit 1/4" TS • Standard Instrument Mode (Factory Default) For general electric guitars, acoustic guitars, or basses • Hi-Z Instrument Mode For electric guitars or basses that have high gain/output pickups or a built-in preamp • Line In Mode For instruments with an output line level signal, such as keyboards, DI boxes or a line output from an external effects unit K - Preset Selector for Channel 2 Customize up to 8 presets for CH2. Use the knob to switch between presets, and press the knob to choose between the 4 red and 4 green presets. L - Channel 2 Volume Control Controls the overall volume of CH2. M - Input Channel 3/4 (1/4") CH3/4 has 1 pair of 1/4" sockets. You can connect either a stereo output or 2 mono outputs. Please note that the CH3/4 does not support built-in effects. CH3/4 support multiple modes : • Standard Instrument Mode (Factory Default) For general electric guitars, acoustic guitars, or basses. • Hi-Z Instrument Mode For electric guitars or basses that have high gain/output pickups or a built-in preamp. • Line In Mode For instruments with an output line level signal, such as keyboards, DI boxes or a line output from an external effects unit.  N - Channel 3/4 Volume Control Controls the overall volume of CH3/4. Please note that this knob controls the volume of both channels simultaneously and cannot be adjusted separately. O - MIDI Ports (Standard 5 Pin DIN) Input - Connect a wired MIDI controller to control built-in effects and other features. Output - Connect to another Spark LIVE to sync them. P - Line Output (1/4") Connect to the input of an external device, such as a PA system, audio interface, etc. If you only need 1 output, please use the L/Mono output. Q - Master EQ/Volume Adjust the overall EQ and volume of Spark LIVE. W - Pair Button Press to enter Bluetooth® pairing mode when connecting to a new device. Hold to enter pairing mode when connecting to Spark Control X. X - Headphone Output (1/8") Plug in a pair of headphones with a 1/8" jack. Y - USB Audio Port (USB-C®) Connect the supplied USB-C® to USB-A cable to a PC/Mac to use as an audio interface. Z - Charge Out Port (USB-C®) Connect a mobile device to charge it. To preserve battery life, we recommend charging mobile devices when Spark LIVE is powered by AC. AA - Tilt Stand Use the stand to position Spark LIVE at different angles and orientations. AB - Battery Slot Insert the Spark Battery here (sold separately). AC - Power Input (IEC) Connect the supplied Power Cord to a power outlet.  • To conne…

Text truncated - open the document above for the full version.

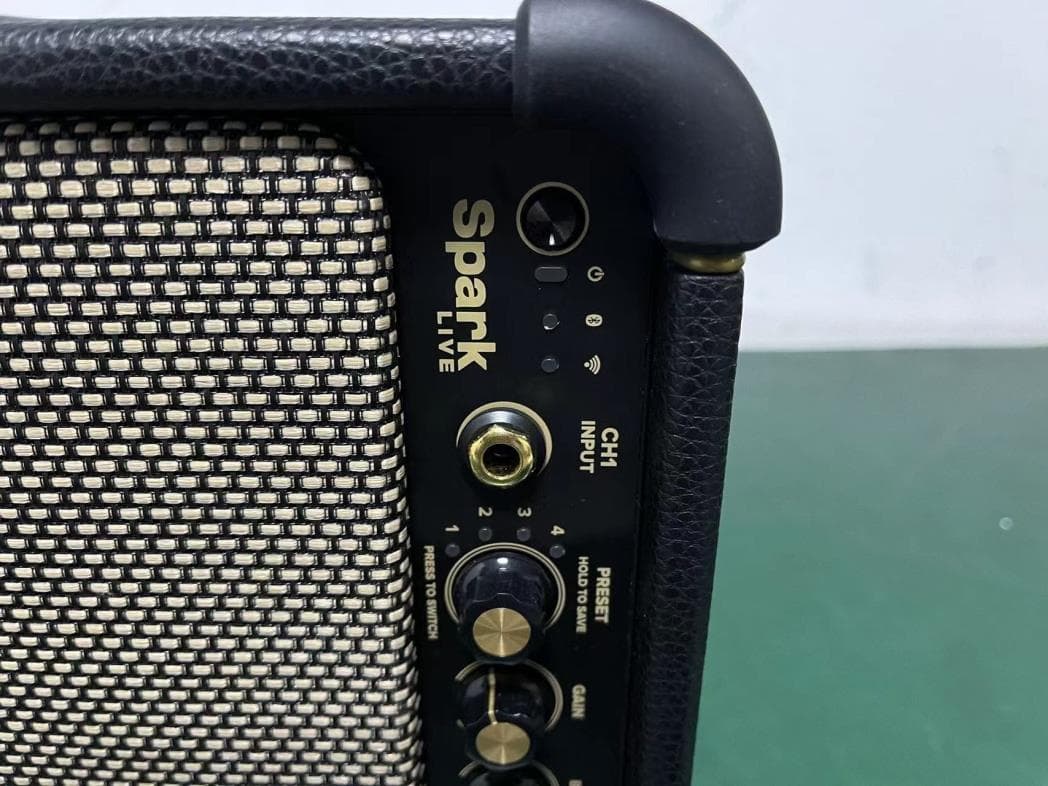

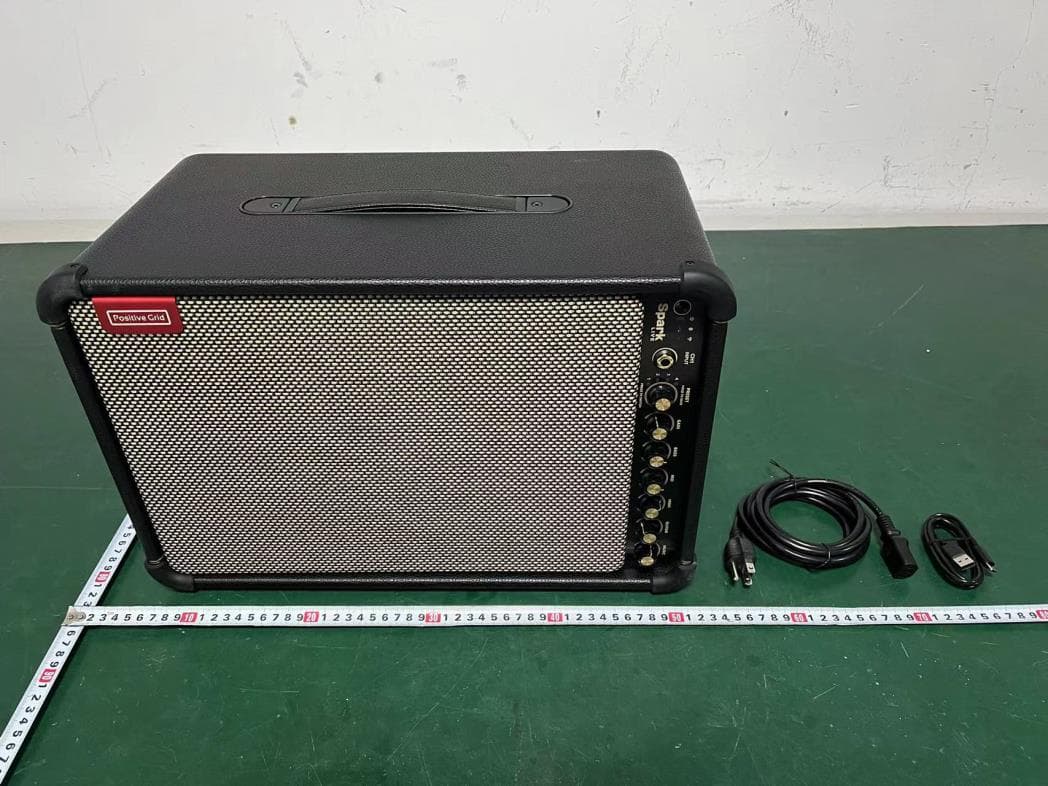

External Photos M/N: Spark LIVE External Photos M/N: Spark LIVE External Photos M/N: Spark LIVE External Photos M/N: Spark LIVE External Photos M/N: Spark LIVE

Internal Photos M/N: Spark LIVE Optional components Internal Photos M/N: Spark LIVE Internal Photos M/N: Spark LIVE Internal Photos M/N: Spark LIVE Internal Photos M/N: Spark LIVE Internal Photos M/N: Spark LIVE Internal Photos M/N: Spark LIVE Internal Photos M/N: Spark LIVE Internal Photos M/N: Spark LIVE Internal Photos M/N: Spark LIVE Internal Photos M/N: Spark LIVE Internal Photos M/N: Spark LIVE Internal Photos M/N: Spark LIVE Internal Photos M/N: Spark LIVE Internal Photos M/N: Spark LIVE Internal Photos M/N: Spark LIVE Internal Photos M/N: Spark LIVE Internal Photos M/N: Spark LIVE

FCC ID: 2A348SPARKLIVE EST Technology Co. ,Ltd Report No. ESTE-R2312191 Page 1 of 5 FCC 47 CFR MPE REPORT Positive LLC Guitar Speaker Model Number: Spark LIVE FCC ID: 2A348SPARKLIVE Applicant : Positive LLC Address: 2820 S Alma School Rd Suite 18 PMB 2011 Chandler, AZ 85286, USA Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2312191 Date of Test: Nov. 22 ~ Dec. 23, 2023 Date of Report: Dec. 26, 2023 FCC ID: 2A348SPARKLIVE EST Technology Co. ,Ltd Report No. ESTE-R2312191 Page 2 of 5 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2A348SPARKLIVE EST Technology Co. ,Ltd Report No. ESTE-R2312191 Page 3 of 5 1.2. MPE Calculation Method E (V/m) = d G × P × 30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d × 377 G × P × 30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2A348SPARKLIVE EST Technology Co. ,Ltd Report No. ESTE-R2312191 Page 4 of 5 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) GFSK 2402 4.75 2.985 2441 4.11 2.576 2480 3.54 2.259 π/4-DQP SK 2402 5.25 3.350 2441 4.61 2.891 2480 4.14 2.594 8-DPSK 2402 5.59 3.622 2441 4.89 3.083 2480 4.38 2.742 BLE 1M 2402 5.93 3.917 2440 6.26 4.227 2480 6.87 4.864 BLE 2M 2402 6.12 4.093 2440 6.51 4.477 2480 7.06 5.082 IEEE 802.11b 2412 19.34 85.901 2437 19.77 94.842 2462 19.44 87.902 IEEE 802.11g 2412 20.60 114.815 2437 21.08 128.233 2462 20.51 112.460 IEEE 802.11n HT20 2412 20.75 118.850 2437 21.37 137.088 2462 20.60 114.815 IEEE 802.11n HT40 2422 20.45 110.917 2437 20.23 105.439 2452 19.99 99.770 FCC ID: 2A348SPARKLIVE EST Technology Co. ,Ltd Report No. ESTE-R2312191 Page 5 of 5 3. Calculated Result and Limit Mode Peak output power (dBm) Target power （dBm） MAX Target power （dBm） Antenna gain Power Density (S) (mW /cm2) Limited of Power Density (S) (mW /cm2) Test Result (dBi) (Linear) 2.4G Band GFSK 4.75 4±1 5 4.25 2.661 0.00167 1 Complies π/4-DQPSK 5.25 5±1 6 4.25 2.661 0.00211 1 Complies 8-DPSK 5.59 5±1 6 4.25 2.661 0.00211 1 Complies BLE 1M 6.87 6±1 7 2.71 1.866 0.00186 1 Complies BLE 2M 7.06 7±1 8 2.71 1.866 0.00234 1 Complies IEEE 802.11b 19.77 19±1 20 2.71 1.866 0.03713 1 Complies IEEE 802.11g 21.08 21±1 22 2.71 1.866 0.05885 1 Complies IEEE 802.11n HT20 21.37 21±1 22 2.71 1.866 0.05885 1 Complies IEEE 802.11n HT40 20.45 20±1 21 2.71 1.866 0.04674 1 Complies Note: WIFI 2.4G and BLE are share an antenna, Cann't both the WIFI 2.4G and BLE operate simultaneously. Simultaneous Transmission Mode (BT+WIFI Mode) Mode Result Limit Simultaneous Transmissions Result Simultaneous Transmissions Limit Total Result BT 0.00211 1 0.06096 1 Complies WIFI 0.05885 1 End of Test Report

FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 1 of 95 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Positive LLC Guitar Speaker Model Number: Spark LIVE FCC ID: 2A348SPARKLIVE Applicant : Positive LLC Address: 2820 S Alma School Rd Suite 18 PMB 2011 Chandler, AZ 85286, USA Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2312188 Date of Test: Nov. 22 ~ Dec. 23, 2023 Date of Report: Dec. 26, 2023 FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 2 of 95 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 1.3. Information of RF Cable .................................................................................................................. 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test mode ......................................................................................................................................... 9 2.7. Channel List ................................................................................................................................... 10 2.8. Power Setting of Test Software ...................................................................................................... 10 2.9. Test Equipment ............................................................................................................................... 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 13 3.1. Limit ............................................................................................................................................... 13 3.2. Test Setup ....................................................................................................................................... 13 3.3. Spectrum Analyzer Setting ............................................................................................................. 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ...................................................................................................................................... 13 4. 20 DB BANDWIDTH ....................................................................................................................... 14 4.1. Limit ............................................................................................................................................... 14 4.2. Test Setup ....................................................................................................................................... 14 4.3. Spectrum Analyzer Setting ............................................................................................................. 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ...................................................................................................................................... 14 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 15 5.1. Limit ............................................................................................................................................... 15 5.2. Test Setup ....................................................................................................................................... 15 5.3. Spectrum Analyzer Setting ............................................................................................................. 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ...................................................................................................................................... 15 6. NUMBER OF HOPPING CHANNEL .................................................................................................. 16 6.1. Limit ............................................................................................................................................... 16 6.2. Test Setup ...............................................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 63 of 95 Appendix G: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~26500 4.33 -42.47 ≤-15.67 PASS DH5 Ant1 2441 30~26500 3.70 -42.95 ≤-16.3 PASS DH5 Ant1 2480 30~26500 3.05 -42.48 ≤-16.95 PASS 2DH5 Ant1 2402 30~26500 3.59 -42.4 ≤-16.41 PASS 2DH5 Ant1 2441 30~26500 1.11 -41.67 ≤-18.89 PASS 2DH5 Ant1 2480 30~26500 0.21 -42.66 ≤-19.79 PASS 3DH5 Ant1 2402 30~26500 4.10 -42.22 ≤-15.9 PASS 3DH5 Ant1 2441 30~26500 3.66 -42.75 ≤-16.34 PASS 3DH5 Ant1 2480 30~26500 3.07 -42.22 ≤-16.93 PASS FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 64 of 95 Test Graphs DH5-Ant1-2402-30~26500-PASS DH5-Ant1-2441-30~26500-PASS DH5-Ant1-2480-30~26500-PASS FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 65 of 95 2DH5-Ant1-2402-30~26500-PASS 2DH5-Ant1-2441-30~26500-PASS 2DH5-Ant1-2480-30~26500-PASS FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 66 of 95 3DH5-Ant1-2402-30~26500-PASS 3DH5-Ant1-2441-30~26500-PASS 3DH5-Ant1-2480-30~26500-PASS FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 67 of 95 Appendix H: Reference level measurement Test Result TestMode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] DH5 Ant1 2402 2401.84 4.33 DH5 Ant1 2441 2440.84 3.70 DH5 Ant1 2480 2479.83 3.05 2DH5 Ant1 2402 2402.00 3.59 2DH5 Ant1 2441 2440.88 1.11 2DH5 Ant1 2480 2479.89 0.21 3DH5 Ant1 2402 2402.17 4.10 3DH5 Ant1 2441 2440.83 3.66 3DH5 Ant1 2480 2479.83 3.07 FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 68 of 95 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 69 of 95 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 70 of 95 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS 3DH5-Ant1-2480-PASS FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 71 of 95 14. TEST SETUP PHOTO Conducted Test FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 72 of 95 Radiated Test (Below 1GHz) Radiated Test (Above 1GHz) FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 73 of 95 15. EUT PHOTO External Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 74 of 95 External Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 75 of 95 External Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 76 of 95 External Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 77 of 95 External Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 78 of 95 Internal Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 79 of 95 Optional components Internal Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 80 of 95 Internal Photos M/N: Spark LIVE

FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 81 of 95 Internal Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 82 of 95 Internal Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 83 of 95 Internal Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 84 of 95 Internal Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 85 of 95 Internal Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 86 of 95 Internal Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 87 of 95 Internal Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 88 of 95 Internal Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 89 of 95 Internal Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 90 of 95 Internal Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 91 of 95 Internal Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 92 of 95 Internal Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 93 of 95 Internal Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 94 of 95 Internal Photos M/N: Spark LIVE FCC ID: 2A348SPARKLIVE EST Technology Co., Ltd Report No. ESTE-R2312188 Page 95 of 95 Internal Photos M/N: Spark LIVE End of Test Report

表单编号：B&T-QR-EN-002版本：B3 第 1 页共 12 页 开发案号：Y230601354 日期：2023.08.01 版本：A0-0801 承认书 客户名称：国光 调试项目：SparkPRO 客户料号：EAN00321 博安通料号：74220190 规格描述：VZPT-内置天线-2.4G-灰色1.13锡锡线-1代端子 -L=100mm-PCB-49×11.5×0.6mm 出厂签章： 编写审核批准 黄飞辉刘立华刘立华 客户承认签章： 检查审核批准 博安通联系方式 业务联系人：龙明国手机：18576042661邮箱：[email protected] 技术联系人：刘立华手机：13590104459邮箱：liulh@tech-now 品质联系人：雷浩手机：15681917991邮箱：[email protected] 博安通生产地址：四川省绵阳市经开区塘汛街道文武中路218号8幢5层2、3号 表单编号：B&T-QR-EN-002版本：B3 第 2 页共 12 页 文件制定 / 修订 / 废止履历表 版本日期制定/修订内容制定核准 A02023.06.09首次制定黄飞辉杨冰武/刘立华 A0-06202023.06.20更新丝印、线缆及电性能报告黄飞辉杨冰武/刘立华 A0-08012023.08.01更新线长、海绵长度及电性能报告黄飞辉刘立华 表单编号：B&T-QR-EN-002版本：B3 第 3 页共 12 页 目录 1、封面·········································································1 2、目录·········································································3 3、产品图面···································································4 4、性能参数表································································5 5、电气性能测试报告·······················································6-9 6、材料成份及有害物质表·················································9 7、包装规范···································································10 8、天线安装位置示意图····················································11 9、天线测试暗室摆放位置·················································11 10、可靠性测试要求·························································12 表单编号：B&T-QR-EN-002版本：B3 第 4 页共 12 页 3、产品图面 表单编号：B&T-QR-EN-002版本：B3 第 5 页共 12 页 4 、性能参数 电气参数 频率范围2400～2500MHz 输入阻抗 50 Ω 配机驻波比 <3 功率容量 <10w 极化方式线极化 辐射方向全向 接头型号端子 机械参数 线长 100 ± 3mm 端子维持力≥ 1 ㎏ f 同轴电缆灰色1.13锡锡线 盐雾测试24H 环境参数 工作温度 -30 °C ~65 °C 表单编号：B&T-QR-EN-002版本：B3 第 6 页共 12 页 5、电气性能测试报告（整机） S11参数图 5.2电压驻波比 Freq（MHz）240024502500 VSWR 1.391.201.11 5.3天线测试数据 表单编号：B&T-QR-EN-002版本：B3 第 7 页共 12 页 天线方向图2450M3D-E1-E2-H 表单编号：B&T-QR-EN-002版本：B3 第 8 页共 12 页 蓝牙天线与 WIFI 天线之间的隔离度： S21数据 Freq/MHz 2400MHz2450MHz2500MHz S21-37.59-40.00-41.39 表单编号：B&T-QR-EN-002版本：B3 第 9 页共 12 页 有源测试数据： 6、材料成分及有害物质表 项 次 规格材质 RoHS检验结果（PPM） ICP检测编号检测时间 CdPbHg Cr+6PBBPBDE 1 线 FEPNDNDNDNDNDNDNGBMR230001699012023/2/6 镀锡铜线NDNDNDNDNDNDCANEC22154097012022/7/22 2 端子 PBTNDNDNDNDNDNDA2230035037101002E2023/2/11 磷青铜NDNDNDNDNDNDCANEC23011458092023/2/8 3PCB FR-4NDNDNDNDNDNDCAENC22218445052022/10/24 OSP NDNDNDNDNDNDA2230230896101001E2023/5/22 4海绵 PU海绵 NDNDNDNDNDNDA22204884151010042022/11/7 背胶 NDNDNDNDNDNDA22205722241010052022/12/26 5泡绵 EVAND12NDNDNDNDCANEC22275741172023/1/3 背胶 NDNDNDNDNDNDA22300193141010012023/1/19 表单编号：B&T-QR-EN-002版本：B3 第 10 页共 12 页 产品包装规范 PACKINGCRITERION 产品料号：74220190 产品规格： VZPT-内置天线-2.4G-灰色1.13锡锡线-1代端子-L=100mm-PCB-49×11.5×0.6mm 一、标签要求（根据客户名称参考对应的成品标签制作要求，无要求即按普通标签要求） 内标签长10cm宽6cm左右外标签长10cm宽6cm左右 需方*************需方************* 供方中山市博安通通信技术有限公司供方中山市博安通通信技术有限公司 物料编码*************物料编码************* 生产单号*****************生产单号***************** 品名规格******** 检验员 **品名规格******** 检验员 ** 数量/单位*****日期****.**.*数量/单位*****日期****.**.* 追溯码********流水号**追溯码********流水号** 二、装箱要求 作业说明： 1．内包装： 产品50PCS装小袋, 100PCS装大袋. 2．外包装： 根据实际包装定数量/箱 注意事项： 1．是否要增设隔板、珍珠棉； 2．标签的贴附，如ROHS等； 表单编号：B&T-QR-EN-002版本：B3 第 11 页共 12 页 8、天线整机安装示意图 9 、天线测试暗室摆放位置 表单编号：B&T-QR-EN-002版本：B3 第 12 页共 12 页 10、可靠性测试要求

Conducted Test Radiated Test (30-1000 MHz) Radiated Test (Above 1GHz)
