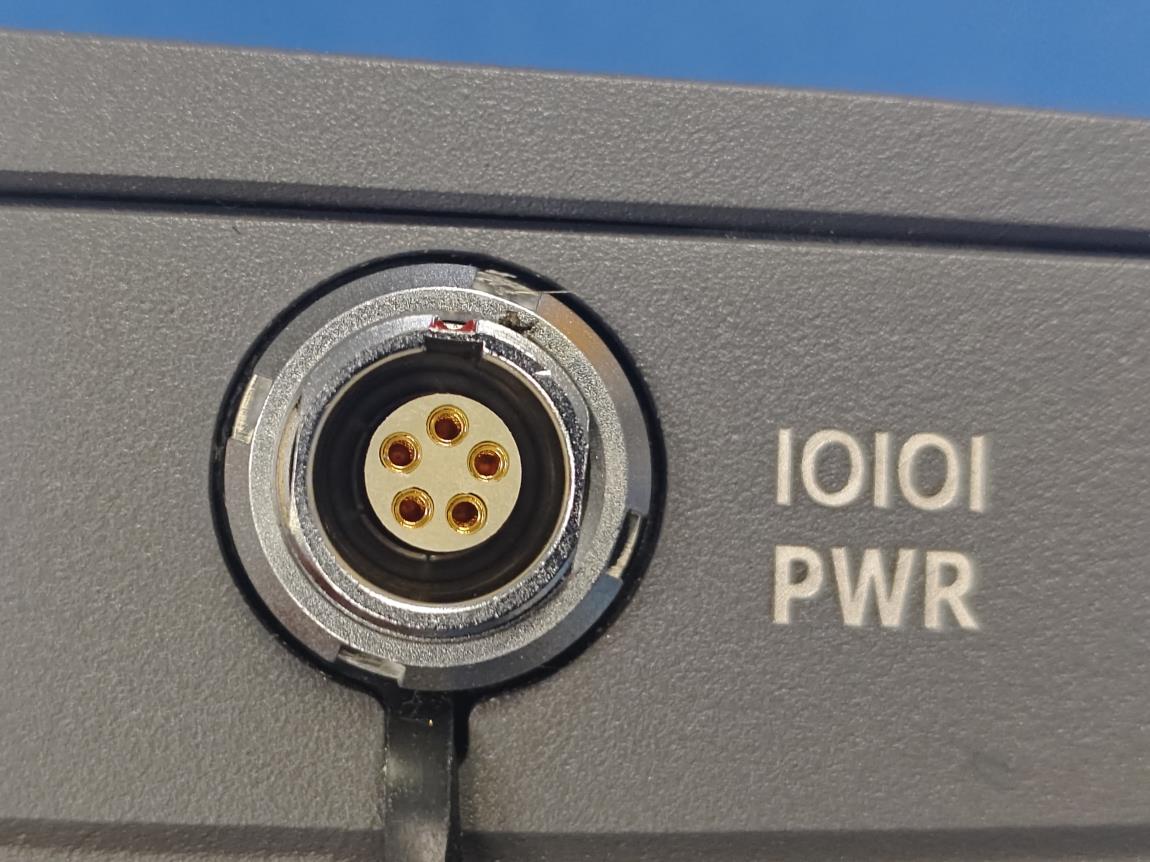

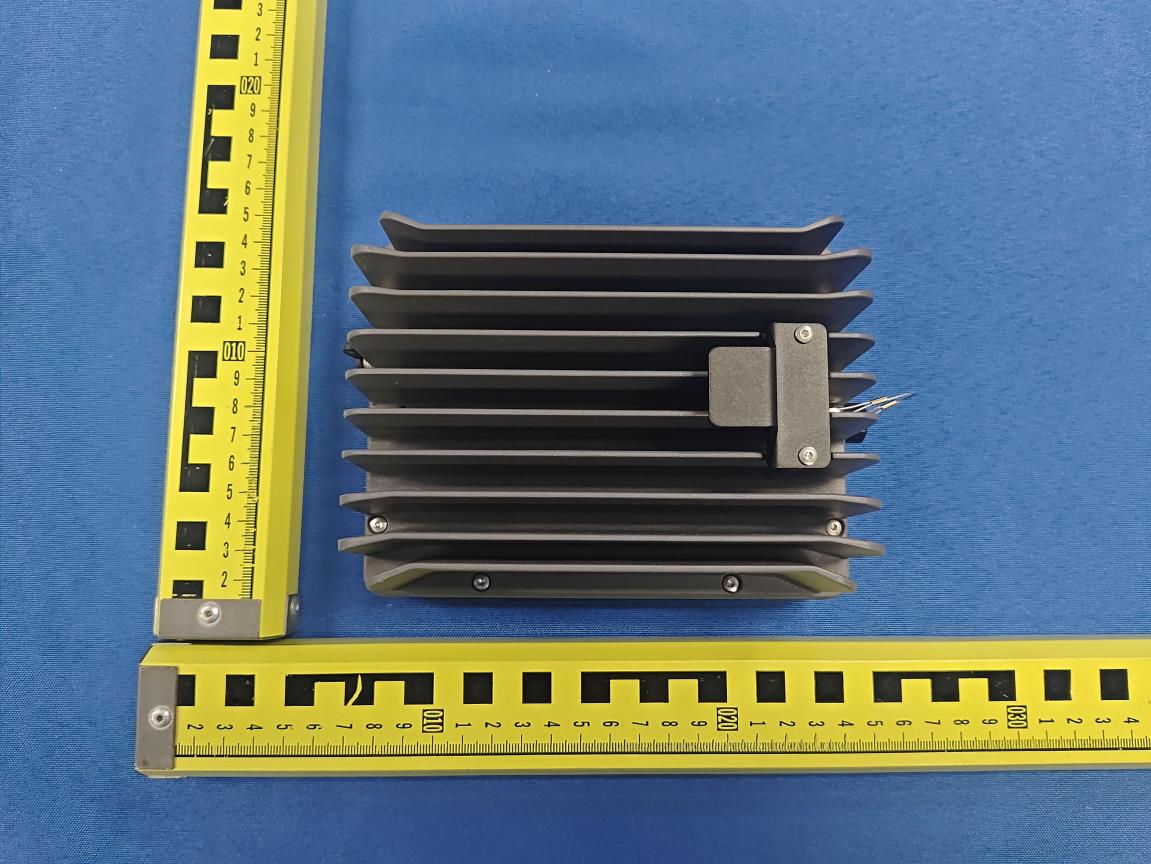

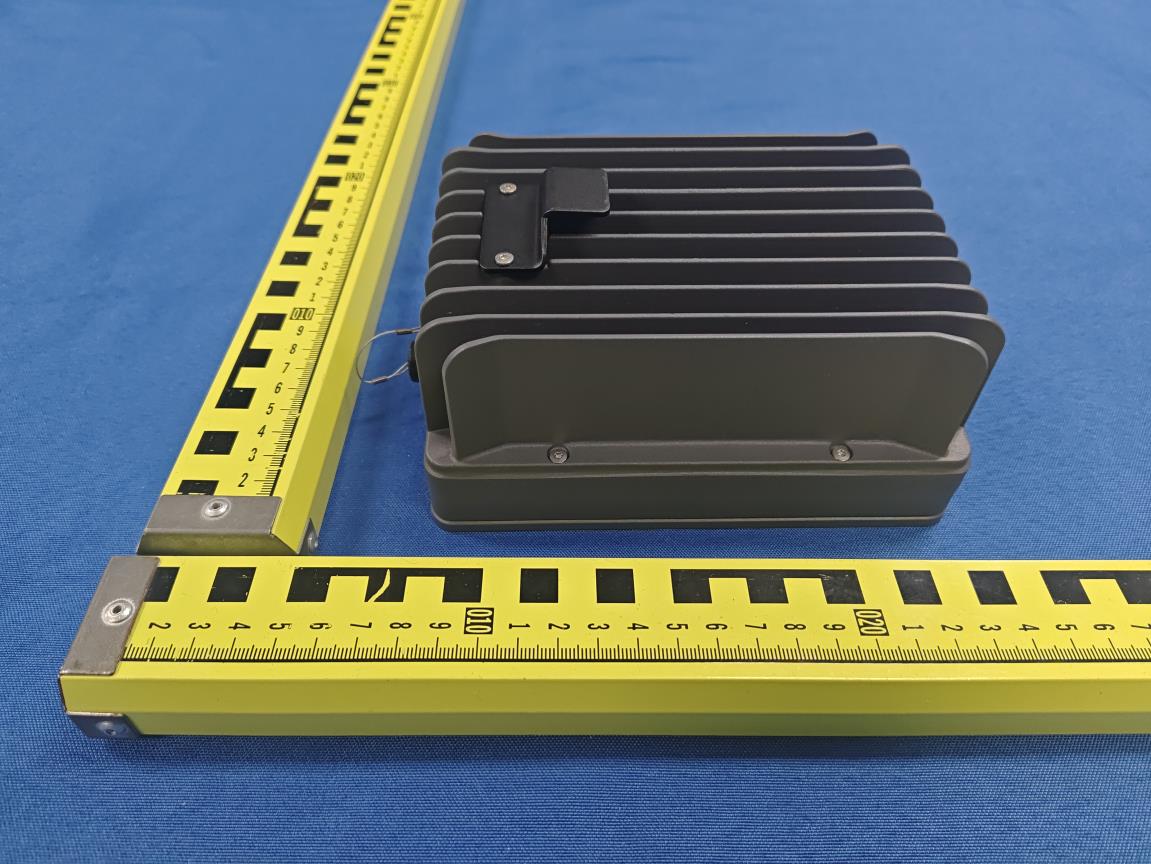

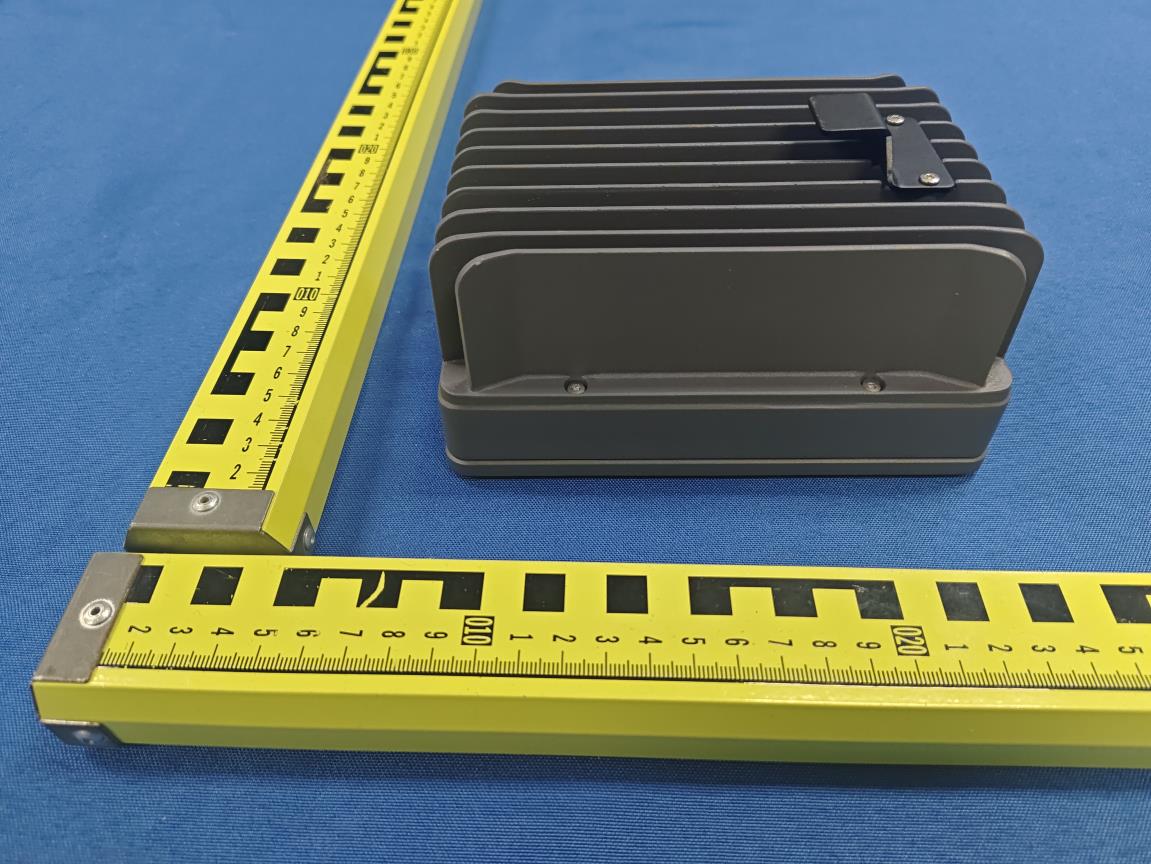

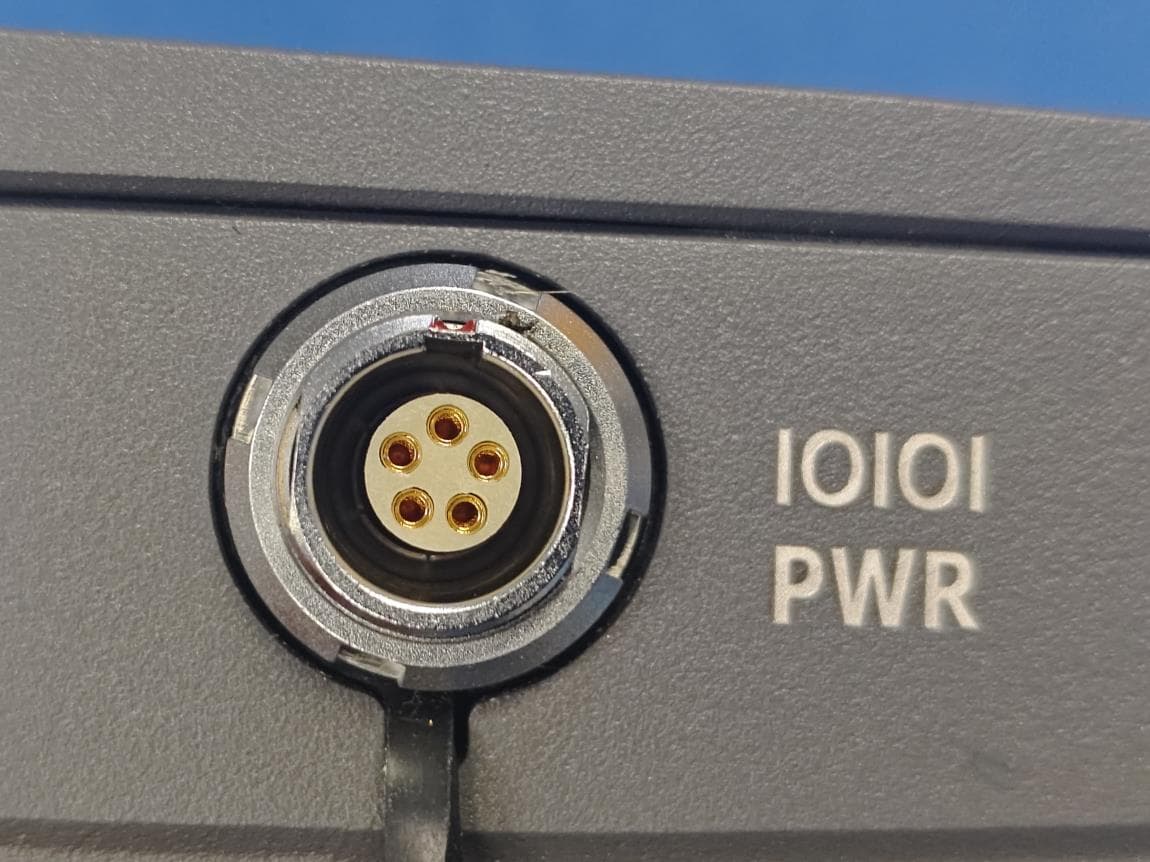

2A34K-TRU35Wireless Data Transceiver

TRU35 Radio Manual for Users Version Date description Modified by V1.0 2017.11.15 first draft TW V1.1 2018.07.11 Modify the modulation method; modify the RF power stability Yang Ruru CONTENT I. Overview ................................................................................................................................. 1 II. Functions ................................................................................................................................ 1 III. Main Technical Indicators .......................................................................................... 2 3.1 General Indicators ......................................................................................................... 2 3.2 Receiving Indicators...................................................................................................... 2 3.3 Transmission Indicators ............................................................................................... 2 IV. User Interface ................................................................................................................ 3 4.1 LED Display ..................................................................................................................... 3 4.2 Buttons ............................................................................................................................. 4 4.3 Display .............................................................................................................................. 5 V. Interface .................................................................................................................................. 6 VI. TRU35 Configuration Tool ......................................................................................... 7 6.1 Connection Methods .................................................................................................... 7 6.2 Settings ............................................................................................................................ 8 6.2.1 Parameter settings ................................................................................................ 8 6.2.2 Channel Detection ................................................................................................. 9 6.2.3 Device Information ............................................................................................... 9 6.2.4 Temperature Control .......................................................................................... 10 6.2.5 Radio control ......................................................................................................... 10 6.2.6 Firmware Upgrade ............................................................................................... 11 VII. Working Mode ............................................................................................................ 11 7.1 Basic Large Radio ........................................................................................................ 11 7.2 Radio Relay ................................................................................................................... 12 1 I. Overview TRU35 is a high-power, small-size half-duplex digital radio designed by using advanced 32-bit cortex M4 microcontroller technology, wireless transceiver RF technology, and digital communication technology, this radio selects high-quality RF components, excellent EMC and EMI processing, and shell & heat sink integration technology. It has the advantages of high transmission power, long transmission distance, integrated transmission and receiving, simple installation and use, high cost performance, stable and reliable. II. Functions  Receiving and transmitting are integrated in one, half duplex, fast switching  Radio relay function greatly improves the transmission distance TRU35 can send the received data through other frequency points, increasing the communication distance and expanding the signal coverage.  Level 2 surge protection, reverse polarity protection The TRU35 adopts a level 2 surge protection to protect the radio from damage when the instantaneous input voltage or current exceeds the normal range. Even if the positive and negative polars are connected inversely, the radio will not be damaged.  Standing wave detection protection TRU35 adopts standing wave detection protection to prevent damage to the instrument caused by long open and short circuits.  Thermal protection TRU35 can adjust the transmitting power adaptively, automatically reduce the power when the instrument temperature is too high, and automatically increase the power when the instrument temperature decreases, to ensure that the instrument is always in a stable power range, and will not be damaged due to overheating.  Protection- IP67  Without assembly, integrated shell, high overall heat conduction efficiency and good heat dissipation 2  Bluetooth configuration and Bluetooth datalink functionality TRU35 can configure and set its mode, protocol, air interface baud rate, frequency, high or low power through handheld via Bluetooth connection. It can also receive RTK data through Bluetooth and send it out through radio.  Standard 16 channels for transmitting and receiving, users can configure and use according to the situation  Under the condition of high transmission power, the transmission distance can reach 14 kilometers (depend on the base station height and the surrounding environment) III. Main Technical Indicators 3.1 General Indicators Frequency range: 410MHz-470MHz Operating mode: half-duplex Channel spacing: 12.5KHz, 25KHz Frequency stability: ≤±1.0ppm Modulation method: GMSK/4FSK Air transmission rate: 9600bps, 19200bps Antenna interface impedance: 50ohm Rated working voltage: 12.5V (working voltage range: 10.8V-15V） Weight: 1680g Volume: 165mm×125mm×80mm 3.2 Receiving Indicators Sensitivity: better than -116dBm@BER 10-5,9600bps Comm…

Text truncated - open the document above for the full version.

Shanghai eSurvey GNSS Co., Ltd. Covered Equipment Certification Attestation Letter 7/7/2026 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2A34K-TRU35 Shanghai eSurvey GNSS Co., Ltd. (“ the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shanghai eSurvey GNSS Co., Ltd. (“ the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Shanghai eSurvey GNSS Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Reinhard Lyu Title: Purchase Supervisor Company Name: Shanghai eSurvey GNSS Co., Ltd. Date: 7/7/2026

Shanghai eSurvey GNSS Co., Ltd. Zhuyuan Rd, Minhang District Shanghai China Date: July 7, 2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A34K-TRU35 FRN: 0031772403 US Agent – Attestation Statement / Part 2.911(d)(7) Shanghai eSurvey GNSS Co., Ltd. certifies, that as of July 7, 2026, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2A34K-TRU35 Shanghai eSurvey GNSS Co., Ltd., accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of Shanghai eSurvey GNSS Co., Ltd. for FCC ID: 2A34K-TRU35 An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Designated Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: Shanghai eSurvey GNSS Co., Ltd. Designated Agent: FCC US Agent, LLC Company Representative: Reinhard Lyu Designated Agent Representative: Tim Payne Signature: Email: [email protected] Tel: 021-54467149 Signature:

July 7, 2026 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen ETR Standard Technology Co., Ltd. Address: No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Person: Smith Chen (Name and address，person). to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Shanghai eSurvey GNSS Co., Ltd. Address: Zhuyuan Rd, Minhang District, Shanghai, China ( applicant name and address). Signature: Name Reinhard Lyu Company Name Shanghai eSurvey GNSS Co., Ltd. Address Zhuyuan Rd, Minhang District, Shanghai, China Tel 021-54467149 Fax 021-54467149 Email [email protected]

Shanghai eSurvey GNSS Co., Ltd. July 7, 2026 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A34K-TRU35 Product Name: Wireless Data Transceiver Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics Long-term confidential  Block diagram Long-term confidential  Operation description Long-term confidential  Tune-up Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Reinhard Lyu Company Name Shanghai eSurvey GNSS Co., Ltd. Address Zhuyuan Rd, Minhang District, Shanghai, China Tel 021-54467149 Fax 021-54467149 Email [email protected]

Shanghai eSurvey GNSS Co., Ltd. Subject: Extend Frequencies Justification Original Application FCC ID: 2A34K-TRU35 Company: Shanghai eSurvey GNSS Co., Ltd. Address: Zhuyuan Rd, Minhang District, Shanghai, China Dear Sir or Madam; This Digital radio was designed to operate in the frequency bands 410-470MHz; To aid equipment authorization in other countries that accepts the United States FCC Grant for Certification, Shanghai eSurvey GNSS Co., Ltd. Is requesting that the FCC list the frequencies 410-470MHz under FCC Rule Parts 90 and the Grant note code “EF”. For the FCC’s Rule Part 90 applications, this radio is used in systems by Federal and Public Safety agencies including Police, Fire, and Emergency Medical Services, etc. as indicated in the table below. Equipment programming is the responsibility of Authorized Service Personal. Also, the radio complies with 47 CFR Part 90.203 (e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Per the FCC’s KDB634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Please contact me if you require any additional information. Signature: Date: 2026-07-07 Name: Reinhard Lyu Title: Purchase Supervisor Company: Shanghai eSurvey GNSS Co., Ltd.

Shanghai eSurvey GNSS Co., Ltd. Subject: Extend Frequencies Justification Original Application FCC ID: 2A34K-TRU35 Company: Shanghai eSurvey GNSS Co., Ltd. Address: Zhuyuan Rd, Minhang District, Shanghai, China Dear Sir or Madam; We, Shanghai eSurvey GNSS Co., Ltd. declares that the Digital radio meets 47CFR Section 90.203(j)(4) and 90.203(j)(5) spectrum efficiency requirement; 1. This equipment meets the spectrum efficiency standard of one voice channel per 6.25 kHz of channel bandwidth as required by 47CFR 90.203(j)(5). 2. The digital radio adopts GMSK and 4FSK digital modulation with 12.5 KHz and 25KHz channel spacing, Emission Designator F1D for data mode. It is designed per ETSI TS 102 361-1, supporting 9600 bits per second in 12.5 KHz channel spacing and 19200 bits per second in 25 KHz channel spacing. Converted to standard bandwidth benchmark, it supports 4800 bits per second per 6.25 kHz channel bandwidth, fully meeting the minimum data rate requirement of 47CFR 90.203(j)(5). 3. The device is capable of data transmission, with transmitter output power greater than 500 mW and channel bandwidth wider than 6.25 kHz, which fully falls within the scope of the above regulatory requirement. In addition, this Digital radio is capable of operating on the nationwide public safety interoperability calling channel (453.2125 MHz), meets 47CFR Section 90.203(j)(1) requirement; Signature: Date: 2026-07-07 Name: Reinhard Lyu Title: Purchase Supervisor Company: Shanghai eSurvey GNSS Co., Ltd.

FCCID: 2A34K-TRU35 UHF ANT FCCID: 2A34K-TRU35 FCCID: 2A34K-TRU35 FCCID: 2A34K-TRU35 FCCID: 2A34K-TRU35

4.5cm 2.5cm Label Location FCC ID: 2A34K-TRU35 Shanghai eSurvey GNSS Co., Ltd. Product name: Wireless Data Transceiver Model No.: TRU35 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCCID: 2A34K-TRU35 FCCID: 2A34K-TRU35 FCCID: 2A34K-TRU35 EDR ANT FCCID: 2A34K-TRU35 FCCID: 2A34K-TRU35 FCCID: 2A34K-TRU35 FCCID: 2A34K-TRU35 FCCID: 2A34K-TRU35 FCCID: 2A34K-TRU35 FCCID: 2A34K-TRU35 FCCID: 2A34K-TRU35 FCCID: 2A34K-TRU35 FCCID: 2A34K-TRU35 FCCID: 2A34K-TRU35 FCCID: 2A34K-TRU35

FCC ID: 2A34K-TRU35 Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna FCC ID: 2A34K-TRU35 3. Result Worse case is as below: Mode Frequency (MHz) Prediction distance (cm) RF output power MPE (mW/cm 2 ) Limit (mW/cm 2 ) MPE Test Exclusion dBm mW EDR 2480 200 3.276 2.1262 0.000003 1 Yes UHF 410.05 200 44.943 31210.4478 0.220308 0.273 Yes Maximum Simultaneous transmission MPE Ratios for EDR+UHF: Max MPE ratio EDR /Limit Max MPE ratio UHF /Limit ∑MPE ratios Limit Result 0.000003 0.806989 0.806992 1 PASS EDR Antenna Gain: -0.85dBi, 0.82(numeric) UHF Antenna Gain: 5.5dBi, 3.55(numeric) Meet MPE requirements, RF Exposure evaluation is not required.

Report No.: ET-26052216E02 Tel:(86-0755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China TEST REPORT Applicant: Shanghai eSurvey GNSS Co., Ltd. Address of Applicant: Zhuyuan Rd, Minhang District, Shanghai, China Manufacturer: Shanghai eSurvey GNSS Co., Ltd. Address of Manufacturer： Zhuyuan Rd, Minhang District, Shanghai, China Product Name: Wireless Data Transceiver Model No.: TRU35 Trade Mark: N/A FCC ID: 2A34K-TRU35 Applicable standards: FCC CFR Title 47 Part 90, FCC CFR Title 47 Part 2 Test Procedure:: ANSI C63.26-2015 Date of Test: February 27, 2026 – July 22, 2026 Date of report issued: July 22, 2026 Remark: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By Shenzhen ETR Standard Technology Co., Ltd. Address: No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Compiled by: Reviewed by: Approved by: Project Engineer Project Manager Autorized Signature Report Revision History - Page 2 of 59 - Report No.: ET-26052216E02 Tel:(86-0755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Report No. Description Issue Date ET-26052216E02 Original July 22, 2026 - Page 3 of 59 - Report No.: ET-26052216E02 Tel:(86-0755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Contents Page Contents ------------------------------------------------------------------------------------------------------------------------------- 3 1. Test Summary ----------------------------------------------------------------------------------------------------------------- 4 2. General Information --------------------------------------------------------------------------------------------------------- 5 2.1. General Description of EUT ------------------------------------------------------------------------------------- 5 2.2. Test frequency channel------------------------------------------------------------------------------------------- 6 2.3. Test mode ------------------------------------------------------------------------------------------------------------- 6 2.4. EUT configuration -------------------------------------------------------------------------------------------------- 6 2.5. Test Environment --------------------------------------------------------------------------------------------------- 7 2.6. Test Facility ----------------------------------------------------------------------------------------------------------- 7 2.7. Environmental conditions --------------------------------------------------------------------------------------- 7 2.8. Measurement Uncertainty --------------------------------------------------------------------------------------- 7 3. Test Instruments list -------------------------------------------------------------------------------------------------------- 8 4. Test Results and Measurement Data -------------------------------------------------------------------------------- 10 4.1. Transmitter Power (Conducted) -------------------------------------------------------------------------------- 10 4.2. Occupied Bandwidth and Emission Mask -------------------------------------------------------------------- 20 4.3. Spurious Emissions(conducted) -------------------------------------------------------------------------------- 36 4.4. Radiated Spurious Emission------------------------------------------------------------------------------------- 41 4.5. Transient Frequency Behavior ---------------------------------------------------------------------------------- 51 4.6. Behavior Frequency Stability ------------------------------------------------------------------------------------ 56 5. Test Setup Photos --------------------------------------------------------------------------------------------------------- 58 6. EUT Photos ------------------------------------------------------------------------------------------------------------------ 59 - Page 4 of 59 - Report No.: ET-26052216E02 Tel:(86-0755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 1. Test Summary Test Item Section in Standard Result Transmitter Power(Conducted) FCC PART 90 PASS Occupied Bandwidth & Emission Mask FCC PART 90 PASS Spurious Emissions(conducted) FCC PART 90 PASS Spurious Emissions(Radiated) FCC PART 90 PASS Transient Frequency Behavior FCC PART 90 PASS Frequency Stability FCC PART 90 PASS Modulation Characteristics FCC PART 2 FCC PART 90 N/A Note1 Adjacent channel power FCC PART 2 N/A Note2 Remark: Pass: The EUT complies with the essential requirements in the standard. N/A Note1 : The EUT is used in digital modulation. N/A Note2 : Authorized bandwidth (kHz) < 20 kHz. Compliance determination rules 1).The Compliance determination of test results does not take into account measurement uncertainty. Measurement results are determined based on regulatory limitations or requirements specified by the applicant/manufacturer. If measurement uncertainty is taken into account, the applicant/manufacturer will bear all possible risks of non-compliance. 2).The measurement uncertainty please refer to each test result in the "Measurement Uncertainty” - Page 5 of 59 - Report No.: ET-26052216E02 Tel:(86-0755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xin…

Text truncated - open the document above for the full version.

- Page 37 of 59 - Report No.: ET-26052216E02 Tel:(86-0755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 4.3.2. Test Data Test plots as follows: GMSK 12.5KHz Channel Spacing: Low: 410.050MHz Mid: 440.000MHz High: 469.950MHz - Page 38 of 59 - Report No.: ET-26052216E02 Tel:(86-0755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China GMSK 25KHz Channel Spacing: Low: 410.050MHz Mid: 440.000MHz High: 469.950MHz - Page 39 of 59 - Report No.: ET-26052216E02 Tel:(86-0755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 4FSK 12.5KHz Channel Spacing: Low: 410.050MHz Mid: 440.000MHz High: 469.950MHz - Page 40 of 59 - Report No.: ET-26052216E02 Tel:(86-0755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 4FSK 25KHz Channel Spacing: Low: 410.050MHz Mid: 440.000MHz High: 469.950MHz - Page 41 of 59 - Report No.: ET-26052216E02 Tel:(86-0755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 4.4. Radiated Spurious Emission 4.4.1. Test Specification Test Requirement: FCC Part 90.210 Test Method: FCC part 2.1051, ANSI C63.26-2015 Section 5.5 Measurement Distance: 3 m Antenna Polarization: Horizontal & Vertical Operation mode: Refer to item 4.1 Receiver Setup: Frequency RBW VBW 9kHz- 150kHz 200Hz 1kHz 150kHz- 30MHz 9kHz 30kHz 30MHz-1GHz 100KHz 300KHz Above 1GHz 1MHz 3MHz Limit: For equipment using 25 kHz channel spacing, on any frequency removed from the center of the authorized bandwidth by more than 250 percent of the authorized bandwidth: At least 43 + 10log (P) dB. For equipment using 12.5 kHz channel spacing, on any frequency removed from the center of The authorized bandwidth by a displacement frequency (fd in kHz) of more than 12.5 kHz: At least 50 + 10 log(P) dB or 70 dB, whichever is the lesser attenuation. For equipment using 6.25 kHz channel spacing, On any frequency removed from the center of the authorized bandwidth by more than 4.6 kHz: At least 55 + 10 log (P) or 65 dB, whichever is the lesser attenuation. Test setup: Test Procedure: The transmitter was placed on a wooden turntable, and it was transmitting into a non-radiating load, which was also placed on the turntable. The measurement antenna was placed at a distance of 3 meters from the EUT. During the tests, the antenna height and polarization as well as EUT azimuth were varied in order to identify the maximum level of emissions from the EUT .The test was performed by placing the EUT on 3-orthogonal axis. The frequency range up to teeth harmonic of the fundamental frequency was investigated. Remove the EUT and replace it with substitution antenna. A signal generator was connected to the substitution antenna by a - Page 42 of 59 - Report No.: ET-26052216E02 Tel:(86-0755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China non-radiating cable. The absolute levels of the spurious emissions were measured by the substitution. Spurious emissions in dB =10, 1g (TXpwr in Watts/0.001)-the absolute level Test results: PASS - Page 43 of 59 - Report No.: ET-26052216E02 Tel:(86-0755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 4.4.2. Test Data GMSK: Test Mode: Low: 410.050MHz, Channel Spacing 12.5KHz Frequency Reading level Antenna Cable loss Ant.Gain Emission level Limit Margin (MHz) (dBm) Polarization (dB) (dBi) (dBm) (dBm) (dB) 153.737 -92.078 V 0.24 31.35 -60.968 -20 -40.968 362.087 -91.243 V 0.26 31.34 -60.163 -20 -40.163 674.579 -94.152 V 0.42 31.24 -63.332 -20 -43.332 818.683 -93.385 V 0.58 30.71 -63.255 -20 -43.255 1229.068 -80.917 V 1.23 26.38 -55.767 -20 -35.767 3862.349 -83.748 V 1.68 25.47 -59.958 -20 -39.958 284.499 -93.790 H 0.43 31.24 -62.980 -20 -42.980 400.432 -94.902 H 0.45 30.68 -64.672 -20 -44.672 673.928 -92.563 H 0.64 30.85 -62.353 -20 -42.353 820.891 -94.801 H 0.79 31.12 -64.471 -20 -44.471 1228.744 -80.635 H 1.29 26.12 -55.805 -20 -35.805 3256.849 -78.455 H 1.62 25.41 -54.665 -20 -34.665 Test Mode: Mid: 440.000MHz, Channel Spacing 12.5KHz Frequency Reading level Antenna Cable loss Ant.Gain Emission level Limit Margin (MHz) (dBm) Polarization (dB) (dBi) (dBm) (dBm) (dB) 153.845 -93.495 V 0.24 31.35 -62.385 -20 -42.385 365.054 -97.662 V 0.26 31.34 -66.582 -20 -46.582 669.515 -93.133 V 0.42 31.24 -62.313 -20 -42.313 879.121 -93.962 V 0.58 30.71 -63.832 -20 -43.832 1321.016 -84.077 V 1.23 26.38 -58.927 -20 -38.927 3859.156 -83.509 V 1.68 25.47 -59.719 -20 -39.719 293.749 -98.122 H 0.43 31.24 -67.312 -20 -47.312 398.820 -98.144 H 0.45 30.68 -67.914 -20 -47.914 684.786 -93.913 H 0.64 30.85 -63.703 -20 -43.703 880.720 -95.450 H 0.79 31.12 -65.120 -20 -45.120 1317.787 -84.777 H 1.29 26.12 -59.947 -20 -39.947 3262.627 -78.927 H 1.62 25.41 -55.137 -20 -35.137 - Page 44 of 59 - Report No.: ET-26052216E02 Tel:(86-0755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Test Mode: High: 469.950MHz, Channel Spacing 12.5KHz Frequency Reading level Antenna Cable loss Ant.Gain Emission level Limit Margin (MHz) (dBm) Polarization (dB) (dBi) (dBm) (dBm) (dB) 152.919 -92.190 V 0.24 31.35 -61.080 -20 -41.080 366.593 -92.991 V 0.26 31.34 -61.911 -20 -41.91…

Text truncated - open the document above for the full version.

410-470MHz 5.5dBi Vertical Polarization Feature QC410A Frequency (mhz) 410-470 Spacing (mhz) 20 Polarization Mode Vertical Gain (dbi) 5.5(No Feeder Loss) Input Impedance 50 Voltage Standing Wave Ratio ≤2.0 Max Power (W) 100 Connector Type TNC Male Connector Antenna Length (cm) 109±0.5 Lead-Wire Length (M) 5±0.05 Antenna Weight (Kg) Approx. 0.7(Including Feeder) Rated Wind Velocity (km/h) 120 Installation 5/8＂-11UNC Screw Mounting HE Manufacturer: Shanghai eSurvey GNSS Co., Ltd. Address: Zhuyuan Rd, Minhang District, Shanghai, China

FCCID: 2A34K-TRU35 Radiated Emission
