2A36M-CM-I311MHd Smart camera

Hd Smart camera Hd Smart camera FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD2104 {Shenzhen Anjia information Technology Co., LTD} {No.13,Anye Road,Anliang Community,Yuanshan Street, Longgang District,Shenzhen,Guangdong,China} 6 {2023-9-22} U.S.AgentDesignation {ShenzhenAnjiainformationTechnologyCo.,LTD}acknowledgestheirconsentforthefollowingcontact locatedintheUnitedStatestoactastheiragentforserviceofprocessfortheequipmentforwhichauthorizationis sought(FCCID:2A36M-CM-I311M): NameandcompanyofU.S.agent:{USAMEIHUATRADINGINC} PhysicalU.S.addressofagent:{5379PineValleyCtBoulderCO80301nitedStates} FRNofU.S.agent:{0033406166} EmailaddressofU.S.agent:{[email protected]} {USAMEIHUATRADINGINC}acknowledgestheirobligationtoacceptserviceofprocessonbehalfof {ShenzhenAnjiainformationTechnologyCo.,LTD}. {ShenzhenAnjiainformationTechnologyCo.,LTDwiththeFRN[0031801087]acceptsitsobligationto maintainanagentforserviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,orthe conclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingtheequipment,whicheveris later. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirementslistedunder§ 2.911(d)(7). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB 986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotify theFCCwithin30daysviathegrantingTCB. Sincerely, Signature {Jinming}{Liu} {Manager} {ShenzhenAnjiainformationTechnologyCo., LTD} Signature {HarleyQuinn} {Manager} {USAMEIHUATRADINGINC} 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 5

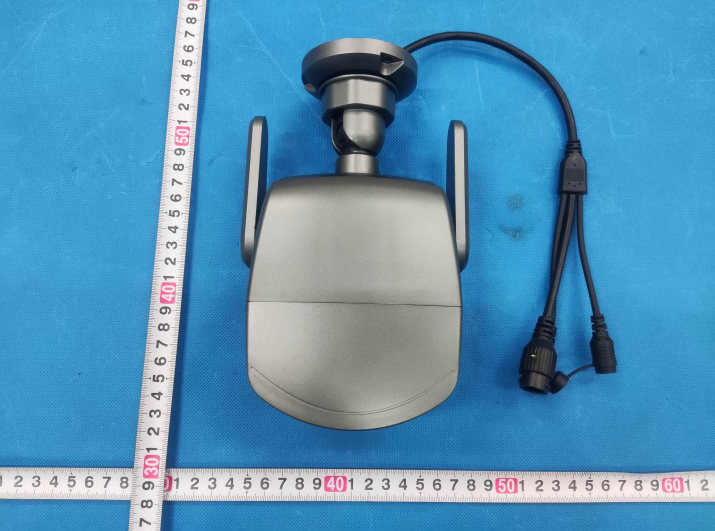

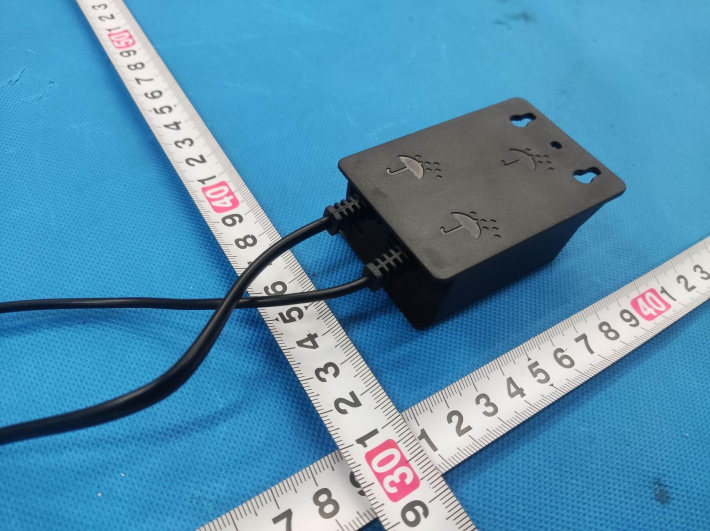

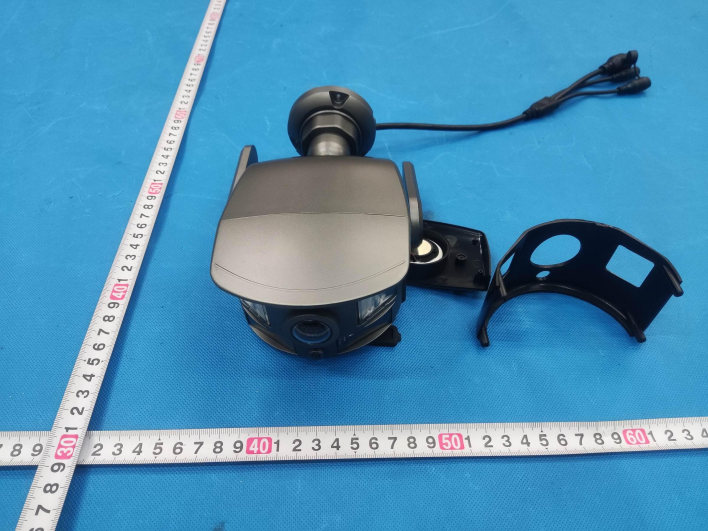

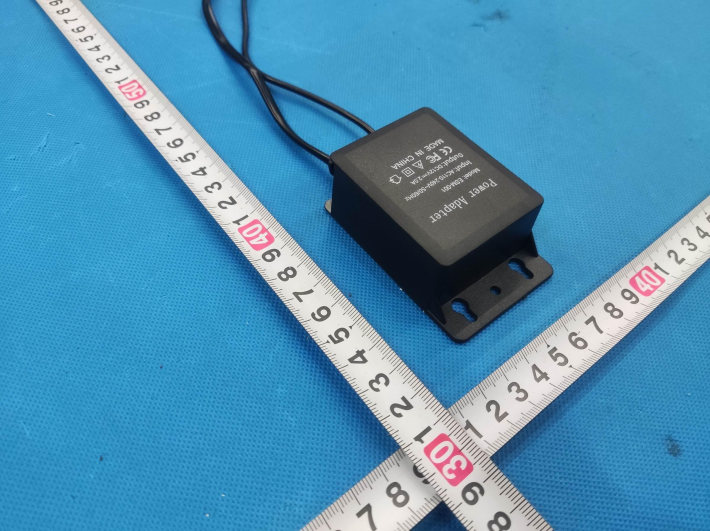

FCCID:2A36M-CM-I311M Page1of7 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. ExternalPhotos Photo1 Photo2 FCCID:2A36M-CM-I311M Page2of7 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 FCCID:2A36M-CM-I311M Page3of7 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 FCCID:2A36M-CM-I311M Page4of7 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo7 Photo8 FCCID:2A36M-CM-I311M Page5of7 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo9 Photo10 FCCID:2A36M-CM-I311M Page6of7 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo11 Photo12 FCCID:2A36M-CM-I311M Page7of7 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo13 Photo14 ------End------

FCCLabel W:15mm L:30mm HdSmartcamera ModelName:CM-I311M FCCID:2A36M-CM-I311M

FCCID:2A36M-CM-I311M Page1of9 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. InternalPhotos Photo1 Photo2 FCCID:2A36M-CM-I311M Page2of9 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 FCCID:2A36M-CM-I311M Page3of9 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 Antenna FCCID:2A36M-CM-I311M Page4of9 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo7 Photo8 FCCID:2A36M-CM-I311M Page5of9 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo9 Photo10 FCCID:2A36M-CM-I311M Page6of9 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo11 Photo12 FCCID:2A36M-CM-I311M Page7of9 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo13 Photo14 FCCID:2A36M-CM-I311M Page8of9 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo15 Photo16 FCCID:2A36M-CM-I311M Page9of9 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo17 Photo18 ------End------

RFExposureevaluation FCCID:2A36M-CM-I311M Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:MobileDevice 1.Reference Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbe operatedinamannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergy levelinexcessoftheCommission’sguidelines. Accordingto§1.1310and§2.1091RFexposureiscalculated. KDB447498D01:MobileandPortableDevicesRFExposureProceduresandEquipment AuthorizationPolicies 2.Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 3.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 4.AntennaInformation EUTcanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; AntennaNo. ModelNo. ofantenna: Typeofantenna: Gainoftheantenna (Max.) Frequencyrange: WIFI/FPCantenna2.36dBifor2400-2480MHz 5.ManufacturingTolerance WIFI(Conducted) Frequency (MHz) 11b(Peak) 241224372462 Target(dBm)141414 Tolerance±(dB)1.01.01.0 Frequency (MHz) 11g(Peak) 241224372462 Target(dBm)131313 Tolerance ± (dB) 1.01.01.0 Frequency (MHz) 11n(HT20)(Peak) 241224372462 Target(dBm)131313 Tolerance±(dB)1.01.01.0 Frequency (MHz) 11n(HT40)(Peak) 242224372452 Target(dBm)121212 Tolerance±(dB)1.01.01.0 6.StandaloneMPEResult AsdeclaredbytheApplicant,theEUTisawirelessdeviceusedinafixapplication,atleast 20cmfromanybodypartoftheuserornearbypersons;fromthemaximumEUTRFoutput power,theminimumseparationdistance,r=20cm,aswellasthegainoftheusedantennais refertosection4,theRFpowerdensitycanbeobtained. ModulationType OutputpowerAntenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBmmW 2.4GWIFI15.031.6232.361.7220.010831.0000 Remark: 1.Outputpower(Peak)includingturn-uptolerance; 2.MPEevaluatedistanceis20cmfromusermanualprovidebymanufacturer. 7.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1091fortheuncontrolled RFExposureofmobiledevice. ----------------THEENDOFREPORT---------------

Page1of42ReportNo.:AIT23082412FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. TESTREPORT ClientInformation: Applicant:ShenzhenAnjiainformationTechnologyCo.,LTD Applicantadd.: No.13,AnyeRoad,AnliangCommunity,YuanshanStreet,Longgang District,Shenzhen,Guangdong,China Manufacturer:ShenzhenAnjiainformationTechnologyCo.,LTD Manufactureradd.: No.13,AnyeRoad,AnliangCommunity,YuanshanStreet,Longgang District,Shenzhen,Guangdong,China ProductInformation: ProductName:HdSmartcamera ModelNo.:CM-I311M,I311S BrandName:N/A FCCID:2A36M-CM-I311M Applicablestandards: FCCCFRTitle47Part15SubpartCSection15.247 PreparedBy: DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang,Huangjiang,Dongguan, Guangdong,China Tel.:+86-769-82020499Fax.:+86-769-82020495 DateofReceipt:2023-09-01DateofTest:2023-09-02~2023-09-11 DateofIssue:2023-09-12TestResult:Pass ThisdevicedescribedabovehasbeentestedbyDongguanYaxu(AiT)TechnologyLimitedandthe testresultsshowthattheequipmentundertest(EUT)isincompliancewiththeFCC/ISED requirements.Anditisapplicableonlytothetestedsampleidentifiedinthereport. Note:Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalof DongguanYaxu(AiT)TechnologyLimited,thisdocumentmaybealteredorrevisedby DongguanYaxu(AiT)TechnologyLimited,personalonly,andshallbenotedintherevisionof thedocument.Thistestreportmustnotbeusedbytheclienttoclaimproductendorsement. Reviewedby:Approvedby: SimbaHuangSeal.chen Page2of42ReportNo.:AIT23082412FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. 1Contents Page COVERPAGE 1CONTENTS...........................................................................................................................................................................2 2TESTSUMMARY.................................................................................................................................................................5 2.1StatementoftheMeasurementUncertainty........................................................................................5 2.2MeasurementUncertainty....................................................................................................................5 3TESTFACILITY....................................................................................................................................................................6 3.1Deviationfromstandard.......................................................................................................................6 3.2Abnormalitiesfromstandardconditions...............................................................................................6 3.3TestLocation.........................................................................................................................................6 4GENERALINFORMATION................................................................................................................................................7 4.1Testfrequencies...................................................................................................................................8 4.2EUTPeripheralList..............................................................................................................................8 4.3TestPeripheralList...............................................................................................................................8 4.4TESTMETHODOLOGY.......................................................................................................................9 4.5DescriptionofTestModes..................................................................................................................10 5EQUIPMENTUSEDDURINGTEST...............................................................................................................................11 6TESTRESULTSANDMEASUREMENTDATA..........................................................................................................12 6.1Antennarequirement..........................................................................................................................12 6.1.1Standardrequirement:.............................................................................................................12 6.1.2EUTAntenna:...........................................................................................................................12 6.2OnTimeandDutyCycle....................................................................................................................13 6.2.1Standardrequirement:.............................................................................................................13 6.2.2MeasuringInstrumentsandSetting:........................................................................................13 6.2.3TestProcedures.......................................................................................................................13 6.2.4TestSetupLayout....................................................................................................................13 6.2.5EUTOperationduringTest......................................................................................................13 6.2.6Testresult.................................................................................................................................13 6.3MaximumConductedOutputPeakPowerMeasurement.................................................................14 6.3.1Standardrequirement:.............................................................................................................14 6.3.2MeasuringInstruments:...........................................................................................................14 6.3.3TestProcedures:...................................................................................................................…

Text truncated - open the document above for the full version.

Supplier: Shenzhen Zhonglian Yunda Technology Co., LTD Address: 5th Floor, Building 4, Daxin Xinmei Industrial Park, No.21 Gongchang Road, Guangming District, Shenzhen Tel: 0755-29890211 E-mail:[email protected] 1/8 SPECIFICATION FOR APPROVAL CUSTOMER NAME: PRODUCT NAME: 2.4G 2.36dBi FPC L=100mm+ CUSTOMER P/N: MANUFACTURER ZLYD P/N:Z2C100W2D240AREV: A SIGNATURE CUSTOMER SIGNATURE CHECKED BY: Victor APPROVED BY: EVINE DATE: 2023-3-15 2/8 Contents ltemDescription 1、 --------------------------------------------------------- Change resume 2、 ----------------------------------------------------- Specification sheet 3、 ----------------------------- Product picture with antenna position 4、 -------------------------------------------------------------- Test repor t 3/8 1. Change your resume Ver Date Change log A 2023-3-15 Initial release 4/8 2. Specification sheet 主要技术指标 Main technical specifications 频率范围 （ MHZ ） 2400-2500 Frequency Range (MHZ) 2400-2500 特性阻抗 (Ω) 50Impedance(Ω)50 增益 (dBi) Peak 2.36 Gain(dBi) 输出电压 2.36 驻波比 ≦ 2VSWR ≦ 2 极化方式 垂直极化 PolarizationLinear,Vertical 方向性 全向性 RadiationOmni-directional 连接方式 IPEXConnector TypeIPEX 物理性能 Physical Properties 天线外套材料 ABSAntenna coverABS 工作温度 -20 °C ~+70 °C Operating Temp-20 °C ~+70 °C 保存温度 -20 °C ~+70 °C Storage Temp-20 °C ~+70 °C 5/8 3. Product picture and antenna position Antenna position 6/8 4. Test report 4.1 Network analyzer test report 4 .2：Antenna gain and efficiency Frequency（MHz） Gain （dBi） Efficiency（%） 24002.2172.26 24502.3675.71 25002.1574.35 7/8 4.3 ： 2D 、 3DRaditationPattern 8/8 Phi 0 2D 图 Phi 90 2D 图 Theta 90 2D 图

DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 1 of 56 AppendixC RFTestDatafor2.4GWIFI(ConductedMeasurement) ProductName:HdSmartcamera TradeMark:N/A TestModel:CM-I311M EnvironmentalConditions Temperature: 25.6  C RelativeHumidity:52.4% ATMPressure:100.0kPa TestEngineer:SimbaHuang Supervisedby:SealChen DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 2 of 56 Contents Page COVERPAGE 1DutyCycle........................................................................................................................................................................................3 1.1TestResult............................................................................................................................................................................3 1.2TestGraphs...........................................................................................................................................................................4 2MaximumConductedOutputPower...............................................................................................................................................10 2.1TestResult..........................................................................................................................................................................10 3-6dBBandwidth...............................................................................................................................................................................11 3.1TestResult..........................................................................................................................................................................11 3.2TestGraphs.........................................................................................................................................................................12 4MaximumPowerSpectralDensityLevel.........................................................................................................................................18 4.1TestResult..........................................................................................................................................................................18 4.2TestGraphs.........................................................................................................................................................................19 5BandEdge......................................................................................................................................................................................25 5.1TestResult..........................................................................................................................................................................25 5.2TestGraphs.........................................................................................................................................................................26 6ConductedRFSpuriousEmission..................................................................................................................................................34 6.1TestResult..........................................................................................................................................................................34 6.2TestGraphs.........................................................................................................................................................................35 7RestrictBand..................................................................................................................................................................................47 7.1TestResult..........................................................................................................................................................................47 7.2TestGraphs.........................................................................................................................................................................49 DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 3 of 56 1DutyCycle 1.1TestResult ModeFrequency(MHz)AntennaDutyCycle(%)1/T(kHz) b2412Ant199.650.12 b2437Ant199.610.12 b2462Ant199.60.12 g2412Ant186.724.76 g2437Ant186.974.55 g2462Ant186.964.55 n202412Ant187.584.17 n202437Ant187.564.35 n202462Ant187.534.35 n402422Ant188.014.17 n402437Ant188.034 n402452Ant188.044 DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 4 of 56 1.2TestGraphs TestGraphs b2412MHzAnt1 b2437MHzAnt1 DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 5 of 56 TestGraphs b2462MHzAnt1 g2412MHzAnt1 DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 6 of 56 TestGraphs g2437MHzAnt1 g2462MHzAnt1 DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 7 of 56 TestGraphs n202412MHzAnt1 n202437MHzAnt1 DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 8 of 56 TestGraphs n202462MHzAnt1 n402422MHzAnt1 DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 9 of 56 TestGraphs n402437MHzAnt1 n402452MHzAnt1 DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 10 of 56 2MaximumConductedOutputPower 2.1TestResult ModeFrequency(MHz)AntennaConductedPower(dBm)Limit(dBm)Verdict b2412Ant113.9430Pass b2437Ant114.2330Pass b2462Ant113.7130Pass g2412Ant113.3430Pass g2437Ant113.2430Pass g2462Ant113.0330Pass n202412Ant112.930Pass n202437Ant112.7930Pass n202462Ant112.5430Pass n402422Ant112.330Pass n402437Ant112.2330Pass n402452Ant112.0730Pass DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 11 of 56 3-6dBBandwidth 3.1TestResult ModeFrequency(MHz)Antenna-6dB…

Text truncated - open the document above for the full version.

DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 31 of 56 n202462MHzAnt1Ref n202462MHzAnt1Emission DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 32 of 56 n402422MHzAnt1Ref n402422MHzAnt1Emission DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 33 of 56 n402452MHzAnt1Ref n402452MHzAnt1Emission DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 34 of 56 6ConductedRFSpuriousEmission 6.1TestResult ModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict b2412Ant1-42.36-20Pass b2437Ant1-42.68-20Pass b2462Ant1-41.65-20Pass g2412Ant1-40.28-20Pass g2437Ant1-40.12-20Pass g2462Ant1-38.99-20Pass n202412Ant1-38.81-20Pass n202437Ant1-38.93-20Pass n202462Ant1-38.99-20Pass n402422Ant1-34.42-20Pass n402437Ant1-34.61-20Pass n402452Ant1-34.79-20Pass DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 35 of 56 6.2TestGraphs TestGraphs b2412MHzAnt1Ref b2412MHzAnt1Emission DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 36 of 56 b2437MHzAnt1Ref b2437MHzAnt1Emission DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 37 of 56 b2462MHzAnt1Ref b2462MHzAnt1Emission DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 38 of 56 g2412MHzAnt1Ref g2412MHzAnt1Emission DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 39 of 56 g2437MHzAnt1Ref g2437MHzAnt1Emission DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 40 of 56 g2462MHzAnt1Ref g2462MHzAnt1Emission DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 41 of 56 n202412MHzAnt1Ref n202412MHzAnt1Emission DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 42 of 56 n202437MHzAnt1Ref n202437MHzAnt1Emission DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 43 of 56 n202462MHzAnt1Ref n202462MHzAnt1Emission DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 44 of 56 n402422MHzAnt1Ref n402422MHzAnt1Emission DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 45 of 56 n402437MHzAnt1Ref n402437MHzAnt1Emission DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 46 of 56 n402452MHzAnt1Ref n402452MHzAnt1Emission DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 47 of 56 7RestrictBand 7.1TestResult Mod e Frequency (MHz) Antenn a SpurFreq (MHz) Power (dBm) Gain (dBi) E (dBuV/m) Detecto r Limit (dBuV/m) Verdic t b2412Ant12310-50.672.3646.92Peak74Pass b2412Ant12310-58.162.3639.43Average54Pass b2412Ant12389.092-45.512.3652.08Peak74Pass b2412Ant12385.348-54.222.3643.37Average54Pass b2412Ant12390-48.32.3649.29Peak74Pass b2412Ant12390-56.722.3640.87Average54Pass b2462Ant12483.5-47.732.3649.86Peak74Pass b2462Ant12483.5-57.532.3640.06Average54Pass b2462Ant12496.979-45.352.3652.24Peak74Pass b2462Ant12487.015-57.352.3640.24Average54Pass b2462Ant12500-49.472.3648.12Peak74Pass b2462Ant12500-58.052.3639.54Average54Pass g2412Ant12310-49.422.3648.17Peak74Pass g2412Ant12310-56.652.3640.94Average54Pass g2412Ant12338.314-45.22.3652.39Peak74Pass g2412Ant12337.144-54.532.3643.06Average54Pass g2412Ant12390-49.152.3648.44Peak74Pass g2412Ant12390-56.892.3640.70Average54Pass g2462Ant12483.5-48.232.3649.36Peak74Pass g2462Ant12483.5-56.892.3640.70Average54Pass g2462Ant12496.979-46.962.3650.63Peak74Pass g2462Ant12486.114-56.212.3641.38Average54Pass g2462Ant12500-49.82.3647.79Peak74Pass g2462Ant12500-56.772.3640.82Average54Pass n202412Ant12310-48.682.3648.91Peak74Pass n202412Ant12310-57.242.3640.35Average54Pass n202412Ant12338.899-45.372.3652.22Peak74Pass n202412Ant12340.303-54.892.3642.70Average54Pass n202412Ant12390-49.232.3648.36Peak74Pass n202412Ant12390-57.322.3640.27Average54Pass n202462Ant12483.5-49.082.3648.51Peak74Pass n202462Ant12483.5-56.672.3640.92Average54Pass n202462Ant12495.177-46.892.3650.70Peak74Pass n202462Ant12484.206-56.152.3641.44Average54Pass DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 48 of 56 n202462Ant12500-48.732.3648.86Peak74Pass n202462Ant12500-56.832.3640.76Average54Pass n402422Ant12310-49.922.3647.67Peak74Pass n402422Ant12310-56.892.3640.70Average54Pass n402422Ant12349.05-45.732.3651.86Peak74Pass n402422Ant12339.11-54.572.3643.02Average54Pass n402422Ant12390-48.772.3648.82Peak74Pass n402422Ant12390-57.222.3640.37Average54Pass n402452Ant12483.5-48.092.3649.50Peak74Pass n402452Ant12483.5-56.132.3641.46Average54Pass n402452Ant12484.088-46.612.3650.98Peak74Pass n402452Ant12483.698-56.032.3641.56Average54Pass n402452Ant12500-49.452.3648.14Peak74Pass n402452Ant12500-56.622.3640.97Average54Pass DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 49 of 56 7.2TestGraphs TestGraphs b2412MHzAnt1Peak b2412MHzAnt1Average DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 50 of 56 b2462MHzAnt1Peak b2462MHzAnt1Average DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 51 of 56 g2412MHzAnt1Peak g2412MHzAnt1Average DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 52 of 56 g2462MHzAnt1Peak g2462MHzAnt1Average DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 53 of 56 n202412MHzAnt1Peak n202412MHzAnt1Average DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 54 of 56 n202462MHzAnt1Peak n202462MHzAnt1Average DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 55 of 56 n402422MHzAnt1Peak n402422MHzAnt1Average DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23082412FW1 FCCID:2A36M-CM-I311M Page 56 of 56 n402452MHzAnt1Peak n40…

Text truncated - open the document above for the full version.

FCCID:2A36M-CM-I311M Page1of2 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. TestSetupPhoto RadiatedEmission FCCID:2A36M-CM-I311M Page2of2 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. ConductedEmission ------End------
