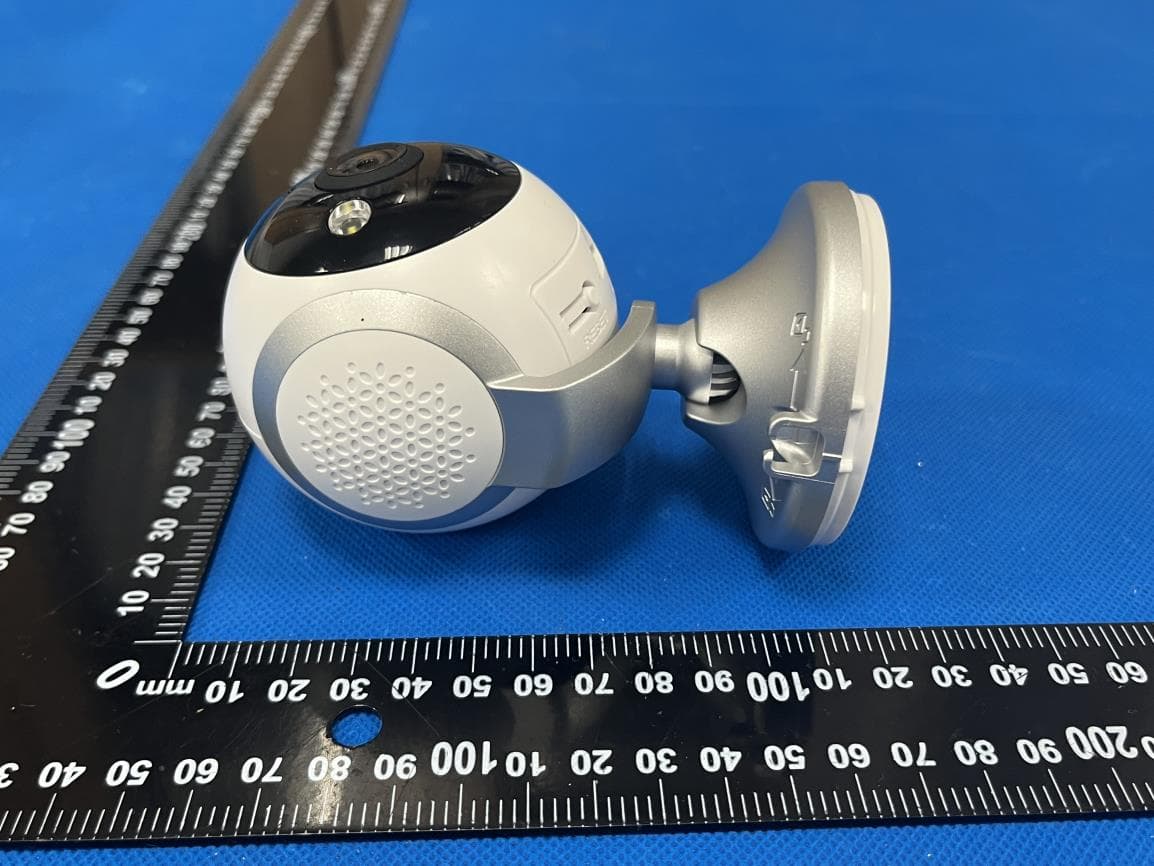

2A36MCM-I310MHD Smart camera

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Shenzhen Anjia Information Technology Co., Ltd. 2023-7-10 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (2A36MCM-I310M) [Shenzhen Anjia Information Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Name: Jinming Liu Title: Chief Engineer Shenzhen Anjia Information Technology Co., Ltd. 2023-7-10 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (2A36MCM-I310M) [Shenzhen Anjia Information Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Name: Jinming Liu Title: Chief Engineer

Attestation Statements 2023-7-10 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (2A36MCM-I310M) (Shenzhen Anjia Information Technology Co., Ltd.), the undersigned, hereby authorize (USA MEIHUA TRADING INC) to act as our designated U.S. agent for service of process, Shenzhen Anjia Information Technology Co., Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (USA MEIHUA TRADING INC) accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company name: Shenzhen Anjia Information Technology Co., Ltd. Contact Name: Jinming Liu Address: No. 13,Anye Road,Anliang Community,Yuanshan Street,Longgang District,Shenzhen, Guangdong, China Telephone No: 15914112255 Email: [email protected] Signature: Jinming Liu/Chief Engineer U.S. Agent Information: Company Name: USA MEIHUA TRADING INC Address: 5379 Pine Valley Ct Boulder CO 80301 United States FRN: 0033406166 Contact Name: Harley Quinn Telephone No: 1-312-363-9424 Email: [email protected] Signature Harley Quinn /Chief Engineer

Shenzhen Anjia Information Technology Co., Ltd. 2023-7-10 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR EUT NAME: HD Smart camera MODEL: CM-I310M FCC ID: 2A36MCM-I310M To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Company name: Shenzhen Anjia Information Technology Co., Ltd. Address: No. 13,Anye Road,Anliang Community,Yuanshan Street,Longgang District,Shenzhen, Guangdong, China Signature: Jinming Liu/Chief Engineer

Shenzhen Anjia Information Technology Co., Ltd. 2023-7-10 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (BTF Testing Lab (Shenzhen) Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Company name: Shenzhen Anjia Information Technology Co., Ltd. Address: No. 13,Anye Road,Anliang Community,Yuanshan Street,Longgang District,Shenzhen, Guangdong, China Signature: Jinming Liu/Manager

Size:16*14mm MODEL: CM-I310M FCC ID: 2A36MCM-I310M Label location

ANT

FCC ID: 2A36MCM-I310M RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation wifi 2.4G mode Channel Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm2) Limit (mW/cm2) Result 802.11b 15.059 32.06 0.01281 1.0 Pass 802.11g 13.873 24.39 0.00975 1.0 Pass 802.11n HT20 14.316 27.01 0.01080 1.0 Pass 802.11n HT40 13.817 24.08 0.00963 1.0 Pass Remark: antenna gain=3.03dBi

T e s t R e p o r t P a g e 1 o f 42 Annex FCC Part 15C Test Report FCC ID:2A36MCM-I310M Applicant: Shenzhen Anjia Information Technology Co., Ltd. Address: No. 13, Anye Road, Anliang Community, Yuanshan Street, Longgang District, Shenzhen, Guangdong, China Manufacturer: Shenzhen Anjia Information Technology Co., Ltd. Address: No. 13, Anye Road, Anliang Community, Yuanshan Street, Longgang District, Shenzhen, Guangdong, China EUT: HD Smart camera Trade Mark: N/A Model Number: CM-I310M Date of Receipt: Jun. 25, 2023 Test Date: Jun. 25, 2023 – Jul. 10, 2023 Date of Report: Jul. 10, 2023 Prepared By: BTF Testing Lab (Shenzhen) Co., Ltd. Address: F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao’an District, Shenzhen, China Applicable Standards: FCC PART 15 C 15.247 ANSI C63.10:2013 Test Result: Pass T e s t R e p o r t P a g e 2 o f 42 Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT b 2412 Ant1 97.31 0.12 NVNT b 2437 Ant1 97.3 0.12 NVNT b 2462 Ant1 97.26 0.12 NVNT g 2412 Ant1 85.14 0.7 NVNT g 2437 Ant1 85.02 0.7 NVNT g 2462 Ant1 84.96 0.71 NVNT n20 2412 Ant1 97.62 0.1 NVNT n20 2437 Ant1 97.52 0.11 NVNT n20 2462 Ant1 97.57 0.11 NVNT n40 2422 Ant1 95.28 0.21 NVNT n40 2437 Ant1 95.24 0.21 NVNT n40 2452 Ant1 95.22 0.21 T e s t R e p o r t P a g e 3 o f 42 Duty Cycle NVNT b 2412MHz Ant1 Duty Cycle NVNT b 2437MHz Ant1 Duty Cycle NVNT b 2462MHz Ant1 T e s t R e p o r t P a g e 4 o f 42 Duty Cycle NVNT g 2412MHz Ant1 Duty Cycle NVNT g 2437MHz Ant1 Duty Cycle NVNT g 2462MHz Ant1 T e s t R e p o r t P a g e 5 o f 42 Duty Cycle NVNT n20 2412MHz Ant1 Duty Cycle NVNT n20 2437MHz Ant1 Duty Cycle NVNT n20 2462MHz Ant1 T e s t R e p o r t P a g e 6 o f 42 Duty Cycle NVNT n40 2422MHz Ant1 Duty Cycle NVNT n40 2437MHz Ant1 Duty Cycle NVNT n40 2452MHz Ant1 T e s t R e p o r t P a g e 7 o f 42 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT b 2412 Ant1 14.631 0.12 14.751 30 Pass NVNT b 2437 Ant1 14.939 0.12 15.059 30 Pass NVNT b 2462 Ant1 14.172 0.12 14.292 30 Pass NVNT g 2412 Ant1 12.668 0.7 13.368 30 Pass NVNT g 2437 Ant1 13.173 0.7 13.873 30 Pass NVNT g 2462 Ant1 12.416 0.71 13.126 30 Pass NVNT n20 2412 Ant1 13.906 0.1 14.006 30 Pass NVNT n20 2437 Ant1 14.206 0.11 14.316 30 Pass NVNT n20 2462 Ant1 13.331 0.11 13.441 30 Pass NVNT n40 2422 Ant1 13.591 0.21 13.801 30 Pass NVNT n40 2437 Ant1 13.607 0.21 13.817 30 Pass NVNT n40 2452 Ant1 12.822 0.21 13.032 30 Pass T e s t R e p o r t P a g e 8 o f 42 Power NVNT b 2412MHz Ant1 Power NVNT b 2437MHz Ant1 Power NVNT b 2462MHz Ant1 T e s t R e p o r t P a g e 9 o f 42 Power NVNT g 2412MHz Ant1 Power NVNT g 2437MHz Ant1 Power NVNT g 2462MHz Ant1 T e s t R e p o r t P a g e 10 o f 42 Power NVNT n20 2412MHz Ant1 Power NVNT n20 2437MHz Ant1 Power NVNT n20 2462MHz Ant1 T e s t R e p o r t P a g e 11 o f 42 Power NVNT n40 2422MHz Ant1 Power NVNT n40 2437MHz Ant1 Power NVNT n40 2452MHz Ant1 T e s t R e p o r t P a g e 12 o f 42 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 7.959 0.5 Pass NVNT b 2437 Ant1 7.518 0.5 Pass NVNT b 2462 Ant1 7.74 0.5 Pass NVNT g 2412 Ant1 15.72 0.5 Pass NVNT g 2437 Ant1 15.09 0.5 Pass NVNT g 2462 Ant1 15.077 0.5 Pass NVNT n20 2412 Ant1 16.018 0.5 Pass NVNT n20 2437 Ant1 13.367 0.5 Pass NVNT n20 2462 Ant1 15.056 0.5 Pass NVNT n40 2422 Ant1 26.352 0.5 Pass NVNT n40 2437 Ant1 35.087 0.5 Pass NVNT n40 2452 Ant1 35.029 0.5 Pass T e s t R e p o r t P a g e 13 o f 42 -6dB Bandwidth NVNT b 2412MHz Ant1 -6dB Bandwidth NVNT b 2437MHz Ant1 -6dB Bandwidth NVNT b 2462MHz Ant1 T e s t R e p o r t P a g e 14 o f 42 -6dB Bandwidth NVNT g 2412MHz Ant1 -6dB Bandwidth NVNT g 2437MHz Ant1 -6dB Bandwidth NVNT g 2462MHz Ant1 T e s t R e p o r t P a g e 15 o f 42 -6dB Bandwidth NVNT n20 2412MHz Ant1 -6dB Bandwidth NVNT n20 2437MHz Ant1 -6dB Bandwidth NVNT n20 2462MHz Ant1 T e s t R e p o r t P a g e 16 o f 42 -6dB Bandwidth NVNT n40 2422MHz Ant1 -6dB Bandwidth NVNT n40 2437MHz Ant1 -6dB Bandwidth NVNT n40 2452MHz Ant1 T e s t R e p o r t P a g e 17 o f 42 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT b 2412 Ant1 12.89757724 NVNT b 2437 Ant1 12.23775346 NVNT b 2462 Ant1 12.06381737 NVNT g 2412 Ant1 16.44078848 NVNT g 2437 Ant1 16.31733452 NVNT g 2462 Ant1 16.23325618 NVNT n20 2412 Ant1 17.72937972 NVNT n20 2437 Ant1 17.45911973 NVNT n20 2462 Ant1 17.41862291 NVNT n40 2422 Ant1 35.78980114 NVNT n40 2437 Ant1 36.06678894 NVNT n40 2452 Ant1 36.04696702 T e s t R e p o r t P a g e 18 o f 42 OBW NVNT b 2412MHz Ant1 OBW NVNT b 2437MHz Ant1 OBW NVNT b 2462MHz Ant1 T e s t R e p o r t P a g e 19 o f 42 OBW NVNT g 2412MHz Ant1 OBW NVNT g 2437MHz Ant1 OBW NVNT g 2462MHz Ant1 T e s t R e p o r t P a g e 20 o f 42 OBW NVNT n20 2412MHz Ant1 OBW NVNT n20 2437MHz Ant1 OBW NVNT n20 2462MHz Ant1 T e s t R e p o r t P a g e 21 o f 42 OBW NVNT n40 2422MHz Ant1 OBW NVNT n40 2437MHz Ant1 OBW NVNT n40 2452MHz Ant1 T e s t R e p o r t P a g e 22 o f 42 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Max PSD (dBm) Limit (dBm) Verdict NVNT b 2412 Ant1 -15.646 8 Pass NVNT b 2437 Ant1 -15.75 8 Pass NVNT b 2462 Ant1 -15.865 8 Pass NVNT g 2412 Ant1 -19.251 8 Pass NVNT g 2437 Ant1 -19.195 8 Pass NVNT g 2462 Ant1 -19.651 8 Pass NVNT n20 2412 Ant1 -19.708 8 Pass NVNT n20 2437 Ant1 -19.455 8 Pass NVNT n20 2462 Ant1 -19.952 8 Pass NVNT n40 2422 Ant1 -19.604 8 Pass NVNT n40 2437 Ant1 -20.327 8 Pass NVNT n40 2452 Ant1 -21.871 8 Pass T e s t R e p o r t P a g e 23 o f 42 PSD NVNT b 2412MHz Ant1 PSD NVNT b 2437MHz Ant1 PSD NVNT b 2462MHz Ant1 T e s t R e p o r t P a g e 24 o f 42 PSD NVNT g 2412MHz Ant1 PSD NVNT g 2437MHz Ant1 PSD NVNT g 2462MHz Ant1 T e s t R e p o r t P a g e 25 o f 42 PSD NVNT n20 2412MHz Ant1 PSD NVNT n20 2437MHz Ant1 PSD NVNT n20 2462MHz Ant…

Text truncated - open the document above for the full version.

Manufacturer: Shenzhen ZLYD Technology Co., Ltd Add: Floor 5, Block 4, Daxin Xinmei Industrial Park, No. 21, Gongchang Road, Guangming District, Shenzhen Telephone：0755-29890211 E-mail:[email protected] SPECIFICATION FOR APPROVAL CUSTOMER NAME: PRODUCT NAME:2.4G 3dBi Built-in Antenna CUSTOMER P/N: ZLYDP/N:Z1NP3D16AREV: A Mode : Z1NP3D16A MANUFACTURER SIGNATURE CUSTOMER SIGNATURE CHECKED BY: VICTOR APPROVED BY: EVINE DATE: 2023-1-11 Manufacturer: Shenzhen ZLYD Technology Co., Ltd Add: Floor 5, Block 4, Daxin Xinmei Industrial Park, No. 21, Gongchang Road, Guangming District, Shenzhen Telephone：0755-29890211 E-mail:[email protected] Contents ltemDescription 一、-------------------------------------------------Changeof resume 二、------------------------------------------------Specificationsheet 三、-----------------------------------------------Finisheddrawing 四、------------------------------------------------Testreport Manufacturer: Shenzhen ZLYD Technology Co., Ltd Add: Floor 5, Block 4, Daxin Xinmei Industrial Park, No. 21, Gongchang Road, Guangming District, Shenzhen Telephone：0755-29890211 E-mail:[email protected] 一、 Change of resume versiondateChangerecord A2022-11-10 Initialrelease Manufacturer: Shenzhen ZLYD Technology Co., Ltd Add: Floor 5, Block 4, Daxin Xinmei Industrial Park, No. 21, Gongchang Road, Guangming District, Shenzhen Telephone：0755-29890211 E-mail:[email protected] 二、 Specification sheet Product main technical parameters Main technical specifications Frequency Range (MHZ) 2400~2500 Impedance(Ω)50 Peak Gain(dBi)3 ± 0. 3 VSWR ≤1.92 Polarization Linear Connector TypeDIP Physical Properties Operating Temp-20 °C ~+70 °C Storage Temp-20 °C ~+60 °C Manufacturer: Shenzhen ZLYD Technology Co., Ltd Add: Floor 5, Block 4, Daxin Xinmei Industrial Park, No. 21, Gongchang Road, Guangming District, Shenzhen Telephone：0755-29890211 E-mail:[email protected] 三、 Finished drawing Manufacturer: Shenzhen ZLYD Technology Co., Ltd Add: Floor 5, Block 4, Daxin Xinmei Industrial Park, No. 21, Gongchang Road, Guangming District, Shenzhen Telephone：0755-29890211 E-mail:[email protected] 四、 Test report 4.1 ： Network analyzer test report 4 .2：Antenna gain and efficiency Frequency（MHZ） Peak gain（dBi） Efficiency（%） 24002.6556.61 24503.0361.27 25002.8558.38 Manufacturer: Shenzhen ZLYD Technology Co., Ltd Add: Floor 5, Block 4, Daxin Xinmei Industrial Park, No. 21, Gongchang Road, Guangming District, Shenzhen Telephone：0755-29890211 E-mail:[email protected] 4.3 ： Dark room 2D 、 3DRaditation Pattern Manufacturer: Shenzhen ZLYD Technology Co., Ltd Add: Floor 5, Block 4, Daxin Xinmei Industrial Park, No. 21, Gongchang Road, Guangming District, Shenzhen Telephone：0755-29890211 E-mail:[email protected]

Test Report Number: BTF230714R00501 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 1 of 40 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China FCC Part 15C Test Report FCC ID:2A36MCM-I310M Applicant: Shenzhen Anjia Information Technology Co., Ltd. Address: No. 13, Anye Road, Anliang Community, Yuanshan Street, Longgang District, Shenzhen, Guangdong, China Manufacturer: Shenzhen Anjia Information Technology Co., Ltd. Address: No. 13, Anye Road, Anliang Community, Yuanshan Street, Longgang District, Shenzhen, Guangdong, China EUT: HD Smart camera Trade Mark: N/A Model Number: CM-I310M Date of Receipt: Jun. 25, 2023 Test Date: Jun. 25, 2023 – Jul. 10, 2023 Date of Report: Jul. 10, 2023 Prepared By: BTF Testing Lab (Shenzhen) Co., Ltd. Address: F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao’an District, Shenzhen, China Applicable Standards: FCC PART 15 C 15.247 ANSI C63.10:2013 Test Result: Pass Report Number: BTF230714R00501 Reviewer (Supervisor): Jack Bu Approved (Manager): Ryan.CJ This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of BTF Testing Lab (Shenzhen) Co., Ltd. Test Report Number: BTF230714R00501 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 2 of 40 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 MEASUREMENT UNCERTAINTY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 DESCRIPTION OF TEST MODES 6 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 7 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3 . EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.1.2 TEST PROCEDURE 12 3.1.3 DEVIATION FROM TEST STANDARD 12 3.1.4 TEST SETUP 13 3.1.5 EUT OPERATING CONDITIONS 13 3.1.6 TEST RESULTS 13 3.2 RADIATED EMISSION MEASUREMENT 16 3.2.1 RADIATED EMISSION LIMITS 16 3.2.2 TEST PROCEDURE 17 3.2.3 DEVIATION FROM TEST STANDARD 17 3.2.4 TEST SETUP 17 3.2.5 EUT OPERATING CONDITIONS 18 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 19 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 20 3.2.8 TEST RESULTS (1GHZ~25GHZ) 22 3.3 RADIATED BAND EMISSION MEASUREMENT 27 3.3.1 TEST REQUIREMENT: 27 3.3.2 TEST PROCEDURE 27 3.3.3 DEVIATION FROM TEST STANDARD 27 3.3.4 TEST SETUP 28 3.3.5 EUT OPERATING CONDITIONS 28 4 . AVERAGE OUTPUT POWER 33 4.1 APPLIED PROCEDURES / LIMIT 33 4.1.1 TEST PROCEDURE 33 4.1.2 DEVIATION FROM STANDARD 33 Test Report Number: BTF230714R00501 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 3 of 40 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Table of Contents Page 4.1.3 TEST SETUP 33 4.1.4 EUT OPERATION CONDITIONS 33 4.1.5 TEST RESULTS 33 5 . POWER SPECTRAL DENSITY TEST 34 5.1 APPLIED PROCEDURES / LIMIT 34 5.1.1 TEST PROCEDURE 34 5.1.2 DEVIATION FROM STANDARD 34 5.1.3 TEST SETUP 34 5.1.4 EUT OPERATION CONDITIONS 34 5.1.5 TEST RESULTS 34 6 . 6DB BANDWIDTH TEST 35 6.1 APPLIED PROCEDURES / LIMIT 35 6.1.1 TEST PROCEDURE 35 6.1.2 DEVIATION FROM STANDARD 35 6.1.3 TEST SETUP 35 6.1.4 EUT OPERATION CONDITIONS 35 6.1.5 TEST RESULTS 35 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 36 7.1 APPLIED PROCEDURES / LIMIT 36 7.1.1 TEST PROCEDURE 36 7.1.2 DEVIATION FROM STANDARD 36 7.1.3 TEST SETUP 36 7.1.4 EUT OPERATION CONDITIONS 36 7.1.5 TEST RESULTS 36 8 . ANTENNA REQUIREMENT 37 8.1 STANDARD REQUIREMENT 37 8.2 EUT ANTENNA 37 9 . TEST SEUUP PHOTO 38 10 . EUT PHOTO 39 Test Report Number: BTF230714R00501 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 4 of 40 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d), 15.205, 15.209 Radiated Spurious Emission PASS 15.247(d), 15.209 Band Edge Emission PASS 15.247(b)(4) Average Output Power PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report 1.1 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Test Report Number: BTF230714R00501 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 5 of 40 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Product Name: HD Smart camera Trademark N/A Model No.: CM-I310M Model Difference N/A Operation Frequency: 2412~2462 MHz for 802.11ax/b/g/nHT20 2422~2452 MHz for 802.11ax/nHT40 Channel numbers: 11 Channels for 80…

Text truncated - open the document above for the full version.

Radiated Measurement Photos Conducted Measurement Photos
