2A38HCD60RBTEBPERSONAL BLUTOOTH CD PLAYER WITH FM RADIO

BLUETOOTH CD PLAYER WITH DIGITAL FM RADIO AND BASS BOOST MODEL: CD-60R-BTEB USER MANUAL PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE FEFERENCE E-1 Please contact EASY BUYS ELECTRONICS INC at 1-808-388-0174 if you have any questions about operating this product COMPLIANCE WITH FCC REGULATIONS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC ID: 2A38HCD60RBTEB E-2 CAUTION Follow the advice below for safe operations. ON PROTECTION AGAINST LASER ENERGY EXPOSURE  As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to disassemble the casing.  Stop operation immediately if any liquid or solid object should fall into the cabinet.  Do not touch the lens or poke at it. If you do, you may damage the lens and the player may not operate properly.  Do not put anything in the safety slot. If you do, the laser diode will be ON when the CD door is still open.  If the unit is not to be used for a long period of time, make sure that all power sources are disconnected from the unit. Remove all batteries from the battery compartment.  This unit employs a laser. The use of controls or adjustment or performance of procedures other than those specified here may result in exposure to hazardous radiation. Should any trouble occur, remove the power source and refer servicing to qualified personnel. PROTECT YOUR FURNITURE This system is equipped with non-skid rubber „feet‟ to prevent the product from moving when you operate the controls. These „feet‟ are made from non-migrating rubber material specially formulated to avoid leaving any marks or stains on your furniture. However certain types of oil based furniture polishes, wood preservatives, or cleaning sprays may cause the rubber „feet‟ to soften, and leave marks or a rubber residue on the furniture. To prevent any damage to your furniture we strongly recommend that you purchase small self-adhesive felt pads, available at hardware stores and home improvement centers everywhere and apply these pads to the bottom of the rubber „feet‟ before you place the product on fine wooden furniture. E-3 DEAR JENSEN ® CUSTOMER Selecting fine audio equipment such as the unit you've just purchased is only the start of your musical enjoyment. Now it's time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and t h e E l e c t r o n i c Industries Association's Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of sound. So what sounds "normal" can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts. To establish a safe level: • Start your volume control at a low setting. • Slowly increase the sound until you can hear it comfortably and clearly, and without distortion. • Once you have established a comfortable sound level: Set the dial and leave it there. Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime. We Want You Listening For a Lifetime Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association's Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise. Customer's Record: The serial number of this product is found on its bottom cover. You should note the serial number of this unit in the space provided as a permanent record of your purchase to aid in identification in the event of theft of loss. Model Number: CD-60R-BTEB Serial Number: ______________ E-4 LOCATION OF CONTROLS 1 / TUNER- BUTTON 9 ASP/ PRESET / FOLDER / BLUETOOTH/FM TX BUTTON 2 LCD DISPLAY 10 HEADPHONE JACK 3 PROGRAM / PLAY MODE BUTTON 11 EQ/BBS ON/OFF BUTTON 4 / CD/FM MODE BUTTON 12 VOLUME + BUTTON 5 POWER ON / OFF / BUTTON 13 VOLUME - BUTTON 6 / TUNER + BUTTON 14 CD DOOR OPEN SWITCH 7 BATTERY CHARGING INDICATOR 15 DC IN /Type-C JACK 8…

Text truncated - open the document above for the full version.

Jenmart Industrial (HK) Co., Limited

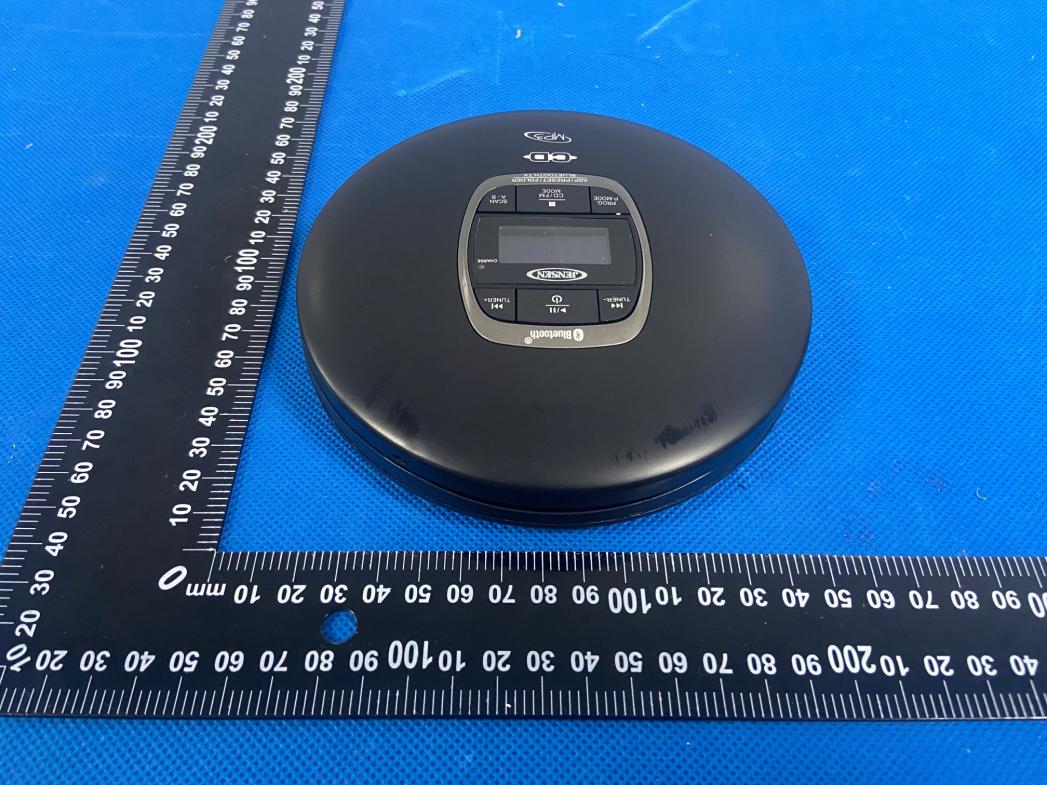

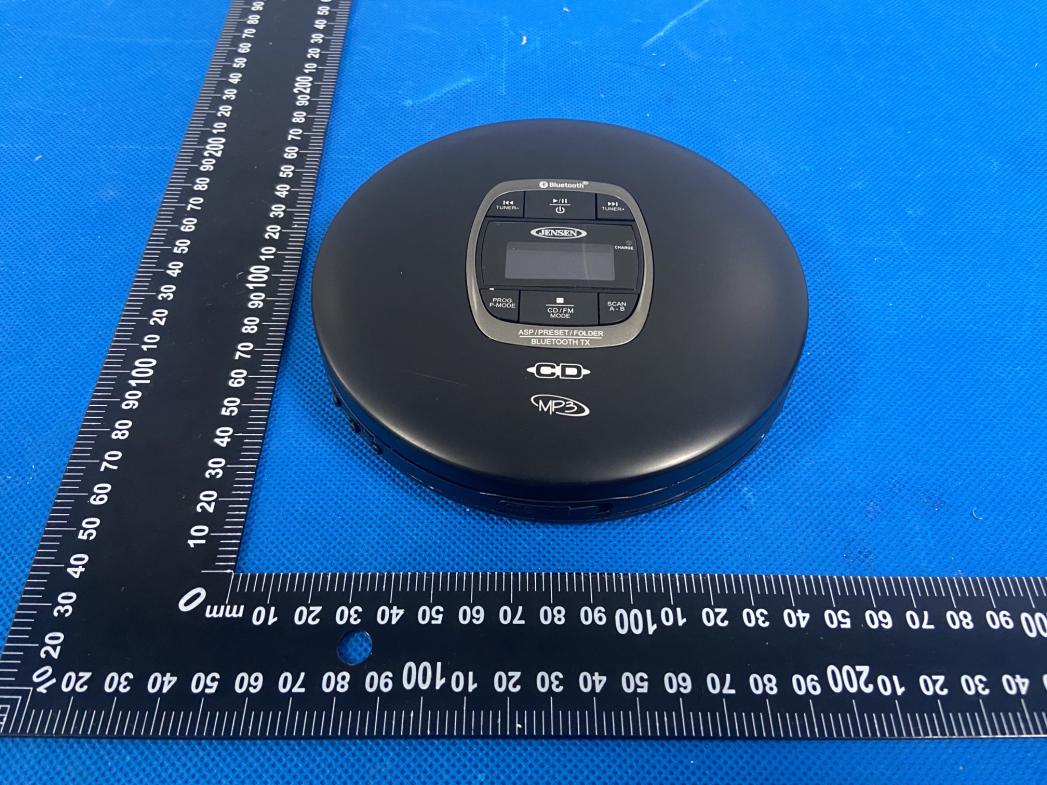

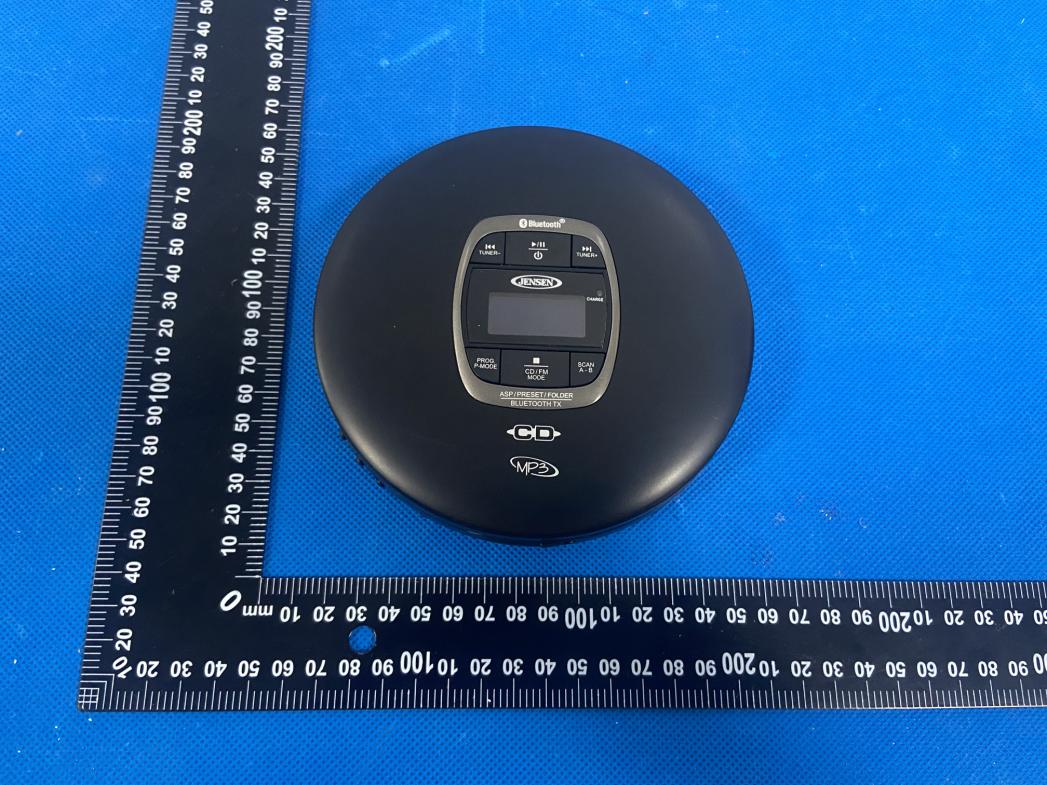

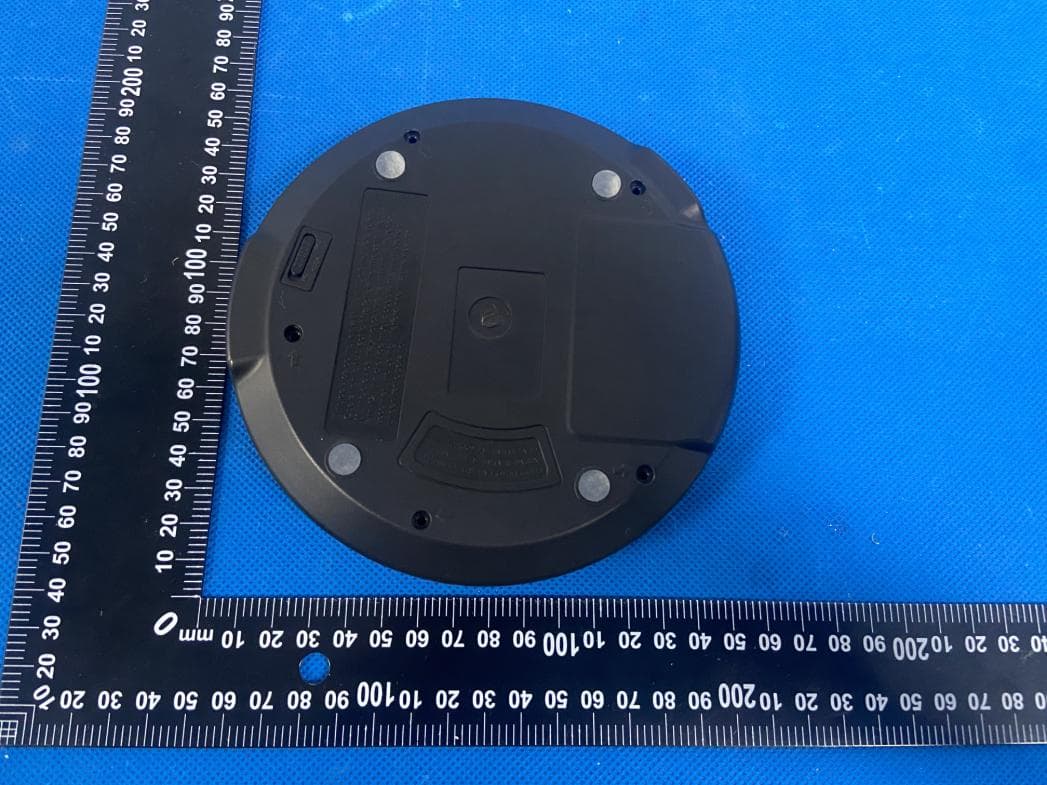

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7

30 8 July, 2023 July, 2023 July, 2023 EB 2023.05.18 2023071000120230714001 20230714001 Freq.: FM 87.5-108MHz, FM TX 88.5/93.6/103MHz FCC ID: 2A38HCD60RBTEB Power: Built-in Rechargeable Li-ion Battery: 3.7V 1500mAh or USB 5V 1000mAh or AC-DC Adaptor: 5V 1000mA Made in China Limited Edition Model JM PERSONAL BLUETOOTH CD PLAYER WITH FM RADIO Model: CD-60R-BTEB Freq.: FM 87.5-108MHz, FM TX 88.5/93.6/103MHz Limited Edition Model EB Service Label Easy Buys Electronics Inc. 990 E. Mill Street San Bernardino, CA 92408 For technical support, please call 1-800-777-5331 the recess of bottom cabinet Easy Buys Electronics Inc. 990 E. Mill Street San Bernardino, CA 92408 For technical support, please call 1-800-777-5331 FCC ID: 2A38HCD60RBTEB

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 FM ANT Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 BT ANT Photo 11 Photo 12 Photo 13 Photo 14

FCC ID: 2A38HCD60RBTEB Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculation SAR Exclusion threshold SAR test exclusion 2.402 -5.9 0.26*-6.5±1 -5.5 0.28<50.087363.00YES 2.441 -7.35 0.18*-6.5±1 -5.5 0.28<50.088073.00YES 2.480 -7.36 0.18*-6.5±1 -5.5 0.28<50.088773.00YES 2.402 -3.77 0.42*-4.5±1 -3.5 0.45<50.138463.00YES 2.441 -5.15 0.31*-4.5±1 -3.5 0.45<50.139583.00YES 2.480 -5.27 0.30*-4.5±1 -3.5 0.45<50.140693.00YES 2.402 -3.53 0.44*-4±1 -3 0.50<50.155353.00YES 2.441 -4.96 0.32*-4±1 -3 0.50<50.156613.00YES 2.480 -4.94 0.32*-4±1 -3 0.50<50.157853.00YES 2.402 -5.99 0.25*-6.5±1-5.50.28<50.087363.00YES 2.440 -7.34 0.18*-6.5±1-5.50.28<50.088053.00YES 2.480 -7.27 0.19*-6.5±1-5.50.28<50.088773.00YES GFSK π/4- DQPSK 8-DQPSK BLE FM Transmit power: Frequency (MHz) Max EIRP power (dBuV/m) EIRP power (dBm) 88.5-102.9 43.35 -51.91 EIRP=E-104.8+20log(D) EIRP=conducted power + antenna gain antenna gain: 0dBi; Modulation max power Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculation SAR Exclusion threshold SAR test exclusion FM0.0885 -51.91 0.000006*-52±1 -51 0.000008<50.00000053.00YES Conclusion: For the max result : 0.15785 ≤ 3.0 for 1g SAR, SAR is not required. SIMULTANEOUS TRANSMISSIONS When a number of sources at different frequencies, and/or broadband sources, contribute to the total exposure, it becomes necessary to weigh each contribution relative to the MPE. To comply with the MPE, the fraction of the MPE in terms of E 2 , H 2 (or power density) incurred within each frequency interval should be determined and the sum of all such fractions should not exceed unity. In order to ensure compliance with the MPE for a controlled environment, the sum of the ratios of the power density to the corresponding MPE should not exceed unity. That is Maximum Multiple sources Signature: Date: 2023-08-02 NAME AND TITLE (Please print or type): Alex li /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Gain (dBi) -3.531.2-350.157853 -51.910-5150.00000053 Evaluation result SAR Exclusion threshold Evaluation result Pow er density Limits Separation distance (mm) BT+FM Max tune-up pow er (dBm) 1 Band 0.052616833 (dBm) Max Conducted Antenna

Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(dBm) 1.2 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) 1.2 (Peak Gain XY-plane) Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to ch ange without prior notice Antenna Layout & module on the system board Antenna Gain Gain Tab le Unit in dBi @2.44GHz XY-plane XZ-plan e YZ-plane Effi ciency Peak Avg. Peak Avg. Peak Avg. Module Board 1.2 -0.5 1. 0 -3.6 1.1 -3.0 6 0.2 % Retum Loss The Environment of Antenna Radiation Pattem 3D radiation pattern diagram

Report No.: S23052902101001 Version.1.3 Page 1 of 95 RADIO TEST REPORT FCC ID: 2A38HCD60RBTEB Product: PERSONAL BLUTOOTH CD PLAYER WITH FM RADIO Trade Mark: BRAND,JENSEN Model No.: CD-60R-BTEB Family Model: CD-60R-BTEB, CD-105TX-BTEB， DS105TX-BF, CD-60R-BTXXXXX (Where XXXXX denote any printable characters in the ASCII Standard Character Table to represent variances in cosmetics or buyers) Report No.: S23052902101001 Issue Date: Jul 21, 2023 Prepared for Jenmart Industrial (HK) Co., Limited Units A&B, 15/F,Neich Tower, 128 Gloucester Road, Wanchai, Hong Kong Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S23052902101001 Version.1.3 Page 2 of 95 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 25 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 26 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 27 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 29 7.7 PEAK OUTPUT POWER .............................................................................................................................. 30 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 31 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 32 7.10 ANTENNA APPLICATION .......................................................................................................................... 33 7.11 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS ......................................... 34 8 TEST RESULTS ................................................................................................................................................... 35 8.1 DWELL TIME ................................................................................................................................................... 35 8.2 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 45 8.3 -20DB BANDWIDTH ........................................................................................................................................ 51 8.4 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 57 8.5 CARRIER FREQUENCIES SEPARATION .............................................................................................................. 63 8.6 NUMBER OF HOPPING CHANNEL ..................................................................................................................... 69 8.7 BAND EDGE .................................................................................................................................................... 72 8.8 BAND EDGE(HOPPING) ................................................................................................................................... 79 8.9 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 86 Report No.: S23052902101001 Version.1.3 Page 3 of 95 1 TEST RESULT CERTIFICATION Applicant’s name ........................ : Jenmart Industrial (HK) Co., Limited Address .........…

Text truncated - open the document above for the full version.

Report No.: S23052902101001 Version.1.3 Page 72 of 95 8.7 Band Edge Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 No-Hopping -43.67 -20 Pass NVNT 1-DH5 2480 Ant1 No-Hopping -45.14 -20 Pass NVNT 2-DH5 2402 Ant1 No-Hopping -43.15 -20 Pass NVNT 2-DH5 2480 Ant1 No-Hopping -43.79 -20 Pass NVNT 3-DH5 2402 Ant1 No-Hopping -44.03 -20 Pass NVNT 3-DH5 2480 Ant1 No-Hopping -55.08 -20 Pass Report No.: S23052902101001 Version.1.3 Page 73 of 95 Test Graphs Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Emission Report No.: S23052902101001 Version.1.3 Page 74 of 95 Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Emission Report No.: S23052902101001 Version.1.3 Page 75 of 95 Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Emission Report No.: S23052902101001 Version.1.3 Page 76 of 95 Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Emission Report No.: S23052902101001 Version.1.3 Page 77 of 95 Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Emission Report No.: S23052902101001 Version.1.3 Page 78 of 95 Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Emission Report No.: S23052902101001 Version.1.3 Page 79 of 95 8.8 Band Edge(Hopping) Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 Hopping -43.35 -20 Pass NVNT 1-DH5 2480 Ant1 Hopping -43.96 -20 Pass NVNT 2-DH5 2402 Ant1 Hopping -43.28 -20 Pass NVNT 2-DH5 2480 Ant1 Hopping -43.62 -20 Pass NVNT 3-DH5 2402 Ant1 Hopping -43.58 -20 Pass NVNT 3-DH5 2480 Ant1 Hopping -44.07 -20 Pass Report No.: S23052902101001 Version.1.3 Page 80 of 95 Test Graphs Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Emission Report No.: S23052902101001 Version.1.3 Page 81 of 95 Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Emission Report No.: S23052902101001 Version.1.3 Page 82 of 95 Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Emission Report No.: S23052902101001 Version.1.3 Page 83 of 95 Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Emission Report No.: S23052902101001 Version.1.3 Page 84 of 95 Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Emission Report No.: S23052902101001 Version.1.3 Page 85 of 95 Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Emission Report No.: S23052902101001 Version.1.3 Page 86 of 95 8.9 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 -44.12 -20 Pass NVNT 1-DH5 2441 Ant1 -43.3 -20 Pass NVNT 1-DH5 2480 Ant1 -41.83 -20 Pass NVNT 2-DH5 2402 Ant1 -43.71 -20 Pass NVNT 2-DH5 2441 Ant1 -41.87 -20 Pass NVNT 2-DH5 2480 Ant1 -40.43 -20 Pass NVNT 3-DH5 2402 Ant1 -44.23 -20 Pass NVNT 3-DH5 2441 Ant1 -43.45 -20 Pass NVNT 3-DH5 2480 Ant1 -37.74 -20 Pass Report No.: S23052902101001 Version.1.3 Page 87 of 95 Test Graphs Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Emission Report No.: S23052902101001 Version.1.3 Page 88 of 95 Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Emission Report No.: S23052902101001 Version.1.3 Page 89 of 95 Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Emission Report No.: S23052902101001 Version.1.3 Page 90 of 95 Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Emission Report No.: S23052902101001 Version.1.3 Page 91 of 95 Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Emission Report No.: S23052902101001 Version.1.3 Page 92 of 95 Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Emission Report No.: S23052902101001 Version.1.3 Page 93 of 95 Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Emission Report No.: S23052902101001 Version.1.3 Page 94 of 95 Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Emission Report No.: S23052902101001 Version.1.3 Page 95 of 95 Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Emission END OF REPORT
