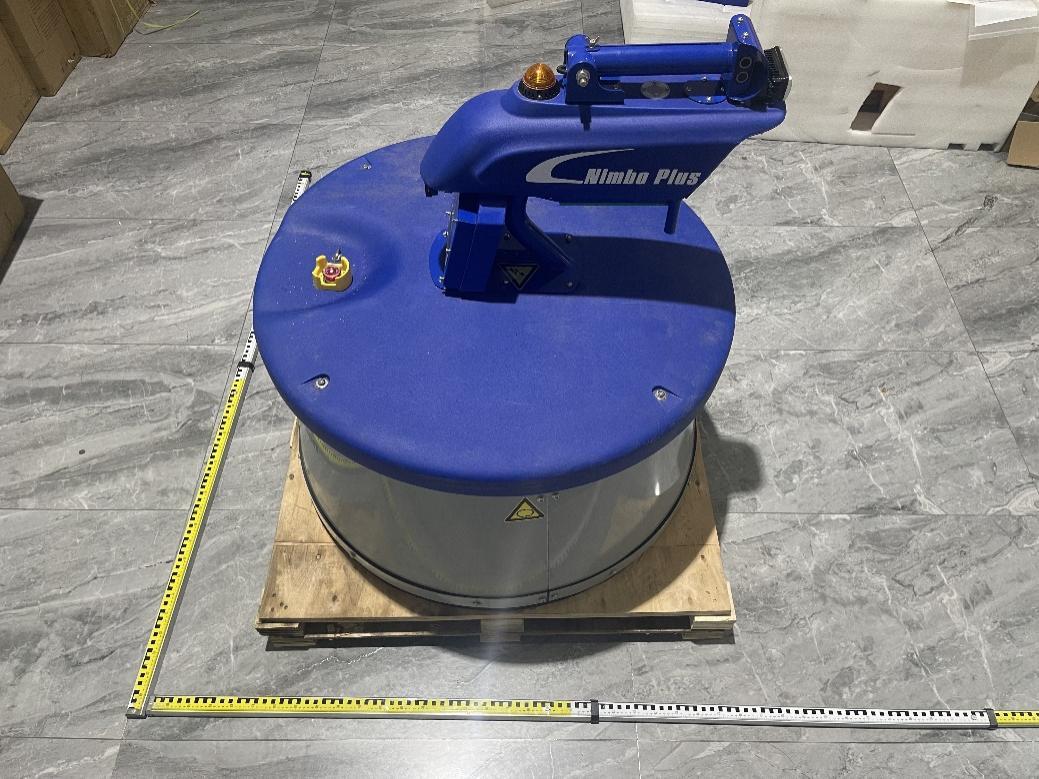

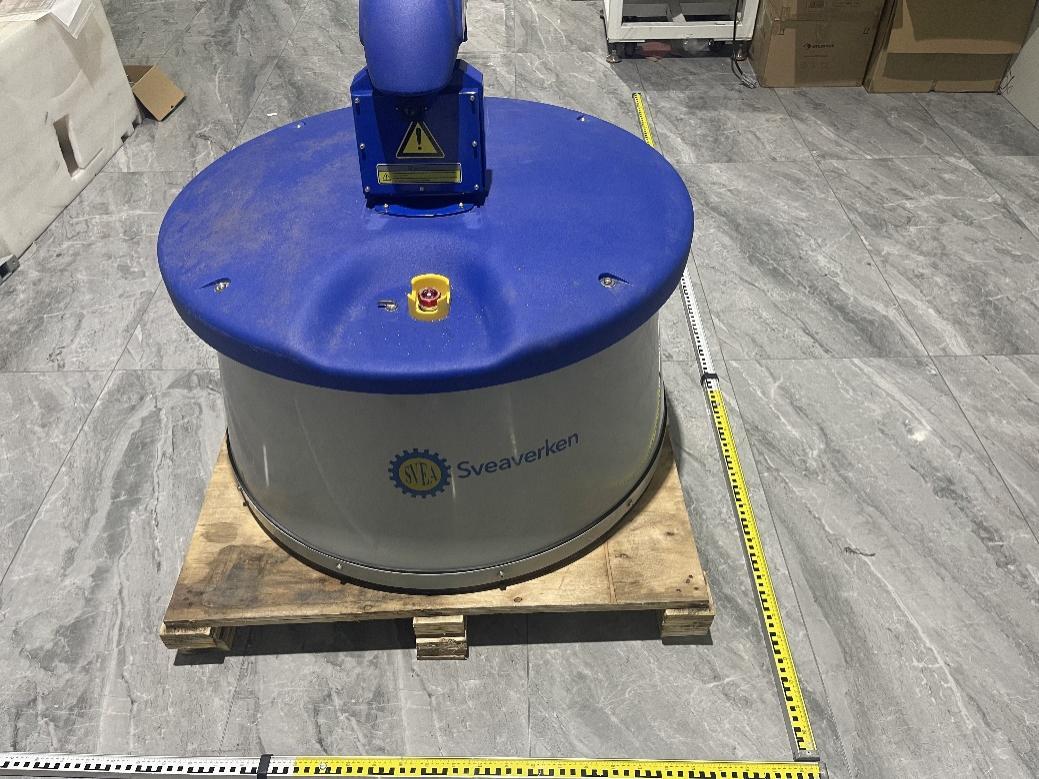

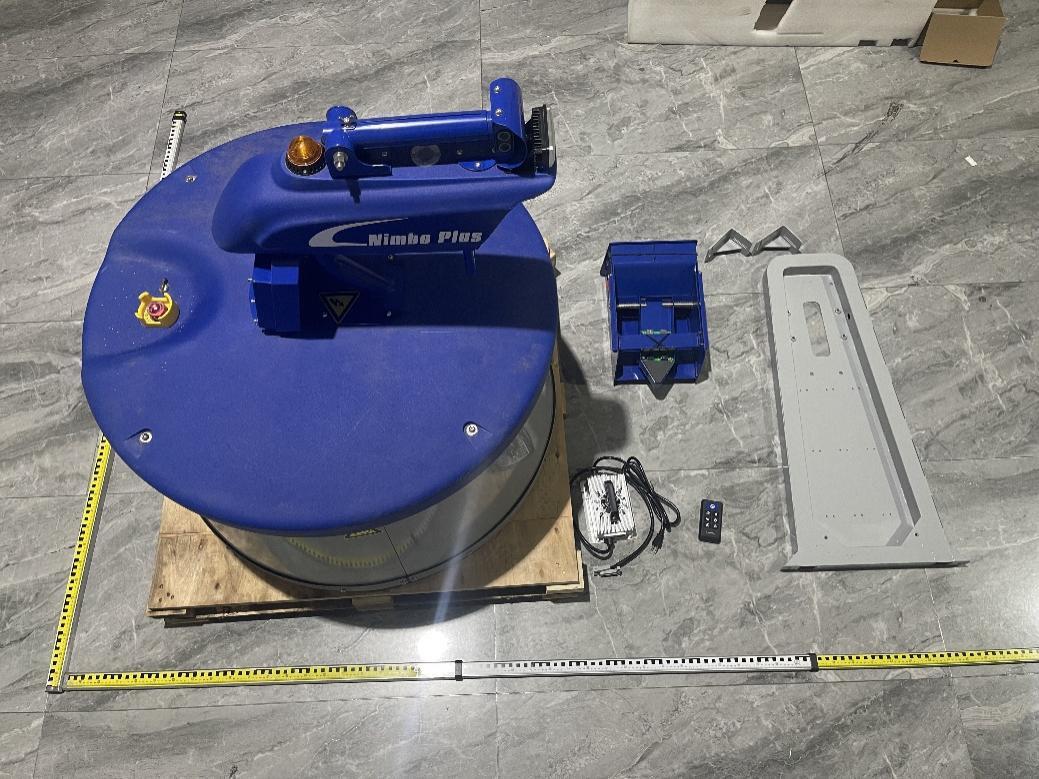

2A3NS-LF01RoboPusher Nimbo Plus

Note:This feature can only be used under the guidance of our technicians. Restart: • To enable timed restart, turn on the toggle, which turns blue. To disable this feature, turn off the toggle, which then turns grey, and the restart time is hidden. • To edit the restart time, turn on the toggle, click the edit button, and editthetime. • To restart immediately, click the redRestart Nowbutton, and clickConfirmin the popup that appears. The robot restarts in about one to three minutes. 5. Parameter Settings Find the target robot, and clickParameter Settingsto modify the parameters, so that the robot works better on the target site. Set the parameters: • Select the module, find the parameter, clickEdit, and then edit the parameter as required. •ClickSaveto save the changes. The changes are saved successfully when a green message "success" appears. Restart is required for the changes to take effect. Note: This feature can only be used under the guidance of our technicians. 6. Video Settings On this page, you can specify whether to upload logs and video and see whetherthenetwork latency is normal. The available options areDo not upload any log,Only upload logs,andUpload logs and videos automatically. Robot Network: •DisplaysNormalin green when the network connection is normal. •DisplaysToo Highin red when the network connection is poor. Video and Log Upload: • SelectDo not upload any log,Only upload logs,orUpload logs and videos automatically.The videos and logs are uploaded to the cloud. •ClickSaveto save the settings. The changes are saved successfully when the message "Saved successfully." appears. 7.3.6 Roller lifting module 1. Drumliftingkeycombination(EasyControl) Lift:ClickAandthebluebuttoninturn,releaseandwaitfor5seconds,thenliftthedrum Descend:ClickBandthebluebuttoninturn,releaseandwaitfor5secondsforthedrumtodescend The drum lifting reaction needs to wait for 5 seconds, and ensure that the drum is at the bottom when the pusherisworking 2. Webcontrol Proximalwebpage ConnectthemachineWiFi,enter10.33.68.254inthebrowser; Work-RemoteControl-Selectthedrumliftbutton,theblueiconrepresentsthecurrentdrumpositionstatus. Ensurethatthedrumisatthebottomwhenthepusherisworking Operationplatform Remote control - select the drum lifting button, the blue icon represents the current drum position status (ensurethatthedrumisatthebottomwhenthepusherisworking) 3. Rollerliftingmapconfiguration Proximalmapconfiguration ConnectthemachineWiFi,enter10.33.68.254inthebrowser; Configuration-PathConfiguration-NewSteps-SelectRollerLift; Selectthedrumoperation(lifting/lowering/notoperating)ofthecurrentnodeasneeded. OperationPlatformMapConfiguration PathManagement-AddStep-SelectRollerLift; Selectthedrumoperation(lifting/lowering/notoperating)ofthecurrentnodeasneeded. 8 Installation and Commissioning 8.1 Deployment of Travel Routes • Setup of travel routes may be performed by local dealer engineers authorized by Sveaverken. Based on the design drawings of your farm feeding alley, engineers design and deploy the travel routes, including visual navigation routes and magnetic nail navigation routes. • The charging pile is usually installed on the route side at the barn entrance to avoid interfering with other work done in the barn. • The travel routes start from the charging pile. Keep clean every travel route, especially left and right quarter turns and T intersections. Ensure that magnetic nails are intact and embedded in the ground. Prevent damage to or loss of magnetic nails. 8.2 Installation of Charging Pile  The charger and charging pile are placed in a ventilated, rain-sheltered and dry place;  The circular plug and square gray Anderson connector at the rear of the charger are respectively connectedtothecircularsocketonthechargingpileandthegraysquarestructure;  The bottom of the charging pile bracket can be fixed to the ground with expansion bolts. Note: As the input voltage may vary according to the local laws and regulations,you are advised to check the detailed parameters with Sveaverken engineers. 8.3 Commissioning Plan the travel routes of the robot on the website. Note: The installation and commissioning must be performed by Sveaverken authorized engineers. 8.4 Loading and Unloading Use the hoisting eye to hoist the robot during loading and uploading. Afterthat, remove the hoisting eye and lock the top cover. 9 Maintenance Refer to the following table for the preventive maintenance schedule. Task Interval 7Days20 Days30 Days3Months Check for oxidation corrosions on the charging connectors of the robot and the charging pile. ▲ Check the wire connections in the robot.▲ Check and clean the magnetic nails.▲ Check and clean the camera.▲ Te s t t h e i n d i c a t o r s .▲ Te s t t h e l i g h t .▲ Test the emergency stop button.▲ Check for abrasions or damages on the rubber.▲ Check the drive wheels.▲ Check the universal wheel▲ Note:You may determine your maintenance interval depending on the farm environment and the robot operations. If maintenance cannot be performedon your own, contact your local dealer. 10 Spare Parts NameQty. Universal wheel assembly1 Thin photosensitive plate, universal wheel1 Drive wheel2 Drive shaft2 Vision box1 Sensor photosensitive plate1 Light1 Contactor3 Fuse1 Fuse1 Light bracket1 Warning light1 Wheel motor2 Magnetic navigation sensor2 Gyroscope1 Note:You may contact your local dealer to purchase the parts. 11 Transportation and Storage • Disconnect the robot from the power supply before transportation or storage. • Handle the robot with care during transportation to prevent damage. • Avoid collision and squeezing during transportation. • Store the robot in a dry and ventilated environment at a temperature of 25±3°C and a humidity of 65±20%. Avoid direct sunlight. • Keep the robot away from flammables, explosives, and do not store it with metal objects. • Use the hoisting eye to hoist the robot during loading and unloading. • If the robot will not be used for a long time, …
