2A3PJ-RCTWLROG CETRA TRUE WIRELESS

Quick Start Guide (English) 快速使用指南（繁體中文） 快速使用指南（簡體中文） クイックスタートガイド ( 日本語 ) 간단사용설명서 ( 한국어 ) Guide de démarrage rapide (Français) Schnellstartanleitung (Deutsch) Guida rapida (Italiano) Guia de consulta rápida (Português) Краткое руководство (Pyccкий) Guía de inicio rápido (Español) Beknopte handleiding (Nederlands) Rychlý průvodce (Čeština) Stručný návod na používanie (Slovenčina) Стисле керівництво для початку експлуатації (Українська) Hızlı Başlangıç Kılavuzu (Türkçe) Przewodnik szybkiego startu (Polski) Ghid de pornire rapidă (Romanian) Gyors üzembe helyezési útmutató (Magyar) Snabbstartshandbok (Svenska) Pikaopas (Suomi) Hurtigstartveiledning (Norsk) دليل التشغيل السريع (العربية) )HBמדריך להתחלה מהירה ( Product FeaturesPackage contents Charging the earphonesArmoury Crate appPlay time ANC ON: 4.5 hours ANC OFF: 5 hours or Getting Started Gestures Gaming mode Pairing mode Power off Battery Indication (charging)Battery Indication (not charging) ANC mode Voice assistant Pairing mode Power off Heavy noise canceling Light noise canceling Ambient sound Noise canceling off Safety Guidelines Indicator / 指示燈（繁體中文） / / Témoin lumineux (FR) / Anzeige (DE) / Indicatore (IT) / Индикатор (RU) / インジケーター (JP) / Indicador (ES) / Göstergesi (TR) / Indikátor (CS) / Indicator (NL) / Indicador (PT:BR) / 표시등 (KO) / Індикатор (UA) / Indikator (SV) / Indikator (NO) / Merkkivalo (FI) / Wskaźnik (PL) / Jelzőfény (HU) / Indikátor (SK) / Indicator (RO) / مؤشر (AR) / מחוון (HB) Touch panel / 觸控區（繁體中文） / 觸控區（簡體中文） / タッチパネル (JP) / 터치 패널 (KO) / Écran tactile (FR) / Touchpanel (DE) / Pannello a sfioramento (IT) / Painel de toque (PT:BR) / Сенсорная панель (RU) / Panel táctil (ES) / Aanraakscherm (NL) / Dokunma alaný (TR) / Сенсорна панель (UA) / Panel dotykowy (PL) / Dotykovém panelu (CS) / Ecran tactil (RO) / Érintőpanel(HU) / Touchskärm (SW) / Kosketuspaneeli (FI) / Berøringsskjerm (NO) / لوحة اللمس (AR) / Dotykový panel (SK) / מסך המגע (HB) Microphone / 麥克風（繁體中文） / / マイク (JP) / 마이크 (K O) / Microphone (FR) / Mikrofon (DE) / Microfono (IT) / Microfone (PT:BR) / Микрофон (RU) / Micrófono (ES) / Microfoon (NL) / Mikrofon (CS) / Mikrofón (SK) / Mikrofon (TR) / Microphone (UA) / Mikrofon (SV) / Mikrofon (NO) / Mikrofoni (FI) / Mikrofon (PL) / Mikrofon (HU) / Microfon (RO) / الميكروفون (AR) / מיקרופון (HB) (DE)Verwenden Sie NICHT Ihren Kopfhörer und schalten Sie nicht in den ANC-Modus um in Situationen oder Umgebungen, die Ihre volle Aufmerksamkeit erfordern oder in denen Sie Ihre Umgebungsgeräusche wahrnehmen müssen, z. B. beim Fahren oder auf einer Baustelle. Nichtbeachtung kann eine Gefahr für Sie selbst oder andere darstellen. (IT)NON utilizzare le cuffie o attivare la modalità ANC in situazioni o ambienti che richiedono la totale attenzione dell’utente o che richiedono di essere consapevoli dei suoni circostanti, come durante la guida o in un cantiere. La mancata osservanza di questa precauzione può rappresentare un pericolo per se stessi o gli altri. (PT:BR)NÃO use seus fones de ouvido ou alterne para o modo ANC em situações ou ambientes que exijam sua total atenção ou exijam que você esteja ciente dos sons ao redor, como ao dirigir ou em um canteiro de obras. Não seguir estas instruções pode representar um perigo para você ou para os outros. (RU)DO NOT use your headphones or toggle ON ANC mode in situations or environments that requires your full attention or requires you to be aware of surrounding sounds, such as when driving or in a construction site, failure to do so may pose as a danger to yourself or others. (ES)NO use los auriculares ni active el modo ANC en situaciones o entornos que requieran su atención total o que necesite ser consciente de los sonidos de alrededor, como cuando conduce o en un sitio de obras. El no seguir esta recomendación puede suponer un peligro para usted u otras personas. (DU)Gebruik GEEN hoofdtelefoon of zet de ANC-modus NIET AAN in situaties of omgevingen die uw volle aandacht vereisen of die vereisen dat u zich bewust bent van de omgevende geluiden, zoals wanneer u een voertuig bestuurd of als u zich op een bouwwerf bevindt; Als u dit niet naleeft, kunt u een gevaar betekenen voor uzelf of anderen. (TR)Tüm dikkatinizi vermenizi gerektiren veya çevredeki seslerden haberdar olmanız gereken (örneğin araba kullanırken veya bir şantiyede) kulaklık KULLANMAYIN veya ANC modunu etkinleştirmeyin. Bu öneriye uyulmaması, siz veya başkaları için tehlike oluşturabilir. (UA)НЕ ЗАСТОСОВУЙТЕ гарнітуру і НЕ ВМИКАЙТЕ режим ANC у ситуаціях або умовах, які вимагають повної уваги, або коли необхідно чути всі звуки довкола, як-от під час водіння або на будівництві. Не виконуючи ці правила, ви наражаєте на небезпеку себе та інших. (PL)NIE WOLNO korzystać ze słuchawek ani włączać trybu ANC w sytuacjach i miejscach wymagających pełnej uwagi użytkownika lub słyszenia dźwięków otoczenia, np. podczas prowadzenia pojazdu lub na placu budowy. Niezastosowanie się do tego może stanowić zagrożenie dla użytkownika lub innych osób. (CS)NEPOUŽÍVEJTE sluchátka ani NEZAPÍNEJTE režim ANC v situaci nebo prostředí, ve kterém je vyžadována vaše plná pozornost, nebo když musíte sledovat okolní zvuky, například při řízení vozidla nebo na staveništi. Zanedbáním těchto pokynů se můžete vy nebo další osoby vystavit nebezpečí. (RO)NU folosiți căștile și nu activați modul ANC în situații sau medii care necesită atenția dvs. deplină sau care vă solicită să fiți conștienți de sunetele din jur, cum ar fi când conduceți sau când vă aflați pe un șantier, deoarece vă puteți pune în pericol pe dvs. sau pe cei din jur. (HU)NE használja a fejhallgatókat, vagy kapcsolja BE az ANC módot olyan helyzetben vagy környezetben, amely teljes figyelmet igényel, vagy ahol szükséges a környező hangokra való figyelés, úgy mint vezetés közben vagy épitkezésen, ennek elmúlasztása veszélyt jelenthet az Ön és mások számára. (SV)Använd INTE hörlurar eller sätt PÅ ANC-läget i situationer eller miljöer som kräver din fullständiga uppmärksamhet eller kräver a…

Text truncated - open the document above for the full version.

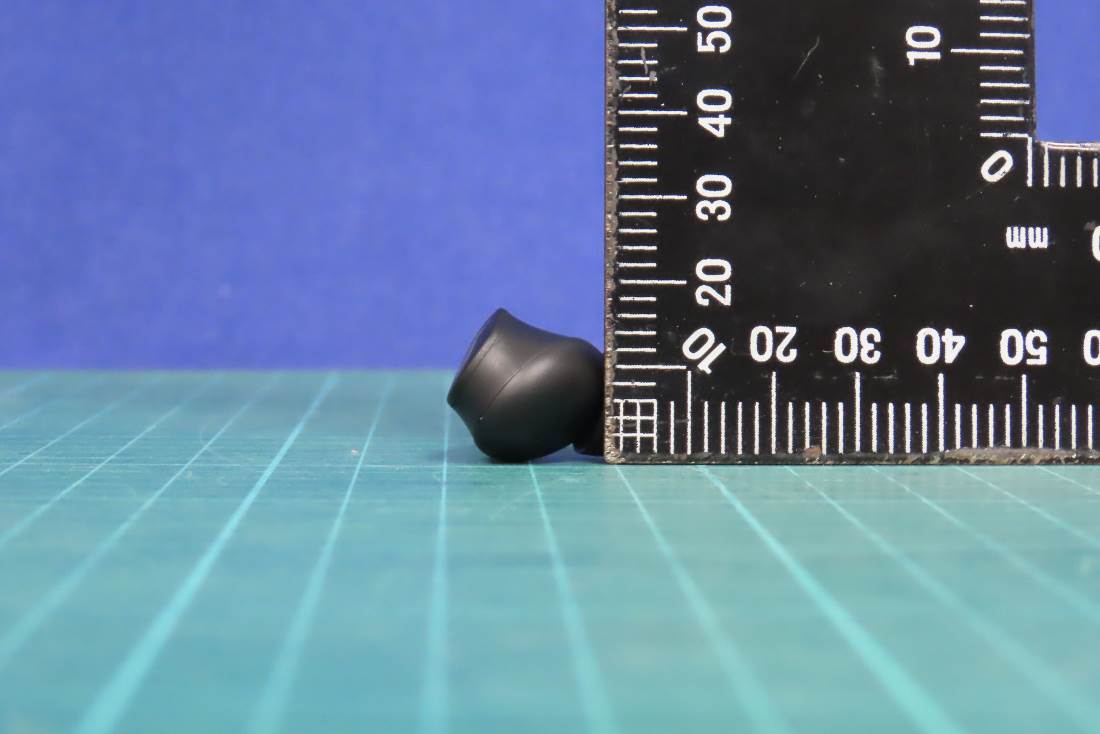

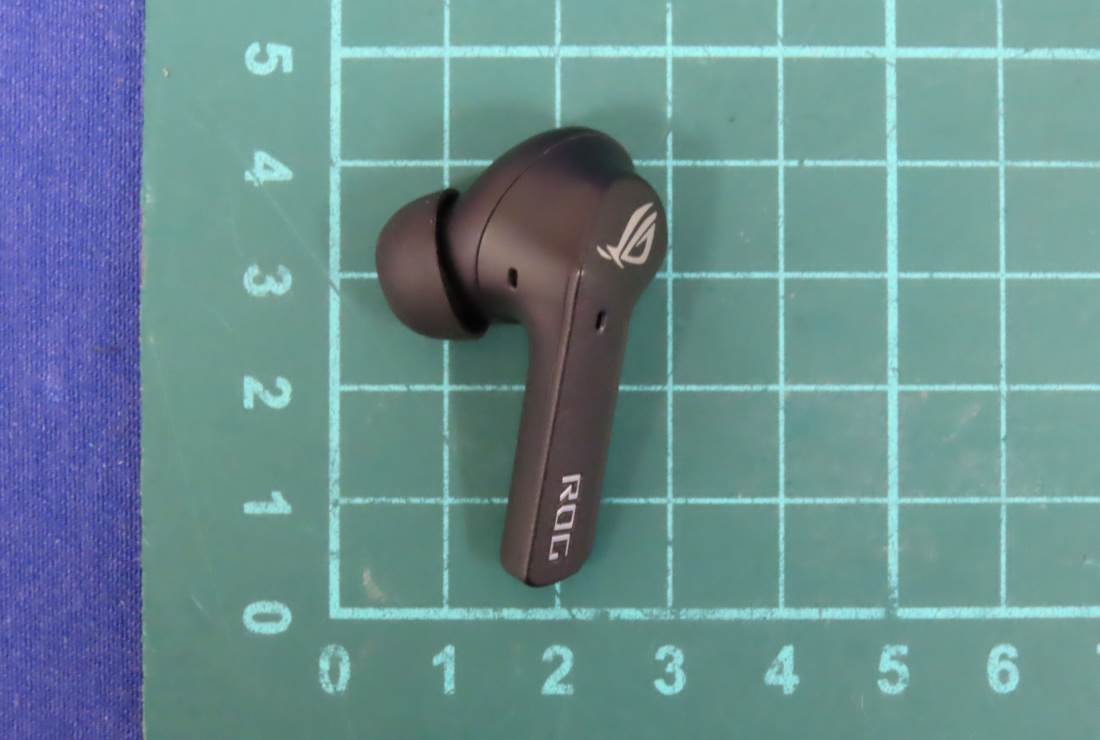

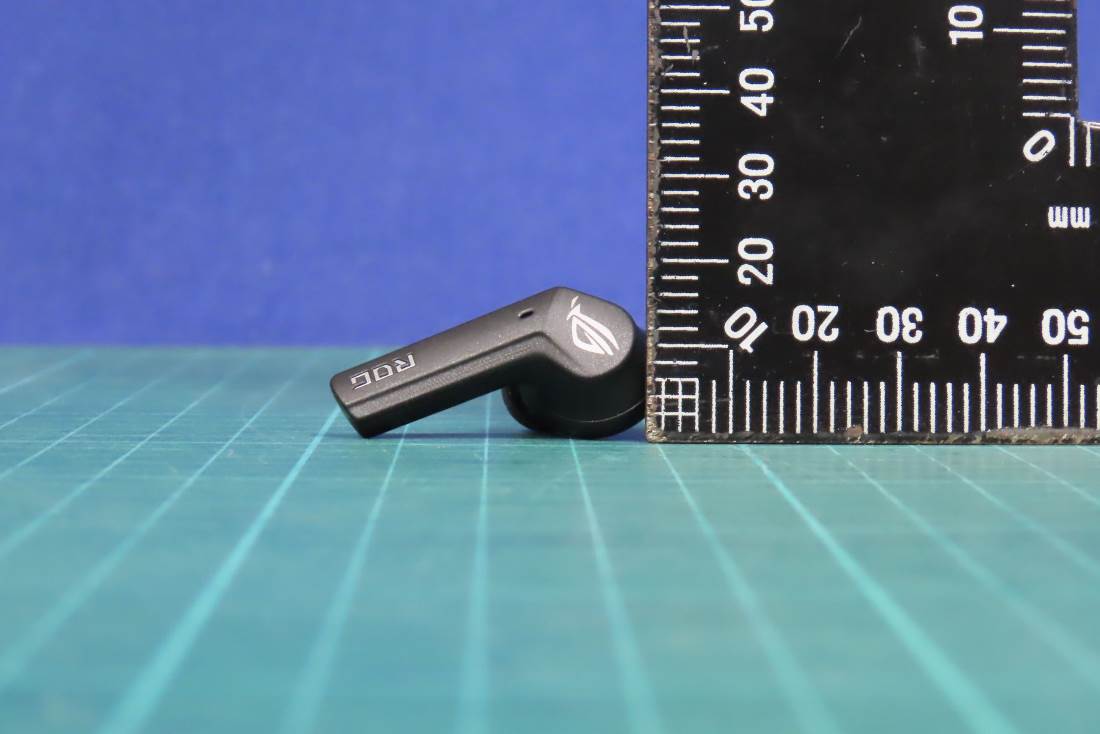

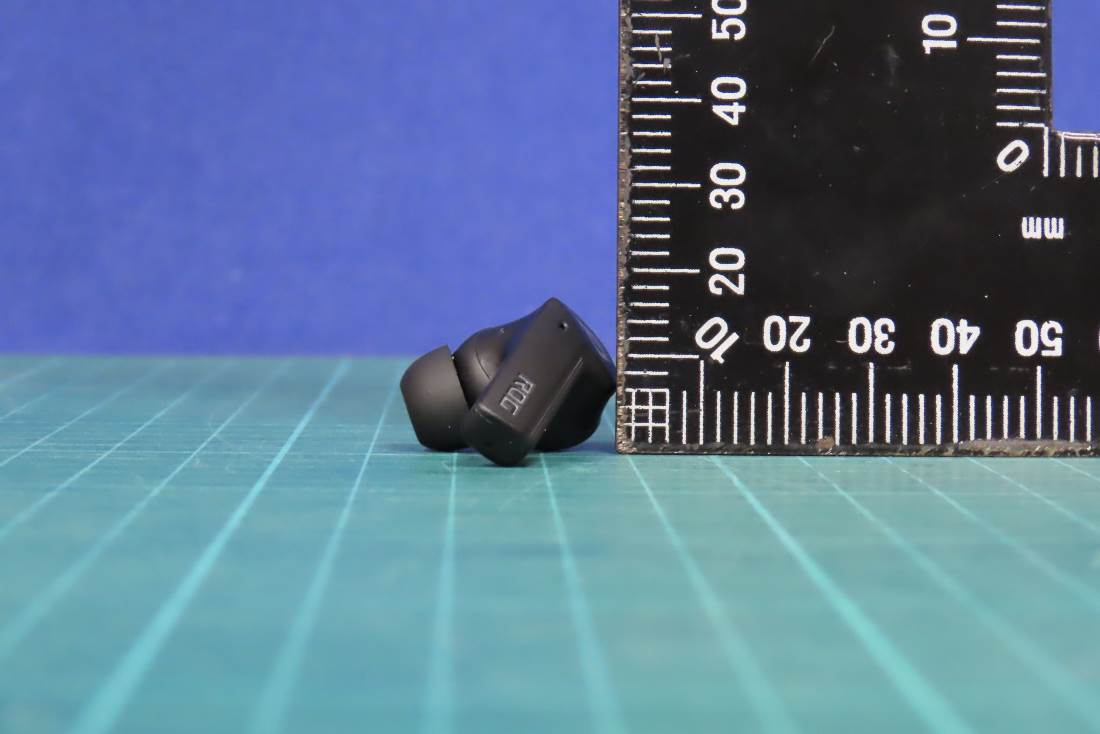

Report No: 21B0790R-Product Photos Page: 1 of 3 (1) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L) (2) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L) Report No: 21B0790R-Product Photos Page: 2 of 3 (3) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L) (4) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L) Report No: 21B0790R-Product Photos Page: 3 of 3 (5) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L) (6) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L)

Report No: 21B0790R-Product Photos Page: 1 of 7 (1) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L) (2) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L) Report No: 21B0790R-Product Photos Page: 2 of 7 (3) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L) (4) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L) Report No: 21B0790R-Product Photos Page: 3 of 7 (5) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L) (6) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L) Report No: 21B0790R-Product Photos Page: 4 of 7 (7) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L) (8) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L) - (Battery, M/N: 551011) Report No: 21B0790R-Product Photos Page: 5 of 7 (9) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L) (10) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L) FPC Antenna Report No: 21B0790R-Product Photos Page: 6 of 7 (11) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L) (12) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L) Report No: 21B0790R-Product Photos Page: 7 of 7 (13) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L) (14) EUT Photo - M/N: ROG CETRA TRUE WIRELESS(L) RF Chip

Report No.: 21B0790R-RFUSMPEV03-A Page: 1 of 6 RF Exposure Evaluation Report Product Name ROG CETRA TRUE WIRELESS Model No. ROG CETRA TRUE WIRELESS(L),ROG CETRA TRUE WIRELESS(R), ROG CETRA TRUE WIRELESS FCC ID (L). 2A3PJ-RCTWL FCC ID (R). 2A3PJ-RCTWR Applicant PALM GARDEN ENTERPRISES CORP. Address 4F, 540-1, Zhong Zheng Rd., Xindian Dist., New Taipei City 231, Taiwan Date of Receipt Nov. 20, 2021 Date of Declaration Jan. 26, 2022 Report No. 21B0790R-RFUSMPEV03-A Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of DEKRA Testing and Certification Co., Ltd. Measurement uncertainties evaluated for each testing system and associated connections are given here to provide the system information for reference. Compliance determinations do not take into account measurement uncertainties for each testing system, but are based on the results of the compliance measurement. Report No.: 21B0790R-RFUSMPEV03-A Page: 2 of 6 Issued Date: Jan. 26, 2022 Report No.: 21B0790R-RFUSMPEV03-A Product Name ROG CETRA TRUE WIRELESS Applicant PALM GARDEN ENTERPRISES CORP. Address 4F, 540-1, Zhong Zheng Rd., Xindian Dist., New Taipei City 231, Taiwan Manufacturer PALM GARDEN ENTERPRISES CORP. Model No. ROG CETRA TRUE WIRELESS(L),ROG CETRA TRUE WIRELESS(R), ROG CETRA TRUE WIRELESS FCC ID (L). 2A3PJ-RCTWL FCC ID (R). 2A3PJ-RCTWR Trade Name ASUS Applicable Standard KDB 447498 D01 v06 Minimum test separation distance ≥ 20 cm For low power devices Test Result Complied Documented By : ( Senior Project Specialist / Joanne Lin ) Tested By : ( Senior Engineer / Alan Chen ) Approved By : ( Manager / Tim Sung ) Report No.: 21B0790R-RFUSMPEV03-A Page: 3 of 6 Revision History Report No. Ve r s i o n Description Issued Date 21B0790R-RFUSMPEV03-A V1.0 Initial issue of report. 2022-01-26 Report No.: 21B0790R-RFUSMPEV03-A Page: 4 of 6 1. GENERAL INFORMATION 1.1. EUT Description Product Name ROG CETRA TRUE WIRELESS Trade Name ASUS Model No. ROG CETRA TRUE WIRELESS(L),ROG CETRA TRUE WIRELESS(R), ROG CETRA TRUE WIRELESS FCC ID (L). 2A3PJ-RCTWL FCC ID (R). 2A3PJ-RCTWR Frequency Range 2402-2480MHz Channel Number BT: 79CH BLE: V5.1: 40CH Type of Modulation BT: FHSS: GFSK(1Mbps) /π/4DQPSK(2Mbps) / 8DPSK(3Mbps) BLE: GFSK Antenna Type FPC Antenna Antenna Gain Refer to the table “Antenna List” Antenna List No. Manufacturer Part No. Antenna Type Peak Gain 1 ATN ATN1236 FPC Antenna 0.02dBi for 2.4 GHz Report No.: 21B0790R-RFUSMPEV03-A Page: 5 of 6 2. Test Facility USA : FCC Registration Number: TW0033 Canada : IC Registration Number: 26930 Site Description : Accredited by TAF Accredited Number: 3023 Test Laboratory : DEKRA Testing and Certification Co., Ltd Address : No. 5-22, Ruishukeng Linkou District, New Taipei City, 24451, Taiwan Performed Location : No. 26, Huaya 1st Rd., Guishan Dist.,Taoyuan City 333411, Taiwan, R.O.C. Phone number : +886-3-275-7255 Fax number : +866-3-327-8031 Email address : [email protected] Website : http://www.dekra.com.tw Report No.: 21B0790R-RFUSMPEV03-A Page: 6 of 6 3. RF Exposure Evaluation 3.1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 3.2. Measurement Result: According to KDB Publication 447498 D01, section 4.3.1, per the calculations of item 1 (Power(mW)/separation (mm)*sqrt(f(GHz)≤3.0), SAR is required as shown in the table below where calculated values are greater than 3.0: Operation frequency = 2450MHz and antenna separation distance = 5mm Body SAR Test Exclusion Threshold = 10mW Frequency Band (MHz) Maximum peak output power Peak Gain: 0.02dBi SAR Test Exclusion Threshold Calculated Threshold Value (≦3.0 SAR is not required) conducted EIRP EIRP (mW) (dBm) (dBm) (mW) 2480 8.69 8.71 7.43 10 2.340 Note 1: The SAR/MPE measurement is not necessary. Note 2: The maximum peak output power is refer to report No.: 21B0790R-RFUSBLEV01-A from the DEKRA.

Report No.: 21B0790R-RFUSBLEV01-A Page: 1 of 63 FCC Test Report Product Name ROG CETRA TRUE WIRELESS Model No. ROG CETRA TRUE WIRELESS(L), ROG CETRA TRUE WIRELESS(R) FCC ID. (L) 2A3PJ-RCTWL FCC ID. (R) 2A3PJ-RCTWR Applicant PALM GARDEN ENTERPRISES CORP. Address 4F, 540-1, Zhong Zheng Rd., Xindian Dist., New Taipei City 231, Taiwan Date of Receipt Nov. 20, 2021 Issued Date Jan. 26, 2022 Report No. 21B0790R-RFUSBLEV01-A Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration repor t of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement b y TA F o r a ny agency of the government. The test report shall not be reproduced without the written approval of DEKRA Testin g and Certification Co., Ltd. Measurement uncertainties evaluated for each testing system and associated connections are given here to provide the system information for reference. Compliance determinations do not take into account measurement uncertainties for each testin g system, but are based on the results of the compliance measurement. Report No.: 21B0790R-RFUSBLEV01-A Page: 2 of 63 Test Report Issued Date: Jan. 26, 2022 Report No.: 21B0790R-RFUSBLEV01-A Product Name ROG CETRA TRUE WIRELESS Applicant PALM GARDEN ENTERPRISES CORP. Address 4F, 540-1, Zhong Zheng Rd., Xindian Dist., New Taipei City 231, Taiwan Manufacturer PALM GARDEN ENTERPRISES CORP. Model No. ROG CETRA TRUE WIRELESS(L),ROG CETRA TRUE WIRELESS(R) FCC ID. (L) 2A3PJ-RCTWL FCC ID. (R) 2A3PJ-RCTWR EUT Rated Voltage DC 5V (Power by USB) or DC 3.7V (Power by Battery) EUT Test Voltage DC 5V (Power by USB) Trade Name ASUS Applicable Standard FCC CFR Title 47 Part 15 Subpart C ANSI C63.4: 2014, ANSI C63.10: 2013 Test Result Complied Documented By : ( Senior Project Specialist / Joanne Lin ) Tested By : ( Senior Engineer / Bill Lin ) Approved By : ( Senior Engineer / Alan Chen ) Report No.: 21B0790R-RFUSBLEV01-A Page: 3 of 63 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................................... 5 1.1. EUT Description ...................................................................................................................................... 5 1.2. Tested System Details .............................................................................................................................. 7 1.3. Configuration of Tested System .............................................................................................................. 7 1.4. EUT Exercise Software ........................................................................................................................... 8 1.5. Test Facility ........................................................................................................................................... 10 1.6. List of Test Equipment ........................................................................................................................... 11 1.7. Uncertainty ............................................................................................................................................ 12 2. Conducted Emission ............................................................................................................................ 13 2.1. Test Setup .............................................................................................................................................. 13 2.2. Limits ..................................................................................................................................................... 13 2.3. Test Procedure ....................................................................................................................................... 14 2.4. Test Result of Conducted Emission ....................................................................................................... 15 3. Peak Power Output ............................................................................................................................. 17 3.1. Test Setup .............................................................................................................................................. 17 3.2. Limit ...................................................................................................................................................... 17 3.3. Test Procedure ....................................................................................................................................... 17 3.4. Test Result of Peak Power Output ......................................................................................................... 18 4. Radiated Emission ............................................................................................................................... 21 4.1. Test Setup .............................................................................................................................................. 22 4.2. Limits ..................................................................................................................................................... 23 4.3. Test Procedure ....................................................................................................................................... 24 4.4. Test Result of Radiated Emission .......................................................................................................... 26 5. RF Antenna Conducted Test ............................................................................................................... 33 5.1. Test Setup .............................................................................................................................................. 33…

Text truncated - open the document above for the full version.

Report No.: 21B0790R-RFUSBLEV01-A Page : 1 of 6 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test - Left Back View of Conducted Test - Left Report No.: 21B0790R-RFUSBLEV01-A Page : 2 of 6 Front View of Conducted Test - Right Back View of Conducted Test - Right Report No.: 21B0790R-RFUSBLEV01-A Page : 3 of 6 Front View of Conducted Test - Charge mode Back View of Conducted Test - Charge mode Report No.: 21B0790R-RFUSBLEV01-A Page : 4 of 6 Radiated Test - Left Radiated Test (Horn) - Left Report No.: 21B0790R-RFUSBLEV01-A Page : 5 of 6 Radiated Test - Right Radiated Test (Horn) - Right Report No.: 21B0790R-RFUSBLEV01-A Page : 6 of 6 Radiated Test - Charge mode
