2A3QXFCBP130Upper Arm Electronic Blood Pressure Monitor with Bluetooth Low Energy

Instruction Manual Upper Arm Electronic Blood Pressure Monitor Model No.: FC-BP130 Please read this instruction manual carefully before using your unit. Please keep this instruction manual well for future use. Thanks for choosing the Digital Blood Pressure Monitor. The PATIENT is an intended OPERATOR. Manual Ver.: 1.0 Issuing Date: 2022/08/02 Software Ver.: FC-BP130-V1.0 Contents Contents.......................................................................................2 1. Before Using the Unit.......................................................2 1.1 Introduction.........................................................................2 1.2 Important safety notices.................................................3 1.3 Warning and safety notices............................................4 2. Operating Instruction.....................................................4 2.1 Introduction of machine................................................4 2.2 Battery Installation / Replacement.............................6 2.3 Settings................................................................................7 2.4 Proper Use of the Arm Cu...........................................7 2.5 Considerations for measuring....................................10 2.6 Function.............................................................................11 2.7 Take a Measurement......................................................11 2.8 Use the Memory function............................................12 2.9 About Blood Pressure....................................................14 3. Care and Maintenance.................................................16 3.1 Care and Maintenance..................................................16 3.2 Calibration and Service.................................................17 3.3 Error Indicators................................................................17 3.4 Troubleshooting.............................................................17 3.5 Technical Data.................................................................18 3.6 Technical description....................................................20 4. Warranty Information..................................................24 1. Before Using the Unit 2 1.1 Introduction Thank you for purchasing Upper Arm Electronic Blood Pressure Monitor. The unit uses the oscillometric method of blood pressure measurement. It means the unit detects the movement of your blood through your brachial artery, and converts your blood pressure into a digital reading. The unit is simple to use because a stethoscope is not needed while using an oscillometric monitor. The unit stores automatically 2*120 sets of measurement values. You can read the stored data conveniently by pressing the memory button. The unit comes with the following components: • Main Unit • Arm Cuff • Instruction Manual printed in English Contraindications: The product can not be used for patients with arrhythmia. This product can not be used for infants ,neonates or pregnancy. The product is only used for adult. The infant and people who can not express himself can not use this product. SYMBOLS USED IN THIS INSTRUCTION MANUAL Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the user or patient or damage to the equipment or other property. Please read this instruction manual thoroughly before using the unit. Please keep for future reference. For specic information about your own blood pressure, CONSULT YOUR DOCTOR. Transport package shall be kept away from rain. AUTHORISED REPRESENTATIVE IN THE EUROPEAN COMMUNITY Refer to instruction manual/booklet MANUFACTURER SERIAL NUMBER Type BF applied part It means the device could be protected against solid foreign objects of 12.5mm ф and greater, and against vertically falling water drops. IP21 Device used within the Magnetic Resonance (MR) environment is prohibited. The marking of electrical and electronics devices according to Directive 2002/96/EC. The device accessories and the packaging have to be disposed of waste correctly at the end of the usage. Please follow Local Ordinances or Regulations for disposal. SN EU REP 3 1.2 Important safety notices To assure the correct use of the product basic safety measures should always be followed including the precautions listed as below: Please read all information in the instruction manual and any other literature included in the box before using the unit. Please contact your physician for specic information about your blood pressure. Self-diagnosis and treatment by measure results may be dangerous. Follow the instructions of your health care provider. Operate the unit only as intended. Don't use for any other purpose. The unit is intended to use in measuring blood pressure and pulse rate for adult only, not recommended using for neonatal baby at home or medical centre. Do not use a cellular phone near the unit. It may result in operational failure. Please avoid using in high radiant area in order to make your measuring data correctly. Do not disassemble or attempt to repair the unit or components. Do not use the equipment in places where there are flammable gas (such as anesthetic gas, oxygen or hydrogen) or flammable liquid (such as alcohol) . Do not use a mobile phone or other devices that emit electromagnetic elds near the unit. This may result in incorrect operation of the unit. Indicating that too frequent measurements can cause injury to the PATIENT due to blood flow interference; Please do not put CUFF over a wound, as this can cause further injury; Please pay attention to the effect of blood flow interference and resulting harmful injury to the PATIENT caused by continuous CUFF pressure due to connection tubing kinking; StatementRegarding the requirements of the adapter, it should meet the following conditio…

Text truncated - open the document above for the full version.

Date: 25-07-2023 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements Part 2.911(d)(5)(i) and Part 2.911(d)(5)(ii) Filing Re. KDB 986446 D01 FCC ID: 2A3QXFCBP130 Dear Sir or Madam, [Shenzhen Finicare Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, [Shenzhen Finicare Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List ( as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment . If you have any questions, please contact us. Sincerely, Company name: Shenzhen Finicare Co., Ltd Company Officer: Chao Li Telephone Number: 86-0755-23013503 Email: [email protected]

COMPANY LETTERHEAD Date (July 25, 2023) TUV SUD BABT UNLIMITED TCB Octagon House, Segensworth North, Fareham, Hampshire, PO15 5RL, United Kingdom Confidentiality Request FCC ID: 2A3QXFCBP130 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, (Shenzhen Finicare Co., Ltd) hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation] (Shenzhen Finicare Co., Ltd) also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of (180) days: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Chao Li Telephone Number: 86-0755-23013503 Fax Number: 86-0755-27574425 Email: [email protected]

Date (July 25, 2023) To: Federal Communications Commission 7435 Oakland Mills Road Columbia MD FCC ID: 2A3QXFCBP130 To Whom It May Concern: This letter is to ascertain that Shenzhen Finicare Co., Ltd Product name: Upper Arm Electronic Blood Pressure Monitor, Model: FC-BP130 has been the units used for conducting FCC compliance testing, the SDoC part will be tested by FCC recognized test lab. If you have any question or concerns, please contact us. Yours sincerely, Company Officer: Chao Li Telephone Number: 86-0755-23013503 Fax Number: 86-0755-27574425 Email: [email protected]

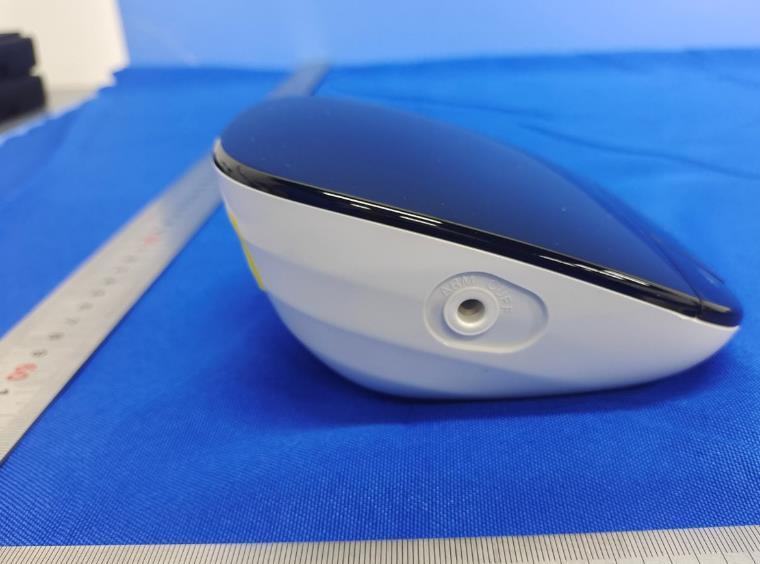

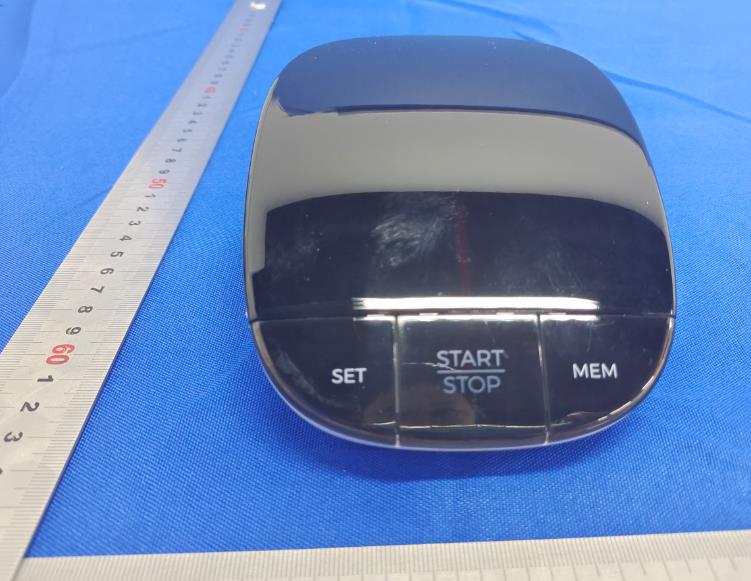

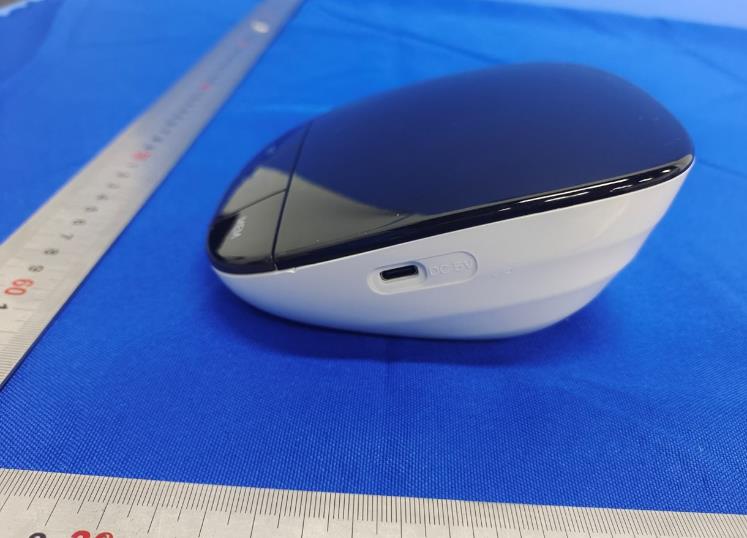

Details of: General view Details of: Side view Details of: Side view Details of: Bottom view Details of: Cuff

Details of: Internal view Details of: Top view of PCB board Details of: Bottom view of PCB board Details of: Top view of Bluetooth module Details of: Top view of Bluetooth module Details of: Bottom view of Bluetooth module RF Antenna Details of: Pump Details of: Solenoid valve Details of: Small-bore connector-Male Details of: Small-bore connector -Female

Report Number: 68.930.22.0047.01 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 RF exposure Estimation Introduction M/N: FC-BP130 (FCC ID: 2A3QXFCBP130) is a Upper Arm Electronic Blood Pressure Monitor, which supports 2.4GHz Bluetooth functions inside. 1. Limit and Guidelines on Exposure to Electromagnetic Fields According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 General RF Exposure Guidance v06, Mobile Portable RF Exposure, no SAR required if power is lower than the flowing threshold: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 2. Calculation method [(max. power of` channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 Conducted Power + tune up tolerance = 1.936422mW Distance = 5 mm f = 2.402 GHz [1.936422/5] * SQRT(2.402) =0.60023 0.60023 ≤ 3.0 Therefore, excluded from SAR testing. TUV SUD China, Shenzhen Branch Reviewed by: Prepared By: Trevor You / EMC Project Manager Ricky Yin / EMC Project Engineer Date: 2023-07-25 Date: 2023-07-25

Report Number: 68.930.22.0047.01 EMC_SZ_FR_23.02 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 1 of 31 FCC - TEST REPORT Report Number : 68.930.22.0047.01 Date of Issue: April 10, 2023 Model : FC-BP130 Product Type : Upper Arm Electronic Blood Pressure Monitor Applicant : Shenzhen Finicare Co., Ltd Address : 201, No.50, the 3rd Industrial Park, Houting Community, Shajing Street, Bao'an District, Shenzhen, 518104 China Manufacturer : Shenzhen Finicare Co., Ltd Address : 201, No.50, the 3rd Industrial Park, Houting Community, Shajing Street, Bao'an District, Shenzhen, 518104 China Test Result : ◼ Positive  Negative Total pages including Appendices : 31 Any use for advertising purposes must be granted in writing. This technical report may only be quoted in full. This report is the result of a single examination of the object in question and is not generally applicable evaluation of the quality of other products in regular production. For further details, please see testing and certification regulation, chapter A-3.4. Report Number: 68.930.22.0047.01 EMC_SZ_FR_23.02 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 2 of 31 1 Table of Contents 1 Table of Contents .................................................................................................................. 2 2 Details about the Test Laboratory ......................................................................................... 3 3 Description of the Equipment under Test .............................................................................. 4 4 Summary of Test Standards .................................................................................................. 5 5 Summary of Test Results ...................................................................................................... 6 6 General Remarks .................................................................................................................. 7 7 Test Setups ........................................................................................................................... 8 8 Systems test configuration .................................................................................................. 10 9 Technical Requirement ....................................................................................................... 11 9.1 Conducted Emission ..................................................................................................... 11 9.2 Conducted peak output power ...................................................................................... 14 9.3 6dB bandwidth .............................................................................................................. 16 9.4 Power spectral density .................................................................................................. 18 9.5 Spurious RF conducted emissions ............................................................................... 20 9.6 Band edge .................................................................................................................... 24 9.7 Spurious radiated emissions for transmitter .................................................................. 26 10 Test Equipment List ......................................................................................................... 30 11 System Measurement Uncertainty ................................................................................... 31 Report Number: 68.930.22.0047.01 EMC_SZ_FR_23.02 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 3 of 31 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China FCC Registration Number: 514049 FCC Designation Number: CN5009 Telephone: 86 755 8828 6998 Fax: 86 755 8828 5299 Report Number: 68.930.22.0047.01 EMC_SZ_FR_23.02 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 4 of 31 3 Description of the Equipment under Test Product/PMN: Upper Arm Electronic Blood Pressure Monitor Model no./HVIN: FC-BP130 HMN: NIL FCC ID: 2A3QXFCBP130 Ratings: 6.0VDC (Supplied by 4x1.5V AAA alkaline batteries) or 5.0VDC, 1A (Type-C port) RF Transmission Frequency: 2402MHz-2480MHz No. of Operated Channel: 40 Modulation: GFSK Antenna Type: PCB Antenna Antenna Gain: 0.2dBi Max Description of the EUT: The Equipment Under Test (EUT) is an Upper Arm Electronic Blood Pressure Monitor supports BLE functions. Report Number: 68.930.22.0047.01 EMC_SZ_FR_23.02 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 5 of 31 4 Summary of Test Standards Test Standards FCC Part 15 Subpart C 10-01-2021 Edition PART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators All the test method…

Text truncated - open the document above for the full version.

Product Name:YLB1 Antenna Type:PCB antenna Writer: Fangbing zhong Maximum Gain：0.2dBi Efficiency:36.98% YLB1 Antenna test datasheet Version 1.0.0Date：2022-01-11NO：0000000001 Antenna Test Datasheet Global Intelligent Platform Hangzhou Tuya Information Technology Co.,Ltd Room 701,Building 3,More Center,No.87 GuDun Road, Hangzhou, Zhejiang,China YLB1 Antenna test datasheet Content 1. General Description.................................................................................3 2. Technical Information............................................................................. 3 3. Test Standards..........................................................................................3 4. Test Item........................................................... ....................................... 4 5. Test Photo................................................................................................ 4 Appendix A S11/VSWR..............................................................................5 Appendix B Gain and Efficiency................................................................6 Appendix C Radiation Pattern(1D and 3D)............................... .................7 Appendix D Test Setup Photo.....................................................................9 Appendix E EUT Photo..................................................... 错误！未定义书签。 YLB1 Antenna test datasheet 1. General Description EUT NameYLB1 Antenna Wireless typeBluetooth Antenna TypePCB antenna DimensionsAppendix A 2. Technical Information Frequency Range2402MHz~2480MHz Test Frequency2400,2410......2500MHz 3. Test Standards IdentityDocument Title IEEE 149-1979IEEE Standard Test Procedures for Antennas YLB1 Ant enna test datasheet 4. Test Ite m DatasheetSecti onDe scripti on Appendix BS11/V SWR Appendix CGain and Efficiency Appendix D Ra diati on Patte rn（1D and 3D） 5. Test Photo DatasheetSecti onDe scripti on Appendix ETest Setu p Photo YLB1 Antenna test datasheet Appendix AAntenna Dimension Appendix B S11/VSWR YLB1 Antenna test datasheet Frequency (MHz)240024502500 Return Loss-7.37-11.76-7 VSWR2.91.62.9 Appendix C Gain and Efficiency Frequency (MHz)Efficiency(%) Gain（dBi） 240035.08%-0.23 241036.56%-0.01 242035.56%-0.1 243036.56%0.02 244036.98%0.2 245035.56%-0.05 246035.16%0.04 247035.16%0.17 248035.81%0.13 YLB1 Antenna test datasheet 249034.75%0.15 250032.28%-0.31 Appendix D Radiation Pattern(1D and 3D)

YLB1 Antenna test datasheet YLB1 Antenna test datasheet Appendix E Test Setup Photo

Conducted emission test of 0.15-30MHz Radiated Emission test of 30MHz-1GHz Radiated Emission test of 1-18GHz Radiated Emission test 18-25GHz
