Quick Start Guide Thank you for purchasing the SCORE® 8 Secure Device! This document will guide you through the initial configuration and will activate the device according to the guidelines of the facility where you are located. Please read Important Safety Reminders and Warranty Information before using the device. The device has many security features that are designed to meet the requirements of correctional institutions. This includes a mortality timer, connectivity limited to only authorized kiosks or servers, etc. Please be advised when you are released, if you would like to continue using the device, you will have to send the device for deinstitutionalization which will require paying a $25 service fee plus a shipping and handling fee. If you do not accept these conditions, do not activate the device, and return the device as indicated in the instructions in the SCORE® Secure Device Purchaser Agreement below. SET-UP INSTRUCTIONS Charge Battery – Please ensure that the device has at least 30% charge before attempting to activate. You charge the device by connecting the charger to its USB-C port. Turn on your Device – Power up the device by pressing and holding the Power Button for five (5) seconds. It will take several seconds to boot up—PRESSING THE POWER BUTTON MORE THAN ONCE WILL TURN OFF THE DEVICE AND INTERRUPT THE BOOTUP PROCESS. During the initial boot-up, the boot animation will play. Activate Device – If the device is instructing you to connect it to a kiosk, connect the device to the kiosk by gently plugging in the kiosk’s USB cord to the device’s USB-C port. Never disconnect your device during an active connection unless instructed by the kiosk. Select the “Music” option on the kiosk, then click on “ACTIVATE”. The activation process may take several minutes. Please follow the on-screen prompts. Once the session is complete you may disconnect the device from kiosk and begin using it. To download previously purchased music and videos, you will need to open the Media Store application and press the Download All button from the Downloads screen. This action will automatically download media catalogs. Safety Reminders Using your earbuds at high volume can be dangerous and/or damage your hearing. Keep the volume at a moderate level so you are able to hear outside sound. Please exercise extreme caution and discontinue use in potentially hazardous situations. User Recommendation: To keep the device in good operational order, please note the following: o The SCORE® 8 IS NOT WATERPROOF! Keep it away from sinks, showers, rain and other sources of moisture. o Disassembling or tampering may permanently damage the device. o Treat The SCORE® 8 as a delicate electronic device. Do not drop or bang it against any object or surface. Be gentle when inserting connector to the headphone or USB-C ports, using them with care will extend the usability. o DO NOT twist or apply pressure to the plastic case, as this may disrupt the Touch Screen. Headphone Volume USB-C Power SCORE® Secure Device Purchaser Agreement By purchasing a SCORE® Secure Device you, the end user, hereby agree to the terms contained in this Purchaser Agreement with Keefe Group, LLC and its parent and affiliate companies (“Keefe”) (the “Agreement”). This Agreement governs the use of your SCORE® Secure Device. This Agreement is effective on the date you receive your SCORE® Secure Device. Please read this Agreement carefully prior to using your SCORE® Secure Device. In the event that you, the end user, do not agree to all terms of this Agreement, you have the option to return your SCORE® Secure Device free of charge within thirty (30) days of receipt (the “Return Period”). If you use your SCORE® Secure Device or keep it beyond the Return Period, you hereby accept and agree to be bound by the terms of this Agreement. USING OR FAILING TO RETURN YOUR SCORE® SECURE DEVICE DURING THE RETURN PERIOD ACTS AS YOUR AGREEMENT TO A LIMITATION OF YOUR RIGHTS AGAINST KEEFE AS IT RELATES TO YOUR USE, POSSESSION, AND/OR OWNERSHIP OF YOUR SCORE® SECURE DEVICE. CONDITIONS OUTSIDE OF KEEFE’S CONTROL MAY AFFECT YOUR ABILITY TO OWN AND/OR POSSESS YOUR SCORE® SECURE DEVICE AND ACCEPTANCE OF THIS AGREEMENT THROUGH YOUR CONTINUED USE OF YOUR SCORE® SECURE DEVICE ACTS AS AN AGREEMENT TO WAIVE ALL RIGHTS TO SUE OR MAKE A CLAIM AGAINST KEEFE RELATING TO YOUR SCORE® SECURE DEVICE. I. Limited Warranty. Keefe warrants to the original end-user purchase, that the SCORE® Secure Device, excluding content and/or software supplied with or on it, will be free from defects in material and workmanship under normal use for a period of ninety (90) days from the date the SCORE® Secure Device is delivered to you. This warranty is non-transferrable, and you agree that this warranty may be further limited by circumstances beyond Keefe’s control, including but not limited to security measures or other polices or procedures put in place by the institution in which you are housed. Keefe’s liability under this warranty, and your exclusive remedy, is limited (at Keefe’s discretion) to either replacing or repairing the SCORE® Secure Device; provided however, if Keefe is unable to repair or replace your SCORE® Secure Device, Keefe may provide you with an equivalent product, which may be a refurbished product, at Keefe’s sole discretion. All the aforementioned remedies are subject to you explicitly following the process defined in the below section “Warranty Process.” Replacement and spare parts may be reconditioned, at Keefe’s sole discretion, and all parts removed from your SCORE® Secure Device during repair shall become the property of Keefe. II. Warranty Process. If your SCORE® Secure Device is covered by this Limited Warranty and you desire to file a claim – 1) Complete and sign the Warranty Request Card, attached hereto as Exhibit B, providing a detailed description of the problem(s), and confirming that the device was purchased within the last ninety (90) days. 2) Receive a…

Text truncated - open the document above for the full version.

Section Company n Address: 10 Product Na FCCID: 2A Model(s): S 2.911(d)(5 ) We, [Keef e through cer  Pro  Ide n Yours sinc e Name: Bri a Signature: Title and C o NOTE 1 “Covered List https://www.f c References; 1) 986446 D 0 https://apps.fc 2) Federal R e https://www.fe munications-s 2.911(d) name: Keefe 0880 Linpa ame: SCOR A3XN-SCOR SCORE 810 )(i) Equipm e Group] (“th rtification is hibited fro m ntified as an erely, an Thieman ompany na ” ; is the List o cc.gov/supplyc 01 Covered Eq cc.gov/oetcf/kd egister docume ederalregister. supply-chain-t )(5)(i) Ce e Group ge Pl, St. L RE Tablets RE810 0 ment Type he applicant not: m receiving n equipmen n me: Projec t of Equipment a chain/covered quipment v01 db/forms/FTS ent 2022-2826 gov/documen hrough-the Ke ertificatio ouis, MO 63 t”) certify th an equipme nt type in the t Director / S and Services C list SearchResul t 63 published o nts/2023/02/06 eefe Gro on – Equi 3132, Unite hat the equip ent authoriz e “Covered Shenzhen H Covered By S tPage.cfm?sw on 02/06/23 6/2022-28263/ oup 2. ipment T ed States pment for w zation pursu List” NOTE 1 D Huixinsheng ection 2 of Th witch=P&id=32 /protecting-ag 911 (d)(5)(i) Eq Type which author uant to § 2.9 Date: Sep. 2 gxun Techn e Secure Netw 5672 ainst-national - quipment Type A rization is s 903; of the F 25, 2023 ology Co., L works Act, ava -security-threa Attestation v1.2 ought FCC rules. Ltd. ailable at ats-to-the-com 2 m

Section Company n Address: 10 Product Na FCCID: 2A Model(s): S 2.911(d)(5 ) We, [Keefe applicant is chapter, as Yours sinc e Name: Bri a Signature: Title and C o NOTE 1 Delete option NOTE 2 “Covered List https://www.f c References; 1) 986446 D 0 https://apps.fc 2) Federal R e https://www.fe munications-s 2.911(d) name: Keefe 0880 Linpa ame: SCOR A3XN-SCOR SCORE 810 )(ii) Applica e Group] (“th s not identi an entity p erely, an Thieman ompany na not applicable ”; is the List o cc.gov/supplyc 01 Covered Eq cc.gov/oetcf/kd egister docume ederalregister. supply-chain-t )(5)(ii) Ce e Group ge Pl, St. L RE Tablets RE810 0 ant filing he applicant fied NOTE 1 o roducing co n me: Senior e to this applic of Equipment a chain/covered quipment v01 db/forms/FTS ent 2022-2826 gov/documen hrough-the Ke ertificatio ouis, MO 63 t”) certify th on the “Cove overed com Directo r / K cation. and Services C list SearchResul t 63 published o nts/2023/02/06 eefe Gro on – App 3132, Unite hat, as of the ered List” NO mmunication Keefe Group Covered By S tPage.cfm?sw on 02/06/23 6/2022-28263/ oup plicant (C ed States e date of th OTE 2 , establ s equipme n D p ection 2 of Th witch=P&id=32 /protecting-ag 2.911 (d)(5 Covered L e filing of th ished pursu nt. Date: Sep. 2 e Secure Netw 5672 ainst-national- 5)(ii) Applicant A List ) he applicatio uant to §1.5 25, 2023 works Act, ava -security-threa Attestation v1.3 on, the 50002 of this ailable at ats-to-the-com 3 s m

Co m Ad d Pr o Mo d Pr o We act We an d issu our Sig Na m Title Com mpany: Kee dress: 1088 oduct Name del Numbe oduct Desc authorize M on our beha declare tha d certificatio ues concern behalf shal nature: me: e: mpany: efe Group 80 Linpage e: SCORE T er(s): SCOR ription: SC MiCOM Lab alf on all ma at MiCOM L n of equipm ning the app ll have the s Brian Thi e Senior Di Keefe Gro Ke Agen Pl, St. Loui Tablets RE 810 CORE Table bs Inc., 575 atters conce Labs Inc. is ment to the r proval applic same effect emann rector oup eefe G nt Auth is, MO 6313 ets Boulder C o erning the c allowed to f regulatory a cation. Any t as acts of Grou horizat 32, United S ourt, Pleasa certification forward all i agencies as and all acts our own. p tion States anton, Califo of above na information s required a s carried ou Date: ornia 94566 amed equip related to t nd to discu ut by MiCOM Sep. 25, 2 6, USA, to pment. the approva ss any M Labs on 023 al

Office o Federa 7435 O Columb USA Subjec t FCC ID To Wh o Pursua are req u docume These d propriet might b In addi t in Title busine s authoriz For 4 O For 1 It is ou r corresp docume authoriz Sincer e Signatu Name: Title: S e of Engineeri l Communic Oakland Mills bia, MD 210 t; Request f D: 2A3XN-S om It May C nt to the pro uesting the ents from pu documents tary informa be harmful to Schemat Block Di Parts Lis Operatio Software tional to abo 47 CFR §2 ss sensitive zed devices External Test Set Internal P User Ma 45 days, pu OR 180 days pu r understand pondence du ents and thi zation is iss ely, ure: Brian Thie m enior Direct ing Techno cations Com s Road 046 for Confiden CORE810 Concern, ovisions of t Commissio ublic disclos contain det ation in ope o our comp tic Diagram agram st onal Descrip e security re ove mention .803 and th informatio n s, we reque Photos tup Photos Photos anual rsuant to P u ursuantto KD ding that all uring the ce s informatio sued. mann tor K logy mmission ntiality the Commis on to withho sure indefin tailed syste ration of th e any and wo m ption equirement ned docume e importatio n remains c st Short Te ublic Notice DB 726920 l measurem ertification re on will be av Keefe Gr ssion’s rule old the follow nitely. m and equi e equipmen ould give co ents, in orde on rules in T confidential rm Confide e DA 04-170 0 D01. ment test rep eview proce vailable for roup s Title 47 S wing attach pment desc nt. The publ ompetitors a er to comply Title 47 CFR until the act ntiality of th 05. ports, FCC ess cannot public revi e Sections §0. hment(s) as criptions an ic disclosu r an unfair ad y with the m R §2.1204, tual market he following ID label for be granted ew once the Date: Sep. 457 and § 0 confidentia d are consi re of these d vantage in marketing re while ensu ting of newly attachmen mat and as confide n e grant of eq 25, 2023 0.459, we al dered as documents the market . egulations ring that y t(s); ntial quipment .

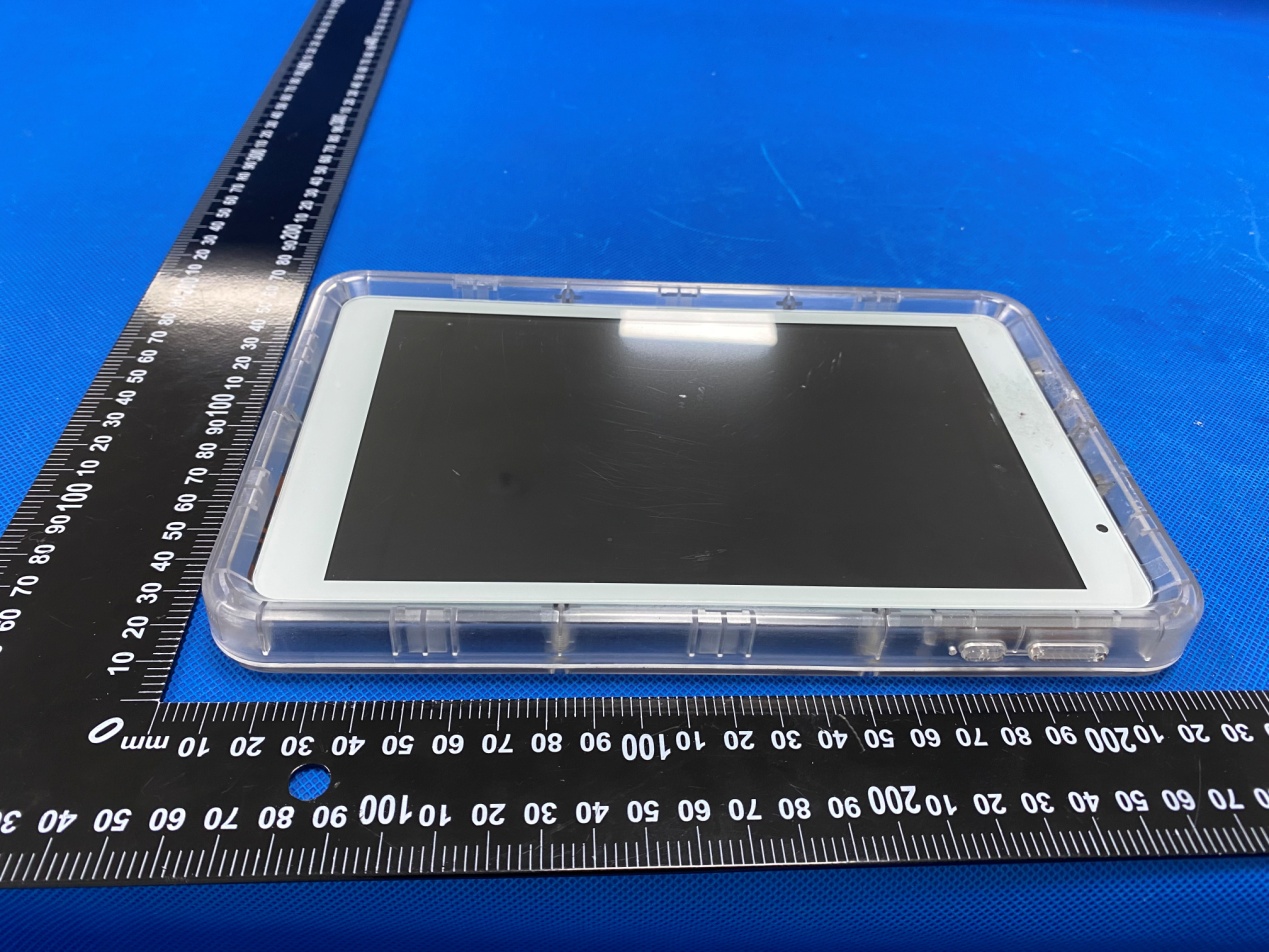

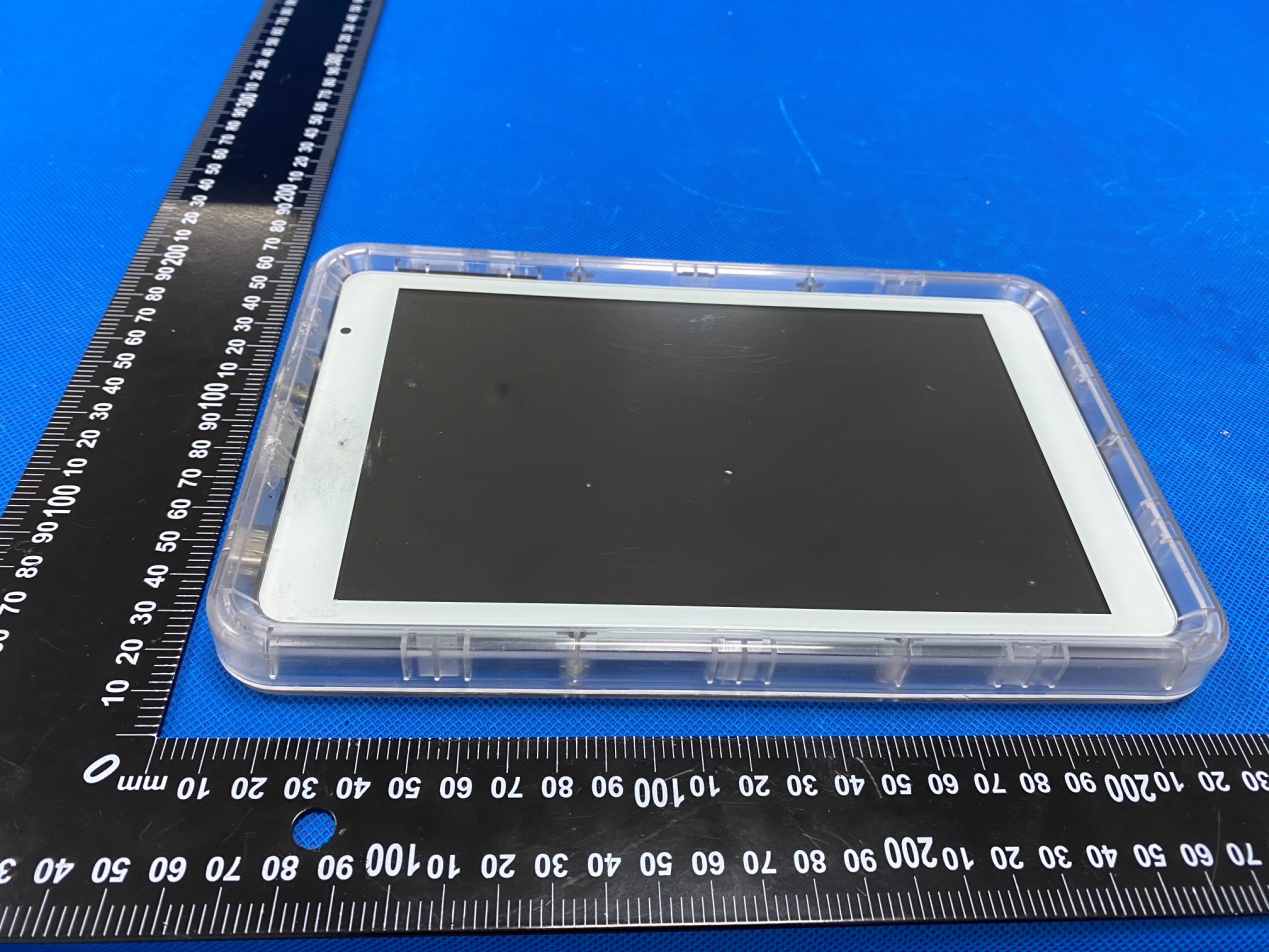

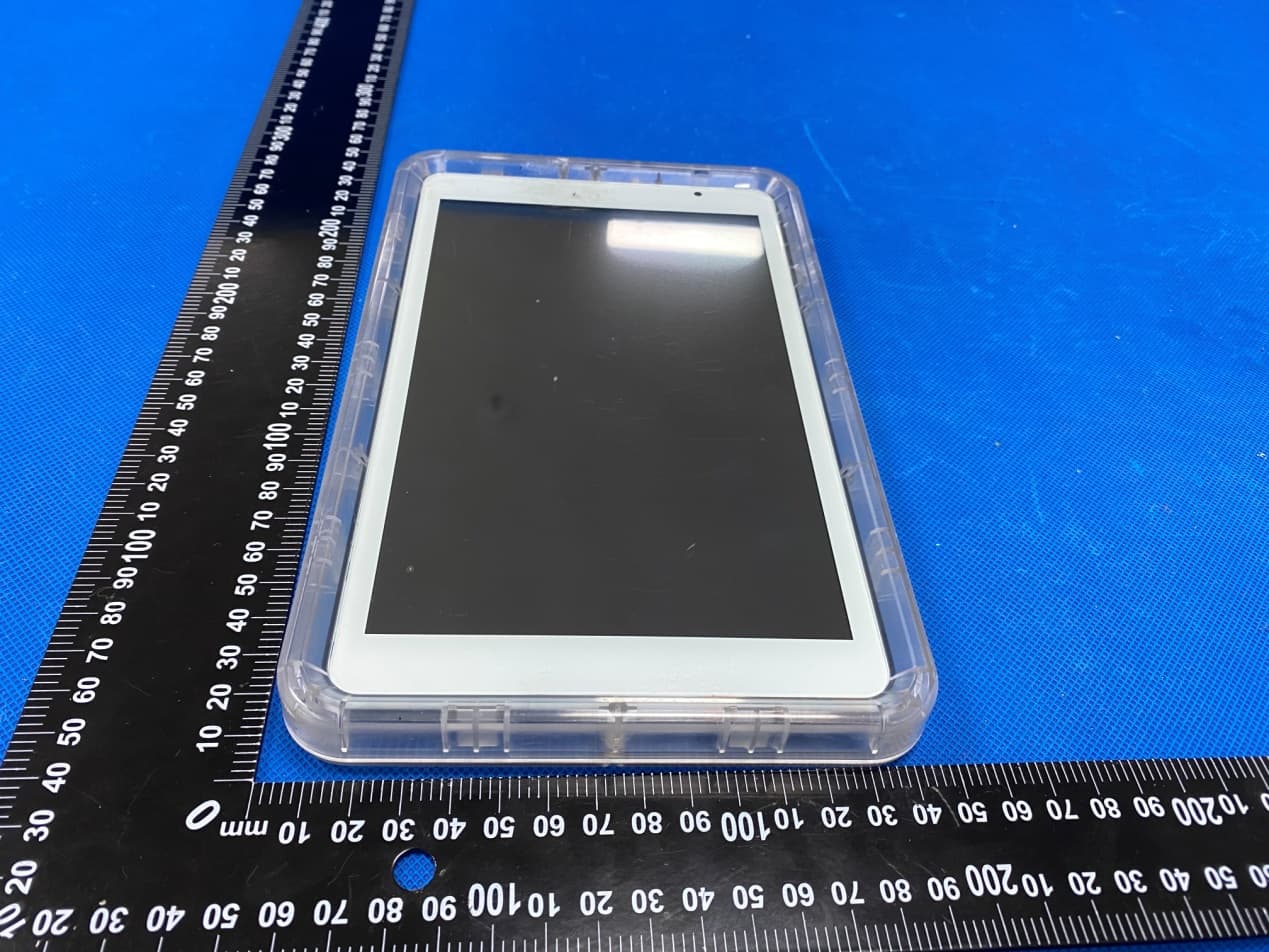

Annex A External Photos Model No.: SCORE 810 Page 1 of 3 Model No.: SCORE 810 Page 2 of 3 Model No.: SCORE 810 Page 3 of 3

FCC ID LABEL: Ca: 10mm x 30mm Label Location FCC ID: 2A3XN-SCORE810

Annex B Internal Photos Model No.: SCORE 810 Page 1 of 4 Antenna Model No.: SCORE 810 Page 2 of 4 Model No.: SCORE 810 Page 3 of 4 Model No.: SCORE 810 Page 4 of 4

Report No. Client Addre Produ FCC I Date She : 18220WC Name ess uct Name D enzhen C30176101 SA : K : 1 : S : 2 : A n Anbo AR T Keefe Group 0880 Linpa SCORE Tabl 2A3XN-SCO Aug. 31, 202 tek Co Test R p ge Pl, St. Lo lets ORE810 23 omplian Pa Repo ouis, MO 63 nce Lab age 1 of 82 ort 132, United borato 2 States ry Limited Report No.: 18220WC30176101 Page 2 of 82 Contents 1. Statement of Compliance ............................................................................................... 6 2. General Information ........................................................................................................ 7 2.1 Client Information ............................................................................................................................................. 7 2.2 Description of Equipment Under Test (EUT) ..................................................................................................... 7 2.3 Device Category and SAR Limits ..................................................................................................................... 8 2.4 Applied Standard .............................................................................................................................................. 8 2.5 Environment of Test Site ................................................................................................................................... 8 2.6 Test Configuration ............................................................................................................................................. 8 3. Specific Absorption Rate (SAR) ..................................................................................... 9 3.1 Introduction ....................................................................................................................................................... 9 3.2 SAR Definition .................................................................................................................................................. 9 4. SAR Measurement System .......................................................................................... 10 4.1 E-Field Probe ................................................................................................................................................... 11 4.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 4.3 Robot .............................................................................................................................................................. 12 4.4 Measurement Server ...................................................................................................................................... 13 4.5 Phantom ......................................................................................................................................................... 13 4.6 Device Holder ................................................................................................................................................. 15 4.7 Data Storage and Evaluation .......................................................................................................................... 16 5. Test Equipment List ...................................................................................................... 18 6. Tissue Simulating Liquids ............................................................................................. 19 7. System Verification Procedures ................................................................................... 20 8. EUT Testing Position .................................................................................................... 22 8.1 Body Worn Position ........................................................................................................................................ 22 9. Measurement Procedures ............................................................................................ 23 9.1 Spatial Peak SAR Evaluation ......................................................................................................................... 23 9.2 Power Reference Measurement ..................................................................................................................... 24 9.3 Area Scan Procedures ................................................................................................................................... 24 9.4 Zoom Scan Procedures .................................................................................................................................. 25 9.5 Volume Scan Procedures ............................................................................................................................... 26 9.6 Power Drift Monitoring .................................................................................................................................... 26 10. Conducted Power ......................................................................................................... 27 11. Antenna Location ........................................................................................................... 31 12. SAR Test Results Summary ......................................................................................... 32 13. Simultaneous Transmission Analysis ........................................................................... 33 Simultaneous TX SAR Considerations ............................................................................................................................ 33 Evaluation of Simultaneous SAR ................................................................................................................................... 33 Measurement Uncertainty ................................................................................…

Text truncated - open the document above for the full version.

Report No.: 18220WC30176101 Page 41 of 82 Appendix D. DASY System Calibration Certificate Report No.: 18220WC30176101 Page 42 of 82 Report No.: 18220WC30176101 Page 43 of 82 Report No.: 18220WC30176101 Page 44 of 82 Report No.: 18220WC30176101 Page 45 of 82 Report No.: 18220WC30176101 Page 46 of 82 Report No.: 18220WC30176101 Page 47 of 82 Report No.: 18220WC30176101 Page 48 of 82 Report No.: 18220WC30176101 Page 49 of 82 Report No.: 18220WC30176101 Page 50 of 82

Report No.: 18220WC30176101 Page 51 of 82 Report No.: 18220WC30176101 Page 52 of 82 Report No. : 18220WCC30176101 Paage 53 of 882 Report No. : 18220WCC30176101 Paage 54 of 882 Report No. : 18220WCC30176101 Paage 55 of 882 Report No. : 18220WCC30176101 Paage 56 of 882 Report No. : 18220WCC30176101 Paage 57 of 882 Report No. : 18220WCC30176101 Paage 58 of 882 Report No. : 18220WCC30176101 Paage 59 of 882 Report No. : 18220WCC30176101 Paage 60 of 882 Report No. : 18220WCC30176101 Paage 61 of 882 Report No. : 18220WCC30176101 Paage 62 of 882 Report No. : 18220WCC30176101 Paage 63 of 882 Report No. : 18220WCC30176101 Paage 64 of 882 Report No. : 18220WCC30176101 Paage 65 of 882 Report No. : 18220WCC30176101 Paage 66 of 882

Report No. : 18220WCC30176101 Paage 67 of 882 Report No. : 18220WCC30176101 Paage 68 of 882 Report No. : 18220WCC30176101 Paage 69 of 882 Report No. : 18220WCC30176101 Paage 70 of 882 Report No. : 18220WCC30176101 Paage 71 of 882 Report No. : 18220WCC30176101 Paage 72 of 882 Report No. : 18220WCC30176101 Paage 73 of 882

Report No. : 18220WCC30176101 Paage 74 of 882 Report No. : 18220WCC30176101 Paage 75 of 882 Report No. : 18220WCC30176101 Paage 76 of 882 Report No. : 18220WCC30176101 Paage 77 of 882 Report No. : 18220WCC30176101 Paage 78 of 882 Report No. : 18220WCC30176101 Paage 79 of 882 Report No. : 18220WCC30176101 Paage 80 of 882 Report No. : 18220WCC30176101 Paage 81 of 882 Report No.: 18220WC30176101 Page 82 of 82 *****END OF REPORT*****

Page 1 of 53 Report No.: HK2308144037-2E FCC TEST REPORT Test report On Behalf of Keefe Group For SCORE Tablets Model No.: SCORE 810 FCC ID: 2A3XN-SCORE810 Prepared for : Keefe Group 10880 Linpage Pl, St. Louis, MO 63132, United States Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Aug. 14, 2023 ~ Aug. 31, 2023 Date of Report: Aug. 31, 2023 Report Number: HK2308144037-2E Page 2 of 53 Report No.: HK2308144037-2E TEST RESULT CERTIFICATION Applicant’s name ................. : Keefe Group Address ................................. : 10880 Linpage Pl, St. Louis, MO 63132, United States Manufacture's Name ............ : Central Tech International Limited Address ................................. : Room 608, Zhuguang Innovation Park, Taoyuan Road, Nanshan District, Shenzhen, China Product description Trade Mark ................................. : SCORE Product name ............................ : SCORE Tablets Model and/or type reference : SCORE 810 Standards ............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Aug. 14, 2023 ~ Aug. 31, 2023 Date of Issue ........................................... : Aug. 31, 2023 Test Result ............................................... : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 53 Report No.: HK2308144037-2E Table of Contents Page 1. SUMMARY............................................................................................................................................................ 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 2.7. DESCRIPTION OF TEST SETUP ................................................................................................................................ 10 2.8. DESCRIPTION OF SUPPORT UNITS ......................................................................................................................... 11 3. TEST CONDITIONS AND RESULTS ......................................................................................................................... 12 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 12 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 15 3.3. MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 26 3.4. 20DB BANDWIDTH ..................................................................................................................................................... 27 3.5. FREQUENCY SEPARATION ............................................................................................................................................. 31 3.6. NUMBER OF HOPPING FREQUENCY ................................................................................................................................. 33 3.7. TIME OF OCCUPANCY (DWELL TIME) .............................................................................................................................. 35 3.8. OUT‐OF‐BAND EMISSIONS ........................................................................................................................................... 39 3.9. PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ......................................................................…

Text truncated - open the document above for the full version.

Page 34 of 53 Report No.: HK2308144037-2E GFSK Modulation π/4DQPSK Modulation 8DPSK Modulation Page 35 of 53 Report No.: HK2308144037-2E 3.7. Time of Occupancy (Dwell Time) Limit The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Test Procedure The transmitter output was connected to the spectrum analyzer through an attenuator. Set center frequency of spectrum analyzer=operating frequency with 1MHz RBW and 3MHz VBW, Span 0Hz. Test Configuration EUT SPECTRUM ANALYZER Test Results Modulation Packet Pulse time (ms) Dwell time (second) Limit (second) Result GFSK DH1 0.376 0.120 0.40 Pass DH3 1.633 0.261 DH5 2.880 0.307 π/4DQPSK 2-DH1 0.384 0.123 0.40 Pass 2-DH3 1.635 0.262 2-DH5 2.884 0.308 8DPSK 3-DH1 0.385 0.123 0.40 Pass 3-DH3 1.633 0.261 3-DH5 2.885 0.308 Note: 1. We have tested all mode at high,middle and low channel,and recoreded worst case at middle channel. 2. Dwell time=Pulse time (ms) × (1600 ÷ 2 ÷ 79) ×31.6 Second for DH1, 2-DH1, 3-DH1 Dwell time=Pulse time (ms) × (1600 ÷ 4 ÷ 79) ×31.6 Second for DH3, 2-DH3, 3-DH3 Dwell time=Pulse time (ms) × (1600 ÷ 6 ÷ 79) ×31.6 Second for DH5, 2-DH5, 3-DH5 Test plot as follows: Page 36 of 53 Report No.: HK2308144037-2E GFSK Modulation DH1 DH3 DH5 Page 37 of 53 Report No.: HK2308144037-2E π/4DQPSK Modulation 2-DH1 2-DH3 2-DH5 Page 38 of 53 Report No.: HK2308144037-2E 8DPSK Modulation 3-DH1 3-DH3 3-DH5 Page 39 of 53 Report No.: HK2308144037-2E 3.8. Out-of-band Emissions Limit In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF con-ducted or a radiated measurement, pro-vided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter com-plies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. Attenuation below the general limits specified in §15.209(a) is not required. In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated device is operating, the RF power that is produced shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided that the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of root-mean-square averaging over a time interval, as permitted under Section 5.4(4), the attenuation required shall be 30 dB instead of 20 dB. Attenuation below the general field strength limits specified in RSS-Gen is not required. Test Procedure Connect the transmitter output to spectrum analyzer using a low loss RF cable, and set the spectrum analyzer to RBW=100 kHz, VBW= 300 kHz, peak detector , and max hold. Measurements utilizing these setting are made of the in-band reference level, bandedge and out-of-band emissions. Test Configuration EUT SPECTRUM ANALYZER Test Results Remark: The measurement frequency range is from 30MHz to the 10th harmonic of the fundamental frequency. The lowest, middle and highest channels are tested to verify the spurious emissions and bandage measurement data. We measured all conditions (DH1, DH3, DH5) and recorded worst case at DH5 and 3DH5 Test plot as follows: Page 40 of 53 Report No.: HK2308144037-2E GFSK CH00 CH39 Page 41 of 53 Report No.: HK230814…
