2A3XN-SCORE8TTablet PC

Keefe Group
Tablet PC - FCC ID 2A3XN-SCORE8T - Keefe Group
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Aug 21, 2026
Application Purpose
Original Equipment
Equipment Note
Tablet PC
Frequency Range
2402.00000000 - 2480.00000000
Company
Keefe Group
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

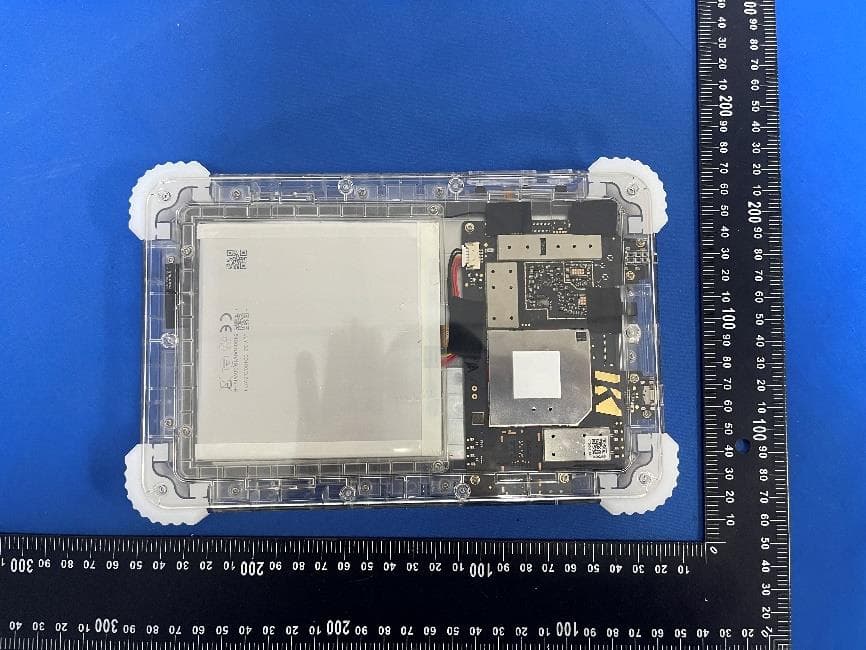

Internal Photos

↗

RF Exposure Info

↗
↗
↗
↗
↗

Test Report

↗
↗
↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Quick Start Guide Thank you for purchasing the SCORE® 8T Secure Device! This document will guide you through the initial configuration and will activate the device according to the guidelines of the facility where you are located. Please read Important Safety Reminders and Warranty Information before using the device. The device has many security features that are designed to meet the requirements of correctional institutions. This includes a mortality timer, connectivity limited to only authorized kiosks or servers, etc. Please note that your use, possession, and ownership of the device may be affected by the rules and policies of the facility in which you are incarcerated. If the facility or its overseeing agency changes contracts or vendors, the facility or agency may place restrictions on the use or possession of your device, up to and including requiring you to surrender it for security reasons. Please be advised when you are released, if you would like to continue using the device, you will have to send the device for deinstitutionalization which will require paying a $35 service fee plus a shipping and handling fee. If you do not accept these conditions, do not activate the device, and return the device as indicated in the instructions in the SCORE® Secure Device Purchaser Agreement below. SET-UP INSTRUCTIONS Charge Battery – Please ensure that the device has at least 30% charge before attempting to activate. You charge the device by connecting the charger to its USB-C port. Turn on your Device – Power up the device by pressing and holding the Power Button for five (5) seconds. It will take several seconds to boot up—PRESSING THE POWER BUTTON MORE THAN ONCE WILL TURN OFF THE DEVICE AND INTERRUPT THE BOOTUP PROCESS. During the initial boot-up, the boot animation will play. Activate Device – If the device is instructing you to connect it to a kiosk, connect the device to the kiosk by gently plugging in the kiosk’s USB cord to the device’s USB-C port. Never disconnect your device during an active connection unless instructed by the kiosk. Select the “Music” option on the kiosk, then click on “ACTIVATE”. The activation process may take several minutes. Please follow the on-screen prompts. Once the session is complete you may disconnect the device from kiosk and begin using it. To download previously purchased music and videos, you will need to open the Media Store application and press the Download All button from the Downloads screen. This action will automatically download media catalogs. Safety Reminders Using your earbuds at high volume can be dangerous and/or damage your hearing. Keep the volume at a moderate level so you are able to hear outside sound. Please exercise extreme caution and discontinue use in potentially hazardous situations. User Recommendation: To keep the device in good operational order, please note the following: o The SCORE® 8T IS NOT WATERPROOF! Keep it away from sinks, showers, rain and other sources of moisture. o Disassembling or tampering may permanently damage the device. o Treat The SCORE® 8T as a delicate electronic device. Do not drop or bang it against any object or surface. Be gentle when inserting connector to the headphone or USB-C ports, using them with care will extend the usability. o DO NOT twist or apply pressure to the plastic case, as this may disrupt the Touch Screen. Headphone Volume USB-C Power SCORE® Secure Device Purchaser Agreement By purchasing a SCORE® Secure Device you, the end user, hereby agree to the terms contained in this Purchaser Agreement with Keefe Group, LLC and its parent and affiliate companies (“Keefe”) (the “Agreement”). This Agreement governs the use of your SCORE® Secure Device. This Agreement is effective on the date you receive your SCORE® Secure Device. Please read this Agreement carefully prior to using your SCORE® Secure Device. In the event that you, the end user, do not agree to all terms of this Agreement, you have the option to return your SCORE® Secure Device free of charge within thirty (30) days of receipt (the “Return Period”). If you use your SCORE® Secure Device or keep it beyond the Return Period, you hereby accept and agree to be bound by the terms of this Agreement. USING OR FAILING TO RETURN YOUR SCORE® SECURE DEVICE DURING THE RETURN PERIOD ACTS AS YOUR AGREEMENT TO A LIMITATION OF YOUR RIGHTS AGAINST KEEFE AS IT RELATES TO YOUR USE, POSSESSION, AND/OR OWNERSHIP OF YOUR SCORE® SECURE DEVICE. CONDITIONS OUTSIDE OF KEEFE’S CONTROL MAY AFFECT YOUR ABILITY TO OWN AND/OR POSSESS YOUR SCORE® SECURE DEVICE AND ACCEPTANCE OF THIS AGREEMENT THROUGH YOUR CONTINUED USE OF YOUR SCORE® SECURE DEVICE ACTS AS AN AGREEMENT TO WAIVE ALL RIGHTS TO SUE OR MAKE A CLAIM AGAINST KEEFE ARISING OUT OF OR RELATING TO ANY LOSS, IMPAIRMENT, OR LIMITATION OF YOUR USE, POSSESSION, AND/OR OWNERSHIP OF YOUR SCORE® SECURE DEVICE CAUSED BY CIRCUMSTANCES OUTSIDE OF KEEFE’S CONTROL, AS FURTHER DESCRIBED IN SECTION VIII OF THIS AGREEMENT. I. Limited Warranty. Keefe warrants to the original end-user purchaser, that the SCORE® Secure Device, excluding content and/or software supplied with or on it, will be free from defects in material and workmanship under normal use for a period of ninety (90) days from the date the SCORE® Secure Device is delivered to you. This warranty is non-transferrable, and you agree that this warranty may be further limited by circumstances beyond Keefe’s control, including but not limited to security measures or other policies or procedures put in place by the institution in which you are housed. Keefe’s liability under this warranty, and your exclusive remedy, is limited (at Keefe’s discretion) to either replacing or repairing the SCORE® Secure Device; provided however, if Keefe is unable to repair or replace your SCORE® Secure Device, Keefe may provide you with an equivalent product, which may be a refurbished product, at Keefe’s sole discretion. All the aforementioned remedies are subject to you explici…

Text truncated - open the document above for the full version.

RF Exposure Info

Page 1 of 39 Code:AB-RF-05-b FCC SAR Test Report Report No.:1819C60088812501 Applicant:Keefe Group Address:10880 Linpage Pl, St. Louis, MO 63132 Product Name:Tablet PC Report Date:2026-08-19 Shenzhen Anbotek Compliance Laboratory Limited #资质章# #检测章# #报告二维码# Report No.:1819C600888125 Page 2 of 39 FCC ID:2A3XN-SCORE8T Code:AB-RF-05-b Contents 1. Statement of Compliance .................................................................................................................6 2. General Information..........................................................................................................................7 2.1 Client Information................................................................................................................................................7 2.2 Description of Equipment Under Test (EUT) ......................................................................................................7 2.3 Device Category and SAR Limits .......................................................................................................................8 2.4 Applied Standard ................................................................................................................................................8 2.5 Environment of Test Site ....................................................................................................................................8 2.6 Test Configuration ..............................................................................................................................................8 2.7 Description of Test Facility..................................................................................................................................8 2.8 Disclaimer ...........................................................................................................................................................9 3. Specific Absorption Rate (SAR) .....................................................................................................10 3.1. Introduction ......................................................................................................................................................10 3.2. SAR Definition .................................................................................................................................................10 4. SAR Measurement System ............................................................................................................11 4.1 E-Field Probe....................................................................................................................................................12 4.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 4.3 Robot ................................................................................................................................................................13 4.4 Measurement Server ........................................................................................................................................14 4.5 Phantom ...........................................................................................................................................................15 4.6 Device Holder ...................................................................................................................................................16 4.7 Data Storage and Evaluation............................................................................................................................17 5. Test Equipment List........................................................................................................................19 6. Tissue Simulating Liquids...............................................................................................................20 7. System Verification Procedures .....................................................................................................22 8. EUT Testing Position......................................................................................................................24 8.1. Body Position...................................................................................................................................................24 9. Measurement Procedures ..............................................................................................................25 9.1. Power Reference Measurement ......................................................................................................................26 9.2. Area Scan Procedures ....................................................................................................................................26 9.3. Zoom Scan Procedures ...................................................................................................................................27 9.4. Volume Scan Procedures ................................................................................................................................28 10. Output Power ...............................................................................................................................29 11. Exposure Positions Consideration ...............................................................................................32 12. SAR Test Results Summary.........................................................................................................34 12.1. Body SAR Test Results .................................................................................................................................34 13. Simultaneous Transmission Analysis...........................................................................................36 13.1. Simultaneous TX SAR Considerations ................................…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID:2A3XN-SCORE8T Test Setup Photos of the EUT FCC ID:2A3XN-SCORE8T

Test Report

1 FCC Appendix RF Test Data for BLE FCC ID : 2A3XN-SCORE8T Company : Keefe Group EUT : Tablet PC Model Number : SCORE 814 Report No. : CTA26070300301 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.708 2401.600 2402.308 0.5 PASS 2440 0.660 2439.628 2440.288 0.5 PASS 2480 0.656 2479.620 2480.276 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0315 2401.4353 2402.4668 --- --- 2440 1.0326 2439.4340 2440.4666 --- --- 2480 1.0433 2479.4314 2480.4747 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -3.58 ≤30 PASS 2440 -3.78 ≤30 PASS 2480 -4.12 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -20.22 ≤8.00 PASS 2440 -20.45 ≤8.00 PASS 2480 -20.84 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -4.77 -58.89 ≤-24.77 PASS High 2480 -4.33 -57.51 ≤-24.33 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -4.71 -4.71 --- PASS 30~1000 -4.71 -68.96 ≤-24.71 PASS 1000~26500 -4.71 -45.83 ≤-24.71 PASS 2440 Reference -5.37 -5.37 --- PASS 30~1000 -5.37 -68.9 ≤-25.37 PASS 1000~26500 -5.37 -46.5 ≤-25.37 PASS 2480 Reference -5.55 -5.55 --- PASS 30~1000 -5.55 -69.31 ≤-25.55 PASS 1000~26500 -5.55 -46.71 ≤-25.55 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 2.13 2.50 0.8520 85.20 0.70 --- --- 2440 2.13 2.50 0.8520 85.20 0.70 --- --- 2480 2.13 2.50 0.8520 85.20 0.70 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21 22 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -60.82 2.82 0.70 37.9 ≤54 PASS AV 2319.950 -59.42 2.82 0.70 39.3 ≤54 PASS AV 2390.000 -60.31 2.82 0.70 38.41 ≤54 PASS Peak 2310.000 -52.81 2.82 0.00 45.21 ≤74 PASS Peak 2333.600 -49.17 2.82 0.00 48.85 ≤74 PASS Peak 2390.000 -52.19 2.82 0.00 45.83 ≤74 PASS High 2480 AV 2483.500 -59.71 2.82 0.70 39.01 ≤54 PASS AV 2483.600 -58.99 2.82 0.70 39.73 ≤54 PASS AV 2500.000 -59.73 2.82 0.70 38.99 ≤54 PASS Peak 2483.500 -50.71 2.82 0.00 47.31 ≤74 PASS Peak 2498.800 -48.84 2.82 0.00 49.18 ≤74 PASS Peak 2500.000 -52.02 2.82 0.00 46.0 ≤74 PASS Note: 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 23 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV 24 BLE_1M_Ant1_High_2480_Peak

Test Report

33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.38 8.42 99.52 0.02 0.12 2437 8.38 8.42 99.52 0.02 0.12 2462 8.39 8.42 99.64 0.02 0.12 11G Ant1 2412 1.39 1.44 96.53 0.15 0.72 2437 1.39 1.44 96.53 0.15 0.72 2462 1.39 1.43 97.20 0.12 0.72 11N20SISO Ant1 2412 0.17 0.22 77.27 1.12 5.88 2437 0.18 0.22 81.82 0.87 5.56 2462 0.18 0.22 81.82 0.87 5.56 11N40SISO Ant1 2422 0.17 0.22 77.27 1.12 5.88 2437 0.18 0.22 81.82 0.87 5.56 2452 0.17 0.22 77.27 1.12 5.88 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 48 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequenc y[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -60.11 2.82 0.02 37.93 ≤54 PASS AV 2386.710 -58.55 2.82 0.02 39.49 ≤54 PASS AV 2390.000 -58.77 2.82 0.02 39.27 ≤54 PASS Peak 2310.000 -52.54 2.82 0.00 45.48 ≤74 PASS Peak 2353.170 -48.67 2.82 0.00 49.35 ≤74 PASS Peak 2390.000 -51.08 2.82 0.00 46.94 ≤74 PASS High 2462 AV 2483.500 -57.00 2.82 0.02 41.04 ≤54 PASS AV 2487.410 -56.29 2.82 0.02 41.75 ≤54 PASS AV 2500.000 -59.76 2.82 0.02 38.28 ≤54 PASS Peak 2483.500 -50.53 2.82 0.00 47.49 ≤74 PASS Peak 2487.190 -46.61 2.82 0.00 51.41 ≤74 PASS Peak 2500.000 -50.88 2.82 0.00 47.14 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -60.72 2.82 0.15 37.45 ≤54 PASS AV 2389.570 -58.13 2.82 0.15 40.04 ≤54 PASS AV 2390.000 -58.42 2.82 0.15 39.75 ≤54 PASS Peak 2310.000 -50.96 2.82 0.00 47.06 ≤74 PASS Peak 2385.670 -48.64 2.82 0.00 49.38 ≤74 PASS Peak 2390.000 -49.98 2.82 0.00 48.04 ≤74 PASS High 2462 AV 2483.500 -56.57 2.82 0.12 41.57 ≤54 PASS AV 2483.670 -56.14 2.82 0.12 42 ≤54 PASS AV 2500.000 -59.52 2.82 0.12 38.62 ≤54 PASS Peak 2483.500 -49.15 2.82 0.00 48.87 ≤74 PASS Peak 2483.670 -45.99 2.82 0.00 52.03 ≤74 PASS Peak 2500.000 -50.37 2.82 0.00 47.65 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -60.56 2.82 1.12 38.58 ≤54 PASS AV 2389.700 -57.36 2.82 1.12 41.78 ≤54 PASS AV 2390.000 -57.44 2.82 1.12 41.7 ≤54 PASS Peak 2310.000 -51.89 2.82 0.00 46.13 ≤74 PASS Peak 2389.700 -47.6 2.82 0.00 50.42 ≤74 PASS Peak 2390.000 -49.47 2.82 0.00 48.55 ≤74 PASS High 2462 AV 2483.500 -55.01 2.82 0.87 43.88 ≤54 PASS AV 2483.890 -54.8 2.82 0.87 44.09 ≤54 PASS AV 2500.000 -59.53 2.82 0.87 39.36 ≤54 PASS Peak 2483.500 -46.89 2.82 0.00 51.13 ≤74 PASS Peak 2483.560 -43.31 2.82 0.00 54.71 ≤74 PASS Peak 2500.000 -51.74 2.82 0.00 46.28 ≤74 PASS 49 11N40SI SO Ant1 Low 2422 AV 2310.000 -60.86 2.82 1.12 38.28 ≤54 PASS AV 2388.350 -51.81 2.82 1.12 47.33 ≤54 PASS AV 2390.000 -53.4 2.82 1.12 45.74 ≤54 PASS Peak 2310.000 -53.12 2.82 0.00 44.9 ≤74 PASS Peak 2388.500 -42.5 2.82 0.00 55.52 ≤74 PASS Peak 2390.000 -42.93 2.82 0.00 55.09 ≤74 PASS High 2452 AV 2483.500 -46.34 2.82 1.12 52.8 ≤54 PASS AV 2486.500 -45.26 2.82 1.12 53.88 ≤54 PASS AV 2500.000 -59.34 2.82 1.12 39.8 ≤54 PASS Peak 2483.500 -38.33 2.82 0.00 59.69 ≤74 PASS Peak 2486.250 -34.13 2.82 0.00 63.89 ≤74 PASS Peak 2500.000 -52.76 2.82 0.00 45.26 ≤74 PASS Note: 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 50 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 51 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 52 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 53 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 54 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak 11N40SISO_Ant1_Low_2422_AV 55 11N40SISO_Ant1_Low_2422_Peak 11N40SISO_Ant1_High_2452_AV 56 11N40SISO_Ant1_High_2452_Peak

Test Report

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2A3XN-SCORE8T Company : Keefe Group EUT : Tablet PC Model Number : SCORE 814 Report No. : CTA26070300303 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.120 2407.920 2416.040 0.5 PASS 2437 8.160 2432.920 2441.080 0.5 PASS 2462 8.040 2457.920 2465.960 0.5 PASS 11G Ant1 2412 15.800 2403.960 2419.760 0.5 PASS 2437 16.160 2429.000 2445.160 0.5 PASS 2462 16.080 2453.840 2469.920 0.5 PASS 11N20SISO Ant1 2412 16.200 2403.880 2420.080 0.5 PASS 2437 16.280 2428.840 2445.120 0.5 PASS 2462 16.360 2453.800 2470.160 0.5 PASS 11N40SISO Ant1 2422 36.160 2403.840 2440.000 0.5 PASS 2437 35.600 2419.560 2455.160 0.5 PASS 2452 32.960 2436.400 2469.360 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 12.636 2405.6077 2418.2437 --- --- 2437 12.835 2430.6695 2443.5045 --- --- 2462 12.671 2455.5156 2468.1866 --- --- 11G Ant1 2412 16.742 2403.5470 2420.2890 --- --- 2437 16.767 2428.6699 2445.4369 --- --- 2462 16.725 2453.5149 2470.2399 --- --- 11N20SISO Ant1 2412 16.536 2403.6900 2420.2260 --- --- 2437 16.713 2428.6776 2445.3906 --- --- 2462 16.643 2453.5903 2470.2333 --- --- 11N40SISO Ant1 2422 36.322 2403.8737 2440.1957 --- --- 2437 36.479 2418.8684 2455.3474 --- --- 2452 35.955 2434.0814 2470.0364 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[M Hz] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 15.21 ≤30.00 PASS 2437 15.80 ≤30.00 PASS 2462 15.44 ≤30.00 PASS 11G Ant1 2412 15.29 ≤30.00 PASS 2437 15.53 ≤30.00 PASS 2462 14.93 ≤30.00 PASS 11N20SISO Ant1 2412 15.65 ≤30.00 PASS 2437 15.71 ≤30.00 PASS 2462 15.64 ≤30.00 PASS 11N40SISO Ant1 2422 15.23 ≤30.00 PASS 2437 15.48 ≤30.00 PASS 2452 15.76 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -9.34 ≤8.00 PASS 2437 -9.39 ≤8.00 PASS 2462 -8.55 ≤8.00 PASS 11G Ant1 2412 -15.47 ≤8.00 PASS 2437 -16.55 ≤8.00 PASS 2462 -15.90 ≤8.00 PASS 11N20SISO Ant1 2412 -17.11 ≤8.00 PASS 2437 -16.65 ≤8.00 PASS 2462 -16.70 ≤8.00 PASS 11N40SISO Ant1 2422 -18.59 ≤8.00 PASS 2437 -18.65 ≤8.00 PASS 2452 -17.62 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 4.96 -49.63 ≤-15.04 PASS High 2462 5.09 -56.67 ≤-14.91 PASS 11G Ant1 Low 2412 -2.20 -46.44 ≤-22.2 PASS High 2462 -2.49 -56.44 ≤-22.49 PASS 11N20SIS O Ant1 Low 2412 -1.63 -46.71 ≤-21.63 PASS High 2462 -1.79 -53.78 ≤-21.79 PASS 11N40SIS O Ant1 Low 2422 -4.65 -39.6 ≤-24.65 PASS High 2452 -3.51 -44.92 ≤-23.51 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 2.23 2.23 --- PASS 30~1000 2.23 -67.66 ≤-17.77 PASS 1000~26500 2.23 -45.99 ≤-17.77 PASS 2437 Reference 3.31 3.31 --- PASS 30~1000 3.31 -68.35 ≤-16.69 PASS 1000~26500 3.31 -46.05 ≤-16.69 PASS 2462 Reference 3.68 3.68 --- PASS 30~1000 3.68 -67.99 ≤-16.32 PASS 1000~26500 3.68 -46.3 ≤-16.32 PASS 11G Ant1 2412 Reference -5.38 -5.38 --- PASS 30~1000 -5.38 -68.23 ≤-25.38 PASS 1000~26500 -5.38 -46.64 ≤-25.38 PASS 2437 Reference -3.12 -3.12 --- PASS 30~1000 -3.12 -68.35 ≤-23.12 PASS 1000~26500 -3.12 -46.38 ≤-23.12 PASS 2462 Reference -5.55 -5.55 --- PASS 30~1000 -5.55 -67.49 ≤-25.55 PASS 1000~26500 -5.55 -46.32 ≤-25.55 PASS 11N20SISO Ant1 2412 Reference -2.40 -2.40 --- PASS 30~1000 -2.40 -68.45 ≤-22.4 PASS 1000~26500 -2.40 -46.48 ≤-22.4 PASS 2437 Reference -2.39 -2.39 --- PASS 30~1000 -2.39 -67.53 ≤-22.39 PASS 1000~26500 -2.39 -45.97 ≤-22.39 PASS 2462 Reference -2.11 -2.11 --- PASS 30~1000 -2.11 -68.05 ≤-22.11 PASS 1000~26500 -2.11 -45.98 ≤-22.11 PASS 11N40SISO Ant1 2422 Reference -5.01 -5.01 --- PASS 30~1000 -5.01 -67.84 ≤-25.01 PASS 1000~26500 -5.01 -46.27 ≤-25.01 PASS 2437 Reference -5.02 -5.02 --- PASS 30~1000 -5.02 -68.14 ≤-25.02 PASS 1000~26500 -5.02 -46.94 ≤-25.02 PASS 2452 Reference -4.76 -4.76 --- PASS 30~1000 -4.76 -68.36 ≤-24.76 PASS 1000~26500 -4.76 -46.24 ≤-24.76 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500

Test Report

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26070300303 2A3XN-SCORE8T Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jul. 10, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Keefe Group Address ............................................ : 10880 Linpage Pl, St. Louis, MO 63132 Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Tablet PC Trade Mark ....................................... : SCORE 8T Manufacturer .................................... : Shenzhen Ployer Electronics Co., Ltd. Model/Type reference ...................... : SCORE 814 Listed Models ................................... : P805 Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input: 5V3A, 9V2A Battery: 3.8V 5100mAh 19.38Wh Result ............................................... : PASS Report No.: CTA26070300303 Page 2 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Tablet PC Model /Type : SCORE 814 Listed Models : P805 Model difference : The PCB board, circuit, structure and internal of these models are the same, only model number and colour are different for these model. So the tests were performed on model SCORE 814 and the test results for the main test model can cover the listed models. Applicant : Keefe Group Address : 10880 Linpage Pl, St. Louis, MO 63132 Manufacturer : Shenzhen Ployer Electronics Co., Ltd. Address : 6~7F, Building 8, Rundongsheng Industrial Area, Longzhu Community, Xixiang Street, Bao'an District, Shenzhen, 518000, China. Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26070300303 Page 3 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ......................................................................................................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Brian Thiemann(Senior Director)
[email protected]Fax: N/A

Technical Contact

Keefe GroupBrian Thiemann
[email protected]

10880 Linpage Pl · St. Louis, Missouri, 63132 · United States

Test Firm

SHENZHEN CTA TESTING TECHNOLOGY CO., LTD.Eric Wang
[email protected]

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz400.00 µW
215C2.41 GHz - 2.46 GHz38.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is the maximum conducted output power. This device contains 20 and 40 MHz signal bandwidth. SAR compliance for body-worn operating configurations is limited to the specific configurations tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 10 mm separation between the device and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for body-worn SAR accessory is 0.30 W/kg.
