2A4AE-C21AF001Smart Wireless Floodlight Camera

Smart Wireless Floodlight Camera Camera Setup Power on the device, the light will flash once, wait till the indicator turns red and blinking or a prompt tone is heard. If the indicator is not red and blinking, press the reset button for 5 seconds then release, the camera would be successfully reset. Add the device on the app, select Floodlight Camera under Camera&Lock category. Follow App's instructions to complete network pairing process, the device will connect to your Wi-Fi network successfully. The blue indicator is on, camera is ready for viewing. Camera Indicator LED Indicator Status Red indicator ON Red indicator blinking Blue indicator blinking Blue indicator ON Camera Status System starting up Standby for configuration Network pairing Camera online C21AF001-W0035A12 642 143 226 Operations on App Settings Full screen Listen Resolution change Record Lamp Talk alarm Screenshot Local Video Product and Accessories LED security light Bar-shaped mounting plate and 3 screws Waterproof Gasket 3 Wire connectors Mounting bolt Rubber screw cap Tools Needed Cross-head screwdriver Dimensions 1234 5678 Quick Guide Warranty & Contact 1-year warranty Email: [email protected] Web: www.sansiled.com Mfg. date is printed on the Certificate of Approval 1. This product is suitable for use in wet locations. 2. Do not hang any objects on the product. Mechanical loads may damage the product. 3. Risk of burns! Do not touch the light source or the housing during use. 4. Ensure the voltage given on the rating label or in the instruction manual complies with the power supply. 5. Do not use the product if the parts are damaged, the product does not work properly or if the product is damaged. 6. Do not stare at the operating light source or direct the beam at other people or animals, to prevent eye damage. 7. Assemble / install the product according to the intended use and as described in this manual. 8. Do not assemble / install the product in adverse ambient conditions or in rooms, where heat sources, hot steam, corrosive gas, flammable gas, vapors or dust are present. 9. The operating ambient temperature of the product is -25 - +40°C; store the product and its accessories under -20 - +65°C. Do not use the product under the conditions with extremely high or low temperature. 10. Ensure the mounting surface (e. g. wall surface etc.) can load the weight of the product. 11. Do not assemble / install the product under live conditions. 12. To avoid personal hazard and product damage, keep the children or pets away from the product and its accessories during assembly / installation. 13.There are no parts inside the product that can be repaired by the user. 14. Do not install the product in the electric circuit loop with a dimmer. 15. If the external flexible cable or cord is damaged, it shall be exclusively replaced by the manufacturer, the service center or a qualified specialists to avoid hazards. 16. The light source and the power supply driver of this product are notreplaceable. When the light source or power supply driver All parts and accessories are to be found in the packaging. If some of them are missing, please contact us via [email protected] WARNING: If you are not sure how to mount / install the product,consult a local specialist technician. The wiring installation shall be strictly applied in compliance with the local regulations,rules and national electrical codes. Installation Before installation 1. The product shall be mounted vertically on a flat surface of the wall. 2. Input voltage: local mains supply. 3. Mount the product at a height of 1 - 4 m. The optimal mounting height is 2.4 m. WARNING: Switch off the power supply before mounting the product. NOTE: Find a place to mount the product, where the power line (live,neutral and earthing) is available. Step 1： Fixing the mounting plate 1. The bar-shaped mounting plate only matches with the standard junction box with an installation pitch of 88.9 mm. 2. Make sure the bar-shaped mounting plate is firmly tightened with the 2 fixing bolts. Fixing bolt Earthing connection bolt Step 2： Wire Connection Black - Live（L） White - Neutral(N) Green - Ground(PE) Strip wires 3/8"(9.5mm) if not previously stripped. Hold the BLACK house wire and the BLACK fixture wire together with ends even. Align any frayed strands or conductors. Push wires into wire nut and screw clockwise until two twists are visible in the wires. Repeat above procedure for both the GREEN or Ground house wire and the Ground fixture wire. Step 3： Mounting the product 1. Insert the mounting bolt through the center of the housing and rear cover. 2. Align the mounting bolt through the center of the sealing gasket to hold it in place. 3. Align the mounting bolt with the center hole of the bar-shaped mounting plate. 4. Position the housing and sealing gasket over the junction box. 5. Use a screwdriver to screw the mounting bolt into the mounting plate, until the product is securely fixed. 6. Fit the rubber screw cap onto the mounting bolt. App Installation Search TuyaSmart on App Store or Google Play to get the app, or you can also scan the QR code below. Open the app on your smartphone, follow the on-screen instructions to sign up and log in . Screenshot Record Local Video Lamp Alarm Motion Photos saved in mobile phone If need two way audio, please set in “Settings” -“Basic function settings” Video saved in mobile phone Video recorded for motion or full time Switch on/off lamp manually Switch for motion detection PIR motion zone settings After setting alarm and motion zone, lamp can be triggered to turn on automatically if camera is in night vision mode Enable manually. Can’t be triggered automatically Micro SD card To ensure SD card video recording works fine, we recommend Class 10 or higher speed Micro SD card. To make sure the device works normally, please format the SD card to FAT32 before the first use. Always power off the device first before inserting or removing the SD card. Insert th…

Text truncated - open the document above for the full version.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Pujiang Yuansheng Electronic Commerce Co., Ltd. Address No.388,Yidianhong Road,Pujiang Country,Zhejiang province, P.R China Grantee Code 2A4AE FCC ID 2A4AE-C21AF001 Authorized Contact Name caomiaomiao Contact Email [email protected] Contact Phone 13538218145 I, the under signed, certify that I am an authorized signatory for the Applicant and therefore declare; a)i n accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and beli ef. b)i n accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made i n thi s application, the Applicant is responsible for: (1 )labeling the equipment with the exact FCC ID as specified in this applicati on, (2 )compliance statement labeling pursuant to the applicable rules , (3 )compliance of the equipment with the applicable technical rules , c)i f the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensur e that pr oduction units of this equipment will continue to comply with the FCC’s technical requirements. d)i n accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsibl e par ty and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)i n accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements . (1 )the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2)the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISE D. (3 )the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS , F CC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS . f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CF R 1.2002(b) for the definition of a “party” for these purposes. g)the A pplicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Li nk to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date:2022-11-03 Print Name: caomiaomiao Title: Engineer *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

， Pujiang Yuansheng Electronic Commerce Co., Ltd. Date: 20221103 TO: Federal Communication Commission Equipment Authorization Branch 7 435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID ZA扒/E-CZ1AF001 To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners「elatingto application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own We, the u n dersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and cond仆ionsfor Ce巾fication,as specified by SGS North America, Inc., still resides with«Pujiang Yuansheng Electronlc Commerce Co., Ltd.» This authorization is valid until further written notice from the applicant Name (Prmted):caomiaomiao S i g n a t u r e 伽沁郧面加 Title:Engineer On behalf of Company: Pujiang Yuansheng Electronic Commerce Co., Ltd. Telephone:

Pujiang Yuansheng Electronic Commerce Co., Ltd. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Pujiang Yuansheng Electronic Commerce Co., Ltd No.388 Y昢anhongAvenue,Xianhua Street, Pujiang Coun ty , Zhejiang Province, P. R China, 322200 Regarding: Confidentiality Request regarding application for FCC ID 2A4AE叩C21AF001 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission's rules, the applicant hereby request co nfidential treatment of the documents listed below, associated with the certification application referenced above Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant Sincerel y , Signature如沁舫凡1叩 Caomiaomiao Engineer Pujiang Yuanslleng Electronic Commerce Co., Ltd

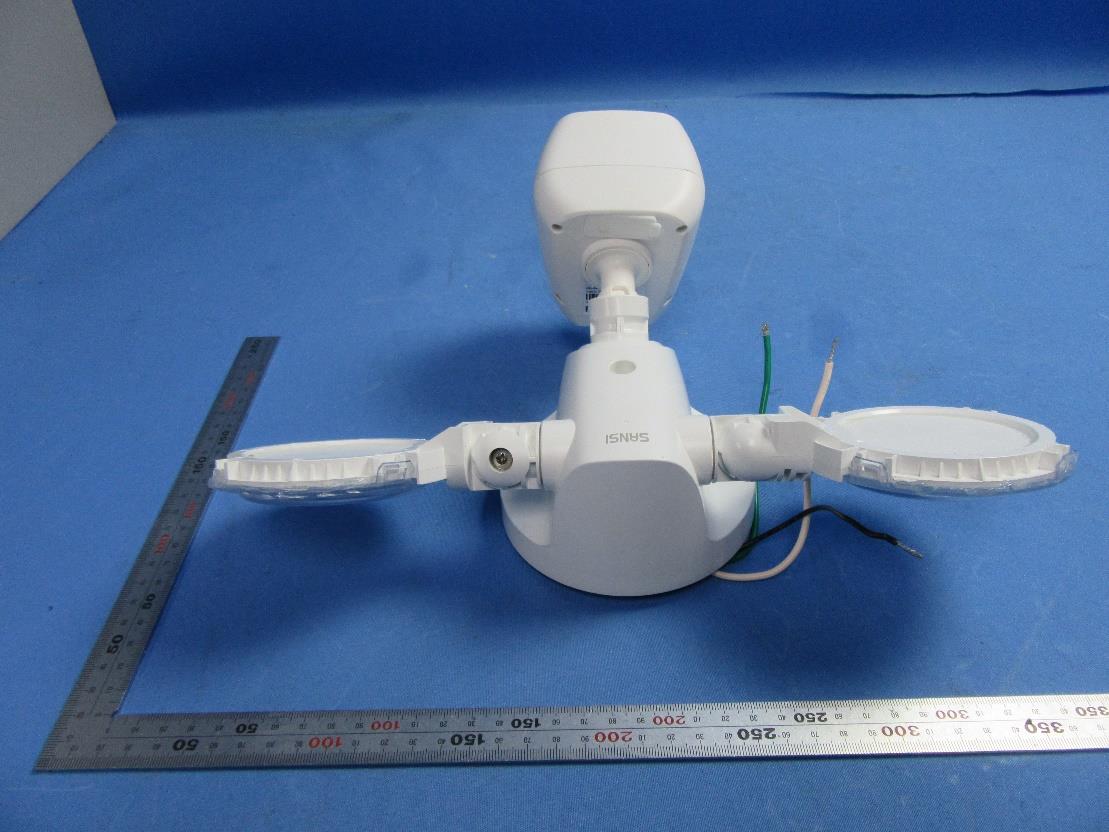

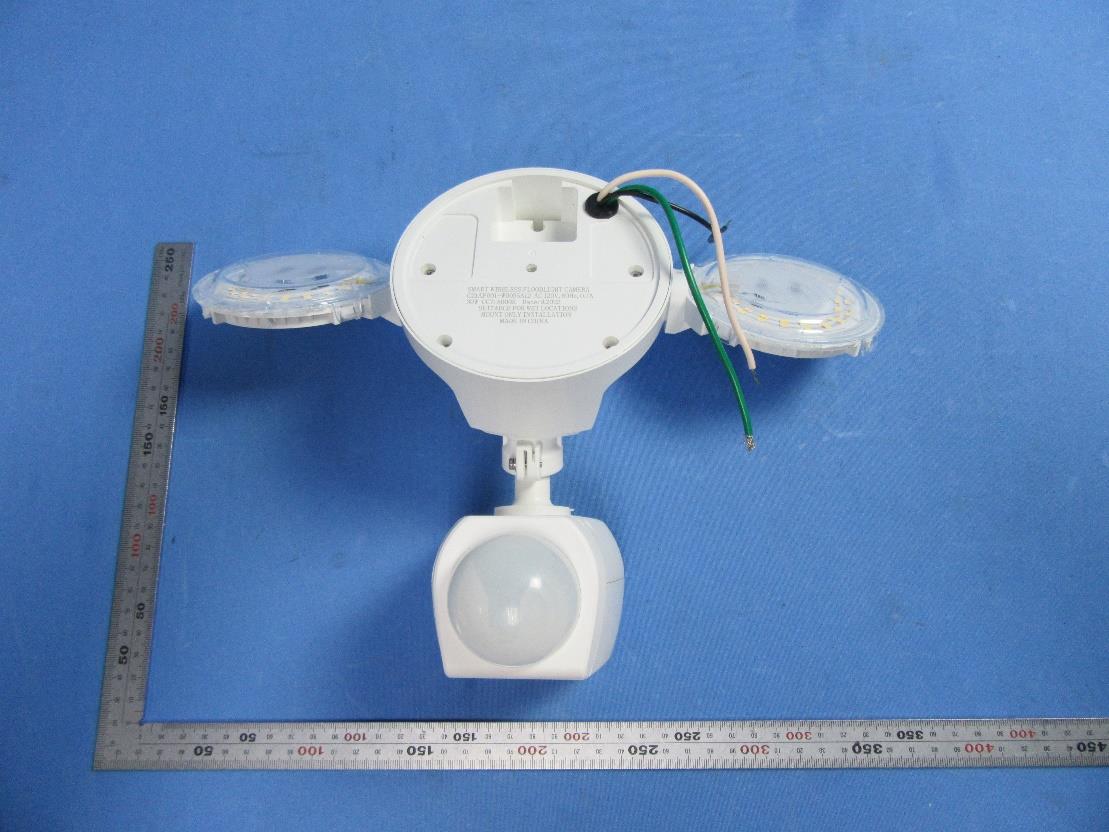

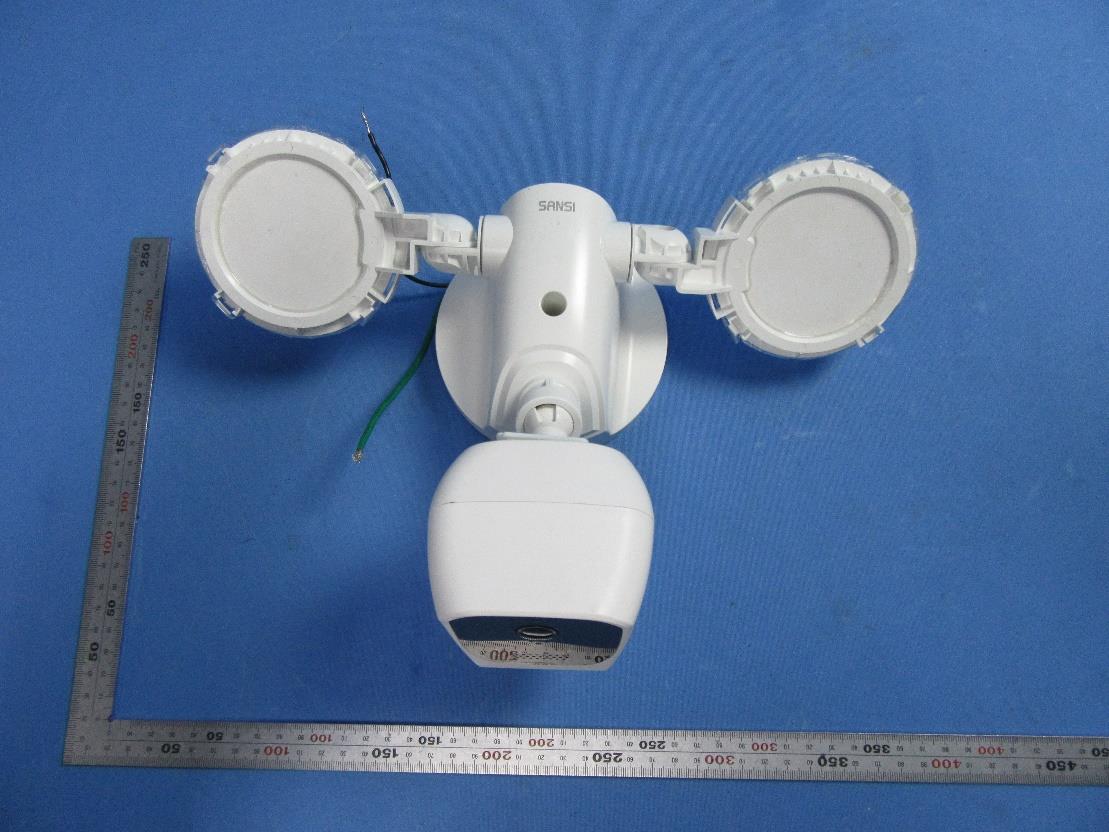

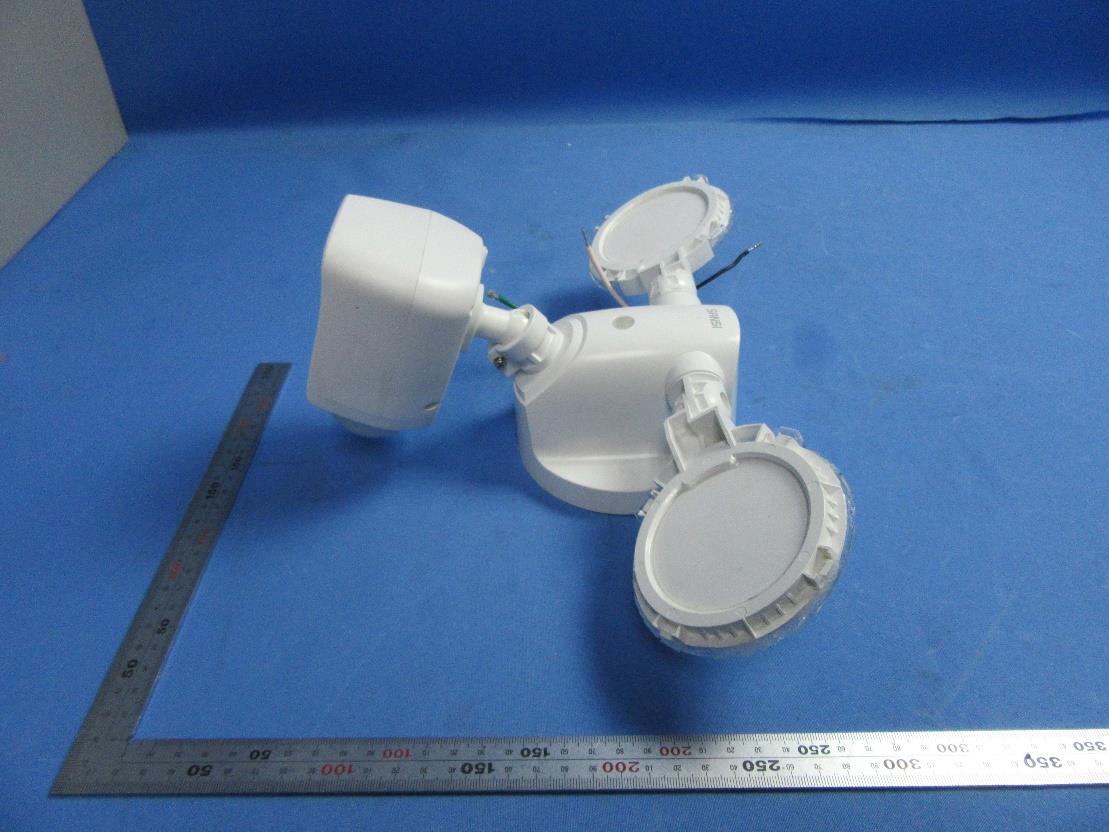

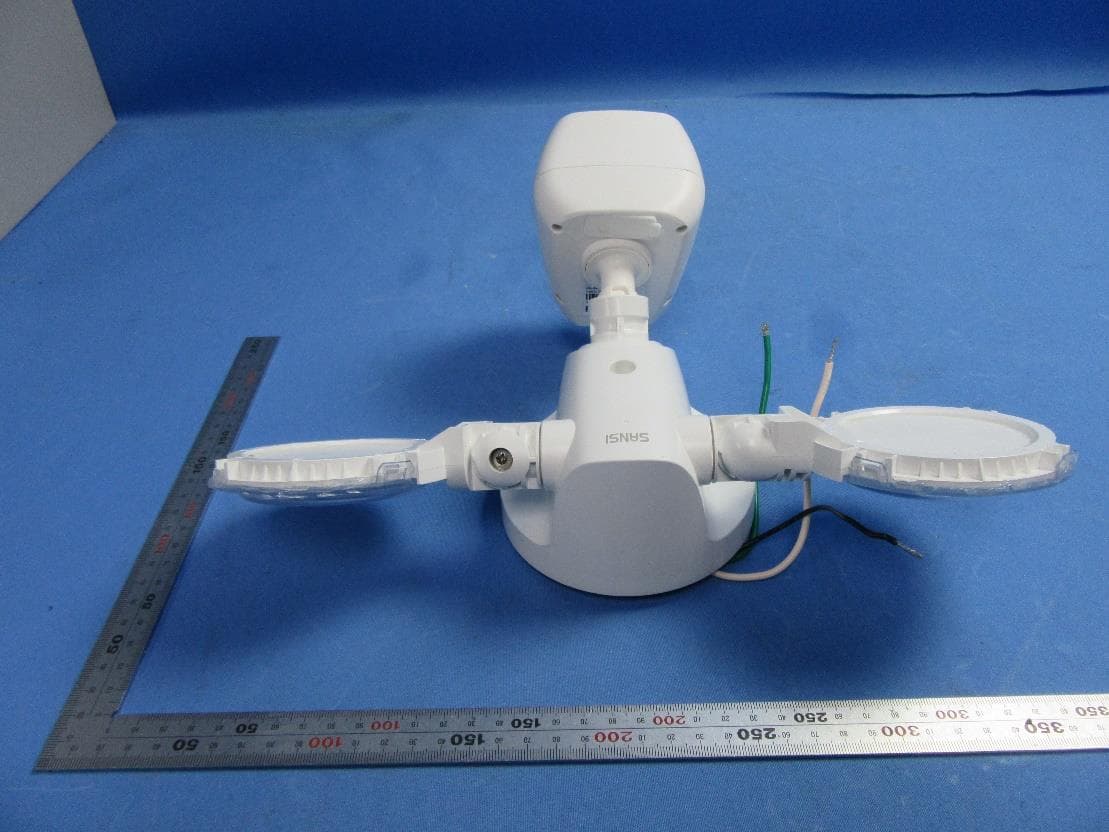

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 4 External Photos for SHCR2210002252AT SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 4 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 4 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 4

Remark: It’s hard to put FCC statement on the product due to device’s irregular appearance. FCC statement will be placed in the user manual which the device is marketed.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 9 Internal Photos for SHCR2210002252AT SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 9 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 9 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 9 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 9 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 6 of 9 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 7 of 9 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 8 of 9 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 9 of 9

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR221000225202 Page: 1 of 9 Parlam Zhan Laboratory Manager 1 Cover Page RF Exposure Evaluation Report Application No.: SHCR2210002252AT FCC ID: 2A4AE-C21AF001 Applicant: Pujiang Yuansheng Electronic Commerce Co., Ltd. Address of Applicant: No.388 Yidianhong Road, Pujiang Country, Zhejiang Province, P.R.China Manufacturer: Pujiang Yuansheng Electronic Commerce Co., Ltd. Address of Manufacturer: No.388 Yidianhong Road, Pujiang Country, Zhejiang Province, P.R.China Factory: Zhejiang Puzhao Optoelectronics Technology Co., Ltd. Address of Factory: No.388 Yidianhong Road,Xianhua Street,Pujiang Country,Zhejiang Province,P.R.China Equipment Under Test (EUT): EUT Name: Smart Wireless Floodlight Camera Model No.: C21AF001-W0035A12 Trade Mark: SANSI Standard(s) : FCC Rules 47 CFR §2.1091 KDB 447498 D04 interim General RF Exposure Guidance v01 Date of Receipt: 2022-10-21 Date of Test: 2022-10-25 to 2022-11-07 Date of Issue: 2022-11-17 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR221000225202 Page: 2 of 9 Revision Record Version Description Date Remark 00 Original 2022-11-17 / Authorized for issue by: Bill Wu/Project Engineer Parlam Zhan /Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR221000225202 Page: 3 of 9 2 Contents Page 1 COVER PAGE .................................................................................................................................... 1 2 CONTENTS ........................................................................................................................................ 3 3 GENERAL INFORMATION ................................................................................................................ 4 3.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................ 4 3.2 DETAILS OF E.U.T. ....................................................................................................................... 4 3.3 SEPARATION DISTANCE ................................................................................................................ 4 3.4 TEST LOCATION ............................................................................................................................ 5 3.5 TEST FACILITY .............................................................................................................................. 5 4 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS .......................................................... 6 4.1 BLANKET 1 MW BLANKET EXEMPTION ........................................................................................... 6 4.2 MPE-BASED EXEMPTION .............................................................................................................. 6 4.3 SAR-BASED EXEMPTION ............................................................................................................... 7 5 MEASUREMENT AND CALCULATION ............................................................................................ 9 5.1 MAXIMUM TRANSMIT POWER ......................................................................................................... 9 5.2 RF EXPOSURE CALCULATION ........................................................................................................ 9 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR221000225202 Page: 4 of 9 3 General Information 3.1 General Description of E.U.T. Power supply: AC 120V/60Hz 3.2 Details of E.U.T. Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz;802.11n(HT40): 2422MHz to 2452MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK);802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels: 802.11b/g/n(HT20):11;802.11n(HT40):7 Channel Spacing: 5MHz Antenna Type: FPC Antenna Antenna Gain: 2dBi (Provided by manufacturer) Date Rate: 802.11b:1/2/5.5./11Mbps 802.11g:6/9/12/18/24/36/48/54Mbps 802.11n:MCS0-MCS7 3.3 Separation Distance Separation distance between the antenna to person (R): ＞20cm Remark: This minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR221000225202 Page: 5 of 9 3.4 Test Location All tests were performed at: SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. E&E Lab 588 West Jindu Road, Xinqiao, Songjiang, 201612 Shanghai, China. Tel: +86 21 6191 5666 Fax: +86 21 6191 5678 No tests were sub-contracted. Note: 1. SGS is not responsible for wrong test results due to incorrect information (e.g. max. clock frequency, highest internal frequency, antenna gain, cable loss, etc ) is provided by the applicant. (if applicable). 2. SGS is not responsible for the authenticity, integrity and the validity of the conclusion based on results of the data provided by applicant. (if applicable). 3.5 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L0599) CNAS has accredited SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. to ISO/IEC 17025:2017 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS- CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • A2LA (Certificate No. 6332.01) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. is accredited by the American Association for Laboratory Accreditation(A2LA). • FCC (Designation Number: CN1301) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. has b…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR221000225201 Page: 1 of 140 Parlam Zhan Laboratory Manager TEST REPORT Application No.: SHCR2210002252AT FCC ID: 2A4AE-C21AF001 Applicant: Pujiang Yuansheng Electronic Commerce Co., Ltd. Address of Applicant: No.388 Yidianhong Road, Pujiang Country, Zhejiang Province, P.R.China Manufacturer: Pujiang Yuansheng Electronic Commerce Co., Ltd. Address of Manufacturer: No.388 Yidianhong Road, Pujiang Country, Zhejiang Province, P.R.China Factory: Zhejiang Puzhao Optoelectronics Technology Co., Ltd. Address of Factory: No.388 Yidianhong Road,Xianhua Street,Pujiang Country,Zhejiang Province,P.R.China Equipment Under Test (EUT): EUT Name: Smart Wireless Floodlight Camera Model No.: C21AF001-W0035A12 Trade Mark: SANSI Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2022-10-21 Date of Test: 2022-10-25 to 2022-11-07 Date of Issue: 2022-11-17 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR221000225201 Page: 2 of 140 Revision Record Version Description Date Remark 00 Original 2022-11-17 / Authorized for issue by: Bill Wu/Project Engineer Parlam Zhan/Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR221000225201 Page: 3 of 140 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Conducted Average Output Power ANSI C63.10 (2013) Section 11.9.2 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Minimum 6dB Bandwidth ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Power Spectrum Density ANSI C63.10 (2013) Section 11.10.3 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Below 1GHz ANSI C63.10 (2013) Section 6.4,6.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Above 1GHz ANSI C63.10 (2013) Section 6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR221000225201 Page: 4 of 140 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 TEST SUMMARY ....................................................................................................................................... 3 3 CONTENTS ................................................................................................................................................ 4 4 GENERAL INFORMATION ........................................................................................................................ 6 4.1 DETAILS OF E.U.T. ............................................................................................................................... 6 4.2 DESCRIPTION OF SUPPORT UNITS ......................................................................................................... 6 4.3 POWER LEVEL SETTING USING IN TEST ................................................................................................... 6 4.4 MEASUREMENT UNCERTAINTY & DECISION RULE ................................................................................... 7 4.5 TEST LOCATION .................................................................................................................................... 7 4.6 TEST FACILITY ...................................................................................................................................... 8 4.7 DEVIATION FROM STANDARDS ............................................................................................................... 8 4.8 ABNORMALITIES FROM STANDARD CONDITIONS ..................................................................................... 8 5 EQUIPMENT LIST ...................................................................................................................................... 9 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................... 11 6.1 ANTENNA REQUIREMENT .................................................................................................................... 11 6.1.1 Test Requirement: ....................................................................................................................... 11 6.1.2 Conclusion ................................................................................................................................... 11 7 RADIO SPECTRUM MATTER TEST RESULTS ..................................................................................... 12 7.1 CONDUCTED EMISSIONS AT AC POWER LINE (150KHZ-30MHZ) ........................................................... 12 7.1.1 E.U.T. Operation .......................................................................................................................... 12 7.1.2 Test Mode Description ................................................................................................................. 12 7.1.3 Test Setup Diagram ..................................................................................................................... 13 7.1.4 Measurement …

Text truncated - open the document above for the full version.

一、Specification 1 、Parameters about electricity No. Item Spec. Test Condition 1 Frequency(MHZ) 2400 MHZ-2500 MHZ Microwave Anechoic Chamber 2 Gain Test ≥0.5dBi ，≤2dBi Microwave Anechoic Chamber 3 Efficiency Test ≥50%，≤100% Microwave Anechoic Chamber 4 Center frequency characteristic impedance（Ω） 50 Network Analyzer 2 、Mechanical performance parameters No. Item Spec. Test Condition 1 RF1.13 Cable Length 50±3(mm) Measure Tool：Steel Ruler Pass Criterion：50±3（mm） 2 Length of FPC 33.35±0.2（mm） Measure Tool：Digital Calipers Pass Criterion：33.35±0.2（mm） 3 Width of FPC 15.5±0.2（mm） Measure Tool：Digital Calipers Pass Criterion：15.5±0.2（mm） 4 Thickness of FPC 0.2 ±0.1（mm） Measure Tool：Digital Calipers Pass Criterion：0.2±0.1（mm） 二、Reliability test N o. Item Test Condition Criterion 1 Salt Spray Test Test Condition：temp.:35°C，Salt solution concentration:5% （PH value standard of salt solution after cooling is 6.5~7.2）， Average amount of salt solution collected:1.0～2.0(ml/hr) Test Time:48H(cable terminal)/8H(cable) Pass Criterion：No oxidation on product surface after 48H/8H 2 Terminal Tension Test Test method: adjust the height of the upper and lower cross arms to make the fixture spacing appropriate; Clamp the upper end of the test piece with the upper clamp, and press the reset button to reset the pointer to zero;Press the pull gauge pointer lock switch; Clamp the lower end of the test piece with the lower clamp; Rotate the hand wheel to lower the cross arm to stretch the test piece; If the tension value on the tension meter is ≥ 1.2KG, it is judged as OK, otherwise it is NG. 3 Terminal pull-out force test Test method: snap the terminal into the terminal base, and shake the handwheel to move the claw of the pullout test fixture to the appropriate position; Open the clamping claw to hook the back of the terminal. Return the pointer to zero and shake the handwheel to start the test. If the tension value on the tension meter is greater than 0.8KG, it is judged as OK, otherwise it is NG. 4 Drop Test Test Condition： 1、Drop 6 surfaces of carton 图一 2、Distance between product with steel plate on floor：80 CM 图二 Test Method： 1. Firstly , fix the carton to be tested on the product holder to and the force to clamp should be appropriate to avoid breaking the tested sample 2. Adjust the drop height as 80CM 3. Firstly, turn on the main power switch and connect the air pipe 4. After the work is completed, disconnect the air pipe and power switch and take down the sample 1、The carton sh ould not be damaged obviously after the test. 2The product inspected after the test, and there shall be no defects after the electrical and appearance inspection. 5 Coaxial material appendix 80CM Antenna photo 第 4 页 共 4 页 Gain: 2.0dBi

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 3 Appendix Photographs of Test Setup for SHCR2210002252AT Test Model No.: C21AF001-W0035A12 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 3 Test Setup Photo Conducted Emissions at AC Power Line (150kHz-30MHz) RF Conducted SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 3 Radiated Spurious Emissions Below 1GHz Radiated Spurious Emissions Above 1GHz
