2A4AS-2606CWiFi module

ProductSpecificationVersion1.1 惠州高盛达科技股份有限公司 HUIZHOUGAOSHENGDATECHNOLOGYCO.,LTD 1 FCM940Q-P2ProductSpecification Design：卢定平 Check：马保生 Approval： Date：2026-07-24 ModuleNameWIFIModule PartNumber48.01.001.0099-P2 VersionV1.1 ProductModelFCM940Q P2 ProductSpecificationVersion1.1 惠州高盛达科技股份有限公司 HUIZHOUGAOSHENGDATECHNOLOGYCO.,LTD 2 DocumentRevisionHistory 版本日期作者变更描述 Version1.02025-10-28卢定平Draft Version1.12026-07-24卢定平Updatemoduleactualimage ProductSpecificationVersion1.1 惠州高盛达科技股份有限公司 HUIZHOUGAOSHENGDATECHNOLOGYCO.,LTD 3 Contents FCM940Q-P2ProductSpecification...................................................................................................1 DocumentRevisionHistory................................................................................................................2 Contents..............................................................................................................................................3 1.GeneralDescription..................................................................................................................4 1.1PartNumber........................................................................................................................4 1.2ModuleAppearance............................................................................................................4 1.3FunctionIntroduction....................................................................................................6 2.HardwareInformation................................................................................................................6 2.1OperatingEnvironmentRequirements..........................................................................6 2.2StorageEnvironmentRequirements..............................................................................6 2.3OutlineDimensionsoftheControlBoard................................................................7 2.4 Performance .......................................................................................................................8 2.5BOM......................................................................................................................................9 2.6 PackageContents ............................................................................................................10 3. PackagingTechnicalRequirements ........................................................................................11 3.1 PackagingSolution ..........................................................................................................11 3.2 Label ...................................................................................................................................11 4. InspectionMethod ......................................................................................................................12 ProductSpecificationVersion1.1 惠州高盛达科技股份有限公司 HUIZHOUGAOSHENGDATECHNOLOGYCO.,LTD 4 1.GeneralDescription 1.1PartNumber PartNumber 148.01.001.0099-P2 1.1.1Model FCM940Q-P2 1.2ModuleAppearance 1.2.1ModuleAppearance ProductSpecificationVersion1.1 惠州高盛达科技股份有限公司 HUIZHOUGAOSHENGDATECHNOLOGYCO.,LTD 5 ProductSpecificationVersion1.1 惠州高盛达科技股份有限公司 HUIZHOUGAOSHENGDATECHNOLOGYCO.,LTD 6 1.3FunctionIntroduction FCM940Q-P2isaWi-Fimodulethatsupports dual-band1x1802.11a/b/g/nHT20andmaximum MCS3Wi-Fifunctions,with1.8Vor3.3VI/O support 2.HardwareInformation 2.1OperatingEnvironmentRequirements Voltage 3.3Vand1.8V Temperature-30-75°C Humidity 10-85% CurrentAveragecurrentislessthan50mA 2.2StorageEnvironmentRequirements Temperature-30-75°C Humidity 10-85% AtmosphericPressure StandardAtmosphericPressure ±50% ProductSpecificationVersion1.1 惠州高盛达科技股份有限公司 HUIZHOUGAOSHENGDATECHNOLOGYCO.,LTD 7 2.3OutlineDimensionsoftheControlBoard ThePCBdimensionsandspecificationsareasfollows,unit:mm,tolerance ±0.1mm ProductSpecificationVersion1.1 惠州高盛达科技股份有限公司 HUIZHOUGAOSHENGDATECHNOLOGYCO.,LTD 8 Thefollowing2.4performanceparametersarecompiledinaccordance withtheteststandardsprovidedbythecustomer： 2.4 Performance 2.4.1 RFConductedOutputPowerandSensitivity ProductSpecificationVersion1.1 惠州高盛达科技股份有限公司 HUIZHOUGAOSHENGDATECHNOLOGYCO.,LTD 9 2.5BOM Integrated Circuit QCC-730-1-WLPSP90-HR-03-0-02/WLPSP90/Qualcomm/ Ruilian SMD Duplexer LD18D2450LAN-D43/E-GSD SMD Capacitor 0201/6.3V/2.2uF/±20％/X5R/Murata/GRM033R60J225ME15D SMD Capacitor 0201/16V/100nF/±10％/X5R/Murata/GRM033R61C104KE84D SMD Capacitor 0201/6.3V/4.7uF/±20％/X5R/Murata/GRM035R60J475ME15D SMD Capacitor 0201/6.3V/1uF/±20％/X5R/Murata/GRM033R60J105MEA2J/50K SMD Capacitor 0201/25V/1nF/±10％/X7R/Murata/GRM033R71E102KA01D SMD Capacitor 0201/50V/100pF/±5%/C0G/Murata/GRM0335C1H101JA01D SMD Capacitor 0201/50V/1.5pF/±0.1pF/C0G/Murata/GRM0335C1H1R5BA01D SMD Capacitor 0201/50V/0.8pF/±0.1pF/C0G/Murata/GRM0335C1HR80BA01D SMD Capacitor 0201/6.3V/470nF/±20％/X5R/Murata/GRM033R60J474ME90D SMD Capacitor 0201/25V/10pF/±5%/C0G/Murata/GJM0335C1E100JB01 SMD Capacitor 0201/50V/6.2pF/±0.1pF/C0G/Murata/GRM0335C1H6R2BA01D SMD Capacitor 0603/10V/10uF/±20％/X5R/Murata/GRM188R61A106ME69D SMD Resistor 02011/20W0Ω±1% SMD Resistor 02011/20W10KΩ±1% SMD Resistor 02011/20W330KΩ±1% ProductSpecificationVersion1.1 惠州高盛达科技股份有限公司 HUIZHOUGAOSHENGDATECHNOLOGYCO.,LTD 10 SMD Resistor 04021/16W0Ω±1% High-Freq uency Thick-Fil mInductor 0201/0.8nH/±0.1nH/muRata/LQP03TN0N8B02D Power Inductor 2520/2.2uH/± 20%/Isat(MAX)=1.8A/Irms(MAX)=1.95A/SPH252012H2R2MT/ Sunlord SMD Crystal Oscillator SMD/2520/38.4MHz/6pF/10ppm/40/ Jingweite /CM4038M40006T1035234 ShieldCanFCM94Q/ShieldCan/1110.651.8/Nickel-SilverAlloy/ T0.15 PCBFCM94Q/124141.81mm/4-Layer,80-panel/ImmersionGold /GreenSolderMask,WhiteSilkscreen FCM94Q物料清 单.xls 2.6 PackageContents FirmwareBurningFirmware SNProgramming SN GSD-MACGSD-MAC CarrierTapeWCTE3R1001/CarrierTape/240.3/12122.64/BlackPS,ESD-Safe,RoHS-Compliant CoverTapeWF07RT1000V/Heat-Seal,21.3500M ESDVacuumBag 360X430mm ProductLabel 100*80/1000PCS/ Reel Desiccant 5G/ Pouch CartonBoxCartonBox/39039…

Text truncated - open the document above for the full version.

Rev 1/26/2023 (EZTECH DIGITAL INC.) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 8-16-2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2A4AS-2606C [EZTECH DIGITAL INC.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [EZTECH DIGITAL INC.] (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name) Sharon Guo Rev 1/26/2023 (EZTECH DIGITAL INC.) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 10-22-2025 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2A4AS-2606C [EZTECH DIGITAL INC.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Sharon Guo

[EZTECH DIGITAL INC.] Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 16-Aug-26 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2A4AS-2606C FRN: 0031851447 [EZTECH DIGITAL INC.] (“the applicant”) certifies that, as of the date of the filing of the application, EZTECH DIGITAL INC. is our designated U.S. agent for service of process for the above referenced FCC ID. [EZTECH DIGITAL INC.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. EZTECH DIGITAL INC. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: EZTECH DIGITAL INC. Address: 251 Little Falls Drive Wilmington, DE 19808 United States Contact Person: Sharon Guo Tel.: (281) 899-0382 Email: [email protected] FRN：0031851447 Sincerely, [EZTECH DIGITAL INC.] EZTECH DIGITAL INC. Sharon Guo Sharon Guo (Applicant signature) (US Agent Signature)

EZTECH DIGITAL INC. Date: 2026-8-16 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: 2A4AS-2606C To Whom It May Concern: This letter is to ascertain thatEZTECH DIGITAL INC./ 251 Little Falls Drive, Wilmington, New Castle County, Delaware 19808 EUT：WiFi module MODEL No.: FCM940Q P2 Has been the units used for conducting FCC compliance testing, the SDoC part Have be tested by EMTEK (SHENZHEN) CO., LTD. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature ： Client’s name / title ：Sharon Guo Contact information / address: EZTECH DIGITAL INC. /251 Little Falls Drive, Wilmington, New Castle County, Delaware 19808

RF_734_02 04 April 16 Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: 2A4AS-2606C Items to be covered by Single modular transmitters. Answer from applicant 1. The modular transmitter must have its own RF shielding. Yes, please see exhibition external photos 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Yes, the modular has buffer modulation /data inputs 3. The modular transmitter must have its own power supply regulation. Yes, please see the schem.pdf 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(b)(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Yes, the requirements of antenna connector and spurious emission have been fulfilled. Please refer to the test report exhibition. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes, please refer to the setup photo exhibition for the stand-alone configuration 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number in accordance with 15.212 (a)(1)(vi)(A) / (B). Yes, the Module will be label with its own FCC ID ,and the instruction on the labelling rule of the end product has been stated in the user manual of this module .please refer to the label and user manual exhibition. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Yes, the required FCC rule has been fulfilled and all the instruction for maintaining compliance have been clearly stated in the user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 1.1310, 2.1091, 2.1093, and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance. Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. Yes, please refer exhibition RF exposure for the compliance of MPE RF exposure rule. Note: A limited modular approval (LMA) may be granted for single modular transmitters that comply partially with the requirements above. RF_734_02 04 April 16 Name and surname of applicant (or authorized representative): Sharon Guo Signature: Date: 2026.8.16

Rev 11/20/07 EZTECH DIGITAL INC. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2A4AS-2606C Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description, Software Security description Block Diagram, Schematics, Operational Description, Software Security description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Client’s name / title ：Sharon Guo Contact information / address: EZTECH DIGITAL INC. /251 Little Falls Drive, Wilmington, New Castle County, Delaware 19808

EZTECH DIGITAL INC. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: 2026-8-16 SUBJECT: FCC Application for FCC ID: 2A4AS-2606C To Whom It May Concern: We, the undersigned, hereby authorize Lisa Wangat EMTEK (SHENZHEN) CO., LTD.on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out byEMTEK (SHENZHEN) CO., LTD.on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Client’s name / title ：Sharon Guo Contact information / address: EZTECH DIGITAL INC. /251 Little Falls Drive, Wilmington, New Castle County, Delaware 19808

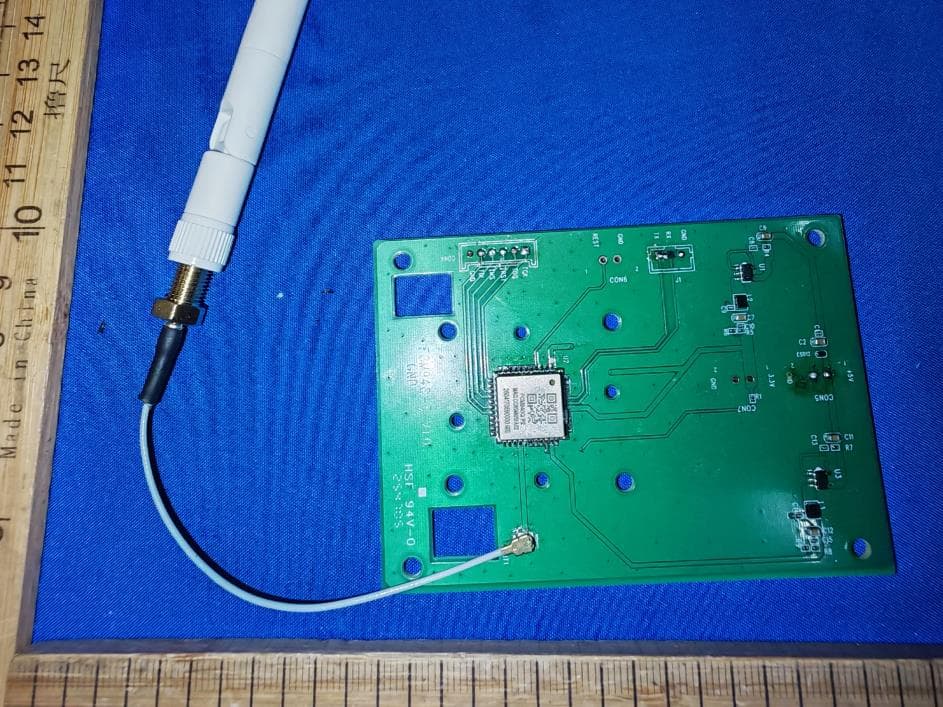

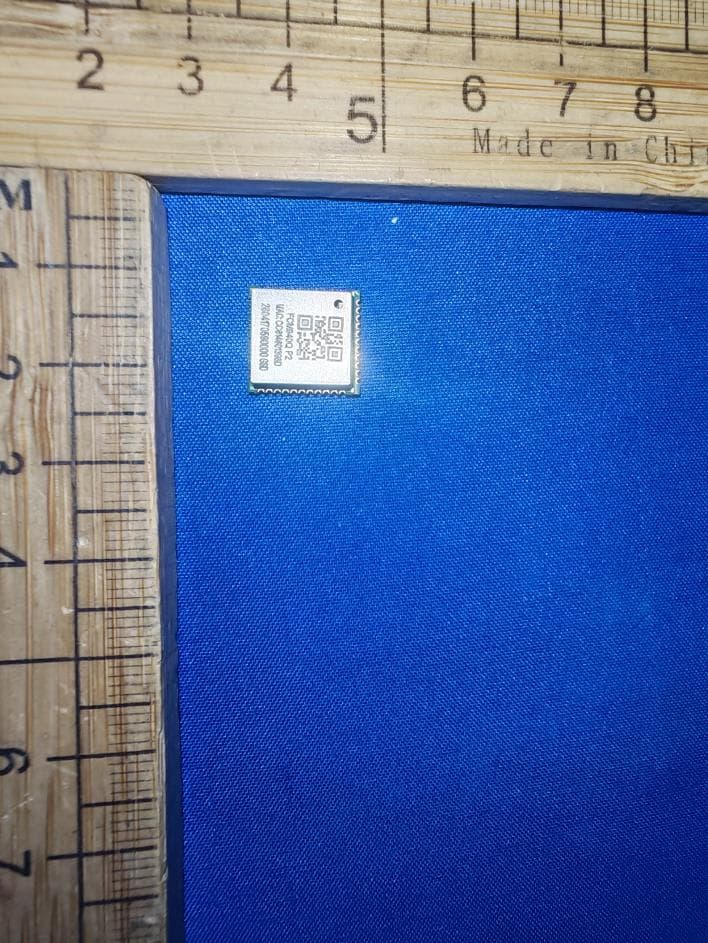

EUT EXTERNAL PHOTOGRAPHS Antenna ----------------The end----------------

EUT INTERNAL PHOTOGRAPHS ----------------The end----------------

FCC ID : 2A4AS-2606C RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500- 100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500- 100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 ,If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. RF Exposure Information: The radiated output power of this device meets the limits of FCC/IC radio frequency exposure limits.This device should be operated with a minimum separation distance of 20cm (8 inches) between the equipment and a person's body. 11.2 Measurement Result Wifi 2.4G Antenna gain: 2.89 dBi Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 16.01 15.0 to 17.0 17.0 1.95 0.01940 1 Wifi 5G Antenna gain: 2.55 dBi Frequency band Measure d power (dBm) Tune-up power (dBm) Max tune- up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 5150MHz- 5250MHz 11.21 10.0 to 12.0 12.0 1.80 0.00567 1 5250MHz- 5350MHz 9.26 8.0 to 10.0 10.0 1.80 0.00358 1 5470MHz- 5725MHz 11.98 10.0 to 12.0 12.0 1.80 0.00567 1 5725MHz- 5850MHz 11.28 10.0 to 12.0 12.0 1.80 0.00567 1

ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 1 页共 11 页 Address:BuildingC,HongyuGuangmingValley,No.11,YoumaGangRoad,MaTianStreet, GuangmingDistrict,ShenzhenDongguanBranch:YingjiachuangIndustrialPark,No.2 Yinhe3rdRoad,Shishuikou,QiaotouTown,DongguanCityHangzhouOffice:212,Building B,DahuaJianghongInternationalInnovationPark,369InternetofThingsStreet, BinjiangDistrict,HangzhouMianyangOffice:No.4F-34WanxiangHigh-tech International,No.35MianxingEastRoad,MianyangHigh-techZone,Sichuan Provincetelephone：0755-27810060fax：0755-27810057website：http://www.szsyjc.com CUSTOMERNAME Ruliantechnology CUSTOMERP/N 54.07.001.0006 PARTNAME 2.4G/5.8Gwhitecustomwaterproofantenna P/N YJC-60302-W37 APPROVALREV. A0 DELIVERYDATE August12th,2023 PREPAREDBY YinFeijie CHECKEDBY FangWenfeng APPROVEDBY Chauhan CustomerApproved PreparedByCheckedByApprovedBy ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 2 页共 11 页 catalogue 1、cover。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。1 2、catalogue。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。2 3、resume。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。3 4、Antennaplan。。。。。。。。。。。。。。。。。。。。。。。。。。。。。4 5、Antennatechnicalparametersandenvironmentalperformancetest。。。。。。。。。。5 6、Antennadiagram。。。。。。。。。。。。。。。。。。。。。。。。。。。。。6 7、Antennaperformancetestdiagram。。。。。。。。。。。。。。。。。。。。。。。6 8、2Dand3D(2.4G/5.8G)testdata。。。。。。。。。。。。。。。。。。。。7-10 9、ROHSMaterialcontrolreport。。。。。。。。。。。。。。。。。。。。。。。。11 ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 3 页共 11 页 resume： VersionChangesandreasons date publish A0 Issued August12th,2023 ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 4 页共 11 页 Antennaplan： ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 5 页共 11 页 Antennatechnicalparametersandenvironmentaltesting： Electricaltechnicalparameter ElectricalSpecificationsMechanicalSpecifications Frequency Range 2400-2500/5150-5850M Hz AntennaColorWhite VSWR＜1.92InputconnectorSMA Input Impedance 50Ω Working Temperature -20°C~+70°C DirectionAll Working Humidity 20%~80% Gain2.89dBi Environmentalperformancetest: ProjectTestconditionStandard Storage Conditions Intheabsenceofspecifiedtesttemperature, humidity,airpressureisasfollows:: 1.Temperatureis-30°C~+80°C 2.Relativehumidityof45%to45% 3.Airpressureis86kpato106kpa Electricalandmechanical performaceisnormal Highandlow temperature test Between70°Cand-20°Cfor5loops,then1-2 hundernormalconditions,checktheappearance quality. Sizeshouldmeetthe requirementsandmeetthe performanceofmechinery andelectric. Constant dampandhot resistance test 95+/-3%relativehumidity,temperaturetest: 40°C.Lasts2hafter,trytotakeoutthe determinationofelectricalproperties,within 5minaftertry1-2hunderarticlenormalthing, checktheappearancequality Sizeshouldmeetthe requirementsandmeetthe performanceofmechinery andelectric. vibration test 10-55hz,vibrationfrequencyrangeof displacementamplitude:0.35MM,acceleration amplitude:50.0M/S,sweepcycles:30times Electricalandmechanical performaceisnormal Falldown test 1mhighaltitudeinaccordancewiththe perpendicularaxisfreedrop3times Electricalandmechanical performaceisnormal ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 6 页共 11 页 Antennadiagram： Antennaperformancetestdiagram： ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 7 页共 11 页 2Dand3Dtestdata(2.4G): FrequencyEfficiency(%)Gain.(dBi) 2400MHz 84.922.21 2410MHz 86.702.30 2420MHz 87.702.49 2430MHz 89.542.59 2440MHz 87.902.60 2450MHz 87.302.68 2460MHz 87.702.77 2470MHz 87.102.89 2480MHz 84.922.83 2490MHz 86.502.81 2500MHz 84.142.64 ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 8 页共 11 页 ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 9 页共 11 页 2Dand3Dtestdata(5.8G): FrequencyEfficiency(%)Gain.(dBi) 5150MHz66.531.44 5250MHz78.162.02 5350MHz74.642.32 5450MHz81.102.55 5550MHz73.622.06 5650MHz73.961.98 5750MHz71.122.19 5850MHz62.521.47 ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 10 页共 11 页 ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 11 页共 11 页 MaterialRoHSconformitydeclarationform Thisistocertifythatthedeliverytoyourcompany'scomponents,rawmaterials,auxiliarymaterialsusedandtheadditivesintheproduction engineeringareaccordwithRoHSenvironmentalrequirementsoftherestrictionsontheuseofhazardoussubstancesdirective(RoHSdirective 2011/65/EU) Aboutcomponentsusedrawmaterials,packagingmaterials,auxiliarymaterialsandadditivesusedintheproductionprocesssuchascomposition ofthereportisasfollows: Component /PartName Material Composition ICPreport#TestOrg. TestDateContentofharmfulsubstances(ppm) PASS? CdPbHgCr 6+ PBBPBDEPASS Polesleeve+ fireprotection TPEE CANEC23000634202SGS23/03/13NDNDNDNDNDNDPASS PC SZXML2300036201SGS23/03/02NDNDNDNDNDNDPASS CopperpipeBrassstrip NGBEC23001873103SGS23/05/18ND17NDNDNDNDPASS Eco-friendlytin wire Eco-friendly tinwire ZXEC2203054802SGS22/09/19ND46NDNDNDNDPASS Wirerod Coaxial cable CANEC2301851701SGS23/02/23NDNDNDNDNDNDPASS Heatshrink bushing Heatshrink bushing CANEC2226901506SGS22/12/21NDNDNDNDNDNDPASS Silicone plug SilicagelCANML2220121001 SGS22/10/18NDNDNDNDNDNDPASS SMA Orichalcum CANEC2300141006SGS23/01/10ND26046NDNDNDNDPASS Rubbercore SHAEC22000767002SGS22/08/23NDNDNDNDNDNDPASS Nickel SZXEC2203378506SGS22/10/25NDNDNDNDNDNDPASS

Report No. ENS2607060264W00101R Page 1 of 88 Ver.1.0 $印章$ TEST REPORT Product Name : WiFi module Model Number : FCM940Q P2 FCC ID : 2A4AS-2606C Prepared for : EZTECH DIGITAL INC. Address : 251 Little Falls Drive, Wilmington, New Castle County, Delaware 19808 Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone,Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ENS2607060264W00101R Date(s) of Tests : June 24, 2026 to August 6, 2026 Date of issue : August 7, 2026 $二维码$ Report No. ENS2607060264W00101R Page 2 of 88 Ver.1.0 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ................................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION ............................................................................................................... 5 3 SUMMARY OF TEST RESULT ...................................................................................................................... 6 4 TEST METHODOLOGY ................................................................................................................................. 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................................ 7 4.2 MEASUREMENT EQUIPMENT USED ................................................................................................... 7 4.3 DESCRIPTION OF TEST MODES ............................................................................................................ 8 5 FACILITIES AND ACCREDITATIONS ........................................................................................................ 9 5.1 FACILITIES................................................................................................................................................ 9 5.2 EQUIPMENT ............................................................................................................................................. 9 5.3 LABORATORY ACCREDITATIONS AND LISTINGS ............................................................................ 9 6 TEST SYSTEM UNCERTAINTY ................................................................................................................. 10 7 SETUP OF EQUIPMENT UNDER TEST .................................................................................................... 11 7.1 RADIO FREQUENCY TEST SETUP 1 .................................................................................................... 11 7.2 RADIO FREQUENCY TEST SETUP 2 .................................................................................................... 11 7.3 CONDUCTED EMISSION TEST SETUP ............................................................................................... 14 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ................................................................ 15 7.5 SUPPORT EQUIPMENT.......................................................................................................................... 15 8 TEST REQUIREMENTS ............................................................................................................................... 16 8.1 DTS 6DB BANDWIDTH ............................................................................................................................... 16 8.2 DTS 99% BANDWIDTH .............................................................................................................................. 22 8.3 MAXIMUM AV CONDUCTED OUTPUT POWER ............................................................................................ 28 8.4 MAXIMUM POWER SPECTRAL DENSITY ..................................................................................................... 35 8.5 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS ............................................................ 41 8.6 RADIATED SPURIOUS EMISSION ................................................................................................................. 61 8.7 CONDUCTED EMISSION TEST ..................................................................................................................... 85 8.8 ANTENNA APPLICATION ............................................................................................................................. 86 9 APPENDIX PHOTOGRAPHS OF EUT ....................................................................................................... 87 10 APPENDIX PHOTOGRAPHS OF TEST SETUP ....................................................................................... 88 Report No. ENS2607060264W00101R Page 3 of 88 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : EZTECH DIGITAL INC. Address : 251 Little Falls Drive, Wilmington, New Castle County, Delaware 19808 Manufacturer : EZTECH DIGITAL INC. Address : 251 Little Falls Drive, Wilmington, New Castle County, Delaware 19808 EUT : WiFi module Model Name : FCM940Q P2 Trademark : N/A Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS IC RSS-GEN, Issue 5(04-2018)+A1(03-2019)+A2(02-2021) IC RSS-247 Issue 3(08-2017) PASS The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2020) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2, Part 15.247, IC RSS-247 Issue 3 and IC RSS-GEN, Issue 5. The test results of this report relate only to the tested sample identified in this report. Date of Test : June 24, 2026 to August 6, 2026 Prepared by : Yu xiaolan/Editor Reviewer : Xia lilu /Supervisor Approve & Authorized Signer : Wang li/Manager Report No. ENS2607060264W00101R Page 4 …

Text truncated - open the document above for the full version.

Report No. ENS2607060264W00101R Page 59 of 88 Ver.1.0 11N20SISO-Ant1-2462-0~Reference-PASS 11N20SISO-Ant1-2462-30~1000-PASS Report No. ENS2607060264W00101R Page 60 of 88 Ver.1.0 11N20SISO-Ant1-2462-1000~26500-PASS Report No. ENS2607060264W00101R Page 61 of 88 Ver.1.0 8.6 Radiated Spurious Emission 8.6.1 Applicable Standard According to FCC Part 15.247(d),15.205, 15.209 and KDB 558074 D01 15.247 Meas Guidancev05r02 According to IC RSS-Gen and RSS-247 8.6.2 Conformance Limit According to FCC Part 15.247(d): radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)). According to FCC Part15.205, Restricted bands MHz MHz MHz GHz 0.090-0.110 16.42-16.423 399.9-410 4.5-5.15 10.495-0.505 16.69475-16.69525 608-614 5.35-5.46 2.1735-2.1905 16.80425-16.80475 960-1240 7.25-7.75 4.125-4.128 25.5-25.67 1300-1427 8.025-8.5 4.17725-4.17775 37.5-38.25 1435-1626.5 9.0-9.2 4.20725-4.20775 73-74.6 1645.5-1646.5 9.3-9.5 6.215-6.218 74.8-75.2 1660-1710 10.6-12.7 6.26775-6.26825 123-1…

Text truncated - open the document above for the full version.
