2A4AS-2606EWIFI module

产 品 承 认 书 SPECIFCATION CDW-B1800DL-11H WIFI module Software ： 客 户 Customer 客户承认 Approve（请盖印章） 日 期 Date 深 圳 市 中 龙 通 电 子 科 技 有 限 公 司 CHINA DRAGON TECHNOLOGY LIMITED 拟制 Design 审核 Check 批准 Approve 版本 Version 日期 Date V1.42026.07.07 深圳市中龙通电子科技有限公司Page 1 CDW-B1800DL-11H Module Datasheet Module TypeDescriptionRemark CDW-B1800DL-11H AIC8800DL,b/g/n/ax,single band, BW40M,1T1R,wifi(USB2.0)+BT5.2(USB2.0),1-ANT type,no shielding 深圳市中龙通电子科技有限公司Page 1 更改记录： Reversion History： 版本 Version 日期 Date 更改内容 Modification 1.02024.06.12First release 深圳市中龙通电子科技有限公司Page 2 1. Overview The CDW-B1800DL-11H module is a highly integrated chip 2.4GHz Wi‐Fi6, BLE5.2 for wireless application. 2. Features ■CMOS single‐chip fully‐integrated RF, Modem and MAC ■Support 2.4GHz Wi‐Fi6 ■Support 20/40MHz bandwidth ■Data rates up to 286.8Mbps@TX and229.4Mbps@RX ■Support STA, AP, Wi‐Fi Direct modes concurrently ■Support STBC, beamforming ■Support Wi‐Fi6 TWT ■Support MU‐MIMO, OFDMA ■Support Two NAV, Buffer Report, Spatial reuse, Multi‐BSSID, intra‐PPDU power save ■Support LDPC ■Support DCM, Mid‐amble, UORA ■ Support WEP/WPA/WPA2/WPA3‐SAE Personal, MFP ■Supports USB2.0 interface ■Integrated low power timer and watchdog ■Supports all the mandatory and optionalfeatures of Bluetooth LowEnergy ■Supports advanced master and slave topologies ■Use an optimization method to assess channel quality, AFH enhancement 深圳市中龙通电子科技有限公司Page 3 3. Block Diagram AIC8800DC 0.9V WL/BT_RF I/O port (shared) PCM DC/DC 1.3V Crystal GPIO USB2.0 26MHz 2.4GHz ISM LDO +3.3V 4. General Specification Model CDW-B1800DL-11H Product Name WIFI module Major ChipsetAIC8800DL Standard802.11b/g/n/ax Modulation MethodBPSK/ QPSK/ 16-QAM/ 64-QAM/256-QAM/1024-QAM Frequency Band2.4GHz WiFi InterfaceUSB2.0 BLE Interface USB2.0 Operating Temperature-20° C ~ 70° C Storage Temperature-20° C ~ 85°C Humidity5% to 90% maximum Moisture Sensitivity LevelMSL3 AIC8800DL 深圳市中龙通电子科技有限公司Page 4 5.RF Specification A. WiFi RF Specification FeatureDescription WLAN Standard IEEE 802.11b/g/n/ax WiFi compliant Frequency Range2.400 GHz ~ 2.497 GHz (2.4 GHz ISM Band) Number of Channels 2.4GHz：Ch1 ~ Ch14 Modulation 802.11b : DQPSK, DBPSK, CCK 802.11 g/n : OFDM /64-QAM,16-QAM, QPSK, BPSK 802.11 ax : OFDM /256-QAM, 64-QAM, 16-QAM, QPSK, BPSK Receive Sensitivity (11b,20MHz) @8% PER - 1MbpsPER @ -97dBm, typical - 2MbpsPER @ -95dBm, typical - 5.5Mbps PER @ -92dBm, typical - 11MbpsPER @ -89dBm, typical Receive Sensitivity (11g,20MHz) @10% PER - 6MbpsPER @ -91dBm, typical - 9MbpsPER @ -89dBm, typical - 12MbpsPER @ -86dBm, typical - 18MbpsPER @ -83dBm, typical - 24MbpsPER @ -80dBm, typical - 36MbpsPER @ -77dBm, typical - 48MbpsPER @ -74dBm, typical - 54MbpsPER @ -72dBm, typical Receive Sensitivity (11n,20MHz) @10% PER - MCS=0PER @ -90dBm, typical - MCS=1PER @ -87dBm, typical - MCS=2PER @ -84dBm, typical - MCS=3PER @ -81dBm, typical - MCS=4PER @ -78dBm, typical - MCS=5PER @ -75dBm, typical 深圳市中龙通电子科技有限公司Page 5 - MCS=6PER @ -72dBm, typical - MCS=7PER @ -70dBm, typical Receive Sensitivity (11n,40MHz) @10% PER - MCS=0PER @ -87dBm, typical - MCS=1PER @ -84dBm, typical - MCS=2PER @ -81dBm, typical - MCS=3PER @ -78dBm, typical - MCS=4PER @ -75dBm, typical - MCS=5PER @ -72dBm, typical - MCS=6PER @ -69dBm, typical - MCS=7PER @ -67dBm, typical Receive Sensitivity (11ax,20MHz) @10% PER - HE=0PER @ -90dBm, typical - HE=1PER @ -88dBm, typical - HE=2PER @ -86dBm, typical - HE=3PER @ -84dBm, typical - HE=4PER @ -81dBm, typical - HE=5PER @ -79dBm, typical - HE=6PER @ -76dBm, typical - HE=7PER @ -73dBm, typical - HE=8PER @ -70dBm, typical - HE=9PER @ -68dBm, typical Receive Sensitivity (11ax,40MHz) @10% PER - HE=0PER @ -88dBm, typical - HE=1PER @ -86dBm, typical - HE=2PER @ -83dBm, typical - HE=3PER @ -80dBm, typical - HE=4PER @ -77dBm, typical - HE=5PER @ -74dBm, typical - HE=6PER @ -72dBm, typical - HE=7PER @ -69dBm, typical - HE=8PER @ -66dBm, typical - HE=9PER @ -64dBm, typical Maximum Input Level 802.11b : -10dBm 802.11g/n/ax : -20dBm 深圳市中龙通电子科技有限公司Page 6 B. Bluetooth Specification FeatureDescription General Specification Bluetooth StandardBLE5.2 Host Interface USB Antenna ReferenceSmall antennas with 0~2 dBi peak gain Frequency Band2402 MHz ~ 2480 MHz Number of ChannelsBLE:40 channels RF Specification Sensitivity, tolerance ± 2dBm Sensitivity @ BLE=30.8% for LE(1Mbps) -90 dBm Sensitivity @ BLE=30.8% for LE(2Mbps) -91 dBm Maximum Input Level GFSK(1Mbps): -20 dBm π/4-DQPSK(2Mbps): -20 dBm 6. Recommended Operating Rating symbolParameterMinimumTypicalMaximumUnits VDD3.3V supply voltage3.03.33.6V VDDIOI/O supply voltage1.71.81.9V Current3.3V rating current----800mA 深圳市中龙通电子科技有限公司Page 7 7. FootprintDimension 7.1 No IPEX FootprintDimension 12.2±0.2 13±0.2 1 4 11 14 1.90±0.2 12.2±0.2 13 ±0.2 3 2 1 4 5 6 7 8 9 10 11 12 13 14 1516 17 181920 0.80 2.453.40 0.70 5*1.27 2.33 2.00 2.98 2.16 3.53 3.405*1.27 2.45 0.70 0.80 0.70 1.37 2.80 3.50 2.50 2.83 1.20 1.20 1.20 1.20 1.00 0.80 1.00 TOP VIEWTOP VIEWSIDE VIEW 7. 2 IPEX FootprintDimension 12.2±0.2 1 4 11 14 Unit:mm 13 ±0.2 12.2±0.2 13 ±0.2 3 2 1 4 5 6 7 8 9 10 11 12 13 14 1516 17 181920 0.80 2.453.40 0.70 2.33 2.00 2.98 2.16 3.53 3.405*1.27 2.45 0.70 0.80 0.70 1.37 2.80 3.50 2.50 2.83 1.20 1.20 1.20 1.20 1.00 0.80 1.00 5*1.27 TOP VIEWTOP VIEWSIDE VIEW 1. 8±0.2 2.25±0.2 深圳市中龙通电子科技有限公司Page 8 7. 3 No IPEX have shieldingfootprintDimension 12.2±0.2 1 4 11 14 Unit:mm 13 ±0.2 TOP VIEWSIDE VIEW 12.2±0.2 13 ±0.2 3 2 1 4 5678910 11 12 13 14 15 16 17 18 19 20 0.80 2.453.40 0.70 2.33 2.00 2.98 2.16 3.53 3.405*1.27 2.45 0.70 0.80 0.70 1.37 2.80 3.50 2.50 2.83 1.20 1.20 1.20 1.20 1.00 0.80 1.00 5*1.27 BOT VIEW 8. Pin Description RF_1 3 GND 4 RF_0 2 GND 1 GND 14 USB_DP 13 USB_DM 12 VIN 11 PCM_IN 5 PCM_OUT 6 PCM_SYN 7 PCM_CLK 8 BT_WAKE_HST 9 HST_WAKE_BT 10 RXD0 15 TXD0 16 NC 17 CHIP_EN 18 HST_WAKE_WL 19 WL_WAKE_HST 20 NO Name Description 1 GNDGroundconnections 2 RF0RF0 I/O port ;Whenhave IPEX the PIN is NC 3 RF1NC，Keep Floating 2.4 ±0.2 深圳市中龙通电子科技有限公司Page 9 4 GNDGround connections(Note: The PIN must b…

Text truncated - open the document above for the full version.

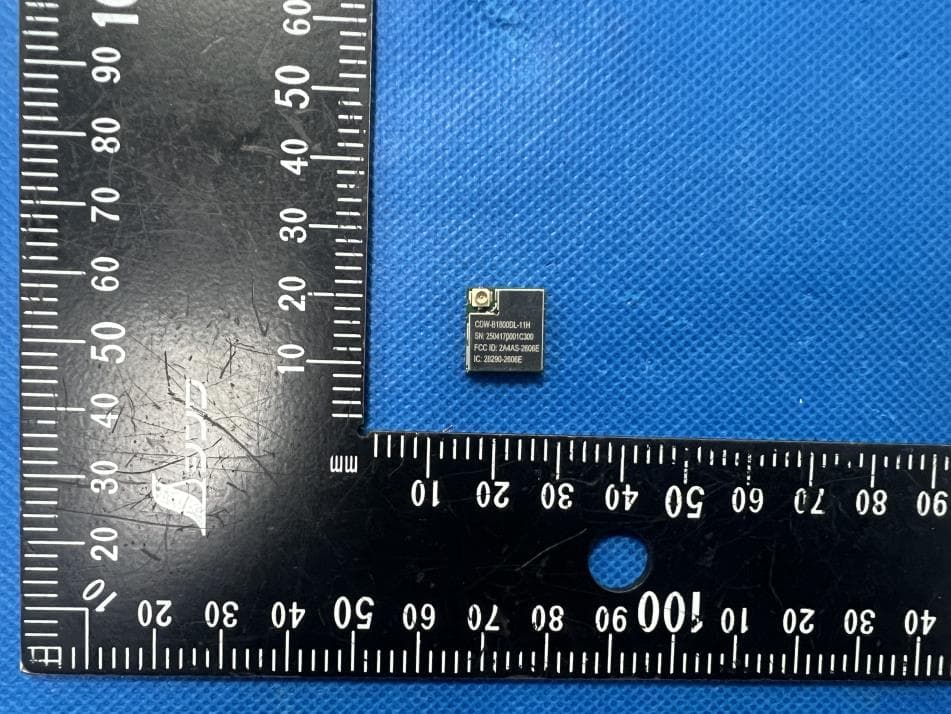

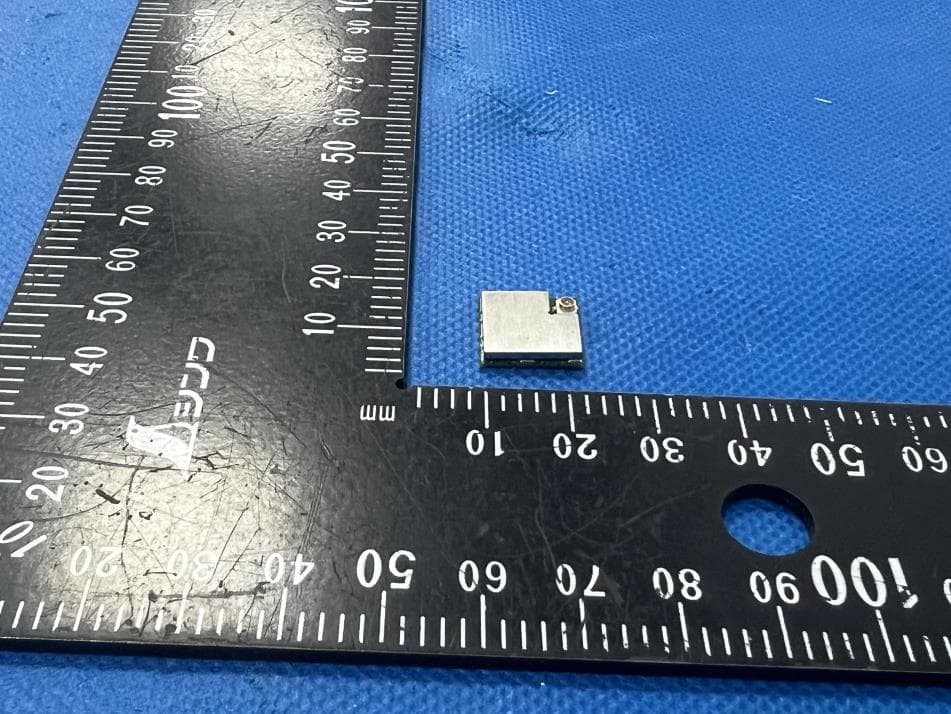

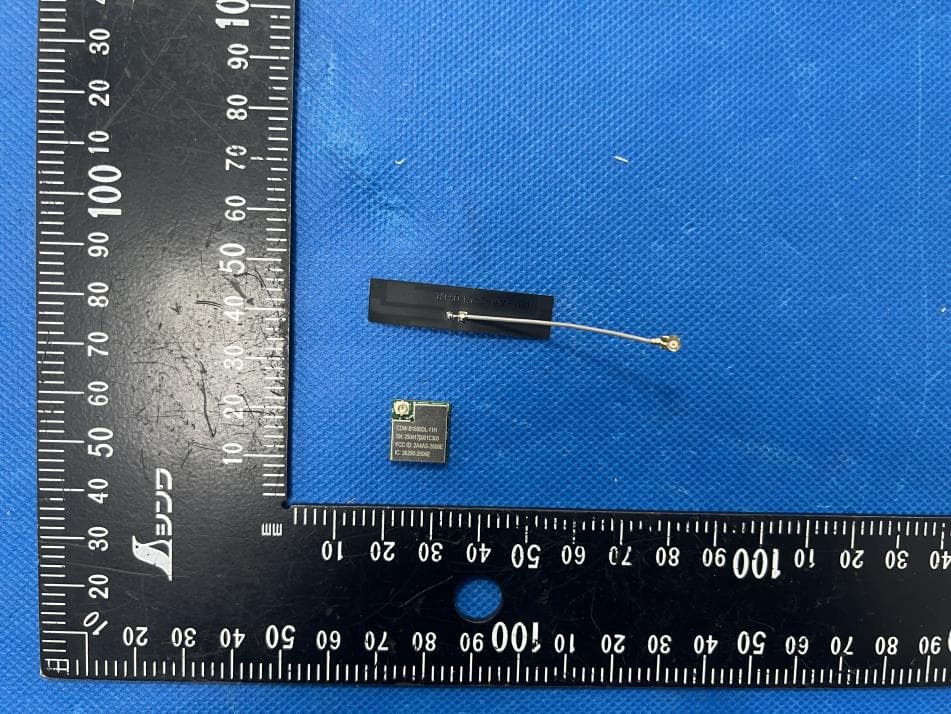

Internal Photos
