2A4AX-ES11SMART WACHT

ES11 Smart Band Tranya ES11 V20230613 Extended Warranty Activate Within 14 Days 15-MONTH Email: [email protected] tranya.com/pages/register-product Heart rate monitoring: To monitor your real-time heart rate over a 24-hour period, you can view historical heart rate data. Women's health: Period reminders for female users (need to be set in the APP) Message notification: The watch has a message reminder function, which can synchronize and push calls and phone messages. (Note: The message displayed by the APP is compatible with social software) Settings: Dial, brightness, screen duration, wrist light, shutdown, about, restore factory Settings, APP download Music controller: The watch can be controlled When the music is playing in your phone, increase/decrease the volume before playing/pausing/downplaying/ playing. (Note: Compatible with the music player, the phone comes with, not compatible with the use of third-party music players.) Stopwatch: Watches, too Stopwatch and timer. (After a pause, Swipe right to exit and return Previous menu) Status: Record daily steps, Details of distance and calories Sleep monitoring: Records sleep Details of time and sleep status (see Records in APP) Blood oxygen monitoring: Turn on blood oxygen monitoring and wait for the end of measurement. In When measuring, the red light is on. (1) Open the Control panel: Swipe down the watch home page from top to bottom (2) View information: Swipe from the bottom up on the home page (3) Enter the main menu: Swipe right on the home page of the watch (Note: Swipe right on other pages to return to the previous page) (4) Open the status screen: On the home screen, swipe left (5) Quick change of watch face: Hold down the home screen for 3 seconds, then you can swipe left or right to select the watch face. (6) Power on: Press and hold for 3 seconds (Power off: When the screen lights up, press and hold the button for 3 seconds, and then confirm the power off) (7) Press the button to return to the home screen. Multiple sports modes (outdoor running, cycling, jumping rope, badminton, table tennis, tennis, hiking, hiking, basketball, football, baseball, volleyball, cricket, rugby, hockey, dancing, spinning, yoga, sit-ups, etc). View exercise data (heart rate, Speed, duration, calories, steps, Distance). (1) Place the watch on the charger so that the charging contact opens and the back of the watch fits perfectly with the metal contact on the charger. (Charging time: more than 2 hours) (1) Failed to connect to Bluetooth Check whether the operating system is Android 5.0 or iOS 9.0 or later. Check to see if the watch is connected to another phone, and if so, unplug it first. Check whether the Bluetooth of the mobile phone is enabled and works normally. It is recommended to close all programs and re-enable themConnect before Bluetooth; Consult your doctor before starting a new exercise program. Though it Capable of tracking your heart rate, this smartwatch is just meant to help people live their lives A healthier life, under no circumstances, should be used for any medical purpose. Remember to consult your doctor before starting any exercise or diet program. ● Do not place this product and its accessories at extreme temperatures, otherwise it will cause damage and may lead to product failure, fire or explosion. ● Prevent the product from strong impact or turbulence, so as not to damage the product and its accessories, so as to avoid product failure. ● Do not disassemble or modify this product and its accessories. Contact US provides after-sales service when a product fails. Old electrical appliances must not be disposed of with garbage Residual waste, but must be disposed of separately. Disposal place is Public collection points for private use are free. the Owners of old appliances are responsible for bringing them to these places Collection point or similar collection point. It's a little personal Strive to contribute to your recovery of valuable raw materials Disposal of toxic substances. If you experience discomfort or skin irritation while wearing a smartwatch, then We recommend that you try to clean your device. Sometimes it's residue or a foreign object Buildup of substances around your device that could damage your skin. This is also Maybe you're not wearing your watch properly. We propose to ensure Clean and adjust your watch regularly to make it more comfortable to wear. Avoid skin irritation when wearing the watch Put it on and wait two to three days to see if your symptoms ease. If symptom If it persists or worsens, consult your doctor. If you have eczema, allergies, or asthma, you may be more likely to develop asthma Wearables cause skin irritation or allergies. ● If the replacement of the battery type is incorrect, improper handling, there is a risk of explosion Throwing the battery in a fire or a hot oven, or mechanically crushing or cutting the battery, that Can cause an explosion; . ● Place the battery in a very high temperature environment Can cause explosion or flammable liquid or gas leakage; Batteries under extremely low air pressure may cause an explosion or explosion Leakage of flammable liquids or gases. (2) Messages are not notified (3) How do I synchronize data? (4) How to view the watch version, upgrade, unit, time format, and user Boot, factory reset, more motion and unbinding devices? Select and click the options as shown below ① Make sure your phone Bluetooth is turned on, and Check that your phone is still connected to your watch. Check whether you authorize the APP to run in the background Mobile phone. ② Check whether the notification and reminder switches of the device are normal Open the corresponding application in the APP; ③ Check whether the notification bar of your phone can pop up Application notification or SMS. If no, go to the system The permissions of the APP message are displayed Notify the bar. ④ If the above operations do not solve the problem, please reset the watch And restart the pho…

Text truncated - open the document above for the full version.

Shenzhen Quanya Trading Co.,Ltd 5th Floor, Building 19, Majialong Industrial Zone, Daxin Road, Nantou Street, Nanshan District, Shenzhen, Guangdong, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/4/2024 U.S. Agent Designation Shenzhen Quanya Trading Co.,Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A4AX-ES11): Name and company of U.S. agent: Formates LLC Physical U.S. address of agent: 1400 Hudson St, Hoboken, New Jersey, 07030, USA FRN of U.S. agent: 0033456468 Email address of U.S. agent: [email protected] Formates LLC acknowledges their obligation to accept service of process on behalf of Shenzhen Quanya Trading Co.,Ltd Shenzhen Quanya Trading Co.,Ltd with the FRN 0031855851 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Shenzhen Quanya Trading Co.,Ltd Jane Chen Signature Abi Aribisala Project Manager Formates LLC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

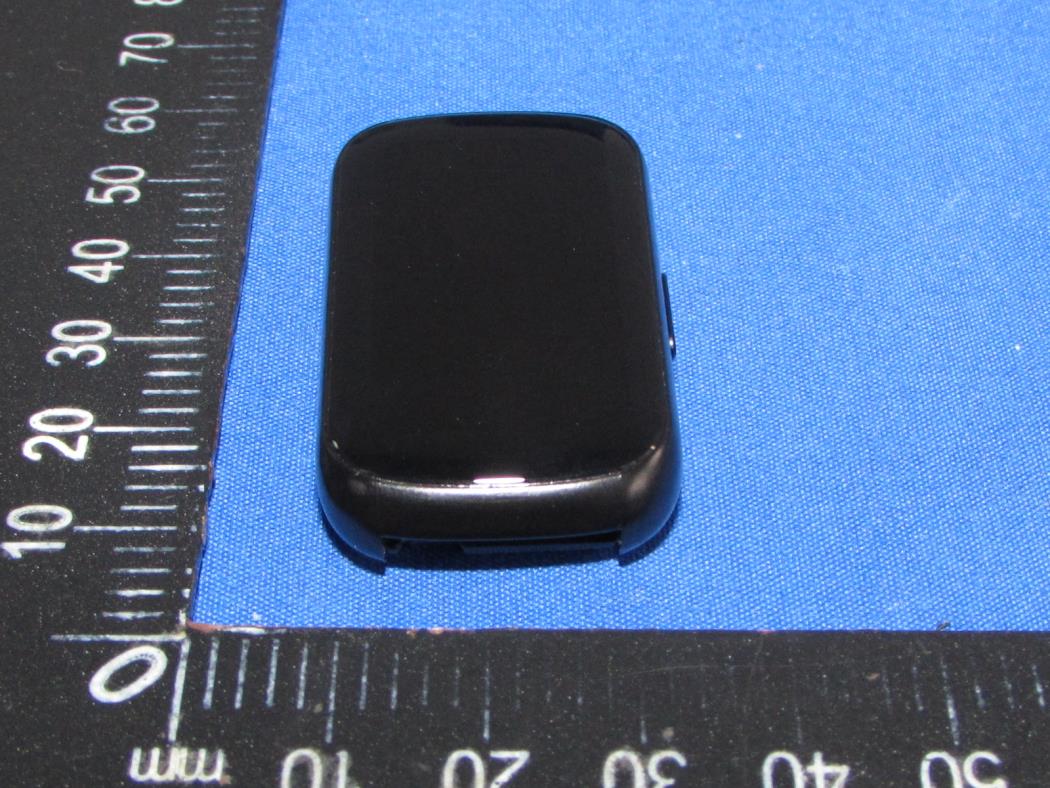

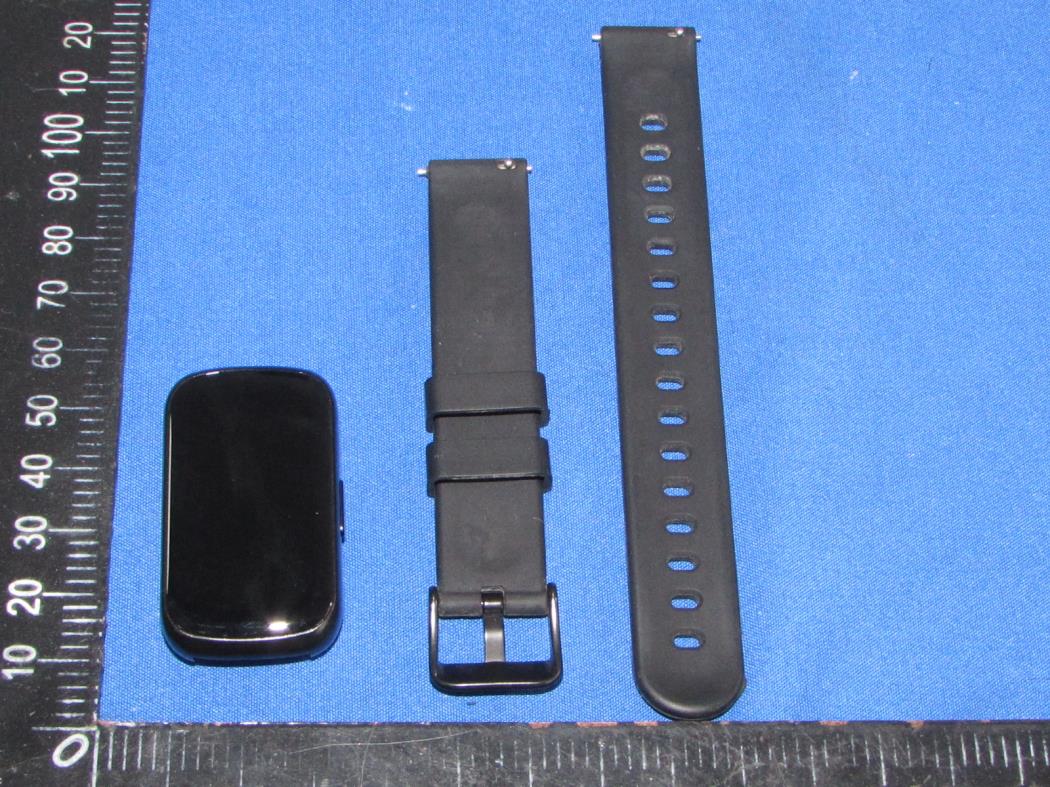

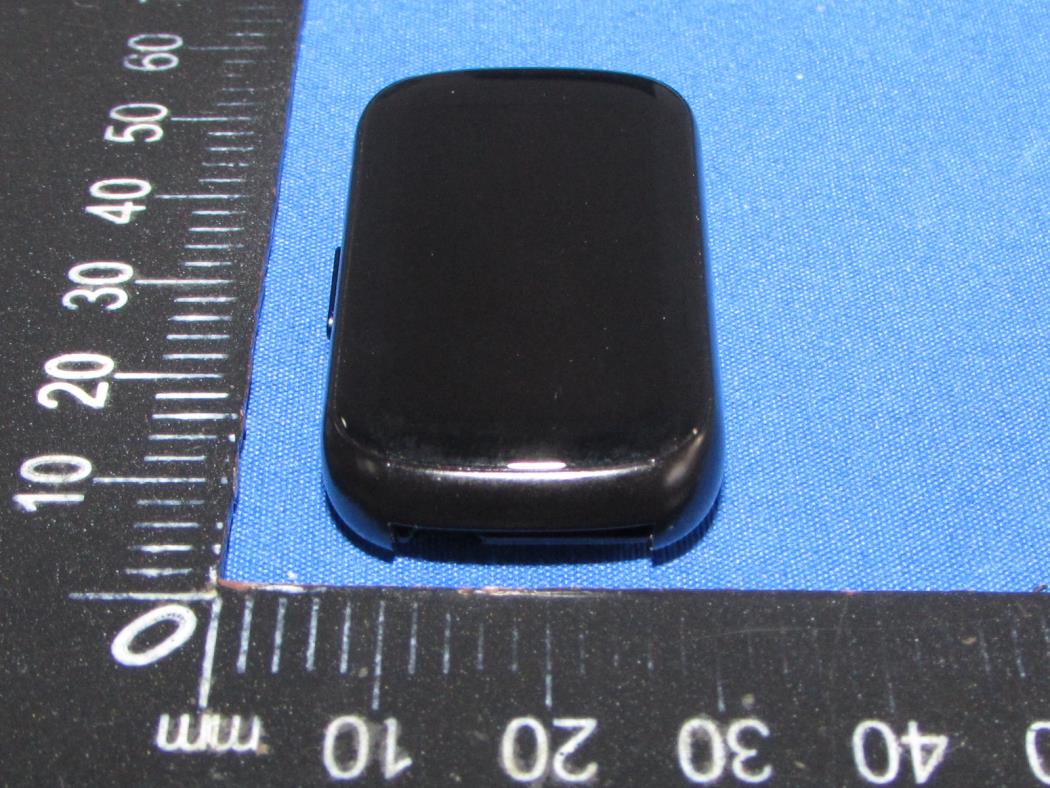

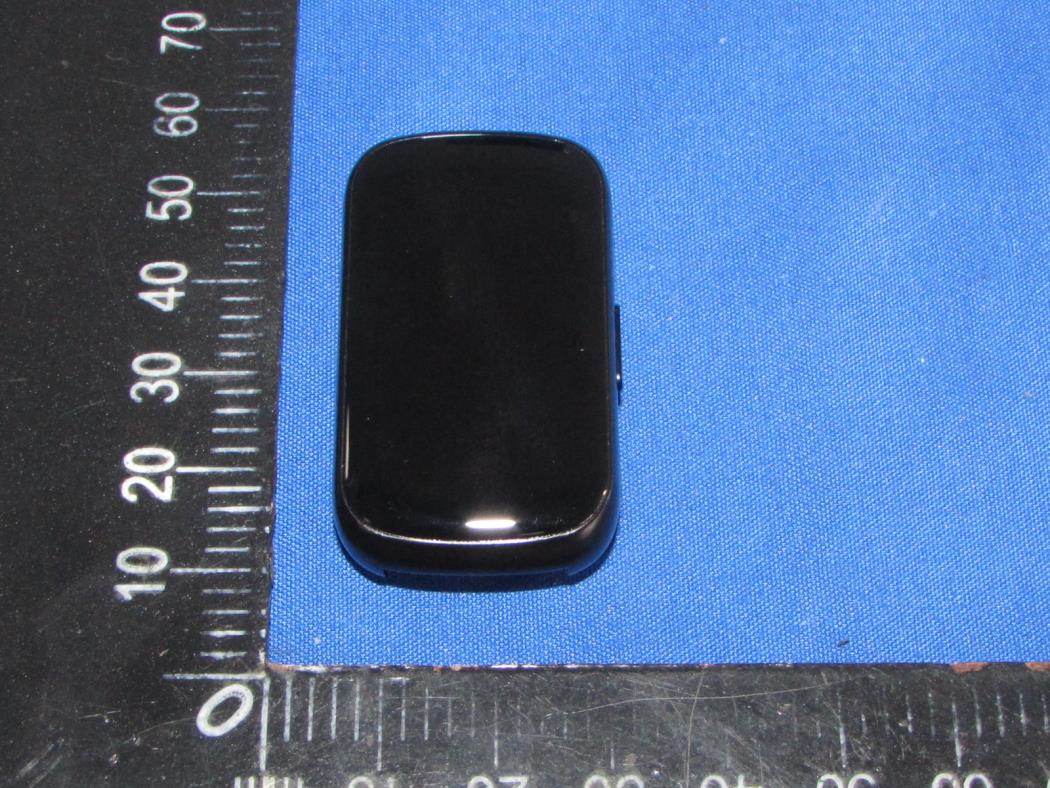

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7 Fig.8

Label Location FCC ID: 2A4AX-ES11

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5 Fig.6 Bluetooth antenna

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results Test Mode Antenna Frequency[MHz] Result[dBm] DH5 Ant1 2402 -1.96 DH5 Ant1 2441 -1.40 DH5 Ant1 2480 -1.61 2DH5 Ant1 2402 -1.66 2DH5 Ant1 2441 -1.06 2DH5 Ant1 2480 -1.31 3DH5 Ant1 2402 -1.06 3DH5 Ant1 2441 -0.53 3DH5 Ant1 2480 -0.71 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.5 -2.0 -2.0 Tolerance ±(dB) 1 1 1 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2 -1.5 -2 Tolerance ±(dB) 1 1 1 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.5 -1 -1 Tolerance ±(dB) 1 1 1 Results Test Mode Max Conducted Tune Up Power(dBm) Max of ERP and Conducted Power including Tune Up (dBm) Max of ERP and Conducted Power including Tune Up (mW) Exemption Limit(mW) GFSK -1 -1.0 0.79 3 π/4-DQPSK -0.5 -0.5 0.89 3 8DPSK 0 0.0 1.00 3 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The antenna gain of the EUT for BT is -3.96 dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Seeking truth and value Win-win Shenzhen Qianmu Communication Technology Co., Ltd Shenzhen Qianmu Communication Technology Co.,Ltd. Focus on antenna solutions, design and production guest Hu: Doug item :D26E day Period: March 19, 2024 shoot :QIU ZHI YUAN 1.Test the environment 2.Description of previous debugging records 3. Description of the matching circuit 4.Active test data 5.Conduction test data 6.Talk current sound simulation test 7.Environmental Handling Instructions 8.GPS/WIFI/BTPassive parameters 9.GPS/WIFI/BT measured effect 10. Summary Shenzhen Qianmu Communication Technology Co.,Lt Test items equipment 1.S-parameters （S- parameter） 1.Return loss （Return Loss） 2.Voltage Standing Wave Ratio (VSWR) Network analyzers: Agilent E5071B HP 8753D 2.Active testing （Active ） 1.Transmit Power (TRP). 2.Reception sensitivity (TIS). 3.Frequency error 4.The screen is off and the screen is on 1.Dark room:ETS 7x4x3 m (3D) Chamber ETS 5x3x3 m (3D) Chamber 2.Comprehensive Tester: Agilent 8960 E5515B ×2 StarPoint SP6011 3. （Passive） 1.Antenna Gain (Gain). 2.Antenna efficiency （Efficiency） 1.dark room：ETS 7x4x3 m (3D) Chamber ETS 5x3x3 m (3D) Chamber 2.Network Analyzers:Agilent E5071B HP 8753D Description of previous debugging records date version Debugging record description 2024-3-19 A FPC modification sample, test prototype Models Bluetooth watch Version mainboard Antenna profile Antenna status Antenna status Antenna form Design area Match the changes Bluetoot h antenna BT 2.4GHz~2.5GHz FPC modificati ons Monopoly bracket not Prototype status Commissioning the machine Environme ntal Treatment Matching circuit-BT antenna ON The original match has not changed PA 0Ω 0Ω NF NF Bluetooth antenna benefits benefits Seeking truth and value Win-win Indoor test: APP Find Bracelet straight line test 50 meters on the front and 35 meters on the back. Outdoor test: APP Find Bracelet straight line test 20 meters on the front and 16 meters on the back Seeking truth and value is a win-win situation Thank you! All information contained in this report is copyrighted by our company and should not be distributed to third parties without our permission

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 1 of 46 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: SMART WACHT Trade Mark: N/A Test Model: ES11 FCC ID: 2A4AX-ES11 Environmental Conditions Temperature: 23.8°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Hugo Chen NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.963 2401.547 2402.510 --- --- DH5 Ant1 2441 0.960 2440.550 2441.510 --- --- DH5 Ant1 2480 0.963 2479.547 2480.510 --- --- 2DH5 Ant1 2402 1.308 2401.364 2402.672 --- --- 2DH5 Ant1 2441 1.293 2440.379 2441.672 --- --- 2DH5 Ant1 2480 1.293 2479.379 2480.672 --- --- 3DH5 Ant1 2402 1.308 2401.370 2402.678 --- --- 3DH5 Ant1 2441 1.305 2440.367 2441.672 --- --- 3DH5 Ant1 2480 1.314 2479.361 2480.675 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 2 of 46 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 3 of 46 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 4 of 46 2DH5-Ant1-2480 3DH5-Ant1-2402 3DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 5 of 46 3DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 6 of 46 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.87844 2401.5792 2402.4576 --- --- DH5 Ant1 2441 0.87882 2440.5765 2441.4553 --- --- DH5 Ant1 2480 0.87791 2479.5776 2480.4555 --- --- 2DH5 Ant1 2402 1.1977 2401.4171 2402.6148 --- --- 2DH5 Ant1 2441 1.1786 2440.4253 2441.6039 --- --- 2DH5 Ant1 2480 1.1686 2479.4292 2480.5978 --- --- 3DH5 Ant1 2402 1.1950 2401.4170 2402.6120 --- --- 3DH5 Ant1 2441 1.1924 2440.4205 2441.6129 --- --- 3DH5 Ant1 2480 1.1736 2479.4329 2480.6065 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 7 of 46 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 8 of 46 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 9 of 46 2DH5-Ant1-2480 3DH5-Ant1-2402 3DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 10 of 46 3DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 11 of 46 Appendix C: Maximum peak conducted output power Test Result Test Mode Antenna Frequency[MHz] Conducted Peak Power[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -1.96 ≤30 PASS DH5 Ant1 2441 -1.40 ≤20.97 PASS DH5 Ant1 2480 -1.61 ≤20.97 PASS 2DH5 Ant1 2402 -1.66 ≤30 PASS 2DH5 Ant1 2441 -1.06 ≤20.97 PASS 2DH5 Ant1 2480 -1.31 ≤20.97 PASS 3DH5 Ant1 2402 -1.06 ≤30 PASS 3DH5 Ant1 2441 -0.53 ≤20.97 PASS 3DH5 Ant1 2480 -0.71 ≤20.97 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 12 of 46 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 13 of 46 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 14 of 46 2DH5-Ant1-2480-PASS 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 15 of 46 3DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 16 of 46 Appendix D: Carrier frequency separation Test Result TestMode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.81 ≥0.642 PASS 2DH5 Ant1 Hop 1.01 ≥0.872 PASS 3DH5 Ant1 Hop 1.34 ≥1.314 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 17 of 46 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 18 of 46 3DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 19 of 46 Appendix E: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.884 100 0.288 ≤0.4 PASS 2DH5 Ant1 Hop 2.891 80 0.231 ≤0.4 PASS 3DH5 Ant1 Hop 2.892 60 0.174 ≤0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 20 of 46 Test Graphs DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 21 of 46 2DH5-Ant1-Hop-PASS 3DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 22 of 46 Appendix F: Number of hopping channels Test Result TestMode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 23 of 46 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 24 of 46 3DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 Report No.: TZ240605862-BT Page 25 of 46 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -2.20 -50.12 ≤-22.2 PASS DH5 Ant1 High 2480 -1.80 -48.84 ≤-21.8 PASS DH5 Ant1 Low Hop_2402 -2.87 -50.35 ≤-22.87 PASS DH5 Ant1 High Hop_2480 -2.16 -49.58 ≤-22.16 PASS 2DH5 Ant1 Low 2402 -3.34 -49.51 ≤-23.34 PASS 2DH5 Ant1 High 2480 -2.78 -49.52 ≤-22.78 PASS 2DH5 Ant1 Low Hop_2402 -7.22 -50.4 ≤-27.22 PASS 2DH5 Ant1 High Hop_2480 …

Text truncated - open the document above for the full version.

Report No.: TZ240605862-BT Page 1 of 37 FCC TEST REPORT Test report On Behalf of Shenzhen Quanya Trading Co.,Ltd For SMART WACHT Model No.: ES11 FCC ID: 2A4AX-ES11 Prepared for : Shenzhen Quanya Trading Co.,Ltd 5th Floor, Building 19, Majialong Industrial Zone, Daxin Road, Nantou Street, Nanshan District, Shenzhen, Guangdong, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2024/6/14 ~ 2024/6/23 Date of Report: 2024/6/24 Report Number: TZ240605862-BT The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ240605862-BT Page 2 of 37 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Quanya Trading Co.,Ltd Address ................................. : 5th Floor, Building 19, Majialong Industrial Zone, Daxin Road, Nantou Street, Nanshan District, Shenzhen, Guangdong, China Manufacture's Name ............ : Shenzhen Doogee Hengtong Technology CO,.LTD Address ................................. : B,2/F, Building A4, Silicon Valley Power Digital Industrial Park, No.22, Longhua New District, Shenzhen, China Product description Trade Mark ................................ : N/A Product name ............................ : SMART WACHT Model and/or type reference : ES11 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2024/6/14 ~ 2024/6/23 Date of Issue .......................................... : 2024/6/24 Test Result ............................................. : Pass Testing Engineer : (Allen Lai) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ240605862-BT Page 3 of 37 Revision History Revision Issue Date Revisions Revised By 00 2024/6/24 Initial Issue Andy Zhang Report No.: TZ240605862-BT Page 4 of 37 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................ 5 1.1 Description of Device (EUT) ................................................................................................... 5 1.2 Wireless Function Tested in this Report ................................................................................. 5 1.3 EUT configuration ................................................................................................................... 6 1.4 Description of Test Facility ...................................................................................................... 6 1.5 Statement of the Measurement Uncertainty ............................................................................ 6 1.6 Measurement Uncertainty ....................................................................................................... 7 1.7 Description of Test Modes ...................................................................................................... 7 1.8 Frequency of Channels........................................................................................................... 7 2 TEST METHODOLOGY ..................................................................................................... 8 2.1 EUT Configuration .................................................................................................................. 8 2.2 EUT Exercise ......................................................................................................................... 8 2.3 Test Sample ........................................................................................................................... 8 3 SYSTEM TEST CONFIGURATION .................................................................................... 9 3.1 Justification ............................................................................................................................. 9 3.2 EUT Exercise Software........................................................................................................... 9 3.3 Special Accessories ............................................................................................................... 9 3.4 Block Diagram/Schematics ..................................................................................................... 9 3.5 Equipment Modifications ......................................................................................................... 9 3.6 Test Setup .............................................................................................................................. 9 4 SUMMARY OF TEST RESULTS ...................................................................................... 10 5 MEASUREMENT RESULTS ............................................................................................ 11 5.1 Maximum Peak Conducted Output Power ............................................................................ 11 5.2 Frequency Separation and 20 dB Bandwidth ........................................................................ 12 5.3 Number of Hopping Frequency ............................................................................................. 13 5.4 Time of Occupancy (Dwell Time) .......................................................................................... 14 5.5 Conducted Spurious Emission…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 TEST SETUP PHOTOS OF THE EUT Conducted Emission Radiated Emission Below 1GHz Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-ES11 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Radiated Emission Above 1GHz
