2A4AX-X1True Wireless Earbuds

Ù

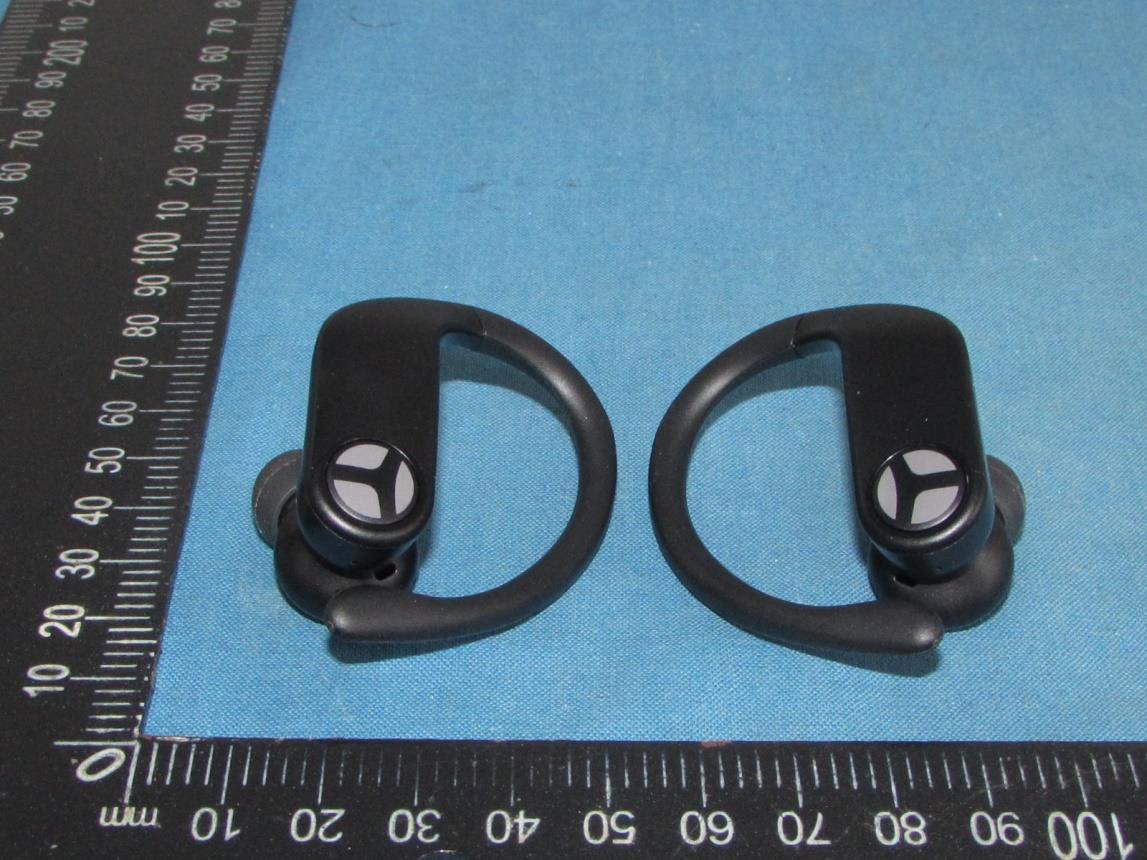

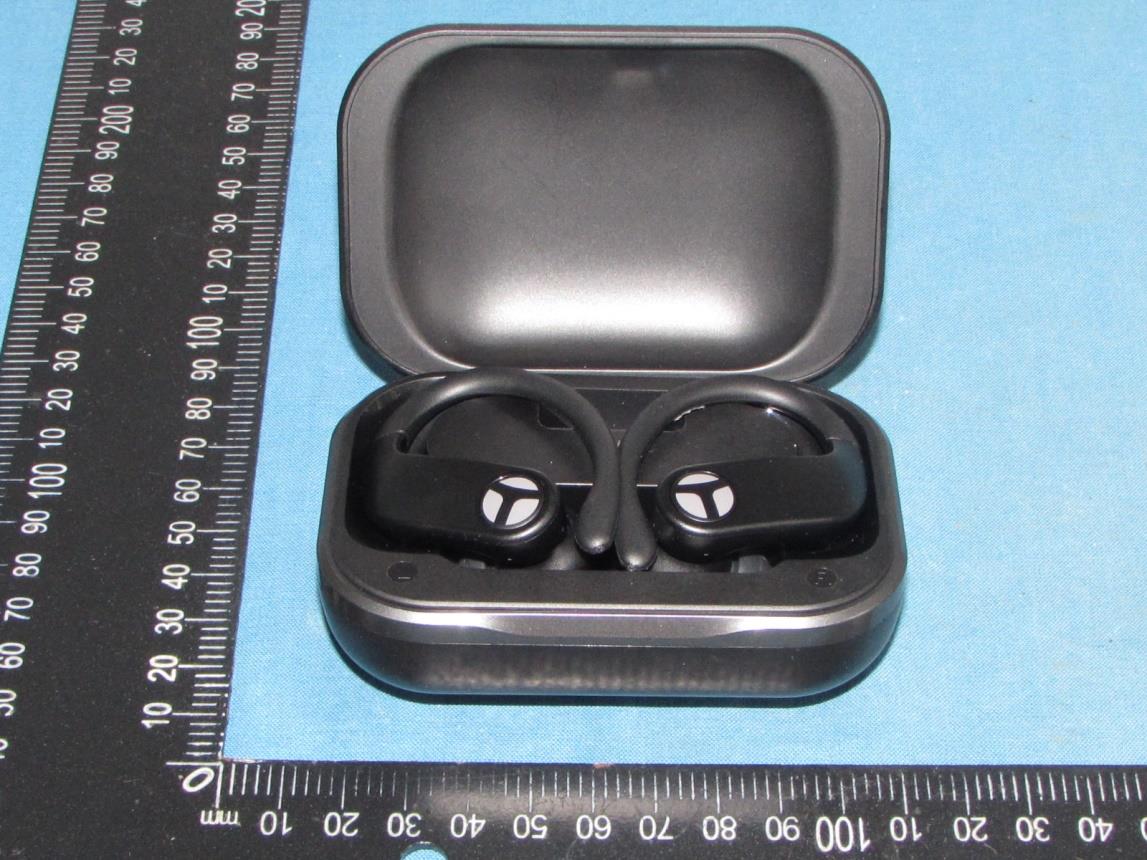

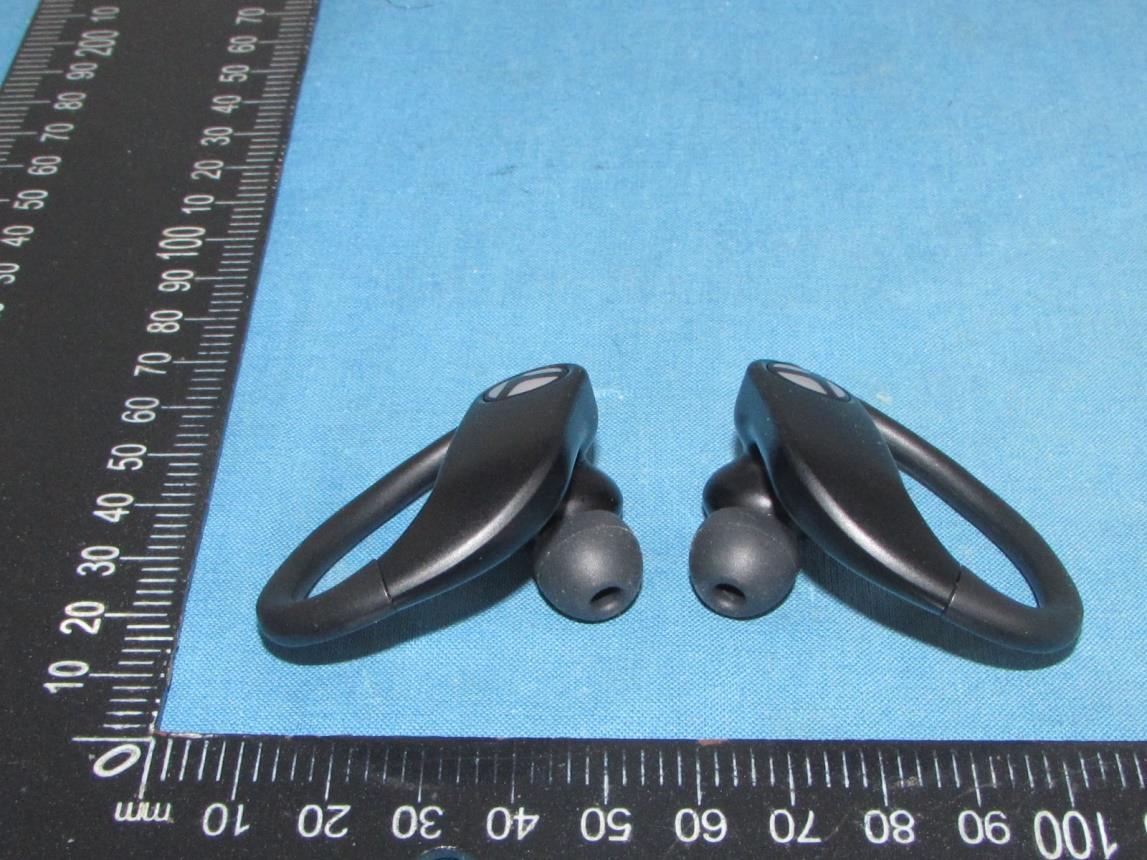

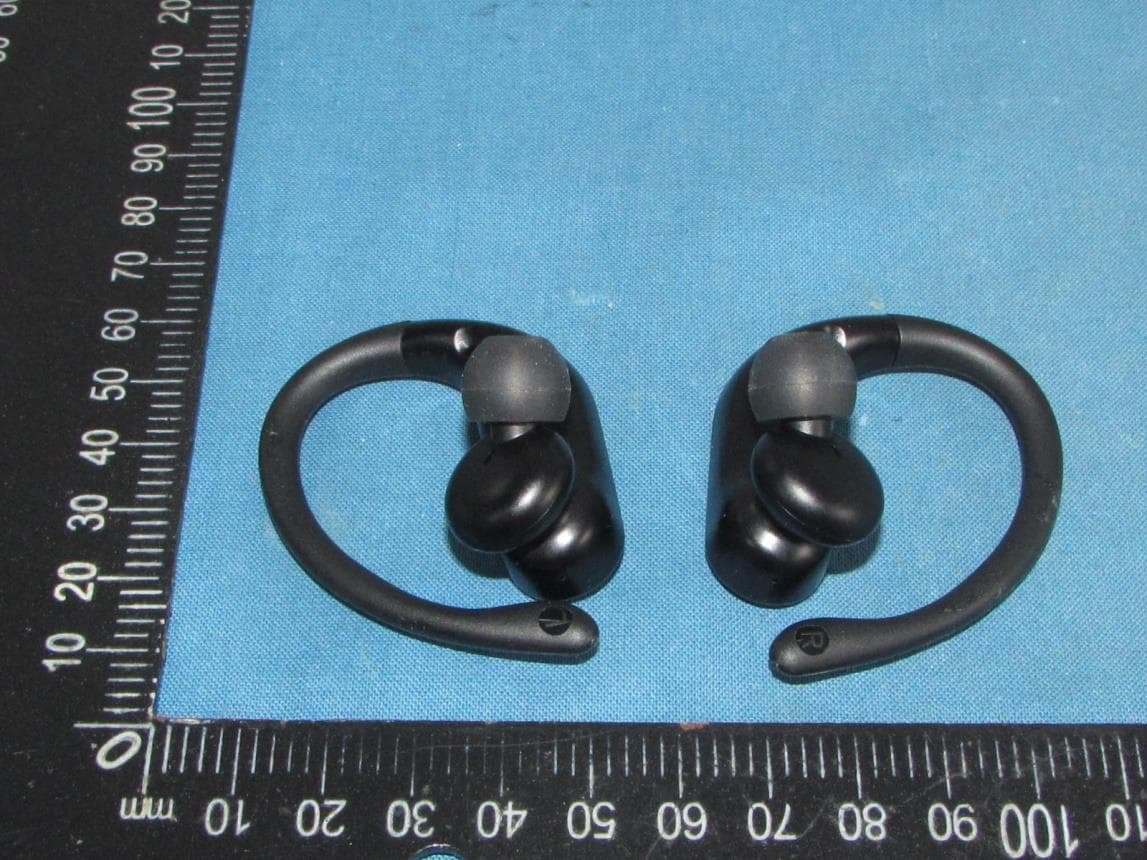

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Fig.7 Fig.8 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 Fig.9

Label Location: FCC ID: 2A4AX-X1

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5 Fig.6

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK 00 2402 -2.54 39 2441 -2.11 78 2480 -1.83 π/4-DQPSK 00 2402 -2.55 39 2441 -2.3 78 2480 -1.87 8-DPSK 00 2402 -2.62 39 2441 -2.31 78 2480 -1.88 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -3.0 -2.5 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -3.0 -2.5 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -3.0 -2.5 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK 2402 -2.0 2.0 1.58 3 2441 -1.5 2.5 1.78 3 2480 -1.0 3.0 2.00 3 π/4-DQPSK 2402 -2.0 2.0 1.58 3 2441 -1.5 2.5 1.78 3 2480 -1.0 3.0 2.00 3 8-DPSK 2402 -2.0 2.0 1.58 3 2441 -1.5 2.5 1.78 3 2480 -1.0 3.0 2.00 3 The antenna gain of the EUT for BT is 4dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXINGGLEADELECTRONICSCO.,LTD -1- 产品技术规格书 SPECIFICATION 中国浙江省嘉兴市经济开发区正原路66号 No.66ZhengyuanRoad,EconomicDevelopmentZone,Jiaxing,Zhejiang,China TEL：0086-573-83651818FAX：0086-573-83651858 拟制 Preparedby ：审核 Checkedby ：批准 Approvedby ： 送样日期FormedOn产品版本DocumentVersion (V1.0) 产品型号PARTNO：LA31H2450-A72 客户料号CUSTOMERPARTNO： 客户确认CUSTOMERAPPROVEDBY： 确认日期APPROVEDDATE： 嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXINGGLEADELECTRONICSCO.,LTD -2- 目录 Tableofcontents 规格书版本更改记录Versionrejiggertrackrecord..............................3 1.概述Introduction..................................................................4 2.型号PartNumber...............................................................4 3.外型尺寸及测试板焊盘尺寸Dimensions.....................4～5 4.测试电路和匹配电路EvaluationBoardandMatchingCircuits............5 5.电气性能ElectricalCharacteristics..........................................6 6.特性曲线Characteristiccurve...................................................6 7.方向图RadiationPattern...................................................7～9 8.可靠性试验DependabilityTest..........................................9～11 9.回流焊温度ReflowSolderingStandardCondition.....................11 10.包装尺寸PackagingandDimensions..............................12 嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXINGGLEADELECTRONICSCO.,LTD -3- 产品规格书版本更改记录 Versionrejiggertrackrecord 版本号 Version 更改记录Rejigger 拟制 Prepared 批准 Approve 日期 Date V1.0首次发行潘枫罗昌桅2021.06.18 备注： 1、更改产品电性能指标时，版本号需更换（V1.0换为V2.0、V3.0......）； 2、更改产品测试方法（包括可靠性测试条件），或更改使用条件时，当前版本号加系列（V1.0 换为V1.1、V1.2......）。 嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXINGGLEADELECTRONICSCO.,LTD -4- 产品尺寸/Size：3.2×1.6×0.6 1.概述INTRODUCTION " 佳利 " 微波多层陶瓷天线 LA 系列产品设计用于 WLAN 、 WiFi 、蓝牙、 PHS ，手机 多频天线 ,FM 等小体积 SMD 片式设计。 "GLEAD"MicrowaveMulti-LayerCeramicAntennaLAseriesaredesignedtobeused inWLAN 、 WiFi 、 Bluetooth 、 PHS 、 Multiple-bandMobilephoneantenna,FM,etcand compactsizeSMDchipdesign. 2.型号PartNumber LA31H2450-A72 3.外型尺寸Dimensions（Unit：mm） NumberTerminalName ①INPUT ②NC SymbolsLWTA Dimensions3.2+/-0.21.6+/-0.20.6+/-0.10.4+0.1/-0.2 天线频率/AntennaFrequency:2450MHz 产品设计结构H型/ViaDesignSeries 多层结构天线/Multi-layerAntenna 产品名称，编号A72/ProductName:A72 (TopView) L w ①② (BottomView) (SideView) T (SideView) A 嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXINGGLEADELECTRONICSCO.,LTD -5- 4.测试电路和匹配电路EvaluationBoardandMatchingCircuits 3.3nH 1.2nH 嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXINGGLEADELECTRONICSCO.,LTD -6- 5.电气性能ElectricalCharacteristics 6.特性曲线Characteristiccurve No. Item（项目）Specifications（特性） 5.1(带匹配电路测试)AfterMatching2450MHz 5.2BandWidth通带宽度100MHztyp. 5.3PeakGain峰值增益4.00dBi 5.4V.S.W.R驻波比≤2.0 5.5 Polarization极化方式 Linear线性 5.6 AzimuthBeamwidth方位角 Omni-directional全向 5.7 Impedance阻抗 50Ω 嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXINGGLEADELECTRONICSCO.,LTD -7- 7.方向图RadiationPattern coordinates ： X-ZPlane 嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXINGGLEADELECTRONICSCO.,LTD -8- Y-ZPlane X-YPlane 嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXINGGLEADELECTRONICSCO.,LTD -9- 3DRadiationPattern 8.可靠性试验DependabilityTest 基准条件：温度范围Temperaturerange25±5°C 相对湿度范围RelativeHumidityrange55~75%RH 工作温度OperatingTemperaturerange-40°C~+85°C 8.1耐振动VibrationResist 在振动频率为10~55Hz振幅为1.5mm沿X.Y.Z方向各振动2小时后测试符合表8.1~8.4规定。 Thedeviceshouldsatisfytheelectricalcharacteristicsspecifiedinparagraph8.1~8.4afterappliedto thevibrationof10to55Hzwithamplitudeof1.5mmfor2hourseachinX,YandZdirections. Frequenc y(MHz) 240024502500 Avg.Gain (dBi) -2.44-2.69-2.83 PeckGain (dBi) 3.924.003.86 Efficienc y(%) 707167 嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXINGGLEADELECTRONICSCO.,LTD -10- 8.2耐跌落冲击DropShock 在100cm高度处按X，Y，Z三个面分别自由跌落在木制地板上共3次后测试符合表8.1~8.4规 定。 Thedeviceshouldsatisfytheelectricalcharacteristicsspecifiedinparagraph8.1~8.4afterdropping ontothehardwoodenboardfromtheheightof100cmfor3timeseachfacetofthe3dimensionsofthe device. 8.3耐焊接热SolderHeatProof 能承受经120~150°C的温度预热120秒后，在255°C+10°C的焊锡浸5±0.5秒，或300°C-10°C的 电烙铁焊接3±0.5秒，焊接面无损伤。 Thedeviceshouldbesatisfiedafterpreheatingat120°C~150°Cfor120secondsanddippingin solderingSnat255°C+10°Cfor5±0.5seconds，orelectriciron300°C-10°Cfor3±0.5seconds， withoutdamnify. 8.4推力试验AdhesiveStrengthofTermination 在产品电极端子上或表面上可承受5N(≦0603)；10N(>0603)水平推力10±1秒而无明显外观损坏 与电极移位。 Thedevicehavenoremarkabledamageorremovaloftheterminationafterhorizontalforceof 5N(≦0603)；10N(>0603)with10±1seconds. 8.5耐弯曲试验 BendingResistTest 将产品按图焊在1.6±0.2mm的PCB板中间，由箭头方向施 力：1mm/S，弯曲距离：1.5mm，保持5±1S，产品金属层无脱落。 WeldtheproducttothecenterpartofthePCBwiththethickness 1.6±0.2mmastheillustrationshows,andkeepexertingforce arrow-wardonitatspeedof:1mm/S,andholdfor5±1Satthe positionof1.5mmbendingdistance,sofar,anypeelingoffofthe productmetalcoatingshouldnotbedetected. 8.6耐湿热特性 MoistureProof 在温度为60±2°C，相对湿度90~95%的恒温湿箱中放置96小时，在常温中恢复1~2小时后测 试，符合表8.1~8.4规定。 Thedeviceshouldsatisfytheelectricalcharacteristicsspecifiedinparagraph8.1~8.4afterexposedto thetemperature60±2°Candtherelativehumidity90~95%RHfor96hoursand1~2hoursrecoverytime undernormalcondition. 8.7高温特性 HighTemperatureEndurance 在温度为85±5°C的恒温箱中放置96±2小时，在常温中恢复1~2小时后测试。符合表8.1~8.4 规定。 Thedeviceshouldsatisfytheelectricalcharacteristicsspecifiedinparagraph8.1~8.4afterexposedto temperature85±5°Cfor96±2hoursand1~2hoursrecoverytimeundernormaltemperature. 嘉兴佳利电子有限公司http://www.glead.com.cn阿里巴巴http://zydq.en.alibaba.com JIAXINGGLEADELECTRONICSCO.,LTD -11- 8.8低温特性 LowTemperatureEndurance 在温度为-40°C±5°C低温箱中放置96±2小时后恢复1~2小时测试符合表8.1~8.4规定。 Thedeviceshouldalsosatisfytheelectricalcharacteristicsspecifiedinparagraph8.1~8.4after exposedtothetemperature-40°C±5°Cfor96±2hoursandto2hoursrecoverytimeundernormal temperature. 8.9温度循环 TemperatureCycleTest 在-40°C温度中保持30分钟，再在+85°C温度中保持30分钟，共循环5次后在常温中恢复1~2 小时后测试符合表8.1~8.4规定。 Thedeviceshouldalsosatisfytheelectricalcharacteristicsspecifiedinparagraph8.1~8.4…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 1 of 43 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: True Wireless Earbuds Trade Mark: Tranya Test Model: X1 FCC ID: 2A4AX-X1 Environmental Conditions Temperature: 25.5C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.810 2401.589 2402.399 --- --- 2441 0.858 2440.541 2441.399 --- --- 2480 0.888 2479.538 2480.426 --- --- 2DH5 Ant1 2402 1.290 2401.343 2402.633 --- --- 2441 1.329 2440.331 2441.660 --- --- 2480 1.206 2479.394 2480.600 --- --- 3DH5 Ant1 2402 1.335 2401.328 2402.663 --- --- 2441 1.335 2440.322 2441.657 --- --- 2480 1.173 2479.424 2480.597 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 2 of 43 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 3 of 43 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 4 of 43 3DH5_Ant1_2441 3DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 5 of 43 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.83244 2401.580 2402.412 --- --- 2441 0.84903 2440.570 2441.419 --- --- 2480 0.84477 2479.573 2480.417 --- --- 2DH5 Ant1 2402 1.1548 2401.415 2402.570 --- --- 2441 1.1575 2440.414 2441.572 --- --- 2480 1.1568 2479.415 2480.571 --- --- 3DH5 Ant1 2402 1.1654 2401.410 2402.576 --- --- 2441 1.1610 2440.413 2441.574 --- --- 2480 1.1719 2479.406 2480.578 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 6 of 43 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 7 of 43 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 8 of 43 3DH5_Ant1_2441 3DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 9 of 43 Appendix C: Maximum Peak conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH5 Ant1 2402 -2.54 ≤30 PASS 2441 -2.11 ≤30 PASS 2480 -1.83 ≤30 PASS 2DH5 Ant1 2402 -2.55 ≤20.97 PASS 2441 -2.3 ≤20.97 PASS 2480 -1.87 ≤20.97 PASS 3DH5 Ant1 2402 -2.62 ≤20.97 PASS 2441 -2.31 ≤20.97 PASS 2480 -1.88 ≤20.97 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 10 of 43 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 11 of 43 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 12 of 43 3DH5_Ant1_2441 3DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 13 of 43 Appendix D: Carrier frequency separation Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.982 ≥0.888 PASS 2DH5 Ant1 Hop 1.02 ≥0.886 PASS 3DH5 Ant1 Hop 1 ≥0.890 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 14 of 43 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 15 of 43 Appendix E: Time of occupancy Test Result TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.89 110 0.318 ≤0.4 PASS 2DH5 Ant1 Hop 2.90 110 0.319 ≤0.4 PASS 3DH5 Ant1 Hop 2.91 110 0.32 ≤0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 16 of 43 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 17 of 43 3DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 18 of 43 Appendix F: Number of hopping channels Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 19 of 43 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 20 of 43 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -3.35 -50.21 ≤-23.35 PASS High 2480 -2.47 -49.14 ≤-22.47 PASS Low Hop_2402 -4.03 -50.2 ≤-24.03 PASS High Hop_2480 -2.68 -49.47 ≤-22.68 PASS 2DH5 Ant1 Low 2402 -3.61 -50.12 ≤-23.61 PASS High 2480 -2.47 -49.18 ≤-22.47 PASS Low Hop_2402 -8.92 -50.75 ≤-28.92 PASS High Hop_2480 -3.29 -49.25 ≤-23.29 PASS 3DH5 Ant1 Low 2402 -3.78 -50.24 ≤-23.78 PASS High 2480 -2.61 -49.75 ≤-22.61 PASS Low Hop_2402 -5.53 -50.25 ≤-25.53 PASS High Hop_2480 -3.09 -49.4 ≤-23.09 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 21 of 43 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 DH5_Ant1_High_Hop_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 22 of 43 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 23 of 43 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 24 of 43 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 25 of 43 Appendix H: Conducted Spurious Em…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 30 of 43 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 2DH5_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 31 of 43 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 3DH5_Ant1_2402_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 32 of 43 3DH5_Ant1_2402_30~1000 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 33 of 43 3DH5_Ant1_2441_30~1000 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 34 of 43 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 35 of 43 Appendix I: Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 1/T[kHz] DH5 Ant1 2402 2.86 3.75 76.27 0.35 2441 2.86 3.74 76.47 0.35 2480 2.87 3.75 76.53 0.35 2DH5 Ant1 2402 2.88 3.75 76.80 0.35 2441 2.88 3.75 76.80 0.35 2480 2.88 3.75 76.80 0.35 3DH5 Ant1 2402 2.88 3.75 76.80 0.35 2441 2.88 3.75 76.80 0.35 2480 2.88 3.74 77.01 0.35 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 36 of 43 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 37 of 43 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 38 of 43 3DH5_Ant1_2441 3DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 39 of 43 Appendix J: Emissions in Restricted Bands Test Result TestMode Antenna ChName Channel Detector Freq(MHz) Result(dBm) Limit(dBm) Verdict DH5 Ant1 Low 2402 AV 2310.000 -47.48 ≤-41.20 PASS AV 2389.985 -46.96 ≤-41.20 PASS AV 2390.000 -46.96 ≤-41.20 PASS Peak 2310.000 -40.29 ≤-21.20 PASS Peak 2380.220 -37.16 ≤-21.20 PASS Peak 2390.000 -39.8 ≤-21.20 PASS High 2480 AV 2483.500 -46.43 ≤-41.20 PASS AV 2496.800 -46.38 ≤-41.20 PASS AV 2500.000 -46.55 ≤-41.20 PASS Peak 2483.500 -39.17 ≤-21.20 PASS Peak 2484.160 -37.03 ≤-21.20 PASS Peak 2500.000 -38.12 ≤-21.20 PASS 2DH5 Ant1 Low 2402 AV 2310.000 -47.46 ≤-41.20 PASS AV 2387.675 -47.06 ≤-41.20 PASS AV 2390.000 -47.22 ≤-41.20 PASS Peak 2310.000 -41.09 ≤-21.20 PASS Peak 2343.470 -37.1 ≤-21.20 PASS Peak 2390.000 -39.81 ≤-21.20 PASS High 2480 AV 2483.500 -46.3 ≤-41.20 PASS AV 2499.920 -46.25 ≤-41.20 PASS AV 2500.000 -46.41 ≤-41.20 PASS Peak 2483.500 -39.3 ≤-21.20 PASS Peak 2498.800 -36.29 ≤-21.20 PASS Peak 2500.000 -36.9 ≤-21.20 PASS 3DH5 Ant1 Low 2402 AV 2310.000 -47.49 ≤-41.20 PASS AV 2389.355 -47.04 ≤-41.20 PASS AV 2390.000 -47.1 ≤-41.20 PASS Peak 2310.000 -39.91 ≤-21.20 PASS Peak 2320.475 -37.49 ≤-21.20 PASS Peak 2390.000 -39.19 ≤-21.20 PASS High 2480 AV 2483.500 -46.44 ≤-41.20 PASS AV 2498.640 -46.39 ≤-41.20 PASS AV 2500.000 -46.45 ≤-41.20 PASS Peak 2483.500 -37.89 ≤-21.20 PASS Peak 2494.960 -36.49 ≤-21.20 PASS Peak 2500.000 -39.47 ≤-21.20 PASS Note： 1. The Antenna Gain is compensated in the graph with 2dBi and Antenna Gain which is Higher. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 40 of 43 Test Graphs DH5_Ant1_Low_2402_AV DH5_Ant1_Low_2402_Peak DH5_Ant1_High_2480_AV DH5_Ant1_High_2480_Peak Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 41 of 43 2DH5_Ant1_Low_2402_AV 2DH5_Ant1_Low_2402_Peak 2DH5_Ant1_High_2480_AV Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 42 of 43 2DH5_Ant1_High_2480_Peak 3DH5_Ant1_Low_2402_AV 3DH5_Ant1_Low_2402_Peak Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 Report No.: TZ220803568-E Page 43 of 43 3DH5_Ant1_High_2480_AV 3DH5_Ant1_High_2480_Peak

Report No.: TZ220803568-E Page 1 of 38 FCC TEST REPORT Test report On Behalf of Shenzhen Quanya Trading Co.,Ltd For True Wireless Earbuds Model No: X1 FCC ID: 2A4AX-X1 Prepared for : Shenzhen Quanya Trading Co.,Ltd Room 501,19th Building Majialong Industrial Zone,Nanshan District,Shenzhen,Guangdong,China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2022/8/25 – 2022/9/1 Date of Report: 2022/9/2 Report Number: TZ220803568-E The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ220803568-E Page 2 of 38 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Quanya Trading Co.,Ltd Address .................................. : Room 501,19th Building Majialong Industrial Zone,Nanshan District,Shenzhen,Guangdong,China Manufacture's Name ............ : CHANDASUNG TECH (SHENZHEN) CO.,LTD Address .................................. : Rm 802, Building B, Zhonghengsheng High-tech Zone, No.3 Xinyu Road Xinqiao Street, Bao’an District, Shenzhen, China. Product description Trade Mark ............................. : Tranya Product name ........................... : True Wireless Earbuds Model No ................................ : X1 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................. ........... : Date (s) of performance of tests ........... : 2022/8/25-2022/9/1 Date of Issue ......................................... : 2022/9/2 Test Result ............................................ : PASS Testing Engineer : (Nancy Li) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ220803568-E Page 3 of 38 Revision History Revision Issue Date Revisions Revised By 00 2022/9/2 Initial Issue Andy Zhang Report No.: TZ220803568-E Page 4 of 38 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ................................................................................................................ 5 1.1. Description of Device (EUT) ................................................................................................................... 5 1.2 Support equipment List ................................................................................................................................ 5 1.3 External I/O Cable ........................................................................................................................................ 5 1.4 Description of Test Facility .......................................................................................................................... 6 1.5 Statement of the Measurement Uncertainty ............................................................................................. 6 1.6 Measurement Uncertainty ........................................................................................................................... 7 1.7 Description of Test Modes .......................................................................................................................... 7 2. TEST METHODOLOGY/ ..................................................................................................................... 8 2.1 EUT Configuration ........................................................................................................................................ 8 2.2 EUT Exercise ................................................................................................................................................ 8 2.3 General Test Procedures ............................................................................................................................ 8 2.4. Test Sample ................................................................................................................................................. 8 3. SYSTEM TEST CONFIGURATION .................................................................................................. 9 3.1 Justification .................................................................................................................................................... 9 3.2 EUT Exercise Software ............................................................................................................................... 9 3.3 Special Accessories ..................................................................................................................................... 9 3.4 Block Diagram/Schematics ......................................................................................................................... 9 3.5 Equipment Modifications ............................................................................................................................. 9 3.6 Test Setup ..................................................................................................................................................... 9 4. SUMMARY OF TEST RESULTS .................................................................................................... 10 5. SUMMARY OF TEST EQUIPMENT ............................................................................................... 11 6. MEASUREMENT RESULTS ............................................................................................................ 1…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 TEST SETUP PHOTOS OF THE EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A4AX-X1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Conducted Emission
