2A4CE-A10ELECTRIC SCOOTER

A10 Electric Scooter USER MANUAL 2 Product Features Accessories Specifications Assembly Charger Your Scooter How To Ride Folding Unfolding Phantomgogo APP Safety Precautions Cleaning And Storage Tire Inflation Maintenance Battery Maintenance Environmental Protection After-sales Service Non-warranty Rule Warranty Content User Stub Manufacturer Stub Fault Code 3 3 4 6 6 7 8 9 10 11 16 16 16 18 18 18 19 20 21 22 Contents 3 Product Features Accessories Handlebar Accelerator Motor unit Charging port Atmosphere light Folding hook Hook fixing buckle Brake lever Front tube Folding handle User Manual/ Service Card Power AdapterScrewT-shape Allen Key Gear mode: is for walking mode, and its maximum speed is about 3 mph; tthe ambient light will blink when this mode is enabled. M is for standard mode, and its maximum speed is about 9 mph. H is for sport mode, and its maximum speed is about 15 mph. Speedometer: Remaining mileage will be displayed within the first 3 seconds after powering on; the current speed is displayed afterwards. Function mode: Bluetooth, Lock, Cruise mode, Error prompt Light. Battery indicator: Displays the remaining battery power; flashes red when the power is 10%. Switch button: Press to turn on, press and hold for 3 seconds to shut down. When powered-on, press once to turn the light on/off, and press twice to switch the gear mode, Press the button three times in a row to switch between metric and imperial units. 4 Specifications Product NameElectric Scooter ModelA10 Dimensions Vehicle: L × W × H (in)45×17.5×48 After Folding: L × W × H (in) 45×17.5×20.3 Net WeightVehicle Net Weight (lb)38.0 Rider Max. Load (lb)220 Age (years)12+ Height (in)4.72~7.87 Assembled Electric Scooter Max. Speed (mph)15 General Range (mile)Approx. 28 Max. Climbing Angle (%)Approx. 15 Suitable Surfaces Cement or asphalt road, with benches of less than 1 cm or crevices narrower than 3 cm Operating Temperature (°C) -10 to 45 Charing temperautre range (°C) 0 to 45 Storage Temperature (°C)-20 to 50 IP RatingIPX5 Charging Time (h)About 6 5 Battery Pack ModelC1387A3 Nominal Voltage (VDC)36.5 Max. Charge Voltage (VDC) 42 Rated Energy (Wh)365 Rated Capacity (Ah)10 Normal Charging Temperature Range (°C) 0 to 45 Intelligent Battery Management System Over-heating, short circuit, over-current, over-discharge, and over-charge protection Wheel MotorRated Power (W)400 Battery Charger Model FY-4201700/ GC72-420170-D Output Power (W)71.4 Input Voltage (VAC)100-240 Max. Output Voltage (VDC) 42 Rated Output (VDC; A)42; 1.7 TireFront & Back Tires Pneumatic tire, Ø 10 × 2.125 straight valve, with the materials of natural rubber 6 Assembly Charge Your Scooter 1. Pull the folding handle upwards until an audible click is heard. then pull the folding handle confirming the lock is in place. 2. Manually connect the handlebar and data cable in the front tube Once connected, check if the scooter powers on normally. 3. Use the included 6 screws to fasten the handlebars. Further tighten the screws by using the T-shape allen key. 1. The indicator light of the charger turns green when the scooter is connected to the power supply. 2. When actively charging, the light should switch to red from green. 3. After charging, the indicator light should switch back to green. 3 2 1. Open the rubber flap 2. Plug the power adapter into the charging port 3. Fasten the rubber flap after charging 7 Attention: How To Ride ● Only use the original power adapter when charging. ● Keep away from children and animals when charging, and keep away from flammable materials. ● Do not charge or use the battery if it emits a peculiar smell, overheats or leaks. ● Do not open the battery pack or insert anything into the charging port as the battery contains dangerous substances. ● If it won't be used for a long time, please fully charge it first, store in a cool and dry place, and fully charge it every 30 days. 1. Press the Switch button to turn the scooter on and check the battery level. lf the battery level is too low, please charge it before riding. 2. Stand with one foot on the baseboard and kick off against the ground with your other foot. The motor is active once the speed of the scooter exceeds 3 mph. 8 Folding 3. While riding, place the other foot on the pedal and lightly press the accelerator to engage the motor. 4. When steering or decelerating, release the accelerator and use the brake lever to brake. Turn off the scooter, press the red safety lock, and release the folding handle; fold the front tube clamp, align the folding hook and put it into the hook fixing buckle; lift the front tube and confirm whether it is fastened firmly. 9 Unfolding Remove the folding hook from the hook fixing buckle, straighten the front tube, close the folding handle until there is a“click”sound; flip the folding handle and confirm whether it is locked. 10 Phantomgogo APP Scan QR code with your mobile phone to download and install the APP. STEP 1 Press the button to turn on the scooter and then turn on the Bluetooth function of your mobile phone. STEP 2 Open the Phantomgogo APP. Please register/log in to your account according to the app instructions. STEP 3 On the APP homepage, select “Search the binding”. The APP will scan the scooter to be configured and add the device according to the prompt in the APP interface. Zero Start / Non-zero Start Mode 1. Zero Start Mode: After startup, flick the accelerator dial to activate the accelerator. 2. Non- zero Start Mode: After startup, the accelerator can be started only when the initia speed is ≥3 mph with the help of feet. 3. The factory default of scooter is non-zero start mode. If the APP has been installed on your mobile phone, make sure that the APP is the latest. APP 11 Scooter Maintenance Schedule (Recommended): Maintaining the scooter regularly can help keep the scooter neat and in good condition, avoid safety hazards, minimize breakdowns, slow down the deterioration of the scooter, and extend the scooter's service life. 12 Sa…

Text truncated - open the document above for the full version.

ShenzhenLEQIIntelligentTechnologyCo.,Ltd. U.S.AgentDesignationforServiceofProcess (ApplicantandU.S.AgentareSeparateParties) TO:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 ATTENTION:FCCCertification–Section2.911(d)(7)Information DesignatedU.S.Agent CompanyName:SINOMEGWELLTECHINC FRN:0033467911 ContactName:JiazhenLiu StreetAddress:20947CurrierRoadSuiteO City/Province/Zip:Walnut,CA91789,USA TelephoneNo:7323975454 Email:[email protected] Thisletteristoconfirmthatwe(“theDesignatedU.S.Agent)haveacceptedtheresponsibilitytoactasthe DesignatedU.S.AgentforServiceofProcessasrequiredbysection47CFR2.911(d)(7)onbehalfofthe Applicantnotedbelow. U.S.AgentSignature: Date:August6,2024 Signedby(PrintedName/Title):JiazhenLiu/CEO TheApplicantacknowledgesthattheymustmaintainanagentfornolessthanoneyearafterterminatingall marketingandimportationORtheconclusionofanyCommission-relatedproceedinginvolvingthe equipment.TheapplicantfurtheracknowledgestheirresponsibilitytoinformtheFCCwheneverthe DesignatedU.S.Agentinformationabovechanges. Applicant Companyname:ShenzhenLEQIIntelligentTechnologyCo.,Ltd. GranteeCode:2A4CE FCCID:2A4CE-A10 FRN:0031874753 ContactName:HanmingZhang StreetAddress:Room215,BlockD,ColorfulScienceandTechnologyPark,No.5GuanleRoad, LuhuCommunity,GuanhuStreet,LonghuaDistrict,Shenzhen,Guangdong,P.R.China TelephoneNo:13798366365 Email:[email protected] ApplicantSignature: Date:August6,2024 Signedby(PrintedName/Title):HanmingZhang/manager

ShenzhenLEQIIntelligentTechnologyCo.,Ltd. Address:Room215,BlockD,ColorfulScienceandTechnologyPark,No.5GuanleRoad,Luhu Community,GuanhuStreet,LonghuaDistrict,Shenzhen,Guangdong,P.R.China Date:2024-08-06 FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing SUBJECT:FCCApplicationforFCCID:2A4CE-A10 ToWhomItMayConcern: ShenzhenLEQIIntelligentTechnologyCo.,Ltd.certifiesthattheequipmentforwhich authorizationissoughtisnot“covered”equipmentprohibitedfromreceivinganequipment authorizationpursuanttosection2.903oftheFCCrules. Sincerely, Signature: Date:2024-08-06

ShenzhenLEQIIntelligentTechnologyCo.,Ltd. Address:Room215,BlockD,ColorfulScienceandTechnologyPark,No.5GuanleRoad,Luhu Community,GuanhuStreet,LonghuaDistrict,Shenzhen,Guangdong,P.R.China Date:2024-08-06 FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing SUBJECT:FCCApplicationforFCCID: 2A4CE-A10 ToWhomItMayConcern: ShenzhenLEQIIntelligentTechnologyCo.,Ltd.certifiesthat,asofthedateofthefilingofthe application,theapplicantisnotidentifiedontheCoveredListasanentityproducing“covered” equipment. Sincerely, Signature: Date:2024-08-06

牙天线规格 Bluetooth antenna specification 深圳市芯海科技有限公司 Chipsea Technologies (Shenzhen) Corp. 9F,Block A 1 ： AntennaDescription AntennaTypeMicrotripAntenna Antennapeakgain2.6dBi Frequencyrange 2.402GHz～2.480GHz ConnecttypeDirectConnect 2：AntennapictureonthePCBborad 3 ： Antennaradiationof3Dpolar Solutionfrequencyat2.44G 3：Antenneradiationpattern

ShenzhenLEQIIntelligentTechnologyCo.,Ltd. Room215,BlockD,ColorfulScienceandTechnologyPark,No.5GuanleRoad,Luhu Community,GuanhuStreet,LonghuaDistrict,Shenzhen,Guangdong,P.R.China Date：2024-08-06 ProductModelNumber:A10 FCCID ： 2A4CE-A10 Towhomitmayconcern, Re:ProductCertificationRepresentativeAuthorizationLetter WeauthorizeQAILaboratoriesLtd.3980NorthFraserWay,BurnabyB.C. CanadaV5J5K5toactonourbehalfonallmattersconcerningtheabove namedequipment. Thisshallincludethefollowing: Testing Approvalapplicationsandprocedures WedeclarethatQAILaboratoriesLtd.isallowedtoforwardallinformation relatedtotheapprovalprojecttotheappliedcertificationbodyandtothe notificationentitiesandtodiscussanyissuesconcerningtheapproval application.AnyandallactscarriedoutbyQAILaboratoriesLtd.onour behalfshallhavethesameeffectasactsofourown. By: ContactListedonFCCWesbite Title:manager Email:[email protected] Telephone:13798366365 Onbehalfof:ShenzhenLEQIIntelligentTechnologyCo.,Ltd.

ShenzhenLEQIIntelligentTechnologyCo.,Ltd. Room215,BlockD,ColorfulScienceandTechnologyPark,No.5GuanleRoad,Luhu Community,GuanhuStreet,LonghuaDistrict,Shenzhen,Guangdong,P.R.China OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:August6,2024 Subject;RequestforConfidentiality FCCID:2A4CE-A10 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthese documentsmightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantage inthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure SoftwareSecurityRequirementsforUNIIdevices Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name/Title:HanmingZhang/manager

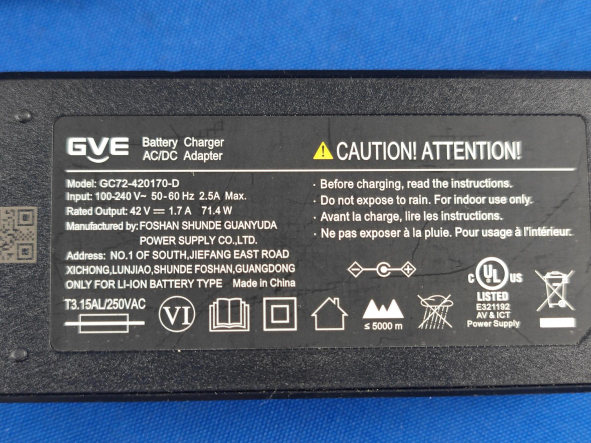

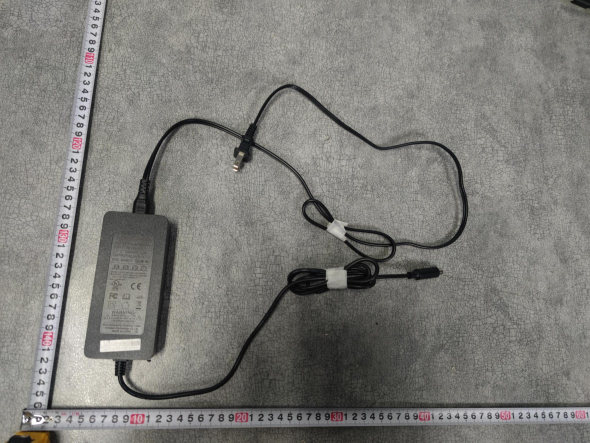

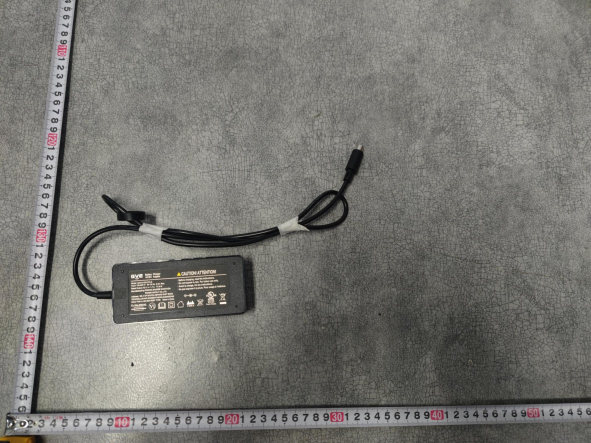

FCCID:2A4CE-A10Page 1 of 4 ReportNo.:CTL2406052091-WF ExternalPhotosofEUT FCCID:2A4CE-A10Page 2 of 4 ReportNo.:CTL2406052091-WF FCCID:2A4CE-A10Page 3 of 4 ReportNo.:CTL2406052091-WF Adapter1 FCCID:2A4CE-A10Page 4 of 4 ReportNo.:CTL2406052091-WF Adapter2

FCCID:2A4CE-A10Page 1 of 1 ReportNo.:CTL2406052091-WF FCC-IDLabelInformation 1.Labellocation:

FCCID:2A4CE-A10Page 1 of 4 ReportNo.:CTL2406052091-WF InternalPhotosofEUT FCCID:2A4CE-A10Page 2 of 4 ReportNo.:CTL2406052091-WF BLEAntenna FCCID:2A4CE-A10Page 3 of 4 ReportNo.:CTL2406052091-WF FCCID:2A4CE-A10Page 4 of 4 ReportNo.:CTL2406052091-WF

FCCID:2A4CE-A10Page 1 of 1 ReportNo.:CTL2406052091-WF RFExposureevaluation Accordingto447498D01GeneralRFExposureGuidancev06The1-gand10-gSARtest exclusionthresholdsfor100MHzto6GHzattestseparationdistances≤50mmare determinedby:[(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison ForBluetooth BLE: pt= -1.95 dBm= 0.64 mWat 2402 MHz So(0.64mW/5mm)x√2.402GHz=0.1978<3 ThenSARevaluationisnotrequired.

ShenzhenCTLTestingTechnologyCo.,Ltd. Tel:+86-755-89486194E-mail:[email protected] TESTREPORT 47CFRPart15,SubpartC15.247 ReportReferenceNo.....................:CTL2406052091-WF Compiledby: (position+printedname+signature) HappyGuo (Fileadministrators) Testedby: (position+printedname+signature) WuqiangWu (TestEngineer) Approvedby: (position+printedname+signature) IvanXie (Manager) ProductName.................................: ELECTRICSCOOTER Model/Typereference....................:A10 ListModel(s) .................................... :N/A TradeMark ....................................... : PHANTOMGOGO FCCID...............................................: 2A4CE-A10 Applicant’sname ........................... : ShenzhenLEQIIntelligentTechnologyCo.,Ltd. Addressofapplicant.....................: Room215,BlockD,ColorfulScienceandTechnologyPark,No.5 GuanleRoad,LuhuCommunity,GuanhuStreet,LonghuaDistrict, Shenzhen,Guangdong,P.R.China TestFirm ........................................... : ShenzhenCTLTestingTechnologyCo.,Ltd. AddressofTestFirm ..................... : Floor1-A,BaishaTechnologyPark,No.3011,ShahexiRoad, NanshanDistrict,Shenzhen,China518055 Testspecification ........................... : Standard............................................:47CFRPart15,SubpartC15.247:Operationwithinthebands 902-928MHz,2400-2483.5MHzand5725-5850MHz. TRFOriginator .................................. : ShenzhenCTLTestingTechnologyCo.,Ltd. MasterTRF.......................................:Dated2011-01 Dateofreceiptoftestitem..........: June19,2024 DateofTestDate ............................ : June19,2024-July3,2024 DateofIssue....................................: July8,2024 Result ................................................ : Pass ShenzhenCTLTestingTechnologyCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenCTLTestingTechnologyCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenCTLTestingTechnologyCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. V1.0Page2of45ReportNo.:CTL2406052091-WF TESTREPORT TestReportNo.:CTL2406052091-WF July8,2024 Dateofissue EquipmentunderTest: ELECTRICSCOOTER SampleNo:CTL2406052091 Model/Type: A10 ListedModels : N/A Applicant: ShenzhenLEQIIntelligentTechnologyCo.,Ltd. Address : Room215,BlockD,ColorfulScienceandTechnology Park,No.5GuanleRoad,LuhuCommunity,Guanhu Street,LonghuaDistrict,Shenzhen,Guangdong,P.R. China Manufacturer: ShenzhenLEQIIntelligentTechnologyCo.,Ltd. Address : Room215,BlockD,ColorfulScienceandTechnology Park,No.5GuanleRoad,LuhuCommunity,Guanhu Street,LonghuaDistrict,Shenzhen,Guangdong,P.R. China TestresultPass* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedpage5. Thetestresultspresentedinthisreportrelateonlytotheobjecttested. Thisreportshallnotbereproduced,exceptinfull,withoutthewrittenapprovaloftheissuingtesting laboratory. V1.0Page3of45ReportNo.:CTL2406052091-WF **ModifiedHistory** RevisionsDescriptionIssuedDataReportNo.Remark Version1.0InitialTestReportReleaseJuly8,2024CTL2406052091-WFTracyQi V1.0Page4of45ReportNo.:CTL2406052091-WF TableofContentsPage 1.SUMMARY.......................................................................................................................................................................5 1.1.TESTSTANDARDS............................................................................................................................................................5 1.2.TESTDESCRIPTION...............................................................................................................................................................5 1.3.TESTFACILITY.....................................................................................................................................................................6 1.4.STATEMENTOFTHEMEASUREMENTUNCERTAINTY.....................................................................................................................6 2.GENERALINFORMATION.................................................................................................................................................8 2.1.ENVIRONMENTALCONDITIONS...............................................................................................................................................8 2.2.GENERALDESCRIPTIONOFEUT.............................................................................................................................................8 2.3.DESCRIPTIONOFTESTMODESANDTESTFREQUENCY................................................................................................................9 2.4.EQUIPMENTSUSEDDURINGTHETEST..................................................................................................................................10 2.5.RELATEDSUBMITTAL(S)/GRANT(S)....................................................................................................................................10 2.6.MODIFICATIONS................................................................................................................................................................10 3.TESTCONDITIONSANDRESULTS..................................................................................................................................11 3.1.CONDUCTEDEMISSIONSTEST..............................................................................................................................................11 3.2.RADIATEDEMISSIONSANDBANDEDGE.................................................................................................................................16 3.3.MAXIMUMPEAKCONDUCTEDOUTPUTPOWER.....................................................................................................................32 3.4.POWERSPECTRALDENSITY...............................…

Text truncated - open the document above for the full version.

ShenzhenCTLTestingTechnologyCo.,Ltd. Floor1-A,BaishaTechnologyPark,No.3011,ShahexiRoad,NanshanDistrict,Shenzhen,China518055 Tel:+86-755-89486194E-mail:[email protected] AnnexforBLE TestReportNo.:CTL2406052091-WF TABLEOFCONTENTS 1.Bandwidth................................................................................................................................................2 2.MaximumConductedOutputPower.......................................................................................................7 3.MaximumPowerSpectralDensity........................................................................................................10 4.UnwantedEmissionsInNon-restrictedFrequencyBands...................................................................13 AnnexforBLETestReportNo.:CTL2406052091-WF FCCID:2A4CE-A10 Page2/18 1.Bandwidth 1.1TestResult 1.1.1OBW Mode TX Type Frequency (MHz) ANT 99%OccupiedBandwidth(MHz) Verdict ResultLimit 1MSISO 240211.055/Pass 244011.046/Pass 248011.043/Pass 1.1.26dBBW Mode TX Type Frequency (MHz) ANT 6dBBandwidth(MHz) Verdict ResultLimit 1MSISO 240210.660>=0.5Pass 244010.661>=0.5Pass 248010.689>=0.5Pass AnnexforBLETestReportNo.:CTL2406052091-WF FCCID:2A4CE-A10 Page3/18 1.2TestGraph 1.2.1OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2406052091-WF FCCID:2A4CE-A10 Page4/18 1M_HCH_2480MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2406052091-WF FCCID:2A4CE-A10 Page5/18 1.2.26dBBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2406052091-WF FCCID:2A4CE-A10 Page6/18 1M_HCH_2480MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2406052091-WF FCCID:2A4CE-A10 Page7/18 2.MaximumConductedOutputPower 2.1TestResult 2.1.1Power Mode TX Type Frequency (MHz) MaximumPeakConductedOutputPower(dBm) Verdict ANT1Limit 1MSISO 2402-1.95<=30Pass 2440-2.66<=30Pass 2480-3.48<=30Pass Note1:AntennaGain:Ant1:2.6dBi; AnnexforBLETestReportNo.:CTL2406052091-WF FCCID:2A4CE-A10 Page8/18 2.2TestGraph 2.2.1Power 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2406052091-WF FCCID:2A4CE-A10 Page9/18 1M_HCH_2480MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2406052091-WF FCCID:2A4CE-A10 Page10/18 3.MaximumPowerSpectralDensity 3.1TestResult 3.1.1PSD Mode TX Type Frequency (MHz) MaximumPSD(dBm/3kHz) Verdict ANT1Limit 1MSISO 2402-1.97<=8Pass 2440-2.68<=8Pass 2480-3.56<=8Pass Note1:AntennaGain:Ant1:2.6dBi; AnnexforBLETestReportNo.:CTL2406052091-WF FCCID:2A4CE-A10 Page11/18 3.2TestGraph 3.2.1PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2406052091-WF FCCID:2A4CE-A10 Page12/18 1M_HCH_2480MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2406052091-WF FCCID:2A4CE-A10 Page13/18 4.UnwantedEmissionsInNon-restrictedFrequencyBands 4.1TestResult 4.1.1Ref Mode TX Type Frequency (MHz) ANT LevelofReference (dBm) 1MSISO 24021-1.98 24401-2.69 24801-3.53 Note1:RefertoFCCPart15.247(d)andANSIC63.10-2013,thechannelcontainsthemaximumPSDlevelwasusedto establishthereferencelevel. 4.1.2CSE Mode TX Type Frequency (MHz) ANT LevelofReference (dBm) Limit (dBm) Verdict 1MSISO 24021-1.98-21.98Pass 24401-1.98-21.98Pass 24801-1.98-21.98Pass Note1:RefertoFCCPart15.247(d)andANSIC63.10-2013,thechannelcontainsthemaximumPSDlevelwasusedto establishthereferencelevel. AnnexforBLETestReportNo.:CTL2406052091-WF FCCID:2A4CE-A10 Page14/18 4.2TestGraph 4.2.1Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2406052091-WF FCCID:2A4CE-A10 Page15/18 1M_HCH_2480MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2406052091-WF FCCID:2A4CE-A10 Page16/18 4.2.2CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2406052091-WF FCCID:2A4CE-A10 Page17/18 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV AnnexforBLETestReportNo.:CTL2406052091-WF FCCID:2A4CE-A10 Page18/18 1M_HCH_2480MHz_Ant1_NTNV

FCCID:2A4CE-A10Page 1 of 2 ReportNo.:CTL2406052091-WF TestSetupPhotosoftheEUT Adapter1 Adapter2 FCCID:2A4CE-A10Page 2 of 2 ReportNo.:CTL2406052091-WF Adapter1 Adapter2
