2A4CE-A6LPROLEQI Smart Electric Scooter

USER MANUAL English ELECTRIC SCOOTER A6 Pro Powered By LEQISMART 23 English Package Contents Power Adapter T-shape Allen Key Screw User Manual Function Brake Lever Fixed Button Accelerator Switch Button Folding Handle Function mode : Cruise mode, Pedestrian mode, Fault prompt, Light, Bluetooth, Lock. Speedometer: Displays the current speed; displays the remaining mileage within 6 seconds after power-on. Gear mode: The maximum speed limit is 6 km/h for L gears, 15 km/h for M gears and 25 km/h for H gears. Battery level: Displays the remaining batterypower; it displays in red and flashing when the power is about 10%. Switch button: Press it to turn on, press and hold for 3 seconds to shut down; in power- on state, press once to turn on/off the light, and press twice consecutively to switch gears; in power-off state. Charging Port Atmosphere Light Function mode Gear mode Speedometer Battery level Motor Front Tube Handlebar

3 English Parameters 23 1 ModelA6 Pro Net weightApprox 16.15 KG Expanded size1127x440x1190mm Applicable ageAge 14+ Applicable height130~200 CM Maximum load100 KG (254 LB) Maximum speed25 KM/H (15.5MPH) MileaeMax 30 Kilometers (18.64Miles) GradeabilityAbout 15% Protection gradeIPX5 Charging timeAbout 6H Battery capacity7800mAh Voltage36V Motor350W BMS management Over-charge, Over-temperature, Over-discharge, Over-current, Short circuit, Over-voltage Brake systemDurm brake + Electronic brake Connection methodBluetooth Tire size10 inch puncture-proof tubeless tyres Assembly 1. Pull the folding handle upwards until there is a click sound, and pull the folding handle to confirm whether it is locked. 2. Manually connect the fixing seat and the data cable in the front tube, and check whether it is turned on normally. 3. Insert the fixing seat into the front tube, and use a T-shape Allen Key to tighten the six screws. Attention: 1. Only use the original power adapter when charging. 2. Keep away from children and animals when charging, and keep away from flammable materials. 3. Do not charge or use the battery if it emits a peculiar smell, overheats or leaks. 4. Do not open the battery pack or insert anything into the charging port as the battery contains dangerous substances. 5. If it won’t be used for a long time, please fully charge it first, store in a cool and dry place, and fully charge it every 30 days. Charge Your Scooter 1. The indicator light of the charger turns green when connected the charger to the power supply. 2. Inserting the charging plug, and the indicator light will turns from green to red. 3. After charging, the indicator light turns from red to green. Open the rubber flapPlug the power adapter into the charging port Fasten the rubber flap after charging 45 English 1 Safety Notes 1.1 About safety ● There’s risk for any vehicle, including e-scooter. For your safety, please learn to ride safely and obey the local rules and enjoy the riding. ● Please check if the tire is damaged or the spare parts are tight before riding. Please contact local distributor for any unexpected situation. ● Please do not do anything that may harm other people or their properties with e-scooter. ● Any conversion of the e-scooter is prohibited as it will change its performance or damage the structure, which may bring serious injury. ● Please do not put the electric scooter in the water, which will not only damage the electric scooter, but also cause a safety accident. 1.2 Safety Precautions Please note that you may lose balance, crash or fall down when you ride an e-scooter. To avoid injury, you should be familiar with this manual and keep the e-scooter in good condition. Safety measurements should be taken before riding, eg: wear sportswear, helmet, kneecap, elbow pads and so on. DO NOT ride when it rains. DO NOT ride with loading DO NOT ride with two people or more, only for one rider. Max Loading: 100 kg DO NOT make phone call or listen to music when you ride the e-scooter. Be careful of the road with roadblock, sandstone, ponding, mud, wet, ice and snow, slope (angle >15°) stairs, dark area when you are riding. DO NOT ride after drinking or taking medicine. People between 14 and 60 years old may use the product, pregnant is not allowed to ride the e-scooter.

5 English Folding Flip the fold switch up and turn on the fold wrench.Fold and lower the front tube, place the folding hook on the front tube into the hook holder. Unfolding Press the red button in the folding hook to remove the folding hook from the hook fixing buckle, straighten the front tube, close the folding handle until there is a “click” sound; flip the folding handle and confirm whether it is locked. 1 1 2 2 DO NOT use in dangerous area, where the exploding or catching fire may be caused by something inflammable, explosive or steam, liquid, dust and fiber. DO NOT ride on Vehicle road if not allowed. 67 English 2 Put one foot on the pedal, Push off the ground with your strong leg. 4 Press the THROTTLE button slightly on your right hand to start and rotate the handle to turn 5 Press the THROTTLE button to speed up. Do not ride too fast. 3 Balance both feet on your scooter when you have enough momentum 6 Press the brake lever to brake, and gently press the rear fender to assist the brake. 7 When the scooter stops or run at a slow speed, you can get off. 3 How to ride the scooter Please wear helmet, kneecap, elbow-pad when you learn to ride the scooter. 1 Press the POWER button for 3 seconds. 7 English LEQISMART APP Scan the QR code below with your mobile phone or search for "LEQISMART" in the APP market, download and install the APP. If the APP has already been downloaded on your mobile phone, please upgrade the APP to the lastest. STEP 1 Press the button to turn on the scooter and turn on the Bluetooth function of the mobile phone. STEP 2 Open the LEQISMART APP. For the first use, please register / log in to your account according to the APP guide. APP STEP 3 Enter on APP homepage, select “Search for binding”.The APP will scan the scooter to be configured with “Leqismart” and add the device according to the prompt in the APP interface. Safety Precautions 1. Please carefully read the user manual, which will assist in explaining the basic working principles and provide tips on how to best enjoy your scooter experience. 2. Please wear all appropriate safety and protective gear as previously mentioned in the User Manual before operating the scooter. 3. Obligation to always wear shoes, make sure to wear comfortable clothes. 4. Do not use any accessories or additional items not approved by the manufacturer with the scooter. Do not try to open or modify your scooter, as doing so will void your manufacturer warranty, and may cause failure to your device leading to serious bodily injury or death. 5. WARNING! Keep plastic covering away from children to avoid suffocation. 6. Do not operate the scooter while under the influence of drugs and/or alcohol. 7. Do not operate the scooter when you are restless or sleepy. 8. Use your best judgment to keep yourself out of dangerous situations with your scooter. 9. The scooters have a range of about 30 km and a maximum speed of 25 km/h. 10. Do not turn sharply, especially at high speeds. 11. Do not abuse your scooter, doing so can damage your unit and cause failure to the operating system leading to injury. 12. Do not drive in or near puddles of water, mud, sand, stones, gravel, debris or near rough and rugged terrain. 13. The scooter can be used on paved roads that are flat and even. If you encounter uneven pavement, please lift your scooter over and past the obstruction. 14. Do not ride in inclement weather: snow, rain, hail, sleek, on icy roads or in extreme heat. 15. Do not ride in or near pools or other large bodies of water. 16. Traffic in the city has many obstacles to cross such as curbs or steps. It is recommended to avoid obstacle jumps. It is important to anticipate and adapt your trajectory and speed to those of a pedestrian before crossing these obstacles. It is also recommended to get out of the vehicle when these obstacles become dangerous due to their shape, height or slippage. 17. Do not attempt to ride over bumps or objects greater then 1.5 cm even when prepared and bending your knees. 18. PAY ATTENTION - look at where you are riding and be watchful/ attentative of the road conditions, people, places, property and objects around you. 19. Do not operate the scooter in crowded areas. 20. Operate your scooter with extreme caution when indoors, especially around people, property, and narrow spaces like doorways and other narrow spaces. 21. Others recommendations such as: special precautions for use at dark; 89 English not to touch the brake disc. 22. Do not operate the scooter while talking, texting, or looking at your phone. 23. Do not ride your scooter where it is not permitted. 24. Do not ride your scooter near motor vehicles or on public roads. 25. Do not climb or travel down steep hills with your scooter. 26. The scooter is intended for use by a single individual, Do not attempt to operate the scooter with two or more people. 27. A statement that any load attached to the handlebar will affect the stability of the vehicle. Do not carry anything while riding the scooter. 28. Individuals with lack of balance should not attempt to operate the scooter. 29. Women who are pregnant or are preparing for pregnancy should not operate the scooter. 30. Young children and the elderly should not operate the scooter without proper instruction and supervision from a Certified scooter trainer. 31. At higher speeds, always take into consideration longer stopping distances. 32. Do not step forward off your scooter. 33. Do not attempt to jump on or off your scooter. 34. Do not attempt any stunts or tricks with your scooter. 35. Do not ride the scooter in dark or poorly lit areas. 36. Do not ride the scooter near or over potholes, cracks or uneven pavement. 37. Do not operate yout scooter off-road. 38. Do not exceed the maximum weight limit of 100 kg. 39. Avoid driving the scooter in unsafe places, including near areas with flammable gas, steam, liquid, dust, fiber, which could cause fire and explosion accidents. 40. Scooter users are recommended to be 14…

Text truncated - open the document above for the full version.

ShenzhenLEQIIntelligentTechnologyCo.,Ltd. Room634-635BulildingC6thFloorQinghuTechnologyZoneQingxiang RoadQinghuCommunityLonghuaStreetLonghuaDistrictShenzhen, GuangdongProvince,China Date:2023-03-04 FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsPart2.911(d)(7)Filing SUBJECT:FCCApplicationforFCCID:2A4CE-A6LPRO ShenzhenLEQIIntelligentTechnologyCo.,Ltd.certifiesthat,asofthedateofthefilingof theapplication,SINOMEGWELLTECHINCisourdesignatedU.S.agentforserviceof processfortheabovereferencedFCCID.ShenzhenLEQIIntelligentTechnologyCo.,Ltd. acceptstomaintainanagentfornolessthanoneyearafterthegranteehasterminatedall marketingandimportationortheconclusionofanyCommission-relatedproceedinginvolving theequipment. SINOMEGWELLTECHINCaccepts,asofthedateofthefilingoftheapplication,the obligationofthedesignatedU.S.agentforserviceofprocessfortheabovereferencedFCC ID. DesignatedU.S.AgentInformation: FRN:0033467911 Name:SINOMEGWELLTECHINC Address:20947CurrierRoadSuiteO,Walnut,CA91789,USA ContactPerson:LiuJiazhen Tel.:(732)397-5454 Email:[email protected] Sincerely, SignedonbehalfofShenzhenLEQI IntelligentTechnologyCo.,Ltd. SignedonbehalfofSINOMEGWELLTECH INC Name:HanmingZhangName:LiuJiazhen Title:ManagerTitle:CEO Date:2023-03-04Date:2023-03-04

ShenzhenLEQIIntelligentTechnologyCo.,Ltd. Room634-635BulildingC6thFloorQinghuTechnologyZoneQingxiang RoadQinghuCommunityLonghuaStreetLonghuaDistrictShenzhen, GuangdongProvince,China FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2023-03-02 FCCID:2A4CE-A6LPRO Ref.#1:AttestationStatementsPart2.911(d)(5)(i)Filing ShenzhenLEQIIntelligentTechnologyCo.,Ltd.certifiesthattheequipmentforwhich authorizationissoughtisnot“covered”equipmentprohibitedfromreceivinganequipment authorizationpursuanttosection2.903oftheFCCrules. Ref.#2:AttestationStatementsPart2.911(d)(5)(ii)Filing ShenzhenLEQIIntelligentTechnologyCo.,Ltd.certifiesthat,asofthedateofthefiling oftheapplication,theapplicantisnotidentifiedontheCoveredListasanentity producing“covered”equipment. Applicant:ShenzhenLEQIIntelligentTechnologyCo.,Ltd. Address:Room634-635BulildingC6thFloorQinghuTechnologyZoneQingxiangRoad QinghuCommunityLonghuaStreetLonghuaDistrictShenzhen,Guangdong Province,China ContactPerson:HanmingZhang Tel.:13798366365 Email:[email protected] Sincerely, Signature:

ShenzhenLEQIIntelligentTechnologyCo.,Ltd. Room634-635BulildingC6thFloorQinghuTechnologyZoneQingxiangRoad QinghuCommunityLonghuaStreetLonghuaDistrictShenzhen,Guangdong Province,China OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:March2,2023 Subject;RequestforConfidentiality FCCID:2A4CE-A6LPRO ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthese documentsmightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantage inthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure SoftwareSecurityRequirementsforUNIIdevices Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:HanmingZhang Title:Manager

ShenzhenLEQIIntelligentTechnologyCo.,Ltd. Room634-635BulildingC6thFloorQinghuTechnologyZoneQingxiangRoadQinghu CommunityLonghuaStreetLonghuaDistrictShenzhen,GuangdongProvince,China Tel:13798366365 SeriesModelsDescription FCCID:2A4CE-A6LPRODate:02.28,2023 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Towhomitmayconcern: Thedevice(ProductName:LEQISmartElectricScooter)ModelsName:A6L Pro,A6Lhavesameelectrical,PCBandBOM,onlythecolourandmodel’s namesaredifferentformarketingrequirements. Sincerely, :HanmingZhang/Manager

ShenzhenLEQI IntelligentTechnologyCo., Ltd. Room634-635BulildingC 6th Floor QinghuTechnologyZone Qingxiang Road QinghuCommunityLonghuaStreetLonghuaDistrictShe nzhen, GuangdongProvince, China Date：2023.3.2 ProductModelNumber:LEQI SmartElectricScooter FCC ID：2A4CE-A6LPRO To whomit may concern, Re: ProductCertificationRepresentativeAuthorizationLetter We authorizeQAI LaboratoriesLtd. 3980 North FraserWay, BurnabyB.C. CanadaV5J 5K5 to act on our behalfon all mattersconcerningthe above namedequipment. This shall includethe following: Testing Approvalapplicationsand procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION.on our behalf shall have the same effect as acts of our own. By: ContactListedon FCC Wesbite Title: Manager Email:[email protected] Telephone:13798366365 On behalfof: ShenzhenLEQI IntelligentTechnologyCo., Ltd.

Antenna describe 1. Antenna describe: Antenna plate Monoploe antenna Make name/model name F-9788 Antenna gain 0dBi Frequency range 2.4GHZ-2.483GHZ Connector type direct Location of mearement(company name) XIAMENSHI C-CHIP TECHNOLOGY CO., LTD 2.External view drawing: Picture of antenna TOP view PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn Antenna Radiation Pattern Radiation [email protected] Total Average Gain:-0.475dbi Phi Gain 0 45 90 135 180 235 270 315 -0.1 -0.3 -0.8 -0.5 -0.2 -0.6 -0.8 -0.5 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn Radiation [email protected] Total Average Gain:-0.275dbi Phi Gain 0 45 90 135 180 235 270 315 0 -0.1 -0.3 -0.6 -0.1 -0.2 -0.6 -0.4 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn Radiation [email protected] Total Average Gain:-0.237dbi Phi Gain 0 45 90 135 180 235 270 315 0 -0.1 -0.2 -0.5 0 -0.3 -0.6 -0.2 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

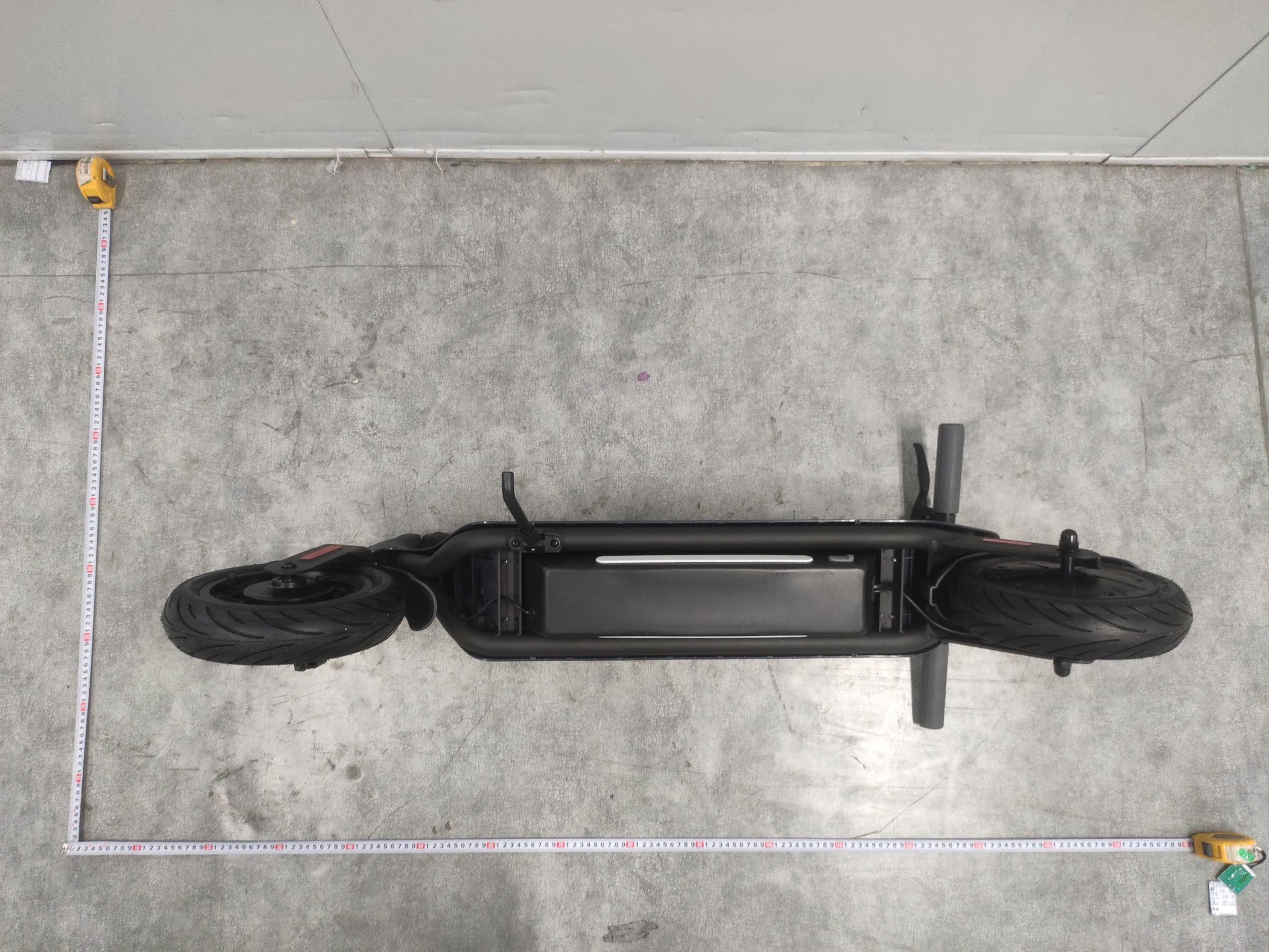

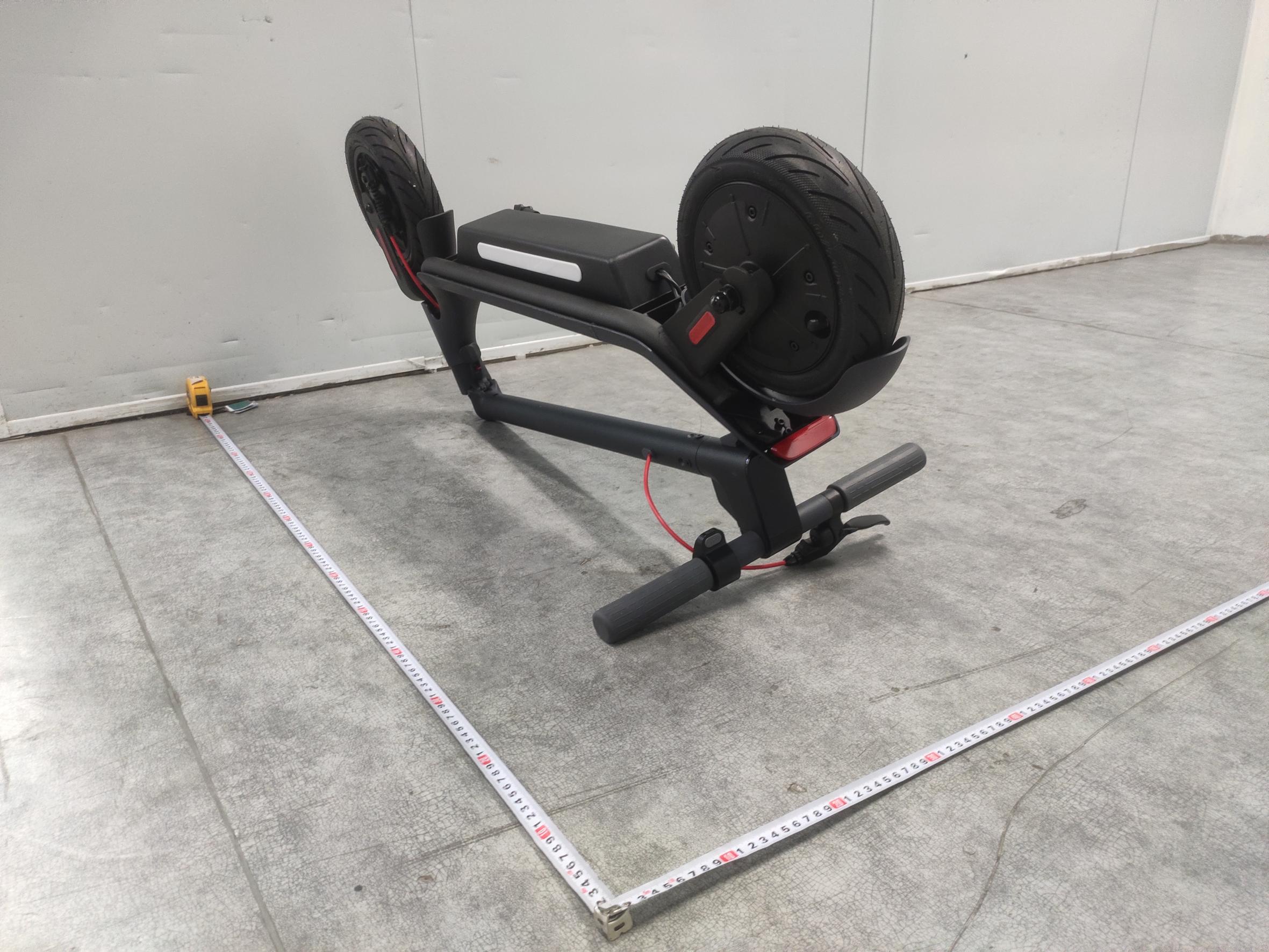

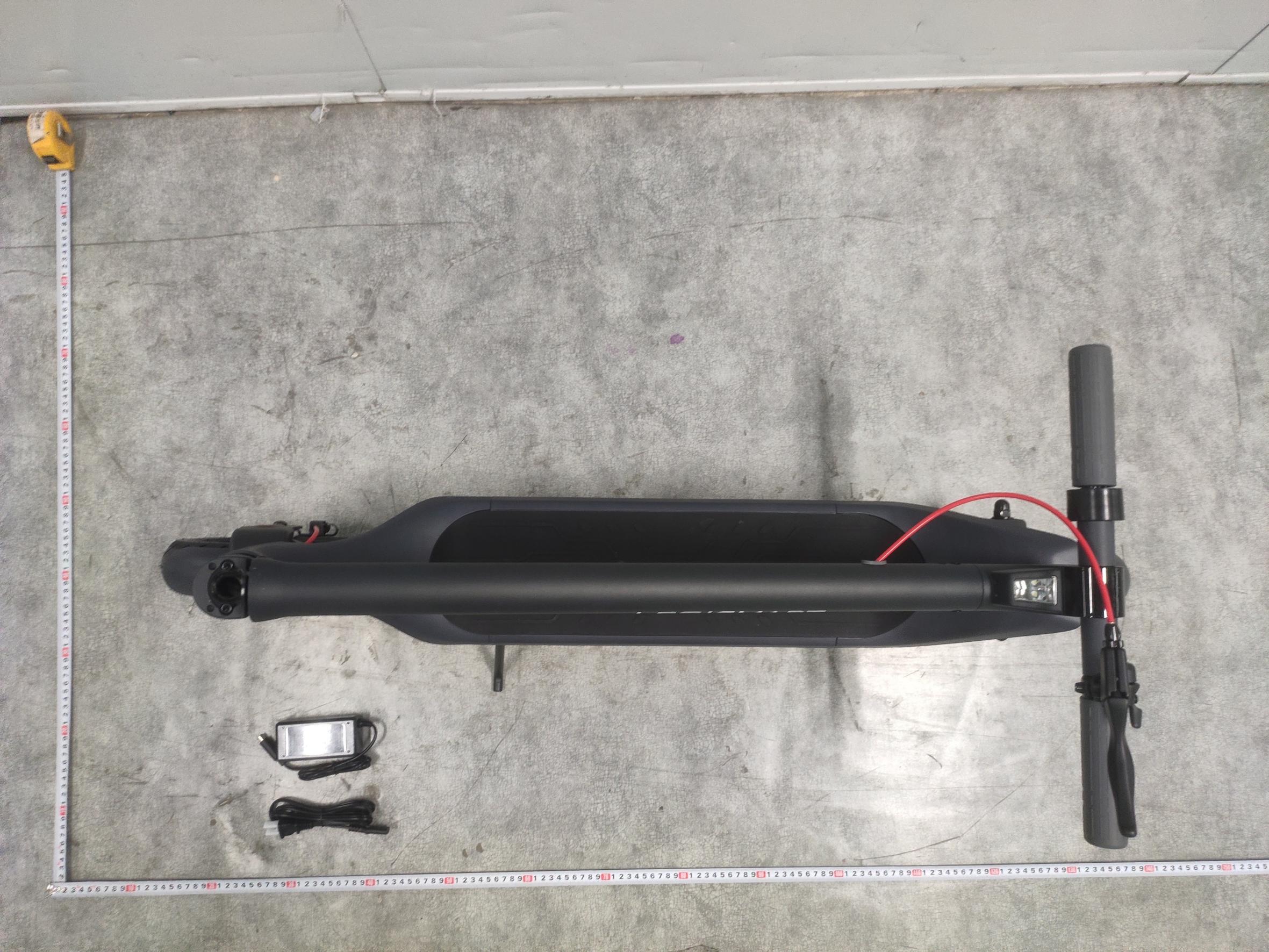

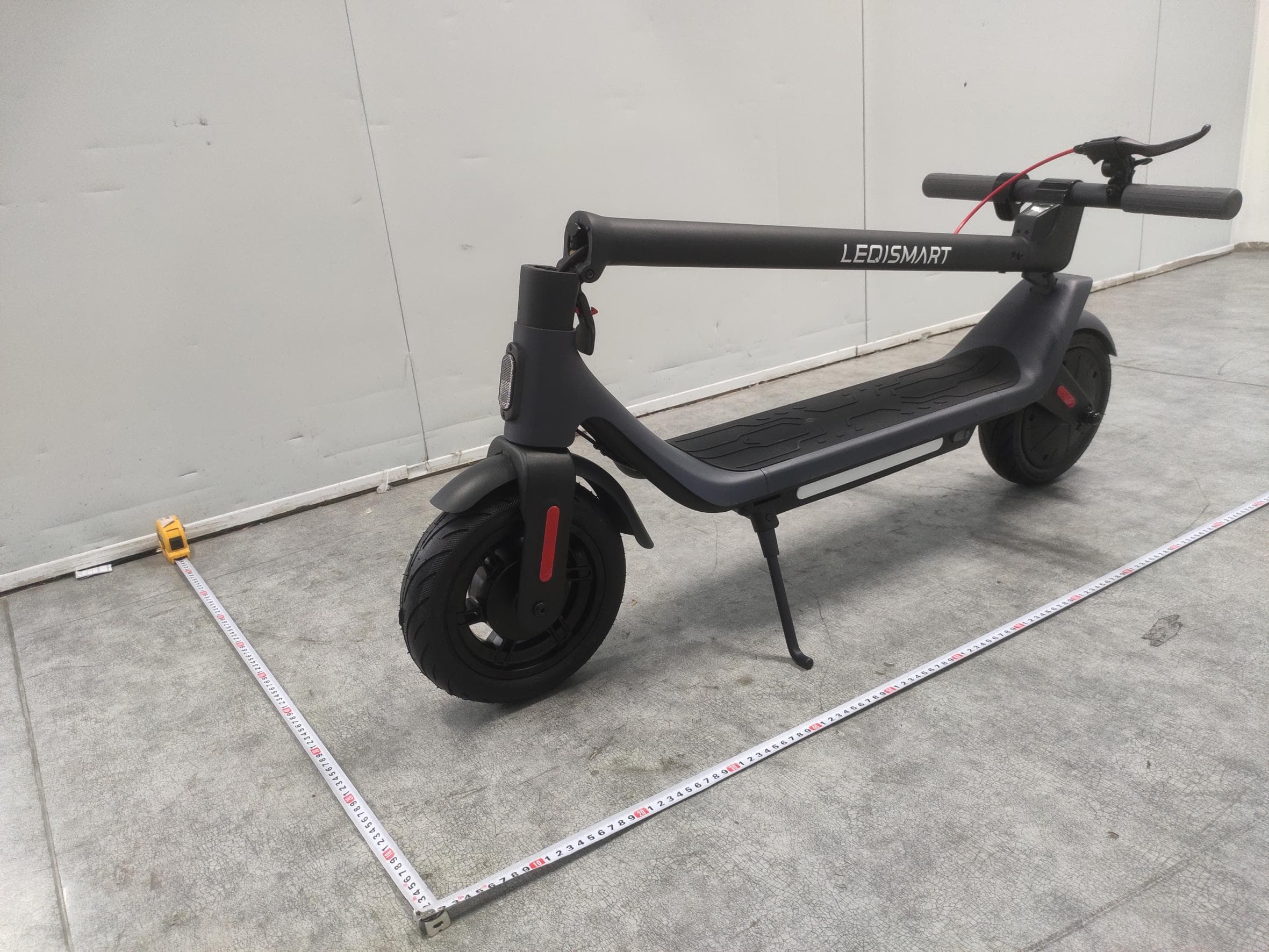

FCCID:2A4CE-A6LPROPage 1 of 2 ReportNo.:CTL2210082153-WF ExternalPhotosofEUT FCCID:2A4CE-A6LPROPage 2 of 2 ReportNo.:CTL2210082153-WF

FCCID:2A4CE-A6LPROPage 1 of 1 ReportNo.:CTL2210082153-WF FCCIDLabelInformation Labellocation: ProductName:LEQISmartElectricScooter Model:A6LPro FCCID:2A4CE-A6LPRO

FCCID:2A4CE-A6LPROPage 1 of 3 ReportNo.:CTL2210082153-WF InternalPhotosofEUT FCCID:2A4CE-A6LPROPage 2 of 3 ReportNo.:CTL2210082153-WF Bluetooth Antenna FCCID:2A4CE-A6LPROPage 3 of 3 ReportNo.:CTL2210082153-WF

FCCID:2A4CE-A6LPROPage 1 of 1 ReportNo.:CTL2210082153-WF RFExposureLetter Accordingto447498D01GeneralRFExposureGuidancev06The1 ‐ gand10 ‐ g SARtest exclusionthresholdsfor100MHzto6GHzattestseparationdistances ≤ 50mm aredeterminedby:[(max.powerofchannel,includingtune ‐ uptolerance,mW)/(min. testseparationdistance,mm)] · [ √ f(GHz)] ≤ 3.0for1 ‐ gSARand ≤ 7.5for10 ‐ gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison BT pt=0.77dBm=1.19mWat2480MHz So(1.19mW/5mm)x √ 2.480GHz=0.3761<3 ThenSARevaluationisnotrequired

ShenzhenCTLTestingTechnologyCo.,Ltd. Tel:+86-755-89486194E-mail:[email protected] TESTREPORT FCCPART15.247 ReportReferenceNo.....................:CTL2210082153-WF Compiledby: (position+printedname+signature) HappyGuo (Fileadministrators) Testedby: (position+printedname+signature) GrayGao (TestEngineer) Approvedby: (position+printedname+signature) IvanXie (Manager) ProductName.................................: LEQISmartElectricScooter Model/Typereference....................:A6LPro ListModel(s) .................................... :A6L TradeMark ....................................... : N/A FCCID...............................................: 2A4CE-A6LPRO Applicant’sname ........................... : ShenzhenLEQIIntelligentTechnologyCo.,Ltd. Addressofapplicant.....................: Room634-635BulildingC6thFloorQinghuTechnologyZone QingxiangRoadQinghuCommunityLonghuaStreetLonghua DistrictShenzhen,GuangdongProvince,China TestFirm ........................................... : ShenzhenCTLTestingTechnologyCo.,Ltd. AddressofTestFirm ..................... : Floor1-A,BaishaTechnologyPark,No.3011,ShahexiRoad, NanshanDistrict,Shenzhen,China518055 Testspecification ........................... : Standard............................................:FCCPart15.247:Operationwithinthebands902-928MHz, 2400-2483.5MHzand5725-5850MHz. TRFOriginator .................................. : ShenzhenCTLTestingTechnologyCo.,Ltd. MasterTRF.......................................:Dated2011-01 Dateofreceiptoftestitem..........: Oct.20,2022 DateofTestDate ............................ : Oct.20,2022-Jan.03,2023 DateofIssue....................................: Jan.11,2023 Result ................................................ : Pass ShenzhenCTLTestingTechnologyCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenCTLTestingTechnologyCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenCTLTestingTechnologyCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. V1.0Page2of34ReportNo.:CTL2210082153-WF TESTREPORT TestReportNo.:CTL2210082153-WF Jan.11,2023 Dateofissue EquipmentunderTest: LEQISmartElectricScooter SampleNo:CTL221008215-1-S001 Model/Type: A6LPro ListedModels : A6L Applicant:ShenzhenLEQIIntelligentTechnologyCo.,Ltd. Address : Room634-635BulildingC6thFloorQinghu TechnologyZoneQingxiangRoadQinghuCommunity LonghuaStreetLonghuaDistrictShenzhen, GuangdongProvince,China Manufacturer:ShenzhenLEQIIntelligentTechnologyCo.,Ltd. Address : Room634-635BulildingC6thFloorQinghu TechnologyZoneQingxiangRoadQinghuCommunity LonghuaStreetLonghuaDistrictShenzhen, GuangdongProvince,China TestresultPass* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedpage5. Thetestresultspresentedinthisreportrelateonlytotheobjecttested. Thisreportshallnotbereproduced,exceptinfull,withoutthewrittenapprovaloftheissuingtesting laboratory. V1.0Page3of34ReportNo.:CTL2210082153-WF **ModifiedHistory** RevisionsDescriptionIssuedDataReportNo.Remark Version1.0InitialTestReportRelease2023-01-11CTL2210082153-WFTracyQi V1.0Page4of34ReportNo.:CTL2210082153-WF TableofContentsPage 1.SUMMARY..................................................................................................................................................................5 1.1.TESTSTANDARDS...........................................................................................................................................................5 1.2.TESTDESCRIPTION..............................................................................................................................................................5 1.3.TESTFACILITY.....................................................................................................................................................................6 1.4.STATEMENTOFTHEMEASUREMENTUNCERTAINTY...................................................................................................................7 2.GENERALINFORMATION................................................................................................................................................8 2.1.ENVIRONMENTALCONDITIONS..............................................................................................................................................8 2.2.GENERALDESCRIPTIONOFEUT............................................................................................................................................8 2.3.DESCRIPTIONOFTESTMODESANDTESTFREQUENCY..............................................................................................................9 2.4.EQUIPMENTSUSEDDURINGTHETEST................................................................................................................................10 2.5.RELATEDSUBMITTAL(S)/GRANT(S)...................................................................................................................................10 2.6.MODIFICATIONS...............................................................................................................................................................10 3.TESTCONDITIONSANDRESULTS...................................................................................................................................11 3.1.CONDUCTEDEMISSIONSTEST.............................................................................................................................................11 3.2.RADIATEDEMISSIONSANDBANDEDGE...............................................................................................................................14 3.3.MAXIMUMCONDUCTEDOUTPUTPOWER............................................................................................................................24 3.4.POWERSPECTRALDENSITY.........................................…

Text truncated - open the document above for the full version.

ShenzhenCTLTestingTechnologyCo.,Ltd. Tel:+86-755-89486194E-mail:[email protected] 1.Bandwidth 1.1OBW 1.1.1TestResult Mode TX Type Frequency (MHz) ANT 99%OccupiedBandwidth(MHz) Verdict Result 1MSISO 240211.262Pass 244011.213Pass 248011.148Pass V1.0Page2of19ReportNo.:CTL2210082153-WF 1.1.2TestGraph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0Page3of19ReportNo.:CTL2210082153-WF 1M_HCH_2480MHz_Ant1_NTNV V1.0Page4of19ReportNo.:CTL2210082153-WF 1.26dBBW 1.2.1TestResult Mode TX Type Frequency (MHz) ANT 6dBBandwidth(MHz) Verdict ResultLimit 1MSISO 240210.784>=0.5Pass 244010.786>=0.5Pass 248010.797>=0.5Pass V1.0Page5of19ReportNo.:CTL2210082153-WF 1.2.2TestGraph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0Page6of19ReportNo.:CTL2210082153-WF 1M_HCH_2480MHz_Ant1_NTNV V1.0Page7of19ReportNo.:CTL2210082153-WF 2.MaximumConductedOutputPower 2.1Power 2.1.1TestResult Mode TX Type Frequency (MHz) MaximumPeakConductedOutputPower(dBm) Verdict ANT1Limit 1MSISO 24020.67<=30Pass 24400.58<=30Pass 24800.77<=30Pass Note1:AntennaGain:Ant1:0.00dBi; V1.0Page8of19ReportNo.:CTL2210082153-WF 2.1.2TestGraph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0Page9of19ReportNo.:CTL2210082153-WF 1M_HCH_2480MHz_Ant1_NTNV V1.0Page10of19ReportNo.:CTL2210082153-WF 3.MaximumPowerSpectralDensity 3.1PSD 3.1.1TestResult Mode TX Type Frequency (MHz) MaximumPSD(dBm/3kHz) Verdict ANT1Limit 1MSISO 2402-16.03<=8Pass 2440-15.76<=8Pass 2480-15.31<=8Pass Note1:AntennaGain:Ant1:0.00dBi; V1.0Page11of19ReportNo.:CTL2210082153-WF 3.1.2TestGraph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0Page12of19ReportNo.:CTL2210082153-WF 1M_HCH_2480MHz_Ant1_NTNV V1.0Page13of19ReportNo.:CTL2210082153-WF 4.UnwantedEmissionsInNon-restrictedFrequencyBands 4.1Ref 4.1.1TestResult Mode TX Type Frequency (MHz) ANT LevelofReference (dBm) 1MSISO 24021-0.95 24401-0.99 24801-0.81 Note1:RefertoFCCPart15.247(d)andANSIC63.10-2013,thechannelcontainsthemaximumPSDlevelwasusedto establishthereferencelevel. V1.0Page14of19ReportNo.:CTL2210082153-WF 4.1.2TestGraph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV V1.0Page15of19ReportNo.:CTL2210082153-WF 1M_HCH_2480MHz_Ant1_NTNV V1.0Page16of19ReportNo.:CTL2210082153-WF 4.2CSE 4.2.1TestResult Mode TX Type Frequency (MHz) ANT LevelofReference (dBm) Limit (dBm) Verdict 1MSISO 24021-0.81-20.81Pass 24401-0.81-20.81Pass 24801-0.81-20.81Pass Note1:RefertoFCCPart15.247(d)andANSIC63.10-2013,thechannelcontainsthemaximumPSDlevelwasusedto establishthereferencelevel. V1.0Page17of19ReportNo.:CTL2210082153-WF 5.2.2TestGraph 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV V1.0Page18of19ReportNo.:CTL2210082153-WF 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV V1.0Page19of19ReportNo.:CTL2210082153-WF 1M_HCH_2480MHz_Ant1_NTNV

FCCID:2A4CE-A6LPROPage 1 of 1 ReportNo.:CTL2210082153-WF TestSetupPhotosoftheEUT
