2A4K9-PROU9LED Projector

V.22.3.11 Pro U9 -&%
1SPKFDUPS 01 24 48 72 95 122 LANGUAGE English Français Espanol Italian Deutsche [email protected] YABER LIFETIME PROFESSIONAL SUPPORT TIPS PACKAGE LIST PROJECTOR SPECIFICATIONS PROJECTOR OVERVIEW REMOTE CONTROL INSTALLATION 1. Installation Method 2. Install on the Ceiling STARTING PROJECTOR IMAGE ADJUSTMENT 1. Focus Adjustment 2. Image adjustment 3. Select the Signal Source SETTING UP THE PROJECTOR 1. Select The Input Signal Source 2. USB Disk Input Mode 2.1 Play Video/Music/Picture/Office in the USB Disk Input Mode 2.2 Video Interface 2.3 Music Play Interface 2.4 Office Play Interface 3. WiFi Setting 3.1 iOS Cast(for iOS Devices) 3.2 Miracast(for Android Devices) 4. Blueteeth Setting 5. Image Setting 6. Keystone Setting 6.1 4-corner Keystone 6.2 4-side Keystone 6.3 Reset 7. Projector Position 8. Customer zoom 9. System update 10. Factory Reset 11. Language SIGNAL LINES CONNECTION 1. Connect USB Disk 2. Connect the Devices via the HDMI ports 3. Connect to the DVD Player 4. Connect to the Soundbar/Speaker SAFE SHUTDOWN WARRANTY 02 02 03 03 04 06 07 07 08 09 09 09 10 10 10 10 11 11 11 12 12 13 13 14 15 16 17 17 18 18 19 20 20 20 20 21 21 21 21 22 22 23 23 TROUBLESHOOTING CONTENTS [email protected] EN 01 [email protected]@yabertech.com YABER LIFETIME PROFESSIONAL SUPPORT Dear customer, Thank you very much for supporting YABER! Please read this manual thoroughly before using the projector. If you have any issues, email your order number and the problem to [email protected]. We will provide a fast solution in 24 hours. Actually, many problems can be easily solved by setting, such as no signal, no sound, blueteeth connection failed, WiFi connection failed, dark spots, choppy animation etc. We promise all the projectors have been 100% carefully checked and packaged before shipping. If you have any questions, could you please contact us so that the problem can been solved. And give us an opportunity to improve. We guarantee we will provide you a satisfactory solution. Thanks for your understanding! YABER Service Team TIPS: 1.Do not place projector in too warm or too cold room, because the high temperature or low temperature will shorten lifespan of the device. The working environment would be 5Я~35Я better. 2.If there are black spots on the projection screen, please don't worry, please contact via email, we can send you a video about how to remove the dust. 3.The ventilation is equipped for the projector to work stably. Don't cover the vent with cloth, blanket or other things. Don't insert anything into the slit of the projector, or it may produce a short circuit or an electric shock to your device and cause damage. 4.The projector shall be strictly protected from strong impact, extrusion and vibration. Do not try to move and on strong impact, extrusion and vibration. Do not try to move and the internal circuit faults. 5.Lens, as the core component of the projector, is directly related to the picture definition and effect. The excessive dust thereon will affect image quality. The dirty lens shall be wiped with soft cotton cloth for the glass lens surface. Hard cloth or abrasives shall not be used. [email protected] EN 02 [email protected] [email protected] PACKAGE LIST YABER Pro U9 Projector*1 HDMI Cable*1 Cleaning Cloth*1 Remote Control*1 3-in-1 AV Cable User Manual*1 Power Cord*1 Lens Cover*1 Cleaning Kit*1 Projector Screen*1 PROJECTOR SPECIFICATIONS Model No. Pro U9 Native Resolution Display Technology Color Gamut Recommended Projection Distance Power Voltage Picture File Projection Method Video File Audio File 1920*1080P LCD 16.7M Full 8.8-14ft AC100-240V JPG/JPEG/ BMP/PNG Front/Rear on Desk, Front/ Rear on Ceiling 3GP/AVI/MP4/MPG/VOB/TS/M2TS/DAT/MKV MP3/APE/AAC/FLAC/OGG/MID/M4A Keystone Correction Light Source Aspect Ratio Minimum Projection Distance Projector Weight Interfaces Manual Vertical/Horizontal LED 4:3/16:9 5.5ft 2.64lb HDMI*2/USB*2/3.5mm Headphone jack/AV [email protected] EN 03 [email protected] PROJECTOR OVERVIEW 2 12 12 131614 1517 8 11 10 6 597 4 31 [email protected] EN 04 [email protected] 1 2 3/11 4 5 6/7 8 9 10 12 13 14 15 16 17 Foot pad IR Window Projector lens Power Cord Port Headphone Jack HDMI Ports USB Ports AV Port Speakers Vents Focus Ring Detachable Dust Filter Switch Detachable Dust Filter Bottom label Rubber Pads Increase the height of the projector Infrared signal receiver Optical coated glass lens Power Cord Port 3.5mm Headphone Output HDMI 1 input / HDMI 2 input USB port above USB port below: USB-T port Audio input Speakers stereo 5w Prevent the projector from overheating Adjust the focus ring to get the clearest image Push the switch from the right to open the detachable dust filter Clean the dust (if the screen has a black spot) Nameplate on the bottom of the projector Protective pads/remove to install ceiling mount 1 2 3 4 Power Menu Key OK Arrow Keys Turn on/off the power Tips: Pro U9 fuselage buttons are touch-screen buttons, which can be operated with a light touch. Operate in av or hdmi mode Confirm the option 5SourceSelect the input signal soucre 6BackReturn to the previous menu Used to adjust the parameter of the projector in the menu mode 1 2 6 4 3 1. Power Key 2. Menu 3. OK Key 4. Arrow Key 5. Source 6. Back 5 [email protected] EN 05 [email protected] REMOTE CONTROL 1 2 3 4 5 6 7 8 9 10 11 12 Turn on/off the power Make system settings Can make some basic adjustments of the screen after clicking during the video playback Operate in av or hdmi mode Volume down Confirm selection or select video to play Close the sound Select the input signal soucre Used to adjust the parameter of the projector in the menu mode Back to the main menu Return to the previous menu Volume up M M S S [email protected] EN 06 [email protected] Note: 1).Install 2 pieces of AAA batteries into the remote before using it. Do not combine new batteries with old ones i…

Text truncated - open the document above for the full version.

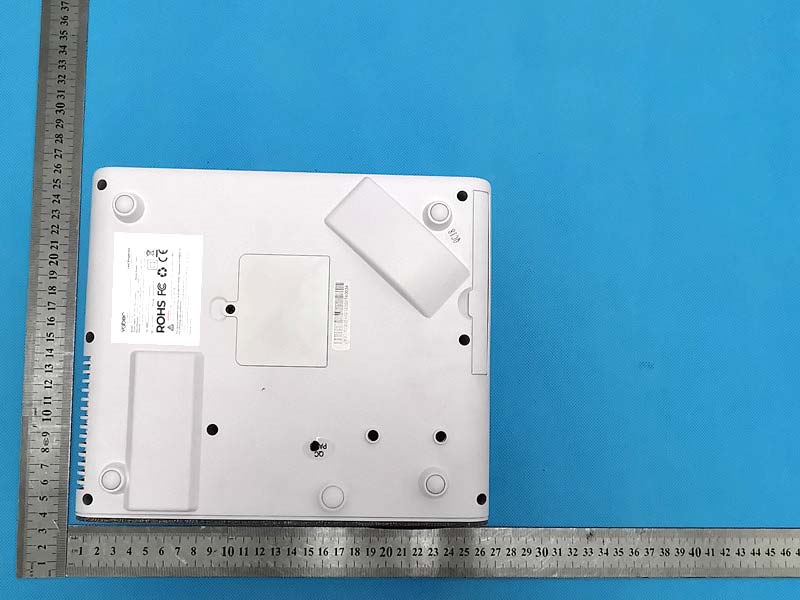

Reference No.: WTX22X02022926W-1/2/3 Page 2 of 17 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX22X02022926W-1/2/3 Page 3 of 17 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTX22X02022926W-1/2/3 Page 4 of 17 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6 Reference No.: WTX22X02022926W-1/2/3 Page 5 of 17 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 7

Reference No.: WTX22X02022926W-1/2/3 Page 1 of 17 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX22X02022926W-1/2/3 Page 6 of 17 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTX22X02022926W-1/2/3 Page 7 of 17 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTX22X02022926W-1/2/3 Page 8 of 17 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 3 Solder Board-Component View 4 Reference No.: WTX22X02022926W-1/2/3 Page 9 of 17 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 5 Solder Board-Component View 6 Reference No.: WTX22X02022926W-1/2/3 Page 10 of 17 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 7 Solder Board-Component View 8

Reference No.: WTX22X02022926W-1/2/3 Page 11 of 17 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 9 Solder Board-Component View 10 Reference No.: WTX22X02022926W-1/2/3 Page 12 of 17 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 11 Solder Board-Component View 12 Reference No.: WTX22X02022926W-1/2/3 Page 13 of 17 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 13 Solder Board-Component View 14 Reference No.: WTX22X02022926W-1/2/3 Page 14 of 17 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Antenna View

1. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 General Information Client Information Applicant: YABER TECHNOLOGIES CO.,LIMITED Address of applicant: Room 406, 4 Floor, B Building, BanTian International Center, HuanCheng South Road, BanTian Street, LongGang District, Shenzhen Applicant: YABER TECHNOLOGIES CO.,LIMITED Address of applicant: Room 406, 4 Floor, B Building, BanTian International Center, HuanCheng South Road, BanTian Street, LongGang District, Shenzhen General Description of EUT: Product Name: LED Projector Brand Name: / Model No.: Pro U9 Adding Model(s): Y9, PRO Y9, Pro Y9 Rated Voltage: AC 100V-240V, 50/60Hz Battery Capacity: / Power Adapter: / FCC ID: 2A4K9-PROU9 Equipment Type: Fixed device Technical Characteristics of EUT: Wi-Fi(5GHz) Support Standards: 802.11a, 802.11n(HT20), 802.11n-HT40, 802.11ac-VHT80 Frequency Range: 5150-5250MHz, 5725-5850MHz RF Output Power: 15.77dBm (Conducted) Type of Modulation: QPSK, 16QAM, 64QAM, 256QAM, 1024QAM Quantity of Channels: / Type of Antenna: Integral Antenna Antenna Gain: 5.46dBi Wi-Fi(2.4GHz) Support Standards: 802.11b, 802.11g, 802.11n Frequency Range: 2412-2462MHz for 802.11b/g/n(HT20) 2422-2452MHz for 802.11n(HT40) RF Output Power: 15.60dBm (Conducted) Type of Modulation: CCK, OFDM, QPSK, BPSK, 16QAM, 64QAM Quantity of Channels: 11 for 802.11b/g/n(HT20); 7 for 802.11n(HT40) Channel Separation: 5MHz Type of Antenna: Integral Antenna Antenna Gain: 4.12dBi Bluetooth Bluetooth Version: V4.2 (BR/EDR mode) Frequency Range: 2402-2480MHz RF Output Power: 2.50dBm (Conducted) Data Rate: 1Mbps, 2Mbps, 3Mbps Modulation: GFSK, π/4 DQPSK, 8DPSK Quantity of Channels: 79 Channel Separation: 1MHz Type of Antenna: Integral Antenna Antenna Gain: 4.12dBi 1.2 Standard Applicable According to §1.1307(b)(1) and KDB 447498 D01 General RF Exposure Guidance v06, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. (a) Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 / / F/300 6 1500-100000 / / 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-100000 / / 1 30 Note: f = frequency in MHz: * = Plane-wave equivalents power density 1.3 MPE Calculation Method S = (30*P*G) / (377*R 2 ) S = power density (in appropriate units, e.g., mw/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mw) G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor is normally numeric gain. R = distance to the center of radiation of the antenna (in appropriate units, e.g., cm) 1.4 MPE Calculation Result Wi-Fi(5GHz) Maximum Tune-Up output power: 16.0(dBm) Maximum peak output power at antenna input terminal: 39.81(mW) Prediction distance: >20(cm) Prediction frequency: 5200 (MHz) Antenna gain: 5.46 (dBi) Directional gain (numeric gain): 3.52 The worst case is power density at prediction frequency at 20cm: 0.0278(mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) Wi-Fi(2.4GHz) Maximum Tune-Up output power: 16.0(dBm) Maximum peak output power at antenna input terminal: 39.81(mW) Prediction distance: >20(cm) Prediction frequency: 2462 (MHz) Antenna gain: 4.12 (dBi) Directional gain (numeric gain): 2.58 The worst case is power density at prediction frequency at 20cm: 0.0205(mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) Bluetooth Maximum Tune-Up output power: 3.0(dBm) Maximum peak output power at antenna input terminal: 2.00(mW) Prediction distance: >20(cm) Prediction frequency: 2402(MHz) Antenna gain: 4.12 (dBi) Directional gain (numeric gain): 2.58 The worst case is power density at prediction frequency at 20cm: 0.0010(mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) Mode for Simultaneous Multi-band Transmission Wi-Fi(5GHz) + Wi-Fi(2.4GHz) The worst case is power density at prediction frequency at 20cm: 0.0278+0.0205=0.0483(mw/cm2) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) Result: Pass

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 81 TEST REPORT Reference No. ....................: WTX22X02022926W-1 FCC ID ............................... .: 2A4K9-PROU9 Applicant .......................... .: YABER TECHNOLOGIES CO.,LIMITED Address ............................ .: Room 406, 4 Floor, B Building, BanTian International Center, HuanCheng South Road, BanTian Street, LongGang District, Shenzhen Manufacturer .................... .: YABER TECHNOLOGIES CO.,LIMITED Address ............................ .: Room 406, 4 Floor, B Building, BanTian International Center, HuanCheng South Road, BanTian Street, LongGang District, Shenzhen Product Name .................. .: LED Projector Model No... ........................ .: Pro U9 Standards ......................... .: FCC Part 15.407 Date of Receipt sample ... .: 2022-02-21 Date of Test....................... .: 2022-02-21 to 2022-04-01 Date of Issue .................... .: 2022-04-01 Test Report Form No. ...... . : WTX_Part 15_407W Test Result ........................ .: Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Jack Huang Silin Chen Reference No.: WTX22X02022926W-1 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 81 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 5 1.2 TEST STANDARDS ................................................................................................................................................... 6 1.3 TEST METHODOLOGY ............................................................................................................................................. 6 1.4 TABLE FOR PARAMETERS OF TEST SOFTWARE SETTING ......................................................................................... 6 1.5 EUT OPERATING DURING TEST .............................................................................................................................. 7 1.6 TEST FACILITY ....................................................................................................................................................... 7 1.7 EUT SETUP AND TEST MODE ................................................................................................................................. 8 1.8 MEASUREMENT UNCERTAINTY .............................................................................................................................. 9 1.9 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 10 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 13 3. ANTENNA REQUIREMENT ................................................................................................................................ 14 3.1 STANDARD APPLICABLE ....................................................................................................................................... 14 3.2 EVALUATION INFORMATION ................................................................................................................................ 14 4. AUTOMATICALLY DISCONTINUE TRANSMISSION .................................................................................. 15 4.1 STANDARD APPLICABLE ....................................................................................................................................... 15 4.2 SUMMARY OF TEST RESULTS ............................................................................................................................... 15 5. POWER SPECTRAL DENSITY ........................................................................................................................... 16 5.1 STANDARD APPLICABLE ....................................................................................................................................... 16 5.2 TEST PROCEDURE ................................................................................................................................................. 16 5.3 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 17 6. EMISSION BANDWIDTH AND OCCUPIED BANDWIDTH ........................................................................... 18 6.1 STANDARD APPLICABLE ....................................................................................................................................... 18 6.2 TEST PROCEDURE ................................................................................................................................................. 18 6.3 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 20 7. MAXIMUM CONDUCTED OUTPUT POWER .................................................................................................. 21 7.1 STANDARD APPLICABLE ....................................................................................................................................... 21 7.2 TE…

Text truncated - open the document above for the full version.

Reference No.: WTX22X02022926W-1/2/3 Page 15 of 17 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Reference No.: WTX22X02022926W-1/2/3 Page 16 of 17 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (1GHz to 18GHz) Reference No.: WTX22X02022926W-1/2/3 Page 17 of 17 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (Above 18GHz) ***** END OF REPORT *****
