IC Warning This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son fonctionnement est soumis aux deux conditions suivantes : ( 1 ) Ce dispositif ne peut causer d'interférences ; et ( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil. Le dispositif a été conçu pour répondre à la demande générale de radioexposition. FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SHENZHEN REOSTUDIO TECHNOLOGY CO.,LTD Agent Authorization Company: SHENZHEN REOSTUDIO TECHNOLOGY CO.,LTD Address: Room 213-214, Internet of Things Demonstration Park, No. 6 Minhuan Road, Longhua District, Shenzhen, China Product Name: 67-Keys Wireless Mechanical Keyboard Model Number(s): Halo65 Product Description: 67-Keys Wireless Mechanical Keyboard We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022.12.23 Name: Jiankuai Li Title: PM Company: SHENZHEN STS TEST SERVICES CO.,LTD.

SHENZHEN REOSTUDIO TECHNOLOGY CO.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022.12.23 Subject; Request for Confidentiality FCC ID: 2A542-HALO65 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Date: 2022.12.23 Name: Jiankuai Li Title: PM Company: Shenzhen STS Test Services Co., Ltd.

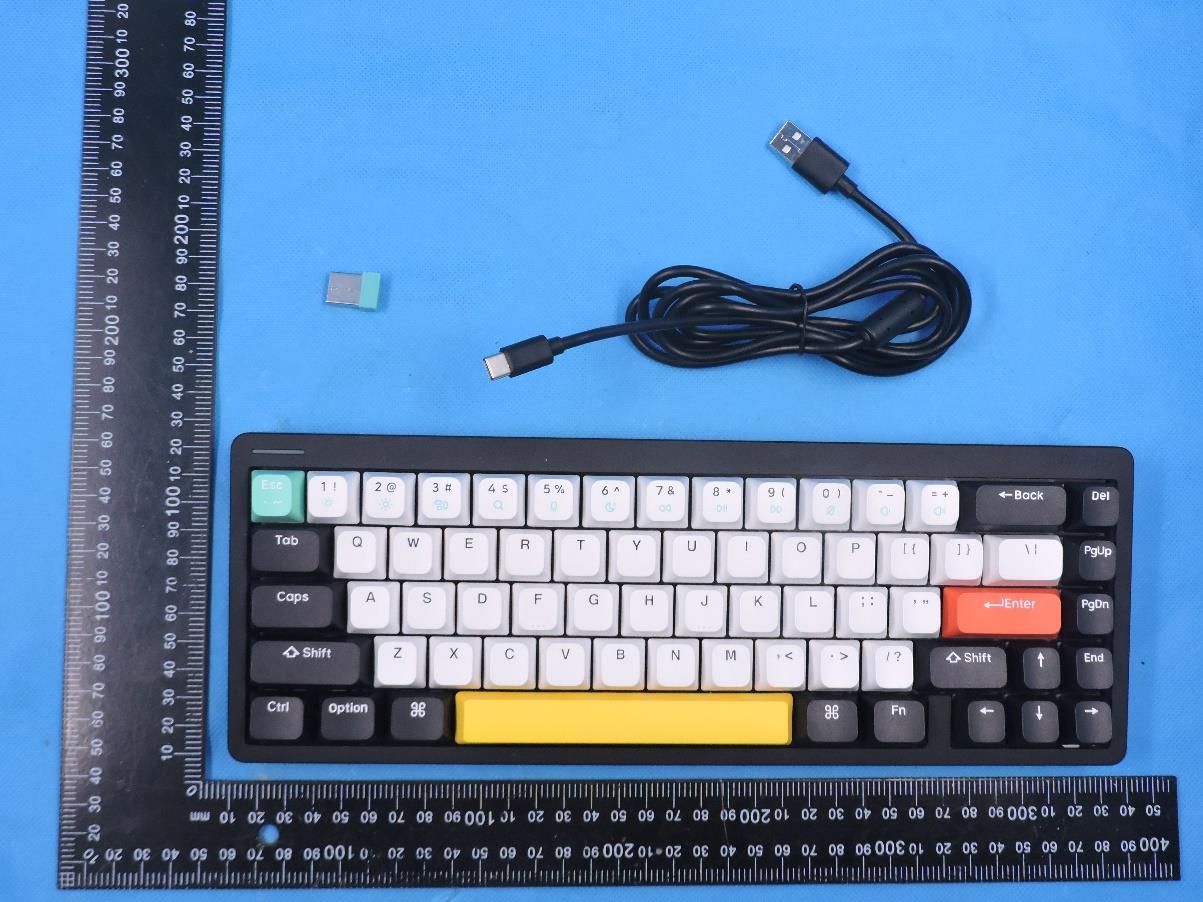

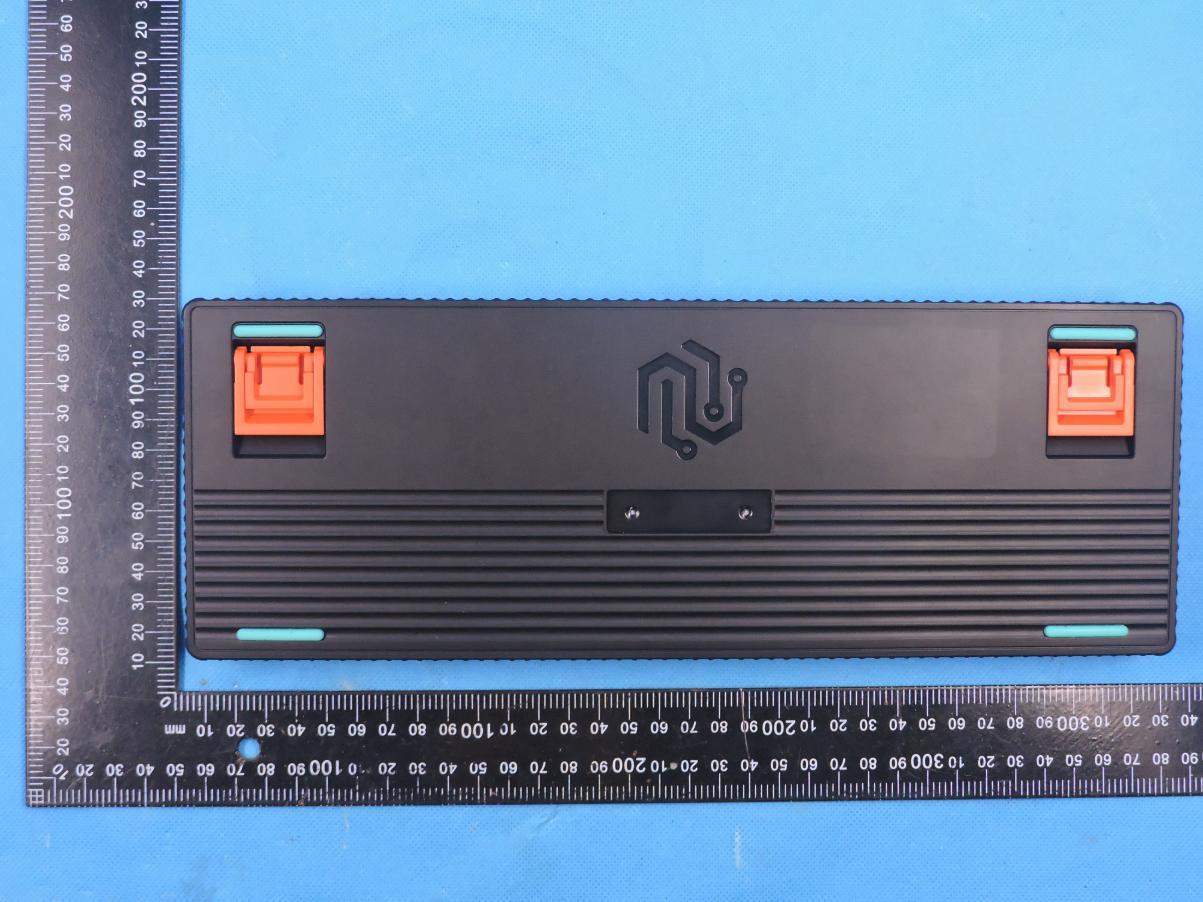

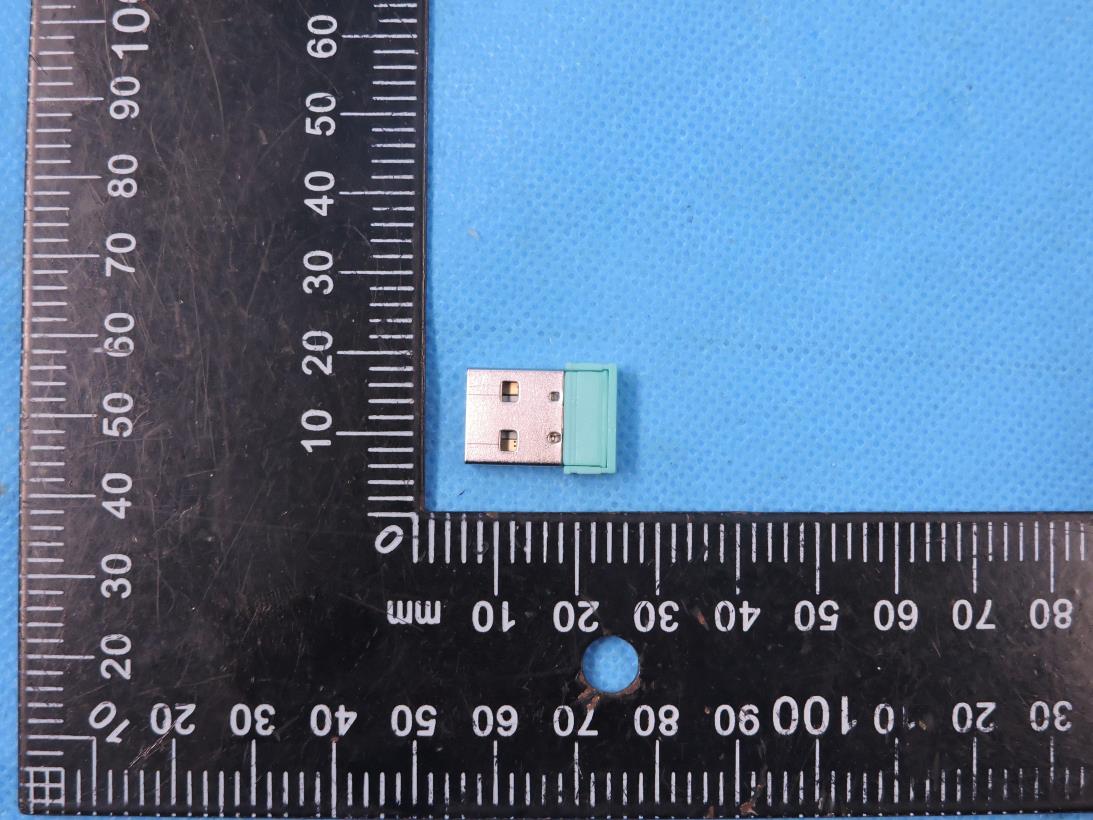

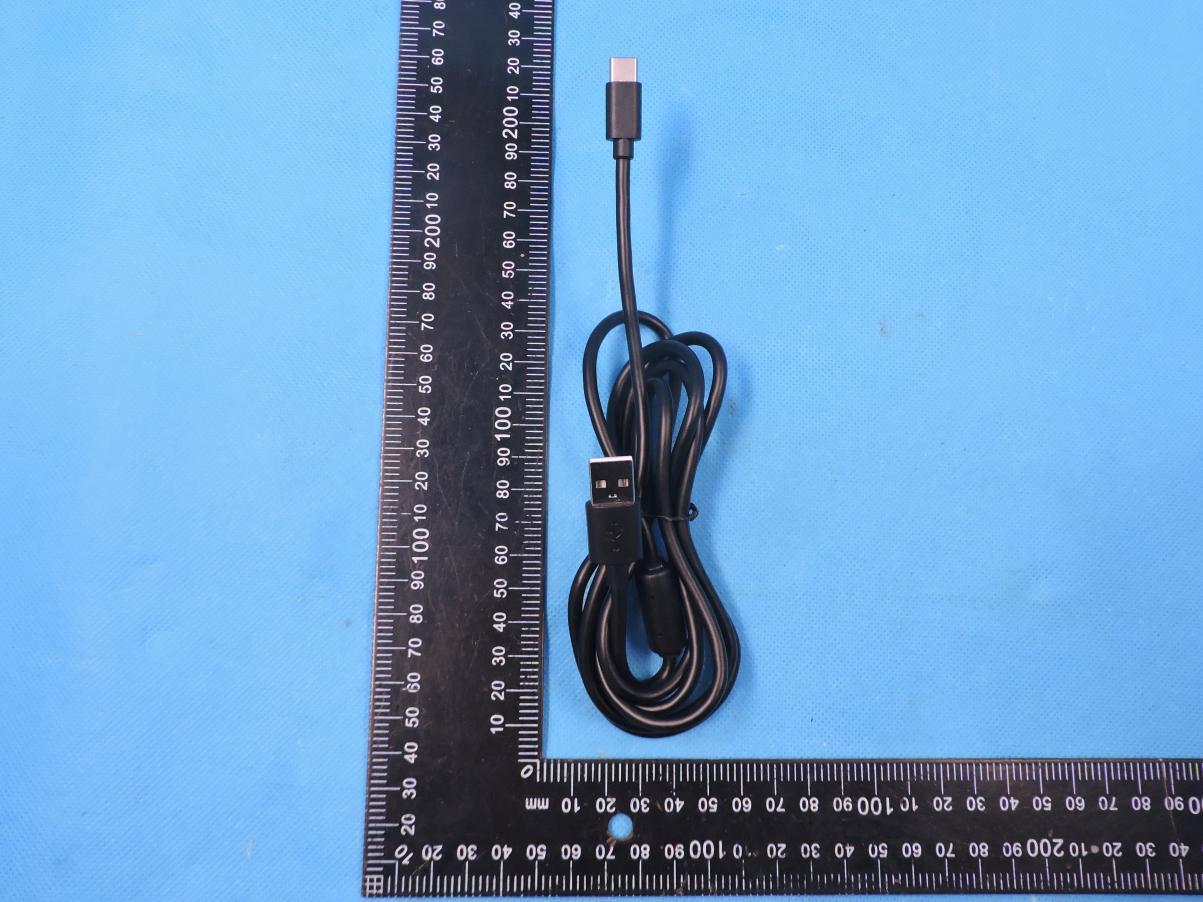

Page 1 of 5 Report No.: STS2211132 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: Halo65 Photo 1 Photo 2 Page 2 of 5 Report No.: STS2211132 Photo 3 Photo 4 Page 3 of 5 Report No.: STS2211132 Photo 5 Photo 6 Page 4 of 5 Report No.: STS2211132 Photo 7 Photo 8 Page 5 of 5 Report No.: STS2211132 Photo 9

Label 67-Keys Wireless Mechanical Keyboard Nuphy Model: Halo65 FCC ID: 2A542-HALO65 IC: 29557-HALO65 Input: DC 5V SHENZHEN ARBITER TECHNOLOGY CO.,LTD 30mm 5mm 15mm

Page 1 of 4 Report No.: STS2211132 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: Halo65 Photo 1 Photo 2 2.4G/BT Antenna Page 2 of 4 Report No.: STS2211132 Photo 3 Photo 4 Page 3 of 4 Report No.: STS2211132 Photo 5 Photo 6 Page 4 of 4 Report No.: STS2211132 Photo 7 Photo 8

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.: STS2211132W04 Issued for SHENZHEN REOSTUDIO TECHNOLOGY CO.,LTD Room 213-214, Internet of Things Demonstration Park, No. 6 Minhuan Road, Longhua District, Shenzhen, China Product Name: 67-Keys Wireless Mechanical Keyboard Brand: Nuphy Model Number: Halo65 Series Model(s): N/A FCC ID: 2A542-HALO65 Test Standard: FCC Part 15.249 S T L A B S Page 2 of 36 Report No.: STS2211132W04 TEST RESULT CERTIFICATION Applicant’s Name ................. : SHENZHEN REOSTUDIO TECHNOLOGY CO.,LTD Address .................................. : Room 213-214, Internet of Things Demonstration Park, No. 6 Minhuan Road, Longhua District, Shenzhen, China Manufacture's Name ............ : SHENZHEN ARBITER TECHNOLOGY CO.,LTD Address .................................. : Floor 2, 3 and 4, Bldg. A, Meisheng Industrial Park, Chongqing Rd., Fuhai St., Baoan Dist.,Shenzhen, Guangdong, China Product Description Product Name ........................ : 67-Keys Wireless Mechanical Keyboard Brand ...................................... : Nuphy Model Number ........................ : Halo65 Series Model(s) ...................... : N/A Test Standards ...................... : FCC Part15.249 Test Procedure ....................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................ : Date of receipt of test item ..... : 28 Nov. 2022 Date of performance of tests .. : 28 Nov. 2022 ~ 05 Dec. 2022 Date of Issue .......................... : 05 Dec. 2022 Test Result .............................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) Page 3 of 36 Report No.: STS2211132W04 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACTORY 6 1.2 MEASUREMENT UNCERTAINTY 6 2. GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF THE EUT 7 2.2 DESCRIPTION OF THE TEST MODES 8 2.3 TEST SOFTWARE AND POWER LEVEL 8 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 10 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3. EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.2 RADIATED EMISSION MEASUREMENT 16 4. BANDWIDTH TEST 32 4.1 TEST PROCEDURE 32 4.2 TEST SETUP 32 4.3 EUT OPERATION CONDITIONS 32 4.4 TEST RESULTS 33 5. ANTENNA REQUIREMENT 35 5.1 STANDARD REQUIREMENT 35 5.2 EUT ANTENNA 35 APPENDIX- PHOTOS OF TEST SETUP 36 Page 4 of 36 Report No.: STS2211132W04 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 05 Dec. 2022 STS2211132W04 ALL Initial Issue Page 5 of 36 Report No.: STS2211132W04 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part 15.249 , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission Pass 15.203 Antenna Requirement Pass 15.249 Radiated Spurious Emission Pass 15.249 Radiated Band Edge Emission Pass 15.249 Field Strength of fundamental Pass 15.215(c) 20dB Bandwidth Pass NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 6 of 36 Report No.: STS2211132W04 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.87dB 2 Unwanted Emissions, conducted ±2.895dB 3 All emissions, radiated 9K-30MHz ±3.80dB 4 All emissions, radiated 30M-1GHz ±4.09dB 5 All emissions, radiated 1G-6GHz ±4.92dB 6 All emissions, radiated>6G ±5.49dB 7 Conducted Emission (9KHz-30MHz) ±2.73dB Page 7 of 36 Report No.: STS2211132W04 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name/PMN 67-Keys Wireless Mechanical Keyboard Brand Nuphy Model Number/HVIN Halo65 Series Model(s) N/A Model Difference N/A Product Description The EUT is a 67-Keys Wireless Mechanical Keyboard Operation Frequency: 2403~2480 MHz Modulation Type: MSK Antenna Type: FPC Antenna Gain(Peak): 2.91dBi Based on the application, features, or specification exhibited in User Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User Manual. Channel List Please refer to the Note 3. Rating Input: DC 5V 1A Battery Rated Voltage:3.7V Charge Limit Voltage:4.25V Capacity: 4000mAh Hardware version number A65-1-BT679 VER1.3 20221010 Software version number/FVIN BYK916+3632_20220728_V0111 Serial Numbers Halo65US00162212190001 Connecting I/O Port(s) Please refer to the Note 1. Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User Manual. 2. The antenna information refer the manufacturer provide report, applicable only to the tested sample …
