2A59C-M506Multifunction Turntable Player

READ THIS INSTRUCTIONS CAREFULLY BEFORE USE AND STORE IN A SAFE PLACE FOR FUTURE REFERENCE User Manual MULTIFUNCTION TURNTABLE PLAYER With USB Recording & Playing 8 7 8 8 9 0 9 2 9 4 9 6 9 8 1 0 0 1 0 2 1 0 6 1 0 8 REC FM MHZ FM ST PLAY REP PROG DEL 18 ATTENTION: Connect the equipment to the DC 12V power supply, and then press the " power" switch to start the equipment. After startup, rotate the mode switch knob to select the required mode, which can be switched between "phono", "CD", "tape / aux" and "radio" modes. Read this before operation Choose the installation location of your unit carefully. Aviod placing it in direct sunlight or close to a source of heat. Also avoid locations subject to vibrations and excessive dust, heat, cold or moisture. The ventilation holes should not be covered. Make sure there is enough space above and beside the amplifier/receiver(about 4 cm). Do not place a CD player or other equipment on top of the Turntable Player/Recorder. Do not open the cabinet as this might result in damage to the circuitry or electrical shock. If a foreign objects gets into the set. Contact you dealer. When removing the power plug, never yank the cord. Do not attempt to clean the unit with the chemical solvents as this might damage the finish. Use a clean, dry cloth. Keep this manual in a safe place for future reference. CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK), NO USE SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL WARNING: NOTE: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO DRIPPING OR SPLASHING. This unit will become warm when used for a long period of time. The is normal and does not indicate a problem with the unit. DANGEROUS VOLTAGE Conducts dangerous voltage, that may be of sufficient magnitude to constitute a risk of electric shock to persons present within this product, enclosure ATTENTION The owner’s manual contains important operating and maintenance instructions, for your safety, it is necessary to refer to the manual. BEFORE USE 1 Automatic Stereo Turntable System Installation and Operation The turntable features: CAUTION: To avoid stylus damage, make certain the included stylus guard is in place whenever the turntable is being installed, moved or cleaned. Turntable with Bluetooth function. CD player. 3-speed turntable fit for 33 1/3, 45, 78 RPM. Belt-drive and semi-automatic play tone arm. Ceramic stereo cartridge with jewel stylus. Built-in 45 RPM adapter. Slot-in USB/SD/MMC for encoding & decoding. Analog FM stereo radio. Cassette tape playback. Aux in and headphone sockets. Full range stereo speakers 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 2 Tuning dial pointer Recording indicator Play indicator Stop / USB / SD button Record / delete button Repeat / program button Mode switch knob FM / Bluetooth switch Radio tuning knob Power switch CD bin door 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. CD in / out button Headphone connector Aux input interface Volume adjustment knob Prev button Next button Play / pause button Delete indicator FM stereo indicator LED display Horn 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 8 7 8 8 9 0 9 2 9 4 9 6 9 8 1 0 0 1 0 2 1 0 6 1 0 8 REC FMMHZ FM ST PLAY REPPROG DEL 18 1022 7 3 6 5 4 15 19 16 17 18 20 21 1 2 1189 13 141222 FUNCTIONS AND CONTROLS 3 Diamond cartridge Speed switch Auto Stop Switch Play/pause lift lever 23. 24. 25. 26. Stick fixed mouth 45 RPM adapter The big platter 27. 28. 29. RCA output interface DC12V power input interface FM antenna 30. 31. 32. 28 26 25 24 23 29 27 32 30 31 4 USB flash disk / SD card interface panel Tape slot Connect the equipment to the DC 12V power supply, and then press the " power" switch to start the equipment. After startup, rotate the mode switch knob to select the required mode, which can be switched between "phono", "CD", "tape / aux" and "radio" modes. Special note: if you want to turn off the device, you can turn off the device by pressing the "power" switch on the panel again. Power on: 33. 34. USB SD/MMC CARD 3334 OPERATION GUIDE 5 Phono playback mode: Rotate the mode knob to switch to "phono" mode, and the LED display screen will open to display "PH" information. Place the record on the turntable of the record player, remove the stylus protection device, select the speed of the record: 33 1 / 3, 45, 78 rpm, and then play the vinyl record. Adjust volume control to your desired sound level. When you need to record phonorecord music, first insert the USB flash disk or SD card of the storage device, and then short press the "record / delete" button (if you have inserted the USB flash disk and SD card in the device at the same time, you can save the recorded album music by short press the "prev" button or "next" to Select the USB flash disk or SD.)and then short press the "record / delete" button to start recording.The recording indicator will flash to start recording. If you want to stop recording,Short press the "stop / USB / SD" button, recording indicator light is off. Note:Recordedfile in mp3 format with 128kbps. 1. 2. 3. 4. CD playback mode Rotate the mode knob to switch to "CD" mode, and the LED display screen will open to display "CD" information. Short press the "CD in / out" button to open the CD bin door and put in the CD disc. Short press the "CD in / out" button again to close the CD bin door. The device starts to read the disc and automatically plays the first song. Adjust volume control to your desired sound level. In the playing state, briefly press the "play / pause" button to pause the music, and then briefly press the "play / pause" button again to continue playing the music. Short press the "prev" button to play the previous track, and long press the "prev" button to speed up the backward playback. Short press the "next" button to play the next track, and long press the "next" button to speed up the forward playback. Short press the "stop / USB / SD" button to stop playing. Repeat playback: in the playback state, …

Text truncated - open the document above for the full version.

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: GSS SERVICE INC FRN: 0033402082 Contact Name: Michoux Logan Address: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States Telephone 001-949-2990192 Email: [email protected] Applicant: Company name: Guangzhou H & F Electronics Technology Co., Ltd. Product Description: Multifunction Turntable Player Grantee code: 2A59C FCC ID: 2A59C-M506 FRN: 0032217382 Contact Name: David Xi Address: Room 101, Building 5, No.481 Tainan Road, Nansha District, Guangzhou Guangdong, China Telephone No: 020-39011029 Email: [email protected] [Guangzhou H & F Electronics Technology Co., Ltd.] certifies that, as of the date of this filing of the application with the TCB, [GSS SERVICE INC] is our designated US agent for service of process for the above referenced FCC ID. [Guangzhou H & F Electronics Technology Co., Ltd.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [GSS SERVICE INC] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2023/12/19 Applicant’s Name: David Xi US Agent’s Name: Michoux Logan Title: sales Title: PM Signature Signature

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Guangzhou H & F Electronics Technology Co., Ltd. Grantee code: 2A59C FCC ID: 2A59C-M506 Contact Name: David Xi Address: Room 101, Building 5, No.481 Tainan Road, Nansha District, Guangzhou Guangdong, China Telephone No: 020-39011029 Fax No: 020-39011029 Email: [email protected] i. [Guangzhou H & F Electronics Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Guangzhou H & F Electronics Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Guangzhou H & F Electronics Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of theapplication, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment . Date: 2023/12/19 Applicant’s Name: David Xi Title: sales Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Guangzhou H & F Electronics Technology Co., Ltd. Product Similarity Declaration Product name: Multifunction Turntable Player Model name: M506, TP04 FCC ID: 2A59C-M506 We (Guangzhou H & F Electronics Technology Co., Ltd.) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name. Signature: Name: David Xi Title: sales Place, date: 2023/12/19

C5266091_X8_Ed.1 1/1 Letter of Authorization < Guangzhou H & F Electronics Technology Co., Ltd.> Company: Guangzhou H & F Electronics Technology Co., Ltd. Address: Room 101, Building 5, No.481 Tainan Road, Nansha District, Guangzhou Guangdong, China Product Name: Multifunction Turntable Player Model Number: M506, TP04 FCC Identifier: 2A59C-M506 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: David Xi Date: 2023/12/19 Title: sales Signature of applicant:

C5266091_X10_Ed.2 1/1 < Guangzhou H & F Electronics Technology Co., Ltd.> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023/12/19 Subject: Request for Confidentiality FCC ID: 2A59C-M506 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: David Xi Title: sales

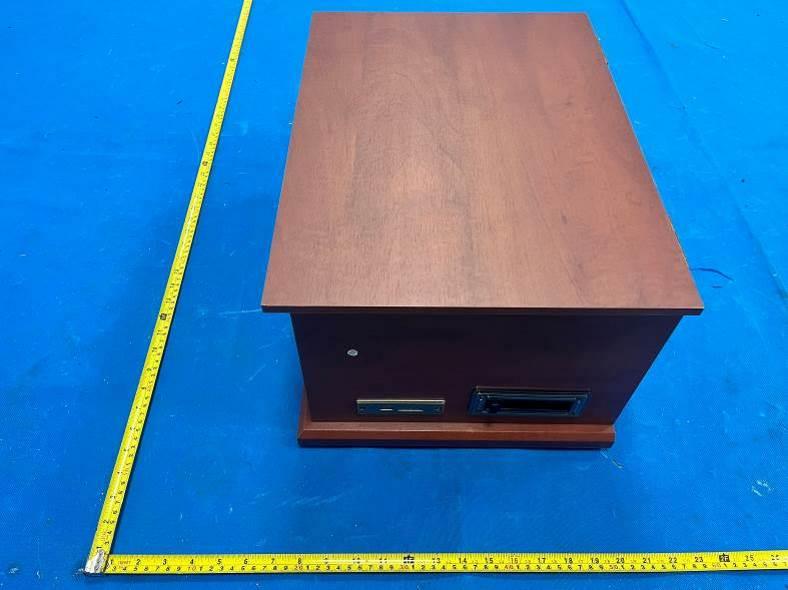

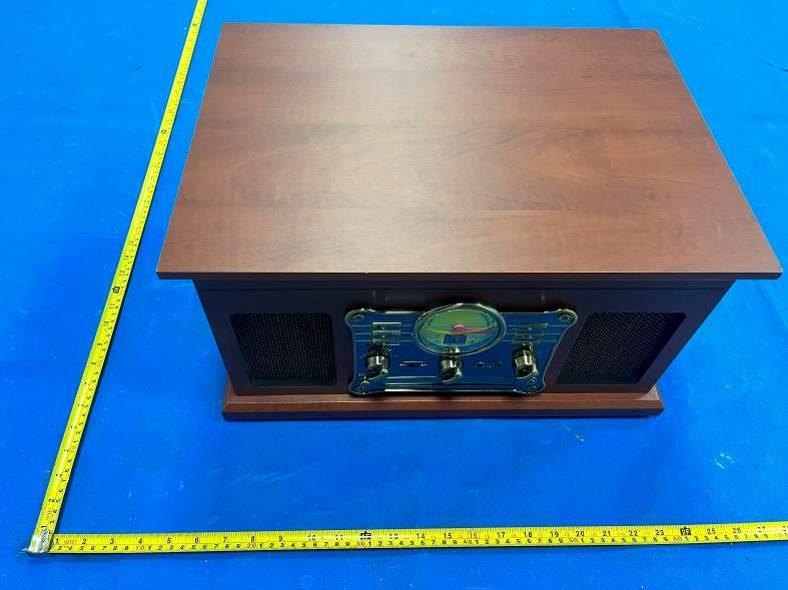

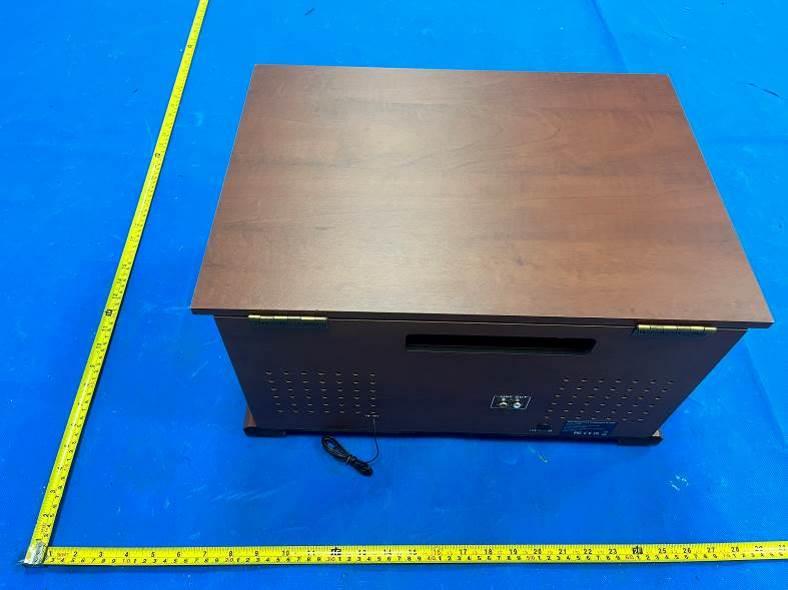

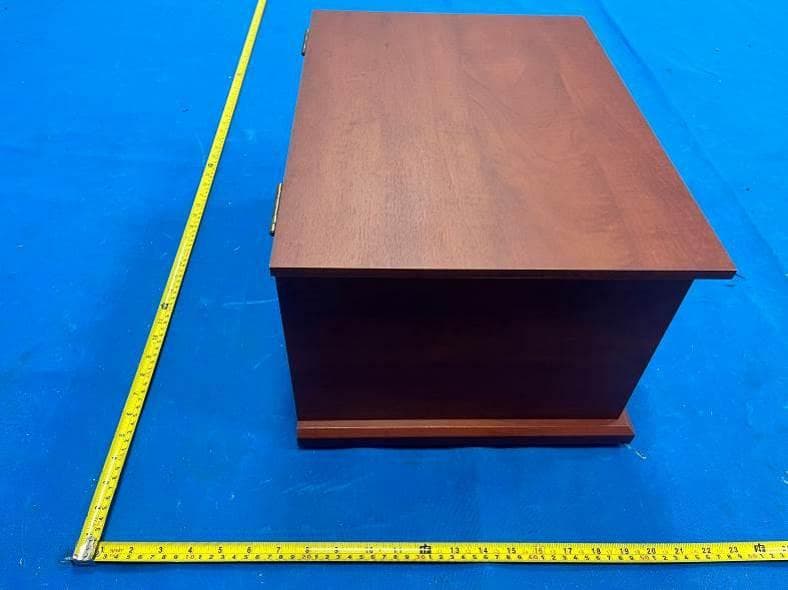

FCC ID: 2A59C-M506 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2A59C-M506 Photo 4 Photo 5 Photo 6 FCC ID: 2A59C-M506 Photo 7

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location Model No.: M506 FCC ID : 2A59C-M506

FCC ID: 2A59C-M506 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2A59C-M506 Photo 4 Photo 5 Photo 6 FCC ID: 2A59C-M506 Photo 7 Photo 8 Photo 9 FCC ID: 2A59C-M506 Photo 10 Photo 11 Photo 12 FCC ID: 2A59C-M506 Photo 13 Photo 14 Photo 15 BT PCB Antenna FM receiving Antenna FCC ID: 2A59C-M506 Photo 16 Photo 17 Photo 18 FCC ID: 2A59C-M506 Photo 19 Photo 20 Photo 21 FCC ID: 2A59C-M506 Photo 22 Photo 23 Photo 24 FCC ID: 2A59C-M506 Photo 25 Photo 26 Photo 27 FCC ID: 2A59C-M506 Photo 28 Photo 29 Photo 30 FCC ID: 2A59C-M506 Photo 31 Photo 32 Photo 33 FCC ID: 2A59C-M506 Photo 34

RF Exposure evaluation FCC ID: 2A59C-M506 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 1.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.480 5 2.0 1.58 0.4976<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type PCB antenna Model M506 Frequency range 2400-2500MHz Manufacturer Guangzhou H & F Electronics Technology Co., Ltd. ANT Peak Gain 1.49 dBi 2. Antenna Photo: Length: 14.67mm Width: 3.23mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA23111601301 2A59C-M506 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Nov. 21, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Guangzhou H & F Electronics Technology Co., Ltd. Address ............................................ : Room 101, Building 5, No.481 Tainan Road, Nansha District, Guangzhou Guangdong, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Multifunction Turntable Player Trade Mark ....................................... : N/A Manufacturer .................................... : Guangzhou H & F Electronics Technology Co., Ltd. Model/Type reference ...................... : M506 Listed Models .................................. : TP04 Modulation ....................................... : GFSK, Π/4DQPSK Frequency ......................................... From 2402MHz to 2480MHz Rating ............................................... : DC 12.0V From external circuit Result ............................................... : PASS Report No.: CTA23111601301 Page 2 of 53 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Multifunction Turntable Player Model /Type : M506 Listed Models : TP04 Applicant : Guangzhou H & F Electronics Technology Co., Ltd. Address : Room 101, Building 5, No.481 Tainan Road, Nansha District, Guangzhou Guangdong, China Manufacturer : Guangzhou H & F Electronics Technology Co., Ltd. Address : Room 101, Building 5, No.481 Tainan Road, Nansha District, Guangzhou Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23111601301 Page 3 of 53 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 5 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Output Power 20 4.4 20dB Bandwidth 21 4.5 Frequency Separation 24 4.6 Number of hopping frequency 26 4.7 Time of Occupancy (Dwell Time) 28 4.8 Out-of-band Emissions 31 4.9 Antenna Requirement 38 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 39 6 P H O T O S O F T H E E U T ............................................................. 40 Report No.: CTA23111601301 Page 4 of 53 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA23111601301 Page 5 of 53 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1 General Remarks Date of receipt of test …

Text truncated - open the document above for the full version.

Report No.: CTA23111601301 Page 36 of 53 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn π/4DQPSK Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Report No.: CTA23111601301 Page 37 of 53 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Pseudorandom Frequency Hopping Sequence TEST APPLICABLE For 47 CFR Part 15C section 15.247 (a) (1) requirement: Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hop-ping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400–2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 125 mW. The system shall hop to channel frequencies that are selected at the system hopping rate from a pseudo randomly ordered list of hopping frequencies. Each frequency must be used equally on the average by each transmitter. The system receivers shall have input bandwidths that match the hop-ping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals. EUT Pseudorandom Frequency Hopping Sequence Requirement The pseudorandom frequency hopping sequence may be generated in a nice-stage shift register whose 5 th and 9 th stage outputs are added in a modulo-two addition stage. And the result is fed back to the input of the first stage. The sequence begins with the first one of 9 consecutive ones, for example: the shift register is initialized with nine ones. ● Number of shift register stages:9 ● Length of pseudo-random sequence:29-1=511 bits ● Longest sequence of zeros:8(non-inverted signal) An example of pseudorandom frequency hopping sequence as follows: Each frequency used equally one the average by each transmitter. The system receiver have input bandwidths that match the hopping channel bandwidths of their corresponding transmitter and shift frequencies in synchronization with the transmitted signals. Report No.: CTA23111601301 Page 38 of 53 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.9 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (c), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. Refer to statement below for compliance The manufacturer may design the unit so that the user can replace a broken antenna, but the use of a standard antenna jack or electrical connector is prohibited. Further, this requirement does not apply to intentional radiators that must be professionally installed. Antenna Connected Construction The maximum gain of antenna was 1.49 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not assume any responsibility. Report No.: CTA23111601301 Page 39 of 53 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 5 T e s t S e t u p P h o t o s o f t h e E U T Report No.: CTA23111601301 Page 40 of 53 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 6 P h o t o s o f t h e E U T Report No.: CTA23111601301 Page 41 of 53 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23111601301 Page 42 of 53 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23111601301 Page 43 of 53 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial…

Text truncated - open the document above for the full version.
