Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2A5DZ-CT-LBWES CT-LBWES, CT-LBWES-WB We hereby acknowledge as follows: i. both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii. the point of contact provides the physical U.S. address and email as listed below iii. both parties maintain the requirements of this agreement without expiration date US-American Point of Contact Applicant/Approval Holder Signature Date: 2026-09-14 Signature Date: 2026-09-14 Company Name: WeFa Selection Trade Technology Co., LTD HHO (Hangzhou) Digital Technology Co., Ltd. FRN: 0033767856 0032046344 Contact Name: Joson Ye Shouchuang Zhang Address: 30 N. GOULD ST. STE N SHERIDAN WY, SHERIDAN, WY 82801, United States Building 9, Haizhi Center, Cangqian Street, Yuhang District, Hangzhou City, Zhejiang Province, China Phone: (302) 371 9847 +86-18688939429 Email: [email protected] [email protected]

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2A5DZ-CT-LBWES CT-LBWES, CT-LBWES-WB We, Applicant Company Name: HHO (Hangzhou) Digital Technology Co., Ltd. Address: Building 9, Haizhi Center, Cangqian Street, Yuhang District, Hangzhou City, Zhejiang Province, China Phone: +86-18688939429 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of ist successors and assignees. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-09-14 Signature Date Name / Title: Shouchuang Zhang / Project Manager Company: HHO (Hangzhou) Digital Technology Co., Ltd. Address: Building 9, Haizhi Center, Cangqian Street, Yuhang District, Hangzhou City, Zhejiang Province, China Phone: +86-18688939429 Fax: +86-18688939429 E-Mail: [email protected]

Due Diligence Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern FCC ID Model name 2A5DZ-CT-LBWES CT-LBWES, CT-LBWES-WB Pursuant to KDB 986446 D01 Covered Equipment Guidance the evaluation of the product above shows compliance for the following reasons: Compliance Evaluation process Results Inherent compliance The chipset(s) used is not capable of running the cybersecurity and/or anti-virus software Compliance The memory used does not allow the running the cybersecurity and/or anti-virus software Compliance The storage capacity does not allow the running the cybersecurity and/or anti-virus software Compliance The operating system used is not capable of running the cybersecurity and/or anti-virus software Compliance No inherent compliance Based on software bill of material Based on scan for running software on the device Based on filesystem scan for cybersecurity and/or anti-virus software The equipment for which authorization is sought complies with the rules and fulfils the requirements as detailed in the above mentioned KDB. Evaluation performed by Company Name: Shenzhen Haiyun Standard Technical CO., Ltd. Contact Name: Tim Zhang Address: No. 110-113, 115, 116, Block B, Jinyuan Business Building, Bao'an District, Shenzhen, China Phone: +86-18824863674 Email: [email protected] Signature: Date: 2026-09-13

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2A5DZ-CT-LBWES CT-LBWES, CT-LBWES-WB For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-09-14 Signature Date Name / Title: Shouchuang Zhang / Project Manager Company: HHO (Hangzhou) Digital Technology Co., Ltd. Address: Building 9, Haizhi Center, Cangqian Street, Yuhang District, Hangzhou City, Zhejiang Province, China Phone: +86-18688939429 Fax: +86-18688939429 E-Mail: [email protected]

HHO (Hangzhou) Digital Technology Co., Ltd. Building 9, Haizhi Center, Cangqian Street, Yuhang District, Hangzhou City, Zhejiang Province, China Date: September 14, 2026 FCC ID: 2A5DZ-CT-LBWES Model Number: CT-LBWES, CT-LBWES-WB To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, HHO (Hangzhou) Digital Technology Co., Ltd. hereby declare that our product (HHOLOVE Automatic Cat Litter Box Ease) Model Number: CT-LBWES, CT-LBWES-WB board, Schematic, Hardware version, Software version, structure and internal photos are same, only model named differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Printed Name of Signature / Title: Shouchuang Zhang / Project Manager Company: HHO (Hangzhou) Digital Technology Co., Ltd. Address: Building 9, Haizhi Center, Cangqian Street, Yuhang District, Hangzhou City, Zhejiang Province, China Phone: +86-18688939429 Fax: +86-18688939429 Email: [email protected]

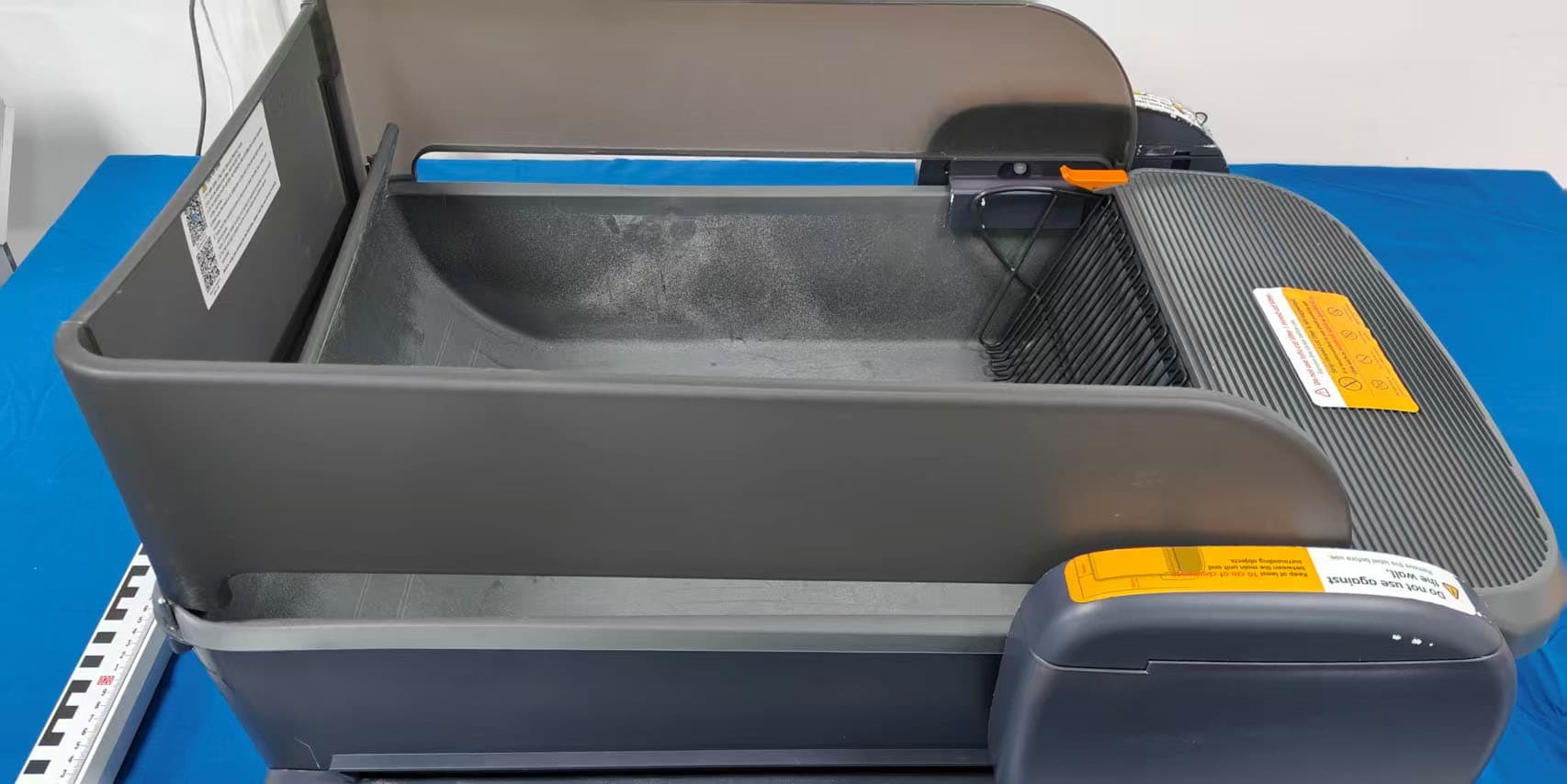

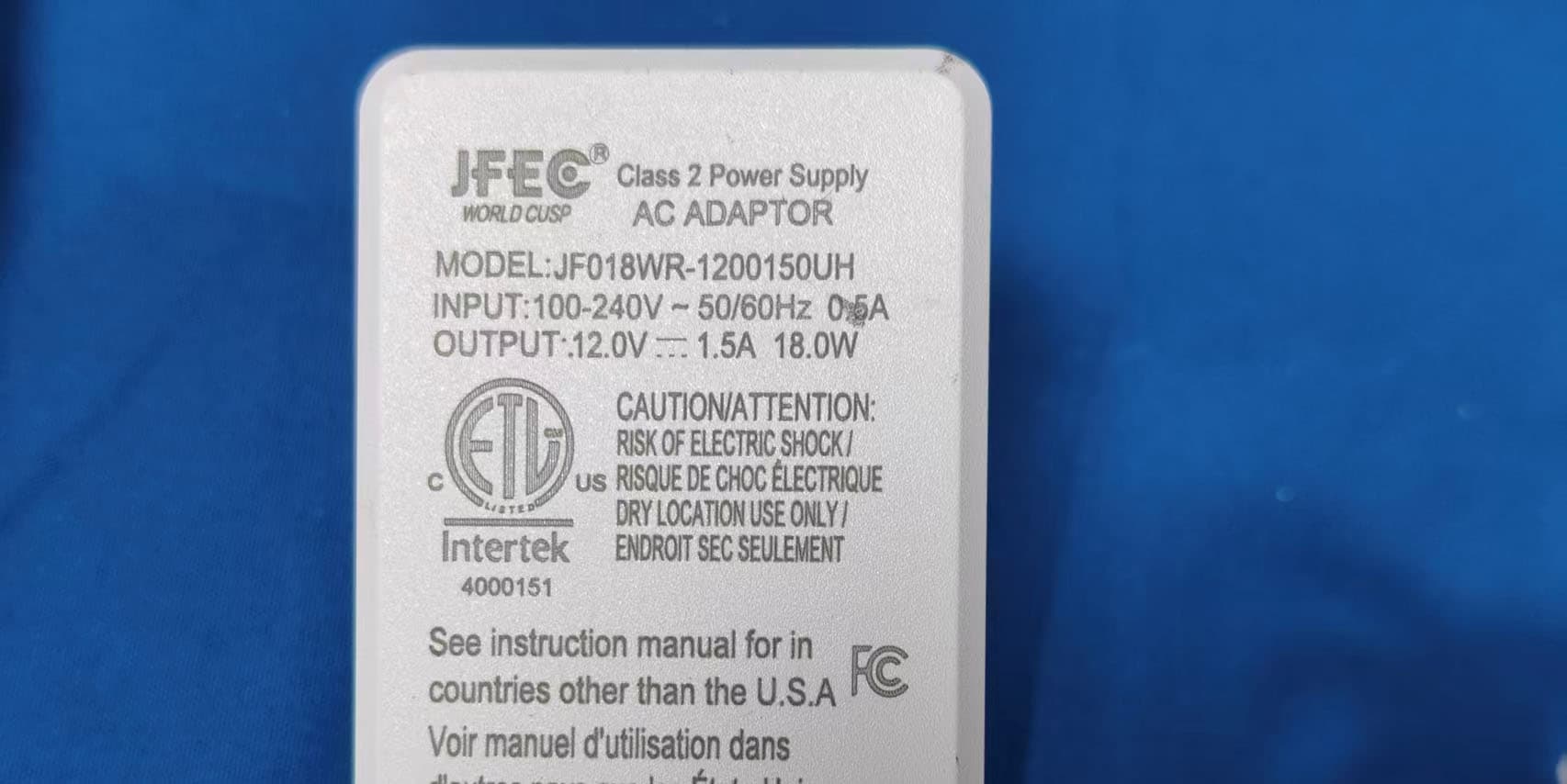

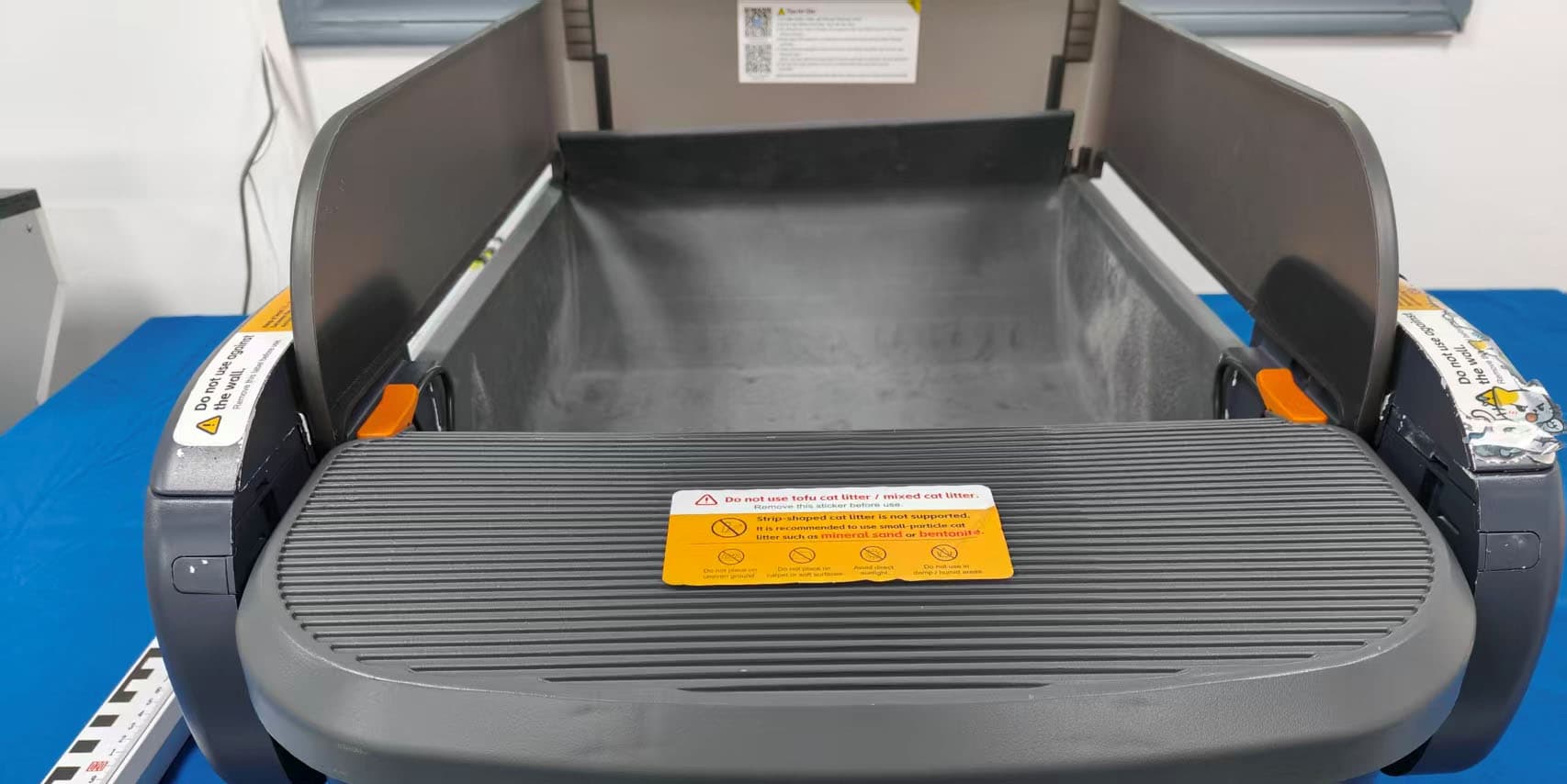

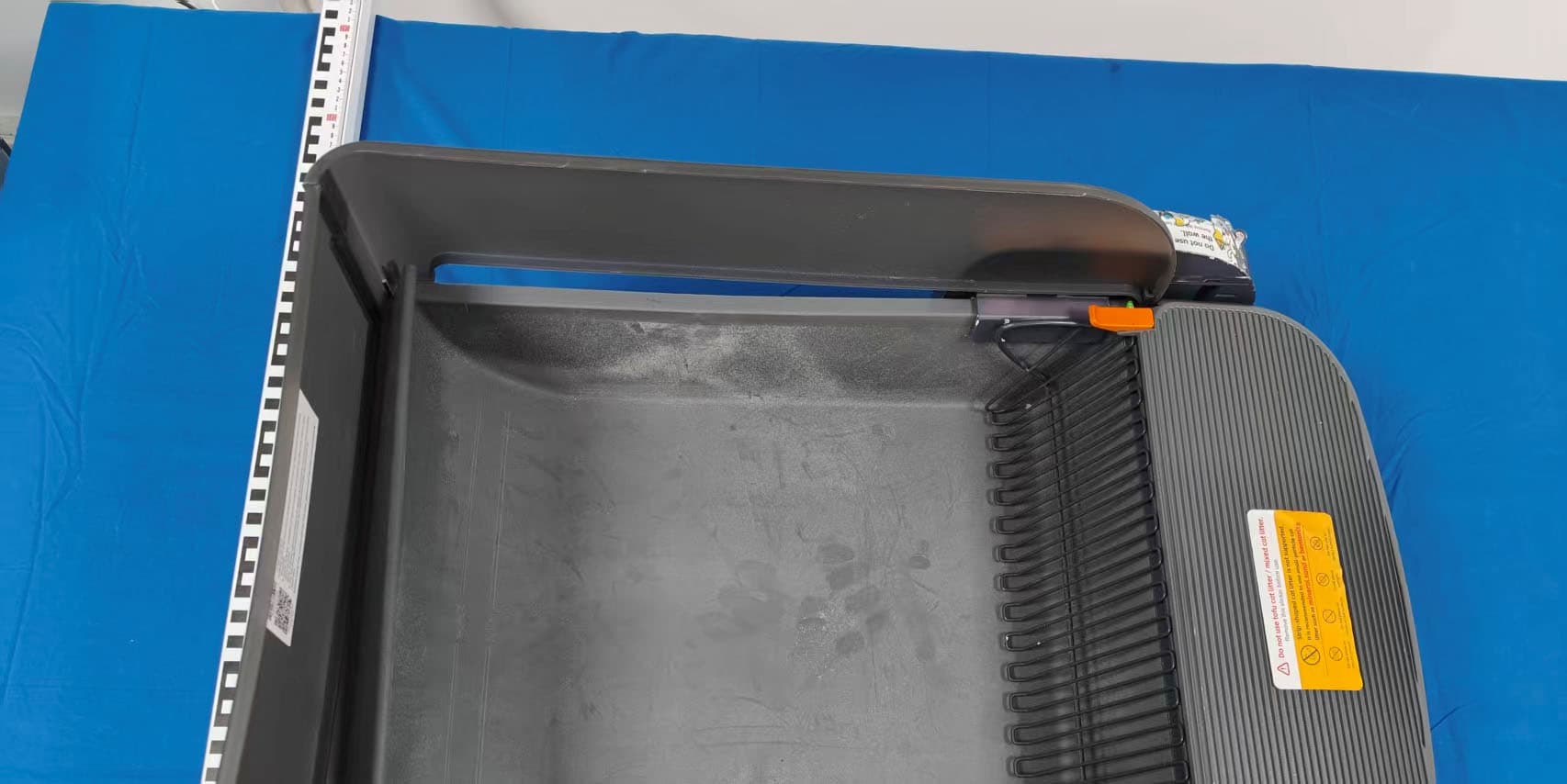

FCC ID: 2A5DZ-CT-LBWES Page 1 / 4 EUT EXTERNAL PHOTO EUT Photo EUT Photo FCC ID: 2A5DZ-CT-LBWES Page 2 / 4 EUT Photo EUT Photo FCC ID: 2A5DZ-CT-LBWES Page 3 / 4 EUT Photo EUT Photo FCC ID: 2A5DZ-CT-LBWES Page 4 / 4 EUT Photo EUT Photo

FCC ID: 2A5DZ-CT-LBWES Page 1 / 7 EUT INTERNAL PHOTOS EUT Photo EUT Photo BT & 2.4G WIFI Antenna FCC ID: 2A5DZ-CT-LBWES Page 2 / 7 EUT Photo EUT Photo FCC ID: 2A5DZ-CT-LBWES Page 3 / 7 EUT Photo V EUT Photo FCC ID: 2A5DZ-CT-LBWES Page 4 / 7 EUT Photo EUT Photo FCC ID: 2A5DZ-CT-LBWES Page 5 / 7 EUT Photo EUT Photo FCC ID: 2A5DZ-CT-LBWES Page 6 / 7 EUT Photo EUT Photo FCC ID: 2A5DZ-CT-LBWES Page 7 / 7 EUT Photo EUT Photo

HY-FCC 2.1091 Ver.1.1 Page 1 of 5 Report No.: RF260901001-01-004 FCC RF EXPOSURE REPORT FCC ID: 2A5DZ-CT-LBWES Tes t Report No...........: RF260901001-01-004 Product(s) Name.........: HHOLOVE Automatic Cat Litter Box Ease Model(s)....................: CT-LBWES, CT-LBWES-WB Trade Mark................: HHOLOVE, ABRCT Applicant...................: HHO (Hangzhou) Digital Technology Co., Ltd. Address....................: Building 9, Haizhi Center, Cangqian Street, Yuhang District, Hangzhou City, Zhejiang Province, China Receipt Date..............: 2026.09.03 Test Date...................: 2026.09.04 ~ 2026.09.14 Issued Date................: 2026.09.14 Standards..................: FCC Guidelines for Human Exposure IEEE C95.1 FCC Title 47 Part 2.1091 KDB 447498 D01 General RF Exposure Guidance v06 Testing Laboratory......: Shenzhen Haiyun Standard Technical Co., Ltd. Prepared By: Checked By: Approved By: Lemon He Black Ding Tim Zhang HY-FCC 2.1091 Ver.1.1 Page 2 of 5 Report No.: RF260901001-01-004 History of this test report Original Report Issue Date: 2026.09.14 ● No additional attachment ○ Additional attachments were issued following record Attachment No. Issue Date Description HY-FCC 2.1091 Ver.1.1 Page 3 of 5 Report No.: RF260901001-01-004 1. MPE CALCULATION METHOD Radio Frequency Exposure Limit Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm²) 300-1,500 -- -- f/1500 1,500-100,000 -- -- 1.0 Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna For BDR+EDR/BLE/2.4GHz_WiFi: Antenna gain Antenna Type 2.54dBi PCB Antenna HY-FCC 2.1091 Ver.1.1 Page 4 of 5 Report No.: RF260901001-01-004 2. TEST RESULTS Worst case as below Operating Mode Freq. Maximum conducted output power Directional Antenna Gain Calculated maximum EIRP MPE Limit MPE Value (MHz) (dBm) (dBi) (dBm) (mW) (mW/cm 2 ) 2.4G Wifi 2412-2462 11.52 2.54 14.06 25.47 1 0.0051 BDR+EDR 2402-2480 1.60 2.54 4.14 2.59 1 0.0005 BLE 2402-2480 1.49 2.54 4.03 2.53 1 0.0005 Note: 1. The calculated distance is 20 cm. 2. The Wifi function can transmit at the same time with the BT function. Simultaneous transmitting consideration(worst case) The ratio= MPEBDR+EDR/limit+MPE2.4G Wifi/limit =0.0005/1+0.0051/1=0.0056<1.0 Result: Complies HY-FCC 2.1091 Ver.1.1 Page 5 of 5 Report No.: RF260901001-01-004 Statement 1. The report is invalid without the official seal or special seal of Shenzhen Haiyun Standard Technical Co., Ltd. (hereinafter referred to as the unit). 2. The report is invalid without the signature of the approver. 3. The report is invalid if altered arbitrarily. 4. The report shall not be partially copied without the written approval of the unit. 5. The reported test results are only valid for the tested samples. 6. If there is any objection to the test report, it shall be submitted to the test unit within 15 days from the date of receiving the report, and the overdue shall not be accepted. Shenzhen Haiyun Standard Technical Co., Ltd. Address: Room 110, 111, 112, 113, 115, 116, Block B, Jinyuan Business Building, No. 302, Xixiang Avenue, Labor Community, Xixiang Street, Baoan District, Shenzhen, China (END OF REPORT)

AntennaSpecification Manufacture：TUYA ProductName：WBR3Antenna AntennaType：PCB TestDate：2021.05.20 Testedby：LongWang Approvedby：Licco Content 1.GeneralDescription.................................................................................1 2.TestConfigurations...................................................................................2 2.1TestEnvironment............................................................................2 2.2TestEquipment...............................................................................2 2.3TestPrinciple...................................................................................2 3.TestResults..............................................................................................3 3.1GainandEfficiency..........................................................................3 3.2RadiationPattern............................................................................4 4.AntennaDimensions................................................................................6 5.EUTPhoto................................................................................................6 6.TestSetupPhoto......................................................................................7 1 1.GeneralDescription ManufacturerHangzhouTuyaInformationTechnologyCo.,Ltd Address Room701,Building3,MoreCenter,No.87GuDunRoad, Hangzhou,Zhejiang,China TestLocation Room106,Building3,LetongSciencePark,No.500, QiuyiRoad,BinjiangDistrict,Hangzhou ProductNameWBR3Antenna Productmodel WBR3 AntennaType PCBAntenna TestItems Gain;Efficiency;RadiationPattern TestFrequency 2400-2500MHz TestStandard ANSI/IEEEStd149-1979 2 2.TestConfigurations 2.1TestEnvironment Temperature(°C)25 Humidity(%RH)60 AtmosphericPressure(kPa)100.5 2.2TestEquipment TestSystemTEM24Multi-probeMicrowaveChamber TestInstrumentAgilentE5071B 2.3TestPrinciple 3 3.TestResults 3.1GainandEfficiency Frequency(MHz)PeakGain(dBi)Efficiency(%) 2400 1.6252.29 2410 1.7152.17 2420 1.9353.14 2430 1.9854.16 2440 2.0057.62 2450 2.1759.64 2460 2.4561.55 2470 2.3860.64 2480 2.5462.86 2490 2.3059.85 2500 2.4960.41 4 3.2RadiationPattern Phi02D Phi902D 5 Theta902D 2480MHz3D 6 4.AntennaDimensions 5.EUTPhoto 7 6.TestSetupPhoto

HY-FCC part 15C-BT Ver.1.1 Page 1 of 91 Report No.: RF260901001-01-003 RF TEST REPORT FCC ID: 2A5DZ-CT-LBWES Test Report No...........: RF260901001-01-003 Product(s) Name.........: HHOLOVE Automatic Cat Litter Box Ease Model(s)....................: CT-LBWES, CT-LBWES-WB Trade Mark................: HHOLOVE, ABRCT Applicant...................: HHO (Hangzhou) Digital Technology Co., Ltd. Address....................: Building 9, Haizhi Center, Cangqian Street, Yuhang District, Hangzhou City, Zhejiang Province, China Receipt Date..............: 2026.09.03 Test Date...................: 2026.09.04 ~ 2026.09.14 Issued Date................: 2026.09.14 Standards..................: 47 CFR FCC Part 15, Subpart C(Section 15.247) ANSI C63.10-2020+Cor. 1-2023 Testing Laboratory......: Shenzhen Haiyun Standard Technical Co., Ltd. Prepared By: Checked By: Approved By: Lemon He Black Ding Tim Zhang HY-FCC part 15C-BT Ver.1.1 Page 2 of 91 Report No.: RF260901001-01-003 Table of Contents 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 9 2.3 PARAMETERS OF TEST SOFTWARE 10 2.4 SUPPORT UNITS 10 3 . AC POWER LINE CONDUCTED EMISSIONS 11 3.1 LIMIT 11 3.2 TEST PROCEDURE 11 3.3 DEVIATION FROM TEST STANDARD 11 3.4 TEST SETUP 12 3.5 EUT OPERATING CONDITIONS 12 3.6 TEST RESULTS 12 4 . RADIATED EMISSIONS 13 4.1 LIMIT 13 4.2 TEST PROCEDURE 14 4.3 DEVIATION FROM TEST STANDARD 15 4.4 TEST SETUP 15 4.5 EUT OPERATING CONDITIONS 16 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 16 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 16 4.8 TEST RESULTS - ABOVE 1000 MHZ 16 5 . NUMBER OF HOPPING FREQUENCY 17 5.1 LIMIT 17 5.2 TEST PROCEDURE 17 5.3 DEVIATION FROM STANDARD 17 5.4 TEST SETUP 17 5.5 EUT OPERATION CONDITIONS 17 5.6 TEST RESULTS 17 6 . AVERAGE TIME OF OCCUPANCY 18 6.1 LIMIT 18 6.2 TEST PROCEDURE 18 6.3 DEVIATION FROM STANDARD 18 HY-FCC part 15C-BT Ver.1.1 Page 3 of 91 Report No.: RF260901001-01-003 6.4 TEST SETUP 19 6.5 EUT OPERATION CONDITIONS 19 6.6 TEST RESULTS 19 7 . HOPPING CHANNEL SEPARATION 20 7.1 LIMIT 20 7.2 TEST PROCEDURE 20 7.3 DEVIATION FROM STANDARD 20 7.4 TEST SETUP 20 7.5 EUT OPERATION CONDITIONS 20 7.6 TEST RESULTS 20 8 . BANDWIDTH 21 8.1 LIMIT 21 8.2 TEST PROCEDURE 21 8.3 DEVIATION FROM STANDARD 21 8.4 TEST SETUP 21 8.5 EUT OPERATION CONDITIONS 21 8.6 TEST RESULTS 21 9 . MAXIMUM OUTPUT POWER 22 9.1 LIMIT 22 9.2 TEST PROCEDURE 22 9.3 DEVIATION FROM STANDARD 22 9.4 TEST SETUP 22 9.5 EUT OPERATION CONDITIONS 22 9.6 TEST RESULTS 22 10 . CONDUCTED SPURIOUS EMISSION 23 10.1 LIMIT 23 10.2 TEST PROCEDURE 23 10.3 DEVIATION FROM STANDARD 23 10.4 TEST SETUP 23 10.5 EUT OPERATION CONDITIONS 23 10.6 TEST RESULTS 23 11 . MEASUREMENT INSTRUMENTS LIST 24 12 . ANTENNA REQUIREMENT 25 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 26 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 29 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 30 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 33 HY-FCC part 15C-BT Ver.1.1 Page 4 of 91 Report No.: RF260901001-01-003 APPENDIX E - NUMBER OF HOPPING FREQUENCY 34 APPENDIX F - AVERAGE TIME OF OCCUPANCY 36 APPENDIX G - HOPPING CHANNEL SEPARATION 47 APPENDIX H - BANDWIDTH 50 APPENDIX I - MAXIMUM OUTPUT POWER 61 APPENDIX J - CONDUCTED SPURIOUS EMISSION 67 APPENDIX K - DECLARATION FOR BLUETOOTH DEVICE 88 HY-FCC part 15C-BT Ver.1.1 Page 5 of 91 Report No.: RF260901001-01-003 HISTORY OF THIS TEST REPORT Original Report Issue Date: 2026.09.14 ● No additional attachment ○ Additional attachments were issued following record Attachment No. Issue Date Description HY-FCC part 15C-BT Ver.1.1 Page 6 of 91 Report No.: RF260901001-01-003 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emission APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247 (a)(1)(iii) Number of Hopping Frequency APPENDIX E PASS ------ 15.247 (a)(1)(iii) Average Time of Occupancy APPENDIX F PASS ------ 15.247(a)(1) Hopping Channel Separation APPENDIX G PASS ------ 15.247(a)(1) Bandwidth APPENDIX H PASS ------ 15.247(a)(1) Maximum Output Power APPENDIX I PASS ------ 15.247(d) Conducted Spurious Emission APPENDIX J PASS ------ 15.203 Antenna Requirement ------ PASS Note(2) Note: (1) “N/A” denotes test is not applicable in this test report (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203. HY-FCC part 15C-BT Ver.1.1 Page 7 of 91 Report No.: RF260901001-01-003 1.1 TEST FACILITY Company: Shenzhen Haiyun Standard Technical Co., Ltd. Address: No. 110-113, 115, 116, Block B, Jinyuan Business Building, Bao'an District, Shenzhen, China CNAS Registration Number: CNAS L18252 FCC Designation Number CN1340 CAB identifier: CN0145 A2LA Certificate Number: 6823.01 1.2 MEASUREMENT UNCERTAINTY ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)) Uncertainty Parameter Uncertainty Occupied Channel Bandwidth ±102kHz RF power conducted ±0.243dB Power Spectral Density ±0.743dB Conducted Spurious Emission ±1.328dB Time ±0.19％ Conducted emission(9kHz~30MHz) AC main ±2.68dB Radiated emission(9kHz~30MHz) ±3.50dB Radiated emission (30MHz~1GHz) ±4.20dB Radiated emission (1GHz~18GHz) ±5.10dB Radiated emission (18GHz~40GHz) ±5.26dB Note: Unless specifically mentioned, the uncertainty of measurement has not been taken into account to declare the compliance or non-compliance to the specification. 1.3 TEST ENVIRONMENT CONDITIONS Test Item Temperature Humidity Test Voltage Tested By AC Power Line Conducted Emissions 24.6°C 58% AC 120V/60H…

Text truncated - open the document above for the full version.

HY-FCC part 15C-BT Ver.1.1 Page 61 of 91 Report No.: RF260901001-01-003 APPENDIX I - MAXIMUM OUTPUT POWER HY-FCC part 15C-BT Ver.1.1 Page 62 of 91 Report No.: RF260901001-01-003 Test Mode Antenna Freq(MHz) Conducted Peak Power[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 1.31 ≤20.97 PASS 2441 1.60 ≤20.97 PASS 2480 1.13 ≤20.97 PASS 2DH5 Ant1 2402 0.54 ≤20.97 PASS 2441 0.60 ≤20.97 PASS 2480 0.11 ≤20.97 PASS 3DH5 Ant1 2402 0.35 ≤20.97 PASS 2441 0.71 ≤20.97 PASS 2480 0.12 ≤20.97 PASS Test Graphs DH5-Ant1-2402-PASS HY-FCC part 15C-BT Ver.1.1 Page 63 of 91 Report No.: RF260901001-01-003 DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS HY-FCC part 15C-BT Ver.1.1 Page 64 of 91 Report No.: RF260901001-01-003 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS HY-FCC part 15C-BT Ver.1.1 Page 65 of 91 Report No.: RF260901001-01-003 2DH5-Ant1-2480-PASS 3DH5-Ant1-2402-PASS HY-FCC part 15C-BT Ver.1.1 Page 66 of 91 Report No.: RF260901001-01-003 3DH5-Ant1-2441-PASS 3DH5-Ant1-2480-PASS HY-FCC part 15C-BT Ver.1.1 Page 67 of 91 Report No.: RF260901001-01-003 APPENDIX J - CONDUCTED SPURIOUS EMISSION HY-FCC part 15C-BT Ver.1.1 Page 68 of 91 Report No.: RF260901001-01-003 Test Graphs DH5-Ant1-2402-0~Reference-PASS DH5-Ant1-2402-30~1000-PASS HY-FCC part 15C-BT Ver.1.1 Page 69 of 91 Report No.: RF260901001-01-003 DH5-Ant1-2402-1000~26500-PASS DH5-Ant1-2441-0~Reference-PASS HY-FCC part 15C-BT Ver.1.1 Page 70 of 91 Report No.: RF260901001-01-003 DH5-Ant1-2441-30~1000-PASS DH5-Ant1-2441-1000~26500-PASS HY-FCC part 15C-BT Ver.1.1 Page 71 of 91 Report No.: RF260901001-01-003 DH5-Ant1-2480-0~Reference-PASS DH5-Ant1-2480-30~1000-PASS HY-FCC part 15C-BT Ver.1.1 Page 72 of 91 Report No.: RF260901001-01-003 DH5-Ant1-2480-1000~26500-PASS 2DH5-Ant1-2402-0~Reference-PASS HY-FCC part 15C-BT Ver.1.1 Page 73 of 91 Report No.: RF260901001-01-003 2DH5-Ant1-2402-30~1000-PASS 2DH5-Ant1-2402-1000~26500-PASS HY-FCC part 15C-BT Ver.1.1 Page 74 of 91 Report No.: RF260901001-01-003 2DH5-Ant1-2441-0~Reference-PASS 2DH5-Ant1-2441-30~1000-PASS HY-FCC part 15C-BT Ver.1.1 Page 75 of 91 Report No.: RF260901001-01-003 2DH5-Ant1-2441-1000~26500-PASS 2DH5-Ant1-2480-0~Reference-PASS HY-FCC part 15C-BT Ver.1.1 Page 76 of 91 Report No.: RF260901001-01-003 2DH5-Ant1-2480-30~1000-PASS 2DH5-Ant1-2480-1000~26500-PASS HY-FCC part 15C-BT Ver.1.1 Page 77 of 91 Report No.: RF260901001-01-003 3DH5-Ant1-2402-0~Reference-PASS 3DH5-Ant1-2402-30~1000-PASS HY-FCC part 15C-BT Ver.1.1 Page 78 of 91 Report No.: RF260901001-01-003 3DH5-Ant1-2402-1000~26500-PASS 3DH5-Ant1-2441-0~Reference-PASS HY-FCC part 15C-BT Ver.1.1 Page 79 of 91 Report No.: RF260901001-01-003 3DH5-Ant1-2441-30~1000-PASS 3DH5-Ant1-2441-1000~26500-PASS HY-FCC part 15C-BT Ver.1.1 Page 80 of 91 Report No.: RF260901001-01-003 3DH5-Ant1-2480-0~Reference-PASS 3DH5-Ant1-2480-30~1000-PASS HY-FCC part 15C-BT Ver.1.1 Page 81 of 91 Report No.: RF260901001-01-003 3DH5-Ant1-2480-1000~26500-PASS HY-FCC part 15C-BT Ver.1.1 Page 82 of 91 Report No.: RF260901001-01-003 Band edge DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS HY-FCC part 15C-BT Ver.1.1 Page 83 of 91 Report No.: RF260901001-01-003 DH5-Ant1-Hop_2402-PASS DH5-Ant1-Hop_2480-PASS HY-FCC part 15C-BT Ver.1.1 Page 84 of 91 Report No.: RF260901001-01-003 2DH5-Ant1-2402-PASS 2DH5-Ant1-2480-PASS HY-FCC part 15C-BT Ver.1.1 Page 85 of 91 Report No.: RF260901001-01-003 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS HY-FCC part 15C-BT Ver.1.1 Page 86 of 91 Report No.: RF260901001-01-003 3DH5-Ant1-2402-PASS 3DH5-Ant1-2480-PASS HY-FCC part 15C-BT Ver.1.1 Page 87 of 91 Report No.: RF260901001-01-003 3DH5-Ant1-Hop_2402-PASS 3DH5-Ant1-Hop_2480-PASS HY-FCC part 15C-BT Ver.1.1 Page 88 of 91 Report No.: RF260901001-01-003 APPENDIX K - DECLARATION FOR BLUETOOTH DEVICE HY-FCC part 15C-BT Ver.1.1 Page 89 of 91 Report No.: RF260901001-01-003 1. Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device has no influence on the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2. Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 - 2480MHz. This is according to the Bluetooth Core Specification (+ critical errata) for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04-E). Other frequency ranges (e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3. Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organised in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from its BD address which is unique for each Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4. Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 5. Equally average use of frequencies in data mode and behaviour for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: a) LAP/UAP of the master of the connection. b) Internal master clock. The LAP (lower address part) a…

Text truncated - open the document above for the full version.

FCC ID: 2A5DZ-CT-LBWES Page 1 / 2 APPENDIX PHOTOS OF TEST SETUP Radiated Spurious Emission, Below 1GHz Radiated Spurious Emission, Above 1GHz FCC ID: 2A5DZ-CT-LBWES Page 2 / 2 Conducted Emission
